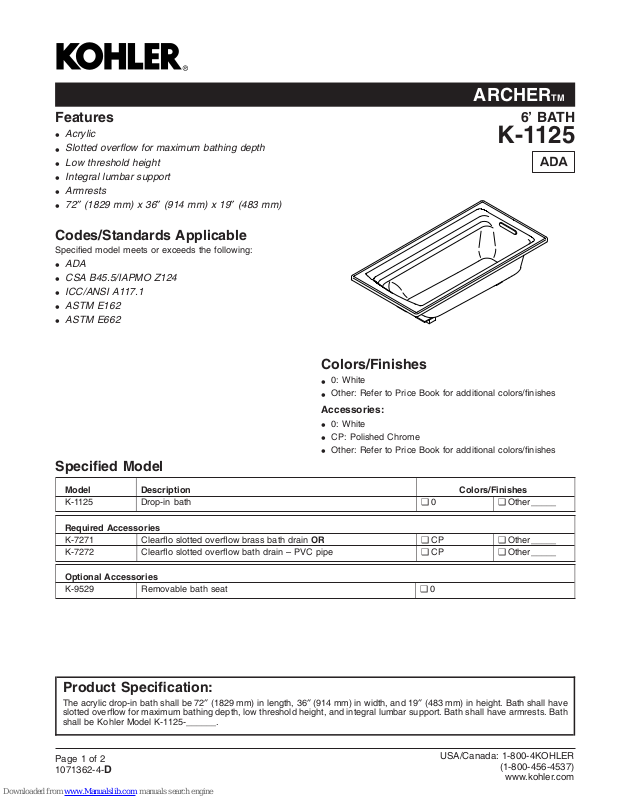

Kohler K-1125 Specifications
ARCHERTM
Features
Acrylic
•
Slotted overflow for maximum bathing depth
•
Low threshold height
•
Integral lumbar support
•
Armrests
•
72″ (1829 mm) x 36″ (914 mm) x 19″ (483 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ADA
•
CSA B45.5/IAPMO Z124
•
ICC/ANSI A117.1
•
ASTM E162
•
ASTM E662
•
Specified Model
6’ BATH
K-1125
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories:
0: White
•
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1125 Drop-in bath ❑ 0 ❑ Other_____
Required Accessories
K-7271 Clearflo slotted overflow brass bath drain OR ❑ CP ❑ Other_____
K-7272 Clearflo slotted overflow bath drain – PVC pipe ❑ CP ❑ Other_____
Optional Accessories
K-9529 Removable bath seat ❑ 0
Product Specification:
The acrylic drop-in bath shall be 72″ (1829 mm) in length, 36″ (914 mm) in width, and 19″ (483 mm) in height. Bath shall have
slotted overflow for maximum bathing depth, low threshold height, and integral lumbar support. Bath shall have armrests. Bath
shall be Kohler Model K-1125-______.
Page 1 of 2
1071362-4-
D
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
ARCHERTM
Technical Information
Fixture*:
Bathing well
Basin area 51-3/8″ (1304 mm) x 21″ (533 mm)
Top area 64-1/2″ (1638 mm) x 30-1/2″
(775 mm)
Weight 70 lbs (31.7 kg)
To overflow
Water depth 15″ (381 mm)
Capacity 72 gal (273 L)
* Approximate measurements for comparison only.
Drop-in cut-out 70-1/2″ (1791 mm) x 34-1/2″ (877 mm)
Installation Notes
Install this product according to the installation guide.
Floor support under this product must provide for a minimum
of 39 lbs/square foot (189 kg/square meter) loading.
The hot water supply should be 70% of the capacity of the
bath or greater. Installations will vary.
This bath is designed for drop-in installation only. It is not
suited for use in a three wall alcove with an overhead shower.
Will comply with ADA when installed per Section 607
Bathtubs of the Act.
No change in measurements if connected
with drain illustrated. (K-7272)
18"
(457 mm)
1-1/4"
(32 mm)
2-1/2"
(64 mm)
1-1/2"
Bath Drain
11-1/4"
(286 mm)
4-1/8"
(105 mm)
72" (1829 mm)
3/4" (19 mm)
Product Diagram
1-1/2"
(38 mm)
Drop-in Rim
Detail
36" (914 mm)
19"
(483 mm)
ARCHERTM 6’ BATH
Page2of2
1071362-4-
D
