Page 1
ESCALE MIRROR
INSTALLATION INSTRUCTIONS
23264IN-NF

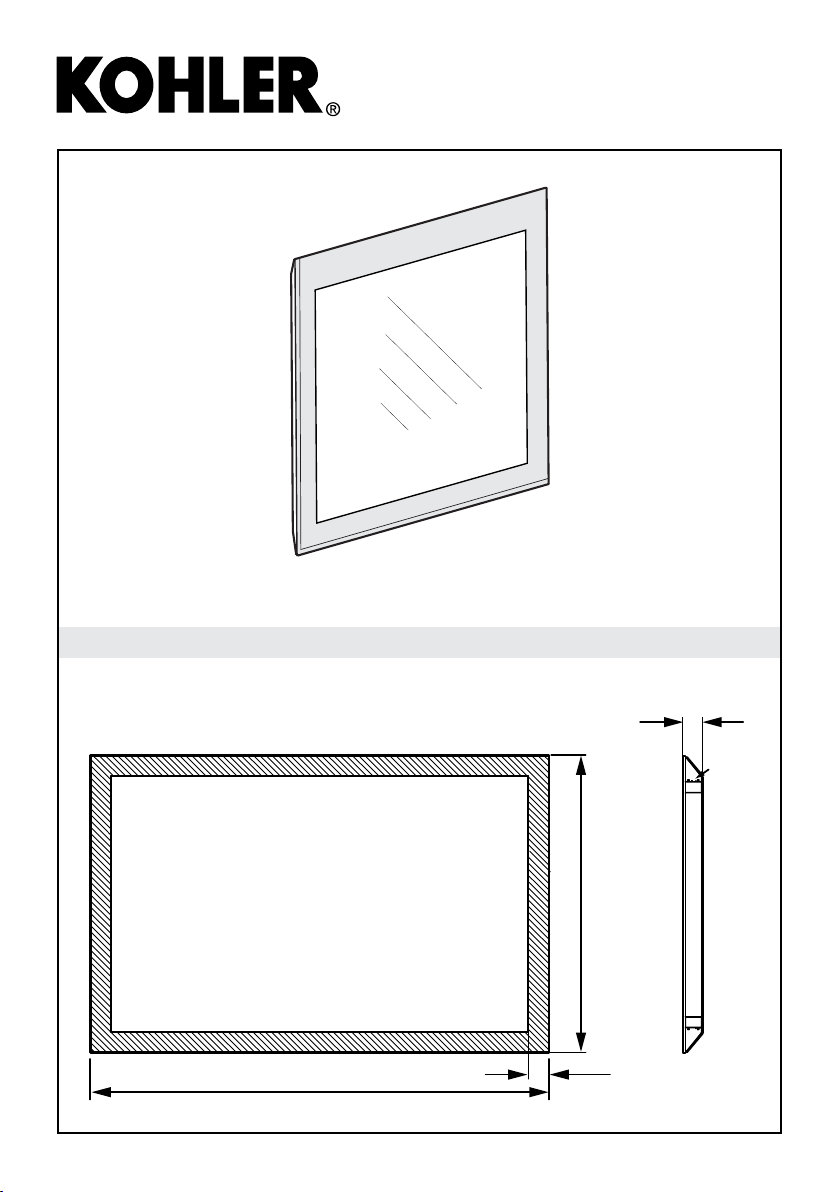

PRODUCT DIMENSIONS
1000MM
39 3/8”(100cm)
1 11/16” (4.3cm)
25 9/16”(6.5cm)
1 3/4”(4.5cm)
All dimensions are in Inch(cm).
1 1325222-IN2-A
Page 2
INSTALLATION INSTRUCTION
Locate the marking and drill the holes for mounting mirror on wall.
1
2 5/8”
(6.7cm)
X/2
25 9/16” (65cm)
76 3/4” (195cm)
220~240V
Make electrical connection as shown in image and mount mirror on the
2
specied screws.
2.1
X
12 13/16”
(32.5cm)
Cable type H05 V V-F 2 x 1 mm²
2.3
2 5/8”
(6.7cm)
5 15/16”
(15cm)
2.5
2.2
220~240V
2.4
21325222-IN2-A
Page 3
USER MAINTENANCE
Warning! Risk of product damage.
1. Many cleansers contain abrasive and chemical substance which is not
suitable for cleaning stainless steel, enamel. plating or plastic products.
You may use mild cleansers or soaps to clean the surfaces. Wipe any
splashes of cleaner solutions from the surface with clean soft cloth.
2. Maintain ventilation in the bathroom. and separate the dry area from the
damp one if conditions permit. Try to open the door and windows of the
bathroom and maintain good ventilation.
3. Kohler mirrored cabinet are dealt with strict procedures for damp-proof.
whose good damp-proof function ensures good performance even in
bathroom of huge humidity. Yet do not splash and pour water directly on
the mirrored cabinet. Make sure that the bathroom is not over damp and
wipe any splashes from surfaces immediately.
4. Maintenance of door board: Clean and wipe door board regularly, and
wipe the condensation vapor with dry and soft cloth.
5. The mirrored cabinet door and interior are constructed of mirror and
aluminum. Use only a damp cloth to clean. Spray the cloth, not the mirror
when cleaning. Mirrors are damaged by the use of ammonia or vinegar
based cleaners. Rubbing alcohol can be used for stubborn stains.
6. Use no abrasive cleansers on any part of the mirrored cabinet.
7. The black frame should be cleaned with a damp cloth only.
3 1325222-IN2-A
Page 4
SPARE PARTS
S.NO PART NUMBER DESCRIPTION
1.
2. 1327515 Driver SLT15-12VF-2S 15W Max, 12VDC, 0-1.25A
1323610
1323610
Sensor switch 902, Max loading 500W
1327515
Kohler India Corporation Pvt. Ltd.
6th Floor, Ofce Tower, Ambience Island,
NH-8, Gurugram-122002, Haryana, INDIA.
Customer Care : 1800 103 2244 (Toll Free) &
+91-124-4319685 / 86
Email : indiacustomercare@kohler.com
Website: www.kohler.co.in
All information is based on the latest product information available at the time of publication.
Kohler Co. reserves the right to make changes in product characteristics, packaging or availability
at any time without notice.
41325222-IN2-A
© Kohler Co.2017
