Kogan KAMN27LSC User Manual

27" FULL HD FREESYNC
75HZ FRAMELESS MONITOR

(1920 x 1080)

KAMN27LSC

SAFETY & WARNINGS

• Read all instructions before using the appliance and retain for reference.

• Unplug the monitor before cleaning it.

• Use a clean, slightly dampened cloth to wipe the main monitor body.

• To clean the screen: turn it off, unplug it and wait for it to cool completely, then

wipe it with a dry micro-fibre cloth.

• Do not use cleaning alcohol, ammonia-based liquids, or other harsh cleaners.

• This monitor is designed with ventilation holes on the back of the casing. Do not

cover or block them.

• Do not insert any object or spray any liquid into the vents.

• Avoid placing the monitor near heaters, stoves, fireplaces, or other sources of heat,

as well as in rooms lacking adequate ventilation.

• Do not position the monitor in unsafe locations. If the monitor falls, it may be
damaged and may injure nearby people.

• Unplug the monitor if it is not going to be used for an extended period.

• Do not place heavy objects on the monitor, its power cord, or any connected cable.

• Do not open the back panel of the monitor, as it contains a high-voltage current

even when not plugged in.

The terms HDMI and HDMI High-Definition Multimedia Interface

and the HDMI Logos are trademarks or registered trademarks of

HDMI Licensing Administrator, Inc. in the United States and other

countries.

Monitor

Stand connector

Stand base

VESA screws (x4)

HDMI cable

Power cable

User guide

COMPONENTS

1

Menu button

Press to display the OSD menu or enter sub-menus.

2

Down button

Press to move down in the menu.

3

Up button

Press to move up in the menu.

4

Exit button

Press to exit.

5

Power button

Press to turn the monitor on/off.

6

Power connector

7

Audio In

8

VGA connector

9

HDMI connector

OVERVIEW

;

Monitor Controls

Monitor Ports

ATTENTION: Panel is fragile. Keep the foam underneath the monitor

while assembling the stand.

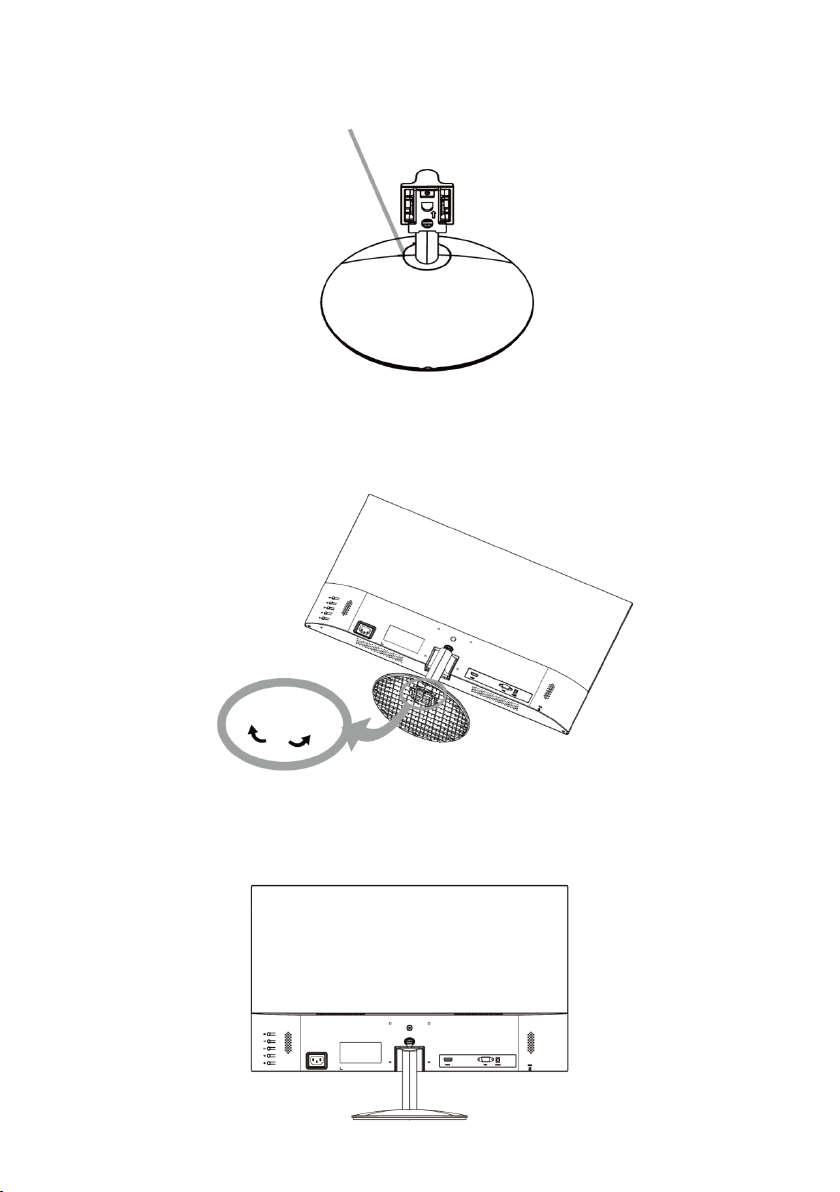

1. Carefully remove the monitor from the packaging with foam attached and place it
face down on a soft cloth spread across a stable surface such as a table.

2. Remove and assemble the stand base and connector.

3. Remove the connection block from the back of the monitor by pressing the detach

Open

Close

button.

Connection block

4. Insert the connection block into the back of the monitor, then push down until it
snaps into place.

5. Remove the bottom foam and place the monitor on the desk or other location
intended for use. Installation is complete.

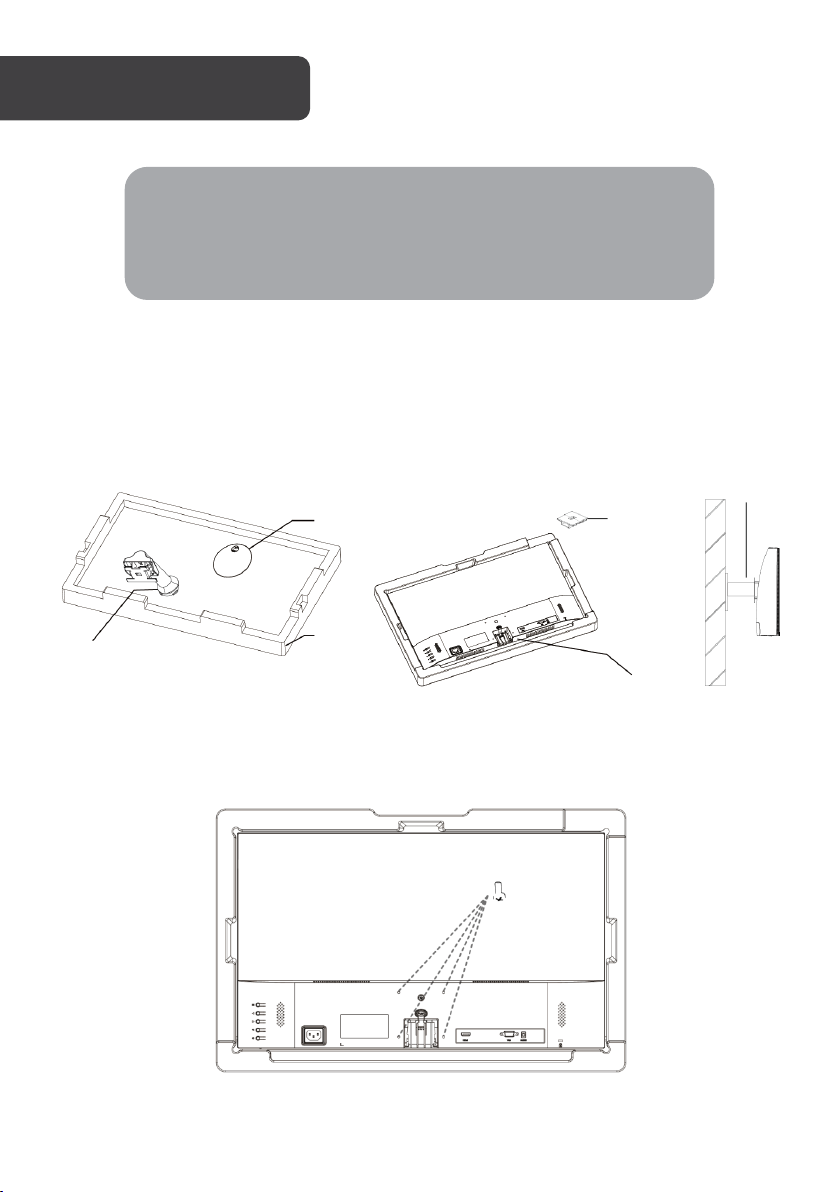

VESA MOUNT

Stand

Monitor

Foam

Stand plate

Stand base

Mount (not included)

Note:

1. Open the box, take out the monitor with protection form attached and gently place it

2. Assemble the mount as per the instructions provided with the mount.

VESA mounting pattern 75x75mm, screw size M4.
VESA mount or mounting accessories are NOT included.

on a desktop or table. Remove the extra parts and the foam covering the back of the
monitor. Press the release button to remove the stand plate. If the monitor was already
attached to the stand, remove the stand.

CONNECTIVITY

Power cable

Connect the included power cable to the monitor power port and then connect the other
end to a power outlet.

Audio In

Connect an audio cable to the 3.5mm audio port on the monitor (Audio In) and the 3.5mm
audio port on your computer.

HDMI

Connect an HDMI cable from the computer’s display output to the monitor’s display input.

VGA

Connect a VGA cable from the computer’s display output to the monitor’s display input.

BASIC OPERATION

1. Connect the monitor to your input device via HDMI or VGA.

2. Connect the power cable to your monitor and then connect the other end directly
to a power socket.

3. Use the power button to turn the monitor on.

FreeSync

• The feature is disabled by default when setting a 75Hz refresh rate.

• In order to use this feature, ensure your hardware has FreeSync capability and the

graphics drivers are fully up to date.

• After connecting, you may receive a prompt to enable the feature on your
computer. If you do not receive the prompt, you may need to enable the function in
your graphics card menu.

• See your graphics card manufacturer’s documentation for instructions on how to
turn on and/or enable FreeSync.

OPERATION

The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and
appears on screen after turning on the monitor and pressing the “ ” button.

When using the monitor for the first time, the monitor will configure optimal settings
automatically.

1. Press “ ” to enter the OSD menu.

2. Use the arrow buttons ( / ) to navigate and press “ ” to enter a submenu.
With the desired function highlighted, press “ ” to edit it, the arrow buttons to
adjust parameter values and “ ” again to commit the new value.

3. Press “

” to exit the current screen.

List of functions

Main Menu

Sub-Menu

Options

Description


~0-100

Adjust picture

Contrast

~0-100

Adjust display contrast

Brightness

~0-100

Adjust display brightness

On

Off

STANDARD/

MOVIE/ FPS/RTS

On

Off

Horizontal
position

Adjust video display area left to right
(VGA only)

Adjust video display area up and down
(VGA only)

Clock

~0-100

Adjust display clock

Phase

~0-100

Adjust display phase

Aspect

Wide (16:9), 4:3

Adjust display phase aspect

FreeSync

On/Off

Adjust display FreeSync on/off

Warm mode

Red/green/blue

Adjust red/green/blue levels

Cool mode

Red/green/blue

Adjust red/green/blue levels

User mode

Red/green/blue

Adjust red/green/blue levels

HDR mode

On/Off

Enable/disable HDR mode

English,

,

Polski, Nederlands

OSDH-Position

0~100

Adjust OSD horizontal position

OSD V-Position

0~100

Adjust OSD vertical position

Set how long the OSD remains open
after last input

Brightness


Adjust

display

Phase

Low blue

ECO

DCR

Vertical position ~0-100

TEXT/GAME/

~0-100

Enable/disable blue light reduction

Preset colour modes

Enable/disable dynamic contrast ratio

Language

OSD

Setting

OSD Timer 5~60

简体中文

한국어, Русский,
Español, Deutsch,
Italiano, Français,
Portugues, Turkce,

Set OSD language

OSD


None

Restore VGA image defaults

Automatically configure VGA colour
settings

Reset

None

Restore factory defaults

On

Off

Time count

10-90min

Adjust time count

On (default)

Off

Signal source

VGA/HDMI

Adjust input source

On

Off

Volume

~0-100

Adjust monitor speaker volume

Transparency

Colour None

0~100 Set OSD overall transparency

Reset

Misc

Power down

OD

Mute

Enable/disable power down function

Enable/disable Overdrive

Enable or disable monitor speaker
output

ECO MODES & GAMEPLUS SWITCHING

1. Press “ ” button to activate the navigation window.

2. Press “ ” button to switch GamePlus modes. These overlay icons are primarily
designed to assist aim during FPS games, though they can be used for other scenarios.

Screen size

27”

Aspect ratio

16:9

Brightness

250cd/m² (typical)

Panel

VA

Resolution

1920x1080

Refresh rate

75Hz

Response time

8ms (5ms with Overdrive)

Viewing angle

≥178°(H) / 178°(V)

Contrast ratio

4000:1

VESA mounting

75x75mm

Colours

16.7M

Signal input

HDMI1. 4 x 1, VGA x 1

Power

AC 100-240V ~ 50/60Hz 1.1A

Audio

Speakers

YES

Audio In

YES

Accessories

Power cable

YES

HDMI Cable

YES

Additional functions

Low blue light

YES

Flicker free

YES

Physical dimensions

Dimensions (w. stand)

615.3x 453.6 x 224.1 (mm)

Dimensions (w/o stand)

615.3 x 360.5 x 45 (mm)

Net weight

4.6kg

Gross weight

6.2kg

SPECIFICATIONS

Need more information?

We hope that this user guide has given you

the assistance needed for a simple set-up.

For the most up-to-date guide for your product,

as well as any additional assistance you may require,

head online to help.kogan.com
