{Diagrams}{Production}{Heal th Imaging}
Publication No. 5B6334
30SEP98
HEALTH IMAGING
DIAGRAMS
Kodak X-Omat
Service Code: 3434
for the
3000 RA PROCESSOR
© Eastman Kodak Company, 1999
This equipment includes parts and assemblies sensitive to damage from electrostatic
discharge. Use caution to prevent damage during all service procedures.
List of Figures
Description Page
PLEASE NOTE The information contained herein is based on the experience and knowledge relating to the
subject matter gained by Eastman Kodak Company prior to publication.
No patent license is granted by this information.
Eastman Kodak Company reserves the right to change this information without notice, and
makes no warranty, express or implied, with respect to this information. Kodak shall not be liable
for any loss or damage, including consequential or special damages, resulting from any use of
this information, even if loss or damage is caused by Kodak’s negligence or other fault.
AC Circuit Diagram - below Serial No. 100500 . . . . . . . . . . . . . . . . . . . . . 3
AC Circuit Diagram - Serial No. 100500 and above . . . . . . . . . . . . . . . . . 4
DC Circuit Diagram - below Serial No. 100500 . . . . . . . . . . . . . . . . . . . . . 5
DC Circuit Diagram - Serial No. 100500 and above . . . . . . . . . . . . . . . . . 6
External Wiring Diagram - below Serial No. 100500 . . . . . . . . . . . . . . . . . 7
External Wiring Diagram - Serial No. 100500 and above . . . . . . . . . . . . . 8
Electrical Box Wiring Diagram - below Serial No. 100500. . . . . . . . . . . . . 9
Electrical Box Wiring Diagram - Serial No. 100500 and above . . . . . . . . . 10
2 30SEP98 – 5B6334
Figure 1 AC Circuit Diagram - below Serial No. 100500
AC Circuit Diagram - below serial No. 100500
H150_0004FC_
5B6334 – 30SEP98 3
DIAGRAMS
Figure 2 AC Circuit Diagram - Serial No. 100500 and above
AC Circuit Diagram - Serial No. 100500 and above
H150_0005FC_
4 30SEP98 – 5B6334

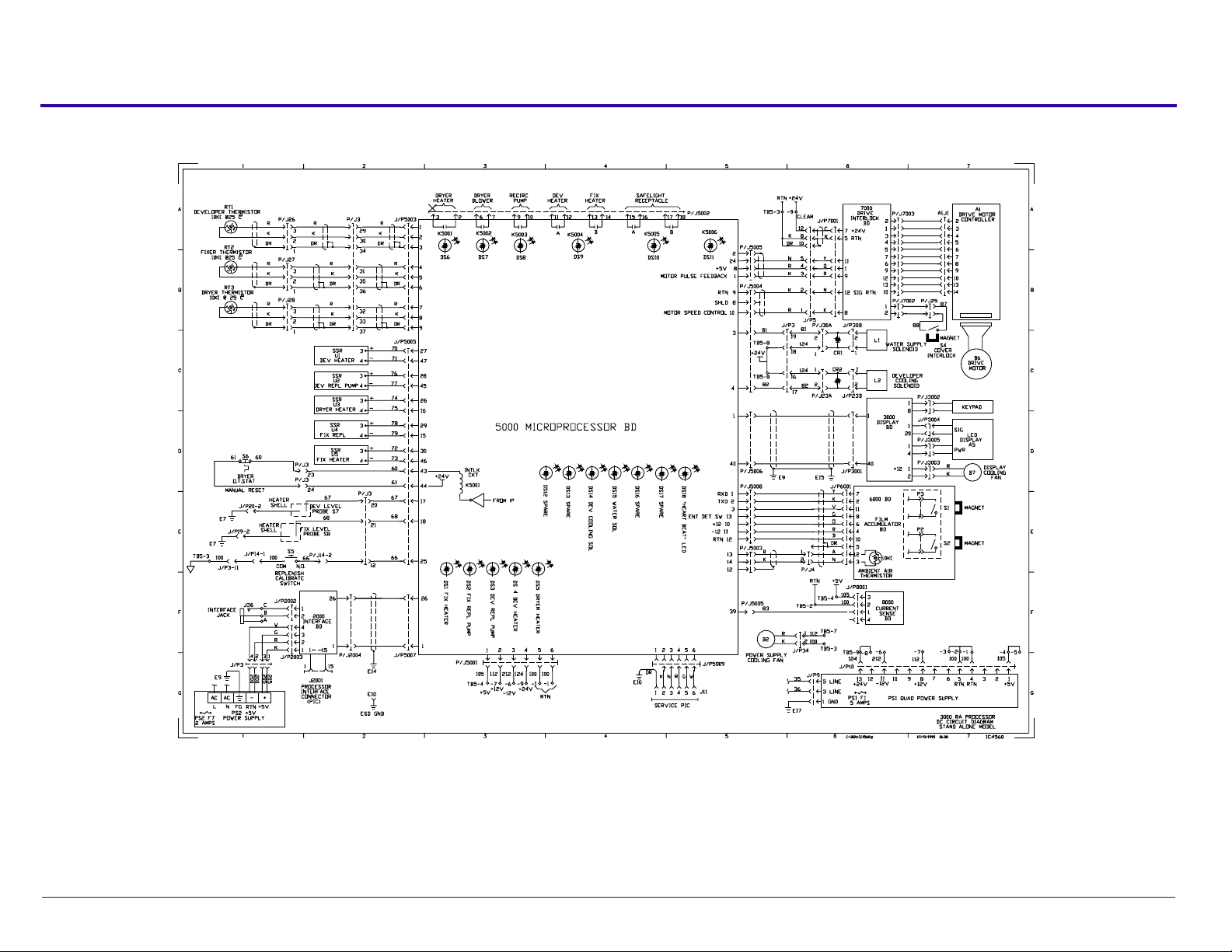

Figure 3 DC Circuit Diagram - below Serial No. 100500
DC Circuit Diagram - below serial No. 100500
H150_0002FC_
5B6334 – 30SEP98 5
DIAGRAMS
Figure 4 DC Circuit Diagram - Serial No. 100500 and above
DC Circuit Diagram - Serial No. 100500 and above
H150_0003FC_
6 30SEP98 – 5B6334

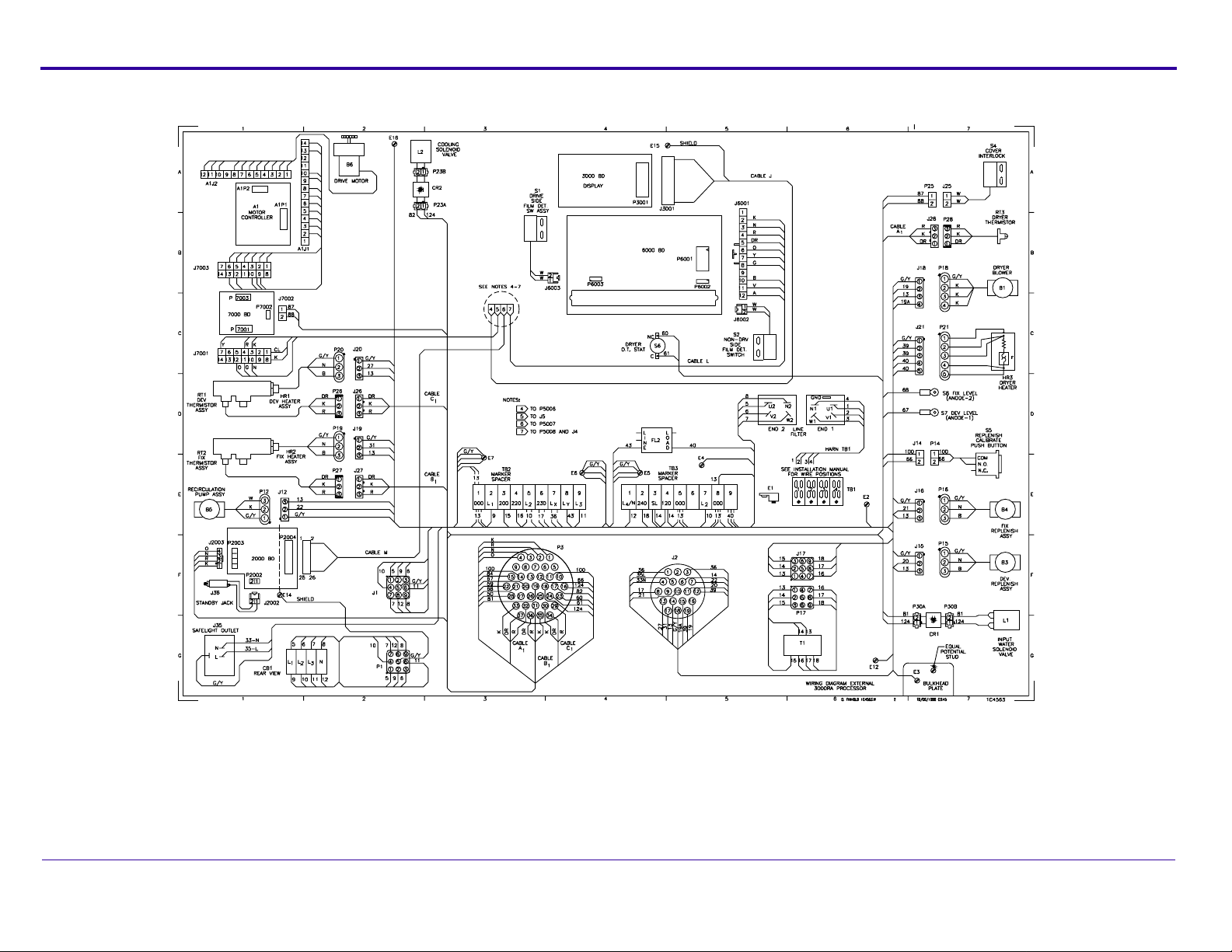

Figure 5 External Wiring Diagram - below Serial No. 100500
External Wiring Diagram - below serial No. 100500
H150_0008FC_
5B6334 – 30SEP98 7
DIAGRAMS
Figure 6 External Wiring Diagram - Serial No. 100500 and above
External Wiring Diagram - Serial No. 100500 and above
H150_0009FC_
8 30SEP98 – 5B6334
Figure 7 Electrical Box Wiring Diagram - below Serial No. 100500
Electrical Box Wiring Diagram - below serial No. 100500
H150_0006FC_
5B6334 – 30SEP98 9
DIAGRAMS
Figure 8 Electrical Box Wiring Diagram - Serial No. 100500 and above
Electrical Box Wiring Diagram - Serial No. 100500 and above
H150_0033FC_
10 30SEP98 – 5B6334
DIAGRAMS
Table 1 Publication History
Print Date Pub. No. ECO No. Affected Pages File Name Notes
OCT95 5B6335 2650-030 All Pages di3434_1_030.doc First Printing
NOV95 5B6335 2650-039 Front and Back Covers di3434_1_039.doc Revision
SEP98 5B6335 2650-190 All Pages di3434_1_30sep98.doc Revision
JUN99 5B6335 N/A All Pages di343400.fm Electronic version created for HI Analog CD.
Content is identical to September 1998 version.
Printed in U.S.A. • di3434_1.fm
