KODAK EASYSHARE MD81
Digital Camera
Extended user guide
www.kodak.com
For interactive tutorials:
www.kodak.com/go/howto
For help with your camera:
www.kodak.com/go/md81support
Eastman Kodak Company
Rochester, New York 14650
© Kodak, 2009
All screen images are simulated.
Kodak, EasyShare, and Perfect Touch are trademarks of Eastman Kodak Company.
4H6765_en
Front view
Shutter button
Mode dial
Power button
Flash button
Self-timer light
Lens/Cover
Microphone
Flash
Product features
www.kodak.com/go/support
i
Product features
LCD
Delete, Menu,
Info buttons
Battery
Charging
light
Zoom
(Telephoto/
Wide Angle)
button
USB/AV Out
DC-In (5V)
Strap post
OK button
SD/SDHC Card/
Battery compartment
Share button
Tripod
socket
Review button
Back view
ii www.kodak.com/go/support
Table of contents 1
1 Setting up your camera .........................................................................1
Attaching the strap .......................................................................................1
Loading the KLIC-7003 battery......................................................................1
Charging the battery .....................................................................................2
Turning on the camera ..................................................................................3
Setting the language and date/time...............................................................3
Storing pictures on an optional SD or SDHC Card...........................................4
2 Taking pictures/videos ...........................................................................5
Taking a picture ............................................................................................5
Using optical and digital zoom ......................................................................6
Using the flash..............................................................................................7
Using different modes ...................................................................................8
Taking a video ............................................................................................10
Using shortcuts ...........................................................................................10
Using the self-timer.....................................................................................11
Taking burst pictures...................................................................................11
Taking panoramic pictures...........................................................................12
Understanding the picture-taking icons........................................................13
3 Working with pictures/videos ..............................................................14
Reviewing pictures/videos ...........................................................................14
Deleting pictures/videos ..............................................................................15
Viewing pictures/videos in different ways.....................................................16
Selecting multiple pictures/videos ................................................................16
Making a multimedia slide show .................................................................17
Using the menu button in review.................................................................19
Cropping pictures........................................................................................20
Using KODAK PERFECT TOUCH Technology.................................................20
Copying pictures/videos...............................................................................21
Editing videos .............................................................................................21
www.kodak.com/go/support iii
Table of contents
Understanding the review icons...................................................................24
4 Using the Menu button .......................................................................25
Using the Capture tab.................................................................................25
Using the Setup tab ....................................................................................29
5 Transferring, printing, tagging ............................................................32
Installing the software.................................................................................32
Transferring pictures/videos.........................................................................33
Printing pictures..........................................................................................34
Tagging/marking your pictures ....................................................................36
6 Getting help ........................................................................................40
Getting help from your camera....................................................................40
Getting help on the Web.............................................................................41
Troubleshooting..........................................................................................42
7 Appendix .............................................................................................46
Camera specifications .................................................................................46
Care and maintenance ................................................................................48
Upgrading your software and firmware........................................................48
Storage capacities.......................................................................................49
Important safety instructions .......................................................................49
Battery replacement, battery life..................................................................50
Limited warranty .........................................................................................51

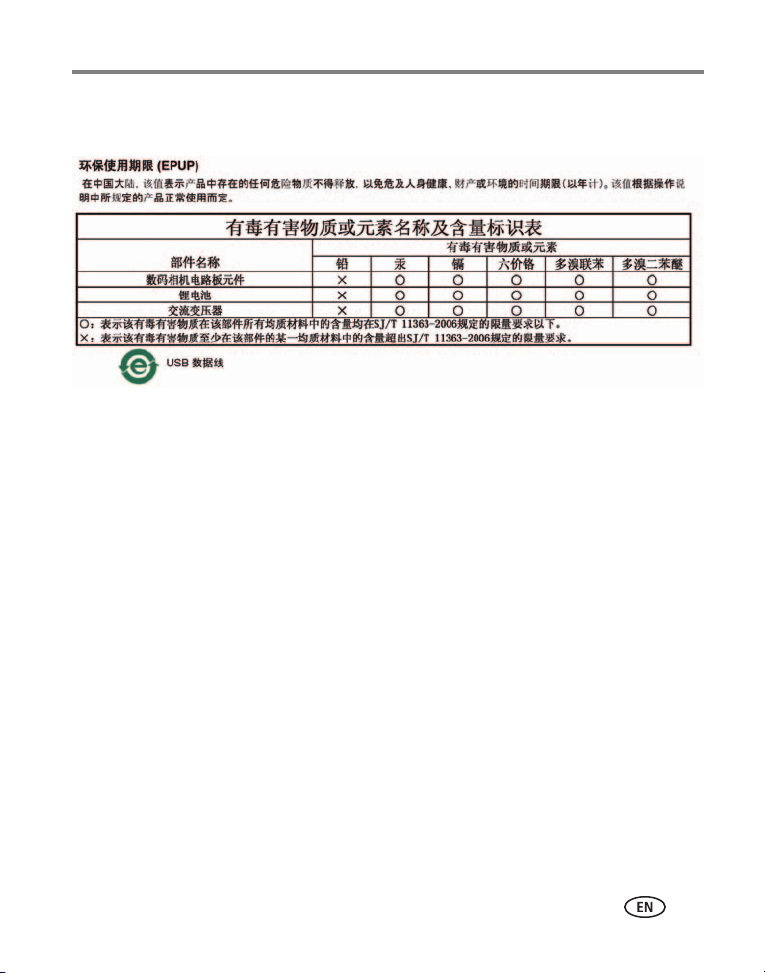

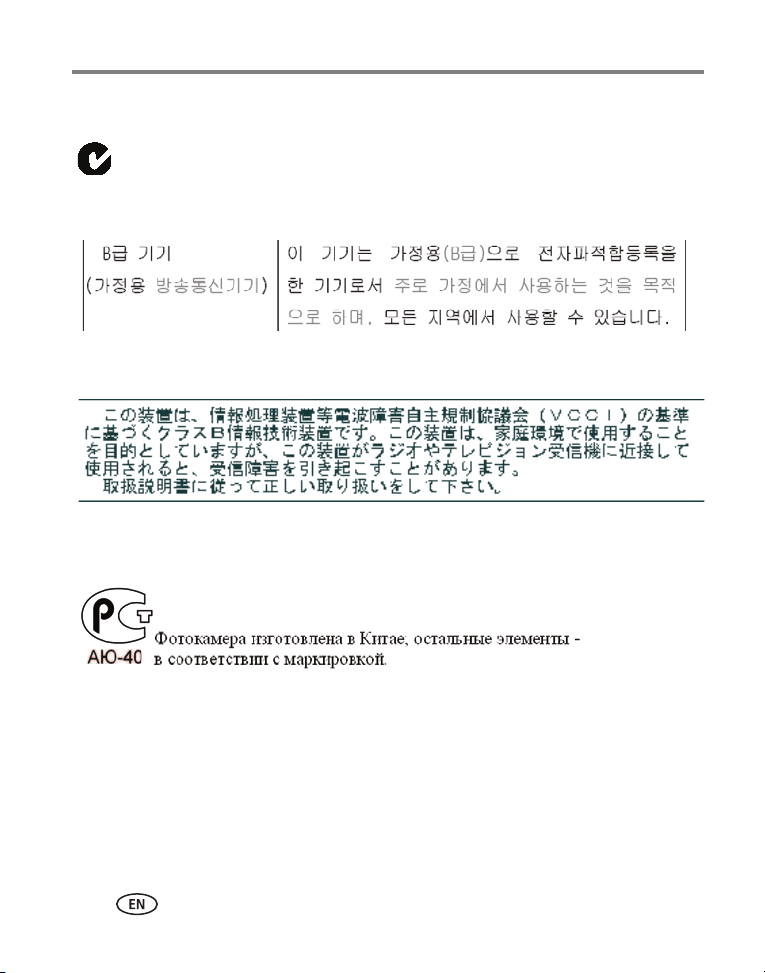

Regulatory compliance ................................................................................53
iv www.kodak.com/go/support
1 Setting up your camera
Notched
corner
IMPORTANT:
For package contents, see your product package.
Attaching the strap
Loading the KLIC-7003 battery
For information on replacing the battery and extending battery life, see page 50.
www.kodak.com/go/support 1
Setting up your camera
Battery Charging light:
• Blinking: charging
• Steady: finished
Turn off the camera.
1
Connect the KODAK USB Cable,
Model U-8.
2
Charge Li-Ion batteries
frequently, even if power
remains.
KODAK 5V AC Adapter
(May be sold separately)
Charging the battery
Other charging options
2 www.kodak.com/go/support
Purchase accessories www.kodak.com/go/md81accessories
Turning on the camera
to change current field.
for previous/next field.
OK
to accept.
At the prompt, press OK.
to change.
OK
to accept.
Language:
Date/Time:
Setting the language and date/time
Setting up your camera
NOTE: To change language and date/time in the future, use the Setup tab (see page 29).
www.kodak.com/go/support
3
Setting up your camera
CAUTION:
1
Turn off the camera.
2
Insert or remove the
optional card.
3
Turn on the camera.
Storing pictures on an optional SD or SDHC Card
Your camera has internal memory. You can purchase an SD or SDHC Card to
conveniently store more pictures/videos.
A card can only be inserted one way; forcing it may cause
damage. Inserting or removing a card while the camera is on may
damage the pictures, the card, or the camera.
Purchase accessories www.kodak.com/go/md81accessories
4 www.kodak.com/go/support
2 Taking pictures/videos
Framing marks
Taking a picture
1 Turn the Mode dial to Smart Capture . Then
press the Power button to turn on the camera.
2 Compose the picture.
3 Press the Shutter button halfway to focus and
set exposure. When the framing marks turn green,
press the Shutter button completely down.
Using the framing marks to take pictures
Framing marks indicate the camera focus area. In Smart Capture mode (and in SCN
modes designed for pictures of people), the camera attempts to focus on faces.
1 Press the Shutter button halfway.
If the camera is not focusing on the desired subject,
release the Shutter button and recompose the scene.
2 Press the Shutter button completely down to
take the picture.
NOTE: Framing marks do not appear in all modes. Multiple framing
marks may appear when faces are detected.
www.kodak.com/go/support 5
Taking pictures/videos
Delete the current picture/video
OK Play/pause a video
Adjust volume
Reviewing the picture/video just taken
After you take a picture/video, the LCD briefly displays a quickview. (To exit the
quickview sooner, press the Shutter button halfway.)
To review pictures/videos anytime, see page 14.
Using optical and digital zoom
1 To zoom in, press Telephoto (T).
To zoom out, press Wide Angle (W).
2 Take the pict ure.
NOTE: For focus distances, see Camera Specifications starting on
page 46.
To use the 5X digital zoom:
■ In video mode, press the Telephoto (T) button.
■ In picture-taking mode, press the Telephoto (T)
button until the slider on the LCD is at the
maximum optical zoom range. Release
Telephoto (T), then press it again.
NOTE: Optical zoom is not available in Video mode. Digital zoom is not available in Smart Capture mode.
You may notice decreased image quality when using digital zoom. The slider pauses and turns red
when the picture quality reaches the limit for an acceptable 4 x 6-in. (10 x 15 cm) print.
6 www.kodak.com/go/support
Taking pictures/videos
Press the flash button repeatedly
to scroll through flash modes.
The current flash mode is shown in
the LCD status area.
Using the flash
Flash modes Flash fires
Auto When the lighting conditions require it.
Fill (Flash On) Every time you take a picture, regardless of the lighting
conditions. Use when the subject is in shadow or is
“backlit” (when the light is behind the subject). In low
light, hold the camera steady or use a tripod.
NOTE: (Not available in Smart Capture mode.)
Red Eye
Your camera can correct
red-eye using 2
methods. To choose a
red eye setting, see Red
Eye Reduction, page 29.
Preflash A preflash fires, shrinking the eye pupil, before the
picture is taken.
Digital
Correction
A preflash does not fire; the camera corrects red eye.
Off Never
www.kodak.com/go/support
7
Taking pictures/videos
Using different modes
Turn the Mode dial to the mode that best suits your subjects and surroundings.
Use this mode For
Smart
Capture
Program Advanced picture taking—allows access to manual settings.
General picture taking—it offers excellent image quality and ease
of use.
■ Faces are detected.
■ The scene is analyzed for other content and for lighting.
You can choose the best picture size and aspect ratio for your
needs—just press the Menu button and choose Picture Size.
■ 3:2 (the best choice when making 4 x 6 prints)
■ 16:9 (wide screen)
■ 4:3 (the default setting)
Blur
Reduction
Sport Action pictures.
Panorama “Stitching” up to 3 pictures into a panoramic scene. (See page 12.)
Scene Point-and-shoot simplicity when taking pictures in practically any
Video Capturing video with sound. (See page 10.)
Reducing blur caused by camera shake or subject motion.
situation. (See page 9.)
8 www.kodak.com/go/support
Taking pictures/videos
Using Scene (SCN) modes
Choose a Scene mode—for great pictures in practically any situation!
1 Turn the Mode dial to SCN.
2 Press to view scene mode descriptions.
If the mode description turns off before you finish reading it, press OK.
3 Press OK to choose a Scene mode.
SCN mode For
Portrait Full-frame portraits of people.
Landscape Distant scenes.
Close-up Close range. Use available light instead of flash, if possible.
Flower Close-ups of flowers or other small subjects in bright light.
Sunset Subjects at dusk.
Backlight Subjects that are in shadow or “backlit” (when light is behind the
subject).
Candle Light Subjects illuminated by candle light.
Children Action pictures of children in bright light.
Manner/
Museum
Text Documents. Place the camera on a steady surface or tripod.
Beach Bright beach scenes.
Snow Bright snow scenes.
Fireworks Fireworks. Place the camera on a steady surface or tripod.
Self-
Portrait
Night Portrait Reduction of red eye in night scenes or low-light conditions.
Night Landscape Distant scenery at night. Flash does not fire.
Panning Emphasizing horizontal motion, keeping the foreground sharp.
High-ISO Low-light pictures (such as people on a stage).
Quiet occasions, like a wedding or lecture. Flash and sound are disabled.
Place the camera on a steady surface or tripod.
Close-ups of yourself. Assures proper focus and minimizes red eye.
www.kodak.com/go/support
9
Taking pictures/videos
Shortcuts
Taking a video
1 Turn the Mode dial to Video.
2 Press the Shutter button completely down,
then release it. To stop recording, press and release
the Shutter button again.
To review and work with videos, see page 14.
Using shortcuts
For quick access to the most popular functions:
1 Press the Info button.
The shortcuts appear.
2 Press to access functions like Exposure Compensation, Self-timer/Burst, and
Auto focus. (You’ll see different functions in different modes.)
3 Press to choose a setting.
4 To hide the shortcuts again, press .
10 www.kodak.com/go/support
Taking pictures/videos
10
2
2x
Using the self-timer
Use the self-timer when you want to be included in a picture, or to ensure a steady
Shutter button press. Place the camera on a tripod or flat surface.
1 In any picture-taking mode, press the Info button to show shortcuts.
2 Press to highlight the self-timer icon. Press to choose a setting:
10 seconds— A picture is taken after a 10-second delay (so you have time
to get into the scene).
2 seconds— A picture is taken after a 2-second delay (for a steady, shutter
release on a tripod).
2 shot— The first picture is taken after a 10-second delay. A second picture
is taken 8 seconds later.
3 Compose the scene. Press the Shutter button halfway, then completely down.
The camera takes the picture/pictures after the delay.
NOTE: In Panoramic modes (page 12), only the 2- and 10-second options are available.
Use the same procedure to take a 2- or 10-second self-timer video, but press the
Shutter button completely down.
Taking burst pictures
Use the Burst feature to take up to 3 pictures in quick succession.
NOTE: Burst is not available in all modes.
1 In any picture-taking mode, press the Info button to show shortcuts.
2 Press to highlight the Self-timer/Burst icon. Press to highlight
Burst .
3 Compose the scene. Press the Shutter button halfway, then hold completely
down while the camera takes up to 3 pictures.
www.kodak.com/go/support
11
Taking pictures/videos
Take 2 or 3
pictures.
Get 1
panoramic
picture.
Taking panoramic pictures
Use panorama to “stitch” up to 3 pictures into a panoramic scene.
NOTE: For best results, use a tripod. Only the panoramic picture is saved; individual pictures are not.
(Exposure and white balance are set with the first picture. The flash is set to Off.)
1 Turn the Mode dial to .
2 Press to highlight Panorama Left-Right or Panorama Right-Left (depending
on the direction you want to pan), then press OK.
3 Take the first picture.
After a quickview, the LCD displays the liveview and an “overlay” from the first picture.
4 Compose the second picture. Make the overlay from the first picture cover the
same portion in the new picture. (You can press the Delete button to re-take a
picture.)
5 If you are taking only 2 pictures, press OK to stitch them together.
After you take 3 pictures, the pictures are automatically stitched together.
NOTE: To use the self-timer 10-second or 2-second setting, see page 11.
12 www.kodak.com/go/support
Taking pictures/videos
Battery level
Capture
mode
Pictures/time
remaining
Zoom slider
Tag name
Self timer/Burst
Flash mode
Exposure compensation
Focus mode
Understanding the picture-taking icons
www.kodak.com/go/support
13
3 Working with pictures/videos
4X
4X
1X2X 2X
Forward
Reverse
Playback speed
Reviewing pictures/videos
1 Press the Review button.
2 Press for previous/next picture/video.
■ Press the Shutter button halfway down to return
to Capture mode.
■ To view pictures/videos as thumbnails, see
page 16.
Magnifying a picture
1 Press T to magnify 1X–8X.
2 Press to view other parts of a
picture.
■ Press OK to return to 1X.
Playing a video
Press OK to play a video. Press OK to pause/resume.
During playback:
■ Press to adjust the volume.
■ Press to play at 2X speed; press again for 4X.
■ Press to reverse at 2X speed; press again for 4X.
14 www.kodak.com/go/support
Working with pictures/videos
CAUTION:
Deleting pictures/videos
1 Press the Review button.
2 Press for previous/next picture/video.
3 Press the Delete button.
4 Follow the screen prompts.
NOTE: To delete protected pictures/videos, remove protection before deleting. (See Protecting
pictures/videos from deletion.)
Using the undo delete feature
If you accidentally delete a picture, you may be able to use Undo Delete to retrieve it.
This feature is only available immediately after you delete a picture.
Protecting pictures/videos from deletion
1 Press the Review button.
2 Press for previous/next picture/video.
3 Press the Menu button.
4 Press to highlight Protect, then press OK.
The picture/video is protected and cannot be deleted. The Protect icon appears
with the protected picture/video.
■ Press the Shutter button halfway down to return to Capture mode.
IMPORTANT:
Your camera offers a built-in Help system. See page 40.
Formatting internal memory or an SD or SDHC Card deletes all
(including protected) pictures/videos. (Formatting internal
memory also deletes email addresses and tag names. To restore
them, see EASYSHARE Software Help.)
www.kodak.com/go/support
15
Working with pictures/videos
Selected
pictures
Viewing pictures/videos in different ways
Viewing as thumbnails (multi-up)
1 Press the Review button.
The camera shows the last picture that was taken.
2 Press the Wide Angle (W) button to view pictures/videos as thumbnails. (Press it
again to see more, smaller thumbnails.)
To view all pictures/videos, highlight the All tab.
To sort by favorites, date, or tagged pictures/videos, press and highlight the
appropriate tab.
3 To see a single picture/video, press to highlight it. Then press the Telephoto
(T) button.
■ To select multiple pictures/videos, see Selecting multiple pictures/videos.
■ Press the Shutter button halfway down to return to Capture mode.
Selecting multiple pictures/videos
Use the multi-select feature when you have two or more pictures to print, transfer,
delete, etc. Multi-select is used most effectively in Multi-Up mode, page 16.
1 Press the Review button, then and
to find a picture/video.
2 Press OK to select pictures/videos.
A check mark appears on the picture. You can now
print, transfer, delete, etc. the selected pictures. You
can press OK a second time to remove a check mark.
16 www.kodak.com/go/support
Working with pictures/videos
Making a multimedia slide show
Use Multimedia Slide Show to display your pictures/videos on the LCD. You can play
all pictures/videos, or select pictures to include in the slide show. You can even save a
slide show.
Make a multimedia slide show that you can save
1 Press the Review button.
2 Press the Menu button, then to highlight the Review tab. Highlight
Multimedia Slide Show, then press OK.
3 Press to highlight Preview Show, then press OK.
Each picture/video is displayed once. To interrupt the slide show, press OK. After the
slide show plays, you may save or modify it.
IMPORTANT:
Play a multimedia slide show loop
When you turn on Loop, the slide show is continuously repeated.
1 On the Multimedia Slide Show menu, press to highlight Loop, then
press OK.
2 Press to highlight On, then press OK.
Your camera offers a built-in Help system. See page 40.
3 Press to highlight Preview Show, then press OK.
The slide show repeats until you press OK or until the battery is exhausted.
www.kodak.com/go/support
17
Working with pictures/videos
Displaying pictures/videos on a television
You can display pictures/videos on a television, computer monitor, or any device
equipped with a video input. To connect the camera directly to a television, use an
A/V cable (may be sold separately).
Purchase accessories www.kodak.com/go/md81accessories
NOTE: Ensure that the Video Out setting (NTSC or PAL) is correct (see page 30). The slide show stops if you
connect or disconnect the cable while the slide show is running. (Image quality on a television
screen may not be as good as on a computer monitor or when printed.)
18 www.kodak.com/go/support
Working with pictures/videos
Using the menu button in review
To use the Menu button in review:
1 Press the Review button, then the Menu button.
2 Press to highlight a tab:
■ Review to view and share pictures/videos
■ Edit to edit pictures/videos
■ Setup to control how your camera operates
3 Press to highlight a setting, then press OK.
4 Highlight an option, then press OK.
IMPORTANT:
Your camera offers a built-in Help system. See page 40.
www.kodak.com/go/support
19
Working with pictures/videos
Cropped picture
Cropping pictures
You can crop a picture so that only the desired portion of the picture remains.
1 Press the Review button, then to find a
picture to crop.
2 Press the Menu button, then to highlight
the Edit tab. Highlight Crop, then press OK.
3 Press Telephoto (T) to zoom in, or to move the crop box. Press OK.
4 Follow the screen prompts.
The picture is cropped. (The original is saved.) Cropped pictures cannot be cropped
again on the camera.
■ Press the Shutter button halfway down to return to Capture mode.
IMPORTANT:
Your camera offers a built-in Help system. See page 40.
Using KODAK PERFECT TOUCH Technology
KODAK PERFECT TOUCH Technology helps ensure better, brighter pictures. PERFECT
TOUCH Technology is automatically applied to pictures taken in Smart Capture mode.
(You cannot apply PERFECT TOUCH Technology to videos, panoramic pictures, or
pictures to which PERFECT TOUCH Technology is already applied.)
1 Press the Review button, then for previous/next picture.
2 Press the Menu button, then to highlight the Edit tab. Highlight
PERFECT TOUCH Tech, then press OK.
The enhancement is previewed. Press to view other parts of the picture.
3 Press OK. Follow the screen prompts to replace the original picture or to save the
enhanced picture as a new one.
■ Press the Shutter button halfway down to return to Capture mode.
20 www.kodak.com/go/support
Working with pictures/videos
Video
Copying pictures/videos
You can copy pictures/videos from a card to internal memory or from internal memory
to a card.
Copy pictures/videos:
1 Press the Review button.
2 Press the Menu button, then to highlight the Review tab.
3 Press to highlight Copy, then press OK. Highlight a choice, then press OK.
NOTE: Pictures/videos are copied, not moved. To remove pictures/videos from the original location after
copying, delete them (see page 15).
IMPORTANT:
Your camera offers a built-in Help system. See page 40.
Editing videos
You can do incredible things with your videos!
Making a picture from a video
You can choose a single frame from a video, then make a picture suitable for a
4 x 6-inch (10 x 15 cm) print.
1 Press the Review button, then to find a
video.
IMPORTANT:
www.kodak.com/go/support
Your camera offers a built-in Help system. See page 40.
2 Press the Menu button, then to highlight
the Edit tab. Highlight Make Picture, then press OK.
3 Follow the screen prompts.
A picture is created. (The original video is saved.)
■ Press the Shutter button halfway down to return
to Capture mode.
21
Working with pictures/videos
Video
Tri mme d v ide o
Trimming a video
You can remove an unwanted start or end from a video, saving only the desired
portion.
1 Press the Review button, then to find a
video.
2 Press the Menu button, then to highlight
the Edit tab. Highlight Trim, then press OK.
3 Follow the screen prompts.
The video is trimmed. (You can save it as a new video
or replace the original.)
■ Press the Shutter button halfway down to return
to Capture mode.
IMPORTANT:
Your camera offers a built-in Help system. See page 40.
22 www.kodak.com/go/support
Working with pictures/videos
Video
9-up picture
Making a video action print
From a video, you can make a 9-up picture, suitable for a 4 x 6-inch (10 x 15 cm)
print.
1 Press the Review button, then to find a
video.
2 Press the Menu button, then to highlight
the Edit tab. Highlight Action Print, then press OK.
3 Highlight an option, then press OK.
Auto—The camera includes the first and last
frames, then 7 equally spaced frames.
Manual—Choose the first and last frames; the
camera chooses 7 frames.
A 9-up picture is created.
■ Press the Shutter button halfway down to return to Capture mode.
IMPORTANT:
Your camera offers a built-in Help system. See page 40.
www.kodak.com/go/support
23
Working with pictures/videos
Add text tag
View multi-up
Select picture
Email tag
Favorite tag
Print tag/number of prints
Protected
Picture/Video number
Upload tag
Video duration
Battery level
Text tag name
Play video
Understanding the review icons
24 www.kodak.com/go/support
4 Using the Menu button
You can change settings to get the best results from your camera.
1 Press the Menu button.
2 Press to highlight a tab:
■ Capture/Video for the most common picture/video-taking settings
■ Setup for other camera settings
3 Press to highlight a setting, then press OK.
4 Highlight an option, then press OK.
NOTE: Some modes offer limited settings. Some settings remain until you change them; others, until you
change modes or turn off the camera.
Using the Capture tab
Press Menu, , then
, and OK to access
settings
Exposure Compensation
Make a picture lighter or
darker. (Available in Program
and Panorama modes.) To use
a shortcut, see page 10.
Picture Size
Choose a picture resolution.
www.kodak.com/go/support 25
Capture Options
IMPORTANT:
0.0, +/-0.3, +/-0.7, +/-1.0, +/-1.3, +/-1.7, +/-2.0
See Camera specifications, page 46.
Your camera offers a built-in Help system.
See page 40.
Using the Menu button
Press Menu, , then
, and OK to access
settings
Self-timer/Burst
(Also see page 11.)
Take a picture/video after a
delay, or take 2 pictures.
Or take up to 3 pictures in
quick succession. (Burst is not
available in Panorama mode.)
Focus Mode
Select a large or concentrated
area of focus.
Long Time Exposure
Choose how long the shutter
stays open.
Color Mode
Choose color tones.
Unavailable in Video mode.
Capture Options
IMPORTANT:
Your camera offers a built-in Help system.
See page 40.
Self-timer Off
10 seconds
2 seconds
2-shot
Burst
Auto—for general picture-taking.
Macro—for sharpness and detail in pictures at close range.
Use available light instead of flash, if possible. The camera
automatically sets the focus distance depending on the zoom
position.
Infinity—for distant subjects; auto-focus framing marks are
unavailable.
None
0.5, 1.0, 2.0, 4.0, 8.0 seconds
High Color
Natural Color
Low Color
Black & White
Sepia
NOTE: EASYSHARE Software also lets you change a color picture to
black-and-white or sepia.
26 www.kodak.com/go/support
Using the Menu button
Press Menu, , then
, and OK to access
settings
AF Control (Still)
Choose an auto-focus setting.
White Balance
Choose your lighting
condition. (Available only in
Program and Panorama
modes.)
Face Detect Capture
Choose if faces get focus
priority.
Exposure Metering
Evaluate light levels at specific
areas of a scene.
Capture Options
IMPORTANT:
Your camera offers a built-in Help system.
See page 40.
Continuous AF—because the camera is always focusing,
there is no need to press the Shutter button halfway down to
focus.
Single AF—uses TTL-AF (through-the-lens auto focus) when
the Shutter button is pressed halfway down.
Auto—automatically corrects white balance. Ideal for general
picture taking.
Daylight—for pictures in natural lighting.
Tungsten—corrects the orange cast of incandescent light
bulbs. Ideal for indoor pictures under tungsten or halogen
lighting without flash.
Fluorescent—corrects the green cast of fluorescent lighting.
Ideal for indoor pictures under fluorescent lighting without
flash.
Open Shade—for pictures in shade in natural lighting.
On—in SCN modes designed for pictures of people, the
camera attempts to focus on faces.
Off
NOTE: Not available in Smart Capture mode (because face detection
is always on).
Multi-Pattern—evaluates lighting conditions throughout
the image to give an optimum picture exposure. Ideal for
general picture taking.
Center-Weight—evaluates the lighting conditions of the
subject centered in the lens. Ideal for backlit subjects.
Center-Spot—similar to Center-weight, except the metering
is concentrated on a smaller area of the subject centered in the
LCD.
www.kodak.com/go/support
27
Using the Menu button
Press Menu, , then
, and OK to access
settings
AF Zone
Select a large or concentrated
area of focus.
ISO Speed
Control the sensitivity of the
camera sensor.
Sharpness
Control picture sharpness.
Video settings
Press Menu, ,
, and OK to access
settings
Video Size
Choose a video resolution.
Self-timer
Take a picture/video after a
delay. (Also see page 11.)
Capture Options
IMPORTANT:
Your camera offers a built-in Help system.
See page 40.
Multi-Zone—evaluates 5 zones to give an even picture
focus. Ideal for general picture taking.
Center-Zone—evaluates the small area centered in the lens.
Ideal when you need precise focus.
See Camera specifications, page 46.
Sharp
Normal
Soft
Video Options
IMPORTANT:
Your camera offers a built-in Help system.
See page 40.
640 x 480 @ 30 fps (VGA)
320 x 240 @ 30 fps (QVGA)
10 seconds
2 seconds
28 www.kodak.com/go/support
Using the Setup tab
Using the Menu button
Press Menu, to highlight
Setup, then and OK to
access settings
Share button
Choose how pictures/videos are handled
when you press the Share button (via
EASYSHARE Software for WINDOWS-OS
only).
NOTE: Some online services limit video file
sizes. Use EASYSHARE Software or
choose a preferred online service.
LCD Brightness
Choose LCD brightness.
Image Storage
Choose a storage location for
pictures/videos.
Set Tag
Create tag names and assign them to
pictures/videos. See page 36.
Red Eye Reduction
Choose how you want to reduce red eye.
Setup Options
IMPORTANT:
Your camera offers a built-in
Help system. See page 40.
Favorite and Upload—pictures/videos are
tagged as Favorites and uploaded to your
preferred online service when you connect to your
computer or network.
Favorite—pictures/videos are tagged as
Favorites (5-star in EASYSHARE Software, on your
computer).
Upload—pictures/videos are uploaded to your
preferred online service when you connect to your
computer or network.
Power Save—Lower LCD brightness; conserves
power.
High Power—Higher LCD brightness; uses more
power.
Auto—the camera uses the card if one is in the
camera. If not, the camera uses internal memory.
Internal Memory—the camera always uses
internal memory, even if a card is installed.
New Tag—create a tag.
Delete Tag—delete a tag.
Clear All—cancel selected tags.
Preflash—red eye preflash fires before the
picture is taken.
Digital Correction—red eye preflash does not
fire; the camera corrects red eye.
www.kodak.com/go/support
29
Using the Menu button
CAUTION:
Press Menu, to highlight
Setup, then and OK to
access settings
Orientation Sensor
Orient pictures/videos so that they are
displayed with the correct side up.
Camera Sounds
Choose sound effects, volume.
Date & Time Set date and time.
Video Out
Choose the regional setting that lets you
connect the camera to a television or other
external device.
Language Choose your language.
Reset Camera
Reset settings to their default.
Format
Formatting deletes all
pictures/videos,
including those that are
Setup Options
IMPORTANT:
Your camera offers a built-in
Help system. See page 40.
On—the camera rotates pictures so that all
appear in the same orientation on the camera.
Off—pictures are not rotated.
Power On
Focus Lock
Shutter
Error
Self-timer
Sound Volume (High, Medium, Low, Mute)
NTSC—used in North America and Japan; most
common format.
PAL—used in Europe and China.
Memory Card—deletes everything on the card;
formats the card.
Cancel—exits without making a change.
Internal Memory—deletes everything in
internal memory including email addresses and tag
names; formats the internal memory.
protected. Removing a
card during formatting
may damage the card.
30 www.kodak.com/go/support
Using the Menu button
Press Menu, to highlight
Setup, then and OK to
access settings
About
View camera information.
Setup Options
IMPORTANT:
Your camera offers a built-in
Help system. See page 40.
www.kodak.com/go/support
31
5 Transferring, printing, tagging
CAUTION:
Before connecting any cables, install the software that was
included with your camera. Failure to do so may cause the
software to load incorrectly.
Installing the software
1 Close all open software applications before starting the installation.
NOTE: If running WINDOWS OS and installing EASYSHARE Software from the Kodak Web site, do not
close the WinZip application. If prompted, allow EASYSHARE Software to access the Internet.
2 Place the KODAK EASYSHARE Software CD into the CD-ROM drive.
3 Load the software:
WINDOWS OS—if the install window does not appear, choose Run from the
Start menu and type d:\setup.exe where d is the drive letter that contains the
CD.
MAC OS X—double-click the CD icon on the desktop, then click the Install icon.
4 Follow the on-screen instructions to install the software.
NOTE: When prompted, register your camera and software. Registering lets you sign up for information
that keeps your system up-to-date. To register later, go to
5 If prompted, restart the computer.
For software help, click the Help button in EASYSHARE Software.
www.kodak.com/go/register.
32 www.kodak.com/go/support
Transferring pictures/videos
Turn off the camera.
1
2
Connect a KODAK
USB Cable, Model
U-8.
3
Turn on the camera.
Using the USB cable
Purchase accessories www.kodak.com/go/md81accessories
Learn more about connecting
and transferring
Transferring, printing, tagging
www.kodak.com/go/howto
Using other options
You can also use a card reader to transfer your pictures/videos.
www.kodak.com/go/support
33
Transferring, printing, tagging
Printing pictures
Direct printing with a KODAK All-in-One Printer
Your camera is compatible with PICTBRIDGE Technology, so you can print directly to
PICTBRIDGE enabled Printers. You need a camera with a fully charged battery, a
PICTBRIDGE enabled Printer, and a USB cable.
Connecting the camera to a KODAK All-in-One Printer
1 Turn off the printer. Turn on the camera.
2 Connect the appropriate USB cable from the camera to the printer.
The PICTBRIDGE logo is displayed, followed by the current picture and menu. (If no
pictures are found, a message is displayed.) If the menu turns off, press any button to
redisplay it.
3 Highlight a printing option, then press OK.
Current Picture—Press to choose a picture. Choose the number of copies.
Tagged Pictures—Print pictures that you tagged for printing and choose a print
size.
Index Print—Print thumbnails of all pictures. (This option requires one or more
sheets of paper.) If the printer is capable, choose a print size.
All Pictures—Print all pictures in internal memory or on a card. Choose the
number of copies.
Image Storage—Access Auto or Internal Memory.
NOTE: During direct printing, pictures are not permanently transferred or saved to the printer. To transfer
pictures to your computer, see page 33.
Purchase cables, accessories www.kodak.com/go/md81accessories
34 www.kodak.com/go/support
Transferring, printing, tagging
Disconnecting the camera from a KODAK All-in-One Printer
1 Turn off the camera and printer.
2 Disconnect the USB cable from the camera and the printer.
Using a printer that is not PICTBRIDGE enabled
After you transfer pictures from the camera to your computer, you can print them from
EASYSHARE Software. For details, see Help in EASYSHARE Software.
Ordering prints online
KODAK Gallery (www.kodakgallery.com) is one of the many online print services
offered in EASYSHARE Software. You can easily:
■ Upload your pictures.
■ Edit, enhance, and add borders to your pictures.
■ Store pictures, and share them with family and friends.
■ Have prints, photo greeting cards, frames, and albums delivered to your door.
Printing from an optional SD or SDHC Card
■ Automatically print tagged pictures when you insert your card into a printer with
an SD/SDHC Card slot. See your printer user’s guide for details.
■ Make prints at an SD/SDHC Card-capable KODAK Picture Kiosk. (Contact a
location prior to visiting. Go to www.kodak.com/go/picturemaker.)
■ Take the card to your local photo retailer for professional printing.
www.kodak.com/go/support
35
Transferring, printing, tagging
Tagging/marking your pictures
You can tag/mark your pictures so they are easy to:
■ Print
■ Email
■ Organize with a favorite tag
■ Organize with a tag name that you create
Marking pictures for printing
1 Press the Review button. Press to locate a picture.
2 Press the Menu button. Press to highlight Print, then press OK.
3 Press to select the number of copies.
4Optional: You can apply a print quantity to other pictures. Press for
previous/next. Keep the print quantity as is, or press to change it. Repeat
this step until the desired print quantity is applied to the pictures.
5 Press OK.
The Print icon appears in the status area.
■ Press the Shutter button halfway down to return to Capture mode.
IMPORTANT:
Printing marked pictures
When you transfer the marked pictures to your computer, the EASYSHARE Software
print screen opens. For details on printing, see Help in EASYSHARE Software.
Your camera offers a built-in Help system. See page 40.
36 www.kodak.com/go/support
Transferring, printing, tagging
Marking pictures/videos for emailing
It’s simple to mark pictures so that they’re ready to email using KODAK EASYSHARE
Software. First, create a new email address. (See Add a new email address or tag
name.)
1 Press the Review button. Press to locate a picture, then press OK.
2 Press to highlight Email, then press OK.
3 Press to locate an email address, then press OK.
4 To mark other pictures/videos with the same address, scroll through them. When
the picture you want is displayed, press OK.
5 To send the pictures/videos to more than one address, repeat step 3.
■ To remove a selection, highlight a checked address and press OK. To remove
all email selections, highlight Clear All, then press OK.
■ Press the Shutter button halfway down to return to Capture mode.
The Email icon appears in the status area.
When you transfer the marked pictures/videos to your computer, EASYSHARE
Software prompts you to send the pictures/videos. For details, see Help in EASYSHARE
Software.
Add a new email address or tag name
1 Press the Review button, then the Menu button.
2 Press to highlight Email or Tag, then press OK.
3 Press to highlight New Email or New Tag, then press OK.
4 Use the on-camera keyboard, then press OK.
The email address/tag name is now available.
www.kodak.com/go/support
37
Transferring, printing, tagging
Assigning the favorite mark to pictures/videos
To make your favorite pictures/videos easier to locate in EASYSHARE Software, you
can assign the favorite mark.
1 Press the Review button, then locate a picture/video.
2 Press the Share button.
The favorite mark appears with the picture. When you transfer the marked
pictures/videos to your computer, EASYSHARE Software opens and categorizes your
pictures/videos with a 5-star rating. (To configure the Share button in different ways,
see page 29.)
Assigning text tags to pictures/videos
First, create a new tag name. (See page 37.)
1 Press the Review button, then locate a picture/video.
2 Press the Menu button.
3 Highlight Tag, then press OK.
4 Highlight a tag name, then press OK.
5 To assign the tag to other pictures, press to locate a picture, then press OK.
The tag name appears with the picture. A plus (+) means the picture has more than one
tag assigned.
To remove a selection, highlight a tag name and press OK. To remove all tagged
selections, highlight Clear All, then press OK.
When you transfer the tagged pictures/videos to your computer, EASYSHARE Software
opens and categorizes your pictures/videos with the appropriate tag.
IMPORTANT:
Your camera offers a built-in Help system. See page 40.
38 www.kodak.com/go/support
Transferring, printing, tagging
Assigning a tag to pictures/videos you take next
Use the Set Tag feature to assign a tag name to the next pictures/videos you take.
First, create a new tag name. (See page 37.)
1 Press the Menu button.
2 Highlight the Setup tab.
3 Highlight Set Tag, then press OK.
4 Highlight a tag name, then press OK.
The selected tag is displayed on the LCD. The tag is applied to new pictures/videos.
■ Press the Shutter button halfway down to return to Capture mode.
When you transfer the tagged pictures/videos to your computer, EASYSHARE Software
opens and categorizes your pictures/videos with the appropriate tag.
IMPORTANT:
Your camera offers a built-in Help system. See page 40.
www.kodak.com/go/support
39
6 Getting help
Scroll through a Help topic
Press the Menu button, then
highlight a menu choice.
Press the Info
1
2
button.
Getting help from your camera
You want the most from your camera. You want to understand:
■ What it can do for you
■ And how to take the best possible pictures and videos
Great news!
Your camera offers a built-in Help system. It describes every setting for every menu
choice. If you learn nothing else about your camera, learn how to use on-camera Help.
Because the more you know your camera, the more confident you become!
Turning on camera Help
40 www.kodak.com/go/support
Getting help on the Web
Camera
Getting help
Chat, email, write, or phone, Kodak
(Chat not available in all languages.)
Get support for your product (FAQs, troubleshooting
information, arrange for repairs, etc.)
Purchase camera accessories (lenses, cards, etc.) www.kodak.com/go/md81accessories
Download the latest camera firmware and software www.kodak.com/go/md81downloads
See online demonstrations of your camera www.kodak.com/go/howto
Register your camera www.kodak.com/go/register
www.kodak.com/go/contact
www.kodak.com/go/md81support
Software
Get information on EASYSHARE Software www.kodak.com/go/easysharesw
(or see Help in EASYSHARE Software)
Get help with the WINDOWS OS and working with
digital pictures
www.kodak.com/go/pcbasics
Other
Get support for cameras, software, accessories, more www.kodak.com/go/support
Get information on KODAK Inkjet Products www.kodak.com/go/inkjet
Optimize your printer for truer, more vibrant colors www.kodak.com/go/onetouch
www.kodak.com/go/support
41
Getting help
Troubleshooting
Camera problems
Status Solution
Camera does not
turn on/off
Camera buttons and
controls do not
function
In Review, a blue or
black screen is
displayed instead of
a picture
Pictures remaining
number does not
decrease after taking a
Flash does not fire ■ Check the flash setting, and change as needed (see page 7).
Memory card is almost
or entirely full
The battery does not
charge using USB
charging
Battery life is short ■ Make sure the correct battery type is installed (see page 50).
■ Make sure the battery is charged and installed correctly (see
page 1).
■ Tra ns fer
■ Take another picture.
■ Continue taking pictures. The camera is operating normally.
all
pictures to the computer (see page 32).
(The camera estimates the number of pictures remaining after each
picture is taken, based on picture size and content.)
NOTE: The flash does not fire in all modes.
■ Transfer the pictures to the computer (see page 32).
■ Delete pictures from the card (see page 15) or insert a new card.
■ See page 2 or go to www.kodak.com/go/USBcharging.
■ Insert a new battery (see page 1).
■ Wipe the contacts with a clean, dry cloth before inserting a
battery in the camera.
■ Insert a new or charged battery (see page 1).
42 www.kodak.com/go/support
Status Solution
You cannot take a
■ Turn the camera off, then on again.
■ Depress the Shutter button all the way (see page 5).
■ Insert a new or charged battery (see page 1).
■ Memory is full. Transfer pictures to the computer (see page 32),
delete pictures (see page 15), or insert another card.
Memory card not
recognized or camera
freezes with card
Cannot find the
■ Card may be corrupted. Format the card in the camera (see
page 30).
■ Use another memory card. Only SD or SDHC Cards are supported.
■ To view pictures on a card or in internal memory, see page 14.
desired picture/video
Computer/connectivity problems
Status Solution
Pictures do not
transfer to computer
Slide Show does not
run on an external
video device
Computer does not
communicate with
the camera
■ See Help in EASYSHARE Software.
■ Adjust the camera Video Out setting to NTSC or PAL (see
page 30).
■ Make sure the external device settings are correct. (See the
devi ce ’s user’s g uide).
■ Make sure the battery is charged and installed correctly (see
page 1).
■ Turn on the camera.
■ Make sure the USB cable model U-8 is connected to the camera
and the computer (see page 33).
■ Make sure EASYSHARE Software is installed (see page 32).
Getting help
www.kodak.com/go/support
43
Getting help
Picture quality problems
Status Solution
Picture is not clear ■ To automatically set exposure and focus, press the Shutter button
Picture is too dark ■ Reposition the camera for more available light.
Picture is too light ■ Reposition the camera to reduce the amount of available light.
halfway. When the framing marks turn green, press the Shutter
button completely down to take the picture.
■ Clean the lens (see page 48).
■ Place the camera on a flat, steady surface or use a tripod (especially
in high-zoom settings or in low light).
■ Use Fill flash (see page 7) or change your position so light is not
behind the subject.
■ Move so that the distance between you and the subject is within the
effective flash range. (See camera specifications starting on
page 46.)
■ To automatically set exposure and focus, press the Shutter button
halfway. When the framing marks turn green, press the Shutter
button completely down to take the picture.
■ Turn the flash off (see page 7).
■ Move so that the distance between you and the subject is within the
effective flash range. (See camera specifications starting on
page 46.)
■ To automatically set exposure and focus, press the Shutter button
halfway. When the framing marks turn green, press the Shutter
button completely down to take the picture.
■ In Program and Panorama modes, adjust the Exposure
Compensation (see page 25).
44 www.kodak.com/go/support
Direct printing (PICTBRIDGE enabled Printer) problems
Status Solution
Cannot find the
desired picture
The Direct printing
menu interface
turns off
Cannot print
pictures
Camera or printer
display an error
message
■ Use the Direct printing menu to change the image storage location
(see page 34).
■ Press any camera button to redisplay the menu.
■ Make sure there is a connection between the camera and the printer
(see page 34).
■ Make sure the printer and the camera have power.
■ Follow the prompts to resolve the issue.
Getting help
www.kodak.com/go/support
45
7 Appendix
Camera specifications
CCD—1/2.33-type
Effective pixels—12.4 MP, 4096 x 3016
LCD—7.6 cm (3.0 in.) LCD; 230K pixels
Image storage—Optional SD/SDHC Card (The SD logo is a trademark of the
SD Card Association.) Maximum supported card size: 32 GB
Internal storage capacity—32 MB internal memory (17 MB available for image
storage. 1 MB equals one million bytes.)
Taking lens—5X optical zoom; f/3.0–f/4.8; 35 mm equivalent: 35–175 mm
Lens protection—Built-in
Digital zoom—5X continuous
Focus system—TTL-AF (through-the-lens auto focus); Auto: Multi-Zone,
Center-Zone. Working range:
60 cm (23.6 in.)–infinity @ wide, normal
90 cm (35.4 in.)–infinity @ telephoto, normal
10–70 cm (3.9–27.6 in.) @ wide, Macro mode
80–100 cm (31.5–39.4 in.) @ telephoto, Macro mode
10 m (32.8 ft)–infinity @ wide, Landscape mode
Auto focus control—Still: Continuous, Single AF; Video: Single AF
Face detection—Up to 5 faces
Shutter speed—8–1/1400 seconds; long time exposure 0.5–8 seconds
ISO speed—Auto (in Smart Capture): 64–400; Auto (in P mode): 64–400; Manual:
64, 100, 200, 400, 800, 1600
Exposure metering—TTL-AE; Multi-Pattern, Center-Weight, Center-Spot
46 www.kodak.com/go/support
Appendix
Exposure compensation—+/-2.0 EV with 1/3 EV step
White Balance—Auto, Daylight, Tungsten, Fluorescent, Open Shade
Electronic Flash—Auto flash; Auto, Fill, Red Eye, Off; Guide No. 6.3; working range
@ ISO 250: 0.6–3.3 m @ wide; 0.9–2.1 m @ telephoto
Burst mode—Maximum 3 pictures @ 2 fps; Auto Exposure, Auto Focus, Auto White
Balance executed for first shot only
Capture modes—Smart Capture, Program, Scene modes, Video, Sport, Blur
Reduction, Panorama
Image file format—
Still: EXIF 2.21 (JPEG compression); file organization DCF
Video: QUICKTIME (CODEC Motion JPEG; audio: G.711)
Picture size—11.8 MP (4:3): 3968 x 2976 pixels
10.5 MP (3:2): 3968 x 2640 pixels
8.8 MP (16:9): 3968 x 2224 pixels
6.2 MP (4:3): 2880 x 2160 pixels
3.1 MP (4:3): 2048 x 1536 pixels
2.1 MP (16:9): 1920 x 1088 pixels
1.2 MP (4:3): 1280 x 960 pixels
Color modes—High Color, Natural Color, Low Color, Black & White, Sepia
Sharpness modes—Sharp, Normal, Soft
Video capture—4 GB maximum
VGA (640 x 480 @ 30 fps)
QVGA (320 x 240 @ 30 fps)
Video blur reduction—Yes
Communication with computer—USB 2.0 high speed (PIMA 15740 protocol);
via USB cable model U-8
Video output—NTSC or PAL
www.kodak.com/go/support
47
Appendix
Microphone—Yes
Speaker—Yes
PICTBRIDGE support—Yes
Power—KODAK Li-Ion Rechargeable Digital Camera Battery KLIC-7003 (1050 mAh);
5V AC adapter; USB charging
Tripod mount—1/4 inch
Size—100.9 x 59.5 x 20.2 mm (4.0 x 2.3 x 0.8 in.) @ power off
Weight— 133 g (4.7 oz) without card or battery
Operating temperature—0–40
° C (32–104° F)
Care and maintenance
■ If you suspect water has gotten inside the camera, remove the battery and card.
Allow all components to air-dry for at least 24 hours before using the camera.
■ Blow gently on the lens or LCD to remove dust and dirt. Wipe gently with a soft,
lint-free cloth or an untreated lens-cleaning tissue. Do not use cleaning solutions
unless designed specifically for camera lenses. Do not allow chemicals, such as
suntan lotion, to contact painted surfaces.
■ Service agreements may be available in your country. Contact a dealer of KODAK
Products for more information.
■ For digital camera disposal or recycling information, contact your local authorities.
In the US, go to the Electronics Industry Alliance at www.eiae.org or
www.kodak.com/go/md81support.
Upgrading your software and firmware
Download the latest versions of the software included on the KODAK EASYSHARE
Software CD and the camera firmware (the software that runs on the camera). Go to
www.kodak.com/go/md81downloads.
48 www.kodak.com/go/support
Appendix
CAUTION:
Storage capacities
The LCD displays the approximate number of pictures (or minutes/seconds of video)
remaining. For average SD Card capacities, go to www.kodak.com/go/SDcapacities.
Actual storage capacity varies depending on subject composition, card size, and other
factors. You may be able to store more or fewer pictures and videos. Favorites take up
additional space in internal memory.
Important safety instructions
Do not disassemble this product; there are no user-serviceable parts
inside. Refer servicing to qualified service personnel. KODAK AC Adapters
and Battery Chargers are intended for indoor use only. The use of controls,
adjustments, or procedures other than those specified herein may result in
exposure to shock and/or electrical or mechanical hazards. If the LCD
breaks, do not touch the glass or liquid. Contact Kodak customer support.
■ The use of an accessory that is not recommended by Kodak may cause fire, electric
shock, or injury. For approved accessories, go to www.kodak/go/accessories.
■ Use only a USB-certified computer equipped with a current-limiting motherboard.
Contact your computer manufacturer if you have questions.
■ If using this product in an airplane, observe all instructions of the airline.
■ When removing the battery, allow it to cool; it may be hot.
■ Follow all warnings and instructions supplied by the battery manufacturer.
■ Use only batteries approved for this product to avoid risk of explosion.
■ Keep batteries out of the reach of children.
■ Do not allow batteries to touch metal objects, including coins. Otherwise, a battery
may short circuit, discharge energy, become hot, or leak.
■ Do not disassemble, install backward, or expose batteries to liquid, moisture, fire,
or extreme temperature.
www.kodak.com/go/support
49
Appendix
■ Remove the battery when the product is stored for an extended period of time. In
the unlikely event that battery fluid leaks inside the product, contact Kodak
customer support.
■ In the unlikely event that battery fluid leaks onto your skin, wash immediately with
water and contact your local health provider. For additional health-related
information, contact your local Kodak customer support.
■ Go to www.kodak.com/go/REACH for information about the presence of
substances included on the candidate list according to article 59(1) of Regulation
(EC) No. 1907/2006 (REACH).
■ Dispose of batteries according to local and national regulations. Go to
www.kodak.com/go/kes.
■ Do not charge non-rechargeable batteries. For more information, go to
www.kodak.com/go/batteries.
Battery replacement, battery life
KODAK Li-Ion Rechargeable Digital Camera Battery KLIC-7003 (1050 mAh): 310
pictures per charge. Battery life per CIPA testing method. (Approx. number of pictures
in Smart Capture mode.) Actual life may vary based on usage.
Extending battery life
■ Use power-saving features (see Using the Setup tab, page 29).
■ Keep battery contacts/terminals clean. Wipe with a dry cloth.
■ Charge Li-Ion batteries frequently, even if power remains.
■ Battery performance is reduced at low temperatures. When using your camera in
cold weather, keep spare batteries warm. Do not discard cold batteries that do not
work; when they return to room temperature, they may be usable.
50 www.kodak.com/go/support
Appendix
Limited warranty
Kodak warrants its digital cameras and accessories (excluding batteries) to be free
from malfunctions and defects in both materials and workmanship for the warranty
period specified on your Kodak Product packaging. Retain the original dated sales
receipt. Proof of purchase date is required with any request for warranty repair.
Limited warranty coverage
Warranty service is only available from within the country where the Products were
originally purchased. You may be required to ship Products, at your expense, to the
authorized service facility for the country where the Products were purchased. Kodak
will repair or replace Products if they fail to function properly during the warranty
period, subject to any conditions and/or limitations stated herein. Warranty service
will include all labor as well as any necessary adjustments and/or replacement parts. If
Kodak is unable to repair or replace a Product, Kodak will, at its option, refund the
purchase price paid for the Product provided the Product has been returned to Kodak
along with proof of the purchase price paid. Repair, replacement, or refund of the
purchase price are the sole remedies under the warranty. If replacement parts are
used in making repairs, those parts may be remanufactured, or may contain
remanufactured materials. If it is necessary to replace the entire Product, it may be
replaced with a remanufactured Product. Remanufactured Products, parts and
materials are warranted for the remaining warranty term of the original Product, or 90
days after the date of repair or replacement, whichever is longer.
Limitations
This warranty does not cover circumstances beyond Kodak's control. This warranty
does not apply when failure is due to shipping damage, accident, alteration,
modification, unauthorized service, misuse, abuse, use with incompatible accessories
or attachments (such as third party ink or ink tanks), failure to follow Kodak's
operation, maintenance or repacking instructions, failure to use items supplied by
Kodak (such as adapters and cables), or claims made after the duration of this
warranty. Kodak makes no other express or implied warranty for this product. In the
event that the exclusion of any implied warranty is ineffective under the law, the
duration of the implied warranty will be the length of the express warranty period
www.kodak.com/go/support
51
Appendix
specified on your Kodak product packaging. The option of repair, replacement, or
refund is Kodak's only obligation. Kodak will not be responsible for any special,
consequential or incidental damages resulting from the sale, purchase, or use of this
product regardless of the cause. Liability for any special, consequential or incidental
damages (including but not limited to loss of revenue or profit, downtime costs, loss
of the use of the equipment, cost of substitute equipment, facilities or services, or
claims of your customers for such damages resulting from the purchase, use, or failure
of the Product), regardless of cause or for breach of any written or implied warranty is
expressly disclaimed.
Your right s
Some states or jurisdictions do not allow exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
Some states or jurisdictions do not allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to you. This warranty gives you specific
rights, and you may have other rights which vary from state to state or by jurisdiction.
Outside the United States and Canada
In countries other than the United States and Canada, the terms and conditions of
this warranty may be different. Unless a specific Kodak warranty is communicated to
the purchaser in writing by a Kodak company, no warranty or liability exists beyond
any minimum requirements imposed by law, even though defect, damage, or loss may
be by negligence or other act.
52 www.kodak.com/go/support
Appendix
Regulatory compliance
FCC compliance and advisory
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed or used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures: 1) reorient or relocate the
receiving antenna; 2) increase the separation between the equipment and the
receiver; 3) connect the equipment to an outlet on a circuit different from that to
which the receiver is connected; 4) consult the dealer or an experienced radio/TV
technician for additional suggestions. Any changes or modifications not expressly
approved by the party responsible for compliance could void the user’s authority to
operate the equipment. Where shielded interface cables have been provided with the
product or specified additional components or accessories elsewhere defined to be
used with the installation of the product, they must be used in order to ensure
compliance with FCC regulation.
Waste Electrical and Electronic Equipment labeling/battery disposal
In Europe: For human/environmental protection, it is your responsibility to
dispose of this equipment and batteries at a collection facility established for
this purpose (separate from municipal waste.) For more information, contact
your retailer, collection facility, or appropriate local authorities; or go to
www.kodak.com/go/recycle. Product weight 133 g (4.7 oz).
www.kodak.com/go/support
53
Appendix
N137
Eastman Kodak Company
Rochester, NY 14650
Australian C-Tick
Korean Class B ITE
VCCI Class B ITE
Russian GOST-R
54 www.kodak.com/go/support
Appendix
China RoHS
Canadian DOC statement
DOC Class B Compliance—This Class B digital apparatus complies with Canadian
ICES-003.
Observation des normes-Classe B—Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
CE
Hereby, Eastman Kodak Company declares that this KODAK Product is in compliance
with the essential requirements and other relevant provisions of Directive 1999/5/E.
www.kodak.com/go/support
55
1 Index
A
A/V out, 18
about this camera, 31
accessories, 33
battery, 50
buying, 41
SD/SDHC Card, 4
AF control (video), 27
AF zone, 28
auto, 8
enhancement, 20
focus control, 27
focus framing marks, 5
auto focus (AF)
zone, 28
B
backlight, 9
battery
charging, 2
expected life, 50
loading, 1
types, 50
beach, 9
burst, using, 11
button
burst, 11
delete, 6
telephoto/zoom, 6
C
cable
audio/video, 18
USB, 33
camera sounds, 30
Canadian compliance, 55
care and maintenance, 48
charging the battery, 2
children, 9
clock, setting, 3
color mode, 26
computer
connecting camera, 32
transfer to, 32
connector, USB / A/V, 18, 33
copy pictures
card to memory, 21
memory to card, 21
to computer via USB cable, 32
cropping pictures, 20
customize camera, 29
D
date setting, 3
deleting
during quickview, 6
from internal memory, 15
from SD/SDHC Card, 15
protecting pictures, videos, 15
displaying slide show, 17
disposal, recycling, 48
downloading pictures, 32
56 www.kodak.com/go/support
Index
E
EASYSHARE Software, 32
edit videos, 21
emailing pictures, videos, 37
expected battery life, 50
exposure
long time, 26, 29
metering, 27
exposure compensation, 25
exposure metering, 27
external video device
viewing pictures, videos, 18
F
face detect capture, 27
favorites tagging, 38
FCC compliance, 53
fireworks, 9
firmware, upgrading, 48
flash, using, 7
flower, 9
focus framing marks, 5
focus mode, 26
format, 30
framing marks, 5
G
guidelines, battery, 50
H
help
camera help, 40
Web links, 40
I
icons, modes, 8
image storage, 29
installing
battery, 1
SD/SDHC Card, 4
software, 32
ISO speed, 28
K
KODAK EASYSHARE Software
installing, 32
upgrading, 48
KODAK PERFECT TOUCH
Technology, 20
Kodak Web sites, 40
L
language, 30
LCD
brightness, 29
reviewing pictures, 14
reviewing videos, 14
LCD brightness, 29
lens
cleaning lens, 48
loading
battery, 1
SD/SDHC Card, 4
software, 32
long time exposure, 26, 29
M
MAC OS, installing software, 32
magnify a picture, 14
www.kodak.com/go/support 57
Index
maintenance, camera, 48
make picture from video, 21
manner/museum, 9
memory
inserting card, 4
modes, 8
auto, 8
backlight, 9
beach, 9
children, 9
fireworks, 9
flower, 9
manner/museum, 9
night landscape, 9
night portrait, 9
scene (SCN), 9
self-portrait, 9
snow, 9
text, 9
modes, capture
smart capture, 8
multiple selections, 16
multi-up, 16
N
night landscape, 9
night portrait, 9
O
online prints, ordering, 35
optical zoom, 6
orientation sensor, 30
P
panoramic pictures, 12
PERFECT TOUCH Technology, 20
PICTBRIDGE enabled printer, 34
picture size, 25
pictures
copying, 21
cropping, 20
emailing tagged, 37
PERFECT TOUCH, 20
printing, 35
printing tagged, 36
protecting, 15
review icons, 24
reviewing, 14
tagging, 36
taking, modes, 8
transfer via USB cable, 32
pictures/video
deleting, 15
playing a video, 14
power
camera, 3
pre-tagging, 39
printing
from a card, 35
from computer, 35
optimizing printer, 40
order online, 35
PICTBRIDGE, 34
tagged pictures, 35
protecting pictures, videos, 15
Q
quickview, using, 6
58 www.kodak.com/go/support
Index
R
recycling, disposal, 48
regulatory information, 53
repair, 41
reset camera, 30
reviewing pictures/video
as you take them, 6
deleting, 15
LCD, 14
protecting, 15
slide show, 17
running slide show, 17
S
safety, 49
scene modes (SCN), 9
SD/SDHC Card
inserting, 4
SD/SDHC card
printing from, 35
select multiple pictures/videos, 16
self-portrait, 9
self-timer, 11
set tag, 29
setting
AF zone, 28
auto-focus, 27
camera sounds, 30
color mode, 26
date and time, 3
exposure metering, 27
image storage, 29
ISO, 28
language, 30
LCD brightness, 29
long time exposure, 26, 29
orientation sensor, 30
picture size, 25
picture-taking mode, 8
self-timer, 11
sharpness, 28
video out, 30
video size, 28
white balance, 27
setting up the camera, 1
setup menu, 29
Share button, 29
sharpness, 28
shutter
problems, 43
self-timer delay, 11
slide show
continuous loop, 17
running, 17
smart capture, 8
snow, 9
software
installing, 32
upgrading, 48
sounds, 30
specifications, camera, 46
strap, 1
T
tagging
creating tags, 38
favorites, 38
for email, 37
www.kodak.com/go/support 59
Index
for print, 36
pre-tagging, 39
taking pictures, videos, 5
television, slide show, 18
text, 9
time, setting, 3
timer, shutter delay, 11
tips
battery guidelines, 50
care & maintenance, 48
transfer, via USB cable, 32
trash can, deleting, 6
trimming a video, 22
turning camera on and off, 3
U
undelete, undo, 15
upgrading software, firmware, 48
URLs, Kodak Web sites, 40
USB
transferring pictures, 32
V
video
action print, 23
copying, 21
edit, 21
emailing tagged, 37
out, 30
playback, 14
protecting, 15
review icons, 24
size, 28
transfer to computer, 32
viewing, 14
video out, 30
video size, 28
viewing
by multi-up, 16
picture, after taking, 6, 14
W
warranty, 51
white balance, 27
WINDOWS OS, installing software, 32
Z
zoom
optical, 6
60 www.kodak.com/go/support
Loading...
