i600 Series Scanners
Productivity.
Versatility.
Reliability.
Easy on your operators, and your bottom line

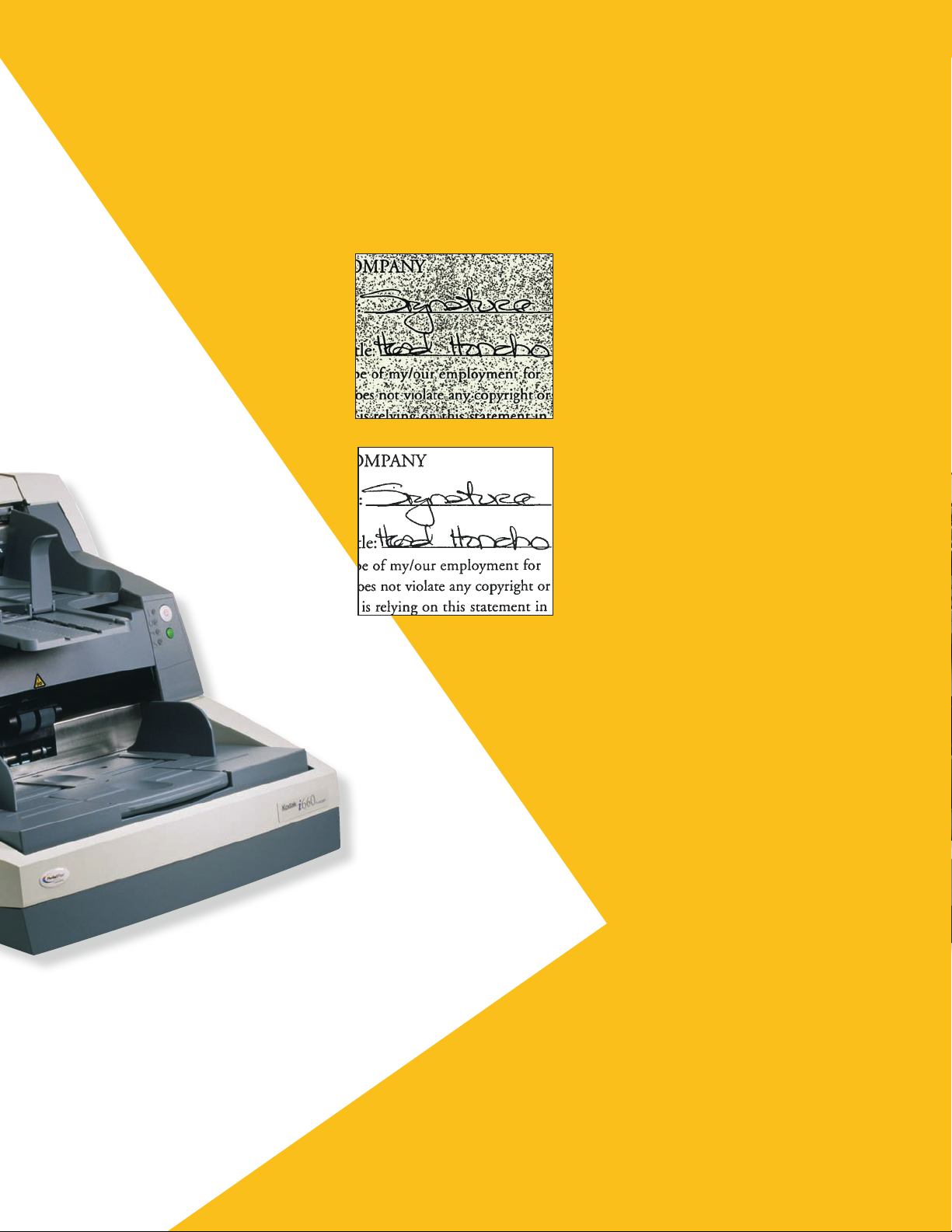

The award-winning Kodak i600
Series Scanners take scanner
performance to the next level with
innovations like SurePath paper
handling, Perfect Page Scanning,
three independent ultrasonic multifeed detection sensors, automatic
color detection and much more. All
at a price that puts high performance
and value within your reach and gives
you a competitive edge.
Productivity
Our exclusive paper feeding
technology easily handles documents
of dierent sizes, weights and types
to deliver high productivity. And our
advanced image processing delivers
consistently high image quality, which
reduces the need for rescans.
Versatility
Reliability
Our robust paper feeding combined
with our exceptional image quality
allow you to zip through the most
challenging workloads, day after day.
Plus Kodak Service & Support, with
an experienced team of experts
available online and on-site, is just
a phone call away to help maximize
your uptime.
What you want, when you want it:
— scan all your documents
— variety of speed, color and paper
handling options
— multiple paper feeding methods
SurePath paper handling
enables virtually
uninterrupted workflow
Meeting demanding production
schedules requires a combination of
unique features that lets you scan just
about any document—from delicate
onionskin to heavy cardstock, and
even crumpled originals—with speed
and accuracy that keep productivity
up and operating costs down. The
Kodak i600 Series Scanners are
packed with features and benefits.
Kodak i600 Series Scanners include
virtually every feature you’ll need.
Color, bitonal and grayscale imaging.
Automatic color detection. Electronic
color dropout. Pre-scan document
imprinting. Fast IEEE-1394 (FireWire)
connectivity. Improved ultrasonic
multi-feed detection. And more!
In addition, versatility can be added
in with our convenient upgrade path.
You can add speed and/or color
scanning as your needs change,
right on your site!
Advanced imaging path design:
— sealed camera minimizes dust
— removable imaging guides
— dual long-life Xenon lamps per side
The operator-adjustable elevator handles batches
up to 500 sheets and can be set for variable batch
sizes; an optional manual feeder is available for
single-sheet feeding.
Our renowned automatic document feeder
handles mixed paper sizes and weights, and
adjusts to enable left, center or right feeding.
Advanced image processing.
Innovation that
means business.
Our built-in image processing
technology minimizes presorting
and post-image processing
while it captures high
workloads of mixed
documents at full rated
speed. The result is
a more ecient
front-end on ramp to your
information
highway.
Perfect Page Scanning:
• Delivers exceptional image quality,
even on challenging low-resolution
documents—with readability as good
as or better than the original
• Produces deskewed images, excellent
OCR/ICR read rates and, in many
cases, smaller file sizes
Automatic image rotation
at full rated speed
Allows you to scan in landscape mode
for maximum throughput and deliver
images in portrait mode.
Choose from five image
output options:
• Bitonal
• Color
• Grayscale
• Dual stream: bitonal and color
• Dual stream: bitonal and grayscale
With dual stream output, you can get
up to an astounding 480 high-quality
images per minute.
Electronic color dropout
Enhances forms processing applications
by allowing the scanner to ignore
irrelevant background color and capture
only the information you need.
Robust paper handling and virtually jamfree operation speed documents under
control all the way to the output tray.
Lockable paper-feeding guides on the input
tray also help control imprinting location.
Sturdy design and performance give you high
reliability, and Kodak Service & Support helps
ensure maximum uptime.
Automatic color detection
Allows your scanner to automatically
scan in color when it senses that the
color content of specific documents
within a batch is above a set threshold.
(With the i610 Scanner, this feature can
be used to capture color documents and
photos and save them as grayscale
images.) Based on the threshold you
set, your scanner determines when to
scan in color.
Toggle patch
Allows your scanner to automatically
switch “on the fly” between bitonal and
color/grayscale scanning. By using
toggle patches for a set of documents
within a batch, you determine when to
scan in color (as opposed to automatic
color detection).
i600 Series Scanners
Recommended Daily Volume i610/i620 up to 80,000 pages per day
i640 up to 100,000 pages per day
i660 up to 120,000 pages per day
Throughput Speeds
(200 dpi, landscape, letter size documents)
ppm=pages per minute, ipm=images per minute
i610*/i620 80 ppm (up to 320 ipm**)
i640 100 ppm (up to 400 ipm)
i660 120 ppm (up to 480 ipm)
(Throughput speeds may vary depending on your choice of application software, operating system and PC.)
Scanning Technology Dual Tricolor Plus CCD, Grayscale output bit depth is 256 levels (8-bit)
Color* capture bit depth is 40-bit (10 bits per red, green, blue and black channels)
Color* output bit depth is 24-bit
Optical Resolution 300 dpi
Illumination Dual long-life Xenon lamps per side, mercury-free
Output Resolution Color*/Grayscale: 100/150/200/240/300 dpi; Bitonal: 200/240/300/400 dpi
Maximum Document Size 305 mm x 863 mm (12 in. x 34 in.)
Minimum Document Size 64 mm x 64 mm (2.5 in. x 2. 5 in.)
Paper Thickness and Weight With Standard feeder: 45 g/m2 (12 lb.) bond to 200 g/m2 (110 lb.) index
With Ultra-Lightweight feeder accessory: 25 g/m2 (7 lb.) rice paper to 75 g/m2 (20 lb.) bond
Automatic Feeder/Elevator 500-sheet elevator-design document feeder with four settings:
continuous feed, 100-sheet, 250-sheet and full 500-sheet batches
Multi-Feed Detection 3-D multi-feed detection with ultrasonic technology;
three ultrasonic sensors that can work together or independently
Connectivity IEEE-1394 (FireWire) Interface, 6-pin connector; IEEE-1394 card and cable included
Interface Support TWA IN and ISIS drivers (included); Kodak Capture Pro Software, VRS Ready
Imaging Features
(in the scanner)
Perfect Page Scanning, automatic color detection, autocrop, aggressive crop, deskew, electronic color dropout,
dual stream scanning, orthogonal rotation, error diusion, halftone removal, noise removal, toggle patch
On-Board Compression CCITT Group IV; JPEG or uncompressed output
Available File Format Outputs JPEG (for color* and grayscale images); TIFF (for bitonal images)
Warranty (U.S. and Canada) 90 days on-site
Imprinting Front pre-scan imprinting
Electrical Requirements 100-240 V, 50/60 Hz
Power Consumption 178.4 watts maximum
Environmental Factors Energy Star qualified scanners; D.O.C. Executive Order 13221 Compliant, Section 508 Compliant;
Mercury-free Xenon lamps; operating temperature: 15–35°C (59–95°F); operating humidity: 15 percent to
76 percent RH
Acoustical Noise (operator
position sound pressure level)
Standby mode: <42 dB(A)
Operating mode: <61 dB(A)
Recommended Minimum PC configuration Pentium 4 2.4 GHz processor with 512 MB RAM or greater
Suppor ted Operating Systems Windows 2000 SP4, Windows XP, Windows Vista (32-bit)
Approvals and Product
Certifications
AS/NZS 3548 Class A (C-Tick Mark), CAN/CSA-C22.2 No. 60950 (C-UL Mark), Canada ICES –003
Issue 3 (Class A), GB4943, GB9254 (Class A), GB 17625.1 Harmonics, (CCC “S&E” Mark), EN 55022 ITE
Emissions (Class B), EN 61000-3-2 Powerline Harmonics, EN 61000-3-3 Flicker, EN 55024 ITE Immunity
(CE Mark),EN 60950 (TUV GS Mark), IEC 60950, CISPR 22 Class B, VCCI (Class A), CNS 13438
(Class A) (BSMI Mark), UL 60950 (UL Mark), CFR 47 Part 15 Subpart B (FCC Class A)
Consumables Available Feeder consumables kit, extra-large feeder consumables kit, imaging guide set, high-capacity printer ink
cartridge and carrier, transport cleaning sheets, roller cleaning pads, printer ink blotters, Staticide Wipes,
calibration targets, black imaging background
Accessories/Options Ultra-lightweight feed module; White imaging background; Manual feeder; Short document tray
Dimensions Height: 40 cm (15.7 in.) Width: 61 cm (23.9 in.) Depth: 77 cm (30.3 in.) Weight: 38.6 kg (85 lbs.)
* the i610 mo del does not sc an in color **ip m speeds based o n dual stream out put of four compre ssed images fo r each documen t scanned—bitonal and co lor or bitonal an d grayscale
To learn more:
www.kodak.com/go/i600
Innovation you can count on.
Printed using Kodak Technology.
Eastman Kodak Company
343 State Street, Rochester, NY 14650
1-800-944-6171
Kodak Canada, Inc.
Toronto, Ontario M9R 0A1
1-800-465-6325
©Kodak, 2009. Kodak is a trademark of Kodak.
Specifications are subject to change without notice.
A-5726 CAT No. 155 9673 04/09
