Kodak EasyShare CD93 User Manual

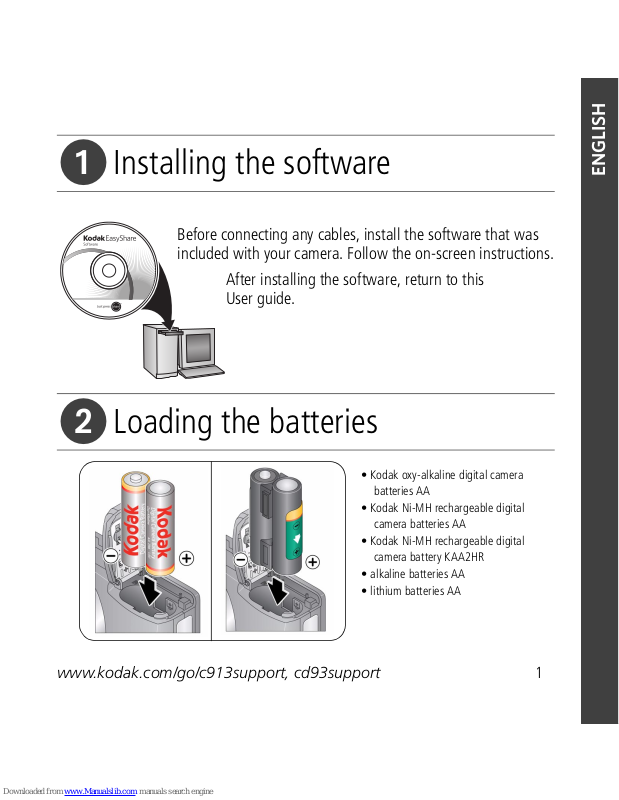

 Installing the software

Before connecting any cables, install the software that was
included with your camera. Follow the on-screen instructions.

After installing the software, return to this
User guide.

 Loading the batteries

ENGLISH

• Kodak oxy-alkaline digital camera
batteries AA

• Kodak Ni-MH rechargeable digital
camera batteries AA

• Kodak Ni-MH rechargeable digital
camera battery KAA2HR

• alkaline batteries AA

• lithium batteries AA

www.kodak.com/go/c913support, cd93support 1

ENGLISH

 Turning on the camera

 Setting the language, date/time

Language:

1

2

1

2

2 www.kodak.com/go/easysharecenter

OK

Date/Time:

At the prompt, press OK.

OK

to change.

to accept.

to change.

for previous/next field.

to accept.

 Taking a picture/video

Pictures Videos

ENGLISH

1

2

Framing marks

Press the Shutter button halfway
to focus and set exposure.

1

2

Press the Shutter button
completely down and release.

When the framing marks turn
green, press the Shutter button
completely down.

www.kodak.com/go/c913support, cd93support 3

To stop recording, press and
release the Shutter button again.

ENGLISH

 Reviewing pictures/videos

1

Press Review. (Press again to exit.)

Review

2

Videos:

To hear audio, transfer the video
to your computer.

for previous/next picture/video.

Play/pause
Play at 2X, 4X speed

Play in reverse at 2X, 4X

 Transferring pictures/videos

USB cable Kodak EasyShare printer

dock or camera dock

(May be sold separately.)

For dock compatibility, visit
www.kodak.com/go/dockcompatibility.

Turn o n

2

camera

4 www.kodak.com/go/easysharecenter

1

To purchase accessories, visit
www.kodak.com/go/c913accessories,

www.kodak.com/go/cd93accessories.

To use an EasyShare dock, see its
Getting Started Guide.

 Keep learning about your camera!

Congratulations!

You have:

• set up your camera

• taken pictures

• transferred pictures to your computer

Keep learning!

Finish reading this book, so you can take and share your best pictures!
To better understand each menu option, use camera Help.
(Highlight a menu choice, then press the button.)

Visit www.kodak.com/go/c913support or

ENGLISH

www.kodak.com/go/cd93support for:

• the extended user’s guide

• interactive troubleshooting and repairs

• interactive tutorials

• FAQs

• downloads

• accessories

• printing information

• product registration

www.kodak.com/go/c913support, cd93support 5

ENGLISH

Front view

1

2

9

3

4

5

6

7

8

1 Mode dial 6 Self-timer light

2 Shutter button 7 Lens

3 Flash button 8 USB

4 On/Off button 9 Microphone

5Flash

6 www.kodak.com/go/easysharecenter

Back view

1

2 6

3 4 5

ENGLISH

7

8

9

14

10

13

11

12

optional

1LCD 8

2Review button 9 OK button

3 Menu button 10 Share button

4 LCD/Info button 11 Battery compartment

5 Delete button 12 Slot for optional SD card

6 Zoom button (Telephoto/Wide) 13 Dock connector

7 Strap post 14 Tripod socket

www.kodak.com/go/c913support, cd93support 7

1 Doing more with your camera

Storing pictures on an SD card

Your camera has internal memory. You can purchase an SD card to store more pictures
and videos (www.kodak.com/go/c913accessories,

www.kodak.com/go/cd93accessories). We recommend Kodak SD cards.

Turn off the camera.

1

Insert or remove the

2

optional card.

Turn on the camera.

3

CAUTION:
A card can only be inserted one way; forcing it may cause damage.

If you insert or remove a card while the camera is accessing it, the
card, pictures, or camera may be damaged.

8 www.kodak.com/go/easysharecenter

Doing more with your camera

Using the zoom button

Use optical zoom to get up to 3X closer to your subject.

1 Use the LCD to frame your subject.

2 Press Telephoto (T) to zoom in. Press Wide Angle (W)

to zoom out.

The zoom indicator shows zoom status.

3 Take the picture or video.
NOTE: To get a focused picture every time, remember:

■ Always use the auto focus framing marks.

Zoom indicator

Optical
zoom
range

Digital
zoom
range

■ If you are using no zoom (1X, wide angle), you

can be as close as 24 in. (60 cm) to your subject.

■ As you zoom, you need to move further from your

subject.

WT

D

To use digital zoom in any Still mode:

Press Telephoto (T) to the maximum optical zoom
limit. Release the button, then press it again.

NOTE: You may notice decreased image quality when using digital zoom. The slider on the zoom indicator

turns red when the picture quality reaches the limit for an acceptable 4 x 6-in. (10 x 15 cm) print.

www.kodak.com/go/c913support, cd93support 9
