Universal camera insert

Camera Dock Contents

6B8006

Connector

Cavity for camera insert

USB connector

Power connector

Connect button

Power/Transfer light

EASTMAN KODAK COMPANY
Rochester, NY 14650 U.S.A.

TM: Kodak, EasyShare © Eastman Kodak Company, 2002

For details, see your KODAK EASYSHARE Camera User’s Guide.

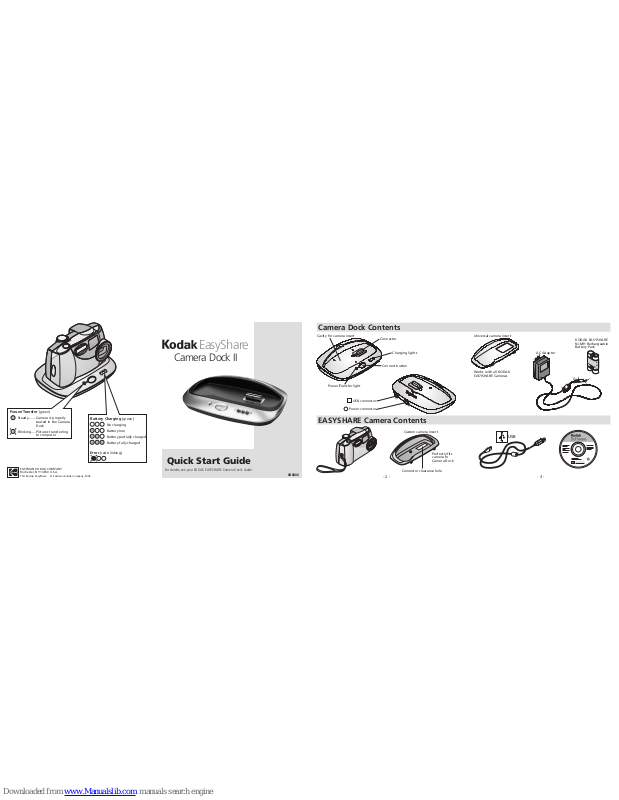

Quick Start Guide

EasyShare

Camera Dock II

EASYSHARE Camera Contents

- 2 - - 3 -

Custom camera insert

USB

Power/Transfer (green)

Steady........Camera is properly

seated in the Camera
Dock

Blinking.....Pictures transferring

to computer

Battery Charging (green)

No charging

Battery low

Battery partially charged

Battery fully charged

Error (red blinking)

Charging lights

Connector clearance hole

AC Adapter

KODAK EASYSHARE
Ni-MH Rechargeable
Battery Pack

Perfectly fits
camera to
Camera Dock

Works with all KODAK
EASYSHARE Cameras

- 4 - - 5 - - 6 - - 7 -

First!
Install Software

KODAK EASYSHARE Software CD
included with camera.

Install Camera Insert

Use custom camera insert (included with camera).

If unavailable, use universal camera insert (included
with Camera Dock).

To order a custom insert for your camera go to
www.kodak.com/go/accessories.

Connect USB Cable

KODAK EASYSHARE Ni-MH Rechargeable
Battery Pack is included with Camera Dock.

Only the KODAK EASYSHARE Ni-MH Rechargeable Battery Pack can be recharged
by the Camera Dock.

Open Connector door.

Turn off camera, place in Camera Dock.

OPEN

EJECT

OPEN

NOTE: Some software installation

unnecessary for MACINTOSH
OS X users. See camera User’s
Guide.

BEFORE connecting Camera Dock to computer

1

2

Connect Camera Dock

3

Install Battery Pack

4

Charge Battery Pack

5

USB

Battery low

Battery partially charged

Battery fully charged

Charging starts immediately and takes
about 2.5 hours.

See camera User’s Guide.

Take Pictures

6

Transfer Pictures to Computer

7

Blinking Green = Pictures transferring

D
C

IN

3V

Connect Camera Dock
to Power

Connect AC Adapter* to
Camera Dock. Plug into
wall outlet.

*Your adapter and power

cords may look different.

Leave connected for easy access.

Press the Connect button.

Store Camera in Camera Dock

8

Keep your camera charged
and ready to use.

Place camera in Camera Dock.

See camera User’s Guide for details.
