Kodak EasyShare C813 User Guide
Kodak EasyShare
C713/C813/CD703
zoom digital camera
User’s guide
www.kodak.com
For interactive tutorials, www.kodak.com/go/howto
For help with your camera,
www.kodak.com/go/c713support,www.kodak.com/go/c813support
Eastman Kodak Company
Rochester, NY 14650
© Eastman Kodak Company, 2007
All screen images are simulated.
Kodak, EasyShare, and Perfect Touch are trademarks of Eastman Kodak Company.
P/N 2F6596_en
Front view
5
4
1
8
6
2
3
7
9
Product features
1 Mode dial 6 Self-timer light
2
Shutter button 7 Lens
3Flash button 8USB
4 On/Off button 9 Microphone
5Flash
www.kodak.com/go/support
i
Product features
2 61
10
11
12
13
7
14
3 4 5
optional
8
9
Back view
1LCD 8
2 Review button 9 OK button
3 Menu button 10 Share button
4 LCD/Info button 11 Battery compartment
5 Delete button 12 Slot for optional SD card
6 Zoom button (Telephoto/Wide) 13 Dock connector
7 Strap post 14 Tripod socket
ii www.kodak.com/go/support
Table of contents 1
1 Setting up your camera .........................................................................1
Attaching the strap .......................................................................................1
Loading the battery.......................................................................................1
Turning on the camera ..................................................................................2
Setting the language, date/time.....................................................................2
Storing pictures on an SD card.......................................................................3
2 Taking pictures/videos ...........................................................................4
Taking a picture ............................................................................................4
Taking a video ..............................................................................................5
Using optical zoom .......................................................................................6
Using the flash..............................................................................................7
Using different picture-taking modes.............................................................8
Using camera Help......................................................................................10
Understanding the picture-taking icons........................................................11
3 Working with pictures/videos ..............................................................12
Reviewing pictures/videos ...........................................................................12
Deleting pictures/videos ..............................................................................14
Using Kodak Perfect Touch technology ........................................................15
Cropping pictures........................................................................................15
Editing videos .............................................................................................16
Running a slide show..................................................................................17
Copying pictures/videos...............................................................................19
Understanding the review icons...................................................................20
4 Doing more with your camera .............................................................22
Changing picture-taking settings.................................................................22
Customizing your camera ............................................................................26
Using exposure compensation to adjust picture brightness...........................28
Using the framing grid to compose a picture................................................28
Sharing your pictures...................................................................................28
www.kodak.com/go/support iii
Table of contents
5 Transferring and printing pictures .......................................................36
Installing the software.................................................................................36
Transferring pictures with the USB cable......................................................37
Printing pictures..........................................................................................38
Dock compatibility for your camera..............................................................40
6 Troubleshooting ..................................................................................41
Camera problems........................................................................................41
Camera/computer communications..............................................................43
LCD screen messages ..................................................................................44
7 Getting help ........................................................................................47
Helpful links................................................................................................47
8 Appendix .............................................................................................49
Camera specifications .................................................................................49
Care and maintenance ................................................................................51
Upgrading your software and firmware........................................................52
Storage capacities.......................................................................................52
Important safety instructions .......................................................................52
Battery life ..................................................................................................53
Limited Warranty ........................................................................................54

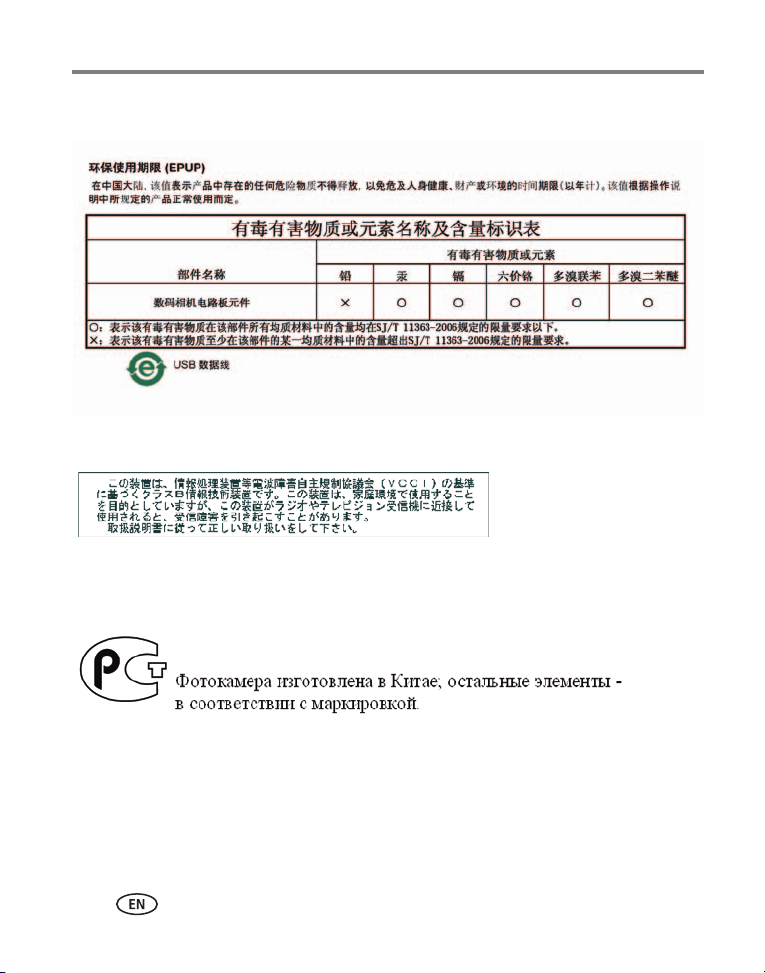

Regulatory compliance ................................................................................56
iv www.kodak.com/go/support
1 Setting up your camera
• Kodak oxy-alkaline digital camera
batteries AA
• Kodak Ni-MH rechargeable digital
camera batteries AA
• Kodak Ni-MH rechargeable digital
camera battery KAA2HR
• alkaline batteries AA
• lithium batteries AA
Attaching the strap
Loading the battery
To replace batteries and extend battery life, see page 53.
www.kodak.com/go/support 1
Setting up your camera
2
1
to change.
for previous/next field.
OK
to accept.
At the prompt, press OK.
2
1
to change.
OK
to accept.
Language:
Date/Time:
Turning on the camera
Setting the language, date/time
NOTE: To change the date/time and language in the future, use the Menu button (see page 26).
2 www.kodak.com/go/support
Setting up your camera
CAUTION:
1
Turn off the camera.
2
Insert or remove the
optional card.
3
Turn on the camera.
Storing pictures on an SD card
Your camera has internal memory. You can purchase an SD card to conveniently store
more pictures and videos (www.kodak.com/go/c713accessories,
www.kodak.com/go/c813accessories). We recommend Kodak SD cards.
NOTE: To choose a storage location for pictures and videos, see page 25.
A card can only be inserted one way; forcing it may cause
damage. If you insert or remove a card while the camera is
accessing it, the card, pictures, or camera may be damaged.
See page 52 for storage capacities.
www.kodak.com/go/support
3
2 Taking pictures/videos
1 2
Press the Shutter button
halfway to focus and set
exposure.
When the framing
brackets turn green, press
the Shutter button
completely down.
Framing brackets
The picture is saved
unless you press the
Delete button.
Delete
Play a video.
Taking a picture
Reviewing the picture just taken
After you take a picture or video, the LCD displays a quickview for approximately 10
seconds. (To exit the quickview sooner, press the Shutter button halfway.)
To review pictures/videos anytime, see page 12.
4 www.kodak.com/go/support
Taking pictures/videos
Framing marks
1 2
Press the Shutter button
completely down and
release.
To stop recording, press
and release the Shutter
button again.
To hear audio, transfer the
video to your computer.
Using the framing marks to take pictures
Framing marks indicate the camera focus area. The camera attempts to focus on
foreground subjects, even if the subjects are not centered in the scene.
1 Press the Shutter button halfway.
When the framing marks turn green, focus is
accomplished.
2 If the camera is not focusing on the desired subject
(or if the framing marks disappear), release the
Shutter button and recompose the scene.
3 Press the Shutter button completely down to
take the picture.
NOTE: Framing marks do not appear in all modes. When you use AF Zone and set Center Zone, the framing
marks are fixed at Center Wide.
Taking a video
www.kodak.com/go/support
5
Taking pictures/videos
Optical
zoom
range
Digital
zoom
range
WTD
Using optical zoom
Use optical zoom to get up to 3X closer to your subject.
1 Use the LCD to frame your subject.
2 Press Telephoto (T) to zoom in. Press Wide Angle
(W) to zoom out.
The zoom indicator shows zoom status.
3 Take the picture or video.
NOTE: For focus distances, see Camera specifications, page 49.
■ Always use the auto focus framing marks (see
page 5).
■ If you are using no zoom (1X, wide angle), you
can be as close as 24 in. (60 cm) to your
subject.
■ As you zoom, you need to move further from
your subject.
Using the digital zoom
Use digital zoom in any Still mode or during video recording to get up to 5X
magnification beyond optical zoom.
1 Press Telephoto (T) to the maximum optical zoom limit. Release the button, then
press it again.
2 Take the picture.
NOTE: You may notice decreased image quality when using digital zoom. The slider on the zoom indicator
turns red when the picture quality reaches the limit for an acceptable 4 x 6-in. (10 x 15 cm) print.
6 www.kodak.com/go/support
Taking pictures/videos
Press the
The current flash mode appears in the LCD screen.
button repeatedly to scroll
through flash modes (see Flash modes below).
Using the flash
Use the flash when you take pictures at night, indoors, or outdoors in heavy shadows.
Flash-to-subject distance
Zoom position Flash distance
Wide angle 0.6–3.6 m (2–11.8 ft) @ ISO 200
Telephoto 0.6–2.1 m (2–6.9 ft) @ ISO 200
Flash modes Flash fires
Auto Flash When the lighting conditions require it.
Fill Every time you take a picture, regardless of the lighting conditions. Use
when the subject is in shadow or is “backlit” (when the light is behind
the subject). In low light, hold the camera steady or use a tripod.
Red-eye The flash fires twice—once, then again when the picture is taken.
Off Never.
www.kodak.com/go/support
7
Taking pictures/videos
Choose the mode that best suits
your subjects and surroundings.
SCN
Using different picture-taking modes
Use this mode For
Auto General picture taking—offers an excellent balance of image quality
and ease of use.
Digital Image
Stabilization
Close-up Close range. Use available light instead of flash if possible. The
Scene Point-and-shoot simplicity when taking pictures under special
Video Capturing video with sound. (See page 5.)
Minimizing the effects of camera shake and subject movement.
camera automatically sets the focus distance depending on the zoom
position.
conditions. (See page 9.)
Favorites Reviewing favorite pictures. (See page 31.)
8 www.kodak.com/go/support
Taking pictures/videos
Scene modes
Choose a Scene mode—for great pictures in practically any situation!
1 Turn the Mode dial to Scene .
2 Press to display Scene mode descriptions.
If the mode description turns off before you finish reading it, press OK.
3 Press OK to choose a Scene mode.
Use this
For
SCN mode
Portrait Full-frame portraits of people.
Night
Portrait
Landscape Far-away scenes. The camera uses infinity auto-focus. Auto-focus framing
Night
Landscape
Sports Subjects in motion.
Snow Bright snow scenes.
Beach Bright beach scenes.
Text/
Document
Backlight Subjects that are in shadow or “backlit” (when light is behind the subject).
Manner/
Museum
Fireworks Bright, colorful light displays. Flash does not fire. Place the camera on a flat,
High ISO
Children Action pictures of children in bright light.
Reducing red eye of people in night scenes or low-light conditions. Place the
camera on a flat, steady surface or use a tripod.
marks are not available in Landscape.
Distant scenery at night. Flash does not fire. Place the camera on a flat, steady
surface or use a tripod.
Documents. Focus is set to Auto Focus (see page 24).
Quiet occasions, like a wedding or lecture. Flash and sound are disabled.
steady surface or use a tripod.
People indoors, in low-light scenes. Minimizes red eye.
www.kodak.com/go/support
9
Taking pictures/videos
Tur n on/ off Help
Scroll up/down
Use this
For
SCN mode
Flower Close-ups of flowers or other small subjects in bright light. Focus is set to Auto
Focus (see page 24).
SelfPortrait
Sunset Capturing the deep hues seen at sunset.
Close-ups of yourself. Assures proper focus and minimizes red eye.
Using camera Help
To better understand each menu option, use camera Help. Highlight a menu choice,
then press the button.
10 www.kodak.com/go/support
Taking pictures/videos
Picture size
Pictures/time remaining
Storage location
Exposure metering
White balance
Low battery
Camera mode
Exposure compensation
Zoom:
Date stamp
Self-timer
Flash
ISO speed
Wide
Digital
Telephoto
Exposure compensation
Low battery
Auto Exposure/
Auto Focus warning
Album
Understanding the picture-taking icons
In capture mode—shutter pressed halfway
www.kodak.com/go/support
11
3 Working with pictures/videos
Review
Reviewing pictures/videos
Press the Review button to view and work with your pictures/videos. Press Review
again to exit.
1 Press the Review button.
2 Press to view previous/next picture/video.
To save battery power, use an optional Kodak
EasyShare dock or Kodak 3-volt AC adapter. (Visit
www.kodak.com/go/c713accessories,
www.kodak.com/go/c813accessories).
NOTE: Pictures taken at a 3:2 picture size have a black bar at the top and bottom. Pictures taken at 16:9
picture size have a black bar at the sides. A video’s duration is displayed at the top of the LCD.
Magnifying pictures
1 Press the Review button.
2 Press W/T to magnify 2X–8X.
3 Press to view other parts of the
picture.
4 Press OK to return to 1X.
NOTE: If you press while at 1X, the view changes from
single-picture to multi-up thumbnails. (See page 13.)
12 www.kodak.com/go/support
Playing a video
4X
Forward
Reverse
2X
2X
Playback speed
4X
1X
1 Press the Review button.
2 Press to find previous/next video.
Press to play/pause.
Press during playback to play at 2X, 4X.
Press to reverse at 2X, 4X.
NOTE: To hear audio, transfer the video to your computer.
Viewing thumbnails (multi-up)
1 Press the Review button.
2 Press to change from single-picture view to
multi-up thumbnails.
3 Press OK to return to single-picture view.
Viewing picture/video information
Working with pictures/videos
www.kodak.com/go/support
1 Press the Review button.
2 Repeatedly press the LCD/Info button to
turn on/off status icons and picture/video info.
13
Working with pictures/videos
Deleting pictures/videos
1 Press the Review button.
2 Press for previous/next picture/video.
3 Press the Delete button.
4 Follow the screen prompts.
Protecting pictures/videos from deletion
1 Press the Review button.
2 Press for previous/next picture/video.
3 Press the Menu button.
4 Press to highlight Protect, then press OK.
The picture/video is protected and cannot be deleted. The Protect icon appears
with the protected picture/video.
■ Press the Menu button to exit the menu.
14 www.kodak.com/go/support
Working with pictures/videos
Cropped picture
Using Kodak Perfect Touch technology
Kodak Perfect Touch technology helps ensure better, brighter pictures.
1 Press the Review button, then for previous/next picture.
2 Press the Menu button. Press to highlight Edit Picture, then press OK.
3 Press to highlight Perfect Touch tech., then press OK.
The enhancement is previewed in a split screen. Press to view other parts of the
picture.
4 Press OK. Follow the screen prompts to replace the original picture or to save the
enhanced picture as a new one.
NOTE: You cannot enhance previously enhanced pictures.
■ Press the Menu button to exit the menu.
Cropping pictures
You can crop a picture so that only the desired portion of the picture remains.
1 Press the Review button, then to find a
picture.
2 Press the Menu button. Press to
highlight Edit Picture, then press OK.
3 Press to highlight Crop, then press OK.
4 Press Telephoto (T) to zoom in, or to move the crop box. Press OK.
5 Follow the screen prompts.
The picture is cropped. The original is saved. (Cropped pictures cannot be cropped
again.)
■ Press the Menu button to exit the menu.
www.kodak.com/go/support
15
Loading...
