TECHNICAL DATA /
COLOR NEGATIVE FILM
KODAK PROFESSIONAL PORTRA
160NC, 160VC, 400NC, 400VC,
400UC, and 800 Films
May 2003 • E-190
KODAK PROFESSIONAL PORTRA Films offer
photographers both variety and consistency. You have your
choice of speed, color saturation, and format for virtually any
shooting situation. PORTRA Films deliver beautifully
matched final prints across speeds and formats: 35 mm, 120,
220, and sheet formats; NC (natural color), VC (vivid color),
and UC (ultra color); 100T, 160, 400 and 800 speeds. The
PORTRA Film family yields consistently rich and detailed
negatives with a neutrally balanced tone scale from shadows
to highlights. An emulsion overcoat and scanner friendly
design make PORTRA Films the perfect choice for
photographers and labs who scan negatives.
KODAK PROFESSIONAL PORTRA 160NC Film
features natural colors and medium speed. Use 160NC Film
for smooth, natural flesh tones in controlled lighting
situations.
KODAK PROFESSIONAL PORTRA 160VC Film
features vivid colors and medium speed. Use 160VC Film
for rich, enhanced colors in controlled lighting situations.
KODAK PROFESSIONAL PORTRA 400NC Film
features natural colors and high speed. Use 400NC Film for
smooth, natural flesh tones in low light or on-camera flash
situations.
Try This KODAK
PROFESSIONAL Film
Daylight Balanced
PORTRA 160NC
PORTRA 160VC
PORTRA 400NC
PORTRA 400VC
PORTRA 400UC
PORTRA 800
Tungsten balanced
PORTRA 100T
*
For more information about this PORTRA Film, see KODAK Publication
No. E-2468.
*
• Smooth, natural flesh tones
• Controlled lighting situations
• Vivid colors
• Controlled lighting situations
• Smooth, natural flesh tones
• Location photography
• On-camera flash
• Vivid colors
• Location photography
• On-camera flash
• Very vivid colors
• Location photography
• On-camera flash
• Smooth, natural flesh tones
• Low-light photography
• Action photography
• Location photography
• Tungsten-balanced lights
• Controlled lighting situations
For
KODAK PROFESSIONAL PORTRA 400VC Film
features vivid colors and high speed. Use 400VC Film for
enhanced colors in low light or on-camera flash situations.
KODAK PROFESSIONAL PORTRA 400UC Film
features very vivid ("ultra") colors and high speed. Use
400UC Film for the highest color saturation in low light or
on-camera flash situations.
KODAK PROFESSIONAL PORTRA 800 Film
features the highest film speed with neutral flesh-tone
reproduction, tight grain, and medium color saturation. Use
PORTRA 800 Film when using long lenses, shooting action,
or shooting in low light.
KODAK PROFESSIONAL PORTRA 100T Film
delivers color accuracy under tungsten illumination (3200K)
and allows long exposure times with minimum effect on
color balance and contrast.
©Eastman Kodak Company, 2003
KODAK PROFESSIONAL PORTRA Films offer the
following features.
FEATURES BENEFITS
• Single Channel
Printing technology
• True-to-speed
shooting at 160, 400,
and 800
• Wider exposure
latitude
• High-Efficiency
T-GRAIN Emulsions
• Excellent scanning
performance
• Outstanding
performance in mixed
daylight and
fluorescent lighting
• Excellent flesh tones • Kodak’s legendary reproduction of
• Exacting color
reproduction
• Beautifully matched prints across
speeds and formats
• Convenient analyzing and printing
for the lab
• Uses the same scanner setup for
all PORTRA Films
• Shoot at box speed in all lighting
conditions
• No second-guessing film exposure
• Better highlight and shadow detail
• Forgiveness for up to two stops for
underexposure or overexposure
• Captures the fine details of your
subject
• High-quality prints from digital
output systems
• Shoot under mixed lighting
situations and still get neutral prints
the world’s flesh tones
• No surprises with
hard-to-reproduce colors
Suggested applications for KODAK PROFESSIONAL
PORTRA Films are given below.
Application
Advertising/
Illustration
Architecture ✔✔✔✔✔
Corporate/
Industrial
Fashion/
Glamour
Museum/Art/
Copy
Por trait ure—
Low Light
Por trait ure—
Daylight and
Electronic
Flash
Wedding—
Low Light
Wedding—
Daylight and
Electronic
Flash
Digital Film
Recorders
KODAK PROFESSIONAL PORTRA Film
160NC 160VC 400NC 400VC 400UC 800
✔✔✔✔✔✔
✔✔✔✔✔✔
✔✔✔✔✔
✔✔
✔✔✔✔
✔✔✔✔✔
✔✔✔✔
✔✔✔✔✔
✔✔
SIZES AVAILABLE
Availability may differ from country to country. See your
dealer who supplies KODAK PROFESSIONAL Products.
KODAK PROFESSIONAL PORTRA 160NC Film
Size/Format Code Base
135 160NC
120 160NC
220 160NC
Long Rolls 160NC
Sheets
KODAK PROFESSIONAL PORTRA 160VC Film
Size/Format Code Base
135 160VC
120 160VC
220 160VC
Long Rolls 160VC
Sheets
READYLOAD
Single-Sheet
Packets
KODAK PROFESSIONAL PORTRA 400NC Film
Size/Format Code Base
135 400NC
120 400NC
220 400NC
Long Rolls 400NC
Sheets
0.13 mm (0.005 inch)
acetate
0.10 mm (0.004 inch)
acetate
0.10 mm (0.004 inch)
acetate
0.13 mm (0.005 inch)
acetate,
0.10 mm (0.004 inch)
ESTAR Thick
0.19 mm (0.007 inch)
ESTAR Thick
0.13 mm (0.005 inch)
acetate
0.10 mm (0.004 inch)
acetate
0.10 mm (0.004 inch)
acetate
0.13 mm (0.005 inch)
acetate,
0.10 mm (0.004 inch)
ESTAR Thick
0.19 mm
(0.007 inch)
ESTAR Thick
0.13 mm (0.005 inch)
acetate
0.10 mm (0.004 inch)
acetate
0.10 mm (0.004 inch)
acetate
0.13 mm (0.005 inch)
acetate,
0.10 mm (0.004 inch)
ESTAR Thick
0.19 mm (0.007 inch)
ESTAR Thick
2 KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190
KODAK PROFESSIONAL PORTRA 400VC Film
Size/Format Code Base
135 400VC
120 400VC
220 400VC
Long Rolls 400VC
0.13 mm (0.005 inch)
acetate
0.10 mm (0.004 inch)
acetate
0.10 mm (0.004 inch)
acetate
0.13 mm (0.005 inch)
acetate,
0.10 mm (0.004 inch)
ESTAR Thick
KODAK PROFESSIONAL PORTRA 400UC Film
Size/Format Code Base
135 400UC
120 400UC
220 400UC
Long Rolls 400UC
0.13 mm (0.005 inch)
acetate
0.10 mm (0.004 inch)
acetate
0.10 mm (0.004 inch)
acetate
0.13 mm (0.005 inch)
acetate
KODAK PROFESSIONAL PORTRA 800 Film
Size/Format Code Base
135 800
120 800
220 800
0.13 mm (0.005 inch)
acetate
0.10 mm (0.004 inch)
acetate
0.10 mm (0.004 inch)
acetate
STORAGE AND HANDLING
Store unexposed film at 21°C (70°F) or lower in the original
sealed package. For extended periods, store film at
13°C(55°F) to preserve consistency.
To avoid moisture condensation on film that has been
refrigerated, allow the film to warm up to room temperature
before opening the package. Typical warm-up times are
given in the table below.
Warm-Up Times (Hours) to Reach Room
Size
120/220 1
135 magazine 11⁄
35 mm long roll 5 3 2
70 mm long roll 10 5 3
10-sheet box 1
50-sheet box 3 2 2
Load and unload roll-film cameras in subdued light. Total
darkness is required when you load and unload sheet film
holders.
Process film as soon as possible after exposure. Protect
negatives from strong light, and store them in a cool, dry
place. For long-term storage, keep negatives at a temperature
between 2°C (35°F) and 13°C (55°F) and at a relative
humidity between 30 and 35 percent.
Note: High speed films, such as PORTRA 800 Film, are
sensitive to environmental radiation. Expose and process this
film promptly. As exposure to radiation is cumulative, you
may want to request visual inspection of PORTRA 800 film
at airport and other security x-ray inspection stations.
Temperature of 21°C (70°F) From a
Storage Temperature of:
-18°C (0°F) 2°C (35°F) 13°C (55°F)
3
⁄
4
2
1
⁄
2
11⁄
4
11
1
⁄
2
1
DARKROOM RECOMMENDATIONS
Do not use a safelight. Handle unprocessed film in total
darkness.
KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190 3
EXPOSURE
Film Speed
Use the speed numbers in the tables below with cameras or
meters marked for ISO, ASA, or DIN speeds or exposure
indexes (EIs). Do not change the film-speed setting when
metering through a filter. Metering through filters may affect
light meter accuracy; see your meter or camera manual for
specific information. For critical work, make a series of test
exposures.
Electronic Flash
Use the appropriate guide number in the table below as
starting-point recommendations for your equipment. Select
the unit output closest to the number given by your flash
manufacturer. Then find the guide number for feet or metres.
To determine the lens opening, divide the guide number by
the flash-to-subject distance. If negatives are consistently too
dense (overexposed), use a higher guide number; if they are
too thin (underexposed), use a lower number.
ISO Speed
Light
Source
Daylight or
Electronic
Flash
Photolamp
(3400 K)
Tungsten
(3200 K)
*
For best results without special printing.
KODAK
WRATTEN
Gelatin
Filter
None 160 400 800
No. 80B 50 125 250
No. 80A 40 100 200
*
160NC and
160VC
Films
400NC,
400VC,
and
400UC
Films
800 Film
Note: The latitude of PORTRA 160NC and 160VC Films
allows you to use 100-speed proofing products for test
exposures.
Daylight
Use the exposures in the table below for average frontlit
subjects from 2 hours after sunrise to 2 hours before sunset.
Shutter Speed (second)
Lighting
Conditions
Bright or Hazy Sun
on Light Sand or
Snow
Bright or Hazy Sun
(Distinct Shadows)
Weak, Hazy Sun
(Soft Shadows)
Cloudy Bright
(No Shadows)
Heavy Overcast or
Open Shade
*
Use f/5.6 for backlit close-up subjects.
†
Use f/8 for backlit close-up subjects.
‡
Subject shaded from the sun but lighted by a large area of sky.
‡
160NC and
and Lens Opening
160VC
Films
1/125
f/16
1/125
*
f/11
1/125
f/8
1/125
f/5.6
1/125
f/4
400NC,
400VC, and
400UC Films
1/500
f/16
1/500
*
f/11
1/500
f/8
1/500
f/5.6
1/500
f/4
800 Film
1/1000
f/16
1/500
†
f/16
1/500
f/11
1/250
f/11
1/125
f/11
Guide Number
Unit
Output
(BCPS)
350 55/17 85/26 120/36
500 65/20 100/30 140/42
700 75/22 120/36 170/50
1000 90/27 140/42 200/60
1400 110/33 170/50 240/70
2000 130/40 200/60 280/85
2800 150/46 240/70 340/100
4000 180/55 280/85 400/120
5600 210/65 340/100 470/140
8000 250/75 400/120 560/170
*
BCPS = beam candlepower seconds
160NC and
*
160VC Films
Distances in Feet/Metres
400NC, 400VC,
and 400UC
Films
800 Film
4 KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190
Fluorescent and High-Intensity Discharge
Lamps
Use the color-compensating filters and exposure adjustments
in the tables below as starting points to expose
PORTRA Films under fluorescent or high-intensity discharge
lamps. For critical applications, make a series of test
exposures under your actual conditions.
To avoid the brightness and color variations that occur
during a single alternating-current cycle, use exposure
times of 1⁄60 second or longer with fluorescent lamps; with
high-intensity discharge lamps, use exposure times of
1⁄125 second or longer.
Type of Fluorescent
Lamp
KODAK Color
Compensating
Filter(s)
Exposure
Adjustment
KODAK Color
Compensating
Filter(s)
Exposure
Adjustment
KODAK Color
Compensating
Filter(s)
Exposure
Adjustment
160NC/VC and 400NC/VC Films 400UC Film 800 Film
Daylight 20R + 5M + 1 stop 20R + 5M + 1 stop 40R + 1 1/3 stop
2
White 40B + 5C + 1 2/3 stop 50C + 30M + 1
⁄3 stops 30C + 40M + 1 2/3 stop
Warm White 40B + 40C + 2 stops 40B + 50C + 2 stops 50B + 5C + 2 stops
Warm White Deluxe 40B + 50C + 2 stops 90C + 30M + 2 stops 40B + 40C + 2 stops
Cool White 30B + 1 stop 30B + 1 stop 30M + 1 stop
Cool White Deluxe 40C + 10M + 1 stop 40C + 10M + 1 stop 20B + 20C + 1 stop
*
T8 741 (CCT = 4100 K)
T8 830 (CCT = 3000 K)
T8 835 (CCT = 3500 K)
T8 841 (CCT = 4100 K)
*
CCT = Correlated Color Temperature. Phosphor emission emulates the color temperature of a continuous spectrum lamp, such as tungsten.
High-Intensity
Discharge Lamp (CCT)
40B + 20C + 1 2/3 stop 40B + 20C + 1 2⁄3 stops 20B + 20M + 1 2/3 stop
*
50B + 60C + 2 1/3 stops 50B + 60C + 2 1⁄3 stops 55B + 20C + 2 1/3 stops
*
40B + 40C + 1 2/3 stop 40B + 40C + 1 2⁄3 stops 40B + 1 2/3 stop
*
50C + 20M + 1 1/3 stop 50C + 20M + 1 1⁄3 stops 20B + 10C + 1 1/3 stop
KODAK Color
Compensating
*
Filter(s)
Exposure
Adjustment
KODAK Color
Compensating
Filter(s)
Exposure
Adjustment
KODAK Color
Compensating
Filter(s)
Exposure
Adjustment
160NC/VC and 400NC/VC Films 400UC Film 800 Film
High-Pressure Sodium
Vapor (2700 K)
High-Pressure Sodium
Vapor (2200 K)
High-Pressure Sodium
Vapor (2100 K)
50B + 70C + 2 2/3 stops 50B + 70C + 2
50B + 90C + 3 stops 50B + 90C + 3 stops 120C + 50M + 3 1/3 stops
200C + 20M + 4 stops 20M + 200C + 4 stops 55B + 100C + 4 stops
Metal Halide (4300 K) 5C + 10M + 2/3 stop 10M +
Metal Halide (3200 K) 80C + 10M + 1 2/3 stop 80C + 10M + 1
2
⁄3 stops 60B + 50C + 2 2/3 stops
2
⁄3 stop 5R + 20M + 1 stop
2
⁄3 stops 20B + 30C + 1 2/3 stop
Mercury Vapor (3700 K) 30B + 5C + 1 stop 20B + 10C + 1 stop 30M + 1 stop
*
CCT = Correlated Color Temperature. Phosphor emission emulates the color temperature of a continuous spectrum lamp, such as tungsten.
Adjustments for Long and Short Exposures
No filter correction or exposure compensation is required for PORTRA 160NC, 160VC, 400NC, PORTRA 400VC, or PORTRA
400UC Films for exposures from 1⁄10,000 second to 10 seconds. For PORTRA 800 Film, no adjustments are required for exposures
from 1⁄10,000 second to 1 second. For critical applications with longer exposure times, make tests under your conditions.
KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190 5
PROCESSING
Process PROFESSIONAL PORTRA Films in KODAK FLEXICOLOR Chemicals for Process C-41 with the following
replenishment and wash rates.
Replenishment and Wash Rates / PORTRA 160NC and 160VC Films
Film Size
135
120/220
4 x 5 inch
*
Rates are for first wash and a two-stage countercurrent final wash. Double these rates for a single stage final wash.
KODAK FLEXICOLOR
Developer Replenisher
1012 mL/m
94 mL/ft
1012 mL/m
94 mL/ft
1245 mL/m
116 mL/ft
2
2
2
2
2
2
KODAK FLEXICOLOR
Developer Replenisher
LORR
506 mL/m
47 mL/ft
506 mL/m
47 mL/ft
622 mL/m
58 mL/ft
2
2
2
2
2
2
KODAK
FLEXICOLOR
Bleach III, Fixer,
and Stabilizer
861 mL/m
80 mL/ft
1023 mL/m
95 mL/ft
1152 mL/m
107 mL/ft
2
2
2
2
2
2
Wash Water
Replenishment and Wash Rates / PORTRA 400NC, 400VC and 400UC Films
Film Size
135
120/220
4 x 5 inch
*
Rates are for first wash and a two-stage countercurrent final wash. Double these rates for a single stage final wash.
KODAK FLEXICOLOR
Developer Replenisher
1400 mL/m
130 mL/ft
1400 mL/m
130 mL/ft
1722 mL/m
160 mL/ft
2
2
2
2
2
2
KODAK FLEXICOLOR
Developer Replenisher
LORR
700 mL/m
65 mL/ft
700 mL/m
65 mL/ft
861 mL/m
80 mL/ft
2
2
2
2
2
2
KODAK
FLEXICOLOR
Bleach III, Fixer,
and Stabilizer
861 mL/m
80 mL/ft
1023 mL/m
95 mL/ft
1152 mL/m
107 mL/ft
2
2
2
2
2
2
Wash Water
31 L/m
2.9 L/ft
31 L/m
2.9 L/ft
59 L/m
5.5 L/ft
31 L/m
2.9 L/ft
31 L/m
2.9 L/ft
59 L/m
5.5 L/ft
*
2
2
2
2
2
2
*
2
2
2
2
2
2
Replenishment and Wash Rates / PORTRA 800 Film
Film Size
135
120/220
*
Rates are for first wash and a two-stage countercurrent final wash. Double these rates for a single stage final wash.
KODAK FLEXICOLOR
Developer Replenisher
1400 mL/m
130 mL/ft
1400 mL/m
130 mL/ft
2
2
2
2
KODAK FLEXICOLOR
Developer Replenisher
LORR
700 mL/m
65 mL/ft
700 mL/m
65 mL/ft
2
2
2
2
KODAK
FLEXICOLOR
Bleach III, Fixer,
and Stabilizer
861 mL/m
80 mL/ft
1023 mL/m
95 mL/ft
2
2
2
2
Wash Water
2
31 L/m
2
2.9 L/ft
2
31 L/m
2
2.9 L/ft
*
6 KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190
JUDGING NEGATIVE EXPOSURES
You can check the exposure level with a suitable electronic
densitometer equipped with a filter such as a KODAK
WRATTEN Gelatin Filter No. 92 or the red filter for
Status M densitometry. Depending on the subject and the
light source used for exposure, a normally exposed and
processed color negative measured through the red filter
should have the approximate densities listed below.
Because of the extreme range in skin color, use these red
density values for a normally lit forehead only as a guide. For
best results, use a KODAK Gray Card (gray side).
Density Reading
Area Measured
KODAK Gray Card (gray
side) receiving same
illumination as subject
Lightest step (darkest in the
negative) of a KODAK Paper
Gray Scale receiving same
illumination as subject
Highest diffuse density on
normally lighted forehead
—light complexion
—dark complexion
Area Measured
KODAK Gray Card (gray
side) receiving same
illumination as subject
Lightest step (darkest in the
negative) of a KODAK Paper
Gray Scale receiving same
illumination as subject
Highest diffuse density on
normally lighted forehead
—light complexion
—dark complexion
Area Measured
KODAK Gray Card
(gray side) receiving
same illumination as
subject
Lightest step (darkest
in the negative) of a
KODAK Paper Gray
Scale receiving same
illumination as subject
Highest diffuse
density on normally
lighted forehead
—light complexion
—dark complexion
0.80 to 1.00 0.75 to 0.95 0.70 to 0.90
1.15 to 1.35 1.15 to 1.35 1.15 to 1.35
1.08 to 1.18
0.93 to 1.03
160NC and
400NC FIlms
0.77 to 0.87 0.81 to 0.93
1.13 to 1.23 1.22 to 1.34
1.08 to 1.18
0.93 to 1.03
400UC Film
Density Reading
EI 400
0.80 to 1.00 1.00 to 1.20
1.25 to 1.45 1.40 to 1.60
1.00 to 1.30
0.80 to 1.15
800 Film
Density Reading
EI 800
EI 1600
(Push 1)
0.85 to 1.20
0.60 to 0.95
160VC and
400VC Films
1.16 to 1.28
0.98 to 1.10
EI 800
(Push 1)
1.20 to 1.50
0.95 to 1.30
EI 3200
(Push 2)
0.80 to 1.15
0.55 to 0.90
RETOUCHING
You can retouch the sheet and 120 / 220 sizes on both the
base side and the emulsion side. Retouch only the emulsion
side on the 135 size.
For information on retouching equipment, supplies, and
techniques, see KODAK Publication No. E-71, Retouching
Color Negatives.
PRINTING NEGATIVES
This film is optimized for printing on KODAK
PROFESSIONAL PORTRA ENDURA, SUPRA ENDURA
and ULTRA ENDURA Papers, KODAK PROFESSIONAL
DURAFLEX Plus Digital Display Material, and on KODAK
PROFESSIONAL ENDURA Metallic Paper.
Make color slides and transparencies by printing the
negatives on KODAK PROFESSIONAL ENDURA
Transparency Optical Display Material or KODAK
PROFESSIONAL ENDURA Clear Optical Display
Material.
Make black-and-white prints on KODAK PANALURE
SELECT RC Paper for conventional black-and-white
processing, or KODAK PROFESSIONAL PORTRA Black
& White Paper for Process RA-4.
To set up a color printer or negative analyzer, use the
following control negatives.
KODAK PROFESSIONAL PORTRA
Printer Control Negative
Set / Size 135
Normal / Size 120 846 0958
Very Under / Size 120 107 1398
Under / Size 120 841 1902
Over / Size 120 177 1302
Very Over / Size 120 144 5741
*
This set includes one each: very under, under, normal, over, and very
over negatives.
*
Digital Files
You can scan your image to a file and print digitally to —
KODAK PROFESSIONAL PORTRA ENDURA Paper
KODAK PROFESSIONAL SUPRA ENDURA Paper
KODAK PROFESSIONAL ULTRA ENDURA Paper
KODAK PROFESSIONAL ENDURA Transparency
Digital Display Material
KODAK PROFESSIONAL ENDURA Clear Digital
Display Material
KODAK PROFESSIONAL DURAFLEX Plus Digital
Display Material
KODAK PROFESSIONAL Day/Night Digital Display
Material
KODAK PROFESSIONAL ENDURA Metallic Paper
CAT No.
179 8511
KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190 7
SCANNING NEGATIVES
You can easily scan PROFESSIONAL PORTRA Film
negatives with a variety of linear-array-CCD,
area-array-CCD, and PMT film scanners. You can scan
negatives on desktop scanners as well as high-end drum
scanners.
Because no standards exist to define the colored filter sets
that film scanners use to capture the red, green, and blue
information of the film image, each manufacturer’s scanner
has its own characteristic output. The output depends on the
scanner’s sensitivity to the dyes in the film. This sensitivity
is determined by the spectral distribution of the colored filter
sets and/or the spectral sensitivity of the
charge-coupled-device (CCD). In addition to these spectral
specifications, scanner output depends on the look-up tables
or matrices that the scanner uses to output information for
CRT monitors, transmission, etc. These tables or matrices
are part of either “plug-in” programs used with specific
software packages designed for image manipulation,
updateable ROMs included with the equipment, or fixed
algorithms for calibrating and balancing, similar to those
used in photographic color printing equipment.
The generic “color negative film” channel designation
available with scanner software is only a starting point. You
can adjust the final color balance and the scene-dependent
contrast and brightness of an image by using the scanner’s
controls during pre-scan, or by using an image-manipulation
software program or workstation after acquisition. Some
scanners allow you to use “plug-in” programs to customize
scanner setups.
For more information, visit the following Web sites.
To access Go to
Film Terms for KODAK
PHOTO CD Imaging
Workstations
Drivers for KODAK Film
Scanners
www.kodak.com/go/pcdFilmTerms
www.kodak.com/go/scannerDrivers
IMAGE STRUCTURE
Print Grain Index
The Print Grain Index number refers to a method of defining
graininess in a print made with diffuse-printing illumination.
It replaces rms granularity and has a different scale which
cannot be compared to rms granularity.
• The method uses a uniform perceptual scale, with a
change of four units equaling a just noticeable
difference in graininess to 90 percent of observers.
• A Print Grain Index rating of 25 on the scale represents
the approximate visual threshold for graininess. A
higher number indicates an increase in the amount of
graininess observed.
• The standardized inspection (print-to-viewer) distance
for all print sizes is 14 inches, the typical viewing
distance for a 4 x 6-inch print.
• In practice, larger prints will likely be viewed from
distances greater than 14 inches, which reduces
apparent graininess.
• Print Grain Index numbers may not represent graininess
observed from more specular printing illuminants, such
as condenser enlargers.
Negative Size: 24 x 36 mm (Size 135)
Print Size in inches 4x6 8x10 16x20
Magnification 4.4X 8.8X 17.8X
Print Grain Index for—
160NC Film
160VC Film
400NC Film
400VC Film
400UC Film
800 Film
Negative Size: 6 x 6 cm (Size 120/220)
Print Size in inches 4x6 8x10 16x20
Magnification 2.6X 4.4X 8.8X
Print Grain Index for—
160NC Film
160VC Film
400NC Film
400VC Film
400UC Film
800 Film
36
40
44
48
40
50
Less than 25
28
32
36
28
38
58
62
66
70
62
72
36
40
44
48
40
50
87
91
96
99
92
101
58
62
66
70
62
72
Negative Size: 4 x 5 Inches (Sheets)
Print Size in inches 4x6 8x10 16x20
Magnification 1.2X 2.1X 4.2X
Print Grain Index for—
160NC Film
160VC Film
400NC Film
Less than 25
Less than 25
Less than 25
Less than 25
Less than 25
28
35
39
43
For more information, see KODAK Publication No.
E-58, Print Grain Index—An Assessment of Print Graininess
from Color Negative Films.
8 KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190
CURVES

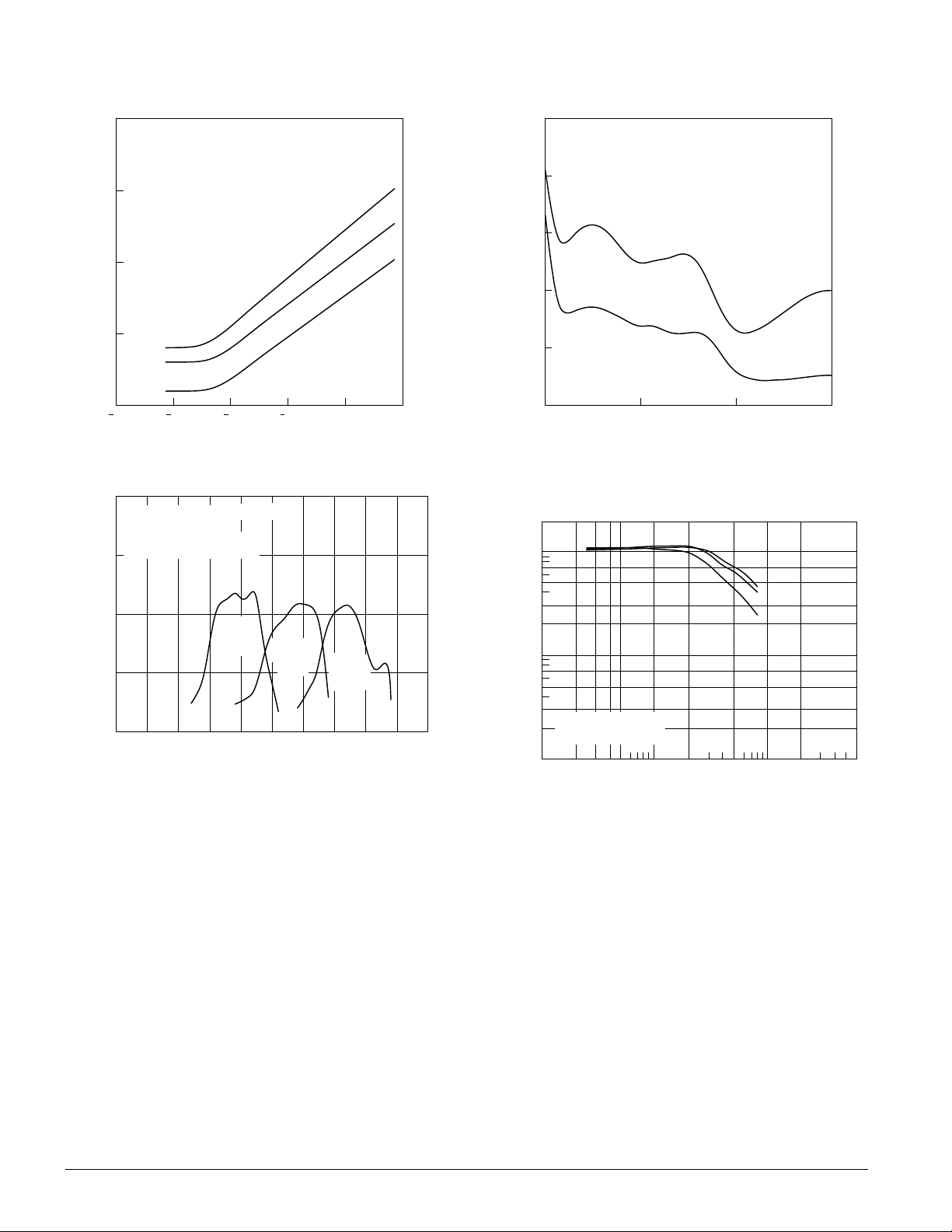

KODAK PROFESSIONAL PORTRA 160NC Film
Characteristic Curves
Spectral-Dye-Density Curves
4.0
3.0
2.0
DENSITY
1.0
0.0
4.0
F009_0153AC
Process:
Densitometry:
C-41
Status M
3.0
2.0
LOG EXPOSURE (lux-seconds)
1.0
B
G
R
Spectral-Sensitivity Curves
4.0
Effective Exposure:
Process:
Densitometry:
Density:
3.0
*
2.0
LOG SENSITIVITY
1.0
0.0
250 300 350 400 450 500 550 600 650 750700
F009_0180AC
C-41
0.2 above D-min
*Sensitivity = reciprocal of exposure (ergs/cm ) required
1/25 second
Status M
Yellow-
Forming
Layer
Magenta-
Forming
Layer
WAVELENGTH (nm)
to produce specified density
0.0
Cyan-
Forming
Layer
2
1.0
2.5
Typical densities for a midscale neutral subject
and D-min.
Process:
2.0
1.5
1.0
DIFFUSE SPECTRAL DENSITY
0.5
0.0
400
F009_0185AC
C-41
Minimum Density
500
WAVELENGTH (nm)
Modulation Transfer Function
200
100
70
50
30
20
10
7
5
RESPONSE (%)
3
2
Exposure:
Process:
Daylight
C-41
1
SPATIAL FREQUENCY (cycles/mm)
Midscale Neutral
600
700
B
G
R
60020050201054321 100
NOTICE: The sensitometric curves and data in this publication represent product tested
under the conditions of exposure and processing specified. They are representative of
production coatings, and therefore do not apply directly to a particular box or roll of
photographic material. They do not represent standards or specifications that must be met
by Eastman Kodak Company. The company reserves the right to change and improve
product characteristics at any time.
KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190 9
KODAK PROFESSIONAL PORTRA 160VC Film
S
O
S
0
Characteristic Curves
4.0
3.0
2.0
DENSITY
1.0
0.0
4.0
F009_0154AC
Process:
Densitometry:
C-41
Status M
B
G
R
3.0
2.0
LOG EXPOSURE (lux-seconds)
Spectral-Sensitivity Curves
4.0
Effective Exposure:
Process:
C-41
Densitometry:
Density:
3.0
*
2.0
LOG SENSITIVITY
1.0
0.0
250 300 350 400 450 500 550 600 650 750700
F009_0180AC
0.2 above D-min
*Sensitivity = reciprocal of exposure (ergs/cm ) required
1/25 second
Status M
Yellow-
Forming
Layer
Magenta-
Forming
Layer
WAVELENGTH (nm)
to produce specified density
0.01.0
Cyan-
Forming
Layer
2
1.0
Spectral-Dye-Density Curves
2.5
Typical densities for a midscale neutral subject
and D-min.
Process:
2.0
1.5
1.0
DIFFUSE SPECTRAL DENSITY
0.5
0.0
400
F009_0186AC
C-41
Minimum Density
500
WAVELENGTH (nm)
Modulation Transfer Function
200
100
70
50
30
20
E (%)
N
10
P
7
5
RE
3
2
Exposure:
Process:
Daylight
C-41
1
SPATIAL FREQUENCY (cycles/mm)
Midscale Neutral
600
700
B
G
R
20050201054321 100
60
10 KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190
KODAK PROFESSIONAL PORTRA 400NC Film
y
S
O
S
Characteristic Curves
4.0
3.0
2.0
DENSITY
1.0
0.0
4.0
F009_0155AC
Process:
Densitometry:
C-41
Status M
B
G
R
3.0
LOG EXPOSURE (lux-seconds)
1.0
Spectral-Sensitivity Curves
4.0
Effective Exposure:
Process:
C-41
Densitometry:
Density:
3.0
*
2.0
LOG SENSITIVITY
1.0
0.0
250 300 350 400 450 500 550 600 650 750700
F009_0181AC
0.2 above D-min
*Sensitivity = reciprocal of exposure (ergs/cm ) required
1/50 second
Status M
Yellow-
Forming
Layer
MagentaForming
Layer
WAVELENGTH (nm)
to produce specified density
0.02.0
Cyan-
Forming
Layer
2
1.0
Spectral-Dye-Density Curves
2.5
Typical densities for a midscale neutral subject
and D-min.
Process:
2.0
1.5
1.0
DIFFUSE SPECTRAL DENSITY
0.5
0.0
400
F009_0187AC
C-41
Minimum Density
500
WAVELENGTH (nm)
Modulation Transfer Function
200
100
70
50
30
20
E (%)
N
10
P
7
5
RE
3
2
Exposure:
Process:
Daylight
C-41
1
SPATIAL FREQUENCY (c
Midscale Neutral
600
B
G
R
1001 2 3 4 5 10 20 50 200 600
cles/mm)
700
KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190 11
KODAK PROFESSIONAL PORTRA 400VC Film
S
O
S
Characteristic Curves
Spectral-Dye-Density Curves
4.0
3.0
2.0
DENSITY
1.0
0.0
4.0
F009_0156AC
Process:
Densitometry:
C-41
Status M
3.0
LOG EXPOSURE (lux-seconds)
1.0 1.0
B
G
R
Spectral-Sensitivity Curves
4.0
Effective Exposure:
Process:
Densitometry:
Density:
3.0
*
2.0
LOG SENSITIVITY
1.0
0.0
250 300 350 400 450 500 550 600 650 750700
F009_0181AC
C-41
0.2 above D-min
*Sensitivity = reciprocal of exposure (ergs/cm ) required
1/50 second
Status M
Yellow-
Forming
Layer
MagentaForming
Layer
WAVELENGTH (nm)
to produce specified density
0.02.0
Cyan-
Forming
Layer
2
2.5
Typical densities for a midscale neutral subject
and D-min.
Process:
2.0
1.5
1.0
DIFFUSE SPECTRAL DENSITY
0.5
0.0
400
F009_0188AC
C-41
Minimum Density
500
WAVELENGTH (nm)
Modulation Transfer Function
200
100
70
50
30
20
E (%)
N
10
P
7
5
RE
3
2
Exposure:
Process:
Daylight
C-41
1
SPATIAL FREQUENCY (cycles/mm)
Midscale Neutral
600
B
G
R
1001 2 3 4 5 10 20 50 200 600
700
12 KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190
KODAK PROFESSIONAL PORTRA 400UC Film
S
0
S
)
y
(nm)
S
S
C
S
S
O
S
(
)
Characteristic Curves, EI 400
4.0
Exposure:
Process:
Densitometry:
3.0
ITY
2.0
DEN
Daylight
C-41
Status M
B
4.0
Effective Exposure:
Process:
Densitometry:
Density:
3.0
*
2.0
LOG SENSITIVITY
1.0
Spectral-Sensitivity Curves
C-41
0.2 > D-min
Yellow-
Forming
Layer
1/50 Second
Status M
Magenta-
Forming
Layer
Cyan-
Forming
Layer
1.0
0.0
4.0
3.0 1.0
LOG EXPOSURE (lux-seconds)
G
R
2.0
Characteristic Curves, EI 800 (Push 1)
4.0
Exposure:
Process:
Densitometry:
3.0
ITY
2.0
DEN
1.0
0.0
4.0
Daylight
C-41, Push1
Status M
B
G
R
3.0 1.
2.0
LOG EXPOSURE (lux-seconds
0.0
350 400 450 500 550 600 650 750700
WAVELENGTH (nm)
*Sensitivity = reciprocal of exposure (erg/cm ) required
0.01.0
3.0
to produce specified densit
Spectral-Dye-Density Curves
Typical densities for a midscale neutral subject
2
and D-min.
2.5
ITY
2.0
TRAL DEN
1.5
PE
E
1.0
DIFFU
0.5
0.0
0.01.0
Process:
Modulation Transfer Function
C-41
Midscale Neutral
Minimum Density
450350
WAVELENGTH
650550
750
200
100
70
50
30
%
20
E
N
10
P
7
5
RE
3
2
1
Exposure:
Process:
Daylight
C-41
SPATIAL FREQUENCY (cycles/mm)
B
G
R
60020050201054321 100
KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190 13
KODAK PROFESSIONAL PORTRA 800 Film
4.0
3.0
2.0
DENSITY
1.0
0.0
5.0
F009_0507AC

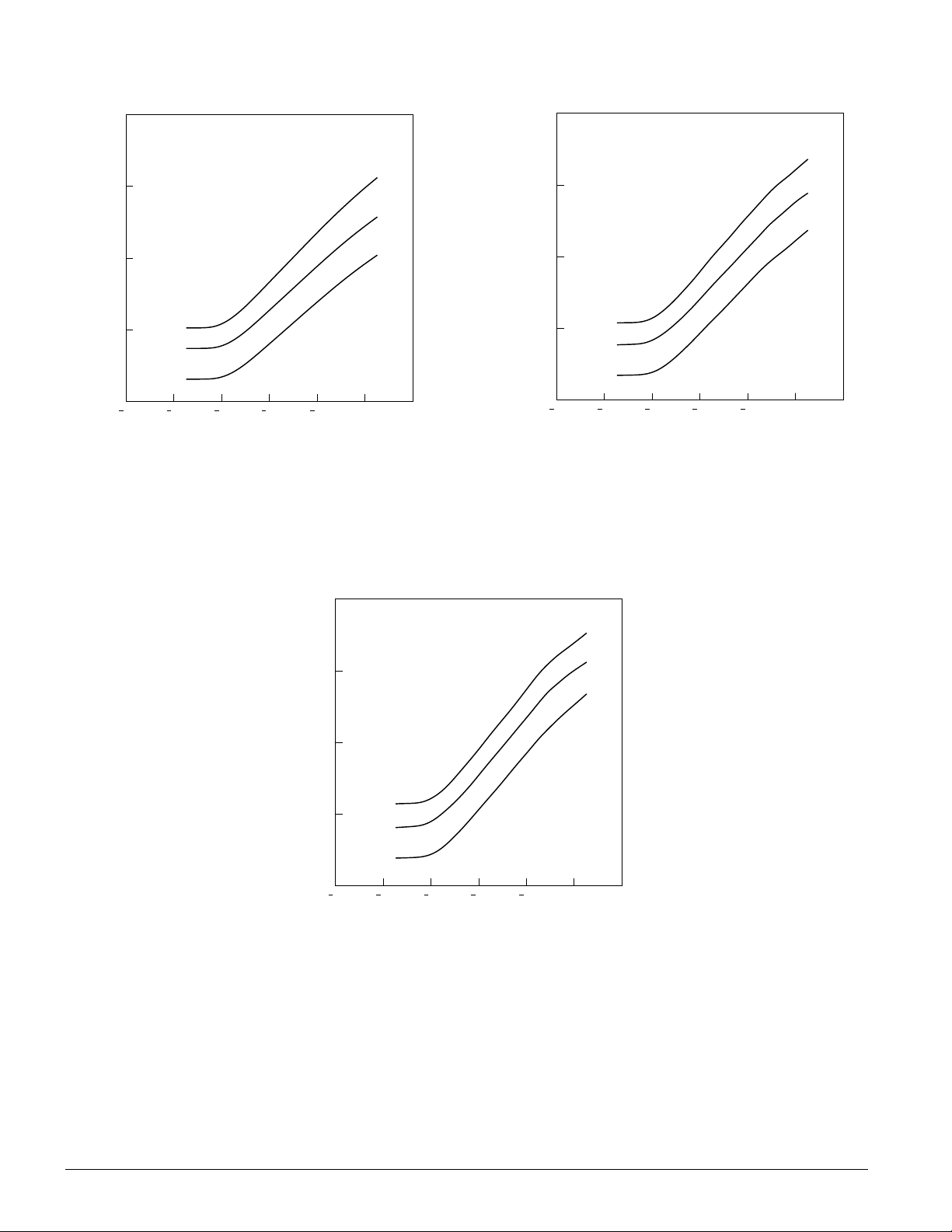

Characteristic Curves, EI 800
Exposure:
Log H Ref:
Densitometry:
Daylight
-1.74
Status M
B
G
R
4.0
LOG EXPOSURE (lux-seconds)
2.0
1.0 0.0
Characteristic Curves, EI 1600 (Push 1)
4.0
Exposure:
Log H Ref:
Densitometry:
Process:
3.0
2.0
DENSITY
1.0
0.0
1.03.0
5.0
F009_0508AC
Daylight
-1.74
Status M
1 Stop Push
B
G
R
4.0
LOG EXPOSURE (lux-seconds)
2.0
1.0 0.0
1.03.0
Characteristic Curves, EI 3200 (Push 2)
4.0
3.0
2.0
DENSITY
1.0
0.0
5.0
F009_0509AC
Exposure:
Log H Ref:
Densitometry:
Process:
Daylight
-1.74
Status M
2 Stop Push
B
G
R
4.0
LOG EXPOSURE (lux-seconds)
2.0
0.01.03.0 1.0
14 KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190
Spectral-Sensitivity Curves
*
LOG
SENSITIVITY
4.0
Effective Exposure:
Densitometry:
Density:
3.0
2.0
0.2>D-min
Yellow-
Forming
Layer
1.0
0.0
250 300 350 400 450 500 550 600 650 750700
*Sensitivity = reciprocal of exposure (erg/cm ) required
F009_0510AC
1/200 second
Status M
Magenta-
Forming
Layer
WAVELENGTH (nm)
to produce specified density
Spectral-Dye-Density Curves
3.5
Typical densities for a midscale neutral subject
and D-min.
3.0
Cyan-
Forming
Layer
2
2.5
2.0
Midscale Neutral
1.5
1.0
DIFFUSE SPECTRAL DENSITY
0.5
0.0
F009_0511AC
Minimum Density
400
WAVELENGTH (nm)
650600550500450
700
Modulation Transfer Function
200
100
70
50
30
20
10
7
5
RESPONSE (%)
3
Exposure:
2
Process:
Daylight
C-41
B
G
R
1
60020050201054321 100
SPATIAL FREQUENCY (cycles/mm)
KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190 15
KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC,
and 800 Films
MORE INFORMATION
Kodak has many publications to assist you with information
on Kodak products, equipment, and materials.
The following publications are available from Kodak
Customer Service, from dealers who sell Kodak products, or
you can contact Kodak in your country for more information.
E-30 Storage and Care of KODAK Photographic
Materials—Before and After Processing
E-58 Print Grain Index
E-71 Retouching Color Negatives
E-4021 KODAK PROFESSIONAL PORTRA and
SUPRA ENDURA Papers
E-4020 KODAK PROFESSIONAL ULTRA
ENDURA Paper
E-4030 KODAK PROFESSIONAL ENDURA
Transparency and Clear Optical Display
Materials
E-4031 KODAK PROFESSIONAL ENDURA
Transparency and Clear Digital Display
Materials
E-4028 KODAK PROFESSIONAL ENDURA
Metallic Paper
E-2468 KODAK PROFESSIONAL PORTRA 100T
Film
G-4006 KODAK PROFESSIONAL PORTRA
Black-and-White Paper
G-4019 KODAK PROFESSIONAL PORTRA Sepia
Black-and-White Paper
G-27 KODAK PROFESSIONAL PANALURE
SELECT RC Paper
J-38 Using KODAK FLEXICOLOR Chemicals in
Sink-Line, Bath, and Rotary-Tube
Processors
Z-131 Using KODAK FLEXICOLOR Chemicals
For the latest version of technical support publications for
KODAK PROFESSIONAL Products, visit Kodak on-line at:
http://www.kodak.com/go/professional
If you have questions about KODAK PROFESSIONAL
Products, call Kodak.
In the U.S.A.:
1-800-242-2424, Ext. 19, Monday–Friday
9 a.m.–7 p.m. (Eastern time)
In Canada:
1-800-465-6325, Monday–Friday
8 a.m.–5 p.m. (Eastern time)
Note: The Kodak materials described in this publication for
use with KODAK PROFESSIONAL PORTRA Films are
available from dealers who supply KODAK
PROFESSIONAL Products. You can use other materials,
but you may not obtain similar results.
KODAK PROFESSIONAL PORTRA
160NC, 160VC, 400NC, 400VC,
400UC, and 800 Films
KODAK Publication No. E-190
Kodak, Kodak Professional, Duraflex, Endura, Estar, Flexicolor, Panalure, Portra,
Readyload, Select, Supra, T-Grain, Ultra, and Wratten are trademarks.
Minor Revision 5-03
Printed in U.S.A.
Loading...
