Kodak 3520D - Digital Science, 3520 Setup Instructions

A-61192 P/N 6E6096
December 2002 Cat. No. 844-3384

Perfect Page now with iThresholding: Improved Image Quality and Improved Productivity in an Instant!

For all of your documents, especially those with mixed contrast in background and/or text, experience:

 Better image and text legibility
 Smoother lines
 Minimal to no artifacts
 Fewer shaded areas

It’s simple and automatic! Perfect Page from Kodak!

TWAIN Driver

KODAK Capture Software

ISIS Driver

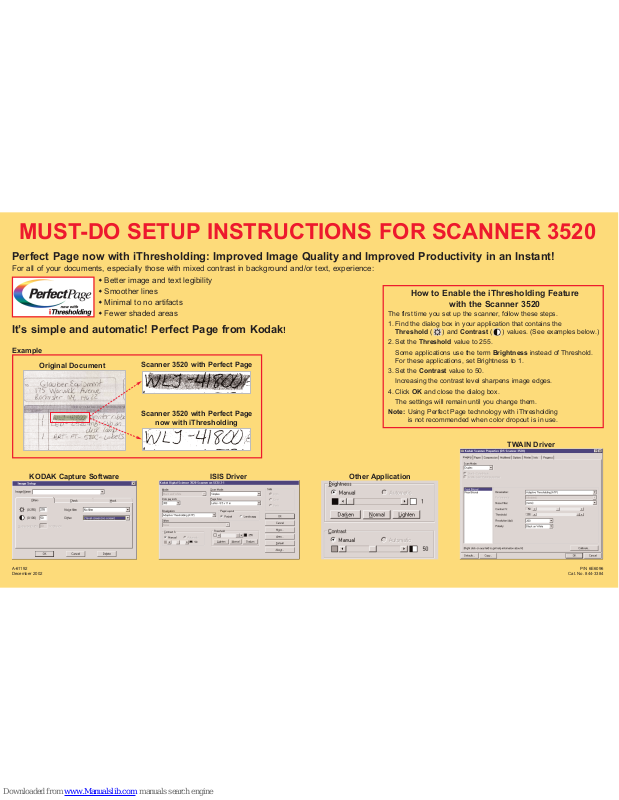

MUST-DO SETUP INSTRUCTIONS FOR SCANNER 3520

Other Application

Original Document

How to Enable the iThresholding Feature

with the Scanner 3520

The first time you set up the scanner, follow these steps.

1. Find the dialog box in your application that contains the
Threshold ( ) and Contrast ( ) values. (See examples below.)

2. Set the Threshold value to 255.

Some applications use the term Brightness instead of Threshold.
For these applications, set Brightness to 1.

3. Set the Contrast value to 50.

Increasing the contrast level sharpens image edges.

4. Click OK and close the dialog box.

The settings will remain until you change them.

Note: Using Perfect Page technology with iThresholding

is not recommended when color dropout is in use.

Example

Scanner 3520 with Perfect Page

now with iThresholding

Scanner 3520 with Perfect Page
