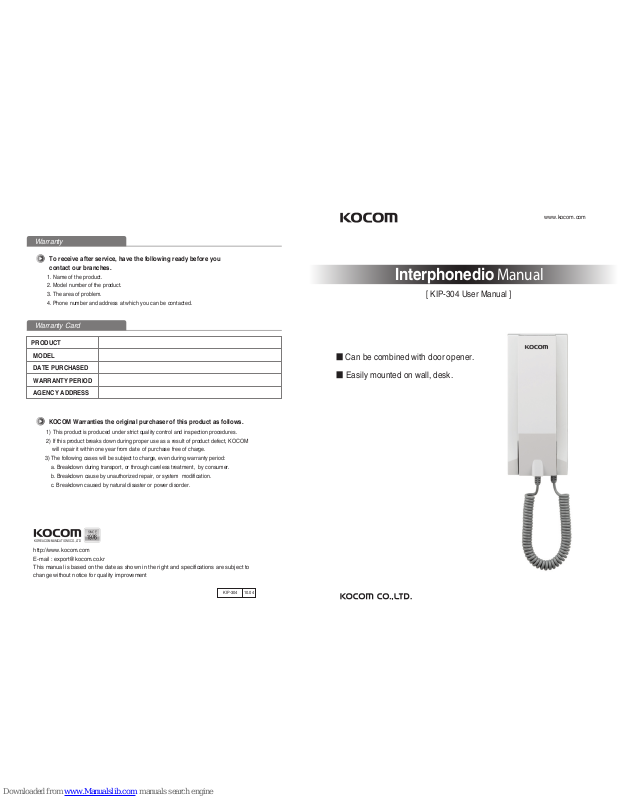

KIP-304 10.04
Interphonedio Manual
[ KIP-304 User Manual ]
SINCE
1976
KOREA COMMUNICATIONS CO.,LTD
http://www.kocom.com
E-mail : [email protected]
This manual is based on the date as shown in the right and specifications are subject to
change without notice for quality improvement
Warranty
Warranty Card
1) This product is produced under strict quality control and inspection procedures.
2) If this product breaks down during proper use as a result of product defect, KOCOM
will repair it within one year from date of purchase free of charge.
3) The following cases will be subject to charge, even during warranty period:
a. Breakdown during transport, or through careless treatment, by consumer.
b. Breakdown cause by unauthorized repair, or system modification.
c. Breakdown caused by natural disaster or power disorder.
1. Name of the product.
2. Model number of the product.
3. The area of problem.
4. Phone number and address at which you can be contacted.
PRODUCT
MODEL
DATE PURCHASED
WARRANTY PERIOD
AGENCY ADDRESS
KOCOM Warranties the original purchaser of this product as follows.
To receive after service, have the following ready before you
contact our branches.
www.kocom.com
■ Can be combined with door opener.
■ Easily mounted on wall, desk.
Page 2

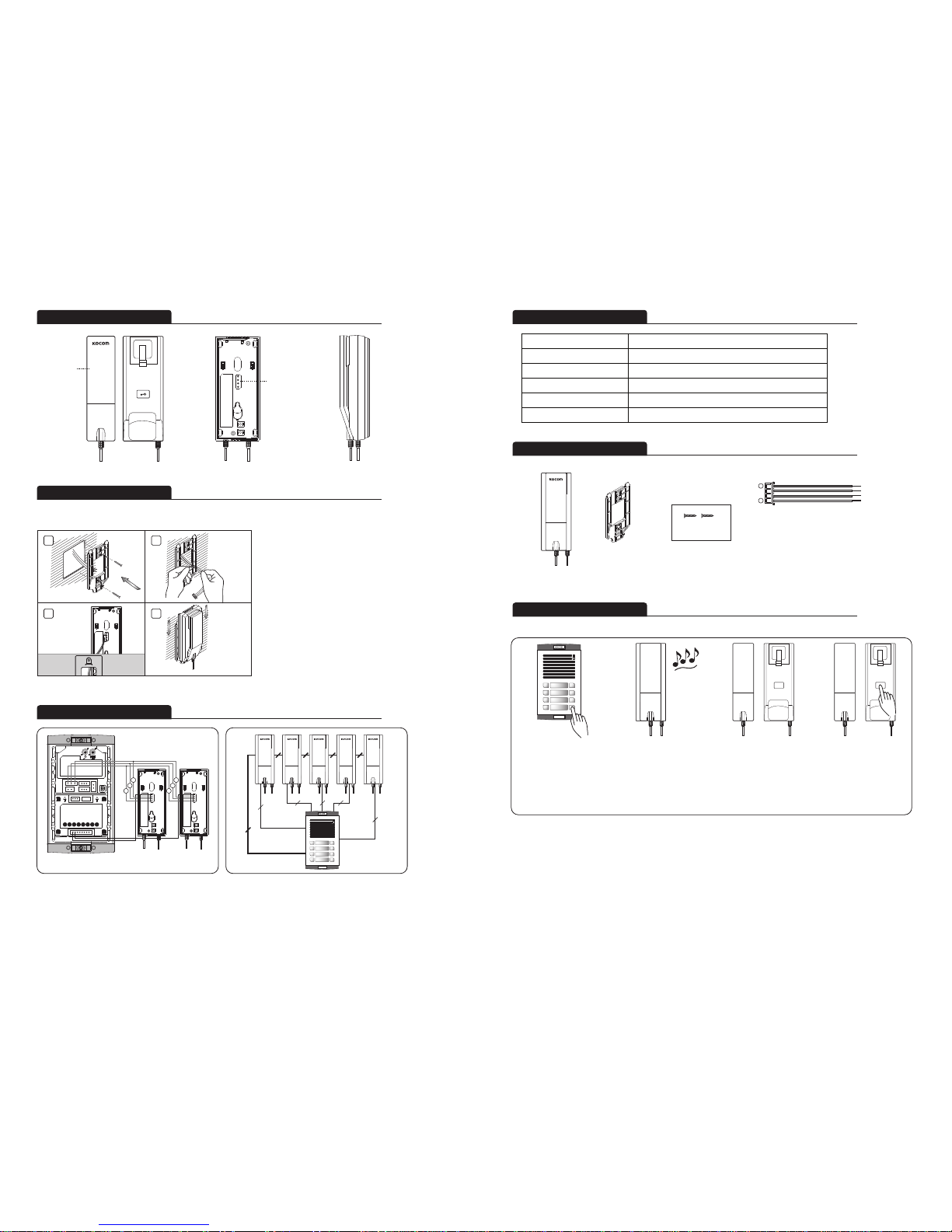

Product connection diagram
Name of Each Part
SideBackFront
Handset
Lobbyphone
connection
terminal
1) Install wall-hanger bracket on wall with
attached Vis.
2,3) Connect wiring to interphone back terminal
referring to product connection diagram.
4) Hang interphone on wall-hanging, and fix
interphone on wall- hanger bracket using
attached Vis.
■ Interphone Installation
Instructions for operation
line
connection
Wall
4X25mm
Screw
1 2
3 4
Back
Wall
■ Communication with Audio lobbyphone
- Check the suitability of the lines for installing when you use the exiting lines.
- Do the wiring work by using the designed material.
- Connect the electric wire with the designed ways and ground.
When the visitor
presses the call
button for certain
house on the
audio lobbyphone
The indoor station
is ringing.
To release the
door, press
the “Door open”
button.
Pick up the handset
and communicate
with a visitor. After end
of communication,
return the handset
where it is locked.
1
3
3 3 3 3
1 1
1
1
Specifications
Components of product
Model No.
Power Source
Power Consumption
Communication System
Wiring
Dimesion
KIP-304
DC 12V (sourced from lobbyphone)
MAX 5W
Handset
3+n (Polarity)
(W)75mmX(H)176mmX(D)52mm
Screw for fixing
interphone
4X25mm 2ea
4 pin cable for interphone &
audio lobbyphone
1. GND
2. AUDIO-SPEAKER
3. AUDIO-MIC
4. SIGNAL
A Wall hanger frame
Interphone
AUDIO LOBBYPHONE
KIP-304 NO.1 KIP-304 NO.2
KIP-304 NO.1~8
polarity
4 5 6 7 81 2 3
3
2
1
1
4
3
2
1
