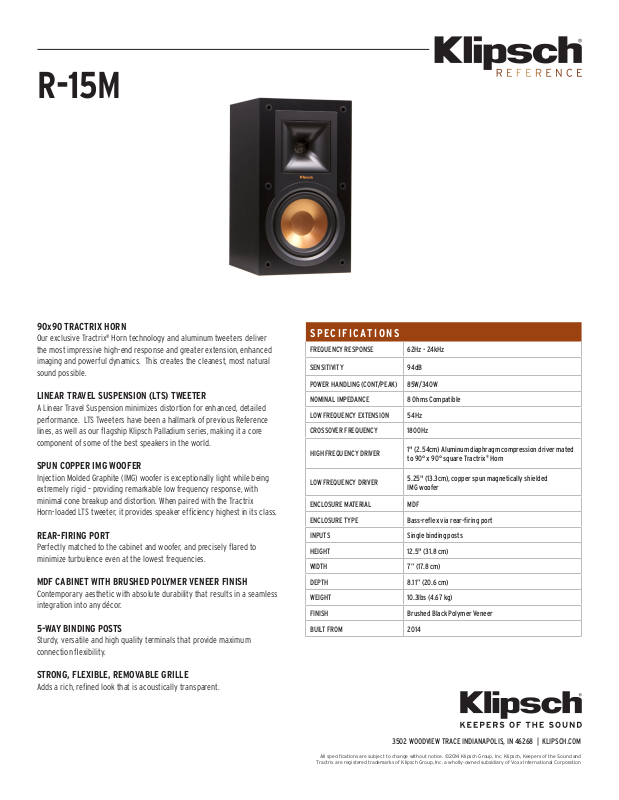

R-15M

90x90 TRACTRIX HORN

Our exclusive Tractrix® Horn technology and aluminum tweeters deliver
the most impressive high-end response and greater extension, enhanced
imaging and powerful dynamics. This creates the cleanest, most natural
sound possible.

LINEAR TRAVEL SUSPENSION (LTS) TWEETER

A Linear Travel Suspension minimizes distortion for enhanced, detailed
performance. LTS Tweeters have been a hallmark of previous Reference
lines, as well as our flagship Klipsch Palladium series, making it a core
component of some of the best speakers in the world.

SPUN COPPER IMG WOOFER

Injection Molded Graphite (IMG) woofer is exceptionally light while being
extremely rigid – providing remarkable low frequency response, with
minimal cone breakup and distortion. When paired with the Tractrix
Horn-loaded LTS tweeter, it provides speaker efficiency highest in its class.

REAR-FIRING PORT

Perfectly matched to the cabinet and woofer, and precisely flared to
minimize turbulence even at the lowest frequencies.

MDF CABINET WITH BRUSHED POLYMER VENEER FINISH

Contemporary aesthetic with absolute durability that results in a seamless
integration into any décor.

5-WAY BINDING POSTS

Sturdy, versatile and high quality terminals that provide maximum
connection flexibility.

SPECIFICATIONS

FREQUENCY RESPONSE 62Hz - 24kHz

SENSITIVITY 94dB

POWER HANDLING (CONT/PEAK) 85W/340W

NOMINAL IMPEDANCE

LOW FREQUENCY EXTENSION 54Hz

CROSSOVER FREQUENCY 1800Hz

HIGH FREQUENCY DRIVER

LOW FREQUENCY DRIVER

ENCLOSURE MATERIAL MDF

ENCLOSURE TYPE

INPUTS Single binding posts

HEIGHT 12.5" (31.8 cm)

WIDTH 7” (17.8 cm)

DEPTH 8.11” (20.6 cm)

WEIGHT 10.3lbs (4.67 kg)

FINISH Brushed Black Polymer Veneer

BUILT FROM 2014

8 Ohms Compatible

1" (2.54cm) Aluminum diaphragm compression driver mated
to 90° x 90° square Tractrix® Horn

5.25" (13.3cm), copper spun magnetically shielded
IMG woofer

Bass-reflex via rear-firing port

STRONG, FLEXIBLE, REMOVABLE GRILLE

Adds a rich, refined look that is acoustically transparent.
