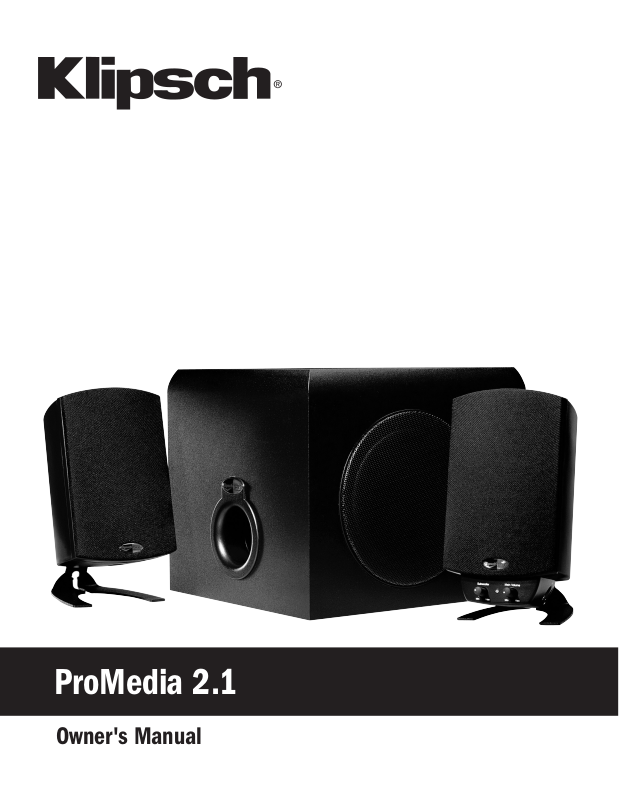

ProMedia 2.1

Owner's Manual

IMPORTANT SAFETY INFORMATION

1. READ these instructions.

2. KEEP these instructions.

3. HEED all warnings.

4. FOLLOW all instructions.

5. DO NOT use this apparatus near water.

6. CLEAN ONLY with dry cloth.

7. DO NOT block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

9. DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong is provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10. PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. ONLY USE attachments/accessories speciﬁed by the manufacturer.

12. USE only with a cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13. UNPLUG this apparatus during lightning storms or when unused for long periods of time.

14. REFER all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled, objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. DO NOT expose this apparatus to dripping or splashing and ensure that no objects ﬁlled with liquids, such as vases, are placed on the apparatus.

16. To completely disconnect this apparatus from the AC mains, disconnect the power supply cord plug from the AC receptacle.

17. The mains plug of the power supply cord shall remain readily operable.

The exclamation point, within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

SPEAKER PLACEMENT

1. The two satellite speakers should be positioned on each side of your computer monitor. To wall mount, the pedestal stands may be removed by unscrewing the 1/4” 20-thread bolt, which accommodates a wide variety of wall brackets available through stereo and appliance stores.

2. Place the subwoofer under your computer desk. The subwoofer must be placed on the ﬂoor near a wall with the rear panel toward the wall. Do not cover up the sub driver or front port of the enclosure and be sure to provide enough ventilation to the rear of the subwoofer. It is normal for this panel to be warm to the touch. The subwoofer should be at least 3 feet (1m) from the computer monitor to avoid interference.

3. Speaker or power cables running across an area of heavy foot trafﬁc should be positioned against a wall or corner and secured with tape.

SPEAKER CONNECTION DIAGRAM

1. Do not plug in the AC power cord until your computer/audio system is set up.

2. Connect mini plug to PC soundcard from the control satellite preamp. Care should be advised concerning the cables at back of sub. Bumping them could cause damage.

3. Connect the DIN plug to the sub from the control satellite preamp.

4. Connect the speakers by inserting the tinned wire leads into the subwoofer. The solid black wires (-) connect to the black spring clips; the black wires with red stripes (+) to the red spring clips.

5. Plug the AC power cord into a wall outlet.

6. Plug headphone mini stereo plug in headphone jack, if desired.

7. Plug stereo mini plug into MP3/Aux jack. Plug stereo mini plug into MP3 player (for example).

The lightning ﬂash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufﬁcient magnitude to constitute a risk of electrical shock to persons.

WARNING: To reduce the risk of ﬁre or electrical shock, do not expose this apparatus to rain or moisture.

WARNING: No naked ﬂame sources – such as candles – should be placed on the product.

WARNING

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel.

WARNING: This product is intended to be operated ONLY from the AC Voltages listed on the back panel or included power supply of the product. Operation from voltages other than those indicated may cause irreversible damage to the product and void the product’s warranty. The use of AC Plug Adapters is cautioned because it can allow the product to be plugged into voltages in which the product was not designed to operate. If the product is equipped with a detachable power cord, use only the type provided with your product or by your local distributor and/or retailer. If you are unsure of the correct operational voltage, please contact your local distributor and/or retailer.

CAUTION: Place the equipment near a main power supply outlet and make sure that you can easily access the power breaker switch.

PACKING LIST

2 Satellite speakers with pedestals and wires attached 1 Control pod, attached to one satellite speaker 1 Subwoofer 1 Packet of rubber isolation feet 1 Owner’s manual

Since the ProMedia 2.1 has its own internal ampliﬁer, it was designed to use the “line out” connector of the computer. Connection to the speaker level output jack might result in poor sound quality.

SOFTWARE AND HARDWARE GAIN CONTROLS

Software Volume Controls in Microsoft Windows

1. Click the Start button on your taskbar

2. Choose Accessories

3. Windows 95: Choose Multimedia

Windows 98/2000/XP/Vista/7: Choose Entertainment

4. Click on the Volume Control

5. Adjust the Wave Volume Elevator Button to 70%

Volume Control Programs Some soundcard and/or PC manufacturers may have software that must be adjusted separately from the Windows volume control. Consult applicable manual for speciﬁc hardware documentation.

Subwoofer Level For CD or DVD output, the optimum position will be indicated by the mark at 10 o’clock on the sub level control. Optimum sub levels and user preference may vary from game to game. Usually a high bass level is preferred, especially at low listening levels. Remember to reset the control settings before playing CDs or ﬁlms on DVD.

CONTROL POD FEATURES

Headphones: The 1/8” stereo headphone output jack, located on the right-hand side of the control pod, turns off the two satellite speakers and the subwoofer output. The main volume control will adjust the headphone output.

If one or more speakers have little or no sound, ensure that:

- All cables are connected properly

- Connectors are fully “seated” in soundcard and speakers

- Main and subwoofer level controls are properly adjusted on control pod

- Computer software audio settings are adjusted for proper use

- Computer system’s sound (control panel) volume is turned up

If the satellites or subwoofer exhibit distortion or buzzing:

- Turn down computer’s volume (via control panel), and reduce control pod volume

- Turn down subwoofer’s volume, as program signal may be too strong

- Plug the subwoofer’s power cord into a surge protector

MP3/Aux: The MP3/Auxiliary input jack is used with portable audio players. This signal will be mixed with the main source. The input has a +6dB input sensitivity to help compensate for the lower output voltage of some portable players. To obtain the proper balance with the main signal, the level adjustments in the computer software and in the portable player will need to be adjusted. An example would be listening to an MP3 player while surﬁng the net and hearing associated sounds from various websites. The mixed sound may not be desirable, and you will ultimately determine how you use this feature.

NOTE: During playback of MP3s, overall sound quality may be perceptibly degraded compared to other audio sources such as CD. This is caused by the encoding method and quality of the MP3 ﬁle. It is recommended that MP3 ﬁles be encoded at a minimum 128 bit rate.

SPECIFICATIONS

(Visit www.klipsch.com for more details)

Satellite Impedance: 4 ohms minimum Preampliﬁer Control Pod: Subwoofer and Main volume level controls

LED power indicator MP3/Aux player line input with soundcard

mixing function Headphone jack Direct path interface

Satellite: Sealed elliptical two-way enclosure with

25mm metalized polymer dome tweeter mated to MicroTractrixTM Horn and 3” long-throw mid-bass driver

Subwoofer: Bass-reﬂex enclosure with rear port and

front-ﬁring 8” long-throw driver; slot tuned port; sixth-order enclosure design

Ampliﬁer: High-efﬁciency power supply and linear

ampliﬁers designed for uncompressed full power sound

Subwoofer Limiter: Protective limiter function protects the

driver and ampliﬁer from extremely high volume playback

TROUBLESHOOTING

If no sound, ensure that:

- Power, input, speaker cables connectors and AC power cord are securely attached

- Soundcard software is properly installed and functioning

- Computer sound (control panel) volume is turned up and not muted

- LED glowing

- Headphones are not connected

If there is noise or hissing and the volume is low even when the main volume is up:

- Turn up computer’s sound volume (via control panel)

- Turn down main volume on control pod to compensate

- Ensure that software/hardware is properly installed and operating

If there is computer monitor interference:

- Make sure the sub is positioned at least 3 feet (1m) from the computer monitor

- Increase the distance between the satellite speakers and the computer monitor

For more detailed information and FAQs, please visit www.klipsch.com.

FCC AND CANADA EMC COMPLIANCE INFORMATION

Approved under the veriﬁcation provision of FCC Part 15 as a Class B Digital Device.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

- CAUTION: Changes or modiﬁcations not expressly approved by

manufacturer could void the user’s authority to operate this device.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Speciﬁcations are subject to change without notice.
