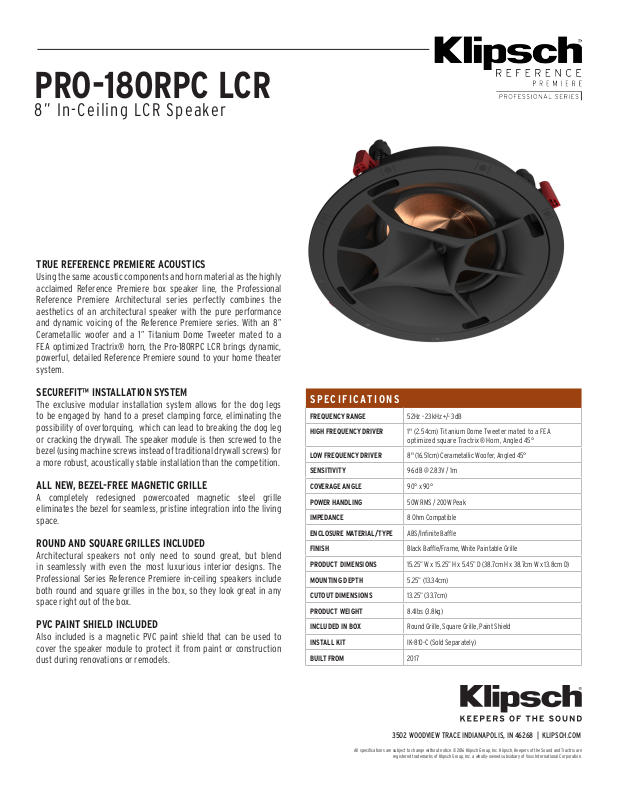

Klipsch PRO-180RPC LCR Specifications

PRO-180RPC LCR

8” In-Ceiling LCR Speaker

TRUE REFERENCE PREMIERE ACOUSTICS

Using the same acoustic components and horn material as the highly
acclaimed Reference Premiere box speaker line, the Professional
Reference Premiere Architectural series perfectly combines the
aesthetics of an architectural speaker with the pure performance
and dynamic voicing of the Reference Premiere series. With an 8”
Cerametallic woofer and a 1” Titanium Dome Tweeter mated to a
FEA optimized Tractrix® horn, the Pro-180RPC LCR brings dynamic,
powerful, detailed Reference Premiere sound to your home theater
system.

SECUREFIT™ INSTALLATION SYSTEM

The exclusive modular installation system allows for the dog legs
to be engaged by hand to a preset clamping force, eliminating the
possibility of overtorquing, which can lead to breaking the dog leg
or cracking the drywall. The speaker module is then screwed to the
bezel (using machine screws instead of traditional drywall screws) for
a more robust, acoustically stable installation than the competition.

ALL NEW, BEZEL-FREE MAGNETIC GRILLE

A completely redesigned powercoated magnetic steel grille
eliminates the bezel for seamless, pristine integration into the living
space.

ROUND AND SQUARE GRILLES INCLUDED

Architectural speakers not only need to sound great, but blend
in seamlessly with even the most luxurious interior designs. The
Professional Series Reference Premiere in-ceiling speakers include
both round and square grilles in the box, so they look great in any
space right out of the box.

PVC PAINT SHIELD INCLUDED

Also included is a magnetic PVC paint shield that can be used to
cover the speaker module to protect it from paint or construction
dust during renovations or remodels.

SPECIFICATIONS

FREQUENCY RANGE

HIGH FREQUENCY DRIVER

LOW FREQUENCY DRIVER

SENSITIVITY

COVERAGE ANGLE

POWER HANDLING

IMPEDANCE

ENCLOSURE MATERIAL/TYPE

FINISH

PRODUCT DIMENSIONS

MOUNTING DEPTH

CUTOUT DIMENSIONS

PRODUCT WEIGHT

INCLUDED IN BOX

INSTALL KIT

BUILT FROM

52Hz - 23kHz +/- 3dB

1" (2.54cm) Titanium Dome Tweeter mated to a FEA
optimized square Tractrix® Horn, Angled 45°

8" (16.51cm) Cerametallic Woofer, Angled 45°

96 dB @ 2.83V / 1m

90° x 90°

50W RMS / 200W Peak

8 Ohm Compatible

ABS/Infinite Baffle

Black Baffle/Frame, White Paintable Grille

15.25” W x 15.25” H x 5.45” D (38.7cm H x 38.7cm W x 13.8cm D)

5.25” (13.34cm)

13.25” (33.7cm)

8.4lbs (3.8kg)

Round Grille, Square Grille, Paint Shield

IK-810-C (Sold Separately)

2017
