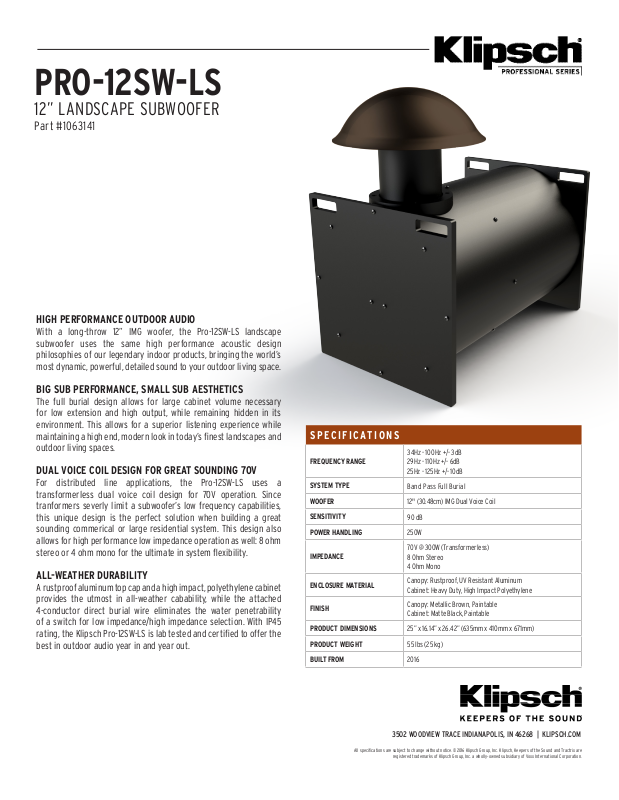

Klipsch Pro-12SW-LS User Manual

PRO-12SW-LS

12” LANDSCAPE SUBWOOFER

Part #1063141

HIGH PERFORMANCE OUTDOOR AUDIO

With a long-throw 12” IMG woofer, the Pro-12SW-LS landscape
subwoofer uses the same high performance acoustic design
philosophies of our legendary indoor products, bringing the world’s
most dynamic, powerful, detailed sound to your outdoor living space.

BIG SUB PERFORMANCE, SMALL SUB AESTHETICS

The full burial design allows for large cabinet volume necessary
for low extension and high output, while remaining hidden in its
environment. This allows for a superior listening experience while

maintaining a high end, modern look in today’s nest landscapes and

outdoor living spaces.

DUAL VOICE COIL DESIGN FOR GREAT SOUNDING 70V

For distributed line applications, the Pro-12SW-LS uses a
transformerless dual voice coil design for 70V operation. Since
tranformers severly limit a subwoofer’s low frequency capabilities,
this unique design is the perfect solution when building a great
sounding commerical or large residential system. This design also
allows for high performance low impedance operation as well: 8 ohm

stereo or 4 ohm mono for the ultimate in system exibility.

ALL-WEATHER DURABILITY

A rustproof aluminum top cap and a high impact, polyethylene cabinet
provides the utmost in all-weather cabability, while the attached
4-conductor direct burial wire eliminates the water penetrability
of a switch for low impedance/high impedance selection. With IP45

rating, the Klipsch Pro-12SW-LS is lab tested and certied to offer the

best in outdoor audio year in and year out.

SPECIFICATIONS

FREQUENCY RANGE

SYSTEM TYPE

WOOFER

SENSITIVITY

POWER HANDLING

IMPEDANCE

ENCLOSURE MATERIAL

FINISH

PRODUCT DIMENSIONS

PRODUCT WEIGHT

BUILT FROM

34Hz - 100Hz +/- 3dB
29Hz - 110Hz +/- 6dB
25Hz - 125Hz +/- 10dB

Band Pass Full Burial

12" (30.48cm) IMG Dual Voice Coil

90 dB

250W

70V @ 300W (Transformerless)
8 Ohm Stereo
4 Ohm Mono

Canopy: Rustproof, UV Resistant Aluminum
Cabinet: Heavy Duty, High Impact Polyethylene

Canopy: Metallic Brown, Paintable
Cabinet: Matte Black, Paintable

25” x 16.14” x 26.42” (635mm x 410mm x 671mm)

55 lbs (25 kg)

2016
