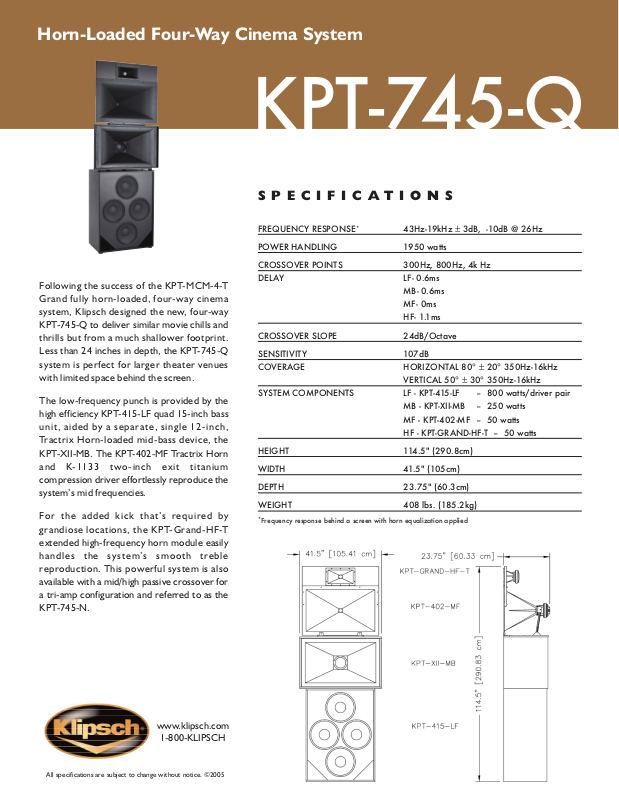

Klipsch KPT-745-Q Brochure

Horn-Loaded Four-Way Cinema System

KPT-745-Q

SPECIFICATIONS

Following the success of the KPT-MCM-4-T Grand fully horn-loaded, four-way cinema system, Klipsch designed the new, four-way KPT-745-Q to deliver similar movie chills and thrills but from a much shallower footprint. Less than 24 inches in depth, the KPT-745-Q system is perfect for larger theater venues with limited space behind the screen.

The low-frequency punch is provided by the high efficiency KPT-415-LF quad 15-inch bass unit, aided by a separate, single 12-inch, Tractrix Horn-loaded mid-bass device, the KPT-XII-MB. The KPT-402-MF Tractrix Horn and K-1133 two-inch exit titanium compression driver effortlessly reproduce the system’s mid frequencies.

For the added kick that’s required by

Grand-HF-T

grandiose locations, the KPT extended high-frequency horn module easily handles the system’s smooth treble reproduction. This powerful system is also available with a mid/high passive crossover for a tri-amp configuration and referred to as the KPT-745-N.

FREQUENCY RESPONSE

POWER HANDLING 1950 watts

CROSSOVER POINTS 300Hz, 800Hz, 4k Hz

AY LF- 0.6ms

DEL

CROSSOVER SLOPE 24dB/Octave

SENSITIVITY 107dB COVERAGE HORIZONTAL 80° ± 20° 350Hz-16kHz

SYSTEM COMPONENTS LF - KPT-415-LF – 800 watts/driver pair

HEIGHT 114.5" (290.8cm)

WIDTH 41.5" (105cm)

DEPTH 23.75" (60.3cm)

WEIGHT 408 lbs. (185.2kg)

uency r

esponse behind a scr

een with horn equalization applied

43Hz-19kHz ± 3dB, -10dB @ 26Hz

MB- 0.6ms MF- 0ms HF- 1.1ms

VERTICAL 50° ± 30° 350Hz-16kHz

MB - KPT-XII-MB – 250 watts MF - KPT-402-MF – 50 watts HF - KPT-GRAND-HF-T – 50 watts

.klipsch.com

www

1-800-KLIPSCH
