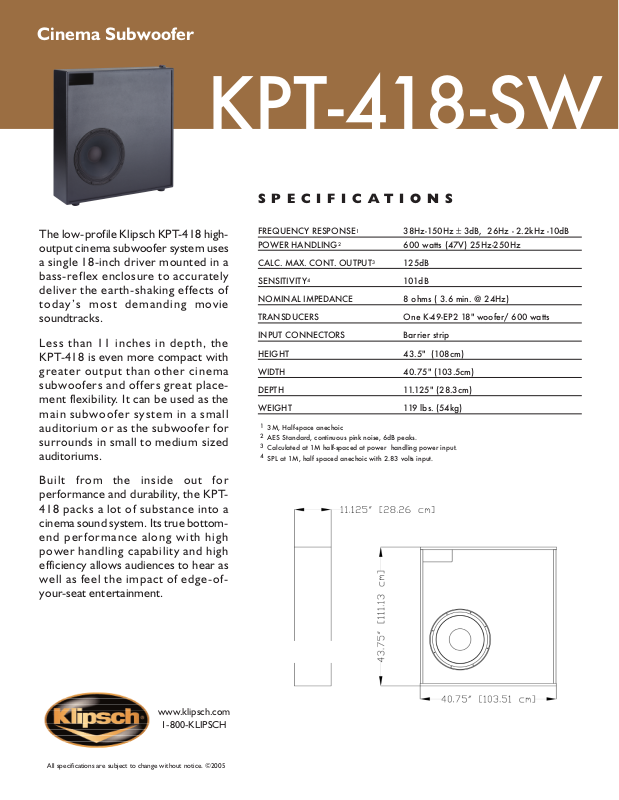

Klipsch KPT-418-SW Brochure
Cinema Subwoofer
KPT-418-SW
SPECIFICATIONS
The low-profile Klipsch KPT-418 highoutput cinema subwoofer system uses
a single 18-inch driver mounted in a
bass-reflex enclosure to accurately
deliver the earth-shaking effects of
today’s most demanding movie
soundtracks.
Less than 11 inches in depth, the
KPT-418 is even more compact with
greater output than other cinema
subwoofers and offers great placement flexibility. It can be used as the
main subwoofer system in a small
auditorium or as the subwoofer for
surrounds in small to medium sized
auditoriums.
Built from the inside out for
performance and durability, the KPT418 packs a lot of substance into a
cinema sound system. Its true bottomend performance along with high
power handling capability and high
efficiency allows audiences to hear as
well as feel the impact of edge-ofyour-seat entertainment.
FREQUENCY RESPONSE
POWER HANDLING
CALC. MAX. CONT. OUTPUT
SENSITIVITY
NOMINAL IMPEDANCE 8 ohms ( 3.6 min. @ 24Hz)
TRANSDUCERS One K-49-EP2 18" woofer/ 600 watts
INPUT CONNECTORS Barrier strip
HEIGHT 43.5" (108cm)
WIDTH 40.75" (103.5cm)
DEPTH 11.125" (28.3cm)
WEIGHT 119 lbs. (54kg)
1
3M, Half-space anechoic
2
AES Standard, continuous pink noise, 6dB peaks.
3
Calculated at 1M half-spaced at power handling power input.
4
SPL at 1M, half spaced anechoic with 2.83 volts input.
4
1
2
3
38Hz-150Hz ± 3dB, 26Hz - 2.2kHz -10dB
600 watts (47V) 25Hz-250Hz
125dB
101dB
www.klipsch.com
1-800-KLIPSCH
All specifications are subject to change without notice. ©2005
