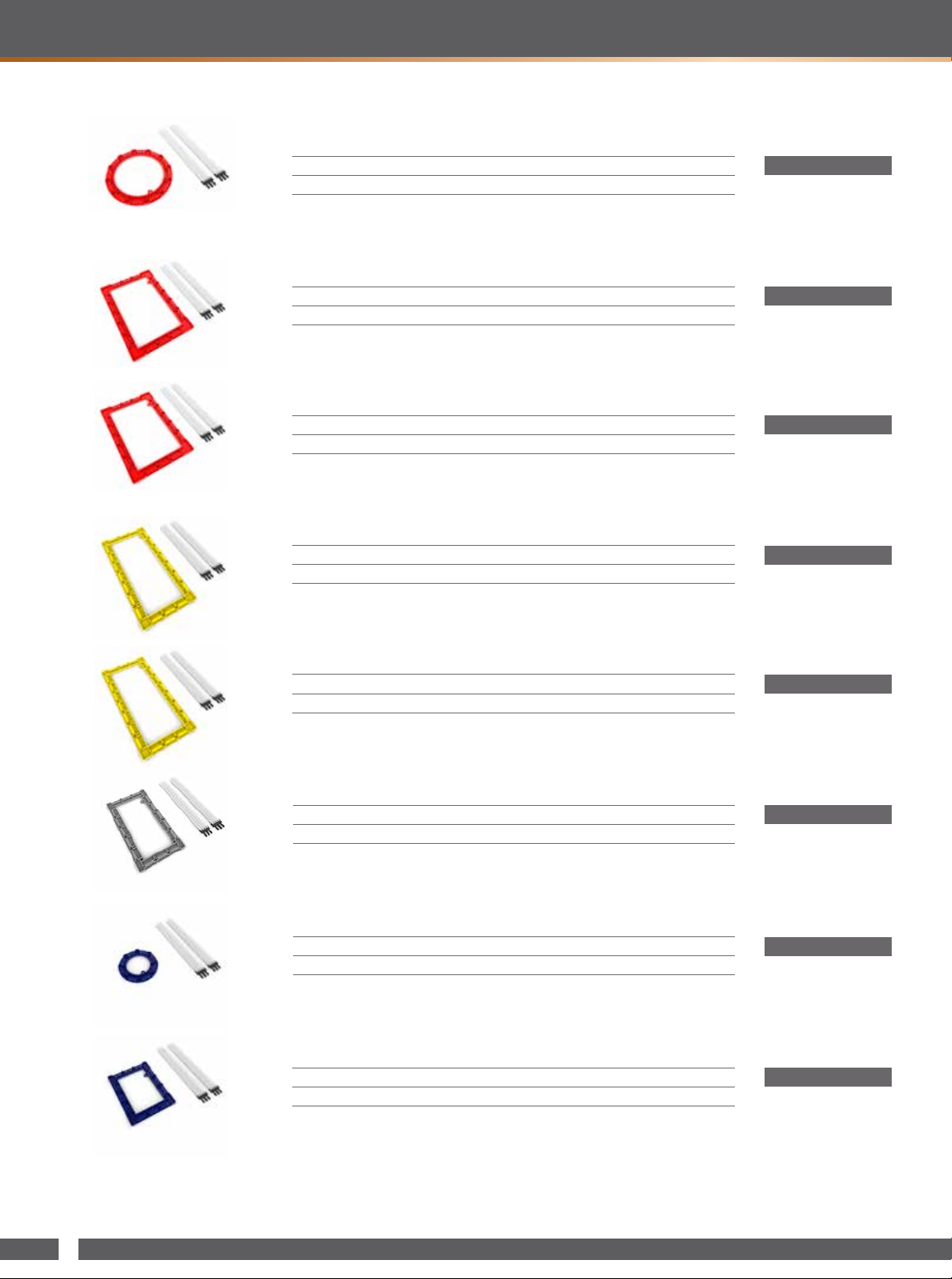

INSTALLATION KITS
GRILLE BRACKETS
FIRE RATED ENCLOSURES
24
26
26
THX ULTRA SERIES
KL-650-THX
KL-525-THX
KS-525-THX
KW-120-THX
KA-1000-THX
27
27
28
28
28
REFERENCE PREMIERE
DESIGNER ON-WALL
RP-440D SB
RP-640D
RP-240D
RP-140D
30
30
31
31
CUSTOMIZED HERITAGE
THEATER BAR
CUSTOMIZED HERITAGE
THEATER BAR
32
OUTDOOR SPEAKERS
AW-650
AW-525
CP-6
AW-400
PRO-650T-LS
PRO-500T-LS
PRO-12SW-LS
PRO-10SW-LS
ACCESSORIES
PRO-10SW-RK
PRO-650T-RK
PRO-500T-RK
33
33
33
34
34
34
35
35
35
37
38
38
AMPLIFIERS
KDA-1000
KDA-500
KA-1000-THX
RSA-500
PRO-200A
AMAZON ECHO
INPUT AMP
40
40
41
41
42
42
SUBWOOFERS
C-310ASWI
C-308ASWI
PRO-1200SW
PRO-1000SW
PRO-800SW
KW-120-THX
44
44
46
46
46
47
COMMERCIAL SPEAKERS
IC-800-T
IC-650-T
IC-525-T
IC-500-T-SC
IC-400-T
KPH-800
KPH-650
KPH-525
CP-6T
CA-800-T
CA-650-T
CA-525-T
CA-800-TSW
47
48
48
48
49
49
49
49
50
51
51
52
52
73 YEARS AGO THE GENESIS
OF SOMETHING VERY SPECIAL
OCCURRED IN A TINY TIN SHED
IN HOPE, ARKANSAS
In 1946 Paul W. Klipsch – genius, madman and maverick
– designed and hand-built the legendary Klipschorn®
loudspeaker with the goal of bringing live music into his
living room. He was an American audio pioneer and a true
eccentric. PWK gave rise to speaker technologies that
would forever impact generations of music lovers.
Today, in this honored tradition, we move forward,
pushing the boundaries of art and science – while
driving new technologies to deliver an ever-incredible
listening experience.
Remember great sound? We never forgot.
We are THE KEEPERS OF THE SOUND
®
KLIPSCH | CI BUYERS GUIDE 2019-2020
THX® CINEMA SERIES
This extraordinary custom home theater series brings cinema-quality sound to the comforts of home by
using Klipsch’s renowned, professional-grade technology. These THX Ultra and Select certied speakers
expertly deliver the raw explosiveness and ne detail of any lm format and will shatter your expectations
for home theater performance. The at magnetic grille allows these in-wall and in-ceiling speakers to melt
seamlessly into your home theater.
• THX Certied for high performance home cinema • THX Ultra and THX Select Certied models
THX-8000-L 8” IN-WALL LCR SPEAKER
FREQUENCY RESPONSE 80Hz-2 3kHz +/- 3dB
SENSITIVITY 91dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
CROSSOVER FREQUENCY 2300Hz
POWER HANDLING (CONT/PEAK) 150W /60 0W
HIGH FREQUENCY DRIVER 1” (2. 54cm) Tita nium dome co mpression d river mated to 8 0° x 80° Tractr ix Horn
LOW FREQUENCY DRIVER 8” (20c m) Aluminum C one Woofer
DIMENSIONS 20.63” ( 52.4cm) H x 11 .63” (29.5 4cm) W
• THX Ultra Certied in-wall LCR speaker for
rooms over 3000 cubic feet
• Cinema quality sound in an architectural format
• Fully enclosed back box
• Flat, magnetic, paintable grille
MOUNTING DEPTH 3.88” (9.85cm)
CUTOUT DIMENSIONS 19.13” (4 8.59cm) H x 10. 12” (25.7cm) W
WEIGHT 17.5 lbs. ( 7.9kg)
INSTALLATION KIT IK-802-W (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 9 kg
19.9 lb s
PART NUMBER
1066109
NOTES:
• THX Ultra Certied in-wall surround
speaker for rooms over 3000 cubic feet
• Cinema quality sound in an architectural format
• Fully enclosed back box
• Wide Dispersion Sound Technology (WDST)
• Flat, magnetic, paintable grille
• THX Ultra Certied in-wall LCR speaker for
rooms over 3000 cubic feet
• Cinema quality sound in an architectural format
• Fully enclosed back box
• Flat, magnetic, paintable grille
THX-8000-S 8” IN-WALL SURROUND SPEAKER
FREQUENCY RESPONSE 80Hz-2 0kHz +/- 3dB
SENSITIVITY 90dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
CROSSOVER FREQUENCY 2130Hz
POWER HANDLING (CONT/PEAK) 100W /40 0W
HIGH FREQUENCY DRIVER Two 1” (2.5 cm) Titaniu m dome neod ymium tweet ers in a diffu se Tractrix ho rn array
LOW FREQUENCY DRIVER 8” (20c m) Aluminum C one Woofer
DIMENSIONS 20.63” ( 52.4cm) H x 11 .63” (29.5 4cm) W
MOUNTING DEPTH 3.88” (9.85cm)
CUTOUT DIMENSIONS 19.13” (4 8.59cm) H x 10. 12” (25.7cm) W
WEIGHT 17.5 lbs. ( 7.9kg)
INSTALLATION KIT IK-802-W (sold separately)
THX-5002-L DUAL 5.25” IN-CEILING LCR SPEAKER
FREQUENCY RESPONSE 45Hz-20 kHz +/- 3dB
SENSITIVITY 93dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
CROSSOVER FREQUENCY 1200 Hz & 1 800 Hz
POWER HANDLING (CONT/PEAK) 100W /40 0W
HIGH FREQUENCY DRIVER 1” (2.5 cm) Ti tanium tweeter in a 7.5 x 3.75 ” 60-90-1 10 VCT 45° Skewed horn
LOW FREQUENCY DRIVER Two 5.25” ( 16.51c m) Cerametal lic Woofers
DIMENSIONS Ø 14.89” (37.82cm)
MOUNTING DEPTH 9.23” (23.44cm)
CUTOUT DIMENSIONS Ø 13.39” (34.01cm)
WEIGHT 12 lbs (5. 4kg)
INSTALLATION KIT IK-502-C (sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 8.57 kg
18.9 lbs
PART NUMBER
1066110
NOTES:
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 7.2 kg
15.9 lbs
PART NUMBER
1066119
NOTES:
5
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM
• THX Ultra Certied in-ceiling surround
speaker for rooms over 3000 cubic feet
• Cinema quality sound in an architectural format
• Fully enclosed back box
• Wide Dispersion Sound Technology (WDST)
• Flat, magnetic, paintable grille
• THX Select Certied in-wall speaker for
rooms up to 2000 cubic feet
• Cinema quality sound in an architectural format
• Flat, magnetic, paintable grille
THX-5002-S DUAL 5.25” IN-CEILING SURROUND SPEAKER
FREQUENCY RESPONSE 45Hz-20 kHz +/- 3dB
SENSITIVITY 93dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
CROSSOVER FREQUENCY 2500Hz
POWER HANDLING (CONT/PEAK) 100W /40 0W
HIGH FREQUENCY DRIVER Two 1” Titan ium tweeter s in verticall y stacked Trac trix horns
LOW FREQUENCY DRIVER Two 5.25” ( 16.51c m) Cerametal lic Woofers
DIMENSIONS Ø 14.89” (37.82cm)
MOUNTING DEPTH 9.23” (23.44cm)
CUTOUT DIMENSIONS Ø 13.39” (34.01cm)
WEIGHT 11 lbs. ( 5.0kg)
INSTALLATION KIT IK-502-C (sold separately)
THX-504-L QUAD 5.25” IN-WALL SPEAKER
FREQUENCY RESPONSE 46Hz-2 0kHz +/- 3dB
SENSITIVITY 92dB @ 2.8 3V/1 meter
IMPEDANC E 8 ohms compatible
CROSSOVER FREQUENCY 250 Hz & 2 100 Hz
POWER HANDLING (CONT/PEAK) 150W /60 0W
HIGH FREQUENCY DRIVER
LOW FREQUENCY DRIVER Four 5.2 5” (1 3.3cm) high-o utput, berg lass cone woofers
DIMENSIONS 28.88” ( 73.35cm) H x 8 .13” (20.6 5cm) W
MOUNTING DEPTH 3.52” (8.94cm)
CUTOUT DIMENSIONS 27.24” (69.19 cm) H x 6.5” (16 .51cm) W
WEIGHT 18.3 l bs (8.3kg)
INSTALLATION KIT IK-504-W (sold separately)
1” (2.54cm) Titanium diaphragm compression driver
mated to 9 0° x 90° squa re Tractrix Ho rn
THX CINEMA SERIES
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 6.3 kg
13.9 lbs
PART NUMBER
1066125
NOTES:
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 9 kg
19.9 lb s
PART NUMBER
1066127
NOTES:
• THX Select Certied in-wall speaker for
rooms up to 2000 cubic feet
• Cinema quality sound in an architectural format
• Flat, magnetic, paintable grille
THX-502-L DUAL 5.25” IN-WALL SPEAKER
FREQUENCY RESPONSE 46Hz-2 0kHz +/- 3dB
SENSITIVITY 92dB @ 2.8 3V/1 meter
IMPEDANC E 8 ohms compatible
CROSSOVER FREQUENCY 2100 Hz & 1200Hz
POWER HANDLING (CONT/PEAK) 100W /40 0W
HIGH FREQUENCY DRIVER
LOW FREQUENCY DRIVER Dual 5. 25” (13.3cm) hig h-output, bergla ss cone woofers
DIMENSIONS 17.98” (45.6 6cm) H x 8.11” (2 0.59cm) W
MOUNTING DEPTH 3.49” (8.86cm)
CUTOUT DIMENSIONS 16.4 2” (41.7cm) H x 6.57 ” (16.68 cm) W
WEIGHT 9.6 lbs (4.4 kg)
INSTALLATION KIT IK-502- W or IK-502-W II (s old separat ely)
1” (2.54cm) Titanium diaphragm compression driver
mated to 9 0° x 90° squa re Tractrix Ho rn
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 5.4 kg
11.9 lb s
PART NUMBER
1066128
NOTES:
6
PROFESSIONAL SERIES REFERENCE PREMIERE
Using the same acoustic components and horn material as the highly acclaimed Reference Premiere box
speaker line, the Professional Reference Premiere Architectural series perfectly combines the aesthetics
of an architectural speaker with the pure performance and dynamic voicing of the Reference
Premiere series.
PRO-180RPC LCR 8” IN-CEILING LCR SPEAKER
FREQUENCY RESPONSE 52Hz – 23kH z +/- 3dB
SENSITIVITY 96dB @ 1M, @2.83 V
IMPEDANC E 8 ohms compatible
COVERAGE ANGLE 100˚
POWER HANDLING (CONT/PEAK) 50W /20 0W
HIGH FREQUENCY DRIVER Angle d 1” (2.54 cm) titani um dome twe eter mated to a co mposite co ated FEA op timized hor n
LOW FREQUENCY DRIVER Angled 8” (20.32cm) Cerametallic woofer, angled 45˚
DIMENSIONS 12.7” W x 12. 7” H x 5.89” D (3 2.3cm H x 32 .3cm W x 15cm D)
MOUNTING DEPTH 5.68” (14.4cm)
• Angled In-Ceiling LCR speaker for home
theater or 2-channel listening
• SecureFit™ Installation System
• Round and square grilles included
• PVC Paint Shield included
CUTOUT DIMENSIONS 11.57” (29.4cm)
WEIGHT 8.4lb s. (3.8kg)
INSTALLATION KIT
IK-810-C
(sold separately)
PROFESSIONAL SERIES
IN-CEILING
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 4.3 kg
9.5 lb s
PART NUMBER
1063968
NOTES:
• In-Ceiling speaker for home theater,
distributed audio or 2-channel listening
• SecureFit™ Installation System
• Round and square grilles included
• PVC Paint Shield included
PRO-180RPC 8” IN-CEILING SPEAKER
FREQUENCY RESPONSE 52Hz – 23kH z +/- 3dB
SENSITIVITY 96dB @ 1M, @2.83 V
IMPEDANC E 8 ohms compatible
COVERAGE ANGLE 100˚
POWER HANDLING (CONT/PEAK) 50W /20 0W
HIGH FREQUENCY DRIVER 1” (2. 54cm) tita nium dome tw eeter mated t o a composite c oated round Tr actrix
LOW FREQUENCY DRIVER 8” (20. 32cm) Ceram etallic woofe r
DIMENSIONS 10.89” W x 1 0.89” H x 4.8 3” D (27.7cm H x 27.7cm W x 12.3 cm D)
MOUNTING DEPTH 4.58” (11.6cm)
CUTOUT DIMENSIONS 9.72” (24.7cm)
WEIGHT 7.4lbs. (3. 36kg)
INSTALLATION KIT
IK-800-C or IK-800-C II
(sold separately)
®
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.9kg
8.6 lbs
PART NUMBER
1063967
horn
NOTES:
8
KLIPSCH | CI BUYERS GUIDE 2019-2020
PRO-160RPC 6.5” IN-CEILING SPEAKER
FREQUENCY RESPONSE 56Hz – 23k Hz +/- 3d B
SENSITIVITY 95dB @ 1M, @ 2.83V/ 1 meter
IMPEDANC E 8 ohms compatible
COVERAGE ANGLE 100˚
POWER HANDLING (CONT/PEAK) 50W /20 0W
HIGH FREQUENCY DRIVER 1” (2. 54cm) tita nium dome tw eeter mated t o a composite c oated round Tr actrix
LOW FREQUENCY DRIVER 6.5” ( 16.51cm) C erametalli c woofer
DIMENSIONS 9.31” W x 9.3 1” H x 4.71” D (2 3.7cm H x 23.7cm W x 12cm D)
MOUNTING DEPTH 4.46” ( 11.3cm)
CUTOUT DIMENSIONS 8.15” (20.7cm)
• In-Ceiling speaker for home theater,
distributed audio or 2-channel listening
• SecureFit™ Installation System
• Round and square grilles included
• PVC Paint Shield included
WEIGHT 7lbs. (3 .18kg)
INSTALLATION KIT
IK-650-C or IK-650-C II
(sold separately)
®
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.7 kg
8.15 lb s
PART NUMBER
1063966
horn
NOTES:
• In-Wall LCR speaker for home theater or
2-channel listening
• SecureFit™ Installation System
• Flat, magnetic grille
• PVC Paint Shield included
PRO-250RPW LCR DUAL 5.25” IN-WALL LCR SPEAKER
FREQUENCY RESPONSE 46Hz – 23k Hz +/- 3dB
SENSITIVITY 94dB @ 1M, @ 2.83V/ 1 meter
IMPEDANC E 8 ohms compatible
COVERAGE ANGLE 90˚ x 90˚
POWER HANDLING (CONT/PEAK) 75W /300 W
HIGH FREQUENCY DRIVER
LOW FREQUENCY DRIVER Dual 5. 25” (13.3 4cm) Ceram etallic woof ers
DIMENSIONS 7.65” W x 17.53” H x 3 .81” D (19.4 cm H x 44.5c m W x 9.7cm D)
MOUNTING DEPTH 3.68” (9.3cm)
CUTOUT DIMENSIONS 6.5” H X 16 .38” W (16 .5cm H X 41. 6cm W)
WEIGHT 6.5 lbs . (2.95kg)
INSTALLATION KIT
1” (2. 54cm) tita nium dome tw eeter mated t o a composite c oated hybri d cross sec tion
®
Tractrix
horn
IK-502-W
or IK-50 2-W II (sold separately)
IN-WALL
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.5 kg
7.7 l bs
PART NUMBER
1063965
NOTES:
9
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM
• In-Wall speaker for home theater,
distributed audio or 2-channel listening
• SecureFit™ Installation System
• Flat, magnetic grille
• PVC Paint Shield included
PRO-180RPW 8” IN-WALL SPEAKER
FREQUENCY RESPONSE 52Hz-2 3kHz +/- 3dB
SENSITIVITY 96dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
COVERAGE ANGLE 90˚ x 90˚
POWER HANDLING (CONT/PEAK) 50W /20 0W
HIGH FREQUENCY DRIVER 1” (2. 54cm) alum inum dome twe eter mated to a 90°x 90° Tractrix® Horn
LOW FREQUENCY DRIVER 8” (20. 32cm) Ceram etallic woof er
DIMENSIONS 10.3” W x 15 .89” H x 4.01 ” D (26.2cm H x 4 0.4cm W x 10. 2cm D)
MOUNTING DEPTH 3.8 8” (9.9cm )
CUTOUT DIMENSIONS 9.13” H X 14 .72” W (23. 2cm H X 37.4cm W)
WEIGHT 7.9 lbs. (3.6kg)
INSTALLATION KIT IK-800 -W or IK-800-W I I (sold separ ately)
PROFESSIONAL SERIES
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 4.1 kg
9 lbs
PART NUMBER
1064064
NOTES:
• In-Wall speaker for home theater,
distributed audio or 2-channel listening
• SecureFit™ Installation System
• Flat, magnetic grille
• PVC Paint Shield included
PRO-160RPW 6.5” IN-WALL SPEAKER
FREQUENCY RESPONSE 56Hz-2 3kHz +/- 3dB
SENSITIVITY 94dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
COVERAGE ANGLE 90˚ x 90˚
POWER HANDLING (CONT/PEAK) 50W /20 0W
HIGH FREQUENCY DRIVER
LOW FREQUENCY DRIVER 6.5” ( 16.51cm) C erametall ic woofer
DIMENSIONS 9.1” W x 14.2 2” H x 3.9” D (23 .1cm H x 36.1c m W x 9.9cm D)
MOUNTING DEPTH 3.7 7” (9.6c m)
CUTOUT DIMENSIONS 7.95” H X 13.0 7” W (20.2cm H X 3 3.2cm W)
WEIGHT 7.2 lbs. (3. 25kg)
INSTALLATION KIT IK-650 -W or IK-650 -W II (sold sepa rately)
1” (2. 54cm) Tita nium dome tw eeter mated to a c omposit e coated h ybrid cr oss sec tion
Tractrix® Horn
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.75 kg
8.26 l bs
PART NUMBER
1063963
NOTES:
10
PROFESSIONAL SERIES REFERENCE
Using the same acoustic components and horn material as the highly acclaimed Reference Premiere
box speaker line, the Professional Reference Series perfectly combines the aesthetics of an architectural
speaker with the pure performance and dynamic voicing of the Reference series.
• True Reference acoustics • SecureFit
• In-wall LCR speaker for home theater or
2-channel listening
• SecureFit™ Installation System
• Flat, magnetic grille
• PVC Paint Shield included
™
Installation System • Minimal footprint models available
PRO-25RW LCR DUAL 5.25” IN-WALL LCR SPEAKER
FREQUENCY RESPONSE 50Hz-2 3kHz +/- 3dB
SENSITIVITY 93dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
POWER HANDLING (CONT/PEAK) 75W /300 W
HIGH FREQUENCY DRIVER 1” (2. 54cm) alum inum dome twe eter mated to a 90°x 90° Tractrix® Horn
LOW FREQUENCY DRIVER Dual 5. 25” (16. 51cm) IMG woof ers
DIMENSIONS 7.65” W x 17.53” H x 3 .81” D (19.4 cm H x 44.5c m W x 9.7cm D)
MOUNTING DEPTH 3.68” (9.3cm)
CUTOUT DIMENSIONS 6.5” W X 16 .38” H (16 .5cm W X 41. 6cm H)
WEIGHT 6.5 lbs . (2.95kg)
INSTALLATION KIT IK-502- W or IK-502-W II (s old separat ely)
PROFESSIONAL SERIES
IN-WALL
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.5 kg
7.7 l bs
PART NUMBER
1064445
NOTES:
• In-wall speaker for home theater,
distributed audio or 2-channel listening
• SecureFit™ Installation System
• Flat, magnetic grille
• PVC Paint Shield included
PRO-18RW 8” IN-WALL SPEAKER
FREQUENCY RESPONSE 56Hz-2 3kHz +/- 3dB
SENSITIVITY 95dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
POWER HANDLING (CONT/PEAK) 50W /20 0W
HIGH FREQUENCY DRIVER 1” (2. 54cm) alum inum dome twe eter mated to a 90°x 90° Tractrix® Horn
LOW FREQUENCY DRIVER 8” (20. 32cm) IMG woof er
DIMENSIONS 10.3” W x 15 .89” H x 4.0” D ( 26.2cm H x 40 .4cm W x 10.2 cm D)
MOUNTING DEPTH 3.8 8” (9.9cm )
CUTOUT DIMENSIONS 9.13” W X 14 .72” H (23. 2cm W X 37.4cm H)
WEIGHT 7.9 lbs. (3.6kg)
INSTALLATION KIT IK-800 -W or IK-800-W I I (sold separ ately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 4.1 kg
9 lbs
PART NUMBER
1064444
NOTES:
12
• In-wall speaker for home theater,
distributed audio or 2-channel listening
• SecureFit™ Installation System
• Round and square grilles included
• PVC Paint Shield included
PRO-16RW 6.5” IN-WALL SPEAKER
FREQUENCY RESPONSE 60Hz-2 3kHz +/- 3dB
SENSITIVITY 93dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
POWER HANDLING (CONT/PEAK) 50W /20 0W
HIGH FREQUENCY DRIVER 1” (2. 54cm) alum inum dome twe eter mated to a ro und Tractrix H orn
LOW FREQUENCY DRIVER 6.5” ( 16.5cm) IM G Woofer
DIMENSIONS 9.1” W x 14.2 2” H x 3.91” D (2 3.1cm H x 36.1 cm W x 9.9cm D)
MOUNTING DEPTH 3.78” (9.6cm)
CUTOUT DIMENSIONS 7.95” W X 13.0 7” H (20.2cm W X 3 3.2cm H)
WEIGHT 7.2 lbs. (3. 25kg)
INSTALLATION KIT IK-650 -W or IK-650 -W II (sold sepa rately)
IN-CEILING
PROFESSIONAL SERIES
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.75 kg
8.26 l bs
PART NUMBER
1064443
NOTES:
• In-ceiling speaker for home theater,
distributed audio or 2-channel listening
• SecureFit™ Installation System
• Round and square grilles included
• PVC Paint Shield included
• In-ceiling speaker for home theater,
distributed audio or 2-channel listening
• SecureFit™ Installation System
• Round and square grilles included
• PVC Paint Shield included
PRO-18RC 8” IN-CEILING SPEAKER
FREQUENCY RESPONSE 56Hz – 23k Hz +/- 3d B
SENSITIVITY 95dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
POWER HANDLING (CONT/PEAK) 50W /20 0W
HIGH FREQUENCY DRIVER 1” (2. 54cm) alum inum dome t weeter mated t o a round Tract rix
LOW FREQUENCY DRIVER 8” (20. 32cm) IMG woof er
DIAMETER 10.89” (27.7cm)
CUTOUT DIAMETER 9.72” (24.7cm)
MOUNTING DEPTH 6.35” (16.1cm)
WEIGHT 7.4 lbs. (3.3 6kg)
INSTALLATION KIT
IK-800-C
or
IK-800-C II
(sold separately)
PRO-16RC 6.5” IN-CEILING SPEAKER
FREQUENCY RESPONSE 63Hz – 23k Hz +/- 3dB
SENSITIVITY 94dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
POWER HANDLING (CONT/PEAK) 50W /20 0W
HIGH FREQUENCY DRIVER 1” (2. 54cm) alum inum dome t weeter mated t o a round Tract rix
LOW FREQUENCY DRIVER 6.5” ( 16.51cm) IM G woofer
DIAMETER 9.31” (23.7cm)
CUTOUT DIAMETER 8.15” (20.7cm)
MOUNTING DEPTH 6.15” (15.6cm)
WEIGHT 7 lbs. (3.1 8kg)
INSTALLATION KIT
IK-650-C or IK-650-C II
(sold separately)
®
horn
®
horn
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.8 kg
8.3 lb s
PART NUMBER
1064447
NOTES:
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.6 kg
7.9 l bs
PART NUMBER
1064446
NOTES:
14
KLIPSCH | CI BUYERS GUIDE 2019-2020

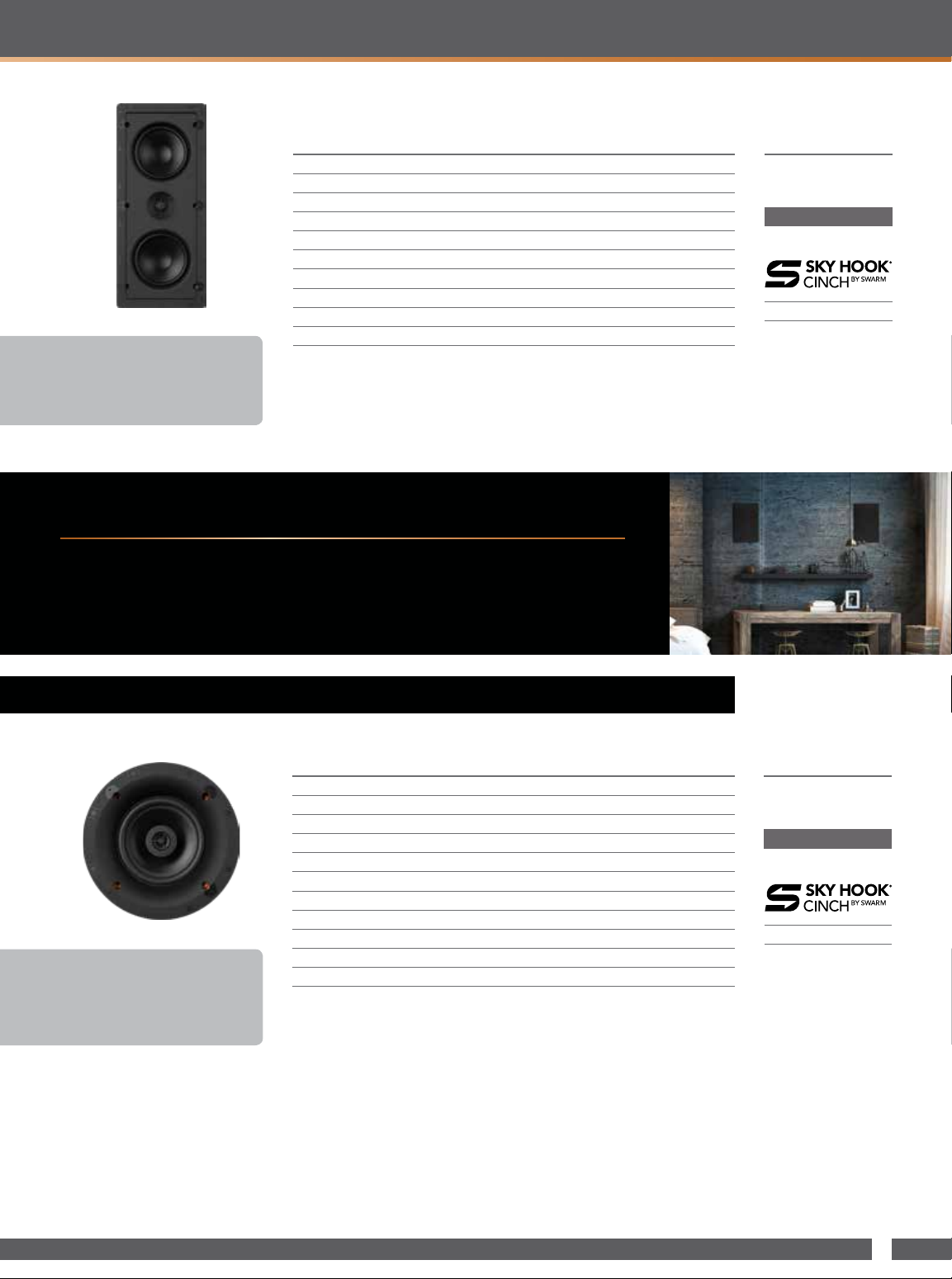

PRO-24RW LCR MINIMAL FOOTPRINT DUAL 4” IN-WALL LCR SPEAKER
FREQUENCY RESPONSE 68Hz-2 3kHz +/- 3dB
SENSITIVITY 89dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
POWER HANDLING (CONT/PEAK) 30W /120W
HIGH FREQUENCY DRIVER .75” (1. 9cm) aluminu m dome tweet er
LOW FREQUENCY DRIVER Dual 4” ( 10.16cm) IM G Woofers
DIMENSIONS 6.36” W x 13. 42” H x 3.32 ” D (16.2c m H x 34.1cm W x 8.4 cm D)
MOUNTING DEPTH 3.17” (8.1cm)
CUTOUT DIMENSIONS 5.26” W X 1 2.35” H (13 .4cm W X 31.4 cm H)
• In-wall LCR speaker for home theater or
2-channel listening
• Minimal visual footprint
• SkyHook™ Installation System
• Flat, magnetic grille
• PVC Paint Shield included
WEIGHT 4.5 lbs . (2.1kg)
INSTALLATION KIT IK-402-W (sold separately)
PROFESSIONAL SERIES MINIMAL FOOTPRINT
MINIMAL FOOTPRINT IN-WALL
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 2.6 kg
5.73 lbs
PART NUMBER
1064449
NOTES:
• In-wall speaker for home theater,
distributed audio or 2-channel listening
• Minimal visual footprint
• SkyHook™ Installation System
• Flat magnetic grille
• PVC Paint Shield included
• In-wall speaker for home theater,
distributed audio or 2-channel listening
• Minimal visual footprint
• SkyHook™ Installation System
• Round and square grilles included
• PVC Paint Shield included
PRO-14RW MINIMAL FOOTPRINT 4” IN-WALL SPEAKER
FREQUENCY RESPONSE 70Hz-23 kHz +/- 3dB
SENSITIVITY 88dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
POWER HANDLING (CONT/PEAK) 30W /120W
HIGH FREQUENCY DRIVER 1” (2.5 4cm) Silk dom e tweeter mate d to 90° x 90° Tractri x Horn
LOW FREQUENCY DRIVER Dual 4” ( 10.2cm) Pol ypropylen e Woofers
DIMENSIONS 6.38” W x 9. 2” H x 3.56” D (1 6.2cm H x 23. 4cm W x 9cm D)
MOUNTING DEPTH 3.4 1” (8 .7cm)
CUTOUT DIMENSIONS 5.26” W X 8 .13” H (13.4 cm W X 20.7cm H)
WEIGHT 4lbs (1 .8kg)
INSTALLATION KIT IK-400-W (sold separately)
MINIMAL FOOTPRINT IN-CEILING
PRO-14RC MINIMAL FOOTPRINT 3.5” IN-CEILING SPEAKER
FREQUENCY RESPONSE 72Hz – 23kH z +/- 3dB
SENSITIVITY 88dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
POWER HANDLING (CONT/PEAK) 30W /120W
HIGH FREQUENCY DRIVER .75” (1. 9cm) alumin um dome twee ter
LOW FREQUENCY DRIVER 3.5” (8. 89cm) IMG woo fer
DIAMETER 4.86” ( 12.4cm)
CUTOUT DIAMETER 4. 21” ( 10. 7cm)
MOUNTING DEPTH 3.8 9” (9.9cm )
WEIGHT 4 lbs. (1. 8kg)
INSTALLATION KIT
IK-400-C
(sold separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 2.3 kg
5 lbs
PART NUMBER
1064448
NOTES:
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 2.3 kg
5 lbs
PART NUMBER
1064450
NOTES:
15
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM
• Full stud-bay-in-wall subwoofer for new
construction
• Ideal for home cinema or high performance
distributed audio
• Easily installs into any standard stud-bay

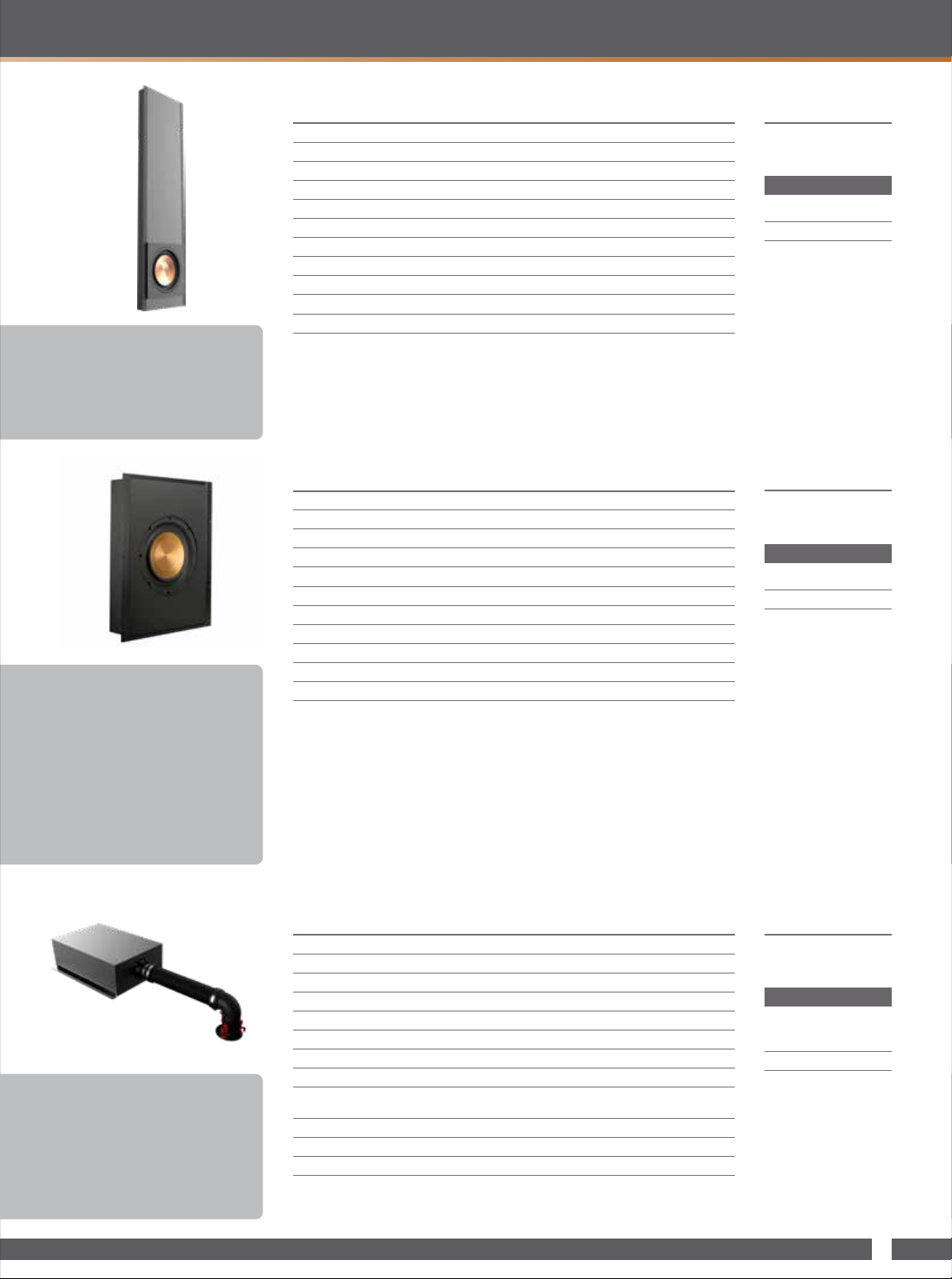

PROFESSIONAL SERIES SUBWOOFERS
PRO-1200SW 12” IN-WALL SUBWOOFER
FREQUENCY RANGE 21Hz - 100 Hz +/- 3dB *
SYSTEM T YPE Seale d Box
WOOFER 12” (25.4cm) Long-Throw Cerametallic
MAXIMUM OUTPUT* 112dB @ 70Hz
POWER HANDLING 250W RMS / 600W Pe ak
IMPEDANC E 8 ohms
ENCLOSURE MATERIAL MDF
FINISH Black Po lymer Veneer w ith White, Pain table Grill e
PRODUCT DIMENSIONS 65.75” H x 1 5.69” W x 3.4 7” D (1670.0 5mm x 398mm x 10 0mm)
MOUNTING DEPTH 3.4” (88.138mm)
CUTOUT DIMENSIONS 14.2 5” x 14.25” (3 61.95mm x 3 61.95mm)
PRODUCT WEIGHT 35 .5 lbs (16.1 kg)
™
* With Klipsch KDA Amplier DSP Preset
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 16.6 kg
36.6 lbs
PART NUMBER
1064595
NOTES:
• 10” Long-throw Cerametallic™ woofer for
superior low frequency response
• Performs as the anchor for a home theater
system or a premium distributed audio solution
• MDF enclosure
• Flat, paintable, white magnetic grille
• Suitable for retrot or new construction
applications
• Compatible with the KDA-500 amplier
(see page XX)
• In-ceiling bandpass dual voice coil
subwoofer for new construction or retrot
• Minimal visual footprint
• Round and square grilles included
• Floor vent boot kit accessory (sold
separately)
PRO-1000SW 10” IN-WALL SUBWOOFER
FREQUENCY RANGE 24-100Hz +/- 3dB *
SYSTEM T YPE Seale d Box
WOOFER 10” (25.4cm) Long-Throw Cerametallic
MAXIMUM OUTPUT* 109dB @ 70Hz
POWER HANDLING 200W RMS / 50 0W Peak
IMPEDANC E 8 ohms
ENCLOSURE MATERIAL MDF
FINISH Black Po lymer Veneer w ith White, Pain table Grill e
PRODUCT DIMENSIONS 21.9 7” x 17.56” x 4.0” (5 58mm x 448 mm x 102mm)
MOUNTING DEPTH 3.94” (100mm)
CUTOUT DIMENSIONS 20.24” x 1 4.41” (51 4.096mm x 3 66.014m m)
PRODUCT WEIGHT 20 .3 lbs (9.2 kg)
™
PRO-800SW 8” IN-WALL SUBWOOFER
FREQUENCY RANGE 38Hz - 125H z +/- 3dB
SYSTEM T YPE Bandp ass via exib le port tub e
WOOFER 8” (203cm) Dual Voice Coil Long-Throw Cerametallic
MAXIMUM OUTPUT* 103dB @ 70Hz
POWER HANDLING 125W RMS / 300W Pea k
IMPEDANC E 2 x 8 ohms
ENCLOSURE MATERIAL MDF
FINISH Black Po lymer Veneer w ith White, Pain table Grill e
PRODUCT DIMENSIONS
MOUNTING DEPTH 7” (178mm)
CUTOUT DIAMETER 4.25” (108mm)
PRODUCT WEIGHT 2 2.1 lbs (10.1 kg)
ACCESSORIES PRO-800SW Vent Boot Kit (Sold Separately)
Cabin et: 6.9” H x 2 1.1” W x 14.2 ” D (176mm x 53 6mm x 361mm)
Grill e: 5” (127mm)
* With Klipsch KDA Amplier DSP Preset
™
* With Klipsch KDA Amplier DSP Preset
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 9.8 kg
21.6 l bs
PART NUMBER
1063646
NOTES:
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 10.6 kg
23.4 lb s
PART NUMBER
1064594
NOTES:
16
DESIGNER SERIES
Using the same Tractrix® horn technology and design principles of our premium architectural and box
speaker lines, the all new Klipsch Designer series delivers true Klipsch sound perfectly suited for distributed
audio systems or small home theaters. These speakers utilize the fast, easy SkyHook™ tool-free installation
system that reduces install time by up to 75%.
• SkyHook™ Installation System • Tractrix® Horn technology • Magnetic, bezel-free grilles

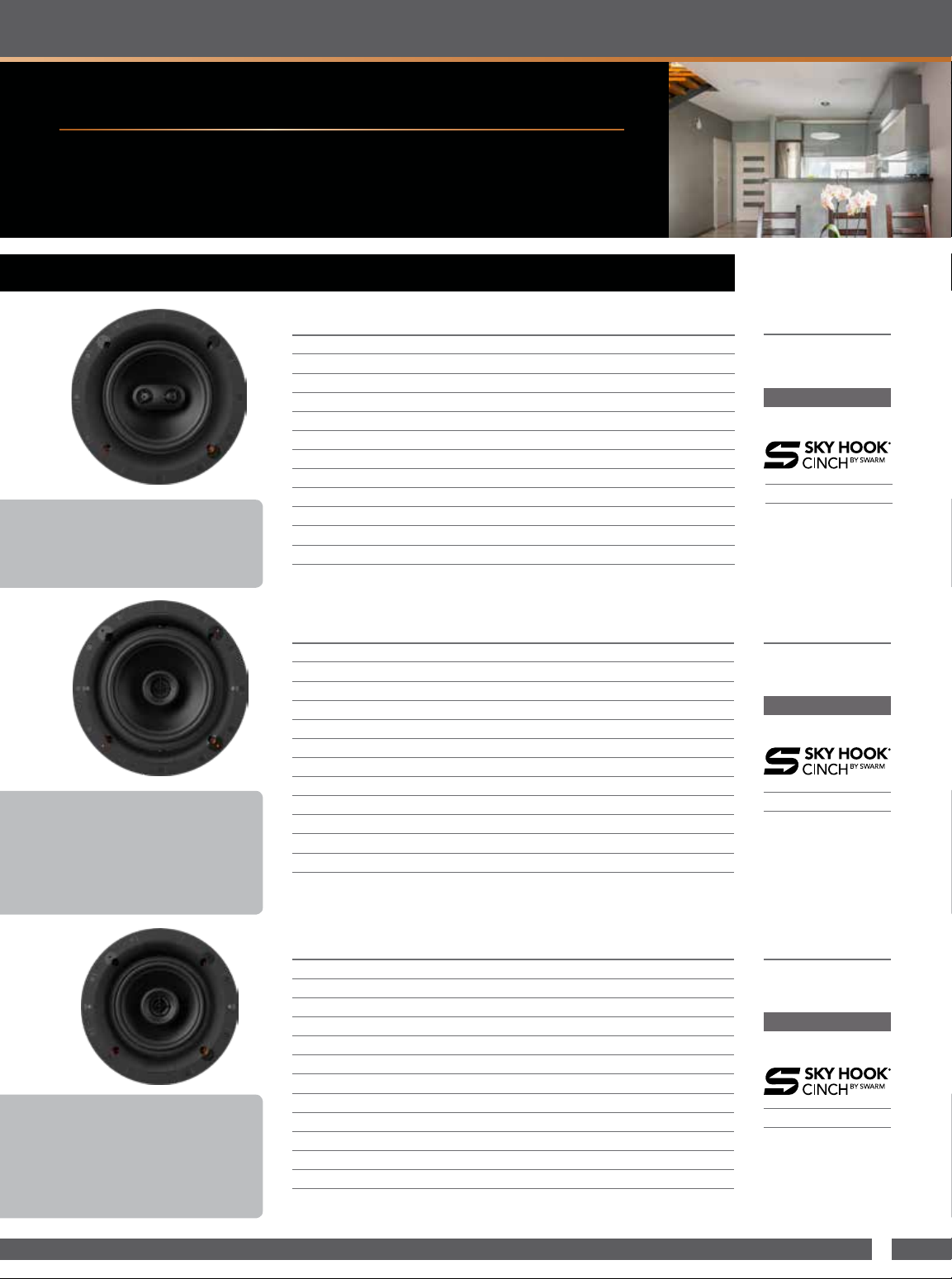

DS-180CSM 8” STEREO IN-CEILING SPEAKER
FREQUENCY RESPONSE 64Hz-20KHz +/- 3dB
SENSITIVITY 94dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
COVERAGE ANGLE 100˚
POWER HANDLING (CONT/PEAK) 50W /20 0W
HIGH FREQUENCY DRIVER Dual .75 ” (1.9cm) silk d ome tweeter s
LOW FREQUENCY DRIVER 8” (20. 32cm) Polypr opylene woof er
DIAMETER 10.88” (27.6cm)
CUTOUT DIAMETER 9.57” (24.3cm)
• In-ceiling stereo speaker for distributed
audio
• SkyHook™ ultra-fast Installation System
• Flat, magnetic grille
MOUNTING DEPTH 4.24” (10.8cm)
WEIGHT 7.4 lbs. (3.3 6kg)
INSTALLATION KIT IK-800-C II (sold separately)
FIRE RATED E NCLOSURE ME-800-C (sold separately)
DESIGNER SERIES
IN-CEILING
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.8 kg
8.37 l bs
PART NUMBER
1064169
NOTES:
• In-ceiling speaker for home theater,
distributed audio or 2-channel listening
• SkyHook™ ultra-fast Installation System
• Controlled Dispersion Technology (CDT)
allows tweter and woofer to be aimed
• Flat, magnetic grille
• In-ceiling speaker for home theater,
distributed audio or 2-channel listening
• SkyHook™ ultra-fast Installation System
• Controlled Dispersion Technology (CDT)
allows tweter and woofer to be aimed
• Flat, magnetic grille
DS-180CDT 8” IN-CEILING PIVOTING SPEAKER
FREQUENCY RESPONSE 64Hz-20KHz +/- 3dB
SENSITIVITY 94dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
COVERAGE ANGLE 100˚
POWER HANDLING (CONT/PEAK) 50W /20 0W
HIGH FREQUENCY DRIVER 1” (2.5 cm) silk dome tw eeter mated to a rou nd Tractrix
LOW FREQUENCY DRIVER 8” (20. 32cm) polyp ropylene woo fer
DIAMETER 10.88” (27.6cm)
CUTOUT DIAMETER 9.57” (24.3cm)
MOUNTING DEPTH 4.66” (11.8cm)
WEIGHT 7.4 lbs. (3.3 6 kg)
INSTALLATION KIT IK-800-C II (sold separately)
FIRE RATED E NCLOSURE ME-800-C (sold separately)
DS-160CDT 6.5” IN-CEILING PIVOTING SPEAKER
FREQUENCY RESPONSE 65Hz-20KHz +/- 3dB
SENSITIVITY 91dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
COVERAGE ANGLE 100˚
POWER HANDLING (CONT/PEAK) 50W /20 0W
HIGH FREQUENCY DRIVER 1” (2.5 cm) silk dome tw eeter maetd to a rou nd Tractrix
LOW FREQUENCY DRIVER 6.5” ( 16.51cm) Po lypropyle ne woofer
DIAMETER 9.3” (23.6cm)
CUTOUT DIAMETER 7.99” (20.3cm)
MOUNTING DEPTH 4.41” ( 11.2cm)
WEIGHT 7 lbs. (3.18kg)
INSTALLATION KIT IK-650-C II (sold separately)
FIRE RATED E NCLOSURE ME-650-C (sold separately)
®
Horn
®
Horn
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.8 kg
8.37 l bs
PART NUMBER
1064167
NOTES:
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.6 kg
7.9 l bs
PART NUMBER
1064166
NOTES:
18
KLIPSCH | CI BUYERS GUIDE 2019-2020
DS-160CSM 6.5” STEREO IN-CEILING SPEAKER
FREQUENCY RESPONSE 65Hz-20KHz +/- 3dB
SENSITIVITY 91dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
COVERAGE ANGLE 100˚
POWER HANDLING (CONT/PEAK) 50W /20 0W
HIGH FREQUENCY DRIVER Dual .75 ” (1.9cm) silk d ome tweeter s
LOW FREQUENCY DRIVER 6.5” ( 16.51cm) D ual voice coil p olypropyle ne woofer
DIAMETER 9.3” (23.6cm)
CUTOUT DIAMETER 7.99” (20.3cm)
• In-ceiling stereo speaker for distributed
audio
• SkyHook™ ultra-fast Installation System
• Flat, magnetic grille
MOUNTING DEPTH 3.99” (10.1cm)
WEIGHT 7 lbs (3.18k g)
INSTALLATION KIT IK-650-C II (sold separately)
FIRE RATED E NCLOSURE ME-650-C (sold separately)
DS-160C 6.5” IN-CEILLING SPEAKER
FREQUENCY RESPONSE 65Hz-20 KHz +/- 3dB
SENSITIVITY 91dB @ 2.8 3V/1 meter
IMPEDANC E 8 ohms compatible
COVERAGE ANGLE 100˚
POWER HANDLING (CONT/PEAK) 50W /200 W
HIGH FREQUENCY DRIVER 1” (2.5 cm) silk dome twe eter mated to a roun d Tra ctrix
LOW FREQUENCY DRIVER 6.5” (1 6.51cm) Pol ypropylen e woofer
DIAMETER 9.3” (23.6cm)
CUTOUT DIAMETER 7.99” (20.3cm)
• In-ceiling speaker for home theater,
distributed audio or 2-channel listening
• SkyHook™ ultra-fast Installation System
• Flat, magnetic grille
MOUNTING DEPTH 3.99” (10.7cm)
WEIGHT 7 lbs (3.18 kg)
INSTALLATION KIT IK-650-C II (sold separately)
FIRE RATED E NCLOSURE ME-650-C (sold separately)
®
Horn
DESIGNER SERIES
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.7 kg
8.1 lbs
PART NUMBER
1064168
NOTES:
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.7 kg
8.1 lbs
PART NUMBER
1064165
NOTES:
• In-wall speaker for home theater,
distributed audio or 2-channel listening
™
• SkyHook
ultra-fast Installation System
• Flat, magnetic grille
19
DS-160W 6.5” IN-WALL SPEAKER
FREQUENCY RESPONSE 65Hz-20kHz +/- 3dB
SENSITIVITY 91dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
POWER HANDLING (CONT/PEAK) 50W /20 0W
HIGH FREQUENCY DRIVER 1” (2.5 4cm) Silk dom e tweeter mate d to a round Tractrix
LOW FREQUENCY DRIVER 6.5” ( 16.51cm) P olypropyl ene Woofer
DIMENSIONS 9.11” W x 14. 23” H x 3.46” D (2 3.1cm H x 36.1 cm W x 8.8cm D)
MOUNTING DEPTH 3.31” (8.4cm)
CUTOUT DIMENSIONS 7.87” W X 12 .99” H (20cm W X 3 3cm H)
WEIGHT 7.2 lbs. (3. 25kg)
INSTALLATION KIT IK-650-W II (sold separately)
FIRE RATED E NCLOSURE ME-650-W (sold separately)
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM
IN-WALL
®
Horn
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.75 kg
8.26 l bs
PART NUMBER
1064163
NOTES:
• In-wall speaker for home theater or
2-channel listening
• SkyHook™ ultra-fast Installation System
• Flat, magnetic grille
DS-250W LCR DUAL 5.25” IN-WALL LCR SPEAKER
FREQUENCY RESPONSE 45Hz-20 kHz +/- 3dB
SENSITIVITY 92dB @ 2.8 3V/1 meter
IMPEDANC E 8 ohms compatible
POWER HANDLING (CONT/PEAK) 60W /240 W
HIGH FREQUENCY DRIVER 1” (2.5 4cm) Silk dom e tweeter mate d to a round Tractrix
LOW FREQUENCY DRIVER Dual 5. 25” (13. 34cm) Polyp ropylene Wo ofers
DIMENSIONS 7.65” W x 17.54” H x 3 .12” D (19.4c m H x 44.5cm W x 7.9c m D)
MOUNTING DEPTH 2.9 7” ( 7.5c m)
CUTOUT DIMENSIONS 6.42 ” W X 16.3” H (1 6.3cm W X 41. 4cm H)
WEIGHT 6.5l bs (2.95kg)
INSTALLATION KIT IK-502-W II (sold separately)
®
Horn
CUSTOM SERIES
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.5 kg
7.7 lbs
PART NUMBER
1064164
NOTES:
CUSTOM SERIES
Using the same design pricipals of our premium architectural and box speaker lines, the all new Klipsch
Custom series delivers true Klipsch sound for distributed audio or small home theater. These speakers
utilize the exclusive SkyHook
the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of
overtorquing. This fast, easy installation system reduces install time by up to 75%.
• In-ceiling speaker for home theater,
distributed audio or 2-channel listening
• SkyHook™ ultra-fast Installation System
• Flat, magnetic grille
™
tool-free installation system to engage the dog legs automatically when
CS-16C II 6.5” IN-CEILING SPEAKER
FREQUENCY RESPONSE 57Hz-20KHz +/- 3dB
SENSITIVITY 91dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
POWER HANDLING (CONT/PEAK) 35W /14 0W
HIGH FREQUENCY DRIVER 1” (2. 5cm) polyme r dome tweeter
LOW FREQUENCY DRIVER 6.5” ( 16.51cm) p oly woofer
DIAMETER 9.3” (23.6cm)
CUTOUT DIAMETER 7.99” (20.3cm)
MOUNTING DEPTH 3.91” (9.9cm)
WEIGHT 5.1 lbs (2 .3 kg)
INSTALLATION KIT IK-650-C II (sold separately)
FIRE RATED E NCLOSURE ME-650-C (sold separately)
IN-CEILING
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 2.6 kg
5.7 lbs
PART NUMBER
1064160
NOTES:
20
KLIPSCH | CI BUYERS GUIDE 2019-2020
CS-18C 8” IN-CEILING SPEAKER
FREQUENCY RESPONSE 55Hz-20 KHz +/- 3dB
SENSITIVITY 92dB @ 2.8 3V/1 meter
IMPEDANC E 8 ohms compatible
POWER HANDLING (CONT/PEAK) 40W /1 60W
HIGH FREQUENCY DRIVER 1” (2. 54cm) polym er dome twee ter
LOW FREQUENCY DRIVER 8” (20. 32cm) polym er woofer
DIAMETER 10.88” (27.6cm)
CUTOUT DIAMETER 9.57” (24.3cm)
MOUNTING DEPTH 4.17” (10.6cm)
• In-ceiling speaker for home theater,
distributed audio or 2-channel listening
• SkyHook™ ultra-fast Installation System
WEIGHT 7.4 lbs (3.36 kg)
INSTALLATION KIT IK-800-C II (sold separately)
FIRE RATED E NCLOSURE ME-800-C (sold separately)
• Flat, magnetic grille
CS-16CSM 6.5” STEREO IN- CEILING SPEAKER
FREQUENCY RESPONSE 57Hz-20KHz +/- 3dB
SENSITIVITY 91dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
POWER HANDLING (CONT/PEAK) 40W /1 60W
HIGH FREQUENCY DRIVER Dual .75 ” (1.9cm) poly mer dome twe eters
LOW FREQUENCY DRIVER 6.5” ( 16.51cm) du al voice coil p olymer woofe r
DIAMETER 9.3” (23.6cm)
CUTOUT DIAMETER 7.99” (20.3cm)
MOUNTING DEPTH 3.99” (10.1cm)
• In-ceiling stereo speaker for distributed
audio
• SkyHook™ ultra-fast Installation System
• Flat, magnetic grille
WEIGHT 7 lbs (3.18 kg)
INSTALLATION KIT IK-650-C II (sold separately)
FIRE RATED E NCLOSURE ME-650-C (sold separately)
CUSTOM SERIES
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 2.9 kg
6.4 lbs
PART NUMBER
1064161
NOTES:
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 7.5 kg
16.5 l bs
PART NUMBER
1064162
NOTES:
• In-wall speaker for home theater,
distributed audio or 2-channel listening
• SkyHook™ ultra-fast Installation System
• Flat, magnetic grille
21
CS-16W 6.5” IN-WALL SPEAKER
FREQUENCY RESPONSE 57Hz-20kHz +/- 3dB
SENSITIVITY 91dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
POWER HANDLING (CONT/PEAK) 40W /1 60W
HIGH FREQUENCY DRIVER 1” (2. 54cm) poly mer tweeter
LOW FREQUENCY DRIVER 6.5” ( 16.5cm) po lymer woofer
DIMENSIONS 9.11” W x 14. 23” H x 3.43” D ( 23.1cm H x 36. 1cm W x 8.7cm D)
MOUNTING DEPTH 3.28” (8.3cm)
CUTOUT DIMENSIONS 7.87” W X 12 .99” H (20cm W X 3 3cm H)
WEIGHT 7.2 lbs. (3. 25kg)
INSTALLATION KIT IK-650-W II (sold separately)
FIRE RATED E NCLOSURE ME-650-W (sold separately)
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM
IN-WALL
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.75 kg
8.26lbs
PART NUMBER
1064159
NOTES:
SHALLOW DEPTH SPEAKERS
Creating a benchmark in architectural audio excellence, the Reference Series shallow depth in-ceiling
architectural speakers deliver a level of realism and subtlety that surpasses and even intimidates competing
designs. With ultra-slim 50mm back boxes, these speakers belie their size with full, detailed sound in any
installation.
• Ultra-slim in-ceiling speakers • Great performance in any installation
SLM-5400-C 4” SHALLOW DEPTH IN-CEILING SPEAKER
FREQUENCY RESPONSE 90Hz-2 0KHz +/- 3dB
SENSITIVITY 91dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
50W
™
woofer
• Ultra-slim in-ceiling speaker
• 50mm deep re-rated back box
• Flat, magnetic grille - round and square
grilles included
RECOMMENDED AMP POWER
POWER HANDLING 120W Peak
HIGH FREQUENCY DRIVER 1” (2. 5cm) titaniu m dome tweete r with a round Tra ctrix Horn
LOW FREQUENCY DRIVER 4” (10.2cm) Cerametallic
DIAMETER 9.516” (24.17cm)
CUTOUT DIAMETER 8.15” (20.7cm)
MOUNTING DEPTH 1.97” ( 5cm)
WEIGHT 7.4 lbs. (3.3 5kg)
INSTALLATION KIT IK-650-C or IK-650-C II (sold separately)
SHALLOW DEPTH SPEAKERS
ARCHITECTURAL CUSTOM
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.6 kg
8 lbs
PART NUMBER
1063201
NOTES:
• Ultra-slim in-ceiling speaker
• 50mm deep re-rated back box
• Flat, magnetic grille - round and square
grilles included
SLM-3400-C 4” SHALLOW DEPTH IN-CEILING SPEAKER
FREQUENCY RESPONSE 92Hz-20KHz +/- 3dB
SENSITIVITY 90dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
RECOMMENDED AMP POWER
POWER HANDLING 120W Peak
HIGH FREQUENCY DRIVER 1” (2. 5cm) alumin um dome tweet er with a round Tra ctrix Horn
LOW FREQUENCY DRIVER 4” (10. 2cm) IMG woof er
DIAMETER 10.516” (26.7cm)
CUTOUT DIAMETER 8.15” (20.7cm)
MOUNTING DEPTH 1.97” ( 5cm)
WEIGHT 7.4 lbs. (3.3 5kg)
INSTALLATION KIT IK-650-C or IK-650-C II (sold separately)
50W
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3.6 kg
8 lbs
PART NUMBER
1063200
NOTES:
22
ACCESSORIES
At Klipsch, we make products to suit any need, but we also realize that not everyone will use our
products in the same way. That’s why we offer stylish and useful accessories to protect your investment,
customize your speaker installations and maximize your listening experience.
INSTALLATION KITS
IK-810-C INSTALLATION BRACKET FOR 8” IN-CEILING LCR SPEAKER
SHIPPING QUANTITY Pair
SHIPPING WEIGHT 1. 3 kg | 3 lbs
FOR USE WI TH PRO-180RPC LCR
IK-802-W INSTALLATION BRACKET FOR THX ULTRA2
SHIPPING QUANTITY Pair
SHIPPING WEIGHT 1. 3 kg | 3 lbs
FOR USE WI TH THX Ultr a2 in-wall sp eakers and in- wall subwoofe r
ACCESSORIES
PART NUMBER
1065326
PART NUMBER
1007229
IK-800-C INSTALLATION BRACKET FOR 8” IN-CEILING SPEAKER
SHIPPING QUANTITY Each
SHIPPING WEIGHT .45 kg | 1 lb s
FOR USE WI TH PRO-180RPC, PRO-18RC, DS-180CDT, CS-18C
IK-800-C II INSTALLATION BRACKET FOR 8” IN-CEILING SPEAKER
SHIPPING QUANTITY 10-Pack
SHIPPING WEIGHT 4. 5 kg | 10 lbs
FOR USE WI TH PRO-180RPC, PRO-18RC, DS-180CDT, DS-180CSM, CS-18C
IK-800-W INSTALLATION BRACKET FOR 8” IN-WALL SPEAKER
SHIPPING QUANTITY Pair
SHIPPING WEIGHT 0.9 kg | 2 lbs
FOR USE WI TH PRO-180RPW, PRO-18RW
IK-800-W II INSTALLATION BRACKET FOR 8” IN-WALL SPEAKER
SHIPPING QUANTITY 10-Pack
SHIPPING WEIGHT 0.9 kg | 2 lbs
FOR USE WI TH PRO-180RPW, PRO-18RW
PART NUMBER
1001180
PART NUMBER
1065322
PART NUMBER
1001178
PART NUMBER
1065 324
PRO-16-SBR INSTALLATION BRACKET FOR 6.5” IN-CEILING SPEAKER
SHIPPING QUANTITY Pair
SHIPPING WEIGHT 0.9 kg | 2 lbs
FOR USE WI TH PRO-160RPC, PRO-16RC, DS-160C, DS-160CDT, CS-16C II
PART NUMBER
1001179
24
KLIPSCH | CI BUYERS GUIDE 2019-2020
IK-650-C II INSTALLATION BRACKET FOR 6.5” IN-CEILING SPEAKER
SHIPPING QUANTITY 10-Pack
SHIPPING WEIGHT 4. 5 kg | 10 lbs
FOR USE WI TH PRO-160RPC, PRO-16RC, DS-160C, DS-160CDT, DS-160CSM, CS-16C II, CS-16CSM
IK-650-W INSTALLATION BRACKET FOR 6.5” IN-WALL SPEAKER
SHIPPING QUANTITY Pair
SHIPPING WEIGHT 0.9 kg | 2 lbs
FOR USE WI TH PRO-160RPW, PRO-16RW
IK-650-W II INSTALLATION BRACKET FOR 6.5” IN-WALL SPEAKER
SHIPPING QUANTITY 10-Pack
SHIPPING WEIGHT 4. 5 kg | 10 lbs
FOR USE WI TH PRO-160RPW, PRO-16RW, DS-160W, CS-16W
PART NUMBER
1065321
PART NUMBER
1001177
PART NUMBER
1065323
IK-502-W INSTALLATION BRACKET FOR DUAL 5.25” IN-WALL LCR SPEAKER
SHIPPING QUANTITY Pair
SHIPPING WEIGHT 0.9 kg | 2 lbs
FOR USE WI TH PRO-250RPW LCR, PRO-25RW LCR
IK-502-W II INSTALLATION BRACKET FOR DUAL 5.25” IN-WALL LCR SPEAKER
SHIPPING QUANTITY Pair
SHIPPING WEIGHT 0.9 kg | 2 lbs
FOR USE WI TH PRO-250RPW LCR, PRO-25RW LCR, DS-250W LCR
IK-402-W INSTALLATION BRACKET FOR DUAL 4” IN-WALL LCR SPEAKER
SHIPPING QUANTITY Pair
SHIPPING WEIGHT 0.9 kg | 2 lbs
FOR USE WI TH PRO-24 RW LCR
IK-400-C INSTALLATION BRACKET FOR 3.5” IN-CEILING SPEAKER
SHIPPING QUANTITY Pair
SHIPPING WEIGHT 0.9 kg | 2 lbs
FOR USE WI TH PRO-14RC
PART NUMBER
1009682
PART NUMBER
1065325
PART NUMBER
1065328
PART NUMBER
1065327
25
IK-400-W INSTALLATION BRACKET FOR 4” IN-WALL SPEAKER
SHIPPING QUANTITY Pair
SHIPPING WEIGHT 0.9 kg | 2 lbs
FOR USE WI TH PRO-14R W
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM
PART NUMBER
1065329
PRO-800SW VENT BOOT KIT
SHIPPING QUANTITY Each
SHIPPING WEIGHT 0.8 9 kg | 1.98lbs
VENT AREA DIMENSION 4” x 10” ( 10.16 cm x 25. 4 cm)
FOR USE WI TH PRO-800SW
GRILLE BRACKETS
IK-800-C GRILLE BRACKET
GRILLE ATTACHMENT KIT FOR 8” IN-CEILING INSTALLATION KITS
SHIPPING QUANTITY 10 pack (gr illes inclu ded)
SHIPPING WEIGHT 4. 5 kg | 10 lbs
FOR USE WI TH IK-800-C, IK-800-C II
ACCESSORIES
PART NUMBER
1064948
PART NUMBER
1065331
Designed to meet UL2043 requirements for
installation in plenum spaces
Tested to com ply with: UL 263 • ASTM E1 19-98 •
NFPA 251 • UBC 7-1 • ULC CAN/ULC-S101 -M89
IK-650-C GRILLE BRACKET
GRILLE ATTACHMENT KIT FOR 6.5” IN-CEILING INSTALLATION KITS
SHIPPING QUANTITY 10 pack (gr illes inclu ded)
SHIPPING WEIGHT 4. 5 kg | 10 lbs
FOR USE WI TH IK-650-C, IK-650-C II
FIRE RATED ENCLOSURES
ME-800-C FIRE RATED ENCLOSURE
SHIPPING QUANTITY Single
SHIPPING WEIGHT 7.25 kg | 16 l bs
FOR USE WI TH All 8-in ch round in- ceiling mod els
PART NUMBER
1065330
PART NUMBER
1001184
Designed to meet UL2043 requirements for
installation in plenum spaces
Tested to com ply with: UL 263 • ASTM E1 19-98 •
NFPA 251 • UBC 7-1 • ULC CAN/ULC-S101 -M89
ME-650-C FIRE RATED ENCLOSURE
SHIPPING QUANTITY Single
SHIPPING WEIGHT 4.1 kg | 9. 2 lbs
FOR USE WI TH All 6.5 -inch roun d in-ceilin g models
PART NUMBER
1001183
26
KLIPSCH | CI BUYERS GUIDE 2019-2020
THX® ULTRA™ SERIES
Utilizing the same professional-grade technology as our renowned commercial theater systems, every
Klipsch THX
®
Ultra speaker brings real cinema sound to the comforts of home. Expertly delivering the raw
explosiveness and ne detail of any lm format, these products – which can be assembled in a variety of
combinations – will forever shatter your expectations for home theater performance.
• THX Ultra certied • For rooms 3,000 cubic feet or larger
LCR SPEAKERS
KL-650-THX DUAL 6.5” LCR SPEAKER
FREQUENCY RESPONSE 4 8 Hz - 20 kH z +/- 3dB
SENSITIVITY 97d B @ 2.83V/1 mete r
POWER HANDLING (CONT/PEAK) 150W/600W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 1 400Hz
1” (2.5cm) magnetically shielded, titanium-dome compression driver
with 9.6 oz ce ramic mag net struc ture with a 10” x 6” re ctangul ar 90ºx 60 º Tractrix
Horn
Two 6.5” (16.5cm) magnetically shielded, Cerametallic cone, cast aluminum frame woofers
• THX Ultra certied LCR speaker
• Front-ring port for low bass extension
• Top-of-the-line internal wiring
• Omni-Mount suspension points facilitate
wall or ceiling mounting using standard
hardware
HIGH FREQUENCY DRIVER
LOW FREQUENCY DRIVER
ENCLOSURE MATERIAL M edium densit y berboar d (M DF)
ENCLOSURE TYPE Bas s reex via front-r ing port
INPUTS Two se ts of binding pos t speaker termi nals (connec ted via bass strap ju mpers)
HEIGHT 15” ( 38.1cm)
WIDTH 17” (43.2cm)
DEPTH 12.5” (31.8cm)
WEIGHT 39 lbs (17.7 kg)
MOUNTING 4-bol t pattern 1/4”-20 thr eaded inser ts
FINISH Galaxy Bla ck cabinet wit h Bla ck anodized alu minum fascia
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 20.6 kg
45.5 lb s
PART NUMBER
1010651 (Left)
1010650 (Right)
NOTES:
• THX Ultra certied LCR speaker
• Sealed enclosure
• Top-of-the-line internal wiring
• Omni-Mount suspension points facilitate
wall or ceiling mounting using standard
hardware
27
KL-525-THX DUAL 5.25” LCR SPEAKER
FREQUENCY RESPONSE 8 0 Hz - 20 kHz +/- 3d B
SENSITIVITY 94dB @ 2. 83V/1 meter
POWER HANDLING (CONT/PEAK) 100W/400W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 1 500Hz
HIGH FREQUENCY DRIVER
LOW FREQUENCY DRIVER
ENCLOSURE MATERIAL M edium densit y berboar d (M DF)
ENCLOSURE TYPE
INPUTS Two se ts of binding pos t speaker termi nals (connec ted via bass strap ju mpers)
HEIGHT
WIDTH
DEPTH
WEIGHT
MOUNTING 4-bol t pattern 1/4”-20 thr eaded inser ts
FINISH Galaxy Bla ck cabinet wit h Bla ck anodized alu minum fascia
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM
1” (2.5cm) magnetically shielded, titanium-dome compression driver
with 9.6 oz ce ramic mag net struc ture with a 10” x 6” re ctangul ar 90ºx 60 º Tractrix
Horn
Two 5.25” (13.3cm) magnetically shielded, Cerametallic cone, cast aluminum frame woofers
Sealed
12.75” (32.4cm)
16” (40. 6cm)
12.5” (31.8cm)
32 lbs (14. 5kg)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 20.6 kg
45.5 lb s
PART NUMBER
1010648
NOTES:
• THX Ultra certied LCR speaker
• Wide Dispersion Surround Technology (WDST)
• Top-of-the-line internal wiring
• Omni-Mount suspension points facilitate
wall or ceiling mounting using standard
hardware
SURROUND
KS-525-THX DUAL 5.25” SURROUND
FREQUENCY RESPONSE 8 0 Hz - 20 kHz +/- 3d B
SENSITIVITY 96dB @ 2. 83V/1 meter
POWER HANDLING (CONT/PEAK) 100W/400W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 2 100Hz
HIGH FREQUENCY DRIVER Two 1” (2.5cm) magnetically shielded, titanium-dome compression driver
LOW FREQUENCY DRIVER
ENCLOSURE MATERIAL M edium densit y berboar d (M DF)
ENCLOSURE TYPE
INPUTS Two se ts of binding pos t speaker termi nals (connec ted via bass strap ju mpers)
HEIGHT 13 .75” (35cm)
WIDTH 13” (33cm)
DEPTH 8.5” (21.6cm)
WEIGHT 20 lbs (9.1kg)
MOUNTING Dual keyh oles and 2-bol t pattern 1/4”-20 thr eaded inser ts
FINISH Galaxy Bla ck cabinet wit h Bla ck anodized alu minum fascia
with 9.6 oz ce ramic mag net struc ture with a 5” squ are 90ºx 60 º Tractrix Ho rn
Two 5.25” (13.3cm) magnetically shielded, Cerametallic cone, cast aluminum frame woofers
Sealed
THX ULTRA SERIES
SHIPPING QUANTITY: Pair
SHIPPING WEIGHT: 20.3 kg
44.75 l bs
PART NUMBER
1010647
NOTES:
• THX Ultra certied passive subwoofer
• Front-ring port
• Top-of-the-line internal wiring
• For use with KA-1000-THX amplier
• Delivers 1000 watts into a 4 Ohm load
• Can support two high performace
subwoofers
• Finished in black with a machined
aluminum front panel and knobs
SUBWOOFER
KW-120-THX 12” PASSIVE SUBWOOFER
FREQUENCY RESPONSE 2 0 Hz - 200 Hz +/- 3dB
MAX ACOUSTIC OUTPUT 1 30dB @ 30Hz, 122d B @ 20Hz , 112dB@ 15Hz 1/8 spa ce,
AMPLIFIER Use o nly with KA-1 000-THX
NOMINAL IMPEDANCE 8 Ohms Compatible
LOW FREQUENCY DRIVER 12” (30. 5cm) front-rin g, Cerametal lic cone, cast alum inum frame driv ers
ENCLOSURE MATERIAL M edium densit y berboar d (M DF)
ENCLOSURE TYPE Bas s reex via front-r ing port
INPUTS 1 Sp eakon NL2 jack an d included ca ble
HEIGHT 20.25” (51.4cm)
WIDTH 17.75” (45.1cm)
DEPTH 17.75” (31.8cm)
WEIGHT 80 lbs (36.3 kg)
FINISH Galaxy Bla ck cabinet wit h Bla ck anodized alu minum fascia
1 meter (2 e nclosure s side-by- side per THX U ltra2)
with a 240 oz ceramic ma gnet stru cture
THX® ULTRA™ AMPLIFIER
KA-1000-THX THX CERTIFIED CLASS D SUBWOOFER AMPLIFIER
FREQUENCY RESPONSE 2 0 Hz - 1 kHz +/- 3dB
AMPLIFIER Hig h-Efcie ncy Class D
AMPLIFIER POWER FTC Rated Pow er: 500W into 8 ohm s, 1000W into 4 ohms , 20Hz-1kHz @ <1 .5% THD
AUTO POW ER ON 2 secon d ON delay, 15 min ute off dela y
LOW PASS CR OSSOVER Conti nuously vari able from 40Hz-1 20Hz, 24dB/oc tave slope abo ve 120z (non-THX mod e)
INPUTS 2 G old-plated R CA phono jacks
OUTPUTS 2 Gold-p lated RCA phon o jacks (unltere d)
DIMENSIONS 4.75” (12. 1cm) H x 17.5” (44. 5cm) W x 12.2 5” (31.1cm) D
FINISH Black anod ized aluminu m
VOLTAGE 110/120 VAC 60 Hz
EXPORT VOLTAGE 230 VAC 50/60H z
FEAT URES THX On /Off
Dynam ic Power: 20 50W into 8 ohm s, 3025W int o 4 ohms @ 5% THD
®
2 Speako n
NL2 jack s
Bound ary Gain Comp ensation On /Off
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 93 lbs
PART NUMBER
1010649
NOTES:
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 31 lbs
PART NUMBER
221200080011 (12OV)
221200080012 (230V)
NOTES:
28
REFERENCE PREMIERE DESIGNER ON-WALL
Klipsch Reference Premiere Designer On-Wall is a rst class low-prole home audio solution, offering
minimalist home theater system speakers that add beauty to any room. With its modern-day aesthetic and
legendary sonic signature — great sound has never looked so good.
RP-440D SB SLIM ON-WALL 3-CHANNEL PASSIVE LCR SOUND BAR
• 3-Channel passive LCR sound bar
• Wall-mountable or table-mountable with
included glass base
• True Reference Premiere acoustics in a
slim on-wall solution
FREQUENCY RESPONSE
SENSITIVITY 92 dB @ 2.83V/1 me ter
POWER HANDLING (CONT/PEAK) 50W/200W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 2200Hz
HIGH FREQUENCY DRIVER
LOW FREQUENCY DRIVER
ENCLOSURE MATERIAL Injection molded polymer
ENCLOSURE TYPE Bass-reex
INPUTS Singl e wire 5-way bi nding post s (3 sets)
HEIGHT 6 “ (15.24 cm)
WIDTH 42” (106.68cm)
DEPTH 2.4” (6. 10cm)
WEIGHT 12 lbs (5.4 4 kg)
FINISH Matte black pai nt
65Hz - 24Hz +/-3dB
Three 1 ” (2.54cm) T itanium dia phragm com pression dr ivers mated to a 9 0˚ x 90˚
square Tractrix
Four 3.5 ” (8.89 cm) ac tive long-t hrow cerame tallic woofe rs (One each f or left and
right channels, two for center channel)
®
Horn
DESIGNER ON-WALL
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 6 kg
13.2 2 lbs
PART NUMBER
1064 178 (Black)
NOTES:
• Slim on-wall LCRS speaker
• Wall-mountable or table-mountable with
inluded glass base
• True Reference Premiere acoustics in a
slim on-wall solution
RP-640D SLIM ON-WALL LCRS SPEAKER
FREQUENCY RESPONSE
SENSITIVITY 94dB @ 2.83V/ 1 met er
POWER HANDLING (CONT/PEAK) 75W/30 0W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 2200Hz
HIGH FREQUENCY DRIVER
LOW FREQUENCY DRIVER
ENCLOSURE MATERIAL Injection molded polymer
ENCLOSURE TYPE Bass-r eex via passive ra diators
INPUTS Singl e wire 5-way bi nding post s
HEIGHT 28.5 “ (7 2.39cm)
WIDTH 6” (15 .24cm)
DEPTH 2.4” (6. 1cm)
WEIGHT 8 lbs (3. 63 kg)
FINISH Matte black pai nt
55Hz - 24kHz +/-3d B
1” (2. 54cm) Tita nium diaphr agm compres sion driver m ated to a 90˚ x 90˚ squar e
®
Tractrix
Horn
Two 3.5” (8. 89 cm) active l ong-thro w cerametal lic woofers
Four 3.5 ” (8.89 cm) pas sive cerame tallic rad iators
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 4.1 kg
9 lbs
PART NUMBER
1064 179 (Black)
NOTES:
30
KLIPSCH | CI BUYERS GUIDE 2019-2020

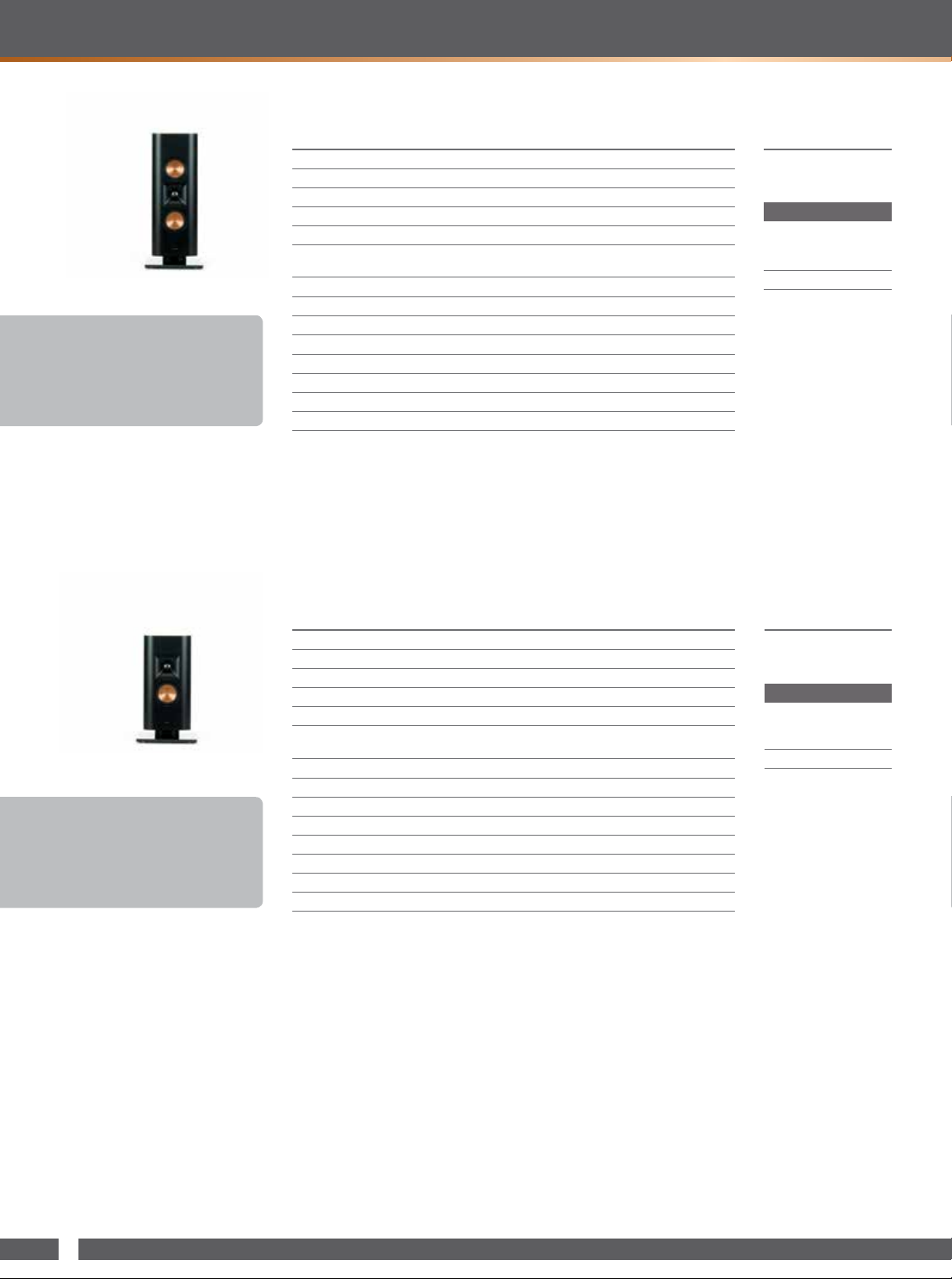

RP-240D SLIM ON-WALL LCRS SPEAKER
FREQUENCY RESPONSE
SENSITIVITY 94dB @ 2.83V/ 1 met er
POWER HANDLING (CONT/PEAK) 75W/30 0W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 2200Hz
HIGH FREQUENCY DRIVER
LOW FREQUENCY DRIVER Two 3.5” (8 .89 cm) long -throw ceram etallic wo ofers
ENCLOSURE MATERIAL Injection molded polymer
• Slim on-wall LCRS speaker
• Wall-mountable or table-mountable with
included glass base
• True Reference Premiere acoustics in a
slim on-wall solution
ENCLOSURE TYPE Bass-reex
INPUTS Singl e wire 5-way bi nding post s
HEIGHT 16 “ (40.6 4cm)
WIDTH 6” (15 .24cm)
DEPTH 2.4” (6. 1cm)
WEIGHT 5.25 lbs (2.38 kg)
FINISH Matte black pai nt
67Hz - 24kHz +/-3dB
1” (2. 54cm) Tita nium diaphr agm compres sion driver m ated to a 90˚ x 90˚ squre
®
Tractrix
Horn
DESIGNER ON-WALL
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 2.9 kg
6.4 lbs
PART NUMBER
1064 180 (Black)
NOTES:
• Slim on-wall LCRS speaker
• Wall-mountable or table-mountable with
included glass base
• True Reference Premiere acoustics in a
slim on-wall solution
RP-140D SLIM ON-WALL LCRS SPEAKER
FREQUENCY RESPONSE
SENSITIVITY 91dB @ 2.83V/ 1 me ter
POWER HANDLING (CONT/PEAK) 50W/200W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 2200Hz
HIGH FREQUENCY DRIVER
LOW FREQUENCY DRIVER 3.5” (8 .89 cm) long -throw cera metallic wo ofer
ENCLOSURE MATERIAL Injection molded polymer
ENCLOSURE TYPE Bass-reex
INPUTS Singl e wire 5-way bi nding post s
HEIGHT 12 “ (30.4 8cm)
WIDTH 6” (15 .24cm)
DEPTH 2.4” (6. 1cm)
WEIGHT 3.75 lbs (1 .7 kg)
FINISH Matte black pai nt
69Hz - 24kHz+/-3 dB
1” (2. 54cm) Tita nium diaphr agm compres sion driver m ated to a 90˚ x 90˚ squre
®
Tractrix
Horn
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 2.2 kg
4.85 lb s
PART NUMBER
1064 181 (Black )
NOTES:
31
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM
CUSTOMIZED HERITAGE THEATER BAR
CUSTOMIZED HERITAGE THEATER BAR
The Heritage Theater Bar is a passive LCR sound bar that blends the acoustics and classic, nostalgic design
legacy of founder Paul W. Klipsch with the most premium materials and latest technologies available today.
Assembled in the USA, the Heritage Theater Bar is the perfect combination of sonic performance and
architectural elegance. Customizable Heritage Theater Bars range in width from 49.5" to 80". A standard
49.5" model is also available and designed to match most 55" televisions.
CUSTOMIZED HERITAGE THEATER BAR
FREQUENCY RESPONSE 120Hz – 2 0kHz +/1 3 dB
FINISH OPTIONS
American Walnut
Natural Cherry
Primed White
Ready for Paint Ready for Stain
GRILLE OPTIONS
Black Knit
Gray Knit
CUSTOM WIDTH 49.5” – 80”
Satin Black Ash
Distressed Oak
Raw Ash
Wood Veneer
Taupe Knit
Cream Knit
SENSITIVITY 90dB @ 2. 83V/1M
MAXIMUM CONTINUOUS OUTPUT 106 dB (1 12 dB peak)
POWER HANDLING (NOM./PEAK) 75W / 300 W
REC. AMPLIFIER POWER 50W – 150W
NOMINAL IMPEDANCE 8 ohms compatible
CROSSOVER 2, 800 Hz
HIGH FREQUENCY DRIVER
LOW FREQUENCY DRIVER Dual 4” ( 10.2cm) Blac k Cerametal lic woofers
ENCLOSURE MATERIAL MDF
ENCLOSURE TYPE Seale d box
INPUTS Sprin g loaded inp ut terminal s (left, cen ter, right)
GRILLE CLOTH Black kni t
HEIGHT 6.25” ( 15.9cm)
WIDTH 49.5” (12 5.7cm) to 80” (203 .2cm)
DEPTH 4” (10. 2cm)
WEIGHT 26 Ibs. ( 11.8kg)
ACCESSORIES L ow-prole wa ll hanging br acket and wall mo unting templ ate
3/4” (19c m) Tit anium diaphragm comp ression drive r mate d to a
º
90
x 90º Tractrix Horn
SHIPPING QUANTITY: Single
SHIPPING WEIGHT:
QUICK SHIP
35 lbs (16 kg)
CUSTOM
35-52 lbs (16-24 kg)
PART NUMBER
QUICK SHIP
American Walnut - 1066275
Satin Bl ack Ash - 10659 87
CUSTOM
49.5” – 65” – 1 066279
65.1” – 8 0” - 10662 77
NOTES:
32
ARCHITECTURAL SPEAKERS
ALL-WEATHER SERIES
When you want to listen to your favorite music by the pool or want to provide background music while
you entertain guests on your patio, our line of outdoor speakers has you covered. The Klipsch All-Weather
loudspeaker line delivers clear, dynamic performances while providing more sound per watt than comparably
sized speakers, allowing for better sound coverage in a smaller package.
AW-650 6.5” ALL-WEATHER SPEAKER
FREQUENCY RESPONSE 70Hz-20 KHz +/- 3dB
SENSITIVITY 95dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
CROSSOVER FREQUENCY 3400Hz
POWER HANDLING (CONT/PEAK) 75W /300 W
HIGH FREQUENCY DRIVER 1” (2. 5 cm) titanium d ome tweeter w ith a 90° x 90° Tra ctrix Horn
• Paintable, UV-resistant ABS enclosure with
rustproof aluminum grille
• Supplied with C-style mounting bracket
and stainless steel hardware
LOW FREQUENCY DRIVER 6.5” ( 16.5cm) IMG w oofer
DIMENSIONS 15” (38.1c m) H x 9.5” (21.4 cm) W x 11” (27.9) cm) D
WEIGHT 9 lbs (4.1 kg)
FINISH Black o r White enclosu re and grille
OUTDOOR SPEAKERS
SHIPPING QUANTITY: Pair
SHIPPING WEIGHT: 11.8 kg
26 lbs
PART NUMBER
1009 316 (Black)
097093000001 (White)
NOTES:
• Paintable, UV-resistant ABS enclosure with
rustproof aluminum grille
• Supplied with C-style mounting bracket
and stainless steel hardware
• Quick, easy installation
• Multipurpose design
AW-525 5.25” ALL-WEATHER SPEAKER
FREQUENCY RESPONSE 80Hz-2 0KHz +/- 3dB
SENSITIVITY 94dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
CROSSOVER FREQUENCY 2450H z
POWER HANDLING (CONT/PEAK) 75W /300 W
HIGH FREQUENCY DRIVER 1” (2. 5 cm) titanium d ome tweeter w ith a 90° x 90° Tra ctrix Horn
LOW FREQUENCY DRIVER 5.25” (13.3cm) IMG woofer
DIMENSIONS 11.8” (3 0cm) H x 8” (20.3 cm) W x 9” (22.9 cm ) D
WEIGHT 6.5 lbs (3k g)
FINISH Black o r White enclosu re and grille
CP-6 5.25” COMPACT HIGH PERFORMANCE SPEAKER
FREQUENCY RESPONSE 70Hz-22KHz +/- 3dB
SENSITIVITY 94dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
CROSSOVER FREQUENCY 3000Hz
POWER HANDLING (CONT/PEAK) 75W /300 W
HIGH FREQUENCY DRIVER .75” (1. 9cm) aluminu m dome tweet er with a 90° x 90 ° Tractrix Hor n
LOW FREQUENCY DRIVER 5.25 ” (13.3cm) lo ng-throw IM G woofer
TERMINALS Front bafe m ounted acces sed via rear pul l-through
DIMENSIONS 11.0”(2 7.9c m) H x 7.0” (17.8cm) W x 6.1” (15.5cm) D
MOUNTING DEPTH 6.9”(17.5cm) D
WEIGHT 5.8 lbs (2 .6kg)
FINISH Black o r White enclosu re and grille
SHIPPING QUANTITY: Pair
SHIPPING WEIGHT: 8.1 kg
18 lbs
PART NUMBER
1009 313 (Black )
097090000001 (White)
NOTES:
SHIPPING QUANTITY: Pair
SHIPPING WEIGHT: 7.8 kg
17.19 lbs
PART NUMBER
1016 297 (Black )
1060387 (White)
NOTES:
34
KLIPSCH | CI BUYERS GUIDE 2019-2020
AW-400 4” ALL-WEATHER SPEAKER
FREQUENCY RESPONSE 91Hz-2 0KHz +/- 3dB
SENSITIVITY 91dB @ @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
CROSSOVER FREQUENCY 2940Hz
POWER HANDLING (CONT/PEAK) 50W /20 0W
HIGH FREQUENCY DRIVER 1” (2. 5 cm) titanium d ome tweeter w ith a 90° x 90° Tra ctrix Horn
• Paintable, UV-resistant ABS enclosure with
rustproof aluminum grille
• Supplied with C-style mounting bracket
and stainless steel hardware
LOW FREQUENCY DRIVER 4” (10. 2cm) IMG woofe r
DIMENSIONS 9.5” (24.1cm) H x 6 .5” (16.5 cm) W x 7.25” (18. 4 cm) D
WEIGHT 5 lbs (2. 3 kg)
FINISH White enclosure and grille
PROFESSIONAL SERIES LANDSCAPE SPEAKERS
The new Klipsch Landscape Series is a horn-loaded, all-weather, durable, low-distortion, high-efciency
system – designed from the ground up with 70 years of high-performance audio experience by one of the
most legendary and reliable audio companies in the world.
• Landscape Satellites and Subwoofers for full-range outdoor performance • 70V/100V/8 Ohm compatibility
• UV-resistant enclosures
SHIPPING QUANTITY: Pair
SHIPPING WEIGHT:
PART NUMBER
097085000001
NOTES:
5.5 kg
12.1 l
bs
• All-new custom Tractrix® Horn provides
ultra-wide 105˚ horizontal dispersion
• 50 watt, 70V/100V multi-tap transformer
with 8-ohm bypass
• All-weather durability - IP45 rating
• All-new custom Tractrix® Horn provides
ultra-wide 105˚ horizontal dispersion
• 50 watt, 70V/100V multi-tap transformer
with 8-ohm bypass
• All-weather durability - IP45 rating
PRO-650T-LS 6.5” LANDSCAPE SATELLITE
FREQUENCY RANGE
HIGH FREQUENCY DRIVER 1" (2. 54cm) Alumi num Dome Tweete r mated to an all n ew 105º custo m Tractrix® ho rn
LOW FREQUENCY DRIVER 6.5" ( 16.51cm) I MG Woofer
SENSITIVITY 90 dB @ 2.8 3V/1 meter
COVERAGE ANGLE 105°
POWER HANDLING 100W Peak
70V / 100V TAP SE TTINGS
ENCLOSURE MATERIAL UV Treated, Glass-Filled ABS Cabinet
FINISH Brown Matte, Paintable
PRODUCT DIMENSIONS 8.2 7” x 8.82” x 11 .02” (210 mm x 224mm x 280 mm)
PRODUCT WEIGHT 7 lbs (3 .18 kg)
ACCESSORIES PRO-18-GS 18” Gro und Stake (PN: 10634 48) (sold separate ly)
100Hz - 24kHz +/- 3dB
92Hz - 30kH z +/- 6dB
77Hz - 35kH z +/- 10d B
70V: 6. 25W, 12.5W, 2 5W, 50W
100V: 1 2.5W , 25W, 50W
8 Ohm Byp ass
PRO-500T-LS 5” LANDSCAPE SATELLITE
FREQUENCY RANGE
HIGH FREQUENCY DRIVER 1” (2. 54cm) Alumi num Dome Tweet er mated to an all n ew 105º custo m Tractrix® ho rn
LOW FREQUENCY DRIVER 5” (12. 7cm) I MG Woofer
SENSITIVITY 88 dB @ 2.8 3V/1 meter
COVERAGE ANGLE 105°
POWER HANDLING 60W Peak
70V / 100V TAP SE TTINGS
ENCLOSURE MATERIAL UV Treated, Glass-Filled ABS Cabinet
FINISH Brown Matte, Paintable
PRODUCT DIMENSIONS 6.3” x 6 .85” x 8.5” ( 160mm x 174mm x 2 16mm)
PRODUCT WEIGHT 5 lb s (2.27 kg)
ACCESSORIES PRO-10-GS 10” Gro und Stake (PN: 1063447) (sol d sepa rately)
130Hz - 30k Hz +/- 3dB
113Hz - 32k Hz +/- 6d B
93Hz - 36kHz +/- 10dB
70V: 3.75 W, 7.5 W, 15W, 30W
100V: 7.5 W , 15W, 30W
8 Ohm Byp ass
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 4.5 kg
10 lbs
PART NUMBER
1063139
NOTES:
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 3. 6 kg
8 lbs
PART NUMBER
1063137
NOTES:
35
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM
• Long-throw 12” IMG woofer
• Dual voice coil design for transformerless
70V/100V/8 Ohm compatibility
• All-weather durability - IP45 rating
• Long-throw 10” IMG woofer
• Dual voice coil design for transformerless
70V/100V/8 Ohm compatibility
• All-weather durability - IP45 rating
PRO-12SW-LS 12” DIRECT BURIAL SUBWOOFER
FREQUENCY RANGE
SYSTEM T YPE Band Pa ss Full Burial
WOOFER 12" (30 .48cm) IMG Du al Voice Coil
SENSITIVITY 90 dB @ 2.8 3V/1 meter
POWER HANDLING 250W
IMPEDANC E
ENCLOSURE MATERIAL
FINISH
PRODUCT DIMENSIONS 25” x 16. 14” x 26.42” (6 35mm x 410m m x 671mm)
PRODUCT WEIGHT 55 l bs (25 kg)
34Hz - 100 Hz +/- 3dB
29Hz - 11 0Hz +/- 6dB
25Hz - 125 Hz +/- 10dB
70V @ 300W ( Transform erless)
8 Ohm Ster eo
4 Ohm Mon o
Canopy: Rustproof, UV Resistant Aluminum
Cabinet: Heavy Duty, High Impact Polyethylene
Canopy: Metallic Brown, Paintable
Cabin et: Matte Bla ck, Paintab le
PRO-10SW-LS 10” HALF BURIAL SUBWOOFER
FREQUENCY RANGE
SYSTEM T YPE Band Pa ss Half Buri al
WOOFER 10" (25 .4cm) IMG Du al Voice Coil
SENSITIVITY 90 dB @ 2.8 3V/1 meter
POWER HANDLING 200W
IMPEDANC E
ENCLOSURE MATERIAL
FINISH
PRODUCT DIMENSIONS 21.8 5” x 16.10” x 16 .10” (555m m x 409mm x 40 9mm)
PRODUCT WEIGHT 35 lb s (15.91 kg)
47Hz - 103Hz +/- 3dB
40Hz - 11 0Hz +/- 6dB
33Hz - 123Hz +/- 10dB
70V @ 250W ( Transforme rless)
8 Ohm Ster eo
4 Ohm Mon o
Canopy: Rustproof, UV Resistant Aluminum
Cabinet: Heavy Duty, High Impact Polyethylene
Canopy: Metallic Brown, Paintable
Cabin et: Matte Bla ck, Paintab le
OUTDOOR SPEAKERS
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 34 kg
75 lbs
PART NUMBER
1063141
NOTES:
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 22.6 kg
50 lbs
PART NUMBER
1063140
NOTES:
ACCESSORIES
PRO-18-GS 18” GROUND STAKE
MATERIAL
INCLUDED IN-BOX 18 ” Ground Stake, 7 ” Security Pl ate, Instal lation Manua l
FINISH Brown Matte, Paintable
PRODUCT DIMENSIONS 17.99” x 3. 35” x 3.35” (45 7mm x 85mm x 85m m)
PRODUCT WEIGHT 2 lb s (0.91 kg)
RECOMMENDED FOR USE WITH PRO- 650T-LS 6.5” L andscap e Satellite (P N: 106313 9)
Groun d Stake: Glass- Filled (25%) AB S
Security Plate: Galvanized Stamped Steel
PRO-10-GS 10” GROUND STAKE
MATERIAL
INCLUDED IN-BOX 10 ” Ground Stake, 7 ” Security Pl ate, Install ation Manua l
FINISH Brown Matte, Paintable
PRODUCT DIMENSIONS 11.8 1” x 3.35” x 3. 35” (300m m x 85mm x 85mm)
PRODUCT WEIGHT 2 lb s (0.91 kg)
RECOMMENDED FOR USE WITH PRO- 500T-LS 5” Lan dscape Sate llite (PN: 10 63137)
Groun d Stake: Glass- Filled (25%) AB S
Security Plate: Galvanized Stamped Steel
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 1.3 kg
3 lbs
PART NUMBER
1063448
NOTES:
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 1.3 kg
3 lbs
PART NUMBER
1063447
NOTES:
36
KLIPSCH | CI BUYERS GUIDE 2019-2020
PRO-1-SM
NEW
FOR USE WI TH PRO-500T-LS (1063137) and PRO-650T-LS (1063139)
CONSTRUCTION Rustpr oof aluminu m parts wit h stainles s steel hardw are
MAXIMUM PITCH 45° up, 90°d own
PITCH INCREMENTS 15°
MAXIMUM PAN 100° cl ockwise, 10 0° countercl ockwise
WEIGHT 1.2 lb s / .54 kg
DIMENSIONS 1.68" x 11 .12"x 4.13" (4 .3cm x 29.5c m x 10.5cm)
PACKED A S Eaches
FINISH Satin Bl ack
ACCESSORIES (NOT INCLUDED) 5/16” Wa shers (2) and Mo unting Hardw are
1” Tree Stra p
Squar e U-Bolt for Po le Mountin g (1.25” Mi nimum Width)
PROFESSIONAL SERIES ROCK SPEAKERS
With IMG woofers and Tractrix horn-loaded Aluminum Dome Tweeters, the Pro Series rock speakers use the same
high performance acoustic design philosophies of our legendary indoor products, bringing the world’s most
dynamic, powerful, detailed sound to your outdoor living space. From small residential systems to massive
commercial installs, the Klipsch Pro Series rock speakers are designed to make any installation job quick and
easy. For distributed line application, the Pro Series rock speakers feature a 70V/100V multi-tap transformer
with 8 ohm bypass, allowing for exceptional balance at any listening location - all selectable from an easily
accessible, tool-free rotary switch on the back of the speaker.
• Rock satellites and subwoofer for full-range outdoor performance • 70V/100V/8 Ohm compatibility
• UV-resistant enclosures
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 10 lbs
PART NUMBER
1063139
NOTES:
• Rock subwoofer speaker
• Dual voice coil design for transformerless
70V/100V capability with 8-ohm bypass
• UV-resistant, mechanically reinforced
berglass cabinet
PRO-10SW-RK 10” ROCK SUBWOOFER
FREQUENCY RANGE
SYSTEM T YPE Seale d box
WOOFER 10" (25 .4cm) IMG Du al Voice Coil
SENSITIVITY 90 dB @ 2.8 3V/1 meter
POWER HANDLING 200W
IMPEDANC E
ENCLOSURE MATERIAL UV Treated F iberglas s
FINISH Granite or Sandstone
PRODUCT DIMENSIONS 13.3 9” x 18.43” x 2 0.67” (340 mm x 468mm x 5 25mm)
PRODUCT WEIGHT 30 lbs (13.6 kg)
47Hz - 103Hz +/- 3dB
40Hz - 11 0Hz +/- 6dB
33Hz - 123Hz +/- 10dB
70V @ 250W ( Transforme rless)
8 Ohm Ster eo
4 Ohm Mon o
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 16 kg
35.4 lb s
PART NUMBER
1063232 (Granite)
106323 1 (Sandstone)
NOTES:
37
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM
• All-new custom Tractrix® Horn provides
ultra-wide 105˚ horizontal dispersion
• 70V/100V multi-tap transformer with
8-ohm bypass
• UV-resistant, mechanically reinforced
berglass cabinet
• All-new custom Tractrix® Horn provides
ultra-wide 105˚ horizontal dispersion
• 70V/100V multi-tap transformer with
8-ohm bypass
• UV-resistant, mechanically reinforced
berglass cabinet
PRO-650T-RK 6.5” 2-WAY ROCK SATELLITE
FREQUENCY RANGE
HIGH FREQUENCY DRIVER 1" (2. 54cm) Alumi num Dome Tweete r mated to an all n ew 105º custo m Tractrix® ho rn
LOW FREQUENCY DRIVER 6.5" ( 16.51cm) I MG Woofer
SENSITIVITY 90 dB @ 2.8 3V/1 meter
COVERAGE ANGLE 105°
POWER HANDLING 100W Peak
70V / 100V TAP SE TTINGS
ENCLOSURE MATERIAL UV Treated F iberglas s
FINISH Granite or Sandstone
PRODUCT DIMENSIONS 10.91 ” x 9.65” x 13.43 ” (277mm x 245mm x 3 41mm)
PRODUCT WEIGHT 1 1 lbs (4.98 kg)
100Hz - 24kHz +/- 3dB
92Hz - 30kH z +/- 6dB
77Hz - 35kH z +/- 10d B
70V: 6. 25W, 12.5W, 2 5W, 50W
100V: 1 2.5W , 25W, 50W
8 Ohm Byp ass
PRO-500T-RK 5” 2-WAY ROCK SATELLITE
FREQUENCY RANGE
HIGH FREQUENCY DRIVER 1” (2. 54cm) Alumi num Dome Tweet er mated to an all n ew 105º custo m Tractrix® ho rn
LOW FREQUENCY DRIVER 5” (12. 7cm) I MG Woofer
SENSITIVITY 88 dB @ 2.8 3V/1 meter
COVERAGE ANGLE 105°
POWER HANDLING 60W Peak
70V / 100V TAP SE TTINGS
ENCLOSURE MATERIAL UV Treated F iberglas s
FINISH Granite or Sandstone
PRODUCT DIMENSIONS 9.21 ” x 9.72” x 10.43” ( 234mm x 247mm x 26 5mm)
PRODUCT WEIGHT 8 lbs (3 .62 kg)
130Hz - 30k Hz +/- 3dB
113Hz - 32k Hz +/- 6d B
93Hz - 36kHz +/- 10dB
70V: 3.75 W, 7.5 W, 15W, 30W
100V: 7.5 W , 15W, 30W
8 Ohm Byp ass
OUTDOOR SPEAKERS
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 6.6 kg
14.7 lbs
PART NUMBER
1063230 (Granite)
106322 9 (Sandstone)
NOTES:
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 5.1 kg
11. 2 lbs
PART NUMBER
1063228 (Granite)
106322 7 (Sandstone)
NOTES:
38
KLIPSCH DSP MULTI-ZONE AMPLIFIERS
The Klipsch KDA Series DSP Ampliers deliver legendary Klipsch power and performance in a sleek,
high-tech, one rack solution. The KDA Ampliers boast class G power, for clean dynamic power in any
type or size of installation. With 2-way IP Network control drivers and 70V/100V and low impedance
compatibility, the Klipsch DSP Multi-Zone Ampliers provide maximum installation exibility.
KDA-1000 4 IN X 4 OUT 1000W DSP AMPLIFIER
• High performance power platform
• 70V/100V and low impedance compatibility
• Flexible I/O
• State-of-the-art DSP control and set-up
• Ethernet port for 2-Way IP Ethernet Control
AMPLIFIER TYPE
AMPLIFIER POWER 1000 wa tts total syste m power | 4 x 250 wat ts per channel | 2 x 500
INPUTS Balan ced: 4 x Phoenix lin e level (up to 12 AWG wire) | Unb alanced: 4 x RCA lin e level
IP CONTROL
OUTPUTS 4 x Phoen ix speaker level (up to 12 AWG wi re) | 4 x RCA line level (th roughs)
INPUT SENSITIVITY 75 0mV balanced | 0dBU
INPUT IMPEDENCE Balance d 40k
THD <1% @ rated o utput
SIGNA L TO NOISE -10 0dB below r ated outpu t
ENCLOSURE MATERIAL Front face: ABS plas tic | Case : Machine form ed steel
RACK UNI T 1RU
PRODUCT DIMENSIONS 1.73” (44mm) x 1 9.02” (483 mm) x 14.29 ” (363mm)
PRODUCT WEIGHT 15 lbs. (6. 82 kg)
MOUNTING Remo vable 1RU rack ear s | removab le rubber feet
BUILT FROM 2016
High ef ciency clas s G/ H
AMPLIFIERS
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 18 lbs
PART NUMBER
1063 258 (120V )
NOTES:
KDA-500 4 IN X 4 OUT 500W DSP AMPLIFIER
AMPLIFIER TYPE
AMPLIFIER POWER 500 wat ts total system po wer | 4 x 125 watt s pe r cha nnel | 2 x 250
INPUTS Balan ced: 4 x Phoenix lin e level (up to 12 AWG wire) | Unb alanced: 4 x RCA lin e level
IP CONTROL
OUTPUTS 4 x Phoen ix speaker level (up to 12 AWG wi re) | 4 x RCA line level (th roughs)
INPUT SENSITIVITY 75 0mV balanced | 0dBU
INPUT IMPEDENCE Balance d 40k
THD <1% @ rated o utput
• High performance power platform
• 70V/100V and low impedance compatibility
• Flexible I/O
• State-of-the-art DSP control and set-up
• Ethernet port for 2-Way IP Ethernet Control
SIGNA L TO NOISE -10 0dB below r ated outpu t
ENCLOSURE MATERIAL Front face: ABS plas tic | Case : Machine form ed steel
RACK UNI T 1RU
PRODUCT DIMENSIONS 1.73” (44mm) x 1 9.02” (483 mm) x 14.29 ” (363mm)
PRODUCT WEIGHT 15 lbs. (6. 82 kg)
MOUNTING Remo vable 1RU rack ear s | removab le rubber feet
BUILT FROM 2016
CUSTOM DSP INTERFACE
Customize Kipsch DSP Multi-Zone Ampliers through
streamlined web-based menus - including Klipsch
speaker presets - for one-click optimization.
High ef ciency clas s G/ H
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 18 lbs
PART NUMBER
1063 257 (120V )
NOTES:
40
KLIPSCH | CI BUYERS GUIDE 2019-2020

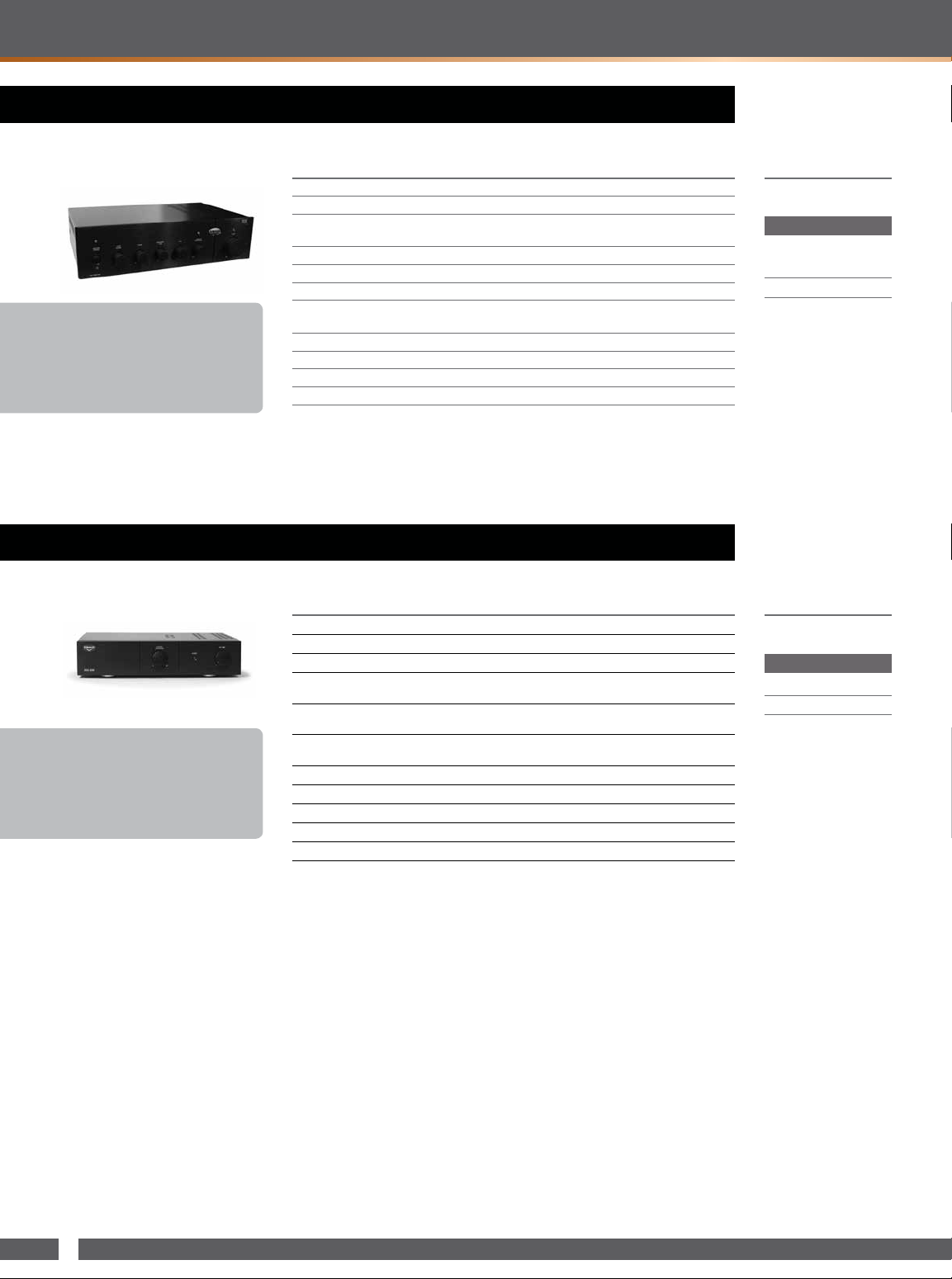

KA-1000-THX THX CERTIFIED CLASS D SUBWOOFER AMPLIFIER
FREQUENCY RESPONSE 2 0 Hz - 1 kHz +/- 3dB
AMPLIFIER Hig h-Efcie ncy Class D
AMPLIFIER POWER FTC Rated Pow er: 500W into 8 ohm s, 1000W into 4 ohms , 20Hz-1kHz @ <1 .5% THD
AUTO POW ER ON 2 secon d ON delay, 15 min ute off dela y
LOW PASS CR OSSOVER Conti nuously vari able from 40Hz-1 20Hz, 24dB/oc tave slope abo ve 120z (non-THX mod e)
INPUTS 2 G old-plated R CA phono jacks
• THX Ultra2 certied subwoofer amplier
• Can support two high performace
subwoofers
• Finished in black with a machined
aluminum front panel and knobs
OUTPUTS 2 Gold-p lated RCA phon o jacks (unltere d)
DIMENSIONS 4.75” (12. 1cm) H x 17.5” (44. 5cm) W x 12.2 5” (31.1cm) D
FINISH Black anod ized aluminu m
VOLTAGE 110/120 VAC 60 Hz
EXPORT VOLTAGE 230 VAC 50/60H z
FEAT URES THX On /Off
THX® ULTRA2™ AMPLIFIERS
Dynam ic Power: 20 50W into 8 ohm s, 3025W int o 4 ohms @ 5% THD
®
2 Speako n
NL2 jack s
Bound ary Gain Comp ensation On /Off
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 31 lbs
PART NUMBER
221200080011 (12OV)
NOTES:
• EQ preset for use with the RW-5802
subwoofer
• Selectable signal-sensing or voltage
triggered auto-on/off circuit
• Line and speaker level inputs
REFERENCE AMPLIFIERS
RSA-500 500W/4 OHM DIGITAL HYBRID SUBWOOFER AMPLIFIER
AMPLIFIER TYPE Bash Digital Hybrid
AMPLIFIER POWER FTC Rated Power : 500W conti nuous into 4 ohm s @ <2 % THD Dynamic Pow er: 1000W
FRONT CONTROLS Volume and Variable Crossover
REAR CONTROLS Phase Switc h (0/180), EQ Sele ctor, Trigger In put, Power Mo de Selector,
INPUTS L/R an d LFE Line-le vel RCA jacks
OUTPUTS L/R a nd LFE Line-l evel RCA jacks (un ltered)
DIMENSIONS 3.5" (8.9c m) H x 16.8" (42.7cm) W
DIMENSIONS WITH FEET 3.8" (9.6 cm) H x 16.8" (42 .7cm) W
WEIGHT 17.5 lbs (7.9k g)
VOLTAGE 110/1 20 VAC 60Hz
FINISH Black An odized Brus hed Aluminu m
ACCESSORIES Rack Ear s (include d) *For use only wit h RW-5802
Main Pow er Switch
L/R Hi gh-level spea ker binding p osts
L/R sp eaker bindin g posts
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 21 lbs
PART NUMBER
1001188
NOTES:
41
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM
• Bridgeable 2-channel amplier
• Full-range or low-pass operation
• Daisy chain capability
PROFESSIONAL AMPLIFIERS
PRO-200A 2 X 100W STEREO/SUBWOOFER AMPLIFIER
RATED POWER OUTPUT 2 x 10 0 Watts (Stere o) into 4 ohm Load
TOTAL HARMONIC DISTORTION <0.1%
SIGNAL-TO-NOISE RATIO >100dB
CROSSOVER FREQUENCY @ Min position 1 8.5-55. 2Hz 40Hz/0 dB ref
AUTO TUR N ON SENSITIVI TY 5mV +/-2mV Full Ran ge 1KHz
DELAY ”OFF “ TIME 8 minutes
LINE OUT FREQ. RESPONSE 20Hz +/-5K - 20 KH z +/-5K 1KHz/0 dB ref
INPUT IMPEDANCE LINE IN 9.2K ohm +/-5 %
MAX. N OISE+HUM VOL MA X <1.0 mV, Input Short ed
POWER REQUIREMENT 115V 60 Hz or 220 - 240V 5 0Hz
DIMENSIONS 5. 5” (14cm) H 5. 69” (14.5 cm) W 12.75” (32 .4cm) D
CLEARANCE FOR VENTILATION Top: Min. 0.37 5” (1 0mm) | Back: Min. 2” (50mm)
WEIGHT 11 lbs (5 .3kg)
200 Wat ts (BTL) into 8 o hm Load
@ Max posi tion 18.2-1 68.8Hz 40 Hz/0dB ref
5mV +/-2mV Inp ut 50 Hz
AMPLIFIERS
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 13 lbs
PART NUMBER
1062388
NOTES:
NEW
NEW
AMAZON ECHO INPUT AMPLIFIERS
KVA-110
AMPLIFIER POWER 1 10W Total System P ower, 2 x 55W per ch annel
AMPLIFIER TYPE Class D
INPUTS Am azon Echo Inp ut (3.5mm Au dio Input an d Micro-USB P ower)
OUTPUTS 2 x Phoen ix Speaker Level ( Recommend ed 16/2 wire) , Sub woofer LFE
INS TALLAT ION Pre -constru ction – doubl e gang box, Retro t – doglegs (i ncluded)
CUTOUT DIMENSIONS 3.875” x 3.875” (9.8cm x 9.8cm)
PRODUCT DIMENSIONS 4.92” x 4 .92” x 1.75” (1 2.5cm x 12. 5cm x 4.4cm)
SHIPPING DIMENSIONS 7.125” x 5.2 5” x 3” (18.1c m x 13.3cm x 11 .2cm)
INPUT POWER 24V, 3A
POWER CONNECTION DC In put Wall Plate
ACCESSORIES
DC Inpu t Wall Plate, Opti cal/Analog I nput Wall Plate , Subwoofer Ou tput Plate, Do glegs
and hardware, AC Adapter
KVA-40
AMPLIFIER POWER 4 0W Total System Po wer, 2 x 20W per chan nel
AMPLIFIER TYPE Class D
INPUTS Am azon Echo Inp ut (3.5mm Au dio Input an d Micro-USB P ower)
OUTPUTS 2 x Phoen ix Speaker Level ( Recommend ed 16/2 wire)
INS TALLAT ION Pre -constru ction – doubl e gang box, Retro t – doglegs (i ncluded)
CUTOUT DIMENSIONS 3.875” x 3.875” (9.8cm x 9.8cm)
PRODUCT DIMENSIONS 4.92” x 4 .92” x 1.75” (1 2.5cm x 12. 5cm x 4.4cm)
SHIPPING DIMENSIONS 7.125” x 5.2 5” x 3” (18.1c m x 13.3cm x 11 .2cm)
INPUT POWER 24V, 3A
POWER CONNECTION DC In put Wall Plate
ACCESSORIES DC Inp ut Wall Plate, D oglegs and h ardware, AC Ada pter
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 1.06 lbs
PART NUMBER
120V: 1068198
NOTES:
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 1.06 lbs
PART NUMBER
120V: 1068200
NOTES:
42

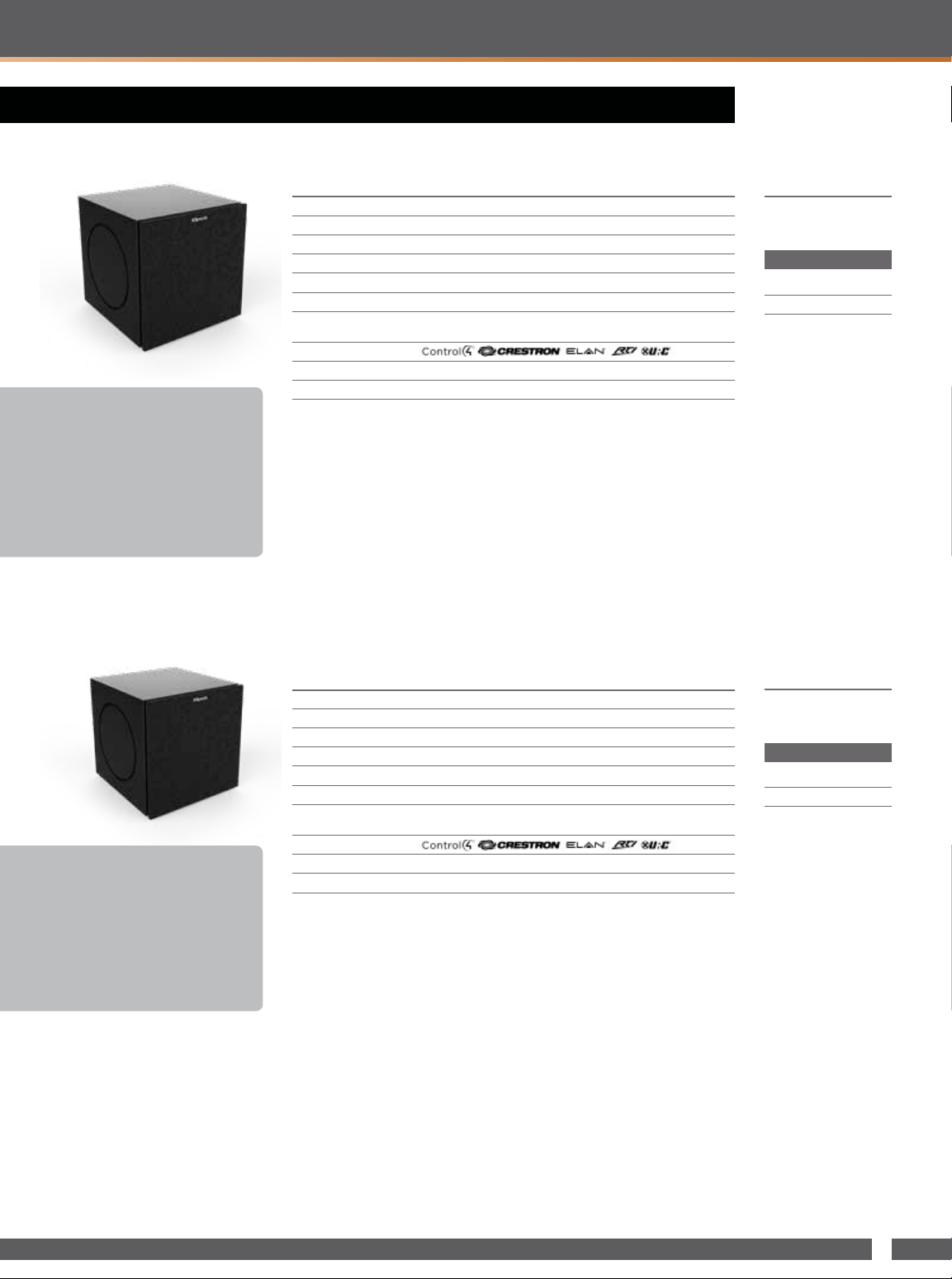

• High performance app controlled compact
subwoofer
• Klipsch LowControl App for iOS/Android
provides automatic room correction and fully
customizable EQ with presets
• Supports multiple input types
• Ethernet input for IP control
• Piano gloss nish for premium look
C-310ASWi 10” HIGH PERFORMANCE COMPACT SUBWOOFER
FREQUENCY RANGE 25-150Hz +/- 3dB
SYSTEM T YPE Bass-r eex via dual sid e-ring pas sive radiato rs
WOOFER 10” (20. 3cm) Active / Dual 10” pas sive
MAXIMUM OUTPUT 116d B @ 35Hz
POWER HANDLING 400W RMS
ENCLOSURE MATERIAL MDF
INPUTS
IP CONTROL
PRODUCT DIMENSIONS 13.4 2” x 13.42” x 1 3.42” (34 1mm x 341mm x 3 41mm)
PRODUCT WEIGHT 39 lbs (17.69 kg)
FINISH Piano gl oss black
Line lev el RCA, Bala nced XLR, Hi gh level, Wir eless (with o ptional tran smitter so ld
separately)
SUBWOOFERS
C-SERIES
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 18.2 kg
40.1 lb s
PART NUMBER
1064 619 (Black)
NOTES:
• High performance app controlled compact
subwoofer
• Klipsch LowControl App for iOS/Android
provides automatic room correction and fully
customizable EQ with presets
• Supports multiple input types
• Ethernet input for IP control
• Piano gloss nish for premium look
C-308ASWi 8” HIGH PERFORMANCE COMPACT SUBWOOFER
FREQUENCY RANGE 28-150 Hz +/- 3d B
SYSTEM T YPE Bass-r eex via dual sid e-ring pas sive radiato rs
WOOFER 8” (20.3 cm) Active / Dual 8” passi ve
MAXIMUM OUTPUT 110d B @ 35Hz
POWER HANDLING 300W RMS
ENCLOSURE MATERIAL MDF
INPUTS
IP CONTROL
PRODUCT DIMENSIONS 11. 22” x 11.2 2” x 11.2 2” (285mm x 28 5mm x 285mm)
PRODUCT WEIGHT 2 7 lbs (12.25 kg )
FINISH Piano gl oss black
Line lev el RCA, Bala nced XLR, Hi gh level, Wir eless (with o ptional tran smitter so ld
separately)
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 12.75 kg
28.1lbs
PART NUMBER
1064 615 (Black)
NOTES:
44
• Full stud-bay-in-wall subwoofer for new
construction
• Ideal for home cinema or high performance
distributed audio
• Easily installs into any standard stud-bay
• 10” Long-throw Cerametallic™ woofer for
superior low frequency response
• Performs as the anchor for a home theater
system or a premium distributed audio solution
• MDF enclosure
• Flat, paintable, white magnetic grille
• Suitable for retrot or new construction
applications
• Compatible with the KDA-500 amplier
(see page 47)
PRO-1200SW 12” IN-WALL SUBWOOFER
FREQUENCY RANGE 21Hz - 100 Hz +/- 3dB *
SYSTEM T YPE Seale d Box
WOOFER 12” (25.4cm) Long-Throw Cerametallic
MAXIMUM OUTPUT* 112dB @ 70Hz
POWER HANDLING 250W RMS / 600W Pe ak
IMPEDANC E 8 Ohm
ENCLOSURE MATERIAL MDF
FINISH Black Po lymer Veneer w ith White, Pain table Grill e
PRODUCT DIMENSIONS 65.75” H x 1 5.69” W x 3.4 7” D (1670.0 5mm x 398mm x 10 0mm)
MOUNTING DEPTH 3.4” (88.138mm)
CUTOUT DIMENSIONS 14.2 5” x 14.25” (3 61.95mm x 3 61.95mm)
PRODUCT WEIGHT 35 .5 lbs (16.1 kg)
™
* With Klipsch KDA Amplier DSP Preset
PRO-1000SW 10” IN-WALL SUBWOOFER
FREQUENCY RANGE 24-100Hz +/- 3dB *
SYSTEM T YPE Seale d Box
WOOFER 10” (25.4cm) Long-Throw Cerametallic™
MAXIMUM OUTPUT* 109dB @ 70Hz
POWER HANDLING 200W RMS / 50 0W Peak
IMPEDANC E 8 Ohm
ENCLOSURE MATERIAL MDF
FINISH Black Po lymer Veneer w ith White, Pain table Grill e
PRODUCT DIMENSIONS 21.9 7” x 17.56” x 4.0” (5 58mm x 448 mm x 102mm)
MOUNTING DEPTH 3.94” (100mm)
CUTOUT DIMENSIONS 20.24” x 1 4.41” (51 4.096mm x 3 66.014m m)
PRODUCT WEIGHT 20 .3 lbs (9.2 kg)
* With Klipsch KDA Amplier DSP Preset
SUBWOOFERS
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 16.6 kg
36.6 lbs
PART NUMBER
1064595
NOTES:
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 9.8 kg
21.6 l bs
PART NUMBER
1063646
NOTES:
• In-ceiling bandpass dual voice coil
subwoofer for new construction or retrot
• Minimal visual footprint
• Round and square grilles included
• Floor vent boot kit accessory (sold
separately)
PRO-800SW 8” IN-CEILING BAND PASS SUBWOOFER
FREQUENCY RANGE 38Hz - 125H z +/- 3dB
SYSTEM T YPE Bandp ass via exib le port tub e
WOOFER 8” (203cm) Dual Voice Coil Long-Throw Cerametallic
MAXIMUM OUTPUT* 103dB @ 70Hz
POWER HANDLING 125W RMS / 300W Pea k
IMPEDANC E 2 x 8 Ohm
ENCLOSURE MATERIAL MDF
FINISH Black Po lymer Veneer w ith White, Pain table Grill e
PRODUCT DIMENSIONS
MOUNTING DEPTH 7” (178mm)
CUTOUT DIAMETER 4.25” (108mm)
PRODUCT WEIGHT 2 2.1 lbs (10.1 kg)
ACCESSORIES PRO-800SW Vent Boot Kit (Sold Separately)
Cabin et: 6.9” H x 2 1.1” W x 14.2 ” D (176mm x 53 6mm x 361mm)
Grill e: 5” (127mm)
™
* With Klipsch KDA Amplier DSP Preset
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 10.6 kg
23.4 lb s
PART NUMBER
1064594
1064 948 (Floo r Vent Boot Kit)
NOTES:
46
KLIPSCH | CI BUYERS GUIDE 2019-2020
KW-120-THX 12” PASSIVE SUBWOOFER
FREQUENCY RESPONSE 2 0 Hz - 200 Hz +/- 3dB
MAX ACOUSTIC OUTPUT 1 30dB @ 30Hz, 122d B @ 20Hz , 112dB@ 15Hz 1/8 spa ce,
AMPLIFIER Use o nly with KA-1 000-THX
NOMINAL IMPEDANCE 8 Ohms Compatible
LOW FREQUENCY DRIVER 12” (30. 5cm) front-rin g, Cerametal lic cone, cast alum inum frame driv ers
ENCLOSURE MATERIAL M edium densit y berboar d (M DF)
ENCLOSURE TYPE Bas s reex via front-r ing port
INPUTS 1 Sp eakon NL2 jack an d included ca ble
• THX Ultra2 certied passive subwoofer
• Front-ring port
• Top-of-the-line internal wiring
• For use with KA-1000-THX amplier
HEIGHT 20.25” (51.4cm)
WIDTH 17.75” (45.1cm)
DEPTH 17.75” (31.8cm)
WEIGHT 80 lbs (36.3 kg)
FINISH Galaxy Bla ck cabinet wit h Bla ck anodized alu minum fascia
COMMERCIAL IN-CEILING
1 meter (2 e nclosure s side-by- side per THX U ltra2)
with a 240 oz ceramic ma gnet stru cture
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 93 lbs
PART NUMBER
1010649
NOTES:
The Klipsch Commercial In-Ceiling series of loudspeakers packs proven materials and wide dispersion horn
technology into installer-friendly products. Designed to mix and match with Klipsch CA-T speakers, these IC
speakers have been included in a number of major installations nationally — from Bloomingdale’s in New York
City to Ron Jon Surf Shop in Orlando.
IC-800-T FULL RANGE 8” TWO-WAY IN-CEILING SPEAKER
FREQUENCY RESPONSE 49Hz-20 KHz +/- 4dB
SENSITIVITY 92dB @ 2.8 3V/1 meter
IMPEDANC E 6.5 ohms ( in 8 ohm bypas s mode)
POWER HANDLING (CONT/PEAK) 100W /40 0W
HIGH FREQUENCY DRIVER 1” (2.54cm) titanium diaphragm compression driver
LOW FREQUENCY DRIVER 8” (20. 32cm) woofer
DIAMETER 9.5” (24.13cm)
CUTOUT DIAMETER 12.625” (32.1cm)
MOUNTING DEPTH 12.75” (32.4cm)
WEIGHT 21 lbs (9.5 k g)
• Tight 75˚ coverage pattern for high
ceiling applications
• 100 watt, low insertion loss, multi-tap
transformer for high output and less
compression
• 70-volt, 100-volt or low impedance
operation selectable via a front bafe
switch
INSTALLATION KIT 061347 (sold separately)
TAP S ETTI NGS
70V – 100W, 5 0W, 25W, 12.5 W
100V – 10 0W, 50W, 25W
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 10 kg
22 lbs
PART NUMBER
1062 346 (Bla ck)
1062347 (White)
NOTES:
47
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM
• Wider, shorter design to t low ceilings
• 70-volt, 100-volt or 8-ohm operation
selectable via a front bafe switch
®
• Tractrix
Port design for deep bass with
less compression
• Wider, shorter design to t low ceilings
• 70-volt, 100-volt or 8-ohm operation
selectable via a front bafe switch
®
• Tractrix
Port design for deep bass with
less compression
IC-650-T 6.5” IN-CEILING SPEAKER
FREQUENCY RESPONSE 50Hz-2 0KHz +/- 4dB
SENSITIVITY 90dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms
POWER HANDLING (CONT/PEAK) 80W /320 W
HIGH FREQUENCY DRIVER 1” (2.5 cm) titanium c ompressio n tweeter on a mod ied Tractrix
LOW FREQUENCY DRIVER 6.5” ( 16.51cm) wo ofer
DIAMETER 11.7” (29.7cm)
CUTOUT DIAMETER 10.125” (25.7cm)
MOUNTING DEPTH 10.1” (25.65cm)
WEIGHT 11.3 l bs (5.12 kg)
INSTALLATION KIT IK-650-C (sold separately)
TAP S ETTI NGS
70V – 60W, 30 W, 15W, 7.5W
100V – 60 W, 30W, 15W
®
horn
IC-525-T 5.25” IN-CEILING SPEAKER
FREQUENCY RESPONSE 65Hz-2 0KHz +/- 4dB
SENSITIVITY 89dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
POWER HANDLING (CONT/PEAK) 50W /20 0W
HIGH FREQUENCY DRIVER 1” (2. 54cm) Titanium compression driver on 3.5” (8.89cm) round modied Tractrix
LOW FREQUENCY DRIVER 5.25” (16.51cm) woofer
DIAMETER 10.75” (27.3cm)
CUTOUT DIAMETER 9.125” (23.2cm)
MOUNTING DEPTH 8.2” (20.8cm)
WEIGHT 7 lbs. (3. 2kg)
INSTALLATION KIT 1010413 (sold separately)
TAP S ETTI NGS
70V – 30W, 15 W, 7.5W, 3.8W
100V – 30 W, 15W, 7.5W
COMMERCIAL SPEAKERS
SHIPPING QUANTITY: Pair
®
SHIPPING WEIGHT: 11.2 kg
NOTES:
SHIPPING QUANTITY: Pair
SHIPPING WEIGHT: 7.4 kg
horn
NOTES:
24.7 lbs
PART NUMBER
1008721 (Black)
1007627 (White)
16.3 l bs
PART NUMBER
1008720 (Black)
100 7626 (W hite)
4.125” (10.5cm)
• Includes 15 watt 70/100 volt multi-tap
transformer
• 70-volt, 100-volt or 8-ohm operation
selectable via a front bafe switch
®
• Tractrix
Port design for deep bass with
less compression
IC-500-T-SC SHALLOW DEPTH 5” 2-WAY IN-CEILING SPEAKER
FREQUENCY RESPONSE 95Hz-20 KHz +/- 4dB
SENSITIVITY 87dB @ 2.83 V/1 meter
IMPEDANC E 8 ohms compatible
POWER HANDLING (CONT/PEAK) 50W /20 0W
HIGH FREQUENCY DRIVER 1” (2.54cm) titanium diaphragm compression driver
LOW FREQUENCY DRIVER 5” (12. 7cm) wo ofer
DIAMETER 10.75” (27.3cm)
CUTOUT DIAMETER 9.125” (23.2cm)
MOUNTING DEPTH 4.125” (10.5cm)
WEIGHT 5.5 lbs . (2.5kg)
INSTALLATION KIT 1010413 (sold separately)
TAP S ETTI NGS
70V – 15W, 7.5W, 3 .8W, 1.9W
100V – 15 W, 7.5W, 3.8W
SHIPPING QUANTITY: Pair
SHIPPING WEIGHT: 6 kg
13.2 l bs
PART NUMBER
1062 344 (Black)
1062345 (White)
NOTES:
48
KLIPSCH | CI BUYERS GUIDE 2019-2020

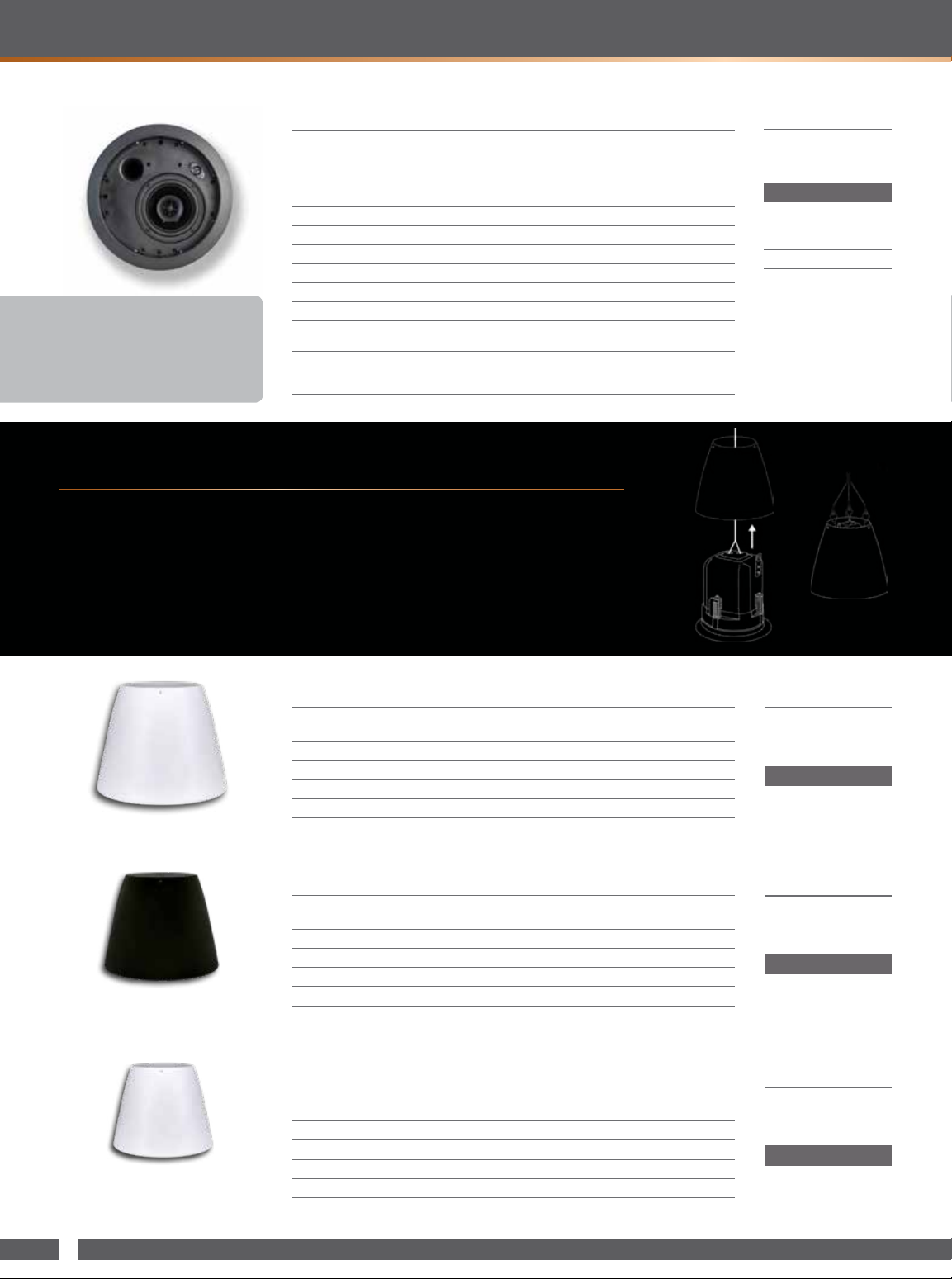

IC-400-T 5” 2-WAY IN-CEILING SPEAKER
FREQUENCY RESPONSE 70Hz – 20kH z +/- 4d B, –10dB 50Hz
SENSITIVITY 86dB @ 2. 83V/1 meter
IMPEDANC E 8 ohms compatible
POWER HANDLING (CONT/PEAK) 50W /20 0W
HIGH FREQUENCY DRIVER 1” (2.5 4cm) titaniu m diaphragm co mpression dr iver on modie d Trac trix
LOW FREQUENCY DRIVER 5” (12. 7cm) wo ofer
DIAMETER 10.75” (27.31cm)
CUTOUT DIAMETER 9.125” (23.18cm)
MOUNTING DEPTH 7.3” (18.54cm)
• 70-volt, 100-volt or 8-ohm operation
selectable via front bafe switch
®
• Tractrix
Port design for deep bass with
less compression
®
• Tractrix
Horn tweeter for smooth sound
WEIGHT 6.25 lb s. (2.83kg)
TAP S ETTI NGS
INSTALLATION KIT
70V – 15W, 7.5W, 3 .8W, 1.9W
100V – 15 W, 7.5W, 3.8W
Mud Ring Kit (Part #1010413)
Pendant Housing (Part #1016408 – White)
Pendant Housing (Part #1016409 – Black)
(sold separately)
(sold separately)
(sold separately)
PENDANT HOUSINGS
When overhead sound distribution is a challenge due to either a high ceiling or a lack of a suspended
ceiling, Klipsch Pendant Housings combine with Klipsch In-Ceiling speakers for an aesthetically pleasing,
great sounding solution.
• Aluminum Pendant Housing in Black, White or Paintable for customization
• Perfect for high-ceiling structures or areas with no suspended ceiling for direct, overhead
distributed sound
• Includes the necessary mounting hardware for typical suspended installation scenarios
®
horn
SHIPPING QUANTITY: Pair
SHIPPING WEIGHT: 6.6 kg
14.5 l bs
PART NUMBER
1008719 (Black)
1007625 (White)
NOTES:
KPH-800 12.5” PENDANT HOUSING
PACKAGE CONT ENTS
ENCLOSURE 1.5mm Aluminum housing
DIMENSIONS 16.8” (42 .7cm) Base diame ter, 12.5” (31 .8cm) Flang e diameter, 13. 7” (34.8cm) H eight
WEIGHT 2.2 lb s (1 kg)
WORKS W ITH IC-800-T, IC-SW-8T2
COLORS White (paintable)
One Pen dant housin g, One 9.5’ (2.5 m) drop cable wit h balance cab les and S-hook s,
One Fast Lin k cable joine r
KPH-650 10.3” PENDANT HOUSING
PACKAGE CONT ENTS
ENCLOSURE 1.5mm Aluminum housing
DIMENSIONS 1 2.3” (32. 2m) Base dia meter, 10.3” ( 26.2cm) Fla nge diamete r, 11.2” (28 .5cm) Heigh t
WEIGHT 2 lbs (0.9 kg)
WORKS W ITH IC-650-TUL
COLORS Black or White ( paintable)
Two Pendan t housings, Two 9.5 ’ (2.5m) drop ca bles with bala nce cables an d S-hooks,
Two Fast Li nk cable joine rs
KPH-525 9.7” PENDANT HOUSING
PACKAGE CONT ENTS
ENCLOSURE 1mm Aluminum housing
DIMENSIONS 1 1.6” (29.5c m) Base diame ter, 9.7” (24.6cm) Fl ange diame ter, 9.4” (23.9cm) H eight
WEIGHT 1.25 l bs (0.57 kg)
WORKS W ITH IC-4 00-T, IC- 500T-SC , IC-525 -TUL
COLORS Black or White ( paintable)
Two Pendan t housings, Two 9.5 ’ (2.5m) drop ca bles with bala nce cables an d S-hooks,
Two Fast Li nk cable joine rs
SHIPPING QUANTITY: SIngle
SHIPPING WEIGHT: 1.5 kg
3.3 lbs
PART NUMBER
1063456
SHIPPING QUANTITY: Pair
SHIPPING WEIGHT: 4.5 kg
9.9 lbs
PART NUMBER
1063 455 (Black)
1063454 (White)
SHIPPING QUANTITY: Pair
SHIPPING WEIGHT: 1.5 kg
3.3 lbs
PART NUMBER
1016 409 (Blac k)
1016408 (White)
49
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM
COMPACT PERFORMANCE SERIES
The Klipsch Compact Performance Series is designed for high-performance sound indoors or out. The CP-6,
in paintable Black or White, is designed to quickly wall-mount with the included brackets or rest on a shelf
or bookcase in equally appealing form. Traditional Klipsch lifelike sound with Tractrix horns, utilize them for
deck or patio sound, as part of a 2-channel music system or as surrounds in a Home Theater system. Their
versatility is endless.
CP-6T 5.25” COMPACT HIGH PERFORMANCE SPEAKER
FREQUENCY RESPONSE 83Hz-22kHz +/- 3dB
SENSITIVITY 94dB
IMPEDANC E 8 ohm @ 2.83V/1 me ter (8 ohm bypass)
CROSSOVER FREQUENCY 3kHz 12dB octave
POWER HANDLING (CONT/PEAK) 75W /300 W
HIGH FREQUENCY DRIVER .75” (1. 9cm) aluminu m dome tweet er with a 90° x 90 ° Tractrix Hor n
LOW FREQUENCY DRIVER 5.25 ” (13.3cm) lo ng-throw IM G woofer
TERMINALS Front bafe m ounted acces sed via rear pul l-through
DIMENSIONS 11.0”(27.9cm) H x 7.0”(17.8cm) W x 6.1”(15.5cm) D
• Quick, easy installation
• Multipurpose design
MOUNTING DEPTH 6.9”(17.5cm) D
WEIGHT 6.85 lbs. (3.1kg)
FINISH Black o r White enclosu re and grille
TAP S ETTI NGS
70V – 30W, 15 W, 7W, 3.75W
100V – 30 W, 15W, 7W, 3.75W
COMMERCIAL SPEAKERS
SHIPPING QUANTITY: Pair
SHIPPING WEIGHT: 7 kg
15.43 lbs
PART NUMBER
1016 298 (Black)
1060388 (White)
NOTES:
50
KLIPSCH | CI BUYERS GUIDE 2019-2020
COMMMERCIAL ALL-WEATHER SERIES
These compact full-range loudspeakers deliver big time sound and worry free performance. Designed for
distributed audio applications, these amazing little speakers are equally at home in outdoor or indoor
background music and paging applications in both commercial and recreational environments.
CA-800T ALL-PURPOSE 8” 2-WAY SPEAKER
FREQUENCY RESPONSE 64Hz-17.5kHz +/- 4dB
SENSITIVITY 96dB @ 2. 83V/1 meter
IMPEDANC E 8 ohm
CROSSOVER FREQUENCY 1.9kHz 12dB octave high-pass / 12dB octave low-pass
POWER HANDLING 100W
HIGH FREQUENCY DRIVER K-150-A 1” titanium diaphragm compression driver
LOW FREQUENCY DRIVER K-1183- A 8” woofer with I MG cone
INPUT CONNECTORS 4 position terminal strip
MATERIAL All-weather ABS plastic enclosure with rustproof aluminum grille
• Built-in 60-watt 70V/100V multi-tap
transformer with 8-ohm bypass
• Paintable UV-resistant ABS enclosure with
rustproof aluminum grille
• Very high sensitivity and power handling
• 90˚ x 90˚ Tractrix
®
Horn tweeter for clean,
clear highs
• Supplied with C-style mounting bracket
and stainless steel hardware
DIMENSIONS 11.125”(28.26cm) H x 156.375”(41.53cm) W x 12.31”(31.27cm) D
WEIGHT 18 lbs. (8.16kg)
FINISH Black o r White (painta ble)
TAP S ETTI NGS
70V – 60W, 30 W, 15W, 7.5W, 3.75W
100V – 60 W, 30W, 15W, 7.5W, 3.7 5W
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 9.4 kg
20.7 lbs
PART NUMBER
097150000001 (Black)
097097000001 (White)
NOTES:
• Built-in 60-watt 70V/100V multi-tap
transformer with 8-ohm bypass
• Very high sensitivity and power handling
• 6.5” IMG cone woofer and a 1” Titanium
dome tweeter
• 90˚ x 90˚ Tractrix
®
Horn tweeter for clean,
clear highs
• Paintable UV-resistant ABS enclosure with
rustproof aluminum grille
CA-650T ALL-PURPOSE 6.5” 2-WAY SPEAKER
FREQUENCY RESPONSE 69Hz-20kHz +/- 4dB
SENSITIVITY 95dB @ 2. 83V/1 meter
IMPEDANC E 8 ohm
CROSSOVER FREQUENCY 1.9kHz 12dB octave high-pass / 12dB octave low-pass
POWER HANDLING 85W
HIGH FREQUENCY DRIVER K-150-A 1” titanium diaphragm compression driver
LOW FREQUENCY DRIVER K-1182-A 6 .5” woofer wit h IMG cone
INPUT CONNECTORS 4 position terminal strip
MATERIAL All-weather ABS plastic enclosure with rustproof aluminum grille
DIMENSIONS 9.5”(24.13cm) H x 15.2”(38.56cm) W x 10.875”(27.62cm) D
WEIGHT 13 lbs. (5.9kg)
FINISH Black o r White (painta ble)
TAP S ETTI NGS
70V – 60W, 30 W, 15W, 7.5W, 3.75W
100V – 60 W, 30W, 15W, 7.5W
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 7.1 kg
15.6 lbs
PART NUMBER
097148000001 (Black)
097092000001 (White)
NOTES:
51
FOR THE LASTEST SPECS AND PRICES VISIT KLIPSCH.COM/CUSTOM
• Built-in 30-watt 70V/100V multi-tap
transformer with 8-ohm bypass
• Very high sensitivity and power handling
• 90˚ x 90˚ Tractrix
®
Horn tweeter for clean,
clear highs
• Paintable UV-resistant ABS enclosure with
rustproof aluminum grille
• Supplied with C-style mounting bracket
and stainless steel hardware
CA-525T ALL-PURPOSE 5.25” 2-WAY SPEAKER
FREQUENCY RESPONSE 75Hz-15kHz +/- 4dB
SENSITIVITY 94dB @ 2. 83V/1 meter
IMPEDANC E 6 ohm
CROSSOVER FREQUENCY 2.9kHz 18dB octave high-pass / 12dB octave low-pass
POWER HANDLING 75W
HIGH FREQUENCY DRIVER K-150-A 1” titanium diaphragm compression driver
LOW FREQUENCY DRIVER K-1181 -A 5.25” woofe r with IMG cone
INPUT CONNECTORS 4 position terminal strip
MATERIAL All-weather ABS plastic enclosure with rustproof aluminum grille
DIMENSIONS 8.125”(20.64cm) H x 12”(30.48cm) W x 8.875”(22.54cm) D
WEIGHT 9 lbs. (4.1kg)
FINISH Black o r White (painta ble)
TAP S ETTI NGS
70V – 30W, 15 W, 7.5W, 3.75W, 1.8 W
100V – 30 W, 15W, 7.5W, 3.75W
COMMERCIAL SPEAKERS
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 5 kg
11 lbs
PART NUMBER
097147000001 (Black)
097087000001 (White)
NOTES:
• Built-in 60-watt 70V/100V multi-tap
transformer with 8-ohm bypass
• Paintable UV-resistant ABS enclosure with
rustproof aluminum grille
• Supplied with C-style mounting bracket
and stainless steel hardware
CA-800-TSW ALL-PURPOSE 8” SUBWOOFER
FREQUENCY RESPONSE 51Hz-135kHz +/- 4dB
SENSITIVITY 92dB @ 2.8 3V/1 meter
IMPEDANC E 6 ohm
CROSSOVER FREQUENCY 150Hz 12dB octave
POWER HANDLING 150W
LOW FREQUENCY DRIVER K-1185 -A 8” woofer with I MG cone
INPUT CONNECTORS 4 point terminal strip
MATERIAL All-weather ABS plastic enclosure with rustproof aluminum grille
DIMENSIONS 11.1”(28.3cm) H x 16.4”(41.5cm) W x 12.3”(31.3cm) D
WEIGHT 20 lbs. (9.07kg)
FINISH Black o r White (painta ble)
TAP S ETTI NGS
70V – 60W, 30 W, 15W, 7.5W, 3.75W
100V – 60 W, 30W, 15W, 7.5W, 3.7 5W
SHIPPING QUANTITY: Single
SHIPPING WEIGHT: 10.7 kg
23.6 lbs
PART NUMBER
097149000001 (Black)
097096000001 (White)
NOTES:
52
WE NEVER, EVER STOP INNOVATING
For 70 years Klipsch Group has designed and engineered its products
in-house with some of the most talented, skilled and passionate
people in the industry - starting with our founder, Paul W. Klipsch,
in a tin shed in Hope, Arkansas. Today, our advanced acoustic
research and development continues at our state-of-the-art facility
in Indianapolis, Indiana. The world-class Klipsch Design & Technology
Center is home to some of the most brilliant minds in consumer
electronics and some of the most legendary products the industry
has ever heard. We continue to innovate, honoring the principals and
ideals of PWK, reaching ever-farther towards that perfect sound.
VISIT KLIPSCH.COM/CUSTOM
FOLLOW US
©2017 Klipsch Group, Inc. Klipsch, Keepers of the sound, Tractrix, Klipsch Gallery, Klipschorn, La Scala, Heresy, Groove and Stadium
are trademarks of Klipsch Group, Inc. registered in the U.S. and other countries. a wholly owned subsidiary of voxx international
corporation.
Klipsch Group, Inc. is under license.
mark is a trademark of CSR PLC or one of its companies and may be registered in one or more jurisdictions. The terms HDMI and HDMI
High-Denition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI licensing LLC in the United
States and other countries. Dolby, Pro Logic, Dolby Atmos and the Double-D symbol are registered trademarks of Dolby Laboratories.
For DTS patents, see HTTP://PATENTS.DTS.COM. Manufactured under license from DTS Licensing Limited. DTS, the symbol, & DTS and the
symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All rights reserved
®
The
Bluetooth
word mark and logos are registered trademarks owned by Bluetooth Sig, Inc. and any use of such marks by
The AptXtm software is copyright CSR PLC or its group companies. All rights reserved. the APTXtm
KLIPSCH OFFERS FREE DESIGN SERVICES
You need to make the best impression, from the initial job quote through the completed installation. We can help you choose the best
Klipsch speakers and components for the application and help design a system that thoroughly impresses.
Send your plans, questions and concepts to us at: PROSYSTEMDESIGN@KLIPSCH.COM
CI INTEGRATION PARTNERS
KLIPSCHDEALER.COM
Same day shipping
Place orders and pay by credit card
Real-time inventory levels, order history and account info
Special deals
GO TO KLIPSCHDEALER.COM TO GET SIGNED UP
ADDRESS.AFMG.EUD-TOOLS.COM PORTAL.IO
DEALER RESOURCES
Product Marketing Assets - klipsch.com/share
Product Launch Assets - klipsch.com/channel
Firmware - klipsch.com/rmware
Support - support@klipsch.com
Orders - orders@klipsch.com
Marketing - channel@klipsch.com
v01 - 190809
Loading...
