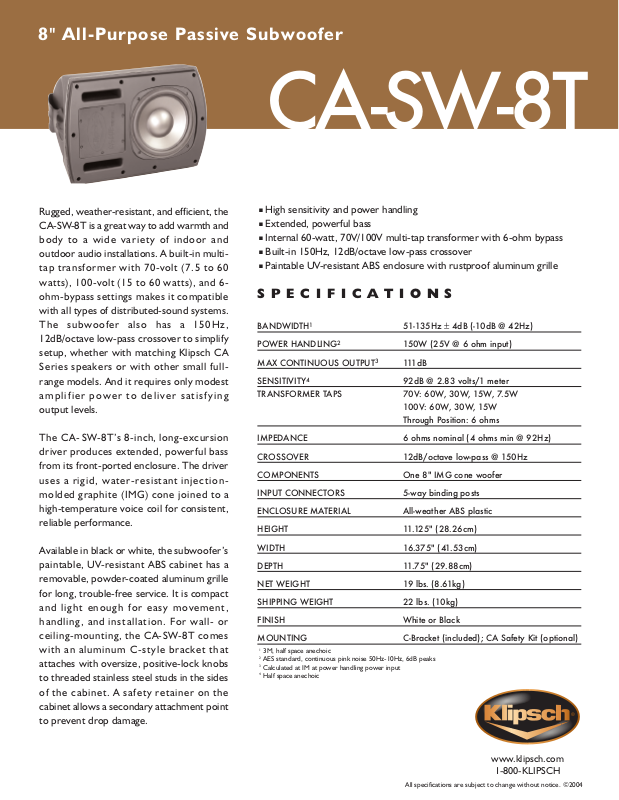

Klipsch CASW-8-T Brochure
8" All-Purpose Passive Subwoofer
CA-SW-8T
■
Rugged, weather-resistant, and efficient, the
CA-SW-8T is a great way to add warmth and
body to a wide variety of indoor and
outdoor audio installations. A built-in multitap transformer with 70-volt (7.5 to 60
watts), 100-volt (15 to 60 watts), and 6ohm-bypass settings makes it compatible
with all types of distributed-sound systems.
The subwoofer also has a 150Hz,
12dB/octave low-pass crossover to simplify
setup, whether with matching Klipsch CA
Series speakers or with other small fullrange models. And it requires only modest
amplifier power to deliver satisfying
output levels.
High sensitivity and power handling
■
Extended, powerful bass
■
Internal 60-watt, 70V/100V multi-tap transformer with 6-ohm bypass
■
Built-in 150Hz, 12dB/octave low-pass crossover
■
Paintable UV-resistant ABS enclosure with rustproof aluminum grille
SPECIFICATIONS
BANDWIDTH
POWER HANDLING
MAX CONTINUOUS OUTPUT
SENSITIVITY
TRANSFORMER TAPS 70V: 60W, 30W, 15W, 7.5W
1
4
51-135Hz ± 4dB (-10dB @ 42Hz)
2
150W (25V @ 6 ohm input)
3
111dB
92dB @ 2.83 volts/1 meter
100V: 60W, 30W, 15W
Through Position: 6 ohms
The CA-SW-8T’s 8-inch, long-excursion
driver produces extended, powerful bass
from its front-ported enclosure. The driver
uses a rigid, water-resistant injectionmolded graphite (IMG) cone joined to a
high-temperature voice coil for consistent,
reliable performance.
Available in black or white, the subwoofer’s
paintable, UV
removable, powder
-resistant ABS cabinet has a
-coated aluminum grille
for long, trouble-free service. It is compact
and light enough for easy movement,
handling, and installation. For wall- or
ceiling-mounting, the CA-SW-8T comes
with an aluminum C
-style bracket that
attaches with oversize, positive-lock knobs
to threaded stainless steel studs in the sides
of the cabinet. A safety retainer on the
cabinet allows a secondary attachment point
to prevent drop damage.
IMPEDANCE 6 ohms nominal (4 ohms min @ 92Hz)
CROSSOVER 12dB/octave low-pass @ 150Hz
OMPONENTS One 8" IMG cone woofer
C
INPUT C
ENCLOSURE MATERIAL All-weather ABS plastic
HEIGHT 11.125" (28.26cm)
WIDTH 16.375" (41.53cm)
DEPTH 11.75" (29.88cm)
NET WEIGHT 19 lbs. (8.61kg)
SHIPPING WEIGHT 22 lbs. (10kg)
FINISH White or Black
MOUNTING C-Bracket (included); CA Safety Kit (optional)
1
2
3
4
ONNECTORS 5-way binding posts
3M, half space anechoic
AES standard, continuous pink noise 50Hz-10Hz, 6dB peaks
Calculated at IM at power handling power input
Half space anechoic
www.klipsch.com
1-800-KLIPSCH
All specifications are subject to change without notice. ©2004
