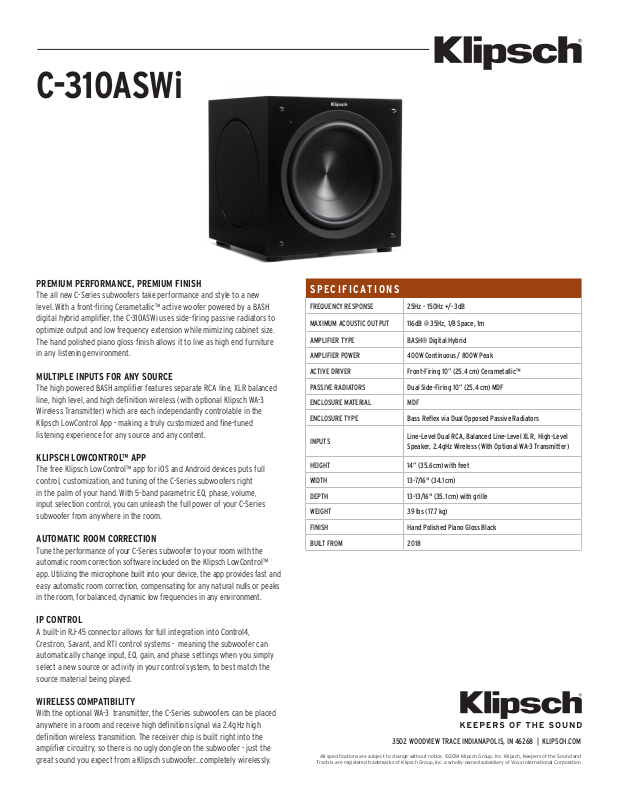

Klipsch C-310ASWi User Manual

C-310ASWi

PREMIUM PERFORMANCE, PREMIUM FINISH

The all new C-Series subwoofers take performance and style to a new
level. With a front-firing Cerametallic™ active woofer powered by a BASH
digital hybrid amplifier, the C-310ASWi uses side-firing passive radiators to
optimize output and low frequency extension while mimizing cabinet size.
The hand polished piano gloss finish allows it to live as high end furniture
in any listening environment.

MULTIPLE INPUTS FOR ANY SOURCE

The high powered BASH amplifier features separate RCA line, XLR balanced
line, high level, and high definition wireless (with optional Klipsch WA-3
Wireless Transmitter) which are each independantly controlable in the
Klipsch LowControl App - making a truly customized and fine-tuned
listening experience for any source and any content.

KLIPSCH LOWCONTROL™ APP

The free Klipsch LowControl™ app for iOS and Android devices puts full
control, customization, and tuning of the C-Series subwoofers right
in the palm of your hand. With 5-band parametric EQ, phase, volume,
input selection control, you can unleash the full power of your C-Series
subwoofer from anywhere in the room.

AUTOMATIC ROOM CORRECTION

Tune the performance of your C-Series subwoofer to your room with the
automatic room correction software included on the Klipsch LowControl™
app. Utilizing the microphone built into your device, the app provides fast and
easy automatic room correction, compensating for any natural nulls or peaks
in the room, for balanced, dynamic low frequencies in any environment.

SPECIFICATIONS

FREQUENCY RESPONSE 25Hz - 150Hz +/- 3dB

MAXIMUM ACOUSTIC OUTPUT 116dB @ 35Hz, 1/8 Space, 1m

AMPLIFIER TYPE BASH® Digital Hybrid

AMPLIFIER POWER 400W Continuous / 800W Peak

ACTIVE DRIVER Front-Firing 10” (25.4 cm) Cerametallic™

PASSIVE RADIATORS Dual Side-Firing 10” (25.4 cm) MDF

ENCLOSURE MATERIAL MDF

ENCLOSURE TYPE Bass Reflex via Dual Opposed Passive Radiators

INPUTS

HEIGHT 14” (35.6cm) with feet

WIDTH 13-7/16" (34.1 cm)

DEPTH 13-13/16" (35.1 cm) with grille

WEIGHT 39 lbs (17.7 kg)

FINISH Hand Polished Piano Gloss Black

BUILT FROM 2018

Line-Level Dual RCA, Balanced Line-Level XLR, High-Level
Speaker, 2.4gHz Wireless (With Optional WA-3 Transmitter)

IP CONTROL

A built-in RJ-45 connector allows for full integration into Control4,
Crestron, Savant, and RTI control systems - meaning the subwoofer can
automatically change input, EQ, gain, and phase settings when you simply
select a new source or activity in your control system, to best match the
source material being played.

WIRELESS COMPATIBILITY

With the optional WA-3 transmitter, the C-Series subwoofers can be placed
anywhere in a room and receive high definition signal via 2.4gHz high
definition wireless transmition. The receiver chip is built right into the
amplifier circuitry, so there is no ugly dongle on the subwoofer - just the
great sound you expect from a Klipsch subwoofer...completely wirelessly.
