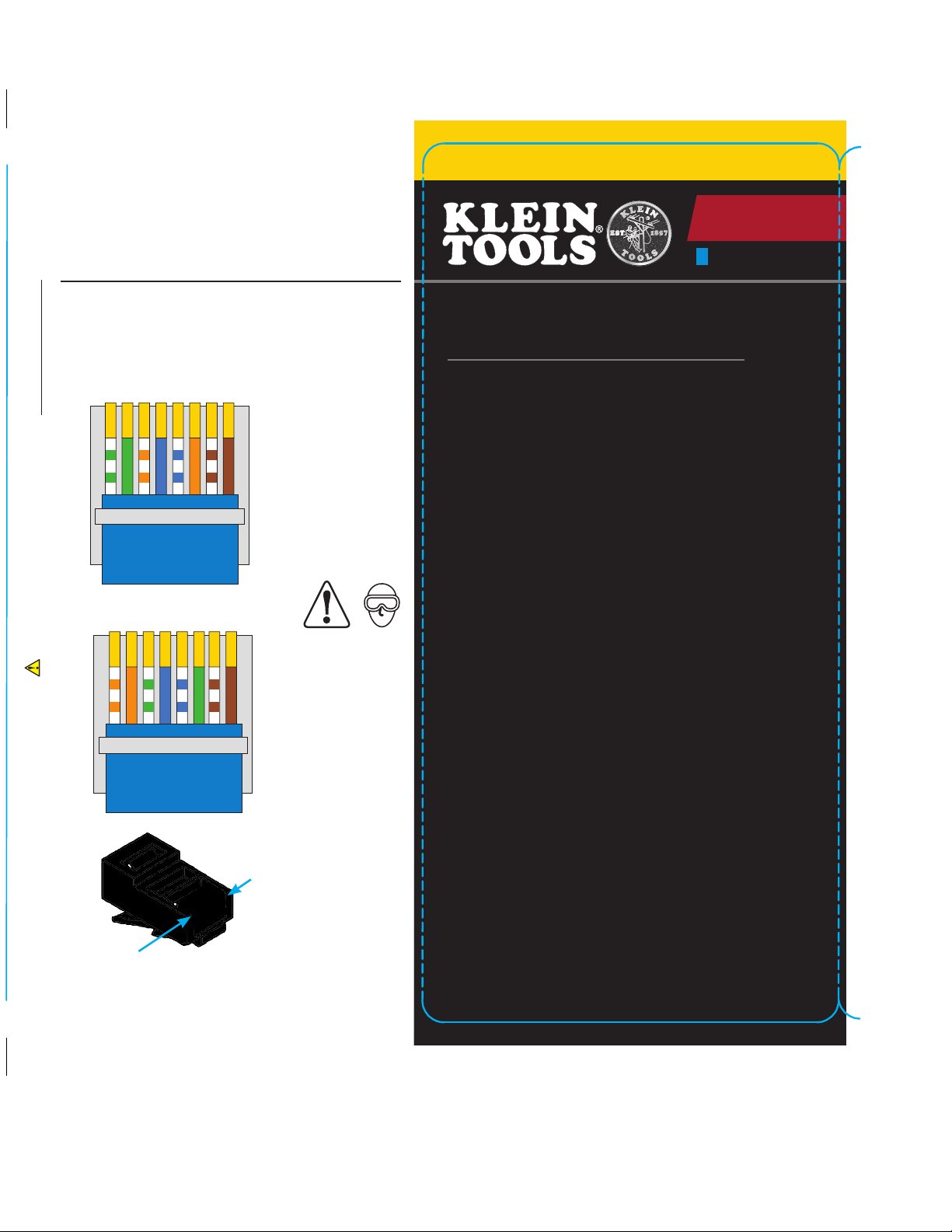

Wiring order
Orden de los alambres
Ordre de câblage
8P8C
PASS-THRU
TM
DATA PLUGS
PASS-THRU
TM
1 234 5 6 7 8
T568-A
1 2 345678
T568-B
8
1
• 8 position, 8 contact pass-through type
data plugs for solid or stranded wire
Works with CAT6 and CAT6A cables
•
•
Requires pass-through type crimping tool
(VDV226-110 recommended)
VDV826-704
RJ45 CAT6A UTP
PASS-THRU
TM
DATA PLUGS
CONECTORES DE DATOS PASS-THRU™
PRISES DE DONNÉES PASS-THRU™
WARNING: Cancer and reproductive harm. See www.P65Warnings.ca.gov for more information.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
1-1/2" – 2"
(38 – 50 mm)
FIG. 1
FIG. 2
ENGLISH
1. Strip 1-1/2" to 2" (38 to 50 mm) of cable jacket;
trim shielding, pullstring, and plastic crossmember as necessary (Fig. 1).
2. Untwist and order wires (see wiring order on
other side).
3. Slide wires into and through connector body
(Fig. 2).
4. Slide assembly into crimping tool and
crimp/trim* (Fig. 3).
5. Remove from tool; verify & test connections.
RECOMMENDED TOOLS:
•
VDV110-261 Twisted Pair Radial Stripper
•
2100-7 Electrician's Scissors
•
VDV226-110 Pass-ThruTM Modular Crimper
•
VDV501-851 Scout
TM Pro 3 Tester
*Crimping tool must be pass-through type.
FIG. 3
