Klein Tools TI222 User manual

ENGLISH

Thermal Imager

for iOS Devices

TI

-4°– 752°F

-20°–

400°C

INSTRUCTION MANUAL

• OVER 10,800
PIXELS TO
TROUBLESHOOT
HOT AND COLD
SPOTS

• CAPTURE, STORE,
AND SHARE IMAGES,
VIDEO, AND TIME-LAPSE VIDEO

• DIFFERENTIAL AND
TOUCH SCREEN TEMPERATURE

• HIGH AND LOW TEMPERATURE
ALARMS

• SELECTABLE COLOR PALETTES

• COMPATIBLE WITH
IOS 11 OR HIGHER

TI

222

2 m

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

ENGLISH

GENERAL SPECIFICATIONS

The Klein Tools TI222 Thermal Imager allows easy capture, storage, and sharing
of images and video, including time-lapse video, for instant troubleshooting on
your iOS device. Excellent resolution of 10,800 pixels, with your choice of color
palettes. The meter features differential temperature, touch-point temperature,
and high and low temperature alarms.

TI222 is compatible with iOS devices 11 or higher with Lightning connectors.
The camera output is displayed on the iOS device using the Klein Tools Thermal
Imager app, available for free from the App Store.

• Environment: Indoor or outdoor

• Operating Altitude: 6562 ft. (2000 m)

• Relative Humidity: <95% non-condensing

• Operating Temp: 32°to 122°F (0°to 50°C)

• Storage Temp: 14°to 140°F (-10°to 60°C)

• Sensor Resolution: 10800 pixels

• Pixel size: 17μm

• Spectral Response: 8 to 14μm

• Field of View (FOV): 50°

• Frame Rate: 9 Hz

• Sensitivity: <60 mK at 25°C

• Temperature Range: -4°to 752°F (-20°to 400°C)

• Temperature Resolution: 0.1°F, 0.1°C

• Temperature Accuracy: +/-2°or 2% (whichever is greater)

NOTE: Not calibrated below 14°F (-10°C)

• Temperature Display: Differential temperature, high, center, and

low crosshairs, and user-selectable temperature

• Temperature Settings: °F / °C

• Emissivity: 0.1 to 0.99 adjustable (0.95 default)

• Color Palettes: Ironbow, Rainbow, Grayscale

• Mobile Device: iOS 11 or higher

• Mobile App: App Store supported

• Image Format: JPG

• Video Format: MP4

• Dimensions: 1.07" × 2.13" × 0.73" (27.2 × 54.0 × 18.5 mm)

• Weight: 1.08 oz. (30.7 grams)

• Pollution degree: 2

• Drop Protection: 6.6 ft. (2m)

Specifications subject to change.

App Store, iPhone, and Lightning are registered trademarks of Apple Inc.,
registered in the U.S. and other countries.

IOS is a trademark or registered trademark of Cisco in the U.S. and other
countries and is used by Apple, Inc. under license.

2

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

WARNINGS

To ensure safe operation and service, follow these instructions.

• Read the instructions to ensure safe operation.

• Always wear approved eye protection.

• Do not use if the housing is damaged in any way.

• DO NOT use if the Lightning connector/adapter is damaged in any way.

• There are no user-serviceable parts inside. DO NOT open or attempt to repair.

NOTE: Do not point the camera at the sun or any other strong energy source.
This can affect the accuracy of the camera or cause damage to the sensor.

CAUTION

• Burn Hazard. Reflective materials may have a higher actual temperature
than the measured temperature. Set emissivity to match the object being
measured (see Emissivity section).

SYMBOLS ON TESTER

Warning or Caution

Read Instructions
Conformité Européenne: Conforms with

European Economic Area directives
UKCA - United Kingdom Conformity Assessment

Do not place equipment and its accessories in the trash

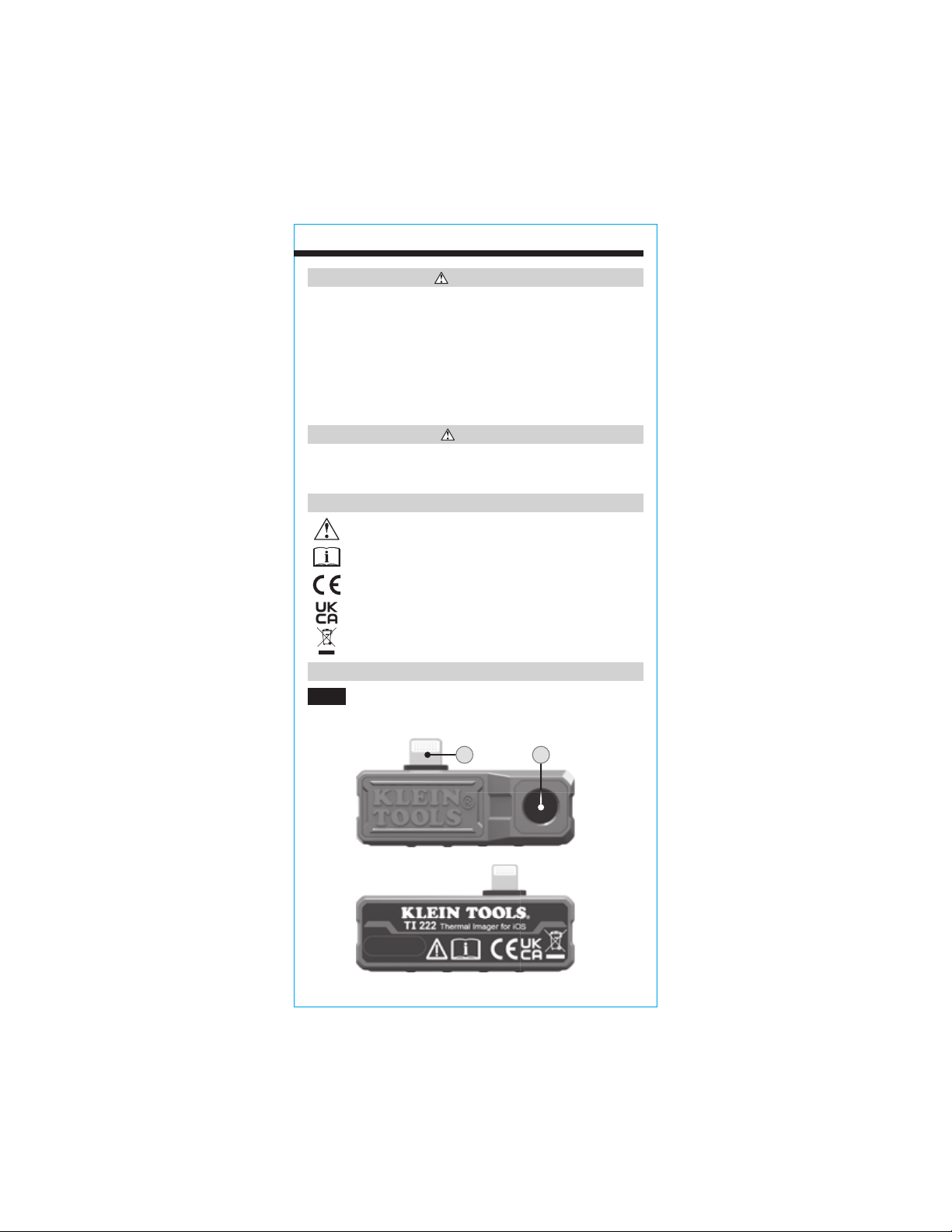

FEATURE DETAILS

FIG. A

1. Camera

2. Lightning Connector

12

3

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

7:30 AM

25%

ENGLISH

FIG. B

A
B

124.2oF

C
D

E

F

CAL

G

o

51.5

F

132.2oF

124.2oF

90.4oF

H I J

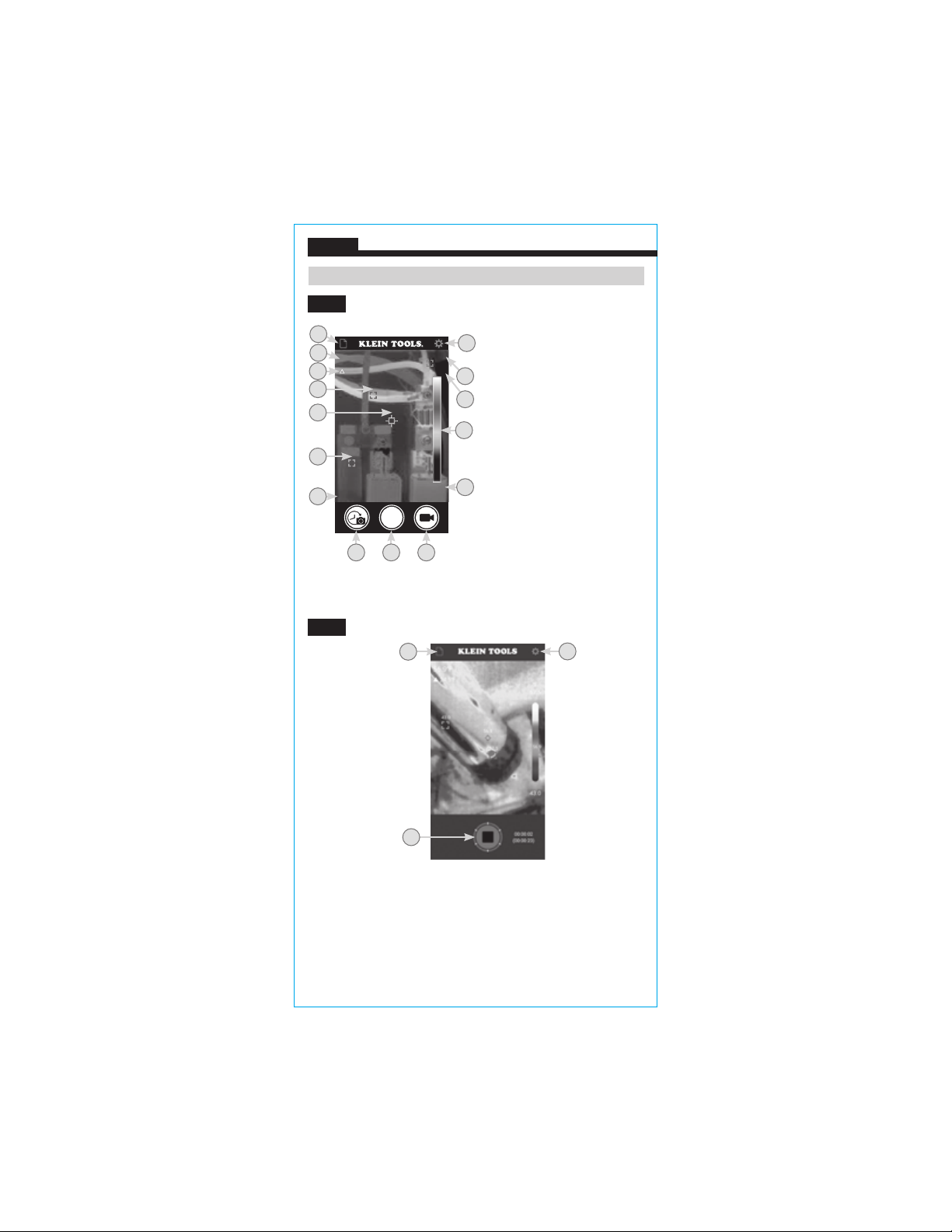

DISPLAY DETAILS

LIVE MODE SCREEN

Photo/Video Gallery

A.

O

Center Point Temperature

80.7oF

132.2oF

80.7

B.

Differential Temperature

C.

Red Marker

D.

N

(High Temperature)

M

White Marker

E.

(Center Point Temperature)
Gray Marker

L

F.

(User-Selectable Temperature)
Calibrating Icon

G.

Time-Lapse Video Capture Button

H.

o

F

Photo Capture Button

K

I.

Video Capture Button

J.

Lowest Temperature

K.

Live Temperature Color Palete

L.

Highest Temperature

M.

Green Marker

N.

(Low Temperature)
Settings

O.

FIG. C

TIME-LAPSE MODE SCREEN

A

O

U

Photo/Video Gallery

A.

Settings

O.

Stop Button

U.

4

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

7:30 AM

25%

Photos

1

Camera Settings

FAQ

Language

Settings

7:30 AM

25%

7:30 AM

25%

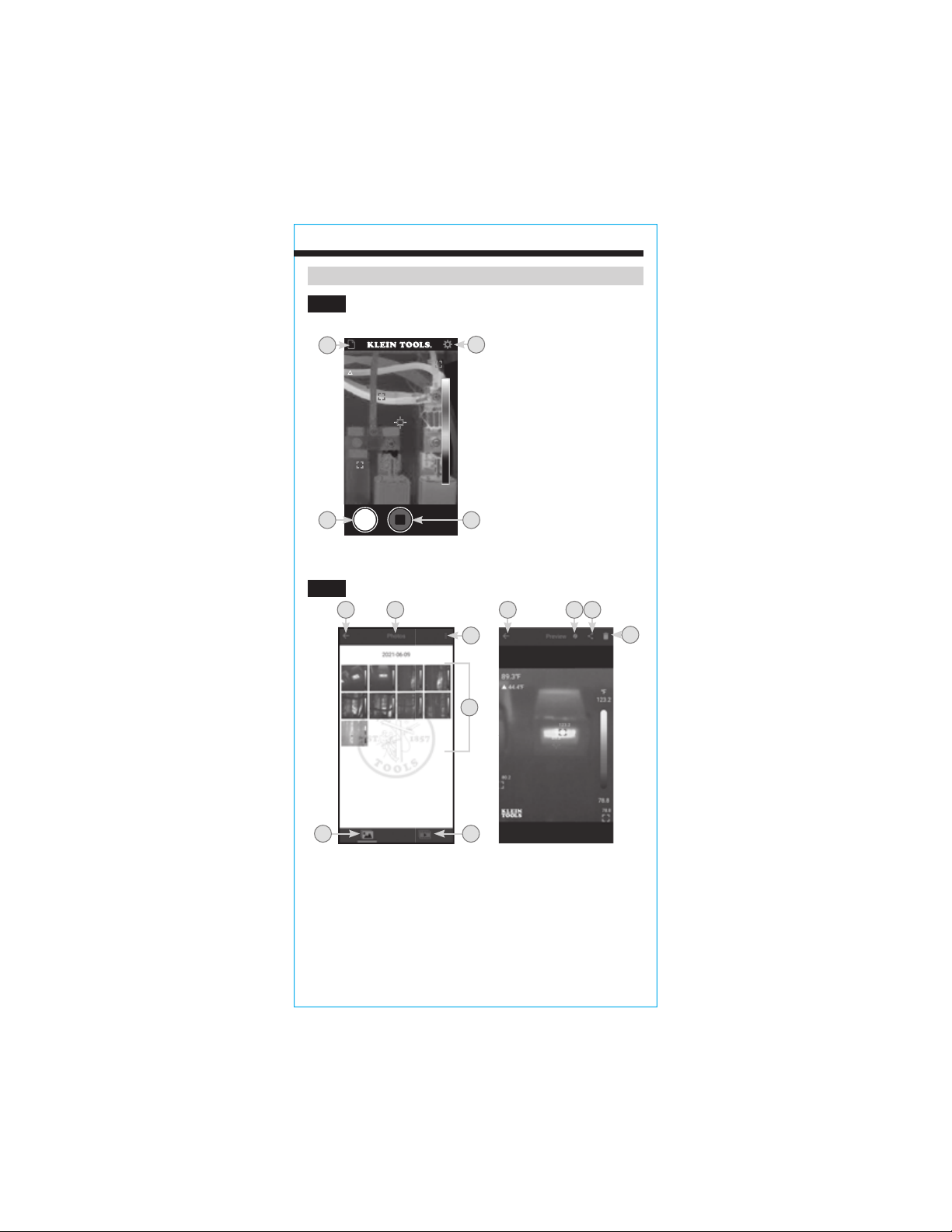

FIG. D

DISPLAY DETAILS

VIDEO MODE SCREEN

A

W

FIG. E

124.2oF

o

51.5

F

132.2oF

124.2oF

90.4oF

00:00:10

YX X

GALLERY MODE SCREENS

80.7oF

132.2oF

80.7

O

Photo/Video Gallery

A.

Settings

O.

Stop Button

V.

Photo Capture Button

W.

o

F

V

Z

DD EE

FF

AA

BB

Previous Screen Icon

X.

Active Menu (Photo or Video Gallery)

Y.

More Selection Options

Z.

Files

AA.

Photo Gallery

BB.

Video Gallery

CC.

File Information

DD.

Copy/Share Selected File(s)

EE.

Delete Selected File(s)

FF.

CC

5

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

ENGLISH

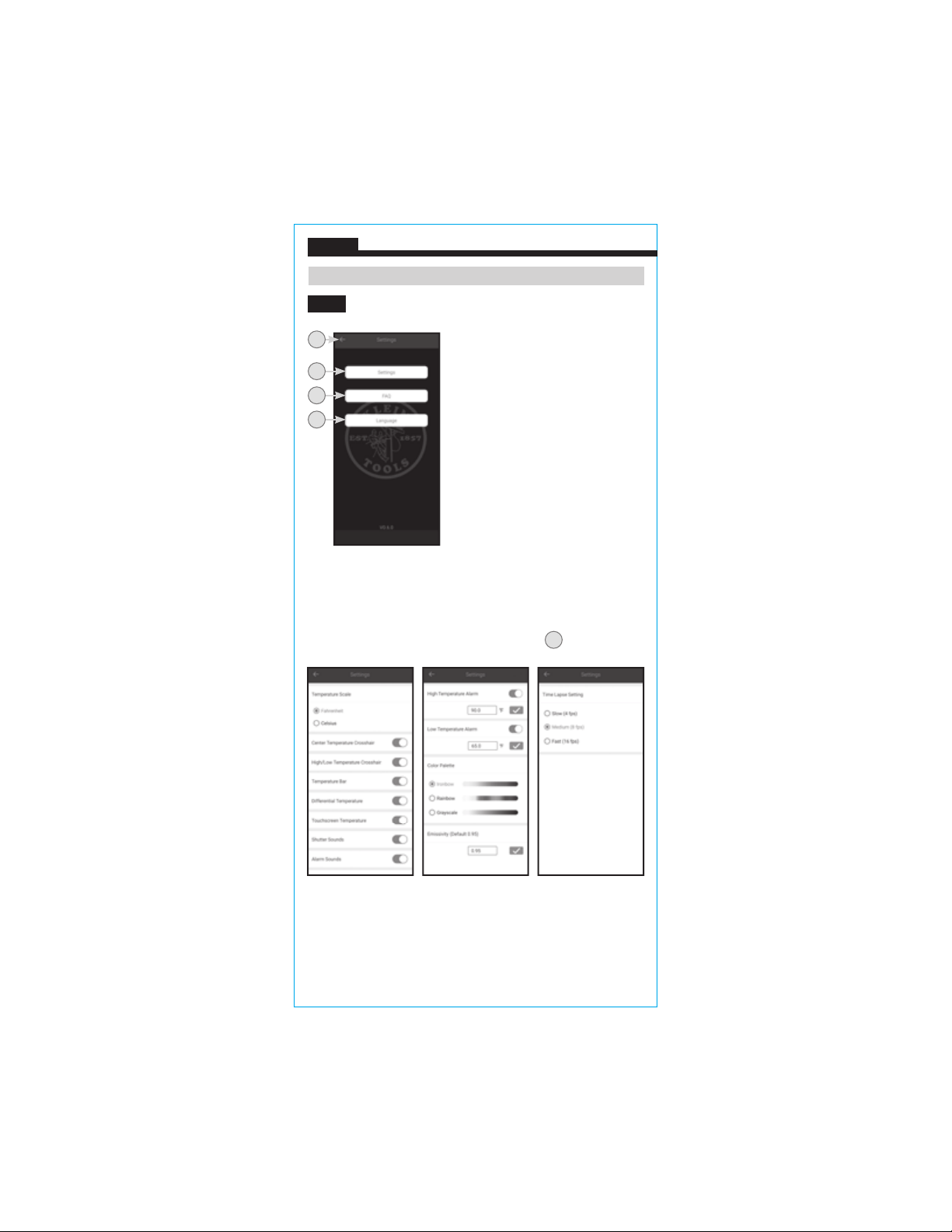

FIG. F

X

HH

II

JJ

DISPLAY DETAILS

SETTINGS SCREEN

Previous Screen Icon

X.

Camera Settings Button

HH.

Frequently Asked Questions Button

II.

Language Button

JJ.

CAMERA SETTINGS SCREENS

6

HH

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

OPERATING INSTRUCTIONS

DOWNLOADING THE APP

The Klein Tools Thermal Imager app is required for functionality. The
app is available for free from the App Store, or by scanning the QR
code below.

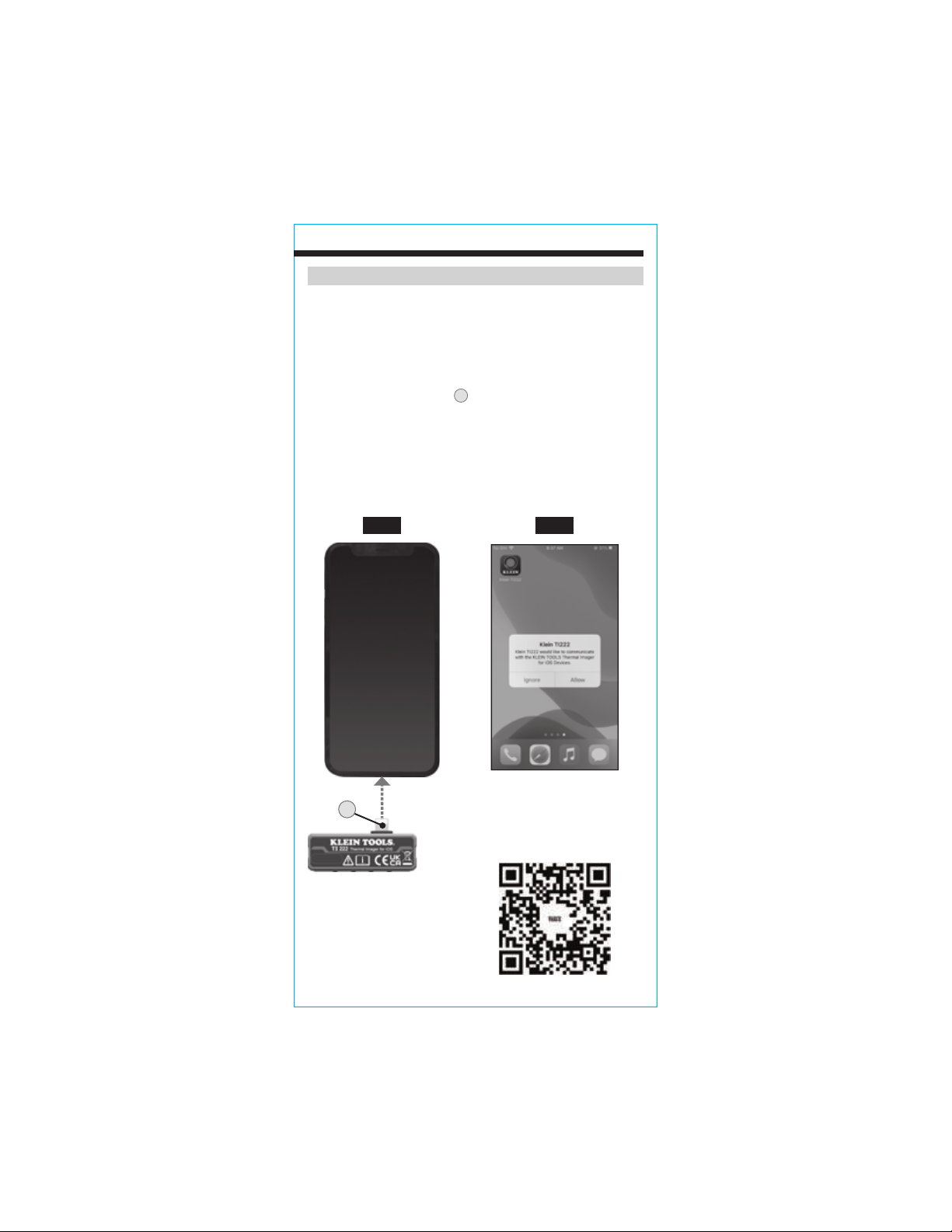

CONNECTING YOUR DEVICE

1. Turn on your iOS device.

2. Insert the Lightning connector2 directly into your device (FIG. G).

NOTE: Fits phone cases up to 1/16" (1.5 mm) thick. Phone cases thicker
than 1/16" (1.5 mm) may require removal of case for secure connection.

3. Connecting your device will automatically open the app, and a popup will

ask for confirmation: Klein TI222 would like to communicate with the
Klein Tools Thermal Imager for iOS Devices." Tap "Allow" (FIG. H).

FIG. G

2

FIG. H

Scan QR code for

free download of

the Klein Tools

TI222 app

7

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

ENGLISH

OPERATING INSTRUCTIONS

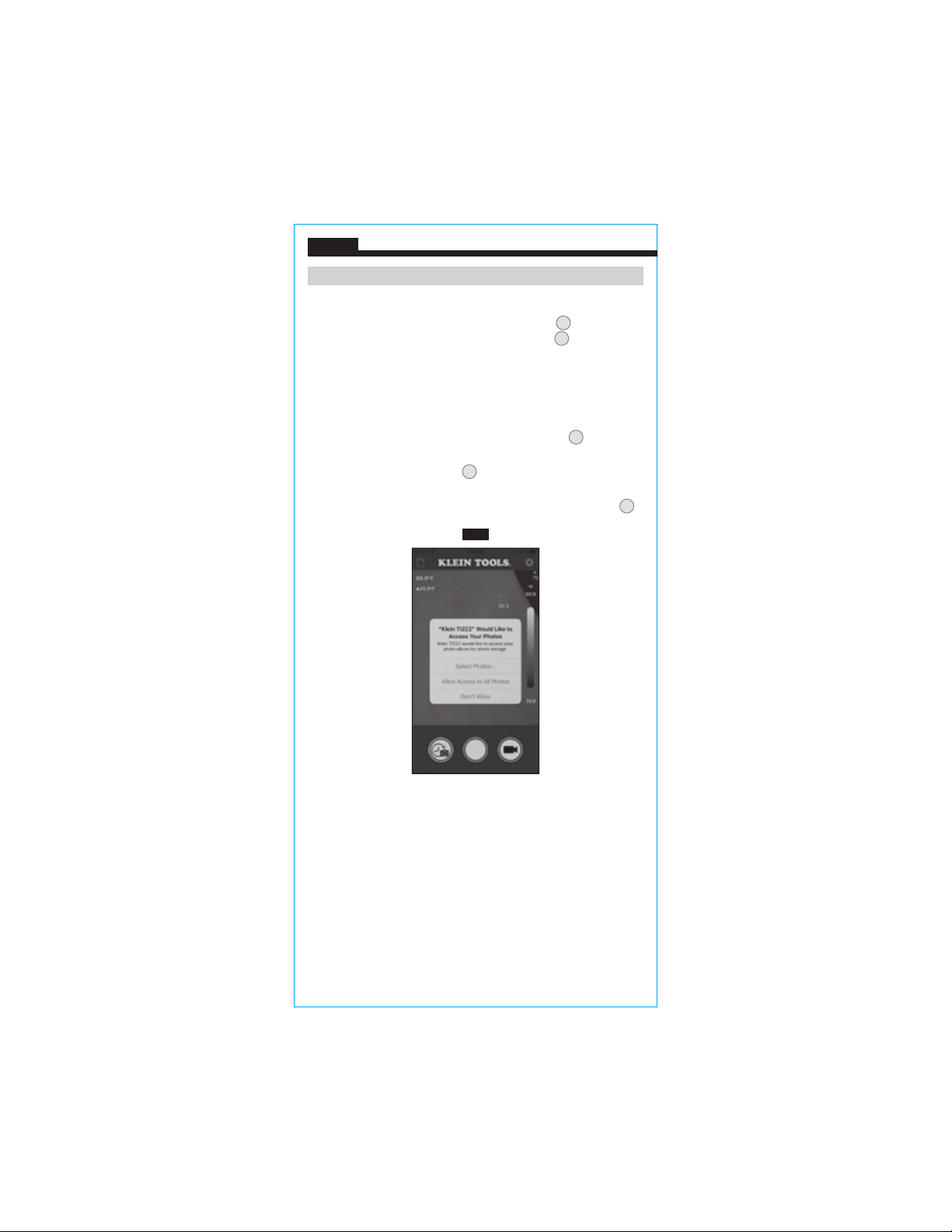

PHOTO CAPTURE

While in Live View mode (see FIG. B), aim the Camera1 at the subject
to be photographed and tap the Photo Capture button

to take a photo.

I

NOTE: When the first photo is captured, the app will ask permission,

"Klein TI222 would like to access your photos". Tap "Allow Access to All
Photos" (FIG. I).

TIME-LAPSE VIDEO CAPTURE (FIG. C)

1. While in live view mode (see FIG. B), aim the Camera1 at the

subject to be recorded.

2. Tap the Time Lapse Video ButtonH to begin recording time-lapse video

capture.

3. To stop recording and exit Time Lapse mode, tap the Stop ButtonU.

FIG. I

8

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

OPERATING INSTRUCTIONS

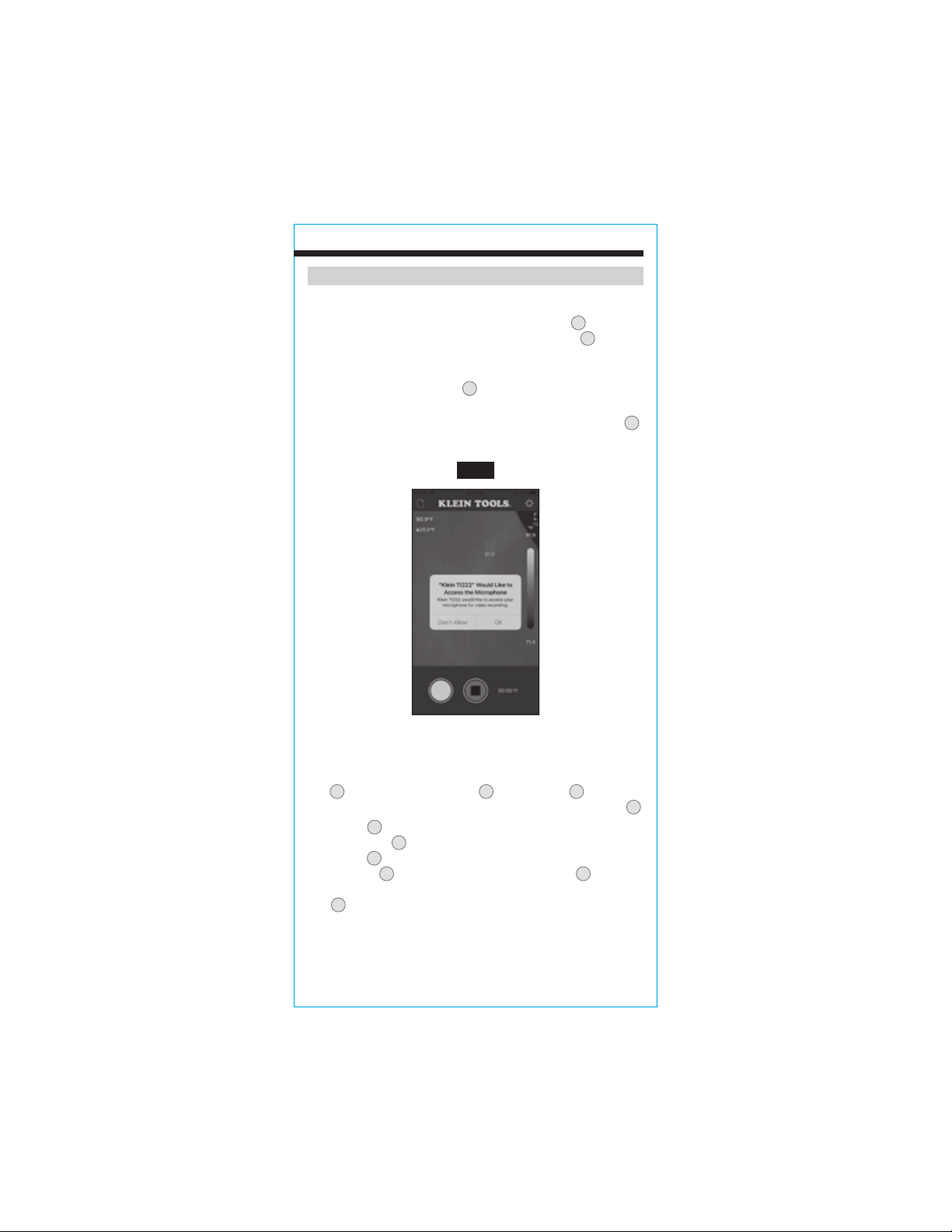

VIDEO CAPTURE (FIG. D)

1. While in Live View mode (see FIG. B), aim the Camera 1 at the
subject to be recorded and tap the Video Capture button

J

.

NOTE:

Before the first video is captured, the app will request permission,
"Klein TI222 Would like to Access the Microphone". Tap "OK" (FIG. J).

2. Tap the Photo Capture ButtonW while recording is active to
capture still images of the subject

3. To stop recording and Exit Video Capture mode, tap the Stop button

FIG. J

.

.

V

VIEWING AND MANAGING PHOTOS AND VIDEO FILES

To access the photo and/or video galleries, tap the Photo/ Video Gallery
icon

, then select the Photo Gallery BB or Video Gallery CC. To select

A

multiple files or all files at once, tap the "More Selection Options" button
Tap on a file

Information" icon
"Share" icon
"Delete" button

to view. Once a file is selected, you can tap the "File

AA

to show additional information about the file, the

DD

to view your device's options for file sharing, or the

EE

to delete the file. Touch and hold a file AA to enable

FF

.

Z

multiple selections. To exit the Photo/Video mode, tap the "Previous"
icon

to return to Live View mode.

X

9

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

ENGLISH

OPERATING INSTRUCTIONS

ADJUSTING SETTINGS (FIG. F)

While in Live View mode (see FIG. B), tap the Settings icon
tap one of the buttons to view/adjust the following settings:

Camera Settings

• Temperature Scale: Select °F or °C (default is °F)

• High/Low Temperature Crosshair: On/Off (default is On)

• Center Temperature Crosshair: On/Off (default is On)

• Temperature Bar: On/Off (default is On)

• Differential Temperature: On/Off (default is On)

• Touchscreen Temperature: On/Off (default is On)

• Shutter Sounds: On/Off (default is On)

• Alarm Sounds: On/Off (default is On)

• High/Low Temperature Alarm: Select Temperature, On/Off, enter

temperature from -4 to 752°F (-20 to 400°C)

• Color Palette: Select Ironbow, Rainbow, or Grayscale (default is Ironbow)

• Emissivity: Enter emissivity from 0.01 to 0.99 (default is 0.95)

• Time Lapse: Change capture interval by selecting either slow (4 fps),

medium (8 fps), or fast (16 fps) (default is medium (8 fps)).

Frequently Asked Questions (FAQ)II:

• Helpful tips for using the Thermal Imager

Language

• Select English, Spanish, or French

HH

:

:

JJ

O

and

EMISSIVITY

Emissivity is a measure of the ability of a surface to emit thermal
energy by radiation. Different types of surfaces (metals, masonry,
wood, etc.) emit thermal energy through radiation at different
efficiencies. Accordingly, these materials have different emissivity
coefficients which must be considered in order to make accurate
measurements with an infrared thermometer.

Emissivity on the TI222 may be adjusted from 0.01 to 0.99 to enable
accurate measurement of the temperature of most types of materials.
Generally speaking, shiny bright surfaces such as chrome, white
boards, etc. exhibit lower emissivity than flat black materials.

For guidance only, the chart on the next page may be used to
estimate emissivity for many different types of materials. However,
the emissivity of surfaces is dependent upon many parameters such
as surface finish, temperature, shape of the object, etc.

10

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

OPERATING INSTRUCTIONS

This chart should be used for guidance only.

Material Emissivity

Asphalt 0.93
Red brick 0.93
Gray brick 0.75
Porcelain ceramic 0.92
Fired clay 0.91
Rough concrete 0.94

Cotton cloth 0.77

Smooth glass 0.92 - 0.94
Granite 0.45
Gravel 0.28
Smooth ice 0.97
Smooth white marble 0.56
Black paint 0.96
Hard rubber 0.94
Wood 0.80 - 0.90
Matte copper 0.22
Commercial sheet aluminum 0.09
Cold rolled steel 0.75 - 0.85

11

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

ENGLISH

CLEANING

Be sure unit is not connected to a device and wipe with a clean,
dry lint-free cloth.

Do not expose to high temperatures or humidity. After a period of
storage in extreme conditions exceeding the limits mentioned in
the General Specifications section, allow unit to return to normal
operating conditions before using.

Canada ICES-003 (B) / NMB-003 (B)

Do not place equipment and its accessories in the trash.
Items must be properly disposed of in accordance with local
regulations. Please see www.epa.gov/recycle for additional
information.

Do not use abrasive cleaners or solvents.

STORAGE

FCC & IC COMPLIANCE

WARRANTY

DISPOSAL / RECYCLE

12

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com
