Utility Staple Holder - Instructions
STP100
ENGLISH
Klein's STP100 Utility Stapler is designed to hold and dispense
utility staples to install ground wire to utility poles. The stapler
can accommodate 35-40 staples to finish installation on
one pole. It automatically loads the next staple for smoother
operation, and works with Klein STP001 Heavy-Duty Collated
Staples, as well as other utility staples on the market.
IMPORTANT NOTES
•
Driving staples to full depth with the staple holder
will result in damage to the tool.
•
Do not use more than 20 loose/non-collated
staples; doing so can cause jams and damage to
the tool.
WARNINGS
Read, understand, and follow these instructions to
ensure safe operation. Failure to observe these warnings
can result in risk of fire or electric shock. Keep these
instructions for future reference.
•
Never use on or near live electric circuits.
•
Always wear approved eye protection.
•
Keep fingers clear of staple discharge area when
operating or clearing a jam.
•
Only direct staple discharge towards surface intended to
be stapled; never point towards any body part.
•
Ensure correct staple size is selected before discharging.
•
Use proper positioning of the cable guide to prevent
staples from piercing the cable
•
Always be cautious of potential hazards such as electrical
wiring, damp or wet conditions, unstable surfaces.
•
For professional use only.
•
Keep away from children.
SYMBOLS ON PRODUCT
Warning or Caution
Wear approved eye protection
NOT insulated - Will NOT protect against electric shock
Wear gloves

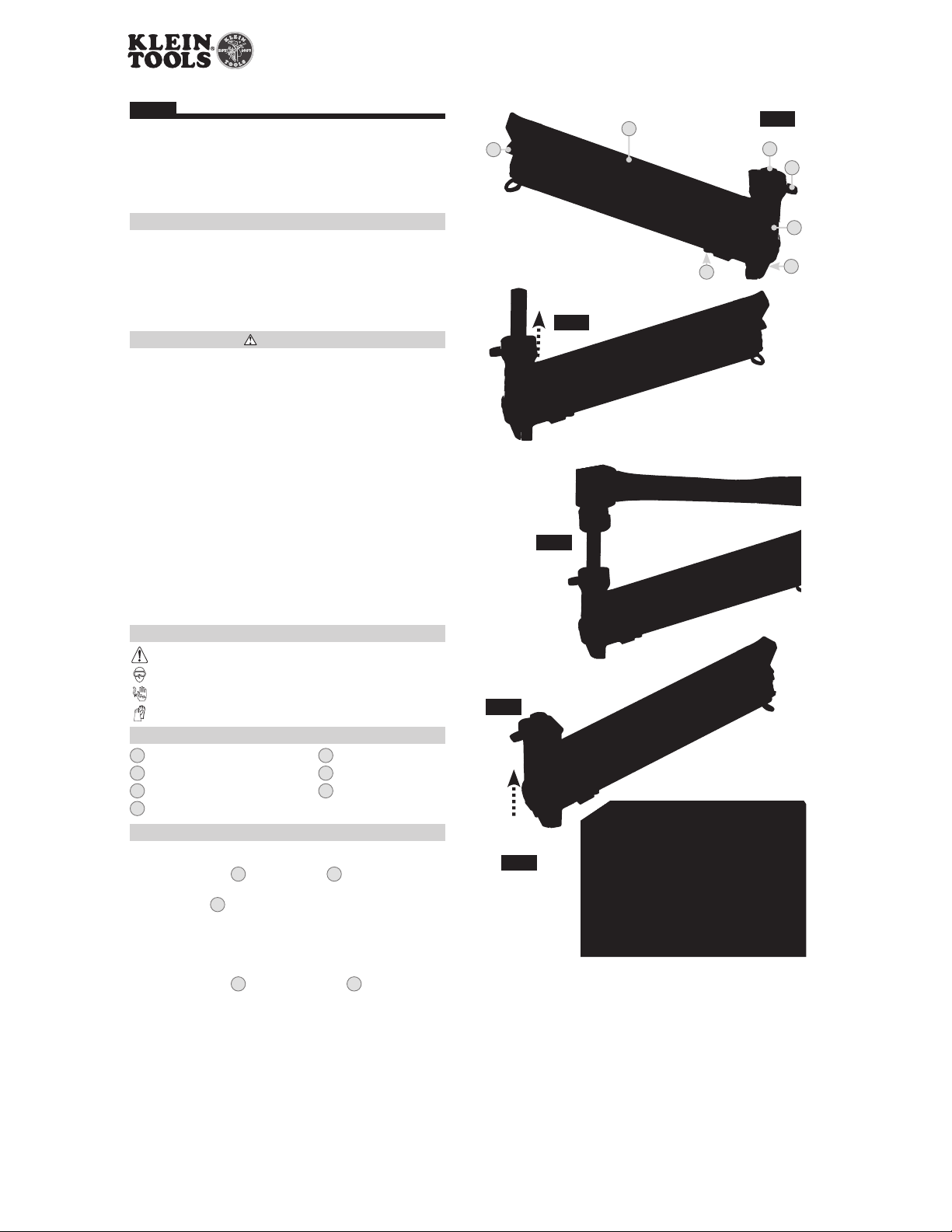

FEATURE DETAILS (FIG.A)
1
Staple cover
2
Staple cover release
3
Front cover
4
Anvil
5
Anvil release
6
Jam release lever
7
Jam release latch
OPERATING INSTRUCTIONS
DRIVING STAPLES:
1. Lift Anvil Release 5 to ensure Anvil 4 is fully extended
.
(FIG. B)
2. Strike Anvil
4 with hammer (FIG. C)
.
3. Use Staple Holder only to start staple (1 or 2 hits).
Remove staple holder and finish staple with hammer.
NOTE: Driving staples to full depth with the
staple holder will result in damage to the tool.
4. Lift Anvil Release 5 to release the Anvil 4 back to fully-
extended position (FIG. D).
2
FIG. D
FIG. E
FIG. C
FIG. B
1
6
FIG. A
4
5
3
7
CONTINUED ON OTHER SIDE
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
OPERATING INSTRUCTIONS
LOADING STAPLES:
FIG. F
1. Lift Staple Cover Release 2 (FIG. E) and slide Staple Cover
1
open (FIG. F).
2. Place staples into Staple Holder
(FIG. G)
.
NOTE: Do not use more than 20 loose/non-collated
staples; doing so can cause jams and damage to
the tool.
3. Close Staple Cover 1 (FIG. H).
CLEARING JAMS:
1. Lift Staple Cover Release 2 and slide Staple Cover 1 open,
then insert screwdriver under Jam Release Lever
and
pull open Jam Release Lever
6.
2. Swing Front Cover 3 open (FIG. J).
3. Clear jam and close all covers (FIG. K).
MAINTENANCE
To maintain smooth operation and prevent rust, keep the
anvil
4 lubricated. Before each use, apply a thin oil to the
exposed portion of the anvil when in the fully-extended
position. Wipe away excess oil before using.
6
(FIG. I)
FIG. G
FIG. H
FIG. I
FIG. J
FIG. K
