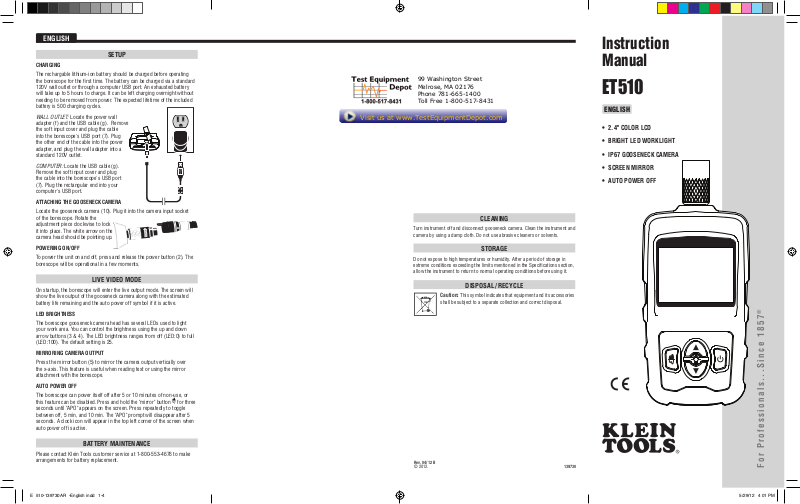

ENGLISH
SETUP
CHARGING
The rechargable lithium-ion battery should be charged before operating
the borescope for the fi rst time. The battery can be charged via a standard
120V wall outlet or through a computer USB port. An exhausted battery
will take up to 5 hours to charge. It can be left charging overnight without
needing to be removed from power. The expected lifetime of the included
battery is 500 charging cycles.
WALL OUTLET: Locate the power wall
adapter (f) and the USB cable (g). Remove
the soft input cover and plug the cable
into the borescope's USB port (7). Plug
the other end of the cable into the power
adapter, and plug the wall adapter into a
standard 120V outlet.
COMPUTER: Locate the USB cable (g).
Remove the soft input cover and plug
the cable into the borescope's USB port
(7). Plug the rectangular end into your
computer's USB port.
ATTACHING THE GOOSENECK CAMERA
Locate the gooseneck camera (10). Plug it into the camera input socket
of the borescope. Rotate the
adjustment piece clockwise to lock
it into place. The white arrow on the
camera head should be pointing up.
POWERING ON/OFF
To power the unit on and off, press and release the power button (2). The
borescope will be operational in a few moments.
LIVE VIDEO MODE
On startup, the borescope will enter the live output mode. The screen will
show the live output of the gooseneck camera along with the estimated
battery life remaining and the auto power off symbol if it is active.
LED BRIGHTNESS
The borescope gooseneck camera head has several LEDs used to light
your work area. You can control the brightness using the up and down
arrow buttons (3 & 4). The LED brightness ranges from off (LED:0) to full
(LED:100). The default setting is 25.
MIRRORING CAMERA OUTPUT
Press the mirror button (5) to mirror the camera output vertically over
the x-axis. This feature is useful when reading text or using the mirror
attachment with the borescope.
AUTO POWER OFF
The borescope can power itself off after 5 or 10 minutes of non-use, or
this feature can be disabled. Press and hold the "mirror" button
seconds until "APO" appears on the screen. Press repeatedly to toggle
between off, 5 min, and 10 min. The "APO" prompt will disappear after 5
seconds. A clock icon will appear in the top left corner of the screen when
auto power off is active.
for three
Washington Street
99
elrose, MA 02176
M
Phone 781-665-
ll Free 1-800-517-8431
To
1400
Visit us at www.TestEquipmentDepot.com
CLEANING
Turn instrument off and disconnect gooseneck camera. Clean the instrument and
camera by using a damp cloth. Do not use abrasive cleaners or solvents.
STORAGE
Do not expose to high temperatures or humidity. After a period of storage in
extreme conditions exceeding the limits mentioned in the Specifi cations section,
allow the instrument to return to normal operating conditions before using it.
DISPOSAL / RECYCLE
Caution: This symbol indicates that equipment and its accessories
shall be subject to a separate collection and correct disposal.
Instruction
Manual
ET510
ENGLISH
• 2.4" COLOR LCD
• BRIGHT LED WORKLIGHT
• IP67 GOOSENECK CAMERA
• SCREEN MIRROR
• AUTO POWER OFF
®
BATTERY MAINTENANCE
Please contact Klein Tools customer service at 1-800-553-4676 to make
arrangements for battery replacement.
E 510-139730AR -English indd 1-4 5/29/12 4 01 PM
Rev. 04/12 B
© 2012.
139730
For Professionals...Since 1857
ENGLISH
ET510 Borescope
Instruction Manual
GENERAL SPECIFICATIONS
The Klein Tools ET510 Borescope is an extendable video camera used
to view inaccessible areas. It features a durable camera snake with an
adjustable intensity LED worklight, a 2.4" LCD screen, auto power off, and
screen mirroring.
• Dimensions: 6.53" x 2.84" x 1.55" (16.59 x 7.22 x 3.95 cm)
• Weight (Main Unit): 8.08 oz. (229.3 grams)
• Weight (Gooseneck Camera): 1.73 oz. (49.0 grams)
• Operating Altitude: 2000 meters
• Operating Temperature: 0°C /32°F to 50°C / 122°F
• Storage Temperature: -20°C/ -4°F to 60°C / 140°F
•Relative Humidity: 85%
• Environmental Protection (Gooseneck Camera): IP67 (dust proof,
water immersible up to 1 meter for up to 30 minutes)
•
ertifications: CE, WEEE
C
• Screen Resolution: 480 x 234px
• Color Depth: 24 bits
ixed Focus Distance: 1.97"~5.90" (5~15cm)
• F
•
Camera Diameter: 0.67" (17mm)
• Gooseneck Length: 3.28' (1m)
• Battery Life (Typical): 3 hours continuous operation (LEDs off)
WARNINGS
To ensure safe operation and service of the Video Borescope, follow these
instructions. Failure to observe these warnings can result in severe injury
or death.
• The Borescope and gooseneck camera are NOT insulated. Avoid
probing areas where energized conductive elements may be present.
Shut off power to the nearby work areas before starting work.
• Avoid probing areas where chemicals may be present.
• Do not probe moving machinery that could catch the Borescope and
cause harm to the operator and the Borescope.
• The Borescope is not intended for use on people or animals.
• Do not use the Borescope near sources of heat.
• Keep steady footing at all times, following ladder safety procedures
when necessary.
• Do not use if the Borescope casing is cracked or broken in any way.
WARNING SYMBOLS:
Always wear approved eye protection.
PACKAGE CONTENTS
a. Main Unit
b. Gooseneck Camera 17mm
c. Mirror Camera Attachment
d. Hook Camera Attachment
e.
f.
g.
Camera Attachment
Magnet
USB Power
USB Data/
Adapter/Charger
Charger Cable
a
e
c
d
FEATURE LAYOUT
1. LCD Screen: 2.4" TFT LCD screen.
2. Power Button: Press and release to turn the instrument on and off.
3. Worklight Up Button: Increases the brightness of the camera-
6
1
b
3
5
2
mounted LEDs up to 100. Press and hold to change quickly.
4. Worklight Down Button: Decreases the brightness of the camera-
mounted LEDs down to 0 (off). Press and hold to change quickly.
5. Mirror/
6. Camera Input Socket: Screw into place once the camera output plug
7.
8. Camera Head: Contains the CMOS sensor and LEDs. The arrow on
9. Gooseneck: Rated to IP67 to withstand all ingress of dust and
10. Camera Output: Attaches to borescope body when the notch is
Auto Power Off Button: Short press mirrors the display over
the x-axis. Long press enables auto power off mode. Short presses
in auto power off mode change auto power off time (off, 5 minutes,
10 minutes).
is inserted.
Charging Port: Attach the borescope to a computer via USB
USB
to charge battery. Attach to included 5V adapter to charge via a
standard power outlet.
top indicates the camera is right-side up.
submersion in water up to 1 meter. Caution: bending the gooseneck
to 90 degrees or greater can permanently damage it.
oriented correctly.
FEATURE LAYOUT
4
f
g
7
10
Do NOT use on energized circuits.
8
Do NOT probe moving machinery.
9
E 510-139730AR -English indd 5-8 5/29/12 4 02 PM
