Klein Tools Klein Tools CL600 Manual
ENGLISH
600A AC Auto-Ranging
Digital Clamp Meter
1000V
600A
60M
SELECT:
Instructions
Packaging
INSTRUCTION MANUAL
True RMS
Measurement
Technology
• NON-CONTACT
VOLTAGE TESTER
• AUTO-RANGING
• DATA HOLD
• RANGE HOLD
• AUDIBLE
CONTINUITY
• DIODE TEST
Ω
CL600
ENGLISH
GENERAL SPECIFICATIONS
Klein Tools CL600 is an automatically ranging true root mean square
(TRMS) digital clamp-meter that measures AC current via the clamp,
and measures AC/DC voltage, resistance, continuity, and tests diodes
via test-leads.
• Operating Altitude: 6562 ft. (2000m)
• Relative Humidity: <80% non-condensing
• Operating Temp: 32° to 104°F (0° to 40°C)
• Storage Temp: 14° to 140°F (-10° to 60°C)
• Accuracy: Values stated at 65° to 83°F (18° to 28°C)
• Temp Coef cient: 0.1 x (Quoted Accuracy) per °C above
28°C or below 18°C, corrections are required when ambient
working temp is outside of Accuracy Temp range
• Dimensions: 9.09" x 3.82" x 1.54" (231 x 97 x 39 mm)
• Weight: 11.8 oz. (335 g) including batteries
• Calibration: Accurate for one year
• Standards: Conforms to: UL STD 61010-1, 61010-2-032,
Certified to: CSA STD C22.2 # 61010-1,
• Pollution degree: 2
•
• Drop Protection: 6.6 ft. (2m)
• Safety Rating: CAT IV 600V, CAT III 1000V, Class 2,
61010-2-033.
Accuracy: ± (% of reading + # of least significant digits)
Double insulation
61010-2-032, 61010-2-033.
IEC EN 61010-1, 61010-2-032,
61010-2-033, 61326-1.
CAT III: Measurement category III is applicable to test and
measuring circuits connected to the distribution part of the
building’s low-voltage MAINS installation.
CAT IV: Measurement category IV is applicable to test and
measuring circuits connected at the source of the building’s
low-voltage MAINS installation.
• Electromagnetic Environment: IEC EN 61326-1. This
equipment meets requirements for use in basic and controlled
electromagnetic environments like residential properties,
business premises, and light-industrial locations.
Test Equipment Depot - 800.517.8431
99 Washington Street Melrose, MA 02176
TestEquipmentDepot.com
ELECTRICAL SPECIFICATIONS
Function Range Resolution Accuracy (50/60 Hz)
6.000V 1mV ±(1.5% + 5 digits)
AC Voltage
(V AC)
DC Voltage
(V DC)
Input Impedance: 10MΩ
Frequency Range: 50 to 400Hz
Maximum Input: 1000V AC RMS or 1000V DC
60.00V 10mV
600.0V 100mV
1000V 1V ±(1.5% + 5 digits)
600mV 0.1mV ±(1.0% + 8 digits)
6.000V 1mV
600.0V 100mV
1000V 1V ±(1.2% + 3 digits)
±(1.2% + 5 digits)
±(1.0% + 3 digits)60.00V 10mV
AC Current
(A AC)
Frequency Range: 50 to 60Hz
Function Range Resolution Accuracy
Resistance
Maximum Input: 600V AC RMS or 600V DC
60.00A 10mA ±(2.0% + 8 digits)
600.0A 100mA ±(2.0% + 5 digits)
600.0Ω 0.1Ω
6.000KΩ 1Ω
60.00kΩ 10Ω
600.0kΩ 100Ω
6.000MΩ 1kΩ
60.00MΩ 10kΩ ±(2.0% + 10 digits)
±(1.5% + 5 digits)
OTHER MEASUREMENT APPLICATIONS
Maximum Input: 600V AC RMS or 600V DC
• Diode Test: Max. 1.5mA, open circuit voltage ~3.0V DC
• Continuity Check: Audible signal <50Ω, current <0.35mA
• Sampling Frequency: 3 samples per second
• Auto Power off: After ~30 minutes of inactivity.
• Overload:
"OL" indicated on display, overload protection
1000V in Voltage setting, 600V RMS in all other settings
• Polarity: "-" on display indicates negative polarity
• Display: 3-5/6 digit, 6000 Count LCD
3
ENGLISH
WARNINGS
To ensure safe operation and service of the meter, follow these
instructions. Failure to observe these warnings can result in
severe injury or death.
• Before each use verify meter operation by measuring a known
voltage or current.
• Never use the meter on a circuit with voltages that exceed the
category based rating of this meter.
• Do not use the meter during electrical storms or in wet weather.
• Do not use the meter or test leads if they appear to be damaged.
• Use only with CAT IV rated test leads.
• Ensure meter leads are fully seated, and keep fingers away from
the metal probe contacts when making measurements.
• Do not open the meter to replace batteries while the probes are
connected.
• Use caution when working with voltages above 25V AC RMS or
60V DC. Such voltages pose a shock hazard.
• To avoid false readings that can lead to electrical shock, replace
batteries when a low battery indicator appears.
• Do not attempt to measure resistance or continuity on a live circuit.
• Always adhere to local and national safety codes. Use personal
protective equipment to prevent shock and arc blast injury
where hazardous live conductors are exposed.
SYMBOLS ON METER
AC DC
Resistance (in Ohms) Audible Continuity
Double Insulated Class II Ground
Diode A Amperage (Amps)
V Voltage (Volts)
Warning or Caution
To ensure safe operation and service of this meter, follow all
warnings and instructions detailed in this manual.
Risk of Electrical Shock
Improper use of this meter can lead to risk of electrical shock. Follow
all warnings and instructions detailed in this manual.
Risk of Electrical Shock
Application around and removal from UNINSULATED HAZARDOUS
LIVE conductors is permitted.
SYMBOLS ON LCD
AC Measurement DC Measurement
Negative Reading Data Hold
Auto Ranging MAX Maximum Value Hold
MIN Minimum Value Hold Low Battery
Auto Power Off Audible Continuity
k
kilo (value x 103)
m
mili (value x 10-3) Ohms
V
Volts
4
M
Mega (value x 106)
A
Amps
FEATURE DETAILS
14
3
11
6
10
12
9
1
4
NOTE: There are no user-serviceable parts inside meter.
13
2
7
8
5

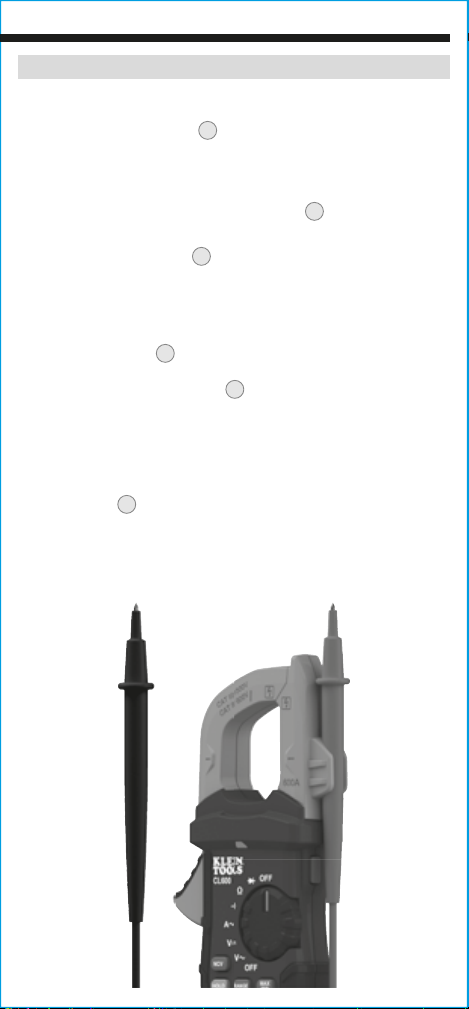

6000 count LCD display
1.
Function selector switch
2.
Clamp
3.
"COM" jack
4.
"VΩ" jack
5.
Data Hold / Backlight button
6.
"RANGE" button
7.
"MAX/MIN" button
8.
Data Hold / Backlight button #2
9.
Clamp trigger (press to open clamp)
10.
Arrow markings
11.
N
on-Contact Voltage Testing Button
12.
Test lead holder for test probe
13.
Non-Contact Voltage Testing Sensor
14.
5
