ENGLISH

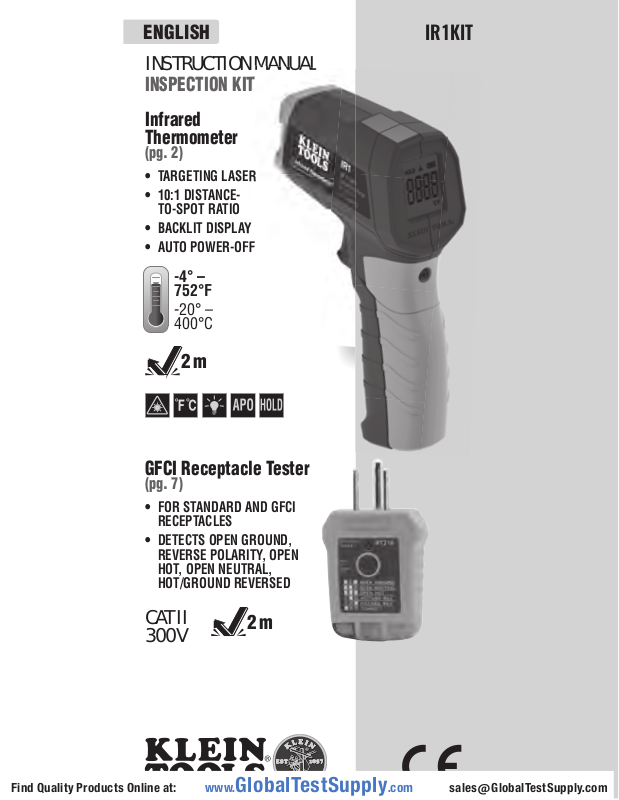

INSTRUCTION MANUAL
INSPECTION KIT
Infrared Thermometer
(pg. 2)
• TARGETING LASER
• 10:1 DISTANCE­TO-SPOT RATIO
• BACKLIT DISPLAY
• AUTO POWER-OFF
-4° – 752°F
-20° – 400°C
IR1KIT
2m
GFCI Receptacle Tester
(pg. 7)
• FOR STANDARD AND GFCI RECEPTACLES
• DETECTS OPEN GROUND, REVERSE POLARITY HOT, OPEN NEUTRAL, HOT/GROUND REVERSED
CAT II
, OPEN
2m
300V
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
ENGLISH
GENERAL SPECIFICATIONS - IR1
Klein Tools IR1 is an entry-level infrared thermometer with targeting laser. It offers a wide measurement range, a 10:1 distance–to-spot ratio, a targeting laser, and user-selectable from Fahrenheit to Celsius temperature scales.
Environment: Indoor or outdoor
• Operating Altitude: 6562 ft. (2000 m) Relative Humidity: <85% non-condensing
• Operating Temp: Storage Temp:
• Measurement Range: -4
• Units: Settable to °F or °C
• Emissivity: 0.95 fixed
32° to 122°F (0° to 50°C)
-4° to 140°F (-20° to 60°C)
° to 752°F (-20° to 400°C)
• Optical Resolution (Distance-to-spot): 10:1 Dimensions: 6" x 4.1" x 1.7" (152 x 104 x 43 mm)
• Weight: Battery T
• Battery Life:
7.4 oz. (210 g) including battery
ype: 1 x 9V battery
(Estimates assume 9V Zinc-Carbon Battery)
5 hours continuous use w/laser and backlight on.
Display: Backlit LCD with white backlight
• Display Resolution: 0.1°F (0.1° C) Laser: FDA and IEC Class 2
• Wavelength: Max Power: 1mW
630 – 670 nm
• Beam Divergence: 1.5mrad
• Standards: Certified to IEC EN 61326-1:2013, EN 61326-2-3:2013,
IEC EN 60825-1:2014 Complies with 21 CFR PAR
T 1040.10 and 1040.11
except for deviation pursuant to Laser notice No.50,dated June 24, 2007
• Pollution degree: 2 Drop Protection: 6.6 ft. (2m)
Specifications subject to change.
MEASUREMENT SPECIFICATIONS
• Response Time: <500ms
• Data hold: Yes
Spectral Response: 8000-14000nm
≥32°F (≥0°C) ±4°F (±2°C) or ±2%, whichever is greater
°F
(<0°C)
<32
• Repeatability: ±1.0% of reading or ±2°F(±1°C)
• Temperature Correction Coefcient:
of reading (whichever is greater) when ambient temperature is above or below 70 – 77°F (21 – 25°C).
Specifications subject to change.
Find Quality Products Online at: sales@GlobalTestSupply.com
2
±(4°F + 0.1°F per degree below 32°F) ±(2.0°C + 0.1°C per degree below 0°C)
(whichever is greater).
±0.1°F per °F (±0.1°C per °C), or ±0.2%
www.GlobalTestSupply.com
WARNINGS
To ensure safe operation and service of the tester, follow these instructions. Failure to observe these warnings can result in severe injury or death. Retain these instructions for future reference.
WARNING: LASER RADIATION. DO NOT STARE INTO BEAM. Class II Laser.
• Exposing eyes to laser radiation can result in severe and permanent eye injuries. NEVER look directly into the laser beam emitted by this instrument.
DO NOT
• DO NOT
use the instrument if the case is damaged in any way.
modify the instrument in any way, as to do so could result in emission of hazardous laser radiation than could result in severe and permanent eye injuries.
DO NOT
use optical equipment such as lenses, prisms, optical scopes, etc. to transmit, retransmit, or view the laser beam as this could result in severe and permanent eye injuries.
This product should not be used in any location that could result in
• somebody looking at or having their eyes inadvertently irradiated by the laser beam as this could result in severe and permanent eye injuries.
This product should not be used by untrained operators or operators who
• have not read and fully understood the instructions.
Thermometer is NOT intended for use on people or animals.
• DO NOT
remove warning labels from this instrument as this could result in serious personal injury and increases the risk of exposure to hazardous laser irradiation.
Discontinue using the instrument immediately if it is acting abnormally
• Be cautious of infrared temperature measurements of reflective materials
.
as the instrument may indicate that these surfaces are cooler than their actual temperature (see Emissivity section).
There are no user ser
viceable parts in this instrument.
SAFE PRACTICES
This meter is designed for professionals who understand the hazards associated with their trade. While this meter causes no foreseeable dangers beyond its targeting laser, the objects being measured, as well as the environment in which they reside, can be hazardous. Common safety practices to follow when operating near temperature critical environments are:
• Before using this meter, determine if an area is safe, verify correct operation by measuring a known temperature value of a comparable object.
Warning label on side of thermometer
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
3
ENGLISH
FEATURE DETAILS
5
1
Front
4
2
6
LCD Display
1.
Trigger
2.
Battery Compartment Door
3.
IR Temperature Sensor
4.
Targeting Laser
5.
°F/°C Switch (Behind
6.
Battery Compartment Door)
NOTE: There are no user-serviceable parts inside meter.
3
SYMBOLS ON LCD
B DC
A
Temperature Reading
A.
Targeting laser active
B.
Data Hold
C.
Battery level indicator
D.
Active temperature scale
E.
E
Find Quality Products Online at: sales@GlobalTestSupply.com
4
www.GlobalTestSupply.com
OPERATING INSTRUCTIONS
Ø0
.5"
Ø
1"
Ø
2"
Ø
4"
40"
(1016 mm)
TEMPERATURE MEASUREMENT
To measure temperature with the IR1, aim the meter at the object to be measured, pull the trigger
and hold it depressed for at least 2
2
seconds. Releasing the trigger initiates Data Hold, "HOLD" will show on the display, and the measurement will be held on the display. If the display shows "OL" or "–OL" following a measurement, this indicates that the surface temperature of the object being measured is either above or below the measurement range of the meter.
TARGETING
The IR1 features a laser
to assist in targeting the measurement
5
area. Measurement areas located far away from the meter will be larger than those close to the meter.
The meter is configured with 10:1 optical resolution (distance-to-spot ratio). The distance-to-spot ratio defines the size of the measurement area relative to the distance between the measurement location and the IR sensor
. Typical diameters of the measurement area as a
4
function of the distance between the meter and the target area are depicted below for 10:1 optical systems (FIG. 1).
FIG. 1
5"
(127 mm)
10"
(254 mm)
20"
(508 mm)
(13 mm)
(25 mm)
(51 mm)
(102 mm)
Distance-to-Spot
NOTE: Increased distance from target may affect reading accuracy.
TARGETING LASER
The laser is on when the trigger 2 is held, and is off when released. When on, the laser icon "
SELECTING A TEMPERATURE SCALE
The default scale is Fahrenheit (°F). To change, l the Battery Compartment Door change to Celsius (°C). Replace the Battery Compartment Door tighten screw to secure, taking care not to over-tighten.
Find Quality Products Online at: sales@GlobalTestSupply.com
" will be visible on the display.
oosen the screw in
and push the °F/°C Switch6 to
3
www.GlobalTestSupply.com
3
and
5
ENGLISH
MAINTENANCE
BATTERY REPLACEMENT
When indicator is displayed on LCD, battery must be replaced.
1. Loosen the screw in the Battery Compartment Door 3 to open.
Remove exhausted 9V battery and dispose of appropriately.
2.
Replace 9V battery and return Battery Compartment Door
3.
3
and tighten screw to secure, taking care not to over-tighten.
CLEANING
Be sure meter is turned off and wipe with a clean, dry lint-free cloth.
Do not use abrasive cleaners or solvents.
Take care to keep the sensor lens clean at all times. If required, loose debris may be removed from lens using clean compressed air. Lens may also be cleaned using a soft cloth or cotton swab with water or rubbing alcohol
only
. Lens must be allowed to
completely dry prior to use.
STORAGE
Remove the battery when meter is not in use for a prolonged period of time. Do not expose to high temperatures or humidity. After a period of storage in extreme conditions exceeding the limits mentioned in the General Specifications section, allow the meter to return to normal operating conditions before using.
DISPOSAL / RECYCLE
Do not place equipment and its accessories in the trash. Items must be properly disposed of in accordance with local regulations. Please see www.epa.gov or www.erecycle.org for additional information.
Find Quality Products Online at: sales@GlobalTestSupply.com
6
www.GlobalTestSupply.com
GENERAL SPECIFICATIONS - RT210
Relative Humidity: < 85% non-condensing Operating Temperature: 32° to 140°F (0° to 40°C) Storage Temperature: 14° to 122°F (-10°C to 50°C) Operating Altitude: Up to 6562 ft. (2000 m) Weight: 1.2 oz. (33 g) Nominal Voltage: 110 - 125V AC at 50/60Hz in 3-wire outlet Mains Supply Voltage Fluctuations: ±10% Pollution Degree: 2 Nominal Power: 0.3W Standards:
5001748
Conforms To UL Std 61010-1, 61010-2-030,1436
Certified To CSA Std C22.2 #61010-1, 61010-2-030,160
Drop Protection: 6.6 ft. (2 m) Safety Rating: CAT II 300V
WARNINGS
Read, understand, and follow all warnings and instructions before operating testers. Failure to follow instructions could result in death or serious injury. Before each use, verify tester operation by testing on a known live and correctly wired receptacle. Do not use if the tester appears damaged in any way. The tester is intended for indoor use only. Other equipment or devices attached to the circuit being tested could interfere with the tester, clear the circuit before testing. This tester only detects common wiring problems. Always consult a qualified electrician to resolve wiring problems.
FIG. 2
INDICATOR
Indicator Illuminated
Indicator Not Illuminated
FAULT EXPLANATION
Open Ground Ground contact is not connected
Open Neutral Neutral contact is not connected
Open Hot Hot contact is not connected Hot/Ground
Reversed Hot/Neutral
Reversed
Hot and ground connections are reversed
Hot and neutral connections are reversed
Correct Receptacle is wired correctly
Hot (Black)Neutral (White)
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Ground (Green)
7
ENGLISH
OPERATING INSTRUCTIONS
WIRING CONFIGURATION TESTING Conditions indicated: wiring correct, open ground, reverse polarity,
open hot, open neutral and hot/ground reversed. Conditions NOT indicated: quality of ground, multiple hot wires,
combinations of defects, reversal of grounded and grounding conductors. All appliances or equipment on the circuit being tested should be
unplugged to help reduce the possibility of erroneous readings.
STANDARD RECEPTACLES
1. V
erify tester operation by testing on a known live and correctly
wired receptacle.
2.
Plug tester into receptacle.
3. Compare the illuminated lights on the tester to the key code printed
on the tester.
4. If the tester indicates that the receptacle is not wired correctly
,
consult a qualified electrician.
GFCI RECEPT
ACLES
1. Check the GFCI receptacle user manual for information on how the
specific receptacle operates prior to using this tester.
2. Insert the tester into
the receptacle under test to check for correct
wiring (See FIG. 2). Lights on the tester should illuminate.
3. Press the "TEST" button on the GFCI receptacle.
Did the GFCI trip
and the lights on the tester go dark?
Reset the GFCI by pressing the reset button. Proceed to step 4.
YES: NO:
The GFCI is not operating properly or the receptacle is miswired.
Consult a qualified electrician.
4. Press and hold the test button on the tester for 7 seconds.
Did the
GFCI trip and the lights on the tester go dark?
YES:
Reset the GFCI by pressing the reset button. The GFCI
appears to be operating properly.
NO:
The GFCI is not operating properly or the receptacle is miswired.
Consult a qualified electrician.
CLEANING
Be sure meter is turned off and wipe with a clean, dry lint-free cloth.
Do not use abrasive cleaners or solvents.
DISPOSAL / RECYCLE
Do not place equipment and its accessories in the trash. Items must be properly disposed of in accordance with local regulations. Please see www.epa.gov or www.erecycle.org for additional information.
