Klein Tools HVNCVT-2 User manual

ENGLISH

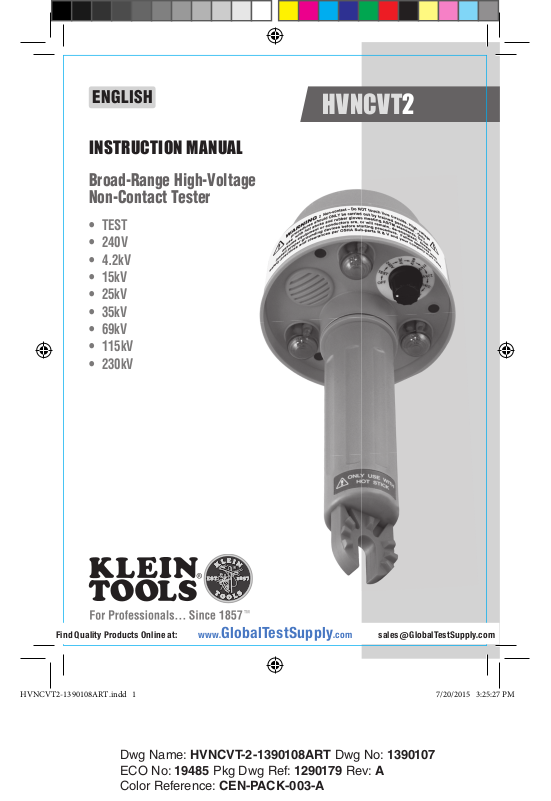

INSTRUCTION MANUAL

Broad-Range High-Voltage Non-Contact Tester

• TEST

• 240V

• 4.2kV

• 15kV

• 25kV

• 35kV

HVNCVT2

• 69kV

• 115kV

• 230kV

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

ENGLISH

GENERAL SPECIFICATIONS

The Broad-Range High-Voltage Non-Contact Tester (HVNCVT2) is an instrument
for verifying the live or de-energized status of conductors and other exposed
electrical equipment. The tester warns against dangerous voltage in several different
ranges without contacting the energized conductor. Only use with hot sticks and
rubber gloves meeting industry standards. Verify the rotary switch setting before
measuring voltage, to ensure it is on the correct setting for your application.

Always follow approved work safety practices and clearances per OSHA Sub-parts
R & V and all company work rules. For Minimum Approach Distances (MAD), see
OSHA Tables R-6 and R-7 (pages 8 & 9) in this manual.

•

Operating Temperature:

•

Storage Temperature:

•

Dimensions: T

ester: 10" x 4.25" x 4.25" (254 x 108 x 108 mm)

14° to 122°F (-10° to 50°C) @ 85% relative humidity

-4° to 140°F (-20° to 60°C) @ 85% relative humidity

Case: 13.5" x 8.75" x 4.75" (343 x 222 x 121 mm)

eight: 1.32 lbs. (600 g)

• W

•Power Source: Three 1.5V "C" cell batteries

Specifications subject to change.

SYMBOLS

Warning or Caution
Risk of Electrical Shock
Double Insulated

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

2

WARNINGS

To ensure safe operation and service of the tester, follow these instructions.
F

ailure to observe these warnings can result in severe injury or death.

• Use extreme caution when testing live electrical circuits due to risk of injury from
electrical shock.

Always use hot sticks and rubber gloves meeting industr

•
Follow approved work safety practices and clearances per OSHA Sub-parts

•

y standards.

R & V and your company work rules.
Always test on a known live cir

•
Do not exceed the limits marked on the instrument itself. Never test voltage

•

cuit to verify tester functionality prior to use.

more than 230kV AC RMS.
Never ground yourself when taking measurements. Do not touch exposed

•
circuit elements.

•

Obser

ve the proper safety precautions when working with voltage above 30V AC

RMS to avoid electrical shock hazard.
Do not assume equipment or conductors are, or will remain, de-energized.

•
Always install proper grounding devices before starting procedure.

Do not operate tester in an explosive atmosphere.

•

•

Do not expose tester to rain or moisture. This increases the risk of fire
or electric shock.

Do not rely on this tester for shielded wire or cable with concentric neutrals.

•
Do not let the unit make contact with live line voltage. Do not touch any exposed

•
wiring, connections or other energized parts of an electrical cir

3-phase feeder cables with conductors close to each other may self-cancel the

•
electric field and not be detected by the device. V

erify that the phase conductors

cuit.

are separated by at least 15" (381 mm) before testing for AC voltage.
Do not use in an area with mixed high voltages. In the presence of mixed

•
voltages, the tester may become unreliable.

Always ensure tester is directly under the conductor being tested. If other live

•
voltage is nearby

Find Quality Products Online at: [e-mail]

, tester may detect adjacent voltage.

www.GlobalTestSupply.com

3

ENGLISH

1

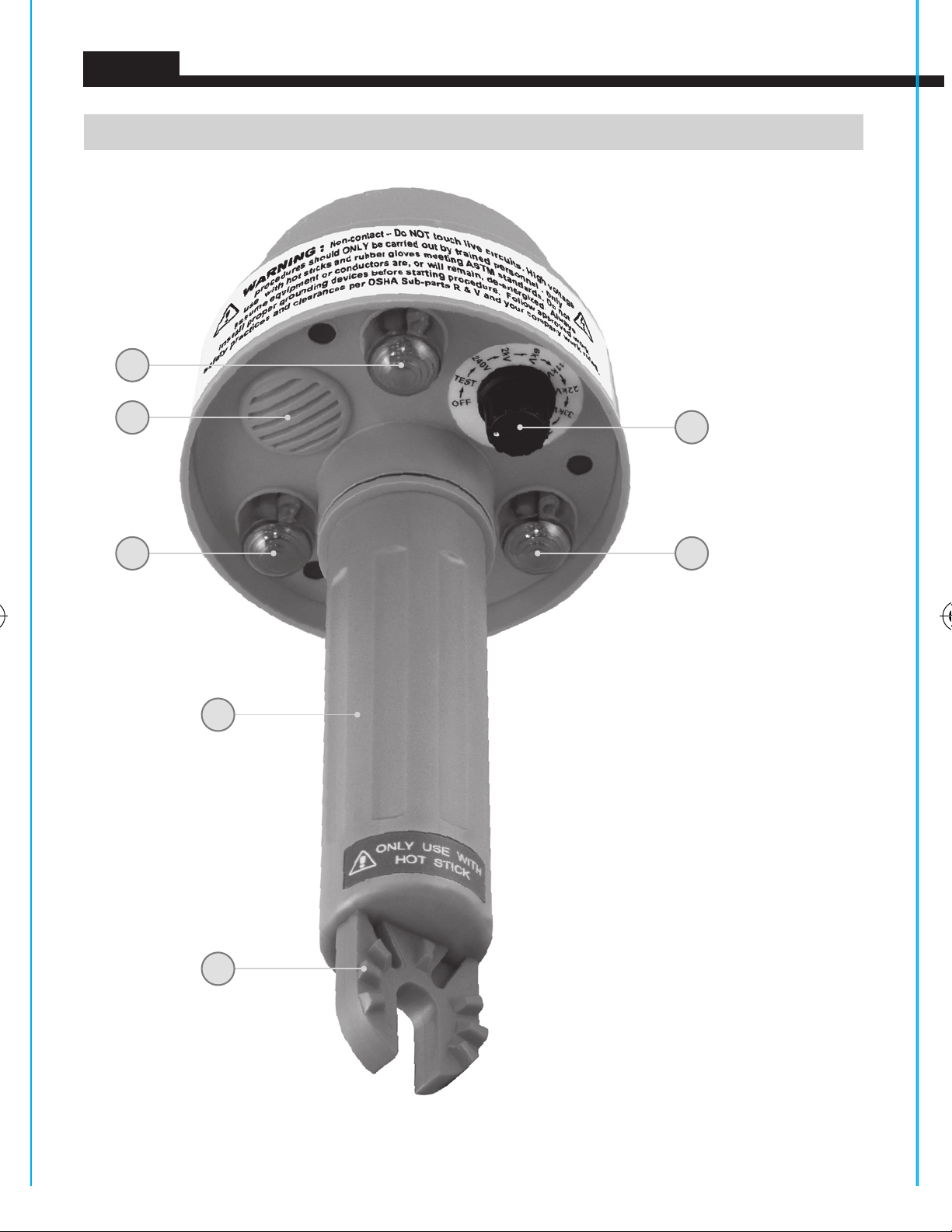

FEATURE DETAILS

2

5

1 1

Voltage indicator LEDs

1.

3

2. Buzzer

3.

Battery compartment

4. Hot stick connection point

5. Sensitivity selector:

• OFF

• TEST

• 240V

4

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

4

• 4.2kV

• 15kV

• 25kV

• 35kV

• 69kV

• 115kV

• 230kV

OPERATING INSTRUCTIONS

FOR USE BY TRAINED PERSONNEL ONLY

Anyone using this instrument should be knowledgeable and trained about the risks
involved with measuring medium and high voltage. They must also understand the
importance of taking safety precautions as well as testing the instrument before and
after using it to ensure that it is in good working condition.

EXAMPLES OF APPLICATIONS:

Non-contact detection of live AC voltage

•

Finding faults in cables

•

Checking and detecting live high voltage cables

•

•

T

racing live wires

Checking grounding equipment

•

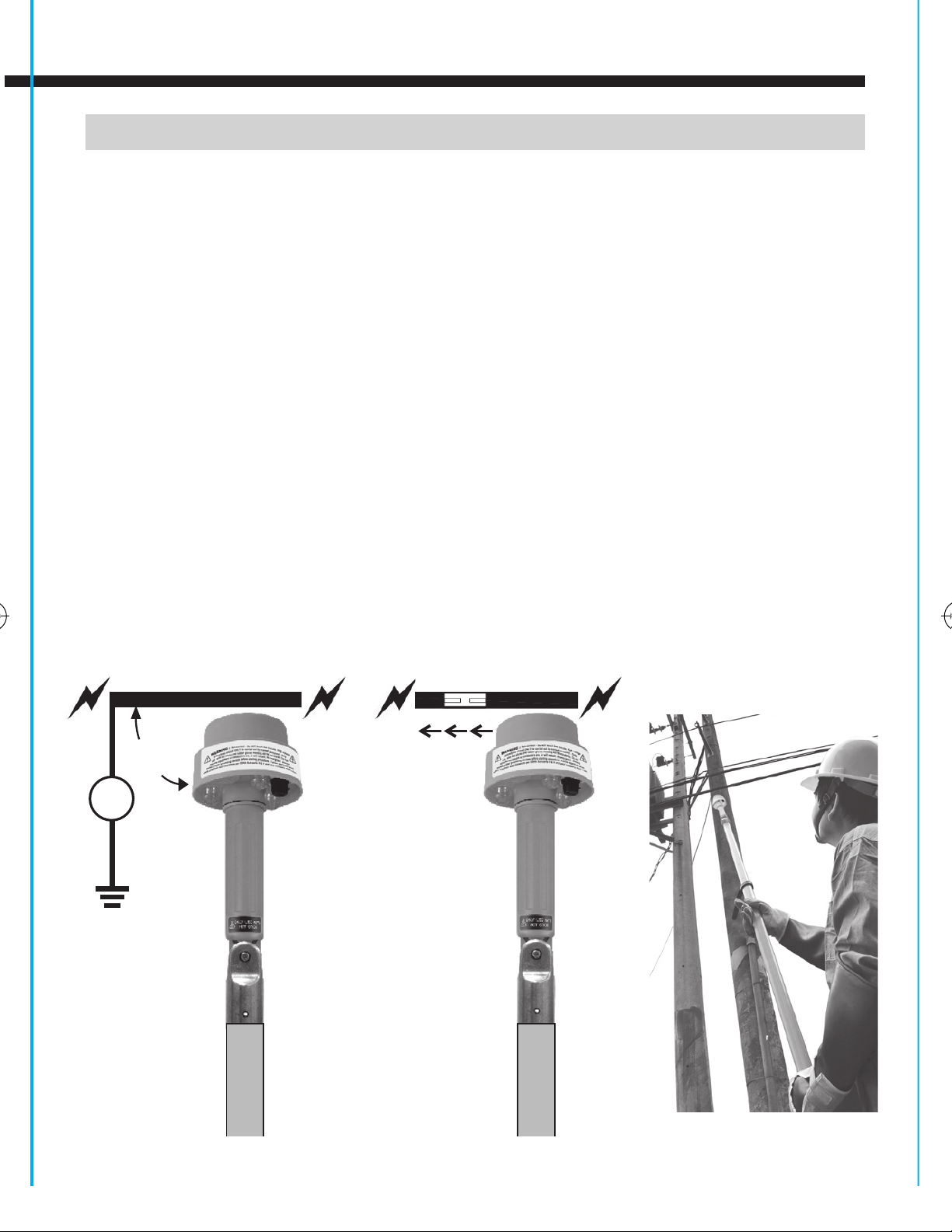

Fig. 1: Ideal detection angle Fig. 2: Finding a cable fault Fig. 3: Voltage detection

for overhead lines

90°

VG

HOT STICK

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

5

HOT STICK

ENGLISH

OPERATING INSTRUCTIONS

Prior to use, always inspect the tester for visible signs of damage. If there is
any sign of damage, or if the tester does not operate correctly, discontinue use.

Always test on a known live circuit to verify tester functionality. The tester should be used
as an indication only.

Tester should be kept clean and dry. If it is not, wipe with a clean, dry lint-free cloth.

TEST FUNCTION

Turn the sensitivity selector knob 5
unit. Look for a steady red light from all 3 LEDs

to TEST in order to perform a self-test on the

and listen for a steady high-pitched

1

sound. This self-test function confirms battery sufficiency, system integrity, and
operation/active mode. Always test on known live circuit to verify tester functionality
prior to use.

If the 3 red LEDs do not glow and the beep sound is not present, replace

batteries.

240V AC (Secondary Test)

Perform a second test function prior to use by turning the sensitivity selector knob

5

to 240V and placing the dome near a low voltage live conductor. If a low voltage live
conductor is not available, rub the dome against an item of clothing to generate static.
Look for a blinking red light from all 3 LEDs

and listen for a beeping sound. See

1

Fig. 1 on page 5 for ideal detection angle. Always test on known live circuit to verify
tester functionality prior to use.

If the 3 red LEDs do not glow and the beep sound is

not present, replace batteries.

OPERATION

Before using the unit, a hot stick must be attached. Only use with hot sticks and rubber
gloves meeting industry standards. Always follow approved work safety practices and
clearances per OSHA Sub-parts R & V and all company work rules.

Turn the sensitivity selector knob 5 to the appropriate setting. It is recommended to
start with a lower test setting than the actual working voltage, then gradually increase
the setting until the voltage is detected.

Gradually move the tester towards the live conductor until the warning signal is triggered.
See Fig. 1 on page 5 for ideal detection angle. Always maintain the minimum approach
distances listed in OSHA Tables R-6 and R-7 on pages 8 & 9 in this manual.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

6

OPERATING INSTRUCTIONS

FINDING FAULTS IN CABLE

The tester may be used for finding faults in some flexible cables. Turn the

5

sensitivity selector knob

to the appropriate setting for the energized cable
being detected. Move the detector along (but not touching) the cable, listening for
rapid beeping or steady sound and looking for the rapidly blinking or steady red

1

light from all 3 LEDs

. When the fault is reached, the unit will no longer beep
or blink. See Fig. 2 on page 5. Always maintain the minimum approach distances
listed in OSHA Tables R-6 and R-7 on pages 8 & 9 in this manual.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

7

ENGLISH

OPERATING INSTRUCTIONS

Always follow approved work safety practices and clearances per OSHA Sub-parts
R & V and all company work rules. For Minimum Approach Distances (MAD), see
OSHA Tables R-6 and R-7 below.

TABLE R-6 – ALTERNATIVE MINIMUM APPROACH DISTANCES

F

OR VOLTAGES OF 72.5 kV AND LESS

Distance

Nominal voltage

(kV)

hase-to-ground exposurePhase-to-phase exposure

P

phase-to-phase

ft. m ft. m

0.050 to 0.300

0.301 to 0.750

2

2

Avoid Contact Avoid Contact Avoid Contact Avoid Contact

1.09 0.33 1.09 0.33

0.751 to 5.0 2.07 0.63 2.07 0.63

1

5.1 to 15.0 2.14 0.65 2.24 0.68

15.1 to 36.0 2.53 0.77 2.92 0.89

36.1 to 46.0 2.76 0.84 3.22 0.98

46.1 to 72.5 3.29 1.00 3.94 1.20

1

Employers may use the minimum approach distances in this table provided the worksite is
at an elevation of 3,000 feet (900 meters) or less. If employees will be working at elevations
greater than 3,000 feet (900 meters) above mean sea level, the employer shall determine
minimum approach distances by multiplying the distances in this table by the correction factor
in OSHA's Table R-5 Altitude Correction Factor, corresponding to the altitude of the work.

2

For single-phase systems, use voltage-to-ground.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

8

OPERATING INSTRUCTIONS

TABLE R-7-ALTERNATIVE MINIMUM APPROACH DISTANCES

OR VOLTAGES OF MORE THAN 72.5 kV

F

Distance

Nominal voltage

(kV)

P

hase-to-ground exposurePhase-to-phase exposure

phase-to-phase

ft. m ft. m

72.6 to 121.0 3.71 1.13 4.66 1.42

121.1 to 145.0 4.27 1.30 5.38 1.64

145.1 to 169.0 4.79 1.46 6.36 1.94

169.1 to 242.0 6.59 2.01 10.10 3.08

242.1 to 362.0 11.19 3.41 18.11 5.52

362.1 to 420.0 13.94 4.25 22.34 6.81

420.1 to 550.0 16.63 5.07 27.03 8.24

550.1 to 800.0 22.57 6.88 37.34 11.38

1 2 3

1

Employers may use the minimum approach distances in this table provided the worksite is
at an elevation of 3,000 feet (900 meters) or less. If employees will be working at elevations
greater than 3,000 feet (900 meters) above mean sea level, the employer shall determine
minimum approach distances by multiplying the distances in this table by the correction factor
in OSHA's Table R-5 Altitude Correction Factor, corresponding to the altitude of the work.

2

Employers may use the phase-to-phase minimum approach distances in this table provided
that no insulated tool spans the gap and no large conductive object is in the gap.

3

The clear live-line tool distance shall equal or exceed the values for the indicated voltage ranges.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

9

ENGLISH

OPERATING INSTRUCTIONS

PROTECTIVE CLOTHING AND PERSONAL PROTECTIVE EQUIPMENT (PPE)

TABLE 130.7 (C) (16) FROM NFPA 70E 2015

Note below that this new PPE category table no longer references a category 0.

Min.

APTV

PPE

Category*

Clothing

Rating Cal/

cm

2

Required

Garments

Required Protective

Equipment

Arc-rated

1

and

and

4

1

8

1

3

25

40

1

clothing

PPE

Arc-rated

clothing

2

PPE

Arc-rated

3

4

clothing
system

and PPE

Arc-rated

clothing
system

and PPE

Long-sleeve shirt and pants or
coverall. Flash suit hood or face

2

shield
hard hat liner (AN).

Long-sleeve shirt and pants or
coverall. Flash suit hood or face
shield
rainwear or hard hat liner (AN).

Long sleeve shirt (AR). Pants (AR).
Coverall (AR). Flash suit jacket
(AR). Flash suit pants (AR). Flash
suit hood. Gloves
rainwear or hard hat liner (AN).

Long sleeve shirt (AR). Pants (AR)
Coverall (AR). Flash suit jacket
(AR). Flash suit pants (AR). Flash
suit hood. Gloves
rainwear or hard hat liner (AN).

. Jacket, parka, rainwear or

2

and balaclava. Jacket, parka,

1

. Jacket, parka,

1

. Jacket, parka,

Hard hat.
safety goggles (SR). Hearing
protection (ear canal inserts).
Heavy duty leather gloves3.
Leather footwear (AN).

Hard hat.
safety goggles (SR). Hearing
protection (ear canal inserts).
Heavy duty leather gloves3.
Leather footwear (AN).

Hard hat.
safety goggles (SR). Hearing
protection (ear canal inserts).
Leather footwear (AN).

.

Hard hat.
safety goggles (SR). Hearing
protection (ear canal inserts).
Leather footwear (AN).

Safety glasses or

Safety glasses or

Safety glasses or

Safety glasses or

AN = as needed (optional) AR = as required SR = selection required

*

One of the 3 basic methods is used to determine an HRC for a job task.

1

Arc rating is defined in article 100 NFPA 70E 2015 Edition.

2

Face shields are to have wrap-around guarding to protect not only the face but also the
forehead, ears and neck, or alternatively, an arc-rated flash suit hood is required to be worn.

3

If rubber insulating gloves with leather protectors are used, additional leather or arc-rated
gloves are not required. The combination of rubber insulating gloves with leather protectors
satisfies the arc flash protection requirement.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

10

MAINTENANCE

BATTERY REPLACEMENT

1. Unscrew the tester handle (battery compartment) from the tester head.

Remove the 3 batteries.

2.

Replace with 3 new batteries (1.5V “C” type). Batteries should be placed in the

3.

handle with the negative (-) end down into the handle first, and the positive (+)
end upwards towards the head.

Screw the handle and head back together, ensuring that the black rubber O-ring

4.

is still in place, taking care not to damage the O-ring.

CLEANING

Be sure tester is turned off and wipe with a clean, dry lint-free cloth.

Do not

use abrasive cleaners or solvents.

STORAGE

If the tester is not to be used for periods of longer than 60 days, remove the
batteries and store separately from the tester.

DISPOSAL / RECYCLE

Do not place equipment and its accessories in the trash. Items must be
properly disposed of in accordance with local regulations.

Please see www.epa.gov or www.erecycle.org for additional information.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com
