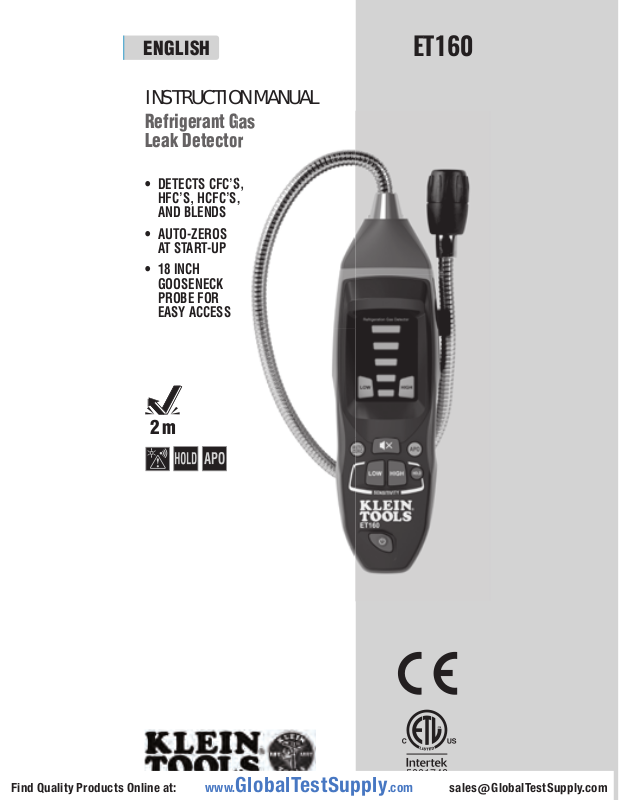

Klein Tools ET160 User manual

ENGLISH

INSTRUCTION MANUAL

• DETECTS CFC’S,
HFC’S, HCFC’S,
AND BLENDS

• AUTO-ZEROS
AT START-UP

• 18 INCH
GOOSENECK
PROBE FOR
EASY ACCESS

2m

5001748

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

ENGLISH

GENERAL SPECIFICATIONS

Klein Tools’ ET160 is an easy-to-use tester that provides audible and
visual alarms in the presence of CFC’s, HFC’s, HCFC’s and blends. Detect
as low as 100 ppm of common refrigerant gases.

• Audible Alert:

concentration

•

Visual Alert: 5× blue LED,

• Range*: 100 to 3,000 ppm

LOW sensitivity* (white light): 200 to 3,000 ppm
HIGH sensitivity* (yellow light): 100 to 1,000 ppm

•

Initial calibration: 50 seconds to zero calibration
Response time (after calibration): 3 seconds

•

• Sensor: Heated diode

•

Sensor Life expectancy: 5 years
Probe: 18" (457 mm) gooseneck

•

• Batteries: 4× AAA alkaline

•

Operating Altitude: 6562 ft. (2000 m)
Relative Humidity: <80% non-condensing

•

•

Operating Temp: 32° to 122°F (0° to 50°C)
Storage Temp: -4° to 122°F (-20° to 50°C)

•

• Dimensions: 8.11" × 2.72" × 1.75" (206 × 69 × 45 mm)

•

Weight: 15 oz. (425 g) including batteries
Tripod Mount: 1/4-20 UNC

•

• Drop Protection: 6.6 ft. (2m)

•

Standards: EN14624:2020

85 db ticking, modulation proportional to gas

illumination proportional to gas concentration

*Based on R-134A. Other gases or mixtures will have different values.
Specifications subject to change.

WARNINGS

To ensure safe operation and service of the tester, follow these
instructions. Failure to observe these warnings can result in severe
injury or death. Know the characteristics of the gas you are working
with and use proper precautions to avoid hazardous conditions.

• Read, understand, and follow all instructions to ensure safe operation.

• Always turn on the gas detector in an area known to be free of gases.

• Initial calibration should be per
refrigerant gases. Calibration in an area containing refrigerant gas will
result in incorrect calibration and lower than actual readings. This could
result in refrigerant gases not being detected.

• The refrigerant gas leak detector is
device (PPE).

• The refrigerant gas leak detector is NOT insulated. Avoid contact with areas
where energized conductive elements may be present. Shut off power to
the area before starting measurements.

• Do NOT probe moving machinery that could catch any part of the meter
and cause harm to the operator and the meter.

formed in an area known to be free of

NOT intended as a personal protection

• Always wear approved eye protection.

Find Quality Products Online at: [e-mail]

2

www.GlobalTestSupply.com

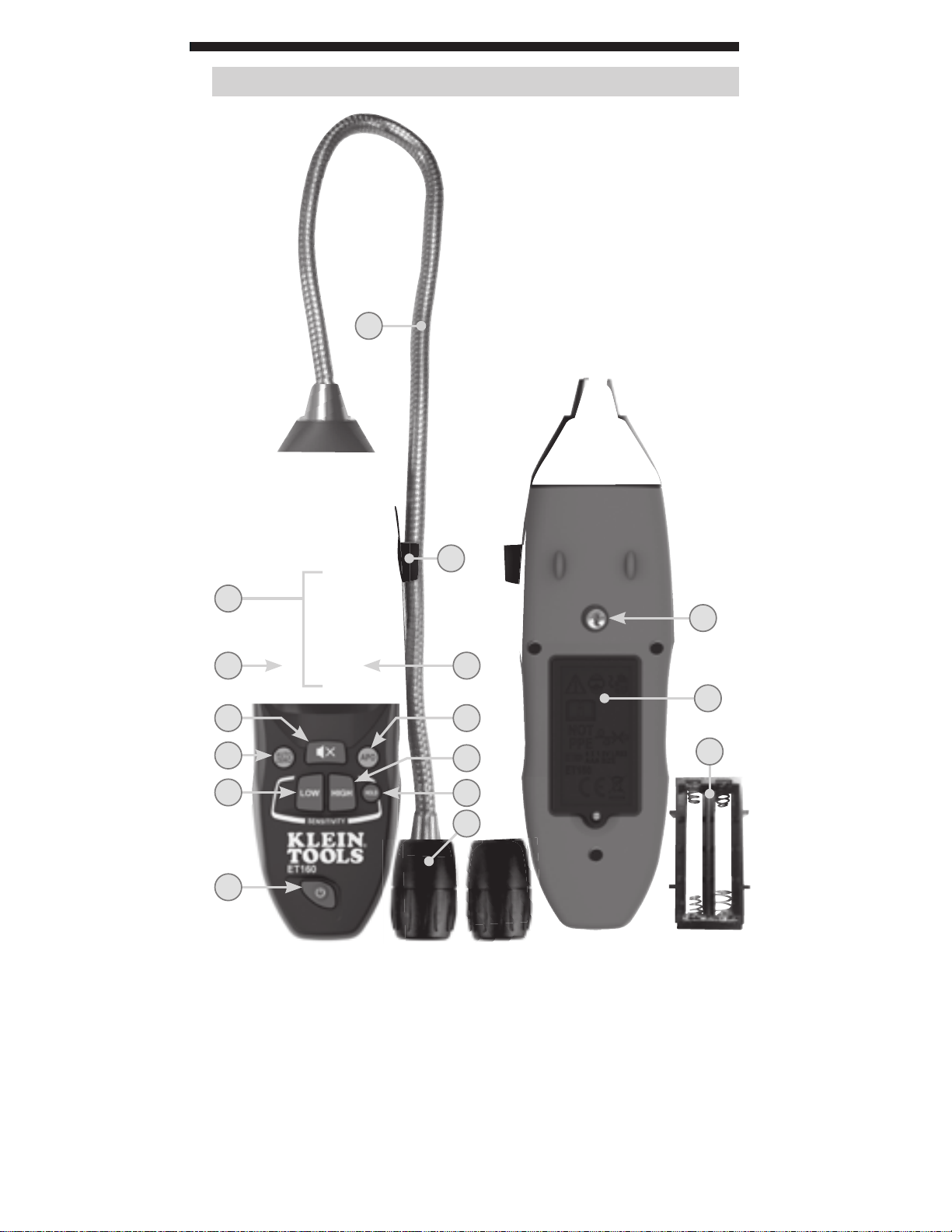

FEATURE DETAILS

Front of

Tester

Back of

Tester

1

2

4

5

8
7

10

13

Gooseneck

1.

Gooseneck Clip

2.

Sensor Head

3.

Indicator Lights

4.

LOW Sensitivity Light

5.

HIGH Sensitivity Light

6.

Auto-Zero Button

7.

Mute Button

8.

6

9

11
12

3

Auto Power-Off (APO) Button

9.

LOW Sensitivity Mode Button

10.

HIGH Sensitivity Mode Button

11.

HOLD Button

12.

Power Button

13.

1/4-20 UNC Tripod Mount

14.

Battery Door

15.

Battery Cartridge (inside battery compartment)

16.

14

15

16

NOTE: There are no user-serviceable parts inside tester.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

3

ENGLISH

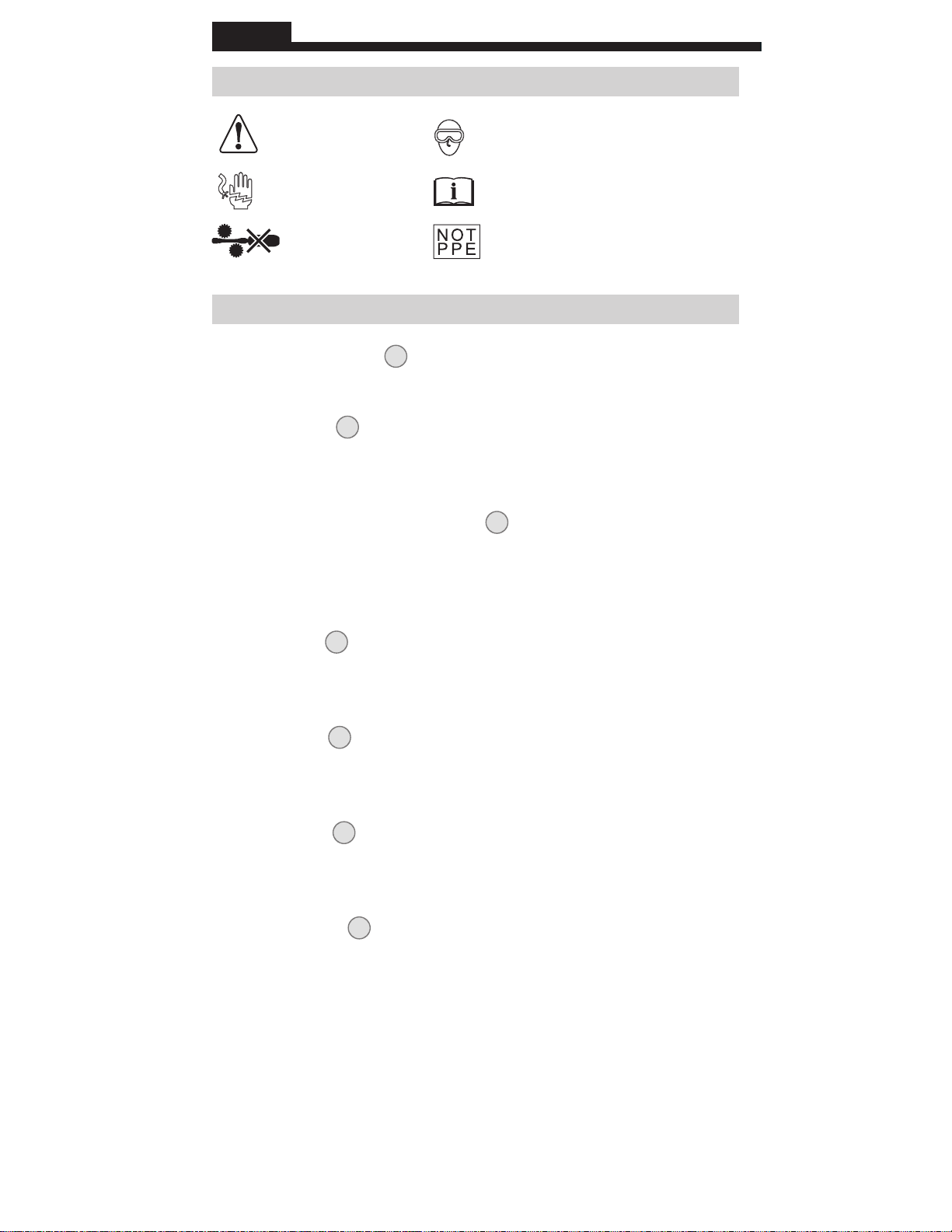

SYMBOLS ON METER

Warning

Risk of
Electric Shock

Do NOT probe
moving machinery

Wear approved eye protection

Read instructions

Not intended for use as Personal
Protective Equipment (PPE)

FUNCTION BUTTONS

AUTO-ZERO BUTTON

7

Press to set zero point calibration in a known clean environment.

MUTE BUTTON

8

Press to mute the audible alarm. Visual indicators will continue to
function as normal

AUTO POWER-OFF (APO) BUTTON

.

9

Press to enable or disable the Auto Power-Off feature. When enabled,
the button will illuminate blue, and the tester will automatically power
off after 10 minutes of inactivity.

LOW BUTTON

10

Press to enter Low Sensitivity mode (200 to 3,000 ppm). White light will
blink.

HIGH BUTTON

11

Press to enter High Sensitivity mode (100 to 1,000 ppm). Yellow light
will blink.

HOLD BUTTON

12

Press to lock the current measurement on the display. Press again to
return to taking active measurements.

POWER BUTTON

13

Press and hold for 3 seconds to turn tester on or off.

Find Quality Products Online at: [e-mail]

4

www.GlobalTestSupply.com

OPERATING INSTRUCTIONS

1. In an area where gas is known to be not present, press the

power button

13

for 3 seconds. The tester will beep and start a
50-second zero-calibration process while the first indicator light
(blue)

4

blinks. Once complete, all indicator lights

4 5 6

will blink for one second, then the HIGH indicator light 6 will
illuminate and continue to flash, indicating it is ready to take a
measurement.

2. Start measuring in the High sensitivity mode (100 to 1,000 ppm).
o view higher values (200 to 3,000 ppm), press the LOW button

T

10

to enter Low sensitivity mode.

3. Point the sensor

3

towards the area to test. If all blue indicator
lights are illuminated in High sensitivity mode, switch to Low
sensitivity mode by pressing the LOW button

10

.

NOTE: Changing from High to Low sensitivity mode may cause
some of the indicator lights to turn off.

4. As you get closer to the source of a leak, the concentration levels
detected will increase, as indicated by increasing audible/visual
alarms. Move the sensor head in the direction of increasing
audible/visual alerts to the source of the leak.

WARNING: High concentrations of refrigerant gases can cause
asphyxia and other hazards that could cause serious personal
injury or death. Know the characteristics of the gas you are
working with and use proper precautions to avoid hazardous
conditions.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

5

ENGLISH

MAINTENANCE

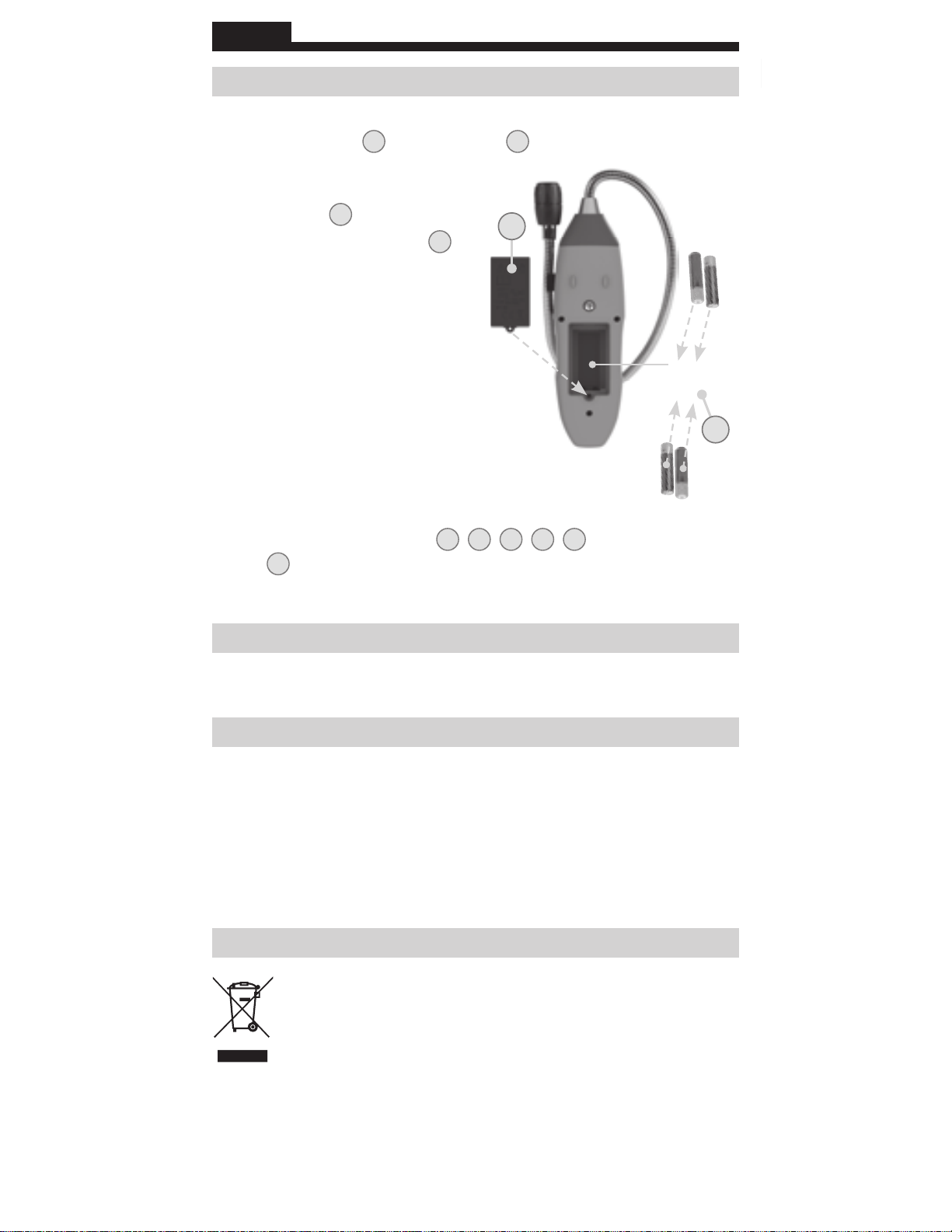

BATTERY REPLACEMENT

When the LOW alert 5 and HIGH alert 6lights

are illuminated at the

same time, the batteries must be replaced.

1. Loosen screw and remove

battery door15.

15

2. Remove battery cartridge

from battery compartment.
Note orientation.

3. Remove and recycle

4 spent AAA batteries.

4. Install 4 new AAA batteries into

cartridge, noting proper polarity.

5. Place battery cartridge back into the

battery compartment, aligning the
leads (fits only one way).

6. Replace battery door and tighten screw securely.

16

16

SENSOR SERVICING

When ALL lights on the tester

4, 5, 6, 7, 9

are illuminated, the

sensor 3 has failed and the unit must be serviced. Contact Klein Tools
at 1-800-553-4676 or [e-mail] for further
details.

There are no user-serviceable parts inside tester.

CLEANING

Be sure tester is turned off and wipe with a clean, dry lint-free
cloth.

Do not use abrasive cleaners or solvents.

STORAGE

Remove the batteries when the tester is not in use for a prolonged
period of time. Do not expose to high temperatures or humidity.
After a period of storage in extreme conditions exceeding the limits
mentioned in the General Specifications section, allow the tester to

return to normal operating conditions before using.

DISPOSAL / RECYCLE

Do not place equipment and its accessories in the trash.
Items must be properly disposed of in accordance with
local regulations. Please see www.epa.gov or
www.erecycle.org for additional information.
