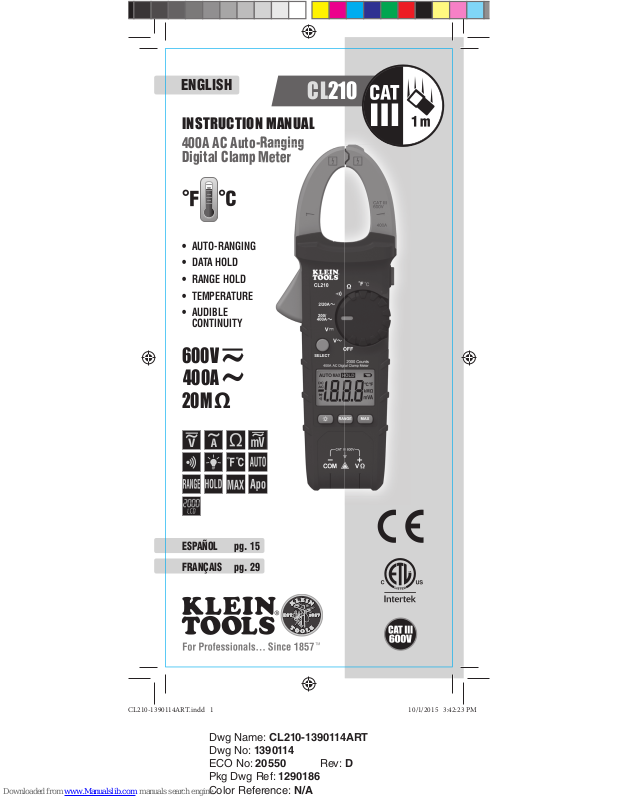

Klein Tools CL210 Instruction Manual
Dwg Name: CL210-1390114ART
Dwg No: 1390114
ECO No: 20550 Rev: D
Pkg Dwg Ref: 1290186
Color Reference: N/A
INSTRUCTION MANUAL
ENGLISH
CL210
FRANÇAIS pg. 29
ESPAÑOL pg. 15
400A AC Auto-Ranging
Digital Clamp Meter
• AUTO-RANGING
• DATA HOLD
• RANGE HOLD
• TEMPERATURE
• AUDIBLE
CONTINUITY
600V
400A
20M
Ω
CL210-1390114ART.indd 1 10/1/2015 3:42:23 PM
Dwg Name: CL210-1390114ART
Dwg No: 1390114
ECO No: 20550 Rev: D
Pkg Dwg Ref: 1290186
Color Reference: N/A
2
GENERAL SPECIFICATIONS
Klein Tools CL210 is an automatically ranging digital clamp-meter that
measures AC current via the clamp, AC/DC voltage, resistance and
continuity via test-leads, and temperature via a thermocouple probe.
• Operating Altitude: 6562 ft. (2000m)
• Relative Humidity: <95% non-condensing
• Operating Temp: 32° to 122°F (0° to 50°C)
• Storage Temp: 14° to 122°F (-10° to 50°C)
• Accuracy: Values stated at 65° to 83°F (18° to 28°C)
• Temp Coefcient: 0.1 x (Quoted Accuracy) per °C above
28°C or below 18°C, corrections are required when ambient
working temp is outside of Accuracy Temp range
• Dimensions: 8.66" x 3.03" x 1.61" (220 x 77 x 41 mm)
• Weight: 9.88 oz. (280 g) including batteries
• Calibration: Accurate for one year
• Standards: Conforms to: UL 61010-1, UL 61010-2-032,
UL 61010-2-033.
Certified to: CAN/CSA C22.2 NO. 61010-1,
61010-2-032, 61010-2-033, IEC EN 61010-1,
61010-2-032, 61010-2-033, IEC EN 61326-1
• Pollution degree: 2
• Accuracy: ± (% of reading + # of least significant digits)
• Drop Protection: 3.3 ft. (1m)
• Safety Rating: CATIII 600V, Class 2, Double insulation
• Electromagnetic Environment: IEC EN 61326-1. This
equipment meets requirements for use in basic and controlled
electromagnetic environments like residential properties,
business premises, and light-industrial locations.
Specifications subject to change.
ENGLISH
O
Maximum
•
•
•
•
•
•
CL210-1390114ART.indd 2 10/1/2015 3:42:23 PM
Dwg Name: CL210-1390114ART
Dwg No: 1390114
ECO No: 20550 Rev: D
Pkg Dwg Ref: 1290186
Color Reference: N/A
3
ELECTRICAL SPECIFICATIONS
Function Range Resolution Accuracy
AC Voltage
(V AC)
200.0mV 0.1mV ±(2.5% + 10 digits)
2.000V 1mV
±(2.0% + 5 digits)
20.00V 10mV
200.0V 100mV
600V 1V
DC Voltage
(V DC)
200.0mV 0.1mV ±(1.0% + 8 digits)
2.000V 1mV
±(1.0% + 3 digits)
20.00V 10mV
200.0V 100mV
600V 1V
Input Impedance: 10MΩ
Frequency Range: 45 to 400Hz
Maximum Input: 600V AC RMS or 600V DC
AC Current
(A AC)
2.000A 1mA ±(2.5% + 30 digits)
20.00A 10mA
±(2.0% + 10 digits)200.0A 100mA
400A 1A
Frequency Range: 50 to 60Hz
Resistance
200.0Ω 0.1Ω ±(1.2% + 5 digits)
2.000KΩ 1Ω
±(1.2% + 3 digits)
20.00kΩ 10Ω
200.0kΩ 100Ω
2.000MΩ 1kΩ
20.00MΩ 10kΩ ±(2.0% + 5 digits)
Maximum Input: 600V AC RMS or 600V DC
Temperature
-40° to 1832°F
1°F
≤0°F ±(2.8% + 12 digits)
>0°F ±(2.8% + 6 digits)
-40° to 1000°C
1
°C ±(2.8% + 6 digits)
OTHER MEASUREMENT APPLICATIONS
Maximum Input: 600V AC RMS or 600V DC
• Continuity Check: Audible signal <10Ω, max current 1.5mA
• Sampling Frequency: 3 samples per second
• Auto Power off: After ~15 minutes of inactivity
• Overload: "OL" indicated on display
• Polarity: "-" on display indicates negative polarity
• Display: 3 ½ digit, 2000 Count LCD
CL210-1390114ART.indd 3 10/1/2015 3:42:23 PM
Dwg Name: CL210-1390114ART
Dwg No: 1390114
ECO No: 20550 Rev: D
Pkg Dwg Ref: 1290186
Color Reference: N/A
4
WARNINGS
To ensure safe operation and service of the meter, follow these
instructions. Failure to observe these warnings can result in
severe injury or death.
• Before each use verify meter operation by measuring a known
voltage or current.
• Never use the meter on a circuit with voltages that exceed the
category based rating of this meter.
• Do not use the meter during electrical storms or in wet weather.
• Do not use the meter or test leads if they appear to be damaged.
• Use only with CAT III or CAT IV rated test leads.
• Ensure meter leads are fully seated, and keep fingers away
from the metal probe contacts when making measurements.
• Do not open the meter to replace batteries while the probes
are connected.
• Use caution when working with voltages above 25V AC RMS
or 60V DC. Such voltages pose a shock hazard.
• To avoid false readings that can lead to electrical shock,
replace batteries when a low battery indicator appears.
• Do not attempt to measure resistance or continuity on a live
circuit.
• Always adhere to local and national safety codes. Use personal
protective equipment to prevent shock and arc blast injury
where hazardous live conductors are exposed.
SYMBOLS ON METER
AC (Alternating Current) DC (Direct Current)
Resistance (in Ohms) Audible Continuity
Double Insulated Class II Ground
Warning or Caution
Risk of Electrical Shock
V Voltage (Volts) A Amperage (Amps)
°F/°
C
Temperature (Fahrenheit / Celsius)
SYMBOLS ON LCD
AC AC (Alternating Current) DC DC (Direct Current)
Negative Reading Data Hold
Auto Ranging MAX Maximum Value Hold
Low Battery Audible Continuity
°
F
Degrees (Fahrenheit)
°
C
Degrees (Celsius)
M
Mega (value x 106)
k
kilo (value x 103)
m
milli (value x 10-3)
V
Volts
A
Amps Ohms
ENGLISH
CL210-1390114ART.indd 4 10/1/2015 3:42:24 PM
