Klein Tools BAT207T4, BAT207T6, BAT207T5, BAT207T7, BAT20-7T14 User manual

ENGLISH

INSTRUCTION MANUAL

Battery Powered
Cable Cutter & Crimper

• 20V Lithium Ion
CUTS*

• Up to 556 MCM ACSR

• Up to 1000 MCM Aluminum

• Up to 750 MCM Copper

BAT20-7T

SERIES

• Up to 7/16" EHS Guy Strand

• Up to 3/8" Grade 8 Bolts

CRIMPS*

• Up to 350 MCM Aluminum

• Up to 600 MCM Copper

* See individual heads for specific capacities.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

ENGLISH

GENERAL SPECIFICATIONS

The Klein Tools BAT20-7T series tool line is a professional grade multi-function cutting and crimping tool designed to cut
and crimp the widest range of materials.

• Power Source: 20V Li-Ion battery

• Force: 7 Tons (14,000 lbs; 6,350 Kg)

• Operating Temperature: 14°F to 104°F (-10°C to 40°C)

Specifications subject to change.

FEATURE DETAILS

FRONT TOP

6

7

2
1

3

12

BACK

Trigger switch

1

Trigger lock

2

Release switch

3

Crimp indicator light

4

Main handle

5

5

4

Head (interchangeable)

6

Head release pin

7

Battery pack

8

Battery release button

9

Fuel gauge button

10

Lift ring

11

Side warning label

12

Worklights (x2)

13

13

8

11

9

8

10

NOTE: There are no user-serviceable parts inside tool.

2

Find Quality Products Online at: [e-mail]

Please contact Klein Tools for an authorized service center.

www.GlobalTestSupply.com

AVAILABLE CUTTING & CRIMPING HEADS

A B C

CUTTING HEADS

BAT20-7T10 – Aluminum, Copper, and ACSR

A

BAT20-7T9 – Aluminum and Copper only

B

BAT20-7T11 – Steel (Guy Strand and Bolts)

C

D E F

CRIMPING HEADS

BAT20-7T6 – BG and D3 (W-style die compatible)

D

BAT20-7T12 – O and D3 (W-style die compatible)

E

BAT20-7T7 – D3 (W-style die compatible)

F

3

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

ENGLISH

DEFINITIONS

The definitions below describe the level of severity for each signal word used in this manual:

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

WARNINGS

• DO NOT use under wet conditions or in presence of flammable liquids or gases.

• This is a professional power tool. DO NOT let children come into contact with the tool. Supervision is required

when inexperienced operators use this tool.

• Never modify the power tool or any part of it. Damage or personal injury could result.

SAFETY

To ensure safe operation and service of the drill, follow these instructions. Failure to observe these warnings can
result in electric shock, re, severe injury or death.

1) Work Area Safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or

dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical Safety

a) Avoid body contact with earthed or grounded objects. There is an increased risk of electric shock if your body is

earthed or grounded.

b) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of

electric shock.

c) Do not abuse the battery charger cord. Never use the cord for carrying, pulling or unplugging. Keep cord away

from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

d) When operating the battery charger outdoors, use an extension cord suitable for outdoor use. Use of a cord

suitable for outdoor use reduces the risk of electric shock.

e) If operating the battery charger in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI)

protected supply. Use of a GFCI reduces the risk of electric shock.

3) Personal Safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power

tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while
operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-

skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the trigger lock is engaged before connecting to battery pack, picking up

or carrying the tool. Carrying power tools with your finger on the switch invites accidents.

d) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in

unexpected situations.

e) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving

parts. Loose clothes, jewelry or long hair can be caught in moving parts.

4

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

SAFETY

4) Power Tool Use and Care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the

job better and safer at the rate for which it was designed.

b) Remove the battery pack from the power tool before making any adjustments, changing accessories, or storing

power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

c) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or

these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

d) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other

condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.

e) Use the power tool, dies, accessories, etc. in accordance with these instructions, taking into account the

working conditions and the work to be performed. Use of the power tool for operations different from those
intended could result in a hazardous situation.

5) Battery Tool Use and Care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery

pack may create a risk of fire when used with another type of battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a

risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails,

screws, or other small metal objects that can make connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs,

flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may
cause irritation or burns.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will

ensure that the safety of the power tool is maintained. Contact Klein Tools for authorized service centers.

7) Additional Specic Safety Rules

ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses.

8) Equipment

WARNING: Always wear proper personal hearing protection that conforms to ANSI S12.6 (S3.19) during use.
Under some conditions and duration of use, noise from this product may contribute to hearing loss.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling
hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knocked over.

5

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

ENGLISH

SAFETY

9) Important Safety Instructions for All Battery Packs

• When ordering replacement battery packs, be sure to include the catalog number and voltage. Consult the chart

at the end of this manual for compatibility of chargers and battery packs.

• The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety

instructions below and then follow charging procedures outlined.

• DO NOT charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids,

gases or dust. Inserting or removing the battery pack from the charger may ignite the dust or fumes.

• NEVER force the battery pack into the charger. Do not modify the battery pack in any way to fit into a non-

compatible charger as battery pack may rupture causing serious personal injury. Consult the chart at the end of
this manual for compatibility of batteries and chargers.

• Charge the battery packs only in designated DeWALT chargers.

• DO NOT splash or immerse in water or other liquids.

• DO NOT

(such as sheds or metal buildings in summer). For best life store battery packs in a cool, dry location.

store or use the tool and battery pack in locations where the temperature may reach or exceed 104°F (40°C)

NOTE:

Do not

store the battery packs in a tool.

• DO NOT incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack

can explode in a fire. Toxic fumes and materials are created when lithium ion battery packs are burned.

• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery

liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention
is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek

medical attention.

WARNING: FIRE HAZARD. Never attempt to open the battery pack for any reason. If the battery pack case is

cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use
a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g.,
pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service
center for recycling.

WARNING: FIRE HAZARD. Do not store or carry the battery pack so that metal objects can contact exposed

battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes,
drawers, etc., with loose nails, screws, keys, etc. Transporting batteries can possibly cause fires if the battery
terminals inadvertently come in contact with conductive materials such as keys, coins, hand tools and the like. The
US Department of Transportation Hazardous Material Regulations (HMR) actually prohibit transporting batteries
in commerce or on airplanes (e.g., packed in suitcases and carry-on luggage) UNLESS they are properly protected
from short circuits. So when transporting individual battery packs, make sure that the battery terminals are
protected and well insulated from materials that could contact them and cause a short circuit.

WARNING: BURN HAZARD. Battery liquid may be flammable if exposed to spark or flame.

6

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

SAFETY

10) Important Safety Instructions for All Battery Chargers

WARNING: SHOCK HAZARD. Do not allow any liquid to get inside the charger. Electric shock may result.
CAUTION: BURN HAZARD. To reduce the risk of injury, charge only DeWALT rechargeable battery packs.

Other types of batteries may overheat and burst resulting in personal injury and property damage.
NOTICE: Under certain conditions, with the charger plugged into the power supply, the charger can be shorted

by foreign material. Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal
chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities.
Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger
before attempting to clean.

• Before using the charger, read all instructions and cautionary markings on the charger, battery pack and product

using the battery pack.

• DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The charger

and battery pack are specifically designed to work together.

• These chargers are NOT intended for any uses other than charging DeWALT rechargeable batteries. Any other

uses may result in risk of fire, electric shock or electrocution.

• DO NOT expose the charger to rain or snow.

• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the

electric plug and cord.

• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to

damage or stress.

• DO NOT place any object on top of the charger or place the charger on a soft surface that might block the

ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source.
The charger is ventilated through slots in the top and the bottom of the housing.

• DO NOT operate the charger with a damaged cord or plug.

• DO NOT operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way.

Take it to an authorized service center.

• DO NOT disassemble the charger; take it to an authorized service center when service or repair is required.

Incorrect reassembly may result in a risk of electric shock, electrocution or fire.

• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric

shock. Removing the battery pack will not reduce this risk.

• NEVER attempt to connect two chargers together.

• The charger is designed to operate on standard 120 volt household electrical power. Do not attempt to use any

other voltage. (This does not apply to vehicular chargers.)

• When operating a charger outdoors, always provide a dry location and use an extension cord suitable for

outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

• DO NOT use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in

risk of fire, electric shock or electrocution.

• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the

gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18
gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When
using more than one extension to make up the total length, be sure each individual extension contains at least
the minimum wire size. The table below shows the correct size to use depending on cord length and nameplate
ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier the cord:

Minimum Gauge for Cord Sets

Volts Total Length of Cord

Ampere Rating (Amps)

120 V

25' (7.6 m) 50' (15.2 m) 100' (30.5 m) 150' (45.7 m)

240 V 50' (15.2) 100' (30.5) 200' (61.0) 300' (91.4)

More Than Not More Than AWG

0 6 18 16 16 14

6 10 18161412
10 12 16 16 14 12
12 16 14 12

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Not Recommended

7

ENGLISH

SAFETY

11) Additional Specic Safety Rules

ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

• ANSI Z87.1 eye protection (CAN/CSA Z94.3).

• ANSI S12.6 (S3.19) hearing protection.

• NIOSH/OSHA/MSHA respiratory protection.

• Wear safety goggles or other eye protection. Flying particles can cause permanent eye damage. ALWAYS use

safety glasses. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if cutting operation
is dusty.

• Accessories and tools get hot during operation. Wear gloves when touching them.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in

moving parts.

• Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work

by hand or against your body is unstable and may lead to loss of control.

BATTERY CHARGING INSTRUCTIONS

Battery Charger Models DCB107, DCB112, DCB113, DCB115

• This Class B digital apparatus complies with Canadian ICES-003.

• This device complies with Part 15 of the FCC Rules and Industry Canada License exempt RSS standard(s).

Operation is subject to the following two conditions:

1) This device may not cause harmful interference, and

2) This device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.

Battery Charging

8

Your tool uses a DeWALT charger. Be sure to read all safety instructions before

using your charger.

1. Plug the charger into an appropriate outlet before inserting the battery pack.

2. Insert the battery pack

into the charger, making sure the pack is fully seated

6

in charger. The red light will blink continuously, indicating the charging process
has started.

3. The completion of charge will be indicated by the red light remaining ON
continuously. The pack is fully charged and may be used at this time or left
in the charger.

8

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

BATTERY CHARGING INSTRUCTIONS

Charge Indicators

Your charger is designed to detect certain problems that can arise. Problems are indicated by the red light flashing
at a fast rate. If this occurs, re-insert the battery pack into the charger. If the problem persists, try a different
battery pack to determine if the charger is working properly. If the new pack charges correctly, then the original
pack is defective and should be returned to a service center or other collection site for recycling. If the new
battery pack elicits the same trouble indication as the original, have the charger and the battery pack tested at an
authorized service center.

Your charger has the following indicators: Pack Charging, Pack Charged, Hot/Cold Delay.
HOT/COLD DELAY: The above model chargers have a hot/cold delay feature. When the charger detects a battery

that is too hot or too cold, it automatically starts a delay, suspending charging. The red light will continue to blink,
but a yellow indicator light will be illuminated during this suspension. Once the battery has reached an optimum
temperature, the yellow light will turn off and the charger will automatically resume the charging procedure. This
feature ensures maximum battery life.

LEAVING THE BATTERY PACK IN THE CHARGER: The charger and battery pack can be left connected with the
charge indicator showing Pack Charged.

WEAK BATTERY PACKS: Weak batteries will continue to function but should not be expected to perform as much work.

FAULTY BATTERY PACKS

These chargers will

not

charge a faulty battery pack. The charger will indicate faulty battery pack by refusing to

light. NOTE: This could also indicate a problem with the charger.

WALL MOUNTING

These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting,
locate the charger within reach of an electrical outlet. Mount the charger securely using drywall screws at least 1"
(25.4 mm) long, screwed into wood to an optimal depth leaving approximately 7/32" (5.5 mm) of the screw exposed.

IMPORTANT CHARGING NOTES

1. Longest life and best performance can be obtained if the battery pack is charged when the air temperature is

between 65 °F and 75 °F (18 °–24 °C). DO NOT charge the battery pack in an air temperature below 40 °F (4.5 °C),
or above 104 °F (40 °C). This is important and will prevent serious damage to the battery pack.

2. The charger and battery pack may become warm to the touch while charging. This is a normal condition, and does

not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery
pack in a warm environment such as in a metal shed or an uninsulated trailer.

3. A cold battery pack will charge at about half the rate of a warm battery pack. The battery pack will charge at a

slower rate throughout the entire charging cycle and will not return to maximum charge rate even if the battery
pack warms.

4. If the battery pack does not charge properly:

a. Check operation of receptacle by plugging in a lamp or other appliance;
b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights;
c. Move the charger and battery pack to a location where the surrounding air temperature is approximately

65 °F–75 °F (18 °–24 °C);

d. If charging problems persist, take the tool, battery pack and charger to your local DeWALT service center.

5. The battery pack should be recharged when it fails to produce sufficient power on jobs which were easily done

previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also
charge a partially used pack whenever you desire with no adverse effect on the battery pack.

6. Foreign materials of a conductive nature such as, but not limited to, grinding dust, metal chips, steel wool,

aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the
charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting
to clean.

7. DO NOT freeze or immerse the charger in water or any other liquid.

9

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

ENGLISH

BATTERY CHARGING INSTRUCTIONS

WARNING: SHOCK HAZARD. DO NOT allow any liquid to get inside the charger. Electric shock may result.

WARNING: BURN HAZARD. DO NOT submerge the battery pack in any liquid or allow any liquid to enter the

battery pack. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack
breaks or cracks, return to a service center for recycling.

INSTALLING & REMOVING BATTERY PACK

NOTE:

For best results, make sure your battery pack is fully charged.

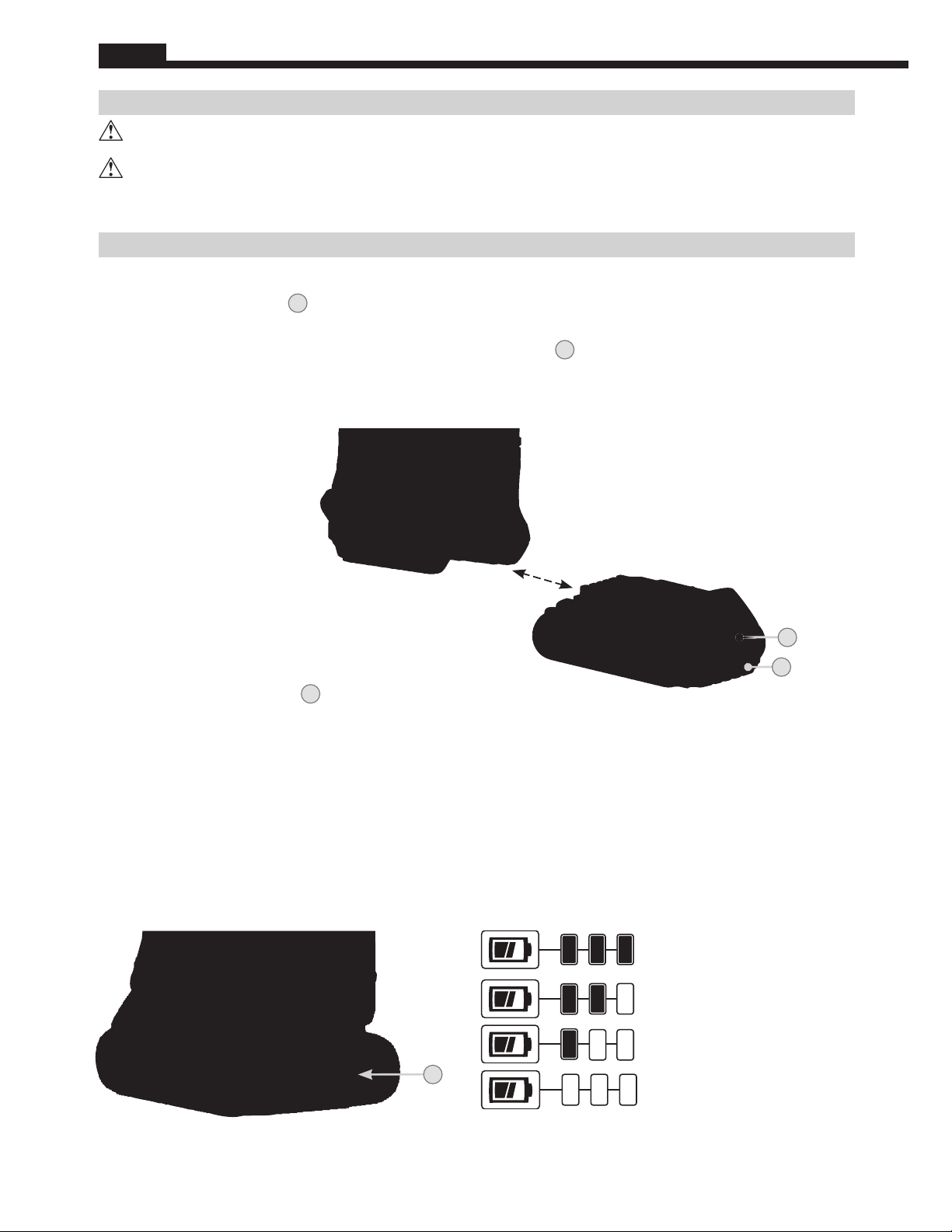

• To install the battery pack

into the tool, align the battery pack with the rails inside the tool’s handle and slide

4

it into the handle until the battery pack is firmly seated in the tool and ensure that it does not disengage.

• To remove the battery pack from the tool, press the release button

and firmly pull the battery pack out of the

5

tool handle. Insert it into the charger as described in the charger section of this manual.

NOTE:

After removing the battery pack, squeeze the trigger for three seconds to dissipate any electric charge that

may still be in the tool.

9

8

FUEL GAUGE BATTERY PACKS

10

Some DeWALT battery packs include a fuel gauge which consists of three green LED lights that indicate the level of
charge remaining in the battery pack. To actuate the fuel gauge, press and hold the fuel gauge button. A combination
of the three green LED lights will illuminate, designating the level of charge left. When the level of charge in the
battery is below the usable limit, the fuel gauge will not illuminate and the battery will need to be recharged.

NOTE:

The fuel gauge is only an indication of the approximate charge left on the battery pack, according to

not

the indicators shown here. It does

indicate tool functionality and is subject to variation based on product

components, temperature and end-user application.

75 – 100% charged

51 – 74% charged

<50% charged

10

10

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Pack needs to be charged

OPERATING INSTRUCTIONS

• Inspect the tool before and after every use. Do not use this tool if it is damaged in any way.

• Personal injury can be caused by operating poorly maintained tools. Check for loose parts before using.

• Ensure the fitting is not over-specification. You may damage the tool if you do not follow the operating instructions.

Use the die specified by connector manufacturer for you specific application.

• Remove battery pack while servicing, replacing dies, or storing the tool.

• Do not use the tool if there are any abnormalities or damage to any of its components

• Suggested working temperatures: 14°F to 104°F (-10°C to 40°C). Check hydraulic fluid specifications.

• Hydraulic fluid temperatures over 149°F (65°C) might soften packings and seals and cause fluid leaks.

• Inform authorized distributors or contact Klein Tools in case of any abnormalities or malfunctions of the product.

TRIGGER SWITCH

: Press the Trigger Switch to advance crimping piston and hold until the

1

dies have fully compressed connector or cut through cable.

2

TRIGGER LOCK

2

: Restricts the Trigger Lock 1 from activating.

RELEASE SWITCH 3:

Press the Release Button to release hydraulic pressure and retract the

1

piston. The tool is designed to retract the piston only after complete 7 ton crimp is achieved.
Once the crimp cycle has started, the retract button will not function until the cycle is completed.

3

QUICK-RELEASE HEADS:

WARNING: Remove battery pack before removing or replacing heads.

1. To exchange heads, twist head release pin 1/4 turn. The pin will stay in the tool while you

replace the heads.

2. To lock new head in tool, push pin and twist 1/4 turn. NOTE: If head release pin is not

7

properly installed and locked, there is a potential to bend and damage the tool during use.

CUTTING BLADE REPLACEMENT:

1. If necessary, remove the battery pack and release the head from the tool.

2. Loosen hex screws and remove old cutting blades.

3. Insert new cutting blades in reverse order and tighten hex screws. NOTE: For optimal performance, use a drop of

thread lock adhesive on hex head screws.

CRIMP INDICATOR LIGHT

1. The LED light will illuminate

:

4

GREEN

when the tool has reached full 7-ton pressure and a crimp has been

successfully completed.

2. When this tool is operated correctly, it takes approximately seven (7) seconds to complete

one full cycle and complete a compression. If the tool is used for 10 seconds and does not
reach full 7Ton pressure, the tool motor will stop. If the green LED is not lit, this indicates
there is a problem with the tool.

Klein Tools service center to repair the tool.

DO NOT attempt to repair; please contact an authorized

4

LIFT RING 11: The lift ring is intended for moving the tool into hard-to-reach areas. Securely

fasten lifting device to the ring before moving the tool. Follow all worksite rules.

WARNING: To reduce the risk of serious personal injury, DO NOT use the

lift ring for tethering or securing the tool to a person or object during use when elevated.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

11

11

ENGLISH

MAINTENANCE

• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will

ensure that the safety of the power tool is maintained. Contact Klein Tools for authorized service centers. Visit

for service manual and replacement part list.

• The charger and battery pack are NOT serviceable. To assure product safety and reliability, repairs, maintenance

and adjustments should be performed by a DeWALT factory service center, a DeWALT authorized service center
or other qualified service personnel. Always use identical replacement parts.

• Use only Shell Telus T15 or an equivalent hydraulic fluid when changing or adding oil.

• Inform Klein Tools authorized distributors or contact Klein Tools in case of any abnormalities or malfunctions of

the product.

Shell® and Tellus® are registered trademarks of Shell Trademark Management B.V.

CLEANING

Tool:

• Blow dirt and dust out of all air vents with clean, dry air at least once a week. To minimize the risk of eye injury,

always wear ANSI Z87.1 approved eye protection when performing this.

• Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals

may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap.
Never immerse any part of the tool into a liquid.

Charger:

WARNING: SHOCK HAZARD. Disconnect the charger from the AC outlet before cleaning. Dirt and grease may

be removed from the exterior of the charger using a cloth or soft non-metallic brush. DO NOT use water or any
cleaning solutions.

STORAGE

The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold. For
prolonged storage, it is recommended to store a fully charged battery pack in a cool, dry place out of the charger

NOTE:

for optimal results.

Battery packs should not be stored completely depleted of charge. The battery pack will

need to be recharged before use.

WARRANTY – TOOL

Klein Tools Battery Operated Tools, manufactured and sold for commercial or industrial uses, are warranted to be free
from defects in materials and workmanship.

THERE ARE NO IMPLIED WARRANTIES OF MERCHANTIBILITY OR FITNESS. At its option, Klein will repair, replace, or
refund the purchase price of any product which fails to conform to this warranty under normal use and service. There are
no user serviceable parts in this tool. This warranty does not apply if repairs have been made or attempted by non-Klein
Tools Authorized Repair Centers, if alterations have been made, or if the tool has been abused or misused.

IN NO EVENT SHALL KLEIN TOOLS BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGE. Some states do not allow
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

See for additional information.

WARRANTY – CHARGERS AND BATTERY PACKS

DeWALT chargers are covered by:
Three Year Limited Warranty: DeWALT will repair, without charge, any defects due to faulty materials or

workmanship for three years from the date of purchase. This warranty does not cover part failure due to normal
wear or tool abuse. This warranty does not apply to accessories or damage caused where repairs have been made
or attempted by others. This warranty gives you specific legal rights and you may have other rights which vary in
certain states or provinces.

DeWALT battery packs are covered by:

Two Years free service on Packs:
Three Years free service on Packs:

DCB201, DCB203, DCB203BT, DCB207.

DCB200, DCB204, DCB204BT, DCB205.
Product warranty voided if the battery pack is tampered with in any way. DeWALT is not responsible for any
injury caused by tampering and may prosecute warranty fraud to the fullest extent permitted by law.

12

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

DISPOSAL

Do not place equipment and its accessories in the trash. Items must be properly
with local regulations. Please see www.epa.gov or www.erecycle.org for additional information.

THE RBRC™ SEAL

The RBRC™ (Rechargeable Battery Recycling Corporation) Seal on the nickel cadmium, nickel metal
hydride or lithium ion batteries (or battery packs) indicate that the costs to recycle these batteries (or
battery packs) at the end of their useful life have already been paid. In some areas, it is illegal to place
spent nickel cadmium, nickel metal hydride or lithium ion batteries in the trash or municipal solid waste
stream and the RBRC program provides an environmentally conscious alternative.

RBRC™ has established programs in the United States and Canada to facilitate the collection of spent
nickel cadmium, nickel metal hydride or lithium ion batteries. Help protect our environment and conserve
natural resources by returning the spent nickel cadmium, nickel metal hydride or lithium
ion batteries to an authorized DeWALT service center or to your local retailer for recycling.
You may also contact your local recycling center for information on where to drop off the
spent battery RBRC™ is a registered trademark of the Rechargeable Battery Recycling
Corporation.

WARNING: EXPLOSION HAZARD.

DO NOT INCINERATE BATTERY PACK.

disposed of in accordance

DEWALT and the DEWALT logo are trademarks of Stanley Black & Decker, Inc, or an afliate thereof and are
used under license.

13

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com
