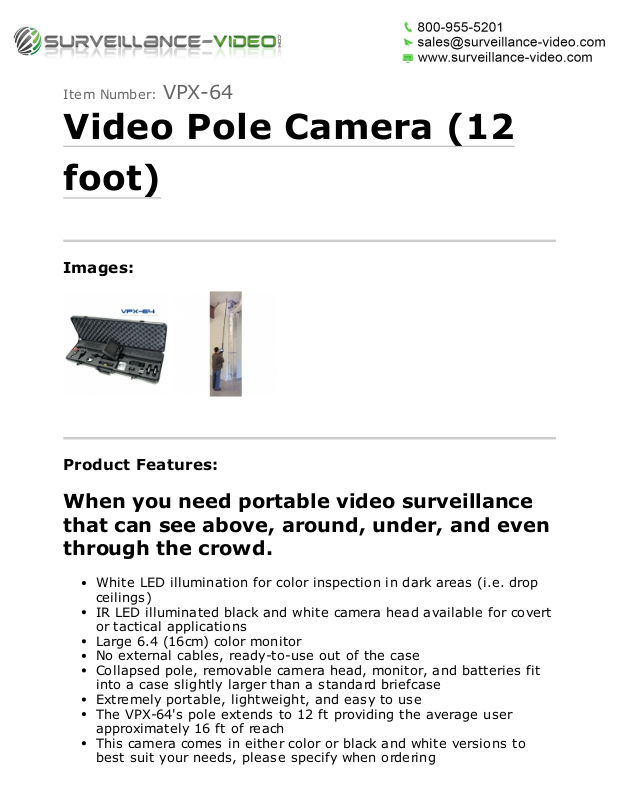

KJB VPX-64 Specsheet

Item Number: VPX-64

Video Pole Camera (12
foot)

Images:

Product Features:

When you need portable video surveillance
that can see above, around, under, and even
through the crowd.

White LED illumination for color inspection in dark areas (i.e. drop
ceilings)
IR LED illuminated black and white camera head available for covert
or tactical applications
Large 6.4 (16cm) color monitor
No external cables, ready-to-use out of the case
Collapsed pole, removable camera head, monitor, and batteries fit
into a case slightly larger than a standard briefcase
Extremely portable, lightweight, and easy to use
The VPX-64's pole extends to 12 ft providing the average user
approximately 16 ft of reach
This camera comes in either color or black and white versions to
best suit your needs, please specify when ordering

Applications, Inspecting high drop ceilings, searching
over-head compartments, vehicle undercarriages,
viewing around corners, over tall or immovable objects,
viewing difficult to reach areas.

Product Specs:

• White LED illumination for color inspection in dark areas

• Lage 6.4 color monitor

• No external cables, ready-to-use out of the case

• Collapsed pole, removable camera head, monitor

• Batteries fit into a case slightly larger than a standard briefcase

• Extremely portable, lightweight, and easy to use

• Charger and two Ni-MH Battery Packs included

• Average Run Time 2.0 Hours Average

• Charge time 1.8 Hours

• Standard Color Camera Head

• Signal Format NTSC

• Horizontal Resolution More than 380 Lines

• Sensitivity 0.5 Lux / F1.2, 1.0 Lux / F2.0 (AGC ON)

• Illumination 4 White LEDs with variable brightness control

• Optional IR Illuminated Black & White Camera Head

• Signal Format NTSC

• Horizontal Resolution: 420 Lines

• Sensitivity 0.0003 Lux / F1.2, 1.0 Lux / F2.0 (AGC ON)

• Illumination 8 Infrared LEDs with variable brightness control

• Color LCD Display

• Size 6.4 inch (16 cm) diagonal

• Brightness 300 Nits Viewing Angles +/- 50� horizontal, +/- 40�
vertical

• Display Controls color saturation, contrast, and brightness

• Camera Head Controls variable illumination

• Rechargeable Power Supply

• Charger and two Ni-MH Battery Packs included

• Average Run-Time 2.0 Hours Average

• Charge-time 1.8 Hours
