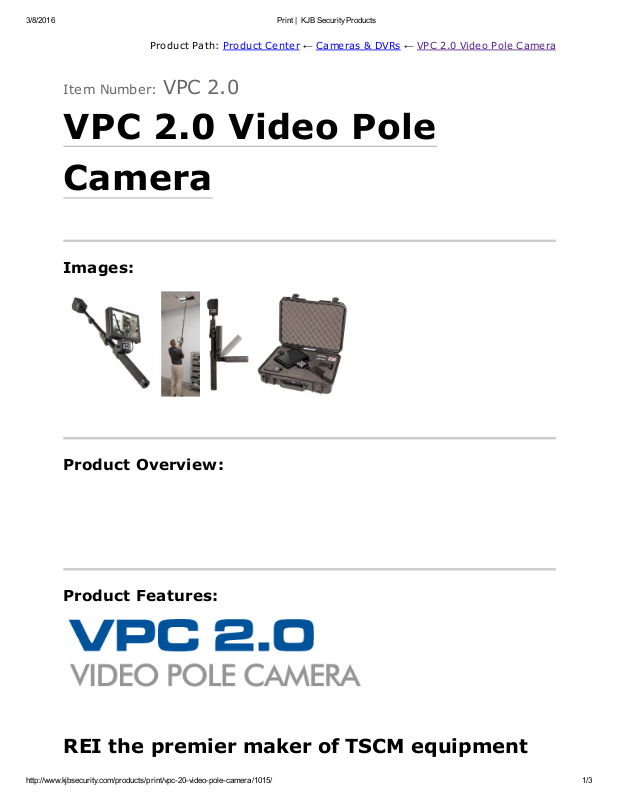

KJB VPC-2.0 Specsheet

3/8/2016 Print | KJB Security Products

Product Path: Product Cente r ← Cameras & DVRs ← VPC 2.0 Video Pole Camera

Item Number: VPC 2.0

VPC 2.0 Video Pole
Camera

Images:

Product Overview:

Product Features:

REI the premier maker of TSCM equipment

http://www.kjbsecurity.com/products/print/vpc-20-video-pole-camera/1015/ 1/3

3/8/2016 Print | KJB Security Products

has super charged the Pole Camera market
place!

Large 8 inch (20.3 cm), high-resolution color monitor.
No external cables, ready-to-use out of the case.
Portable, lightweight case for easy mobility.
Motorized Tilt Camera head
Video Record and playback
Still picture capture and review it
LEDs mounted on the camera
Choose 1- Color camera head includes white LED illumination for
color inspection in dark areas or IR LED illuminated black and white
camera head available for covert applications.
Weatherproof body
8” high tilting LCD display with brightness control
The VPC 2.0 extends to 6 ft 5 in.(198 cm), giving the average user
over 10 ft (3 m) of reach.

Applications, Inspecting high drop ceilings, searching over-head
compartments, vehicle undercarriages, viewing around corners, over
tall or immovable objects, viewing difficult to reach areas.

Need more reach and both cameras see the VPC 2.0 Deluxe

Product Specs:

• Color Camera Head(standard) Signal Format: NTSC Horizontal
Resolution: 550 TV Lines,Sensitivity: 0.5 Lux / Faceplate Illumination:
White LEDs with variable brightness control

• Black & White Camera Head Signal Format: NTSC Horizontal
Resolution: 600 TV Lines Sensitivity: 0.1 Lux / Faceplate Illumination:
Infrared LEDs with variable brightness control

• Color LCD Display Size: 8"Resolution: 800x600 Auto Brightness Viewing
Angles: (70° at 3, 9, & 6 o'clock) - (50° at 12 o'clock) Display Controls:
Color saturation, contrast, & brightness Camera

• DVR:Format: MPEG 25fps Record Time: 5s, 10s, 30s, 60s, & 120s On­screen Date and Time Stamp Video Playback Mode Snapshot Mode:
720x480 jpg

• Miscellaneous: Video Output Jack Audio Output Jack Micro SD Card Slot
Internal Battery Charger 2 Lithium Ion Batteries: (included) Typical Run
Time: 5 Hours Max Charge Time: 3 Hours

• Mechanical:Collapsed length (with Camera Head): 23.5 in (59.7 cm)
Extended Length (with Camera Head): 78 in (198 cm) Case Size: 20x15x5
in (50x38x14 cm) Case Weight (with all accessories): 12 lbs (5.4
