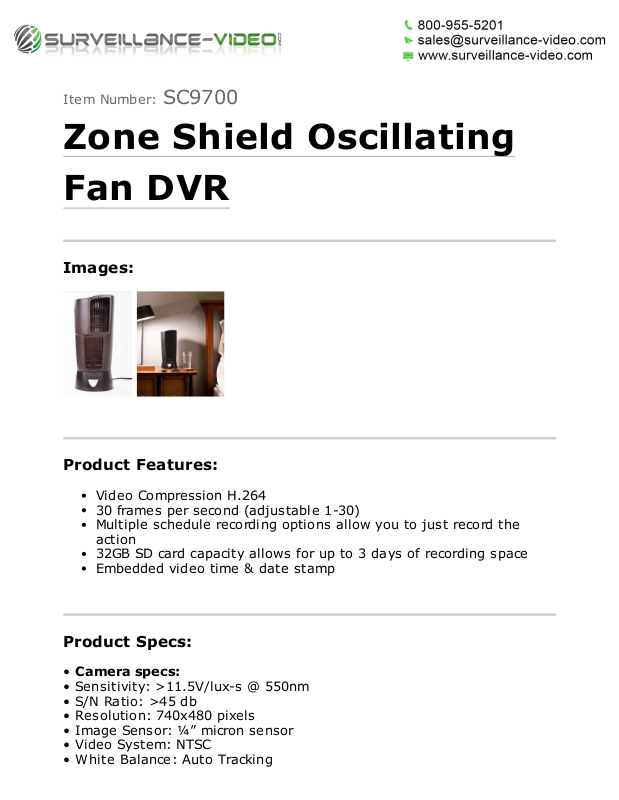

KJB SC9700 Specsheet
Item Number: SC9700
Zone Shield Oscillating
Fan DVR
Images:
Product Features:
Video Compression H.264
30 frames per second (adjustable 1-30)
Multiple schedule recording options allow you to just record the
action
32GB SD card capacity allows for up to 3 days of recording space
Embedded video time & date stamp
Product Specs:
• Camera specs:
• Sensitivity: >11.5V/lux-s @ 550nm
• S/N Ratio: >45 db
• Resolution: 740x480 pixels
• Image Sensor: ¼” micron sensor
• Video System: NTSC
• White Balance: Auto Tracking
• DVR specs:
• Video Compression H.264
• Choose from three Time/Date Stamp Formats: 1)yy-mm-dd, 2)dd-mmyy, 3)mm-dd-yy
• Firmware Upgrade through Micro SD card
• IR remote control
• Operation temperature 0~+50℃
• PC Compatible: W inXP, Vista 32bit, and Win7 32bit, Win7 64bit
• Playback Fast Forward, Backward: x2/ x4/ x8, Frame by Frame
• Playback mode via device itself or Secure Play back with bundled
software
• Playback Search By Time, By Event Recording Quality 4 Levels
adjustable (Super, High, Normal, Standard)
• Record Resolution 720x240 (NTSC) / 720x288 (PAL)
• Recording Frame Rate 6/8, 13/15, 25/30 fps
• Recording Storage Micro SD card (support SDHC) up to 32GB
• Video Recording Modes: Continuous, Motion, and Scheduled Recording
Product Includes:
• Working Fan
• 4GB SD Card
• SD Card Reader
• RCA Cables
• Manual
