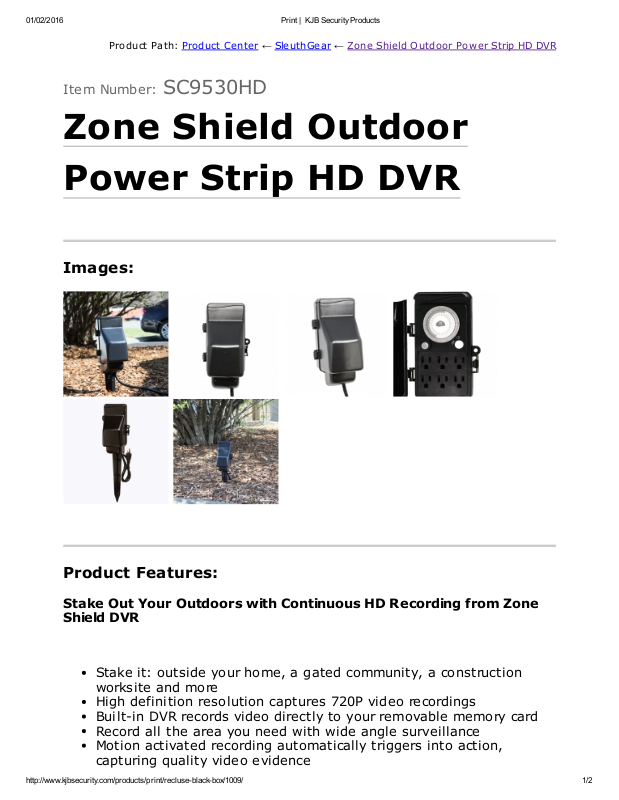

KJB SC9530HD Specsheet

01/02/2016 Print | KJB Security Products

Product Path: Product Ce nte r ← SleuthGear ← Zone Shield Outdoor Powe r Strip HD DVR

Item Number: SC9530HD

Zone Shield Outdoor
Power Strip HD DVR

Images:

Product Features:

Stake Out Your Outdoors with Continuous HD Recording from Zone
Shield DVR

Stake it: outside your home, a gated community, a construction
worksite and more
High definition resolution captures 720P video recordings
Built-in DVR records video directly to your removable memory card
Record all the area you need with wide angle surveillance
Motion activated recording automatically triggers into action,
capturing quality video evidence

http://www.kjbsecurity.com/products/print/recluse-black-box/1009/ 1/2

01/02/2016 Print | KJB Security Products

Program menu provides customizable recording features
Transfer or playback your recorded videos to any computer
Time/Date stamped video files
1 year Manufacturer’s warranty

All SleuthGear Products include KJB's Commitment to Customer
Service and Free Technical Support.

Product Specs:

• DVR Specifications -

• Recording Resolution: 1280x720

• Memory Card (max size): 64GB (Class XC1) - Confirmed with Toshiba
and Samsung EVO

• Frame Rate: Up to 30 FPS

• Time/Date Stamp (Y/N): Yes

• Video Compression: H.264

• File Type: .AVI

• Playback: CPU or TV

• Operating Temperature: 32° F - 122° F

• Camera Specifications -

• Effective Pixels:1280x720

• Field of View: 140°

• Image Sensor: 1/3" digital cmos

• Video System: NTSC

• Operating Temperature: 22°F - 158°F

Product Includes:

• 8GB SD Card

• RCA Video Cable

• IR Remote

• Manual and Quick set up guide
