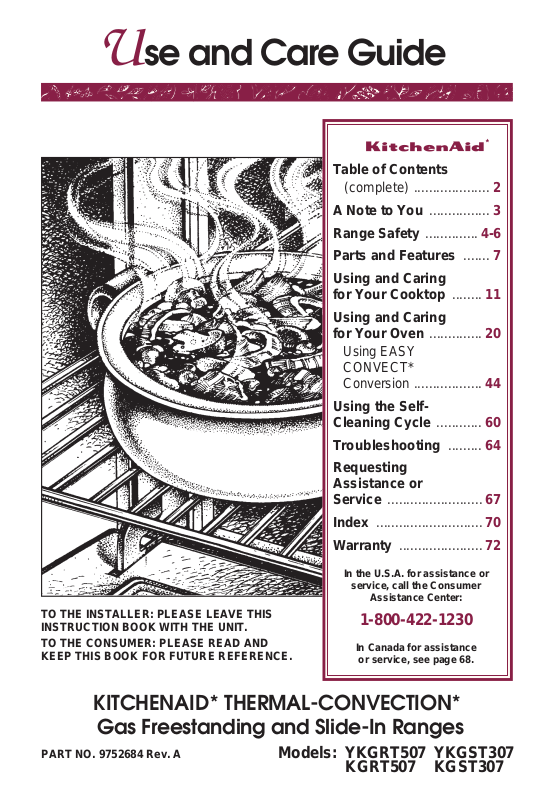

KitchenAid YKGRT507 User Manual

Use and Care Guide

Table of Contents

(complete) .................... 2

A Note to You ................ 3

Range Safety .............. 4-6

Parts and Features ....... 7

Using and Caring

for Your Cooktop ........ 11

Using and Caring

for Your Oven .............. 20

Using EASY CONVECT*

Conversion .................. 44

TO THE INSTALLER: PLEASE LEAVE THIS INSTRUCTION BOOK WITH THE UNIT.

TO THE CONSUMER: PLEASE READ AND KEEP THIS BOOK FOR FUTURE REFERENCE.

KITCHENAID* THERMAL-CONVECTION*

Gas Freestanding and Slide-In Ranges

Using the Self-

Cleaning Cycle ............ 60

Troubleshooting ......... 64

Requesting Assistance or

Service ......................... 67

Index ............................ 70

Warranty ......................72

In the U.S.A. for assistance or

service, call the Consumer

Assistance Center:

1-800-422-1230

In Canada for assistance

or service, see page 68.

PART NO. 9752684 Rev. A

Models: YKGRT507 YKGST307

KGRT507 KGST307

able of Contents

A Note to You ............................................ 3

Range Safety .......................................... 4-6

Parts and Features.................................... 7

Feature locations .................................. 7

The oven vent ...................................... 9

The storage drawer .............................. 9

The anti-tip bracket ............................. 10

Using and Caring for Y our Cooktop........11

Using the surface burners....................11

Energy saving tips .............................. 14

Cookware tips .................................... 14

Caring for your cooktop ...................... 15

Using and replacing the

surface light........................................ 18

Using and Caring for Your Oven ............ 20

Using the electronic oven control ........ 20

Oven settings ..................................... 28

Setting the clock ................................. 29

Using the timer ................................... 30

Baking or convection baking ............... 31

Roasting ............................................. 33

Cooking tips ....................................... 34

Adjusting oven temperature ................ 37

Using the temperature probe .............. 39

Using CONVECT FULL MEAL............ 42

Using EASY CONVECT*

Conversion ......................................... 44

Broiling ............................................... 46

Convection broiling ............................. 48

Timed cooking .................................... 51

Dehydrating........................................ 54

Raising (proofing) bread ..................... 56

Cleaning your oven and controls......... 57

Using and replacing the oven light(s) ... 59

Using the Self-Cleaning Cycle................ 60

Before you start .................................. 60

Before setting the controls .................. 61

Setting the controls ............................. 61

For best cleaning results..................... 63

How the cycle works........................... 63

Troubleshooting...................................... 64

Requesting Assistance or Service......... 67

Index ........................................................ 70

Warranty .................................................. 72

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

– Do not store or use gasoline or other flammable vapors and

liquids in the vicinity of this or any other appliance.

– WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in

your building.

• Immediately call your gas supplier from a neighbor’s phone.

Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

– Installation and service must be performed by a qualified installer,

service agency or the gas supplier.

Note to You

Thank you

KitchenAid designs the best tools for the most important room in your house. To ensure that you enjoy many years of trouble-free operation, we developed this Use and Care guide. It contains valuable information concerning how to operate and maintain your new appliance properly and safely. Please read it carefully.

Also, please complete and mail the enclosed Product Registration Card.

In the U.S.A.

For assistance or service

Call the Consumer Assistance Center toll free ................................................ 1-800-422-1230

Throughout Canada for assistance

Call the Consumer Assistance Center toll free ................................................ 1-800-461-5681

Throughout Canada for service..............................................................see page 68

If you need assistance or service, first see the “Troubleshooting” section of this book. After checking “Troubleshooting,” additional help can be found by checking the “Requesting Assistance or Service” section, or by calling one of the telephone numbers above.

When calling, you will need to know your appliance’s complete model number and serial number. You can find this information on the model and serial number label (see diagrasm in the “Parts and Features” section).

Keep this book and the sales slip together in a safe place for future reference. You must

provide proof of purchase or installation date for in-warranty service.

Model Number __________________________ Serial Number __________________________ Date Installed___________________________

for buying a KITCHENAID* appliance!

Builder/Dealer Name _____________________ Address _______________________________ Phone _________________________________

8:30 a.m. – 6 p.m. (EST)

Anti-Tip Bracket

Range Foot

wWARNING

Tip Over Hazard A child or adult can tip the range and be killed. Connect anti-tip bracket to rear range foot. Reconnect the anti-tip bracket, if the range is moved. See the installation instructions for details. Failure to follow these instructions can result in death or

serious burns to children and adults.

Making sure the anti-tip bracket is installed:

• Slide range forward.

• Look for the anti-tip bracket securely attached to floor.

• Slide range back so rear range foot is under anti-tip bracket.

ange Safety

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to hazards that can kill or hurt you and others. All safety messages will be preceded by the safety alert symbol and the

word “DANGER” or “WARNING.” These words mean:

You will be killed or seriously injured

wDANGER

wWARNING

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

if you don’t follow instructions.

You can be killed or seriously injured if you don’t follow instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire,

electrical shock, injury to persons, or damage when using the range, follow basic precautions, including the following:

• WARNING – TO REDUCE THE

RISK OF TIPPING OF THE RANGE, THE RANGE MUST BE SECURED BY PROPERLY INSTALLED ANTI-TIP DEVICES. TO CHECK IF THE DEVICES ARE INSTALLED PROPERLY, SLIDE RANGE FORWARD, LOOK FOR ANTI-TIP BRACKET SECURELY ATTACHED TO FLOOR, AND SLIDE RANGE BACK SO REAR RANGE FOOT IS UNDER ANTI-TIP BRACKET.

• CAUTION – Do not store items of

interest to children in cabinets above a range or on the backguard of a range – children climbing on the range to reach items could be seriously injured.

– SAVE THESE INSTRUCTIONS –

• Proper Installation – The range, when

installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the

National Electrical Code, ANSI/NFPA 70.

Be sure the range is properly installed and grounded by a qualified technician.

• This range is equipped with a

three-prong grounding plug for your protection against shock hazard and should be plugged directly into a properly grounded receptacle. Do not cut or remove the grounding plug from this plug.

• Disconnect the electrical supply before

servicing the appliance.

• Never Use the Range for Warming or

Heating the Room.

Range Safety

IMPORTANT SAFETY INSTRUCTIONS

• Do Not Leave Children Alone – Children

should not be left alone or unattended in area where the range is in use. They should never be allowed to sit or stand on any part of the range. Injuries may result from the misuse of appliance doors or drawers such as stepping, leaning, or sitting on the doors or drawers.

• Wear Proper Apparel – Loose-fitting or

hanging garments should never be worn while using the range.

• User Servicing – Do not repair or replace

any part of the range unless specifically recommended in the manual. All other servicing should be referred to a qualified technician.

• Maintenance – Keep range area clear and

free from combustible materials, gasoline, and other flammable vapors and liquids.

• Storage in or on the Range – Flammable

materials should not be stored in an oven or near surface units.

• Do Not Use Water on Grease Fires –

Smother fire or flame or use dry chemical or foam-type extinguisher.

• Use Only Dry Potholders – Moist or damp

potholders on hot surfaces may result in burns from steam. Do not let potholder touch hot heating elements. Do not use a towel or other bulky cloth.

• DO NOT TOUCH SURFACE UNITS OR

AREAS NEAR UNITS – Surface units may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact surface units or areas near units until they have had sufficient time to cool. Among those areas are the cook-top and surfaces facing the cook-top.

• Use Proper Pan Size – The range is

equipped with one or more surface units of different size. Select utensils having flat bottoms large enough to cover the surface unit heating element. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing. Proper relationship of utensil to burner will also improve efficiency. Top burner flame size should be adjusted so it does not extend beyond the edge of the cooking utensil.

• Never Leave Surface Units Unattended

at High Heat Settings – Boilover causes smoking and greasy spillovers that may ignite.

• Make Sure Reflector Pans or Drip Bowls

Are in Place – Absence of these pans or bowls during cooking may subject wiring or components underneath to damage.

• Protective Liners – Do not use aluminum

foil to line surface unit drip bowls or oven bottoms, except as suggested in the manual. Improper installation of these liners may result in a risk of electric shock, or fire.

• Glazed Cooking Utensils – Only certain

types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for range-top service without breaking due to the sudden change in temperature.

• Utensil Handles Should Be Turned

Inward and Not Extend Over Adjacent Surface Units – To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil, the handle of a utensil should be positioned so that it is turned inward, and does not extend over adjacent surface units.

– SAVE THESE INSTRUCTIONS –

continued on next page

Range Safety

IMPORTANT SAFETY INSTRUCTIONS

• Use Care When Opening Door – Let hot

air or steam escape before removing or replacing food.

• Do Not Heat Unopened Food Containers

– Build-up of pressure may cause container to burst and result in injury.

• Keep Oven Vent Ducts Unobstructed.

• Placement of Oven Racks – Always

place oven racks in desired location while oven is cool. If rack must be moved while oven is hot, do not let potholder contact hot heating element in oven.

• DO NOT TOUCH HEATING ELEMENTS

OR INTERIOR SURFACES OF OVEN – Heating elements may be hot even though they are dark in color. Interior surfaces of an oven become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact heating elements or interior surfaces of oven until they have had sufficient time to cool. Other surfaces of the appliance may become hot enough to cause burns – among these surfaces are oven vent openings and surfaces near these openings, oven doors, and windows of oven doors.

For self-cleaning ranges –

• Do Not Clean Door Gasket – The door

gasket is essential for a good seal. Care should be taken not to rub, damage, or move the gasket.

• Do Not Use Oven Cleaners – No

commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven.

• Clean Only Parts Listed in Manual.

• Before Self-Cleaning the Oven –

Remove broiler pan and other utensils. Wipe off all excessive spillage before initiating the cleaning cycle.

For units with ventilating hood –

• Clean Ventilating Hoods Frequently –

Grease should not be allowed to accumulate on hood or filter.

• When flaming foods under the hood, turn

the fan off. The fan, if operating, may spread the flame.

– SAVE THESE INSTRUCTIONS –

arts and Features

This section tells you what features your range has and where they are located. It also discusses some convenience features that you should know about, but which are not needed to operate the range. Please review this information before using your range. To help you find information on specific parts or features quickly, page references are included.

Feature locations

Models KGST307 and YKGST307

Vent guard piece Surface burners

(the style of your grates may vary) (pp. 11 and 15)

Surface burner controls

(pp. 12 and 17)

Anti-tip bracket

(p. 10)

Model and serial number plate

(p. 3)

Removable storage drawer

(containing broiler pan, grid, and convection roasting rack) (p. 9)

Surface burner controls

REAR

FRONT

Oven vent

(p. 9)

Electronic oven

control

(p. 20)

Automatic

oven light

switch

(p. 59)

Broil burner

(not shown)

(p. 28)

Bake burner

(not shown)

(p. 28)

REAR

OFF

Left rear control knob

(pp. 12 and 17)

OFF

Left front control knob

(pp. 12 and 17)

OFF

Right front control knob

(pp. 12 and 17)

OFF

Right rear control knob

(pp. 12 and 17)

P arts and Features

Models KGRT507 and YKGRT507

Surface light

(p. 18)

Surface burners

(the style of your grates may vary) (pp. 11 and 15)

Surface burner controls

(pp. 12 and 17)

Oven vent

(p. 9)

REARREAR

OFF

FRONTFRONT

OFF

STARTSTART

L O

R T N

CONTROL

C O L

LOCK

HRMIN MINSEC

R STA

START

TIMETIME

STOPSTOP

TIMETIME

TEMPTEMP

CLOCKCLOCK

DELAY

FRONTFRONT

OFFOFF

REARREAR

OFF

CLEAN

BROIL

BAKE

N TIO C E V N

CONVECTION

BROIL

BAKE

EASYCONVECT GAS WITH SURFACE LIGHTEASYCONVECT GAS WITH SURFACE LIGHT

PROBEPROBE

SET

NIGHT LIGHTNIGHT LIGHT

RAISING F BREAD

DEHYDRATE

STANDARD ENTER

TEMP COOK

ONON

CONVECT

EASY

STARTSTART

CHECK

•

SETSET

LOCK

CANCELCANCEL

T FO

FOODA

OFFOFF

START

OVENOVEN

CONTROL

K C

LIGHTLIGHT

CLO

LOCKED

TIMERTIMER

CONVECTION

TIMETIME

CANCELCANCEL

DOOR

V N O

COOK

CONVECT

STA

START

FULL

TIMETIME

•

SET

L A E

CLEAN

MEAL

COOKCOOK

OFF OFF

CE LIG

TIMETIME

SURFA

SURFACE LIGHT

NIGHT NIGHT

S R E V N O

ON ON

T C

C E V N

O C

STOPSTOP

OTHER

SY A

EASY CONVECT CONVERSION

TIMETIME

FOODS

EATS M

MEATS

BAKED GOODS

ROAST

Electronic

oven control

(p. 20)

Automatic

oven light

switch

(p. 59)

Anti-tip bracket

(p. 10)

Model and serial number plate

(p. 3)

Removable storage drawer

(containing broiler pan, grid, and convection roasting rack) (p. 9)

Surface burner controls

REAR

OFF

FRONT

OFF

Broil burner

(not shown)

(p. 28)

Bake burner

(not shown)

(p. 28)

FRONT

OFF

REAR

OFF

Left rear control knob

(pp. 12 and 17)

Left front control knob

(pp. 12 and 17)

Right front control knob

(pp. 12 and 17)

Right rear control knob

(pp. 12 and 17)

The oven vent

Hot air and moisture escape from the oven through a vent in the center rear of the cooktop. Do not block the vent by using large pans or covers. Poor baking/roasting and combustion can result.

The storage drawer

You can remove the storage drawer to make it easier to clean under the range. Use care

when handling the drawer.

P arts and Features

wWARNING

Burn Hazard

Use pot holders when touching items left near oven vent.

Failure to do so can result in burns.

Replacing the storage drawer:

Removing the storage drawer:

1. Empty drawer of any pots and pans

before removing drawer. Use recessed area on top edge of drawer to pull drawer straight out to the first stop. Lift front and

pull out to the second stop.

2. Lift back slightly and slide drawer all the

way out.

Drawer slide rail

1. Fit ends of drawer slide rails into the

drawer guides on both sides of opening.

2. Lift drawer front and press in until metal

stops on drawer slide rails clear white stops on drawer guides. Lift drawer front again to clear second stop and slide drawer closed.

P arts and Features

The anti-tip bracket

The range will not tip during normal use. However, tipping can occur if you apply too much force or weight to the open door without the anti-tip bracket properly secured.

wWARNING

serious burns to children and adults.

Anti-Tip Bracket

Range Foot

Making sure the anti-tip bracket is installed:

• Slide range forward.

• Look for the anti-tip bracket securely attached to floor.

• Slide range back so rear range foot is under anti-tip bracket.

sing and Caring for Your Cooktop

This section tells you how to operate the controls to the cooktop. It also discusses how the sealed gas burner cooktop works, and includes tips on how to cook with and maintain the cooktop.

Using the surface burners

Your cooktop has sealed gas burners with an auto-reignition system. The sealed burners spread the heat evenly across the bottom of the cookware and provide infinite heat control. The auto-reignition system senses when a burner flame has gone out and will automatically reignite that burner.

IMPORTANT: Your cooktop is factory-set

for use with Natural Gas. If you wish to use L.P. gas, an L.P. Gas Conversion Kit is included with your new range. See the appropriate section of the Installation Instructions for details on making this conversion.

When to use the right rear and left front burners:

10,000 BTU burner

When to use the left rear and right front burners:

6,000 BTU burner

FRONTFRONT

REARREAR

OFF

6,000 BTU burner

Use these burners for simmering or for cooking smaller quantities of food requiring small cookware.

REARREAR

FRONTFRONT

OFF

FRONT

REAR

OFF

REAR

FRONT

OFF

10,000 BTU burner

Use these burners for cooking large quantities of food, deep-fat frying, or cooking with large cookware.

U sing and Caring for Your Cooktop

wWARNING

Carbon Monoxide Poisoning Hazard Do not operate with a yellow flame. Doing so can result in death,

heart attack, or convulsions.

How to use the surface burners:

REAR

OFF

1. Grasp the control knob.

2. Push down and turn to HI. The electric

spark ignitor will ignite the gas flowing into the burner. When you hear a clicking sound, you know that the ignitors are working. Gas is flowing as long as knob is not set at OFF.

3. When the burner is lit, turn the control

knob to the desired flame setting. (See the guide under “Burner heat settings” later in this section.) You can turn the knobs to any of the marked settings. The ignitor will turn off and the clicking will stop when the burner ignites.

NOTES:

• The ignitors may click a number of times

before burner lights. This is normal.

• All four burner ignitors will spark regard-

less of which burner you are using.

• Visually check that the burner has lit. If

the burner does not ignite, listen for the clicking sound. If you do not hear the ignitor click, TURN THE BURNER OFF. Check that the service cord is placed firmly in the wall receptacle. Check for a tripped circuit breaker or blown fuse.

Check that the control knob is pressed completely down on valve shaft. If the spark

ignitor still fails t o operate , call your nearest authorized KitchenAid servicing outlet.

Proper grounding and polarity are necessary for correct operation of the electric ignition system. If the wall receptacle does not provide correct polarity, the ignitor will become grounded and click every once in a while, even after the burner has ignited. A qualified electrician should check the wall receptacle to see if it is wired with correct polarity.

wWARNING

Fire Hazard

Do not let the burner flame extend beyond the edge of the pan.

Turn off all controls when not cooking.

Failure to follow these instructions can result in death or fire.

Burner heat settings

Use correct burner heat settings (see chart later in this section). If the heat setting is too high, it can:

• Char bacon and cause curling.

• Make eggs tough and crisp at the edges.

• Toughen liver, fish, and seafood.

• Scorch delicate sauces and custards.

• Cause a boilover.

U sing and Caring for Your Cooktop

Until you get used to the settings, use the following as a guide. For best results, start

cooking at the high setting; then turn the control knob down to continue cooking.

SETTING

RECOMMENDED USE

• To start foods cooking.

• To bring liquids to a boil.

MED

• To hold a rapid boil.

• To fry chicken or pancakes.

• For gravy, pudding, and

icing.

• To cook large amounts of

vegetables.

• To keep food warm until

ready to serve.

In case of a prolonged power failure

Surface burners can be manually lighted.

1. Hold a lit match near a burner and turn

the control knob to the HI position.

REAR

OFF

2. After the burner lights, turn the

control knob to the desired setting.

NOTE: Do not leave the cooktop unattended

when cooking during a power failure. The auto-reignition feature of your cooktop will not operate during a power failure.

U sing and Caring for Your Cooktop

Energy saving tips

Although the energy used for cooking is usually a very small percentage of the total energy used in the home, cooking energy can be used efficiently. Here are some tips to help you save energy when using your range:

• Use pans with flat bottoms, straight sides,

and tight-fitting lids.

Cookware tips

• NOTE: For best results and greater fuel

efficiency, use only flat-bottomed cook-

ware in good condition.

• The pan should have straight sides and a

tight-fitting lid.

• Be sure pans do not tip, whether they are

full or empty.

• Pans should be easy to clean. Check to

be sure there are no crevices, rough edges, or areas where food might collect.

• Use cookware only as instructed in the

cookware’s user instructions. This is very important for glass cookware because some can be used only in the oven. Pans marked as flameware can be used on surface burners.

• Choose medium to heavy gauge (thick-

ness) pans that are fairly lightweight.

• The pan material (metal or glass) affects

how fast heat transfers from the surface burner through the pan material and how evenly heat spreads over the pan bottom. Choose pans that provide the best cooking results.

• Handles should be made of sturdy,

heat-resistant material and be securely attached to the pan.

• Cook with a minimum of liquid or fat to

help shorten cooking time.

• Start food on higher heat settings, then

set surface burner control on low to finish cooking.

• Turn on the surface burner only after

placing filled pan on the burner.

NOTE: Do not leave empty cookware, or

cookware which has boiled dry, on a hot surface burner. The cookware could overheat, causing damage to the cookware or surface burner.

Home canning information

The large diameter of most water-bath or pressure canners combined with high heat settings for long periods of time can cause damage to the cooktop.

To protect your cooktop:

Center over

surface burner

• Use a canner/pan which can be cen-

tered over the surface burner. Large diameter canners/pans, if not properly centered, trap heat and can cause damage to the cooktop.

• Do not place canner on two surface

burners at the same time. Too much heat will build up and will damage the cooktop.

• Start with hot water. This reduces the

time the control is set on high. Reduce heat setting to lowest position needed to keep water boiling.

• Refer to your canner manual for specific

instructions.

Pan

Burner

U sing and Caring for Your Cooktop

Caring for your cooktop

Your cooktop is designed for ease of care. You can do most cleaning with items found around the home. Cleaning your cooktop whenever spills or soiling occur will help to keep it looking and operating like new.

NOTES:

• Before cleaning make sure all controls

are off and the cooktop is cool.

• Do not obstruct the flow of combustion

and ventilation air.

• If knobs are removed while cleaning, be

careful not to spill liquids through holes in the control area.

• Be careful not to allow moisture to collect

in control area. Moisture could cause ignitor switches to fail.

Surface burners

• The burner caps should be routinely

removed and cleaned. Always clean burner caps after a spillover. Keeping the burner caps clean prevents improper ignition and an uneven flame.

• For proper flow of gas and ignition of the

burner, DO NOT ALLOW SPILLS, FOOD, CLEANING AGENTS, OR ANY OTHER MATERIAL TO ENTER THE GAS TUBE OPENING.

• Occasionally check the burner flames for

proper size and shape as shown later in this section. A good flame is blue in color. If flames lift off ports, are yellow, or are noisy when turned off, you may need to clean the burners.

To clean burners and burner caps:

Burner cap

Ignitor

Gas tube

opening

(orifice)

1. Lift the burner cap straight up from the

burner base.

2. Clean burner cap with warm, soapy water

and a sponge. For stubborn stains, clean with a mildly abrasive plastic scrubbing pad and powdered cleanser. Do not clean burner cap in dishwasher.

3. If the gas tube opening or the orifice,

located inside the opening, has become soiled or clogged, use a cotton swab or a soft cloth to clean the area.

4. If ports are clogged, clean with a

straight pin. Do not enlarge or distort

port. Do not leave anything stuck in the ports.

5. After cleaning the gas tube opening and

ports, replace the burner cap. To replace burner cap, make sure cap is properly

aligned and leveled.

6. Check the burner after cleaning for

proper lighting.

NOTE: To check oven burner flames for

proper size and shape, see the Installation Instructions also included with the range.

U sing and Caring for Your Cooktop

Adjusting the height of top burner flames

wWARNING

Carbon Monoxide Poisoning Hazard Do not operate with a yellow flame. Doing so can result in death,

heart attack, or convulsions.

The LO burner flame should be a steady blue flame approximately 1⁄4 inch (6 mm) high. It can be adjusted using the adjustment screw in the center of the valve stem. The valve stem is located directly underneath the control knob.

To adjust the flame height follow the instructions below:

1. Turn the control knob to “LO.”

2. Remove the control knob. (If there is not

an adjustment screw underneath the knob the flame height is not adjustable.)

3. Hold the valve stem with a pair of pliers.

The screw is located in the center of the valve stem. Use a small flat head screwdriver to turn the screw until the flame is the proper size.

4. Replace the control knob.

Adjustment screw

Valve stem

5. Test the flame by turning the control from

“LO” to “HI,” checking the flame at each setting.

Low flame

Port

High flame

Port

Do not store flammable materials such as gasoline near this appliance.

Doing so can result in death, explosion, or fire.

Cleaning your cooktop

U sing and Caring for Your Cooktop

wWARNING

Explosion Hazard

PART Control

knobs

Tempered glass surface

Surface burner grates and caps

WHAT TO USE

Sponge and warm, soapy water

Paper towel and spray glass cleaner

Warm, soapy water and a mildly abrasive plastic scrubbing pad and/or powdered cleanser

HOW TO CLEAN

• Turn knobs to OFF and pull straight away from

control panel.

• Wash, rinse, and dry thoroughly. Do not soak.

• Do not use steel wool or abrasive cleansers.

They may damage the finish of the knobs.

• Replace knobs. Make sure all knobs point to OFF.

• Remove grates.

• Wash, wipe with clean water, and dry thoroughly.

• Use nonabrasive, plastic scrubbing pad on heavily

soiled areas.

• Do not use steel wool, abrasives, or harsh

cleansers. They may damage the finish.

• If you use soap or detergent solutions, wipe

thoroughly to prevent filmy residue.

NOTE: When cleaning cooktop with knobs removed,

do not allow water to run down inside unit.

• Replace grates.

• Clean as soon as they become dirty and when they

are cool enough to handle.

• Wash with a mildly abrasive plastic scrubbing pad

and warm, soapy water.

• For stubborn stains, clean with a scrubbing pad

and/or a powdered cleanser and water. Repeat these cleaning steps as needed.

Surface burners

See “Caring for your cooktop” earlier in this section for cleaning instructions.

U sing and Caring for Your Cooktop

Using and replacing the surface light

(Models KGRT507 and YKGRT507)

The surface light is in the backguard. It is controlled by the Surface light pads on the control panel. The ON pad turns on the light immediately and keeps it on until you press OFF. The Night pad will turn on the surface light automatically when the light in the room is low enough to require a night light. When the night light comes on, it will also dim all lights appearing on the display. Press OFF to turn off the regular surface light or press NIGHT again to turn off the night light.

To turn on the surface light:

PRESS

SURFACE LIGHT

Replacing the surface light:

1. Unplug range or disconnect power.

2. Flip up the top of the backguard.

To turn off surface light:

PRESS

SURFACE LIGHT

OFF

To turn on night light:

PRESS

SURFACE LIGHT

NIGHT

“NIGHT LIGHT” shows on the display when the night light is on.

To turn off night light:

PRESS again

SURFACE LIGHT

NIGHT

3. Pull up glass on front of backguard.

4. Grasp the fluorescent light tube at both

ends. Turn the tube approximately 90° in either direction until both ends come out of the receptacles. Replace with a 20-watt cool-white fluorescent light tube.

U sing and Caring for Your Cooktop

5. If the surface light still does not work,

you may need to replace the starter. The starter is a knob-shaped part located on the right side of the backguard, under the light tube.

To remove and replace the starter, first remove light tube. Push starter in and turn approximately 90° counterclockwise. Pull starter out of recessed area. You can

find replacement starters at stores that sell fluorescent light tubes.

6. Replace glass and close the top panel.

7. Plug in range or reconnect power.

sing and Caring for Your Oven

This section tells you, step by step, how to operate all oven functions controlled by the electronic control. Carefully follow these instructions, along with the cooking tips and cleaning information, for successful use of your range. Your model may not have all the features shown on the control display.

Using the electronic oven control

Timed/delayed cooking pads

(p. 53)

Oven setting pads

(p. 28-29)

Oven display

EASY CONVECT* Conversion pads

(p. 44)

Convect Full Meal pad

(p. 42)

Display/clock

• When you first plug in the range, a tone

will sound, the display will be fully lit for a few seconds, and the display will show the last time set and “PF” (power failure). If, after you set the clock (See “Setting the clock” later in this section), the display again shows “PF,” your electricity was off for a while. Reset the clock.

• The time display will show “Err” and

3 short tones will sound if a time or temperature is incorrectly entered.

Surface light pads

(freestanding model only) (p. 18)

NOTE: If you press a command pad

several times, the pad can stop working. If you wait a few seconds, you can use the pad again. When you first use the pad again, you may have to hold down on the pad a short time to get it to work.

Number pads

Clock set/start pad

(p. 29)

Oven light pad

(p. 59)

Time of day/ timer display

(p. 30)

Timer pads

(pp. 30-31)

Start pad

(p. 28)

Cancel/off pad

(p. 28)

U sing and Caring for Your Oven

Fahrenheit/Celsius

To set your oven to cook in Celsius instead of Fahrenheit:

1. Open the door.

2. Press Cancel/Off pad.

3. Press the Number Pads 1, 2,

and 3, in that order.

4. Press BROIL.

5. Start oven.

NOTES:

• Press BAKE to confirm that you are

using Celsius.

• Only the temperature and a flashing

degree symbol will appear in the temperature display area when you set your oven to cook in Celsius.

PRESS

CANCEL

OFF

PRESS

CONTROL

LOCK

PRESS

BROIL

PRESS

START

Repeat the steps above to change from Celsius to Fahrenheit.

U sing and Caring for Your Oven

If you need to convert temperatures from Celsius to Fahrenheit or vice versa, you can refer to this chart:

Temperature replacement values

38°C=100°F 60°C=140°F 66°C=150°F 77°C=170°F

93°C=200°F 121°C=250°F 135°C=275°F 149°C=300°F

163°C=325°F 177°C=350°F 191°C=375°F 204°C=400°F 218°C=425°F 232°C=450°F 246°C=475°F 260°C=500°F

Disable/enable audible signals

Audible signals tell you if a function is entered correctly or not. They also tell you when a cycle is completed. To turn off key entry tone, end-of-cycle tone, and reminder tones, follow these steps:

1. Open the door.

2. Press Cancel/Off pad.

PRESS

CANCEL

OFF

+ 49 hidden pages
