KitchenAid TOP-MOUNT REFRIGERATOR User Manual

TOP-MOUNT REFRIGERATOR

Use & Care Guide

For questions about features, operation/performance, parts, accessories or service, call: 1-800-422-1230

In Canada, call for assistance 1-800-461-5681, for installation and service, call: 1-800-807-6777 or visit our website at...

www.kitchenaid.com or www.KitchenAid.ca

RÉFRIGÉRATEUR SUPERPOSÉ

Guide d’utilisation et d’entretien

Au Canada, pour assistance composez le 1-800-461-5681, pour installation ou service composez le 1-800-807-6777 ou visitez notre site web à...

www.KitchenAid.ca

Table of Contents/Table des matières.............................................................................2

2301879

TABLE OF CONTENTS

REFRIGERATOR SAFETY.................................................................... 2

Proper Disposal of Your Old Refrigerator....................................3

INSTALLATION INSTRUCTIONS ........................................................3

Unpack the Refrigerator.....................................................................3

Location Requirements......................................................................4

Electrical Requirements .....................................................................4

Water Supply Requirements ..............................................................4

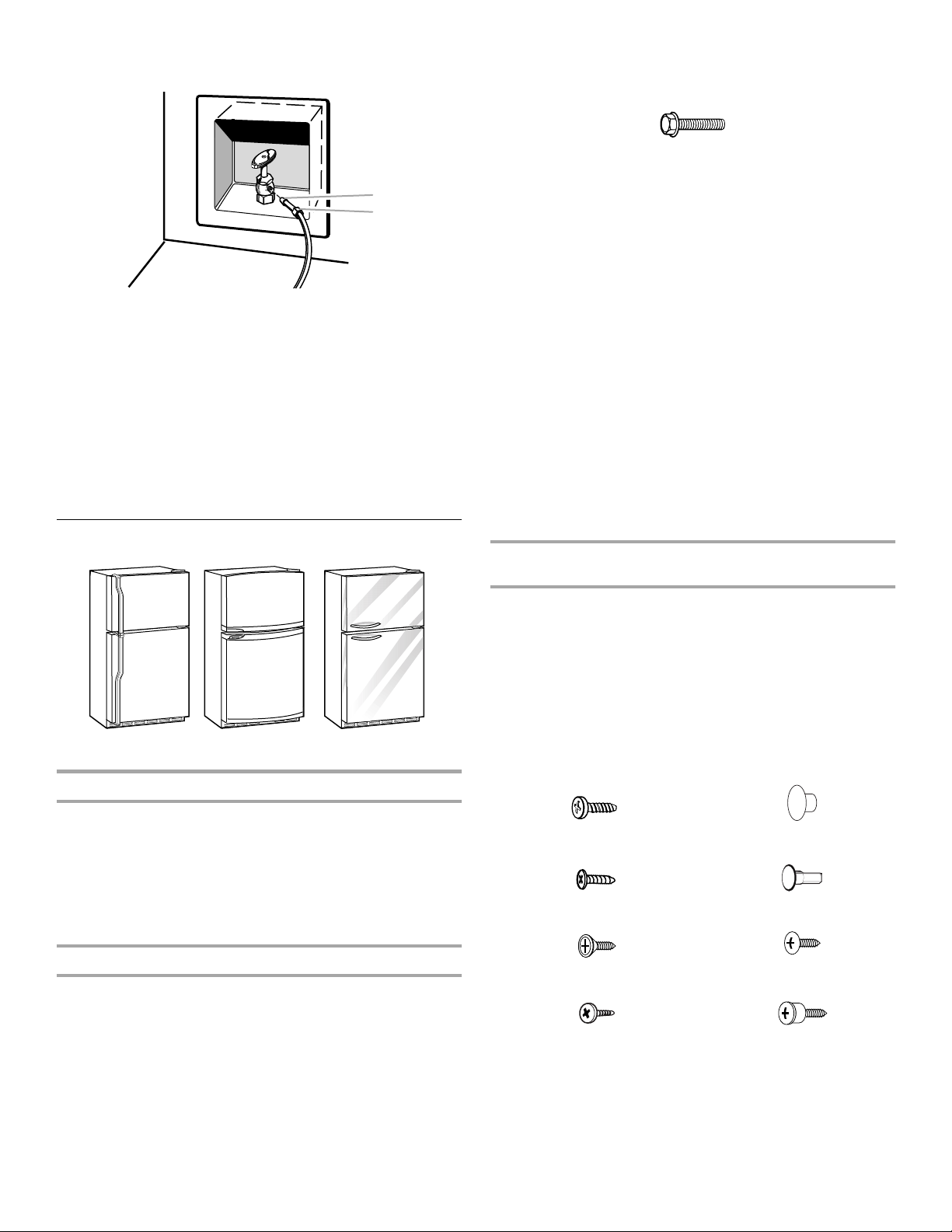

Connect the Water Supply.................................................................5

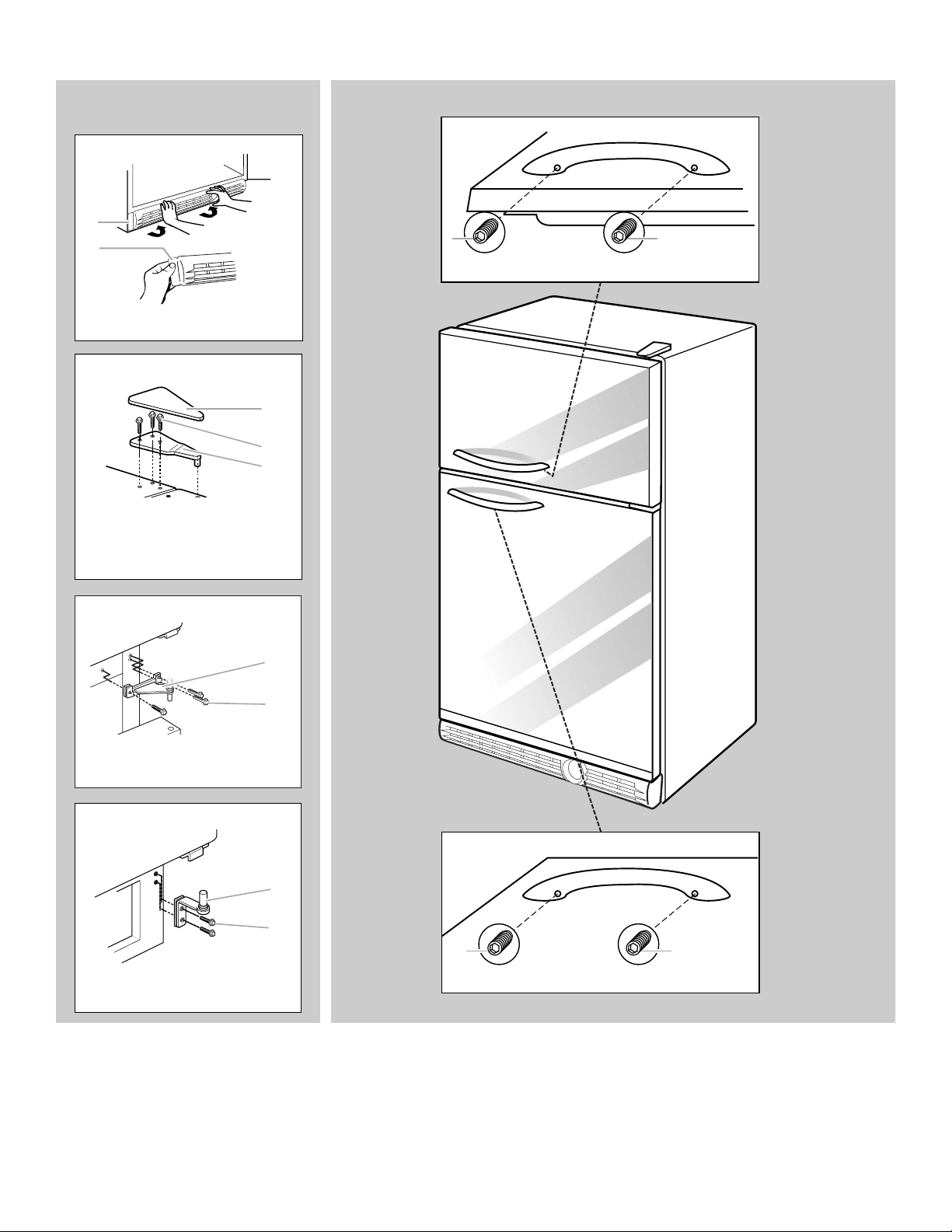

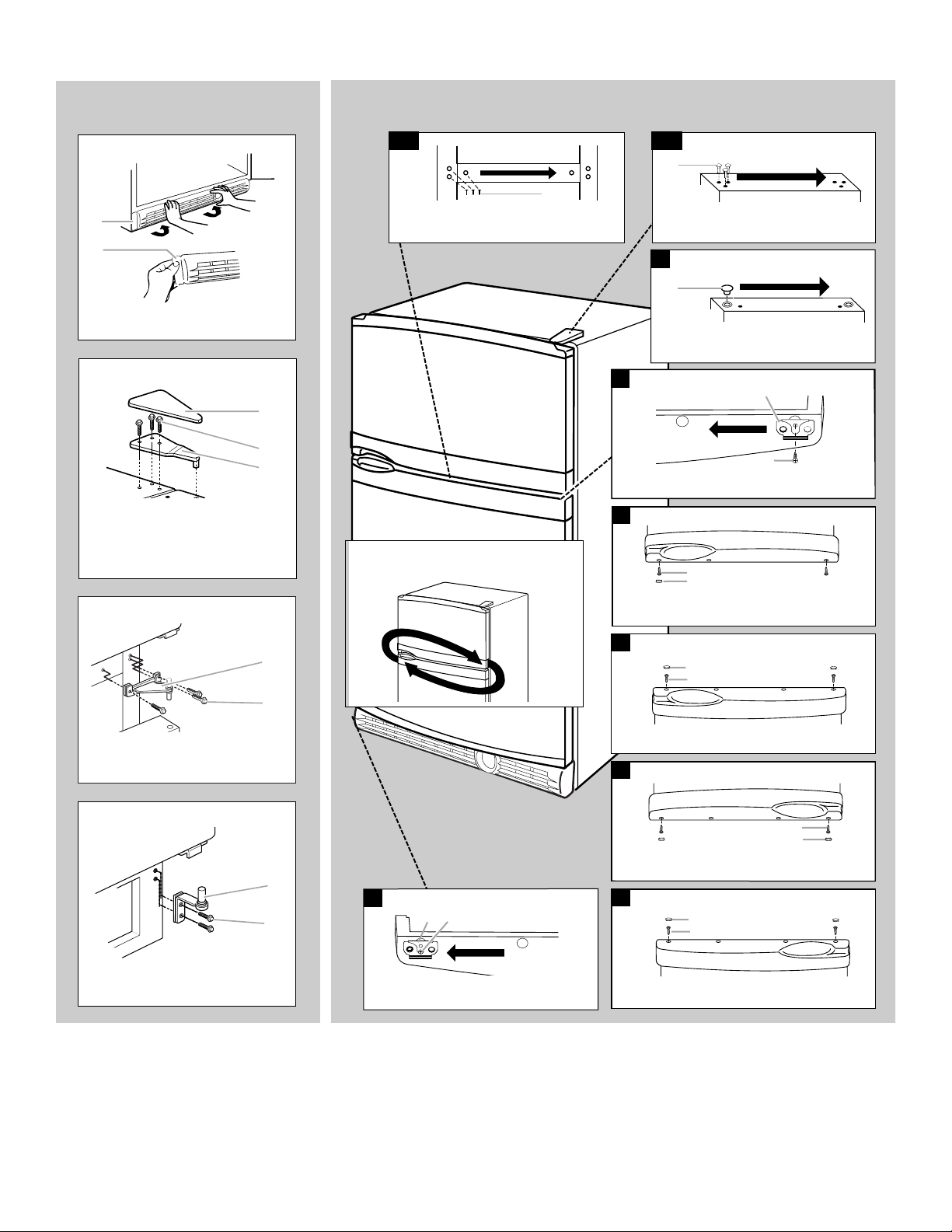

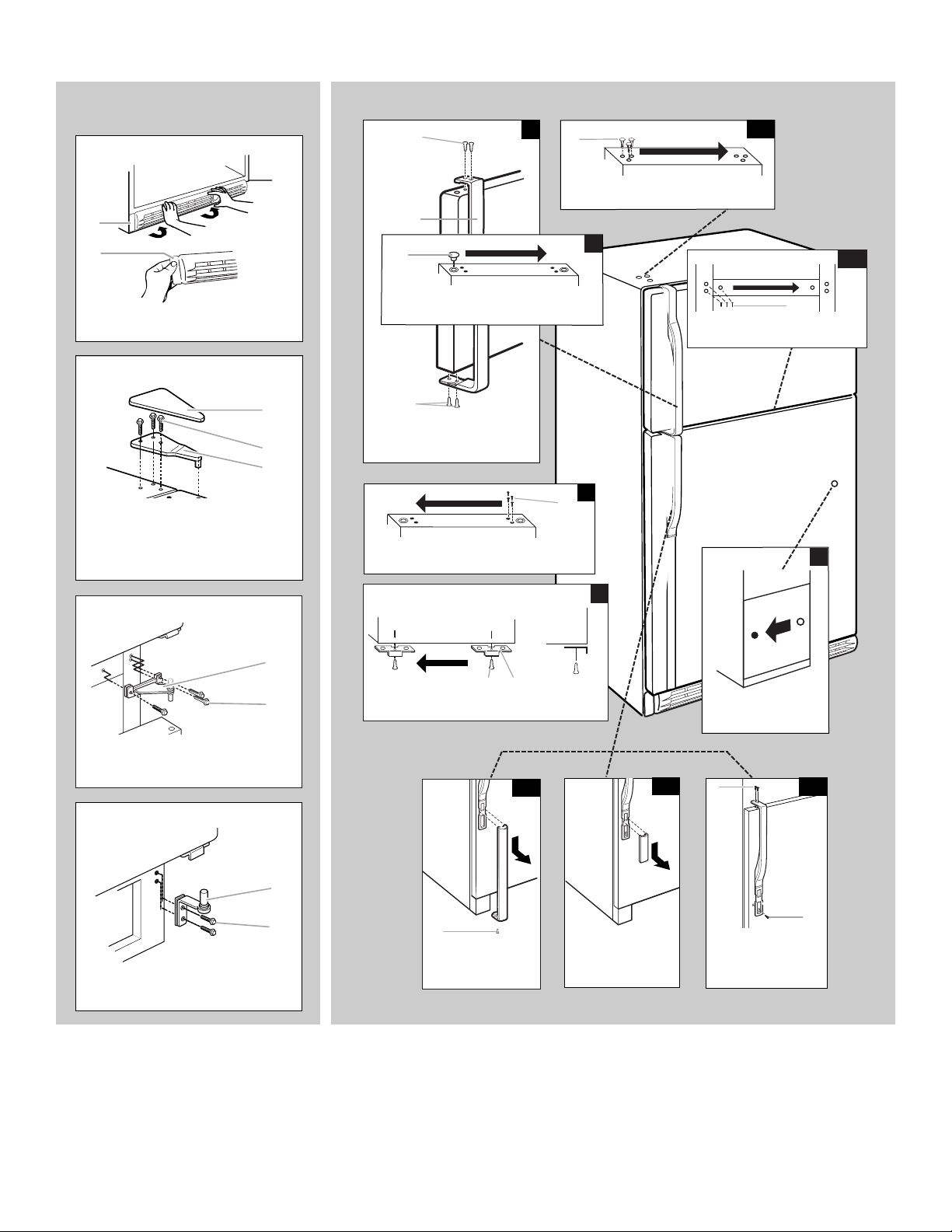

Refrigerator Doors .............................................................................6

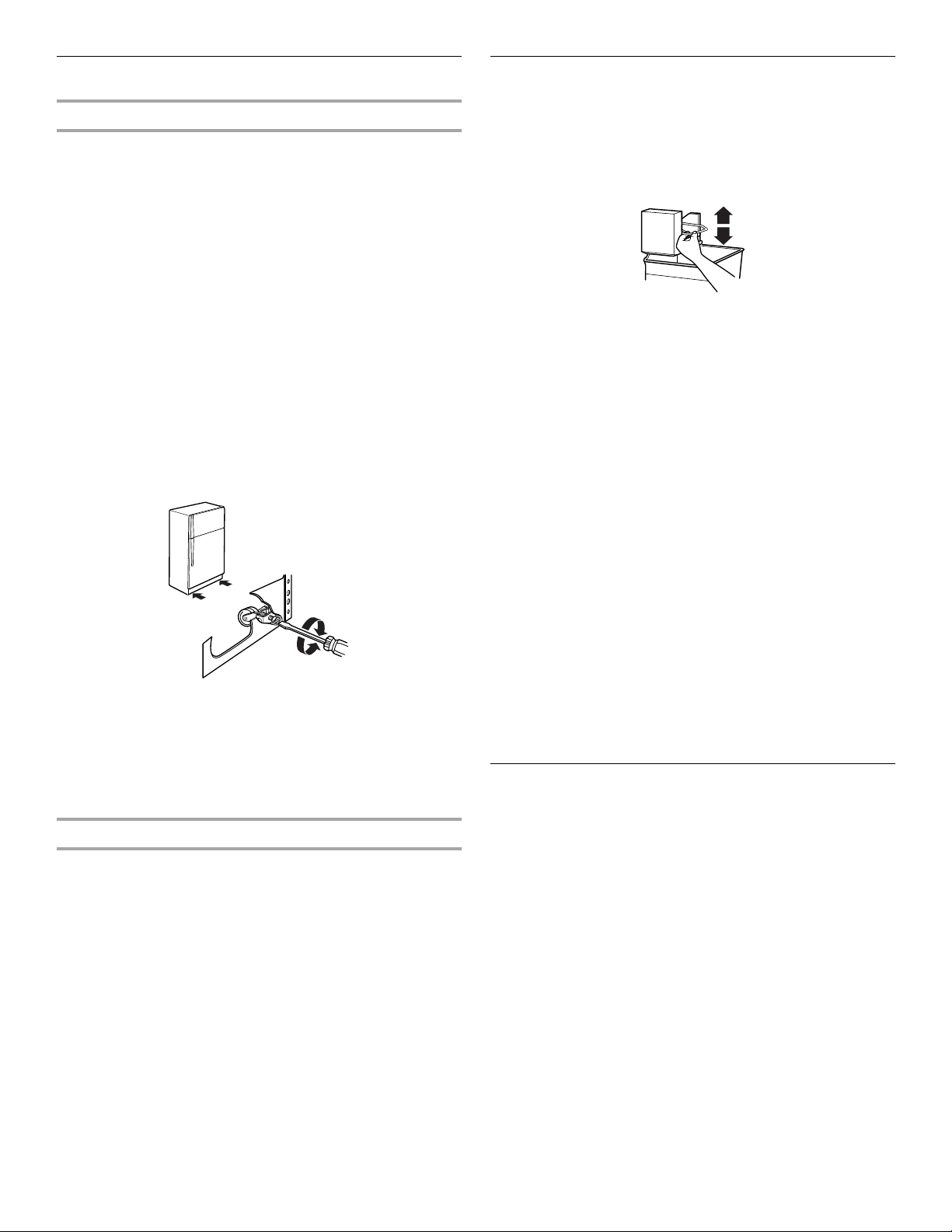

Adjust the Doors ..............................................................................11

Prepare the Water System...............................................................11

Normal Sounds ................................................................................11

REFRIGERATOR USE ........................................................................12

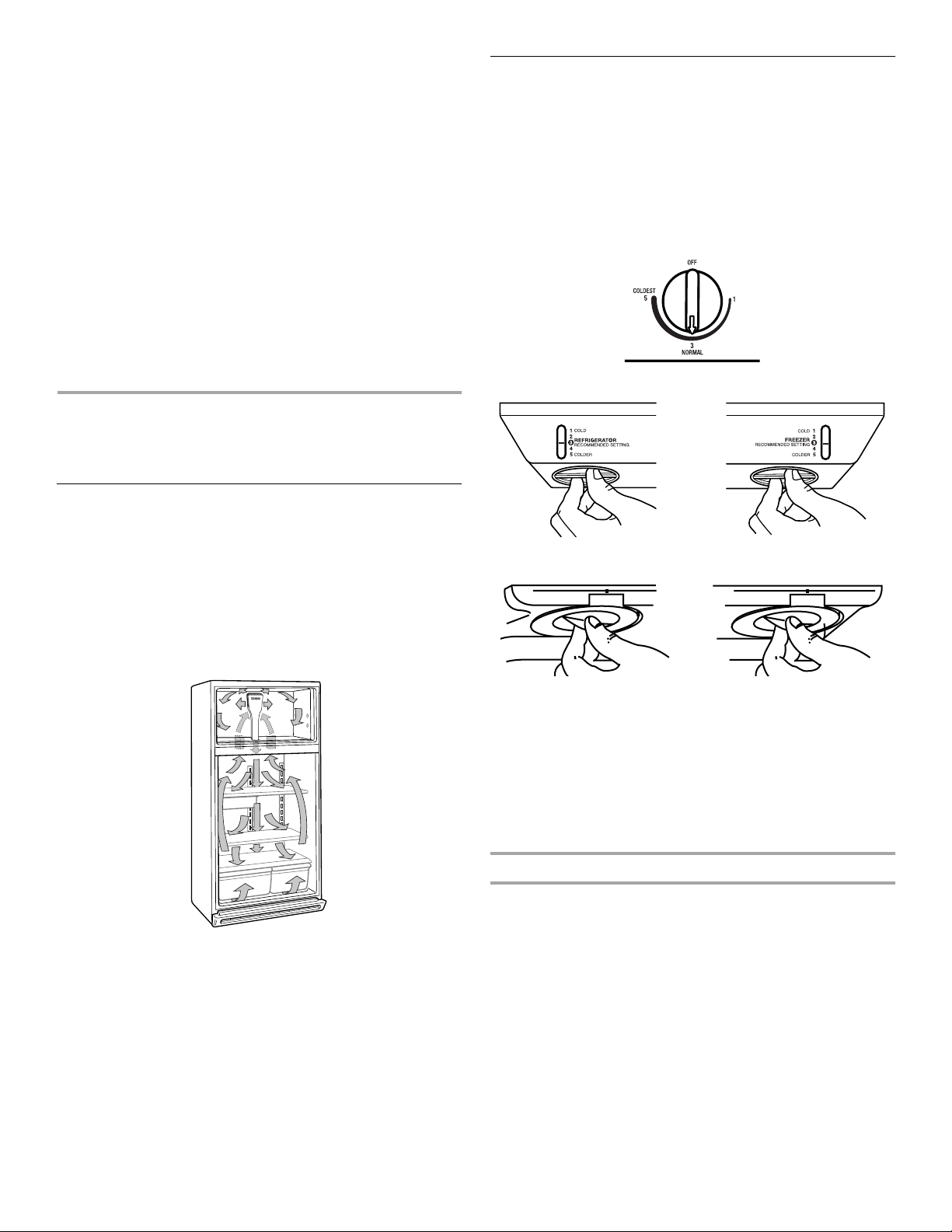

Ensuring Proper Air Circulation........................................................12

Using the Controls ...........................................................................12

Water Dispenser............................................................................... 13

Water Filter Status Light ..................................................................13

Water Filtration System....................................................................13

Ice Maker..........................................................................................14

REFRIGERATOR FEATURES ............................................................14

Refrigerator Shelves.........................................................................14

Crispers and Meat Drawers .............................................................15

Crisper Humidity Control .................................................................15

Chilled Meat Drawer.........................................................................16

Wine or Can/Bottle Rack .................................................................16

Utility or Egg Bin...............................................................................16

FREEZER FEATURES ........................................................................16

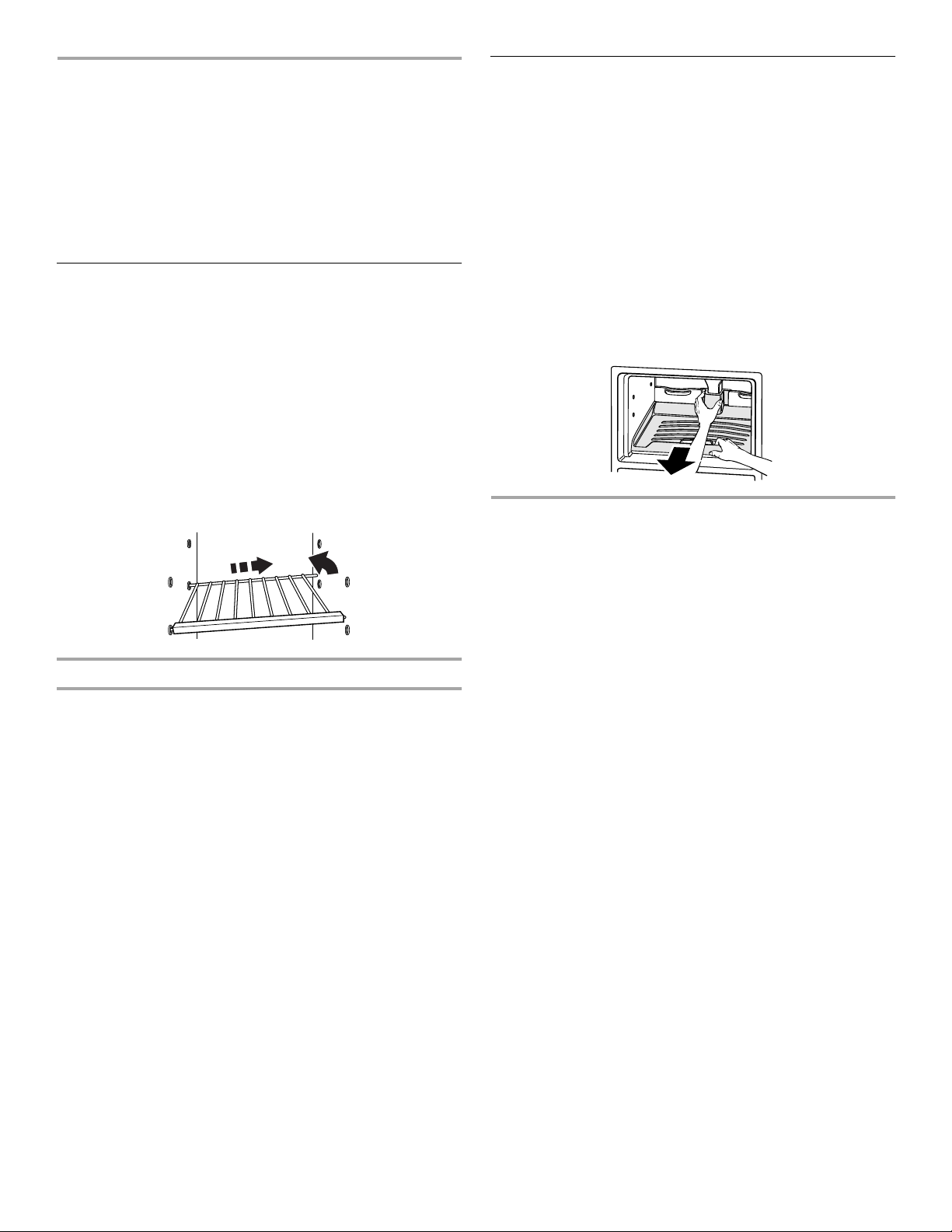

Freezer Shelf ....................................................................................16

Pull-out Freezer Floor.......................................................................16

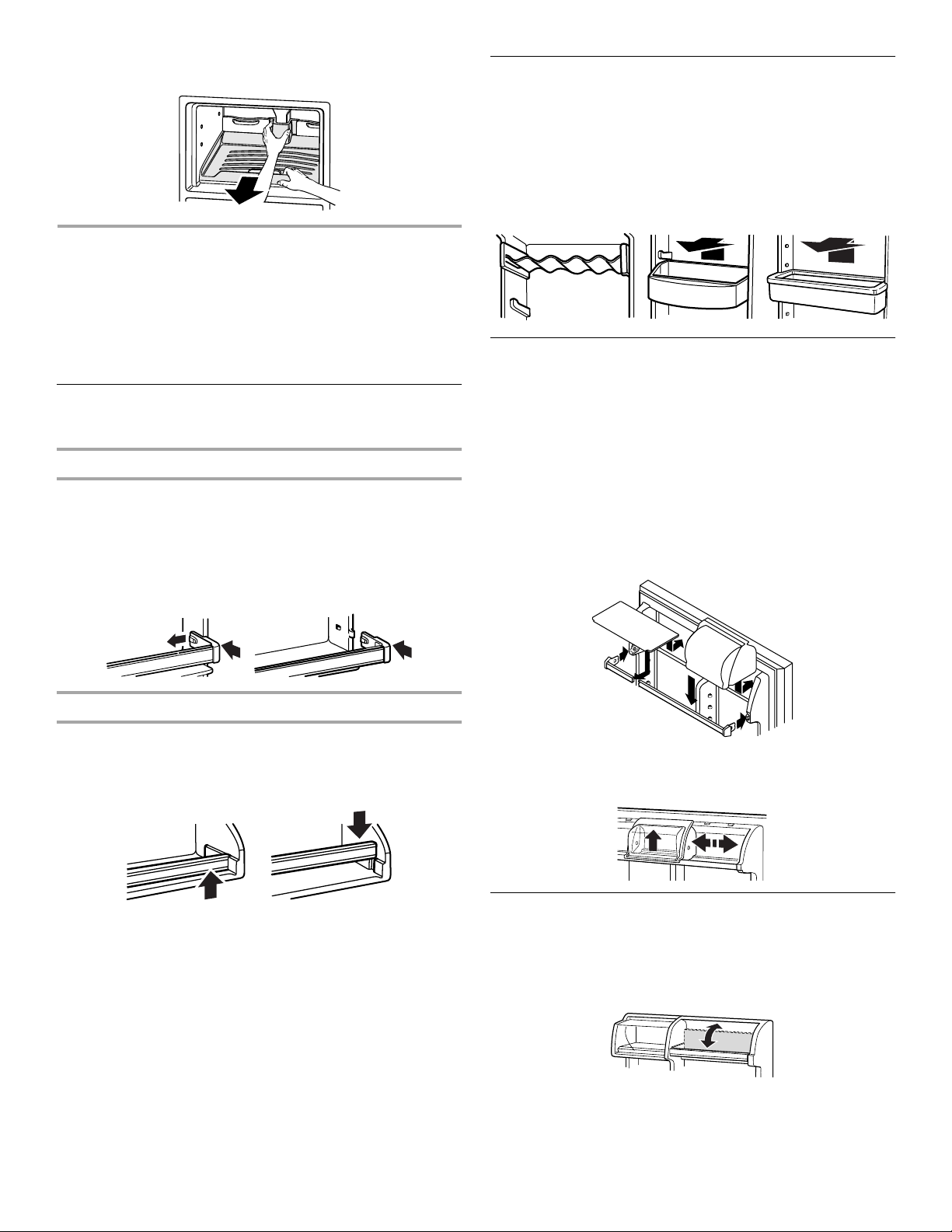

DOOR FEATURES ..............................................................................17

Door Rails.........................................................................................17

Can Racks and Door Bins................................................................17

Adjustable Utility Compartment & Tray ...........................................17

Flip-up Door Shelf ............................................................................17

REFRIGERATOR CARE .....................................................................18

Cleaning ...........................................................................................18

Changing the Light Bulbs ................................................................18

Power Interruptions..........................................................................18

Vacation and Moving Care...............................................................19

TROUBLESHOOTING ........................................................................19

ASSISTANCE OR SERVICE ...............................................................21

In the U.S.A. .....................................................................................21

In Canada ......................................................................................... 22

Accessories......................................................................................22

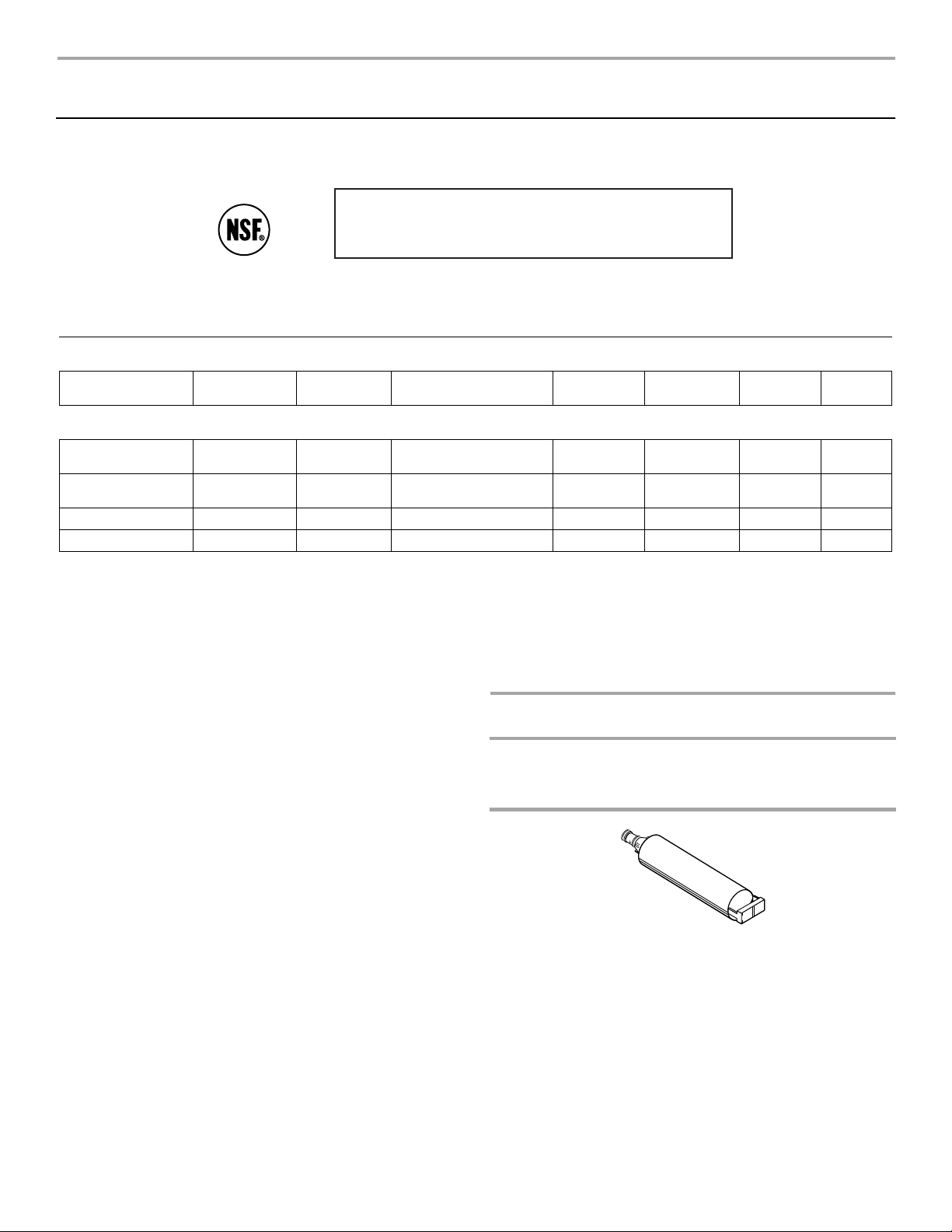

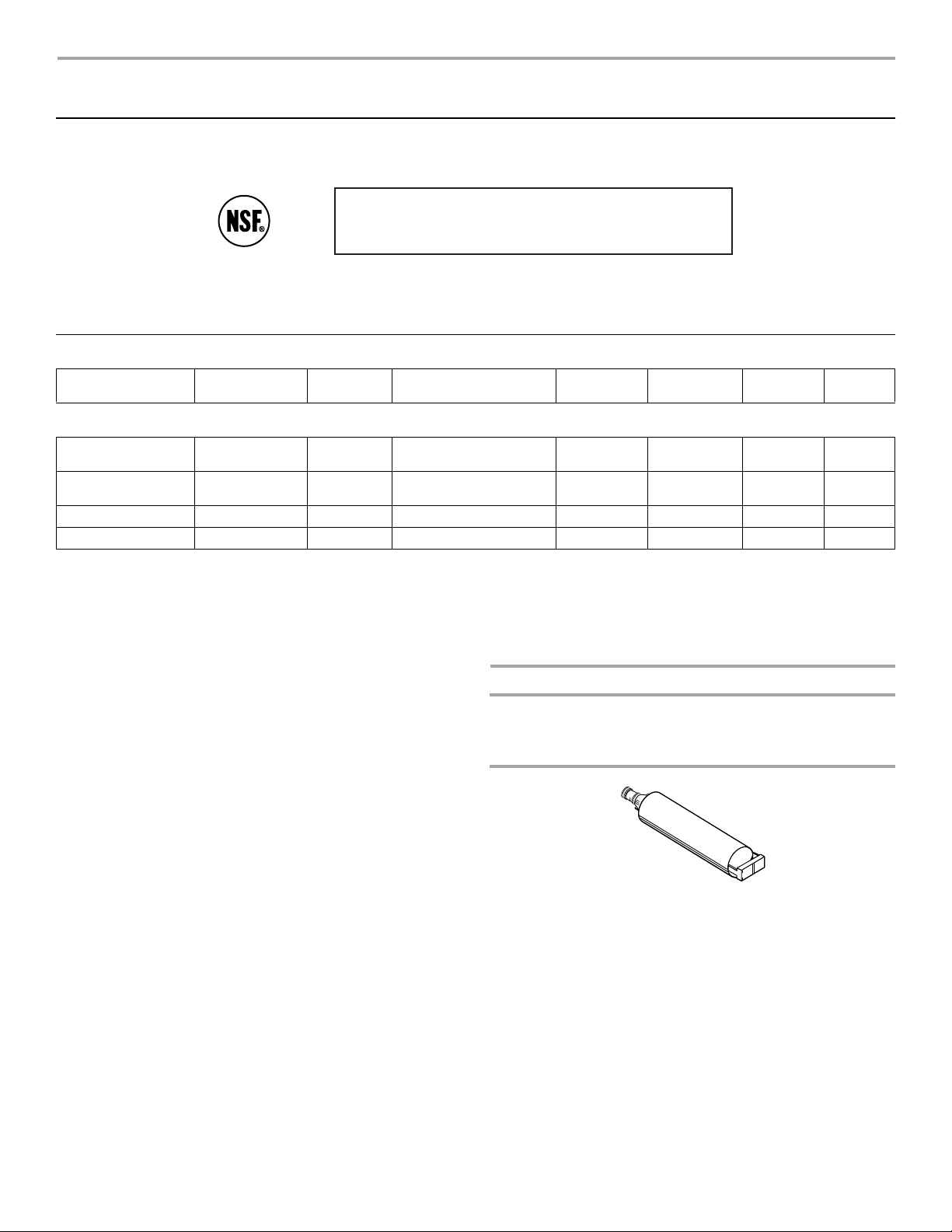

WATER FILTER CERTIFICATIONS...................................................22

PRODUCT DATA SHEETS .................................................................23

WARRANTY ........................................................................................24

TABLE DES MATIÈRES

SÉCURITÉ DU RÉFRIGÉRATEUR.................................................... 25

Mise au rebut de votre vieux réfrigérateur.................................25

INSTRUCTIONS D’INSTALLATION .................................................. 26

Déballage du réfrigérateur ............................................................... 26

Emplacement d’installation ............................................................. 26

Spécifications électriques ............................................................... 27

Spécifications de l’alimentation en eau........................................... 27

Raccordement de la canalisation d'eau.......................................... 27

Portes du réfrigérateur .................................................................... 29

Ajustement des portes .................................................................... 34

Préparation du système d’eau ........................................................ 34

Sons normaux.................................................................................. 34

UTILISATION DU RÉFRIGÉRATEUR ............................................... 35

Pour s’assurer d’une circulation d'air appropriée ........................... 35

Utilisation des commandes ............................................................. 35

Distributeur d’eau ............................................................................ 36

Le témoin lumineux de l’état du filtre à eau .................................... 36

Système de filtration d’eau.............................................................. 36

Machine à glaçons........................................................................... 37

CARACTÉRISTIQUES DU RÉFRIGÉRATEUR ................................. 38

Tablettes du réfrigérateur ................................................................ 38

Bacs à légumes et tiroirs à viande .................................................. 38

Réglage de l’humidité dans le bac à légumes ................................ 39

Tiroir à viande réfrigéré.................................................................... 39

Casier à vin ou porte-cannettes/bouteilles ..................................... 39

Casier utilitaire ou oeufrier............................................................... 39

CARACTÉRISTIQUES DU CONGÉLATEUR .................................... 40

Clayette de congélateur .................................................................. 40

Plancher de congélateur coulissant ................................................ 40

CARACTÉRISTIQUES DE LA PORTE .............................................. 40

Tringles dans la porte ...................................................................... 41

Porte-cannettes et balconnets ........................................................ 41

Compartiment utilitaire et plateau réglables ................................... 41

Tablette de porte relevable.............................................................. 41

ENTRETIEN DU RÉFRIGÉRATEUR.................................................. 42

Nettoyage ........................................................................................ 42

Remplacement des ampoules d’éclairage...................................... 42

Pannes de courant .......................................................................... 43

Entretien avant les vacances ou lors d’un déménagement............ 43

DÉPANNAGE ...................................................................................... 44

ASSISTANCE OU SERVICE .............................................................. 46

Accessoires ..................................................................................... 46

FEUILLES DE DONNÉES SUR LE PRODUIT .................................. 47

GARANTIE .......................................................................................... 48

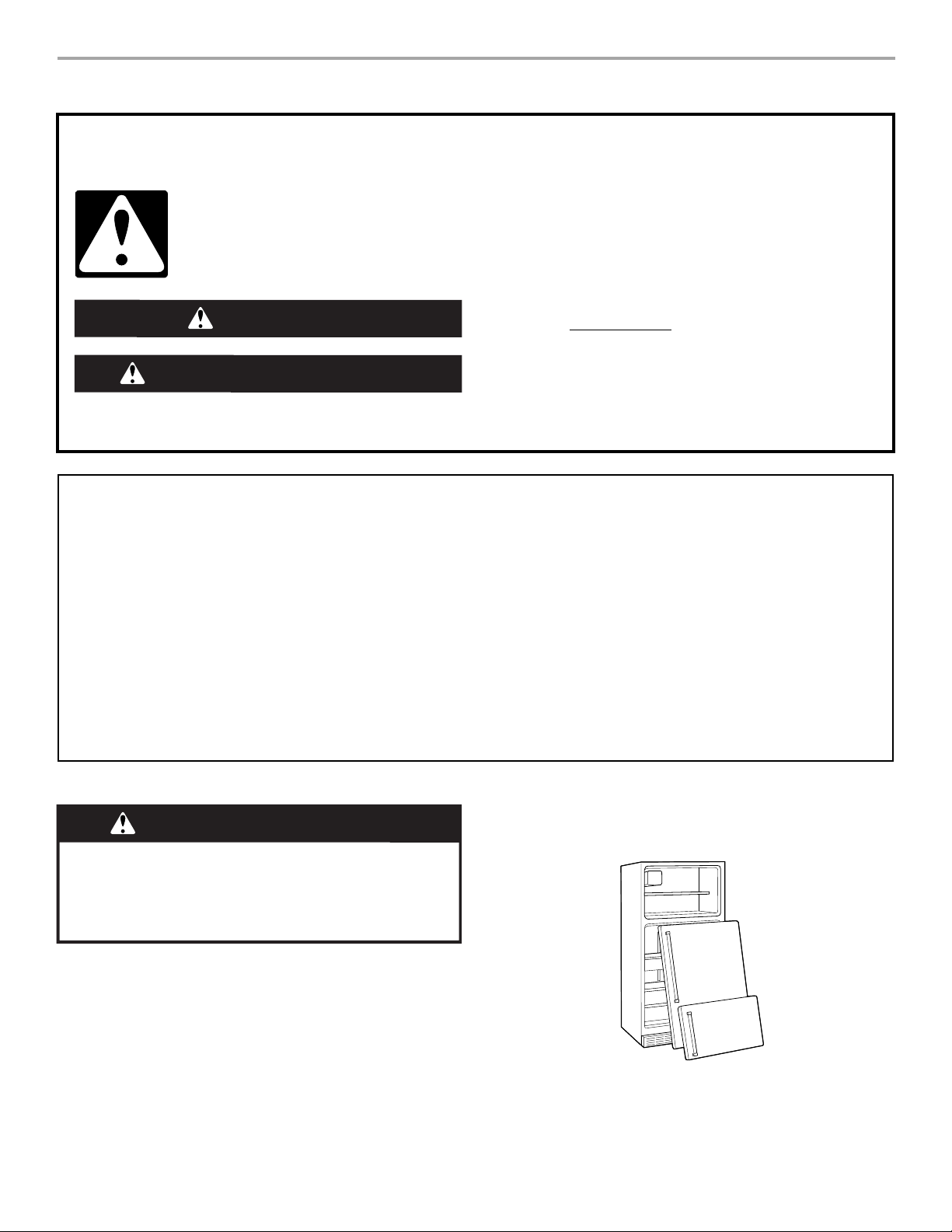

REFRIGERATOR SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

You can be killed or seriously injured if you don't immediately

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

follow instructions.

can be killed or seriously injured if you don't

You instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

■ Plug into a grounded 3 prong outlet.

■ Do not remove ground prong.

■ Do not use an adapter.

■ Do not use an extension cord.

■ Disconnect power before servicing.

■ Replace all panels before operating.

■ Remove doors from your old refrigerator.

To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:

■ Use nonflammable cleaner.

■ Keep flammable materials and vapors, such as gasoline,

away from refrigerator.

■ Use two or more people to move and install refrigerator.

■ Disconnect power before installing ice maker (on ice maker

kit ready models only).

■ Use a sturdy glass when dispensing ice or water (on some

models).

SAVE THESE INSTRUCTIONS

Proper Disposal of Your Old Refrigerator

WARNING

Suffocation Hazard Remove doors from your old refrigerator. Failure to do so can result in death or brain damage.

IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous – even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents.

INSTALLATION INSTRUCTIONS

Unpack the Refrigerator

WARNING

Excessive Weight Hazard

Use two or more people to move and install refrigerator.

Failure to do so can result in back or other injury.

Remove the Packaging Materials

■ Remove tape and glue residue from surfaces before turning

on the refrigerator. Rub a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.

■ Do not use sharp instruments, rubbing alcohol, flammable

fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator. For more information, see “Refrigerator Safety.”

■ On some models, shelves, bins, door shelf rails, and other

feature parts may be packaged in the Interior FeaturePak. Follow the instructions contained in the package for proper assembly.

Before You Throw Away Your Old Refrigerator or Freezer:

■ Take off the doors.

■ Leave the shelves in place so that children may not easily

climb inside.

■ Depending on your model, to remove the protective

(transparent) film that is on the nameplate, which is located on the freezer handle, use your fingernail and peel off the film, starting from one side and peeling to the other.

■ There are four bolts that secure the refrigerator to the

shipping case. Keep these bolts because they are the refrigerator's leveling legs.

IMPORTANT: Do not remove the white foam air return insert that is located behind the control panel on the ceiling of the refrigerator (on some models). The insert is part of the refrigerator and not part of the packing material. If the insert is removed, ice may migrate down from the freezer and cause icicles to form.

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to protect the floor. Always pull the refrigerator straight out when moving it. Do not wiggle or “walk” the refrigerator when trying to move it, as floor damage could occur.

Clean Before Using

After you remove all of the package materials, clean the inside of your refrigerator before using it. See the cleaning instructions in “Refrigerator Care.”

Important information to know about glass shelves and covers:

Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. For your protection, tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use special care when removing them to avoid impact from dropping.

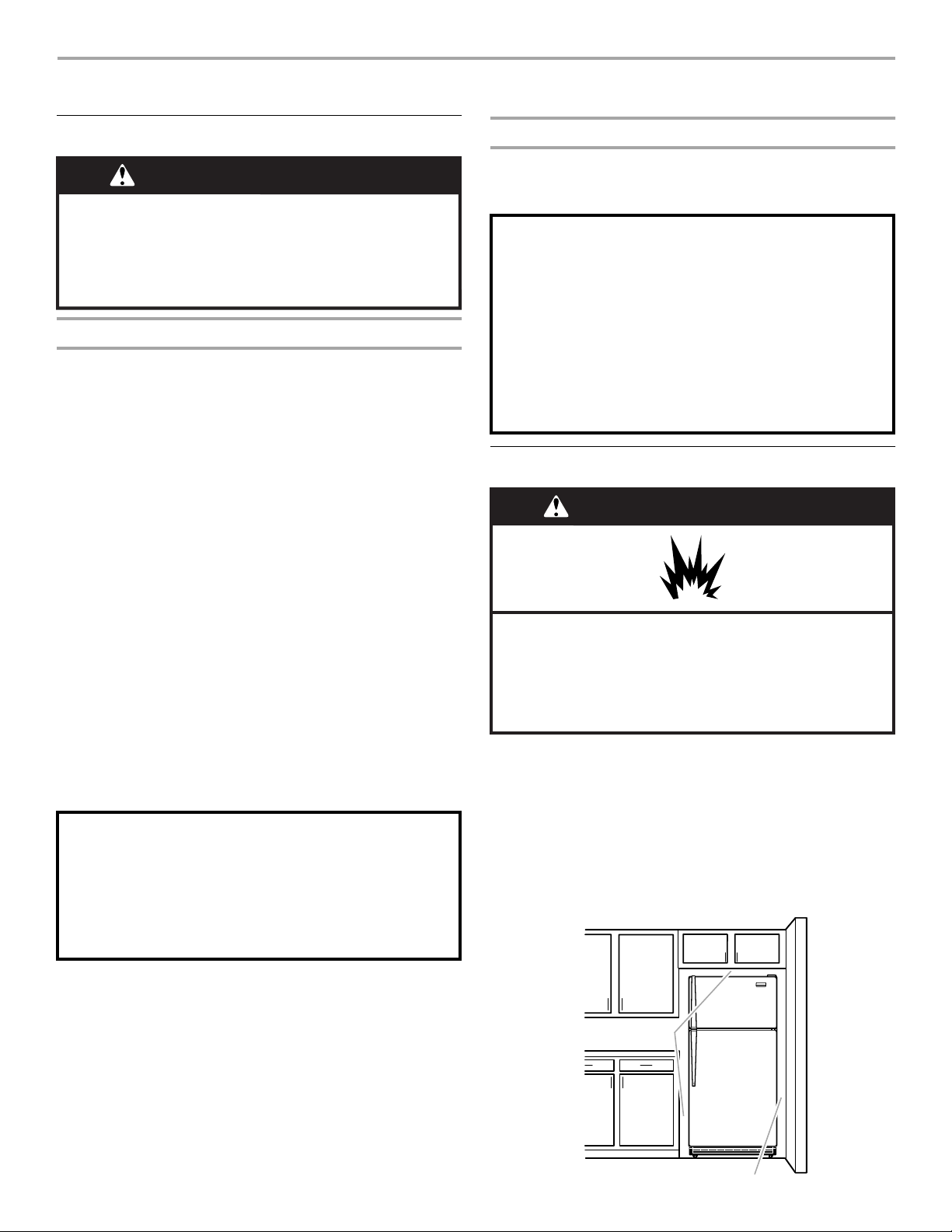

Location Requirements

Electrical Requirements

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

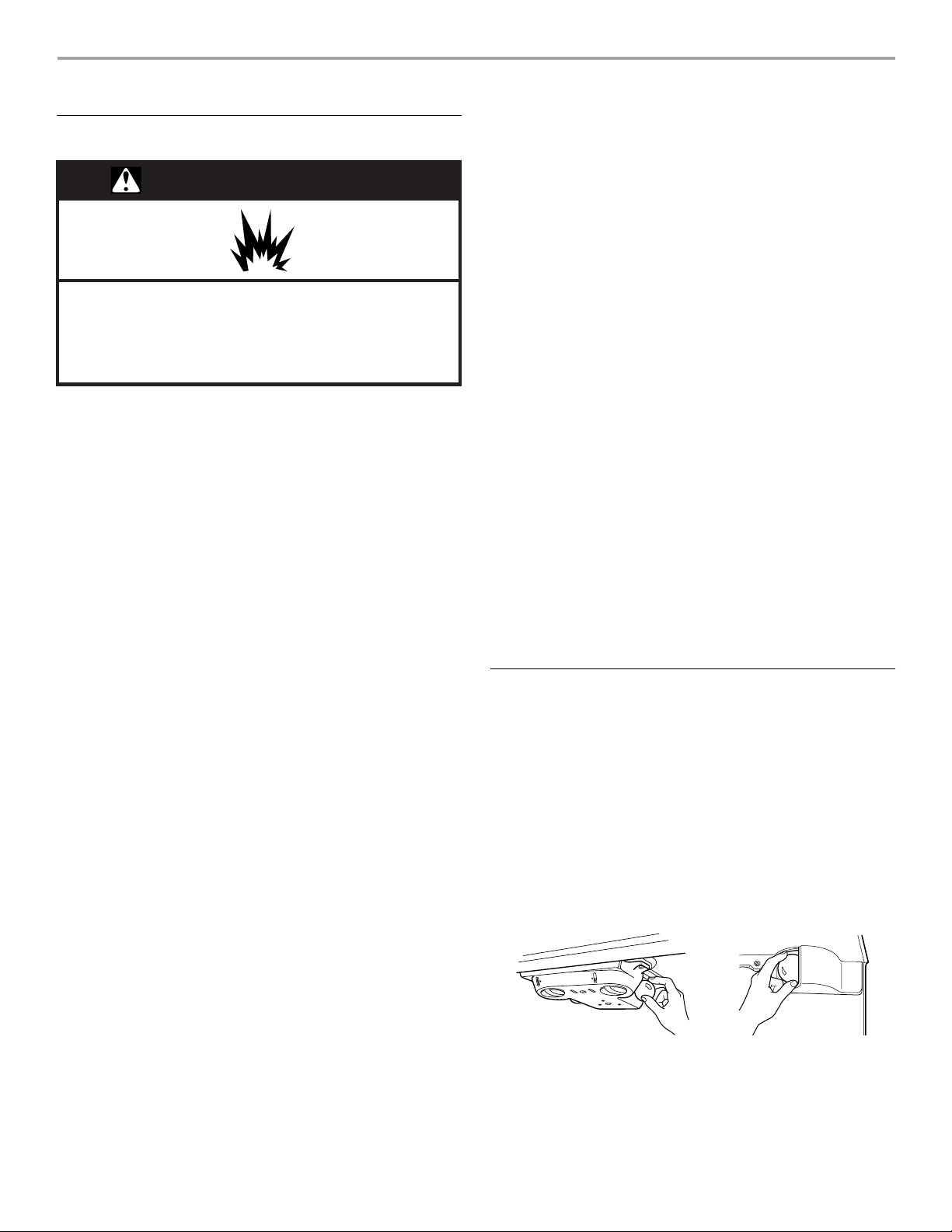

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from refrigerator.

Failure to do so can result in death, explosion, or fire.

To ensure proper ventilation for your refrigerator, allow for a ¹/₂" (1.25 cm) space on each side and at the top. When installing your refrigerator next to a fixed wall, leave 2" (5.08 cm) minimum on each side (depending on your model) to allow for the door to swing open. If your refrigerator has an ice maker, allow extra space at the back for the water line connections.

NOTE: Do not install the refrigerator near an oven, radiator, or other heat source, nor in a location where the temperature will fall below 55°F (13°C).

2" (1.25 cm)

Before you move your refrigerator into its final location, it is important to make sure you have the proper electrical connection.

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15 or 20 amp fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.

NOTE: Before performing any type of installation, cleaning, or removing a light bulb, turn the control (Thermostat, Refrigerator or Freezer Control depending on the model) to OFF and then disconnect the refrigerator from the electrical source. When you are finished, reconnect the refrigerator to the electrical source and reset the control (Thermostat, Refrigerator or Freezer Control depending on the model) to the desired setting.

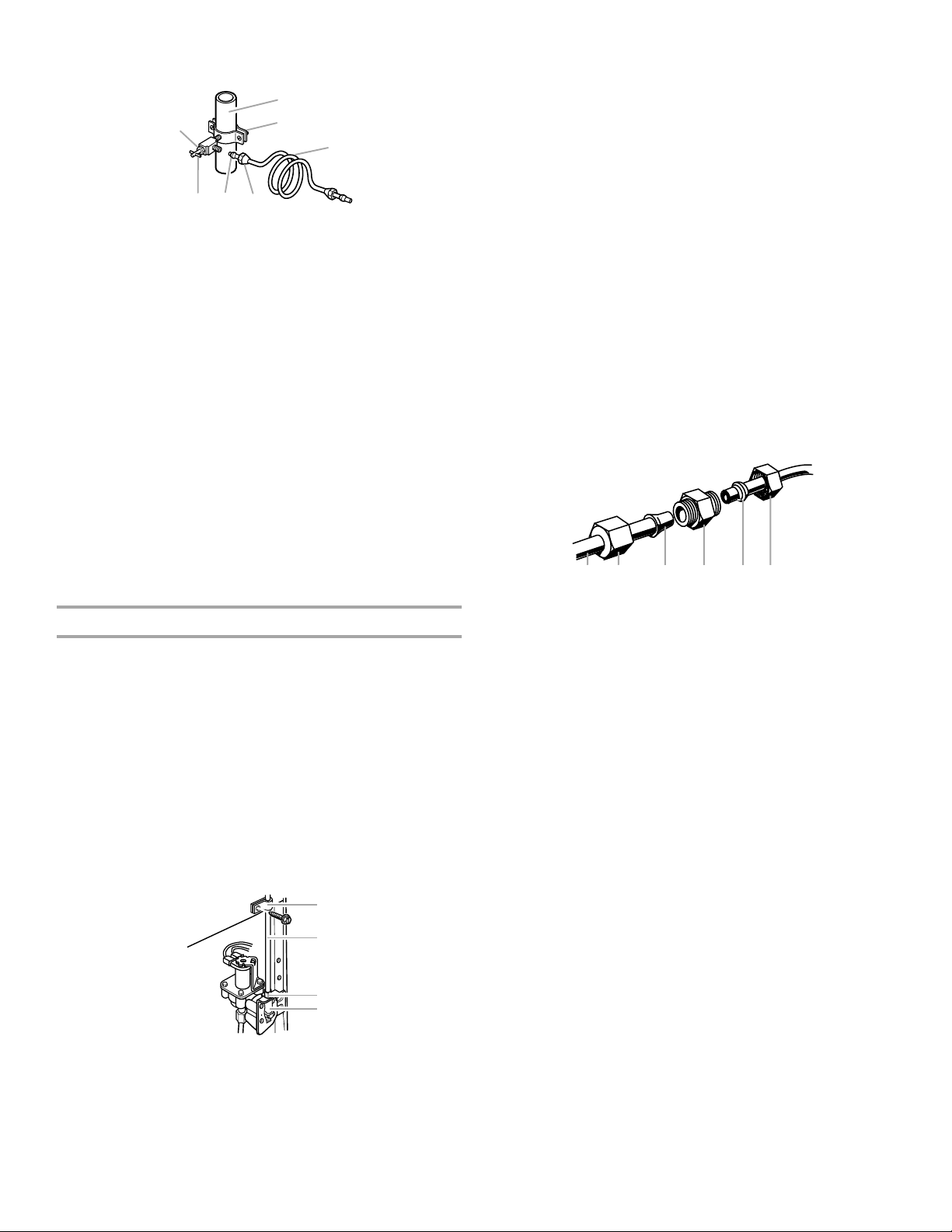

Water Supply Requirements

Read all directions carefully before you begin.

IMPORTANT:

■ If you turn the refrigerator on before the water line is

connected, turn the ice maker OFF.

■ All installations must meet local plumbing code requirements.

■ Use copper tubing and check for leaks. Install copper tubing

only in areas where the household temperatures will remain above freezing.

TOOLS NEEDED: Flat-blade screwdriver, ⁷⁄₁₆" and ¹⁄₂" open-end wrenches or two adjustable wrenches, ¹⁄₄" nut driver and drill bit, hand drill or electric drill (properly grounded).

NOTE: Your refrigerator dealer has a kit available with a ¹⁄₄" (6.35 mm) saddle-type shutoff valve, a union, and copper tubing. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes. Do not use a piercing-type or ³⁄₁₆" (4.76 mm) saddle valve which reduces water flow and clogs more easily.

2" (5.08 cm)

Water Pressure

A cold water supply with water pressure of between 30 and 120 psi (207 - 827 kPa) is required to operate the water dispenser and ice maker. If you have questions about your water pressure, call a licensed, qualified plumber.

Reverse Osmosis Water Supply

IMPORTANT: The pressure of the water supply coming out of a

reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 30 and 120 psi (207 - 827 kPa).

If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 - 414 kPa).

If the water pressure to the reverse osmosis system is less than 40 to 60 psi (276 - 414 kPa):

■ Check to see whether the sediment filter in the reverse

osmosis system is blocked. Replace the filter if necessary.

■ Allow the storage tank on the reverse osmosis system to refill

after heavy usage.

■ If your refrigerator has a water filter cartridge, it may further

reduce the water pressure when used in conjunction with a reverse osmosis system. Remove the water filter cartridge. See “Water Filtration System.”

If you have questions about your water pressure, call a licensed, qualified plumber.

Connect the Water Supply

Read all directions before you begin. IMPORTANT: If you turn the refrigerator on before the water line

is connected, turn the ice maker OFF.

6. Fasten the shutoff valve to the cold water pipe with the pipe

clamp. Be sure the outlet end is solidly in the ¹⁄₄" drilled hole in the water pipe and that the washer is under the pipe clamp. Tighten the packing nut. Tighten the pipe clamp screws carefully and evenly so washer makes a watertight seal. Do not overtighten or you may crush the copper tubing.

7. Slip the compression sleeve and compression nut on the

copper tubing as shown. Insert the end of the tubing into the outlet end squarely as far as it will go. Screw compression nut onto outlet end with adjustable wrench. Do not overtighten.

8. Place the free end of the tubing in a container or sink, and

turn ON the main water supply. Flush the tubing until water is clear. Turn OFF the shutoff valve on the water pipe. Coil the copper tubing.

Connect to Refrigerator

Style 1

1. Unplug refrigerator or disconnect power.

2. Attach the copper tube to the valve inlet using a compression

nut and sleeve as shown. Tighten the compression nut. Do not overtighten.

3. Use the tube clamp on the back of the refrigerator to secure

the tubing to the refrigerator as shown. This will help prevent damage to the tubing when the refrigerator is pushed back against the wall.

4. Turn shutoff valve ON.

5. Check for leaks. Tighten any connections (including

connections at the valve) or nuts that leak.

Connect to Water Line

1. Unplug refrigerator or disconnect power.

2. Turn OFF main water supply. Turn ON nearest faucet long

enough to clear line of water.

3. Locate a ½" to 1¹⁄₄" (1.25 cm to 3.18 cm) vertical cold water

pipe near the refrigerator.

IMPORTANT:

■ Make sure it is a cold water pipe.

■ Horizontal pipe will work, but drill on the top side of the

pipe, not the bottom. This will help keep water away from the drill and normal sediment from collecting in the valve.

4. Determine the length of copper tubing you need. Measure

from the connection on the lower left rear of refrigerator to the water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use ¹⁄₄" (6.35 mm) O.D. (outside diameter) copper tubing. Be sure both ends of copper tubing are cut square.

5. Using a grounded drill, drill a ¹⁄₄" hole in the cold water pipe

you have selected.

A. Cold water pipe

B. Pipe clamp C. Copper tubing D. Compression nut

DEF

E. Compression sleeve F. Shutoff valve

G. Packing nut

A. Tube clamp B. Copper tubing

C. Compression nut D. Valve inlet

6. The ice maker is equipped with a built-in water strainer. If

your water conditions require a second water strainer, install it in the ¹⁄₄" (6.35 mm) water line at either tube connection. Obtain a water strainer from your nearest appliance dealer.

7. Plug in refrigerator or reconnect power.

8. Flush the water system. See “Prepare the Water System.” NOTE: Allow 24 hours to produce the first batch of ice. Discard

the first three batches of ice produced. Allow 3 days to completely fill ice container.

Style 2

1. Unplug refrigerator or disconnect power.

2. Remove the shipping tape from the gray, coiled water tubing

on the rear of the refrigerator.

3. A ¹⁄₄" x ¹⁄₄" coupling is needed in order to connect the water

tubing to an existing household water line. Thread the provided nut onto the coupling on the end of the copper tubing.

NOTE: Tighten the nut by hand. Then tighten it with a wrench two more turns. Do not overtighten.

A B C D E F

A. Refrigerator water tubing B. Nut (provided) C. Bulb

D. Coupling (provided)

E. Ferrule (purchased) F. Nut (purchased)

4. Turn shutoff valve ON.

5. Check for leaks. Tighten any nuts or connections (including

connections at the valve) that leak.

6. Plug in refrigerator or reconnect power.

7. Flush the water system. See “Prepare the Water System.” NOTE: Allow 24 hours to produce the first batch of ice. Discard

the first three batches of ice produced. Allow 3 days to completely fill ice container.

Style 3

1. Unplug refrigerator or disconnect power.

2. Remove the shipping tape from the gray, coiled water tubing

on the rear of the refrigerator.

3. Thread the provided nut onto the water valve as shown. NOTE: Tighten the nut by hand. Then tighten it with a wrench

two more turns. Do not overtighten.

Remove Handle (Architect® Series)

Graphics are included later in this section. NOTE: These instructions are for the Architect® Series doors with

curved handle only.

1. Using a ¹⁄₈" Allen wrench, loosen the two set screws located

underneath each handle.

2. Pull handle straight out from the door. Make sure you keep

screws for reattaching handles.

Remove Doors and Hinges (all models)

IMPORTANT:

■ Before you begin, turn the refrigerator control OFF. Unplug

refrigerator or disconnect power.

■ Remove food and any adjustable door or utility bins from

doors.

■ If you are only removing and replacing the doors, the

instructions are the same regardless of door style.

■ If you have a standard or contour door and are also going to

reverse the door swing, follow the instructions for the appropriate door style.

■ All graphics referenced in the following instructions are

included later in this section after “Final Steps.”

⁵⁄₁₆" Hex-Head Hinge Screw

A B

A. Bulb B. Nut (provided)

4. Turn shutoff valve ON.

5. Check for leaks. Tighten any nuts or connections (including

connections at the valve) that leak.

6. Plug in refrigerator or reconnect power.

7. Flush the water system. See “Prepare the Water System.”

NOTE: Allow 24 hours to produce the first batch of ice. Discard

the first three batches of ice produced. Allow 3 days to completely fill ice container.

Refrigerator Doors

TOOLS NEEDED: ⁵⁄₁₆" hex-head socket wrench, #2 Phillips screwdriver, flat-blade screwdriver,

⁵⁄₁₆" open-end wrench, flat 2"

putty knife.

1. Unplug refrigerator or disconnect power.

2. Open refrigerator door and remove base grille from the

bottom front of the refrigerator. See Base Grille graphic.

3. Close the refrigerator door and keep both doors closed until

you are ready to lift them free from the cabinet. NOTE: Provide additional support for the doors while the

hinges are being moved. Do not depend on the door magnets to hold the doors in place while you are working.

4. Remove the parts for the top hinge as shown in Top Hinge

graphic. Lift the freezer door free from the cabinet.

5. Remove the parts for the center hinge as shown in the Center

Hinge graphic. Lift the refrigerator door free from the cabinet.

6. Remove the parts for the bottom hinge as shown in the

Bottom Hinge graphic.

Reverse Doors (optional on some models)

IMPORTANT:

■ Architect

■ If you want to reverse your standard or contour doors so they

open from the opposite side, follow these steps. If you are not reversing the doors, see “Replace Doors and Hinges.”

Series doors with curved handle are not reversible.

Standard Contour

Architect

Series

Standard Door

Graphics are included later in this section.

Contour Door

Graphics are included later in this section.

Door Stop Screw

Door Handle Sealing Screw

Flat-Head Handle Screw

Door Handle Seal Screw Front

Door Hinge Hole Plug

Cabinet Hinge Hole Plug

Round-Head Handle Scre

Shoulder Handle Screw

Cabinet

1. Remove ⁵⁄₁₆" hex-head hinge screws from handle side and

move them to opposite side. See Graphic 1-1.

2. Remove cabinet hinge hole plugs from cabinet top and move them to opposite side hinge holes as shown. See Graphic 1-2.

Freezer door

1. Remove freezer handle assembly as shown. Keep all parts

together. See Graphic 2.

2. Remove door hinge hole plug. Move to opposite side as shown. See Graphic 3.

3. Remove door handle sealing screws. Move to opposite side of freezer door as shown. See Graphic 4.

4. Remove door stop. Move to opposite side of freezer door as shown. See Graphic 5.

5. Position handle on opposite side of freezer door. Assemble handles on door as shown. See Graphic 2.

6. Tighten all screws. Set aside door until hinges and refrigerator compartment door are in place.

Refrigerator door

1. Remove refrigerator handle assembly as shown. Keep all

parts together. See Graphic 6-1.

2. Remove shoulder handle screw from refrigerator door as shown. Keep all parts together. See Graphic 6-2.

3. Remove door hinge hole plug from refrigerator door. Move to opposite side hinge hole as shown. See Graphic 3.

4. Remove door handle sealing screws. Move to opposite side of refrigerator door as shown. See Graphic 4.

5. Remove door handle seal screw front. Move to opposite side of refrigerator door as shown. See Graphic 7.

6. Position shoulder handle screw on opposite side of refrigerator door and drive screw as shown. See Graphic 6-2.

7. Remove door stop. Move to opposite side of refrigerator door as shown. See Graphic 5.

8. Position refrigerator handle on opposite side of the refrigerator door as shown in Graphic 6-3. Drive the top two screws in handle first. Align the lower portion of handle and drive bottom screw.

9. Tighten all screws. Set aside the refrigerator door until the bottom hinge is installed on the product.

Round-Head

Handle Screw

Door Handle

Screw Hole Plug

Door Hinge

Hole Plug

Cabinet

1. Remove

⁵⁄₁₆" hex-head hinge screws from handle side and

move them to opposite side. See Graphic 1-1.

2. Remove cabinet hinge hole plugs from the cabinet top and

move them to opposite side hinge holes as shown in Graphic 1-2.

Doors

1. Remove door hinge hole plug from top of freezer door. Move

to opposite side as shown in Graphic 2.

2. Remove door stop from both the freezer and refrigerator

door. See Graphic 3.

NOTE: When reversing the door, the freezer handle becomes the refrigerator door handle and the refrigerator door handle becomes the freezer handle. See Door Handle Reversal graphic.

3. Remove freezer handle assembly as shown. Keep all parts

together. See Graphic 4.

4. Remove refrigerator handle assembly as shown. Keep all

parts together. See Graphic 5.

5. Rotate and position handle from refrigerator door onto freezer

door and assemble as shown in Graphic 6.

6. Rotate and position handle from freezer door onto refrigerator

door and assemble as shown in Graphic 7.

7. Reinstall door stops to opposite side. See Graphic 8.

Replace Doors and Hinges

NOTE: Graphic may be reversed if door swing is reversed.

1. Replace the parts for the bottom hinge as shown and tighten

screws. See Bottom Hinge graphic. Replace the refrigerator door.

NOTE: Provide additional support for the doors while the hinges are being moved. Do not depend on the door magnets to hold the doors in place while you are working.

2. Assemble the parts for the center hinge as shown and tighten

all screws. See Center Hinge graphic. Replace the freezer door.

3. Assemble the parts for the top hinge as shown in Top Hinge

graphic. Do not tighten screws completely.

4. Line up the doors so that the bottom of the freezer door

aligns evenly with the top of the refrigerator door. Tighten all screws.

Final Steps

1. Check all holes to make sure that hole plugs and screws are

in place. Reinstall top hinge cover. See Top Hinge graphic. NOTE: On the left-hand side of the base grille there is a

removable tab which is a bottom hinge hole plug. Break off the tab from the base grille and insert the bottom hinge hole plug into the bottom hinge holes. See Base Grille graphic.

2. Replace the base grille. See Base Grille graphic.

3. Plug in refrigerator or reconnect power.

4. Reset the controls. See “Using the Controls.”

5. Return all removable door parts to the doors and food to the

product.

Standard

Door Removal &

Replacement

Base Grille

A. Bottom Hinge Hole Plug

Top Hinge

A. Top Hinge Cover

B. " Hex-Head Hinge Screws C. Top Hinge

Center Hinge

Door Swing Reversal (optional)

A. Cabinet Hinge Hole Plugs

A. Door Hinge Hole Plug

A. " Hex-Head Hinge Screws

A. Flat-Head Handle Screws

B. Freezer Door Handle

A. Door Handle Sealing Screws

Front View

Side View

1-2

1-1

A. Center Hinge

B. " Hex-Head Hinge Screws

Bottom Hinge

A. Bottom Hinge

B. " Hex-Head Hinge Screws

A. Door Stop Screw

B. Door Stop

A. Shoulder

Handle Screw

A. Door Handle

Seal Screw Front

6-1

6-2

A. Flat-Head

Handle Screw

B. Round-Head

Handle Screw

6-3

Contour

Door Removal &

Replacement

Base Grille

A. Bottom Hinge Hole Plug

Top Hinge

A. Top Hinge Cover B. ⁵⁄₁₆" Hex-Head Hinge Screws C. Top Hinge

Center Hinge

Door Swing Reversal (optional)

1-1

⁵⁄₁₆"

Hex-Head Hinge Screws

Door Handle Reversal

1-2

A. Cabinet Hinge Hole Plugs

A. Door Hinge Hole Plug

Removal of Door Stops

A. Door Stop B. Door Stop Screw

Freezer Door

A. Door Handle Sealing Screws B. Door Handle Screw Hole Plugs

A. Center Hinge B. ⁵⁄₁₆" Hex-Head Hinge Screws

Bottom Hinge

A. Bottom Hinge B. ⁵⁄₁₆" Hex-Head Hinge Screws

Reinstallation of Door Stops

A. Door Stop B. Door Stop Screw

Refrigerator Door

A. Door Handle Screw Hole Plugs B. Door Handle Sealing Screws

Freezer Door

A. Door Handle Sealing Screws B. Door Handle Screw Hole Plugs

Refrigerator Door

A B

A. Door Handle Screw Hole Plugs B. Door Handle Sealing Screws

Architect

Series

Door Removal &

Replacement

Base Grille

A. Bottom Hinge Hole Plug

Top Hinge

A. Top Hinge Cover

B. " Hex-Head Hinge Screws C. Top Hinge

Door Handle Removal

A. 1/8" Set Screw

Center Hinge

A. Center Hinge

B. " Hex-Head Hinge Screws

Bottom Hinge

A. Bottom Hinge

B. " Hex-Head Hinge Screws

/8" Set Screw

Adjust the Doors

Door Closing

Your refrigerator has two front adjustable rollers – one on the right and one on the left. If your refrigerator seems unsteady or you want the doors to close easier, adjust the refrigerator's tilt using the instructions below:

1. Plug into a grounded 3 prong outlet.

2. Move the refrigerator into its final location.

3. Remove the base grille. See Base Grille graphic. The two

leveling screws are part of the front roller assemblies which are at the base of the refrigerator on either side.

4. Use a screwdriver to adjust the leveling screws. Turn the leveling screw to the right to raise that side of the refrigerator or turn the leveling screw to the left to lower that side. It may take several turns of the leveling screws to adjust the tilt of the refrigerator.

NOTE: Having someone push against the top of the refrigerator takes some weight off the leveling screws and rollers. This makes it easier to adjust the screws.

5. Open both doors again and check to make sure that they close as easily as you like. If not, tilt the refrigerator slightly more to the rear by turning both leveling screws to the right. It may take several more turns, and you should turn both leveling screws the same amount.

6. Replace the base grille.

Align Doors

If the space between your doors looks uneven, you can adjust it using the instructions below:

1. Pry off the top hinge cover.

2. Loosen the top hinge screws using a ⁵⁄₁₆" socket or wrench.

3. Have someone hold the door in place or put a spacer

between the doors while you tighten the top hinge screws.

4. Replace the top hinge cover.

Prepare the Water System

Please read before using the water system. Immediately after installation, follow the steps below to make

sure that the water system is properly cleaned.

1. Turn off the ice maker by opening the freezer door and lifting

up the wire shutoff arm as shown.

NOTES:

■ If your model has a base grille filter system, make sure the

base grille filter is properly installed and the cap is in the horizontal position.

■ Do not use with water that is microbiologically unsafe or

of unknown quality without adequate disinfection before or after the system.

2. Use a sturdy container to depress the water dispenser bar

until the water begins to flow. Flush the water system by dispensing and discarding 2 to 3 gal. (8 to 12 L) of water. Cleaning the system will take approximately 5 minutes and will help clear air from the line. Additional flushing may be required in some households.

NOTE: As air is cleared from the system, water may spurt out of the dispenser.

3. Turn on the ice maker by opening the freezer door and

lowering the wire shutoff arm as shown. Please refer to the “Ice Maker” section for further instructions on the operation of your ice maker.

■ Allow 24 hours to produce the first batch of ice.

■ Discard the first three batches of ice produced.

■ Depending on your model, you may want to select the

maximum ice feature to increase the production of ice.

Normal Sounds

Your new refrigerator may make sounds that your old one didn’t make. Because the sounds are new to you, you might be concerned about them. Most of the new sounds are normal. Hard surfaces, such as the floor, walls, and cabinets, can make the sounds seem louder. The following describes the kinds of sounds and what may be making them.

■ If your refrigerator is equipped with an ice maker, you will hear

a buzzing sound when the water valve opens to fill the ice maker for each cycle.

■ Your refrigerator is designed to run more efficiently to keep

your food items at the desired temperatures and to minimize energy usage. The high efficiency compressor and fans may cause your refrigerator to run longer than your old one. You may also hear a pulsating or high-pitched sound from the compressor or fans adjusting to optimize performance.

■ You may hear the evaporator fan motor circulating air through

the refrigerator and freezer compartments. The fan speed may increase as you open the doors or add warm food.

■ Rattling noises may come from the flow of refrigerant, the

water line, or items stored on top of the refrigerator.

■ Water dripping on the defrost heater during a defrost cycle

may cause a sizzling sound.

■ As each cycle ends, you may hear a gurgling sound due to

the refrigerant flowing in your refrigerator.

■ Contraction and expansion of the inside walls may cause a

popping noise.

■ You may hear air being forced over the condenser by the

condenser fan.

■ You may hear water running into the drain pan during the

defrost cycle.

Mid-setting “3”

Mid-setting “4”

REFRIGERATOR USE

Ensuring Proper Air Circulation

In order to ensure proper temperatures, you need to permit airflow between the refrigerator and freezer sections. As shown in the illustration, cool air enters through the bottom of the freezer section and moves up. Most of the air then flows through the freezer section vents and recirculates under the freezer floor. The rest of the air enters the refrigerator section through the top vent.

REFRIGERATOR

FREEZER

IMPORTANT:

■ Give your refrigerator time to cool down completely before

adding food. It is best to wait 24 hours before you put food into the refrigerator.

■ If you add food before the refrigerator has cooled completely,

your food may spoil. Adjusting the Refrigerator and Freezer Controls to a higher (colder) than recommended setting will not cool the compartments any faster.

Adjusting Controls

The mid-settings indicated in the previous section should be correct for normal household usage. The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm.

If the temperature is too warm or too cold in the refrigerator or freezer, first check the air vents to be sure they are not blocked.

If you need to adjust temperatures, use the settings listed in the chart below as a guide. On models with two controls, adjust the refrigerator temperature first. Wait at least 24 hours between adjustments and then recheck the temperatures.

Do not block any of these vents with food packages. If the vents are blocked, airflow will be prevented and temperature and moisture problems may occur.

IMPORTANT: Because air circulates between both sections, any odors formed in one section will transfer to the other. You must thoroughly clean both sections to eliminate odors. To prevent odor transfer and drying out of food, wrap or cover foods tightly.

Using the Controls

For your convenience, your refrigerator controls are preset at the factory. When you first install your refrigerator, make sure that the controls are still preset to the mid-settings as shown.

NOTE: To turn your refrigerator off, turn the refrigerator control to the word OFF or until the word OFF appears. Your product will not cool when the refrigerator control is set to OFF.

Mid-setting “3”

CONDITION/REASON: ADJUSTMENT:

REFRIGERATOR section too warm

- Door opened often, large amount of food added or room temperature very warm

FREEZER section too warm/ice not made fast enough

- Door opened often, or large

Adjust REFRIGERATOR or TEMPERATURE Control one setting higher

Adjust FREEZER or TEMPERATURE Control one setting higher

amount of food added or very cold room temperature (can’t cycle often enough)

- Heavy ice usage

REFRIGERATOR section too cold

- Controls not set correctly for your conditions

FREEZER section too cold

- Controls not set correctly for your conditions

Adjust REFRIGERATOR or TEMPERATURE Control one setting lower

Adjust FREEZER or TEMPERATURE Control one setting lower

Water Dispenser

(on some models)

WARNING

Cut Hazard Use a sturdy glass when dispensing ice or water. Failure to do so can result in cuts.

If you did not flush the water system when the refrigerator was first installed, dispense water into a container until you draw and discard 2 to 3 gal. (8 to 12 L) or for approximately 5 minutes after the water begins dispensing. The water you draw and discard rinses the pipes. Allow several hours for the refrigerator to cool down and chill water.

Dispensing Water

There are two water dispenser buttons, as shown, for use with different sizes of containers.

1. Press a glass against the back button or hold a container

under the dispenser while pressing the front button.

2. Remove the glass or release the front button to stop

dispensing.

NOTE: Dispense enough water every week to maintain a fresh supply.

Non-Indicator Water Filter (on some models)

If your refrigerator does not have the water filter status light, you should change the water filter every 6 to 9 months depending upon your usage. If the water flow to the water dispenser or ice maker decreases noticeably before 6 months have passed, replace the water filter more often.

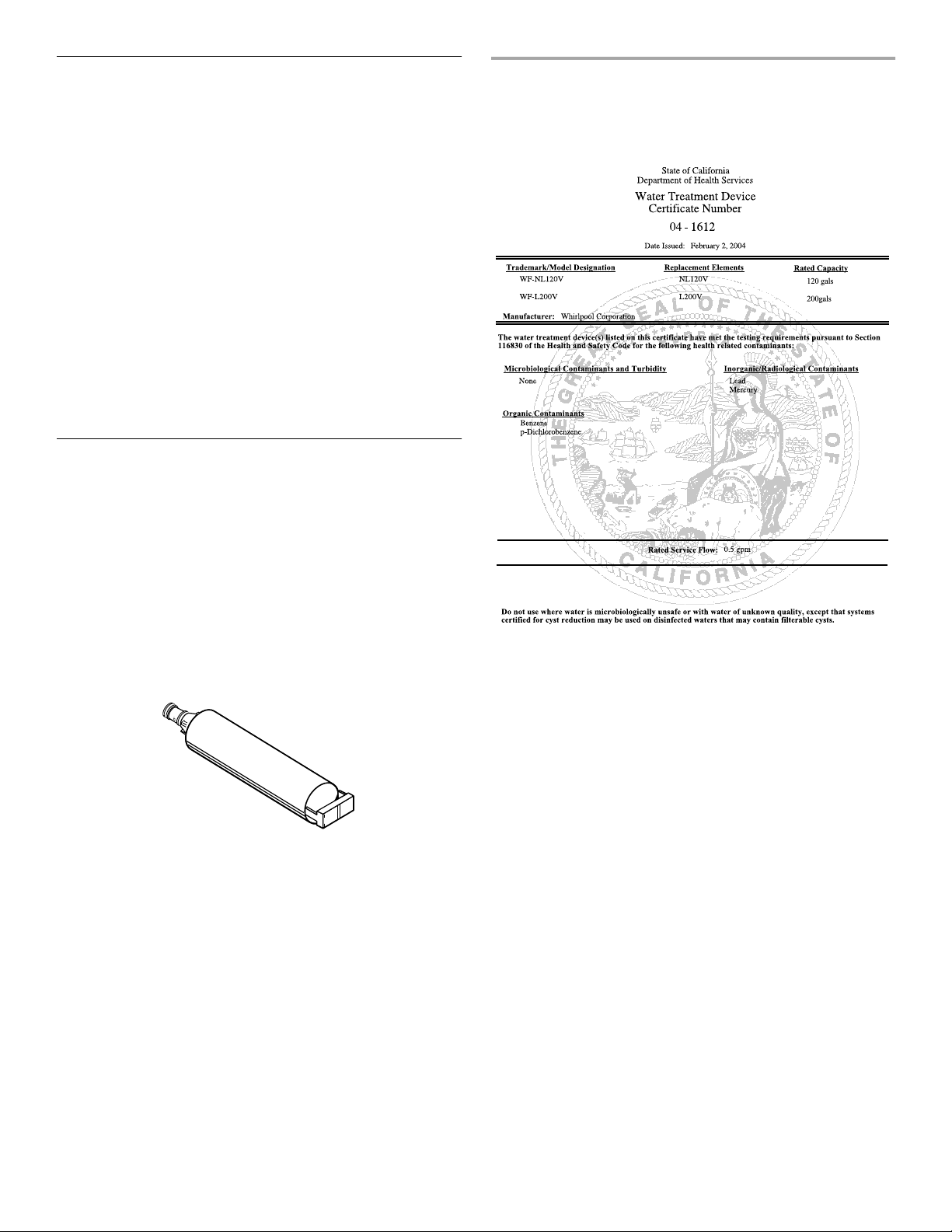

Water Filtration System

NOTE: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

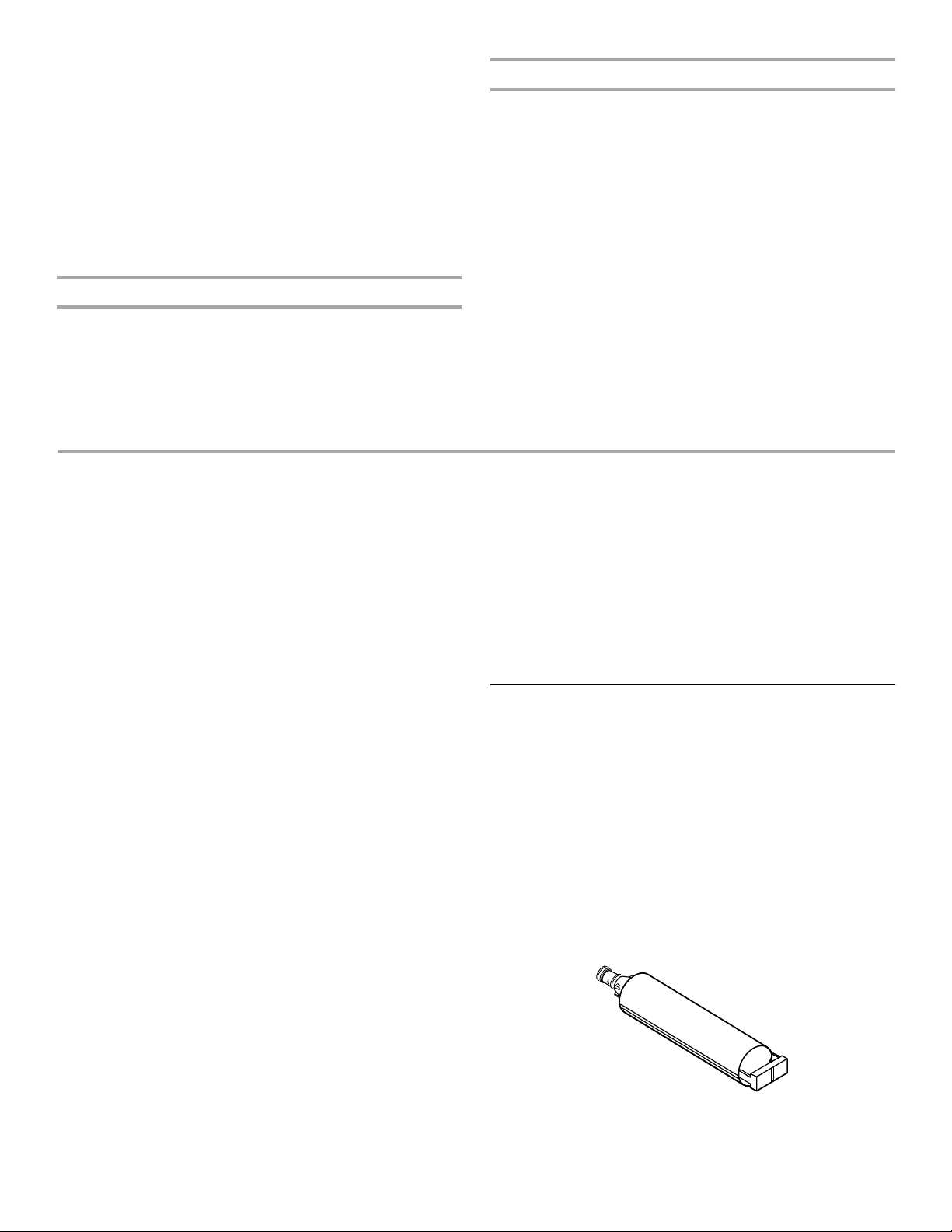

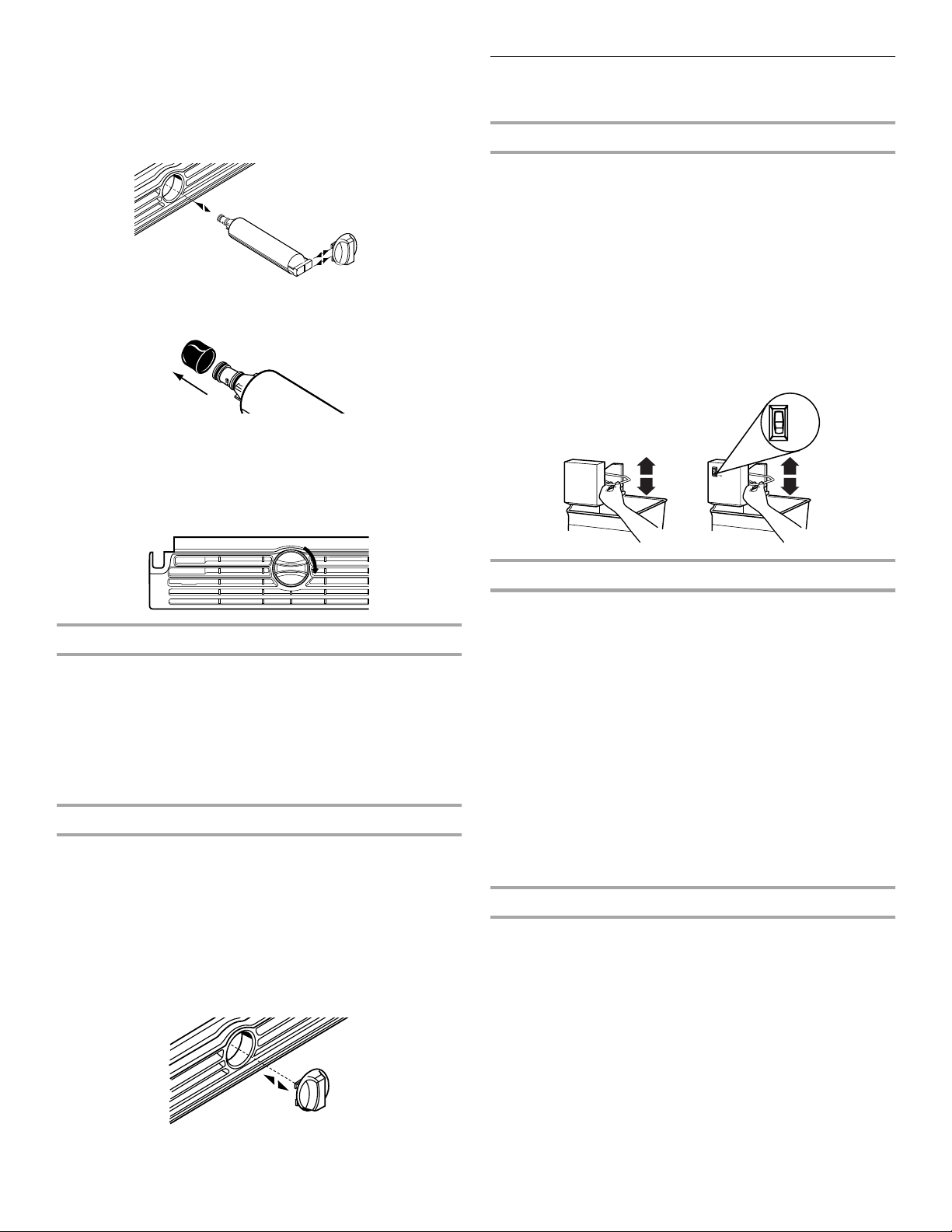

Changing the Water Filter

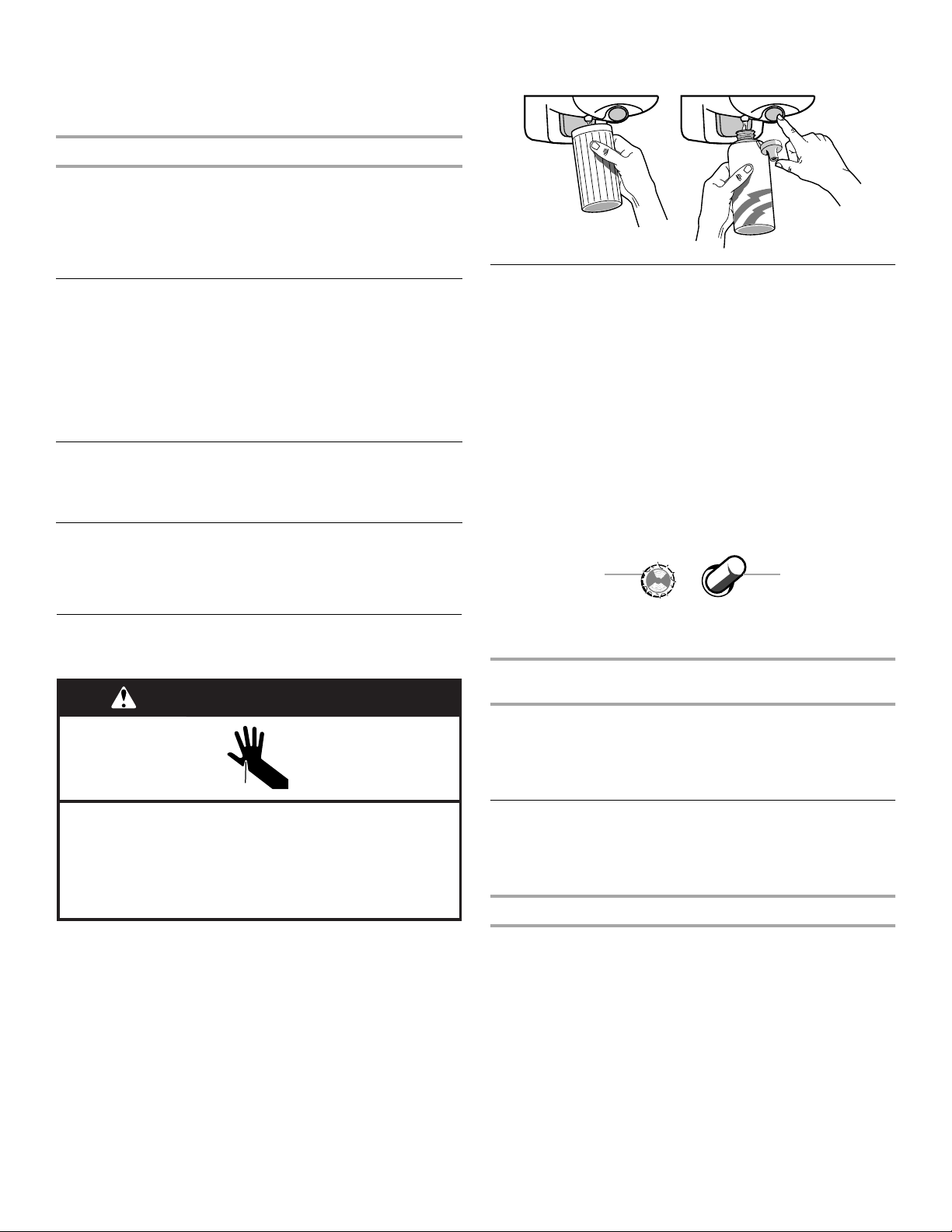

1. Locate the filter cap in the front base grille. Rotate the cap

counterclockwise to a vertical position and pull the cap and filter out through the base grille.

NOTE: There will be water in the filter. Some spilling may occur.

2. Remove the cap by sliding it off the end of the used filter. The

cap will slide to the left or right. IMPORTANT: Do not discard the cap. It is part of your

refrigerator. Keep the cap to use with the replacement filter.

Water Filter Status Light

(on some models)

The water filter status light, located at the top of the refrigerator compartment, will help you know when to change your water filter. When the water filter status light changes from green to yellow, this tells you that it is almost time to change the water filter (90% of the filter life has been used). It is recommended that you replace the water filter when the water filter status light changes to red OR water flow to your water dispenser or ice maker decreases noticeably. To change the water filter, see “Water Filtration System.”

After changing the water filter, reset the water filter status light by pressing the light switch 5 times within 10 seconds. The status light will change from red to green when the system is reset.

A. Status light

B. Light switch

3. Take the new filter out of its packaging and remove the

protective cover from the O-rings.

4. Slide the cap (removed in Step 2) onto the new filter. See

illustration in Step 2.

5. With the cap in the vertical position, push the new filter into

the base grille until it stops. Rotate the cap clockwise to a horizontal position. Flush the water system. See “Flushing the Water System After Replacing Filter.”

Flushing the Water System After Replacing Filter

Use a sturdy container to depress the water dispenser bar until the water begins to flow. Flush the water system by dispensing and discarding 2 to 3 gal. (8 to 12 L) of water. Cleaning the system will take approximately 5 minutes and will help clear air from the line. Additional flushing may be required in some households.

NOTE: As air is cleared from the system, water may spurt out of the dispenser.

Using the Dispenser Without the Water Filter

Remember

You can run the dispenser without a water filter. Your water will not be filtered.

1. Remove the base grille water filter.

2. Slide the cap off the end of the filter. IMPORTANT: Do not discard the cap. It is part of your

refrigerator. Keep the cap to use with the replacement filter.

3. With the cap in the vertical position, insert the cap into the base grille until it stops.

4. Rotate the cap to a horizontal position.

Ice Maker

(on some models - Accessory)

Turning the Ice Maker On/Off

NOTE: Do not force the wire shutoff arm up or down.

■ To turn the ice maker on, simply lower the wire shutoff arm.

NOTE: Your ice maker has an automatic shutoff. As ice is made, the ice cubes will fill the ice storage bin and the ice cubes will raise the wire shutoff arm to the OFF (arm up) position.

■ To manually turn the ice maker off, lift the wire shutoff arm to

the OFF (arm up) position and listen for the click to make sure the ice maker will not continue to operate.

■ Allow 24 hours to produce the first batch of ice. Discard the

first three batches of ice produced.

■ The quality of your ice will be only as good as the quality of

the water supplied to your ice maker. Avoid connecting the ice maker to a softened water supply. Water softener chemicals (such as salt) can damage parts of the ice maker and lead to poor quality ice. If a softened water supply cannot be avoided, make sure the water softener is operating properly and is well maintained.

■ Do not store anything on top of the ice maker or in the ice

storage bin.

REFRIGERATOR FEATURES

Your model may have some or all of these features. Features that can be purchased separately as product accessories are labeled with the word “Accessory.” Not all accessories will fit all models. If you are interested in purchasing one of the accessories, please call the toll-free number on the cover or in the “Assistance or Service” section.

Important information to know about glass shelves and covers:

OptimIce

NORMAL

Ice Production Rate

■ NORMAL Ice Production: In Normal ice production mode, the

ice maker should produce approximately 8 to 12 batches of ice in a 24-hour period. If ice is not being made fast enough, turn the Freezer Control toward a higher (colder) number in half number steps. (For example, if the control is at 3, move it to between 3 and 4.) Wait 24 hours and, if necessary, gradually turn the Freezer Control to the highest setting, waiting 24 hours between each increase.

■ OptimIce Production (on some models): In OptimIce ice

production mode, the ice maker should produce approximately 16 to 20 batches of ice in a 24-hour period. If your refrigerator has the OptimIce ice production feature, push the switch to OptimIce.

Refrigerator Shelves

Your model may have glass or wire shelves. Store similar foods together and adjust the shelves to fit different heights. This reduces the time the refrigerator door is open and saves energy.

Slide-out Shelves (on some models)

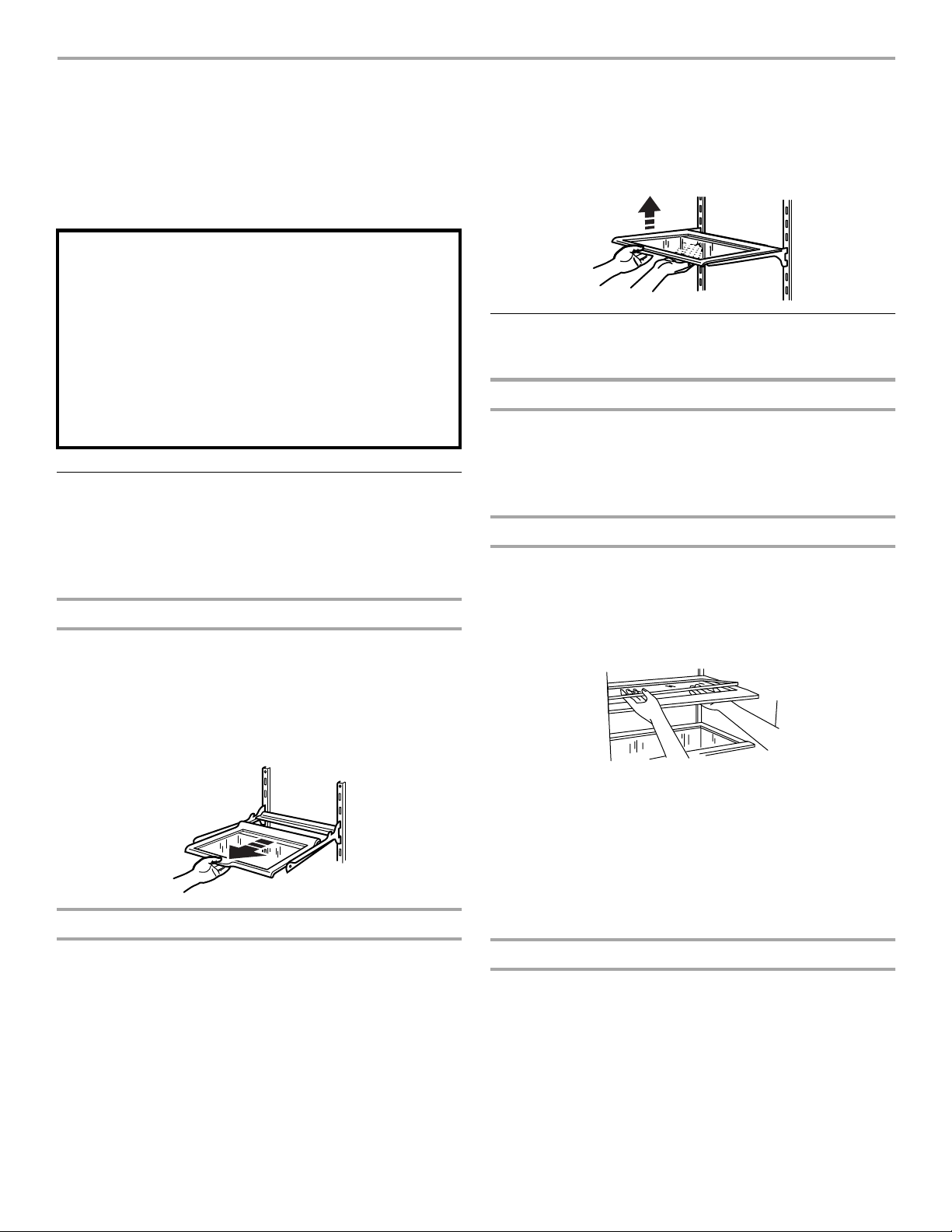

To Remove and Replace a Shelf in a Metal Frame:

1. Pull the shelf forward to the stop. Tilt the front of the shelf up

and lift it slightly as you pull the shelf from the frame.

2. Replace the shelf by guiding it back into the slots on the

frame and pushing the shelf in past the stop.

Shelves and Shelf Frames

Meat Drawer Cover

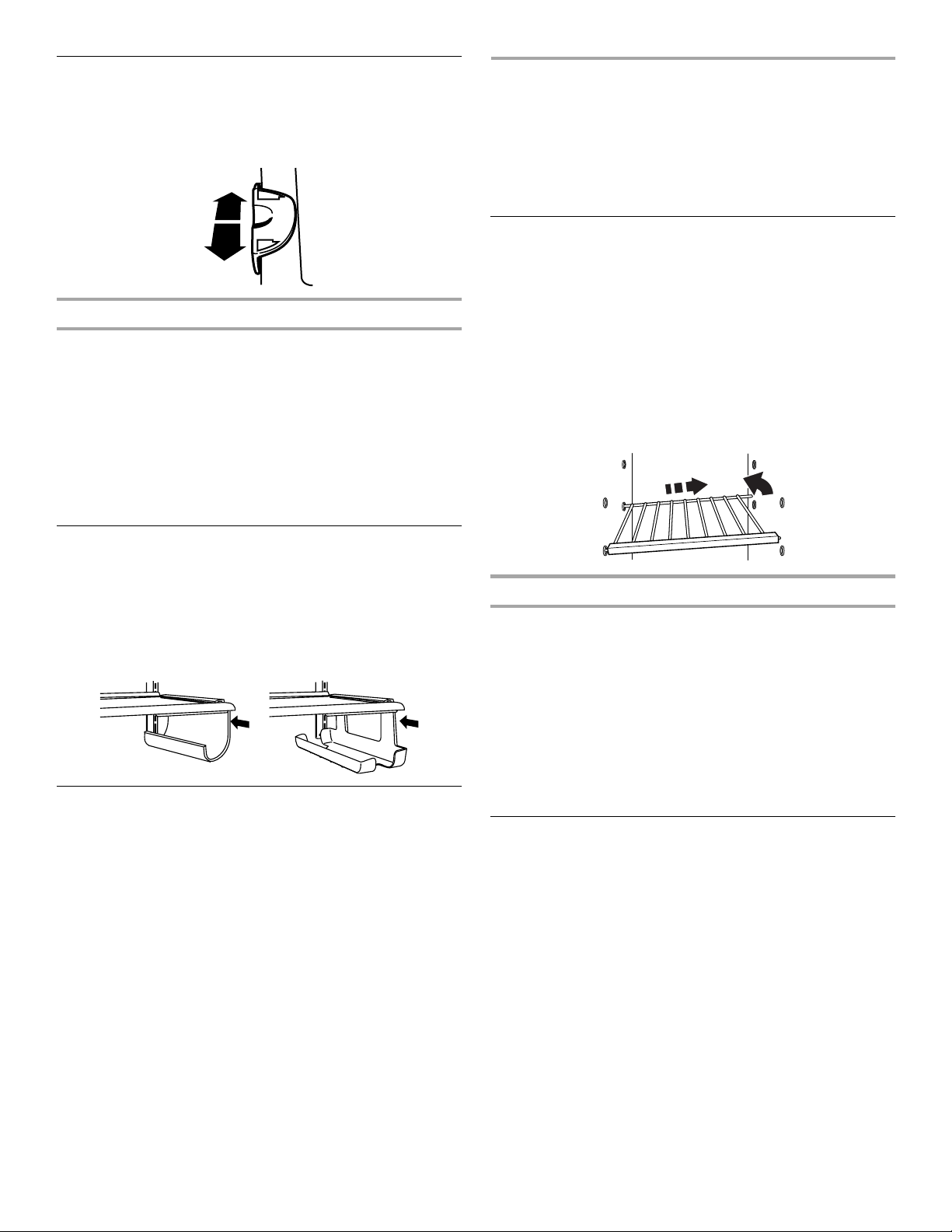

To Remove and Replace a Shelf/Frame:

1. Remove the shelf/frame by tilting it up at the front and lifting it

out of the shelf supports.

2. Replace the shelf/frame by guiding the rear shelf hooks into the shelf supports. Tilt the front of the shelf up until rear shelf hooks drop into the shelf supports. Check to make sure that the shelf is securely in position.

Crispers and Meat Drawers

(on some models)

Drawers

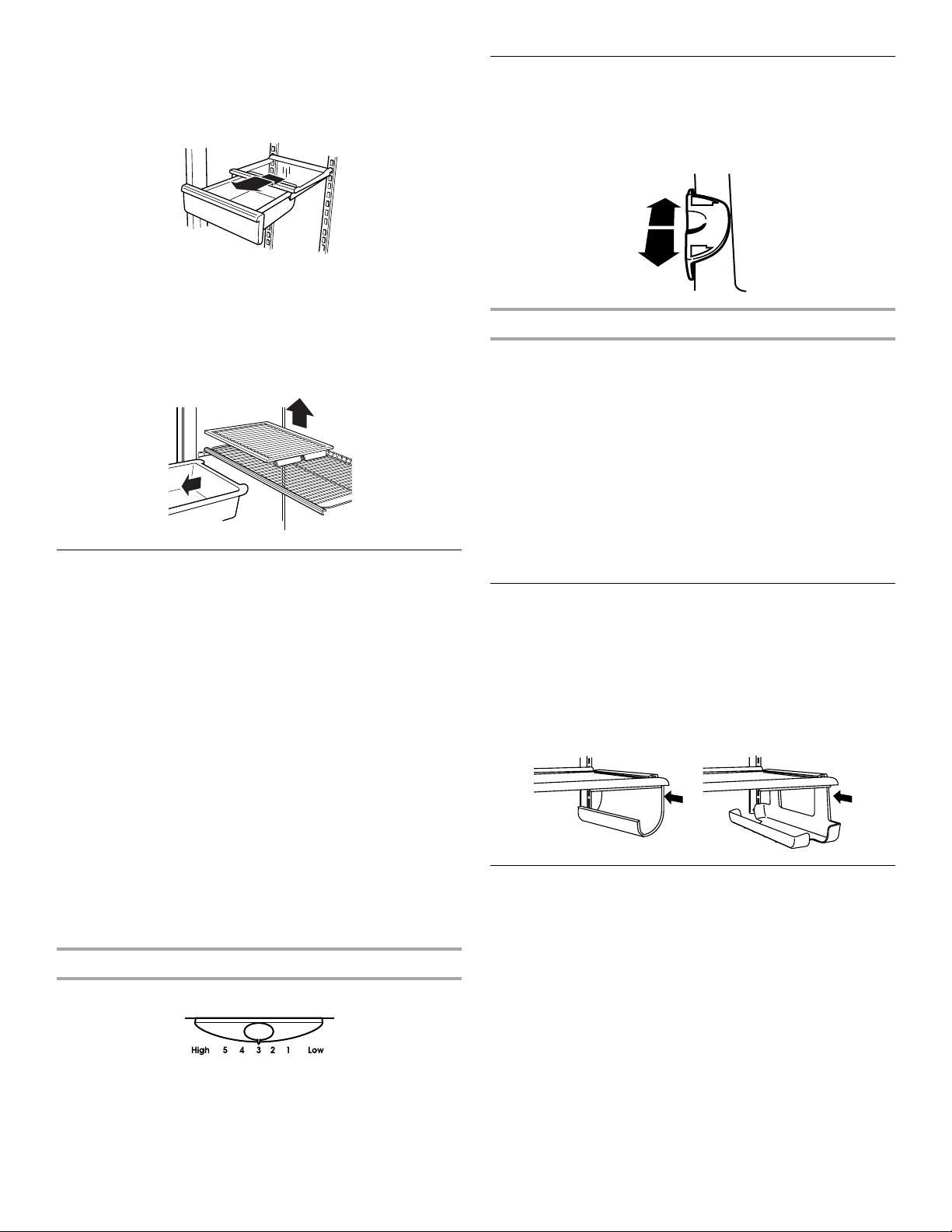

To Remove and Replace a Drawer:

1. Slide drawer straight out to the stop. Lift the front of the

drawer and slide it out the rest of the way.

2. Replace a drawer by sliding it back in fully past the stop.

Crisper Cover

To Remove and Replace the Meat Drawer Cover:

Style 1–Glass

1. Remove the meat drawer. Tilt up the front of the cover and lift

at the back. Pull the cover straight out.

2. Replace the cover by guiding the rear hooks into the shelf

supports. Tilt the cover up at the front until the rear hooks drop into the slots. Lower the front of the cover to a level position and replace the meat drawer.

Style 2–Plastic

1. Remove the meat drawer. Tilt the cover up at the front and

pull it forward and out.

2. Replace the meat drawer cover by fitting the notches and rear

edge of the cover over rear and center crossbars on the shelf. Lower cover into place and replace the meat drawer.

To Remove the Crisper(s) Cover:

1. Remove crisper(s). Hold the glass insert firmly with one hand

and press up in the center of the glass insert until it rises above the plastic frame. Carefully slide the glass insert forward to remove.

2. Lift the cover frame and remove it.

To Replace the Crisper(s) Cover:

NOTE: Before reinstalling the cover, make sure the U-shaped

reinforcement bar is reinstalled in the front edge of the crisper cover.

1. Fit back of cover frame into supports on side walls of the refrigerator and lower the front of the cover frame into place.

2. Slide rear of glass insert into cover frame and lower front into place.

Crisper Humidity Control

(on some models)

You can adjust the amount of humidity in the moisture-sealed crisper using the settings between HIGH and LOW.

LOW (open) lets moist air out of the crisper for best storage of fruits and vegetables with skins.

■ Fruit: Wash, let dry and store in refrigerator in plastic bag in

crisper. Do not wash or hull berries until they are ready to use. Sort and keep berries in original container in crisper.

■ Vegetables with skins: Place in plastic bag or plastic

container and store in crisper.

HIGH (closed) keeps moist air in the crisper for best storage of fresh, leafy vegetables.

■ Leafy vegetables: Wash in cold water, drain and trim or tear

off bruised and discolored areas. Place in plastic bag or plastic container and store in crisper.

Humidity Control Location

Humidity Control on crisper drawer

+ 33 hidden pages

KitchenAid TOP-MOUNT REFRIGERATOR User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
