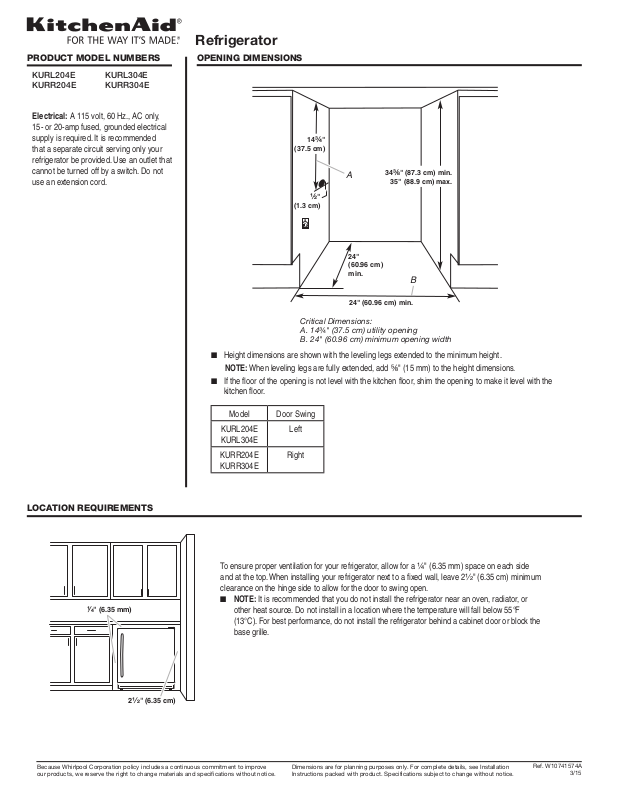

Kitchenaid KURL204ESB, KURL304ESS, KURL304EBS Dimension Guide

PRODUCT MODEL NUMBERS

KURL204E KURL304E
KURR204E KURR304E

Electrical: A 115 volt, 60 Hz., AC only,
15- or 20-amp fused, grounded electrical
supply is required. It is recommended
that a separate circuit serving only your
refrigerator be provided. Use an outlet that
cannot be turned off by a switch. Do not
use an extension cord.

Refrigerator

OPENING DIMENSIONS

14³⁄₄"

(37.5 cm)

A

¹⁄₂"

(1.3 cm)

24"
(60.96 cm)
min.

24" (60.96 cm) min.

Critical Dimensions:
A. 14³⁄₄" (37.5 cm) utility opening
B. 24" (60.96 cm) minimum opening width

■ Height dimensions are shown with the leveling legs extended to the minimum height.

NOTE: When leveling legs are fully extended, add B\," (15 mm) to the height dimensions.

■ If the floor of the opening is not level with the kitchen floor, shim the opening to make it level with the

kitchen floor.

34³⁄₈" (87.3 cm) min.

35" (88.9 cm) max.

B

LOCATION REQUIREMENTS

¹⁄₄" (6.35 mm)

2¹⁄₂" (6.35 cm)

Model Door Swing

KURL204E

Left

KURL304E

KURR204E

Right

KURR304E

To ensure proper ventilation for your refrigerator, allow for a ¹\₄" (6.35 mm) space on each side
and at the top. When installing your refrigerator next to a fixed wall, leave 2¹\₂" (6.35 cm) minimum
clearance on the hinge side to allow for the door to swing open.

■ NOTE: It is recommended that you do not install the refrigerator near an oven, radiator, or

other heat source. Do not install in a location where the temperature will fall below 55°F
(13°C). For best performance, do not install the refrigerator behind a cabinet door or block the
base grille.

Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.

Ref. W10741574A

3/15
