KitchenAid KUDR02FS Quick Reference Guide

DISHWASHER

Consumer Reference Guide

For questions about features, operation/performance, parts, accessories or service, call: 1-800-422-1230 or visit our website at

www.kitchenaid.com

In Canada, for assistance, installation or service, call: 1-800-807-6777 or visit our website at www.KitchenAid.ca

LAVE-VAISSELLE

Guide de référence pour le consommateur

Au Canada, pour assistance, installation ou service, composez le 1-800-807-6777 ou visitez notre site web à www.KitchenAid.ca

Table of Contents / Table des matières

		DISHWASHER SAFETY...................................			2	SÉCURITÉ DU LAVE-VAISSELLE .................	11
		PARTS AND FEATURES .................................			3	PIÈCES ET CARACTÉRISTIQUES ................	12
		START-UP ........................................................			4	MISE EN MARCHE .........................................	13
		LOADING ..........................................................			4	CHARGEMENT ...............................................	13
		CYCLES AND OPTIONS..................................			8	PROGRAMMES ET OPTIONS .......................	16

Models/Modèles KUDR02FS

W10077976

DISHWASHER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

Before Using Your Dishwasher

WARNING

Tip Over Hazard

Do not use dishwasher until completely installed. Do not push down on open door.

Doing so can result in serious injury or cuts.

WARNING

Electrical Shock Hazard

Electrically ground dishwasher.

Connect ground wire to green ground connector in terminal box.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

2

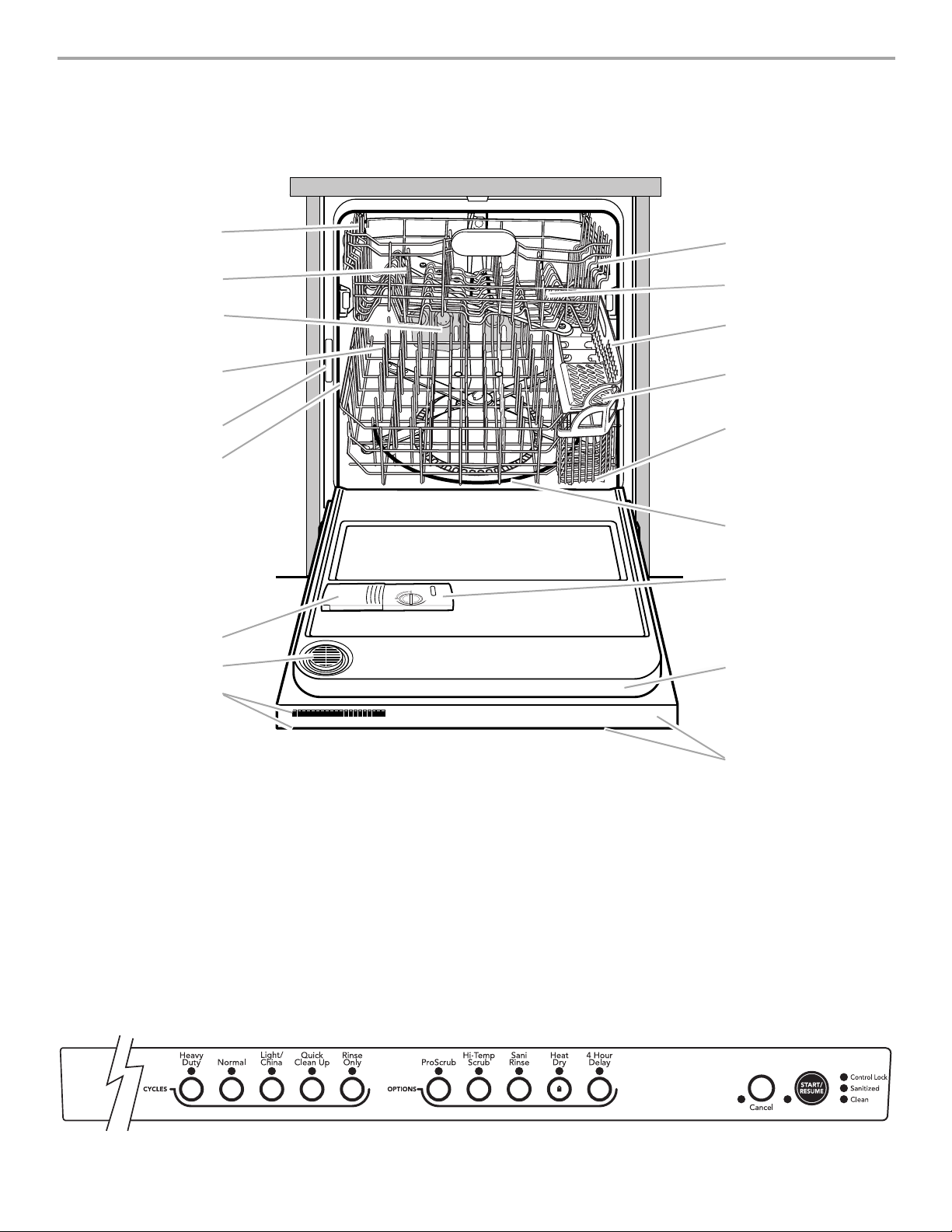

PARTS AND FEATURES

A	J
B	K
C	L
D	M
E	N
F
	O
	P
G
H	Q
I

R

A. 2-Position top rack adjuster (two)	G. Detergent dispenser
B. FLEXI-FOLD DOWN™ flexible tines	H. Vent
C. PROSCRUB® spray jets	I. Active vent
D. FLEXI-FOLD DOWN™ flexible tines	J. SURE-HOLD® cup and stemware holder
E. Model and serial number label	K. SURE-HOLD® light item clips (four)
F. Water inlet opening (in tub wall)	L. Silverware basket
	M. CULINARY CADDY® utensil basket

N.Overfill protection float

O.Heating element

P. Rinse aid dispenser

Q.WHISPER QUIET® sound insulation system

R.Control panel located on door

Control Panel

3

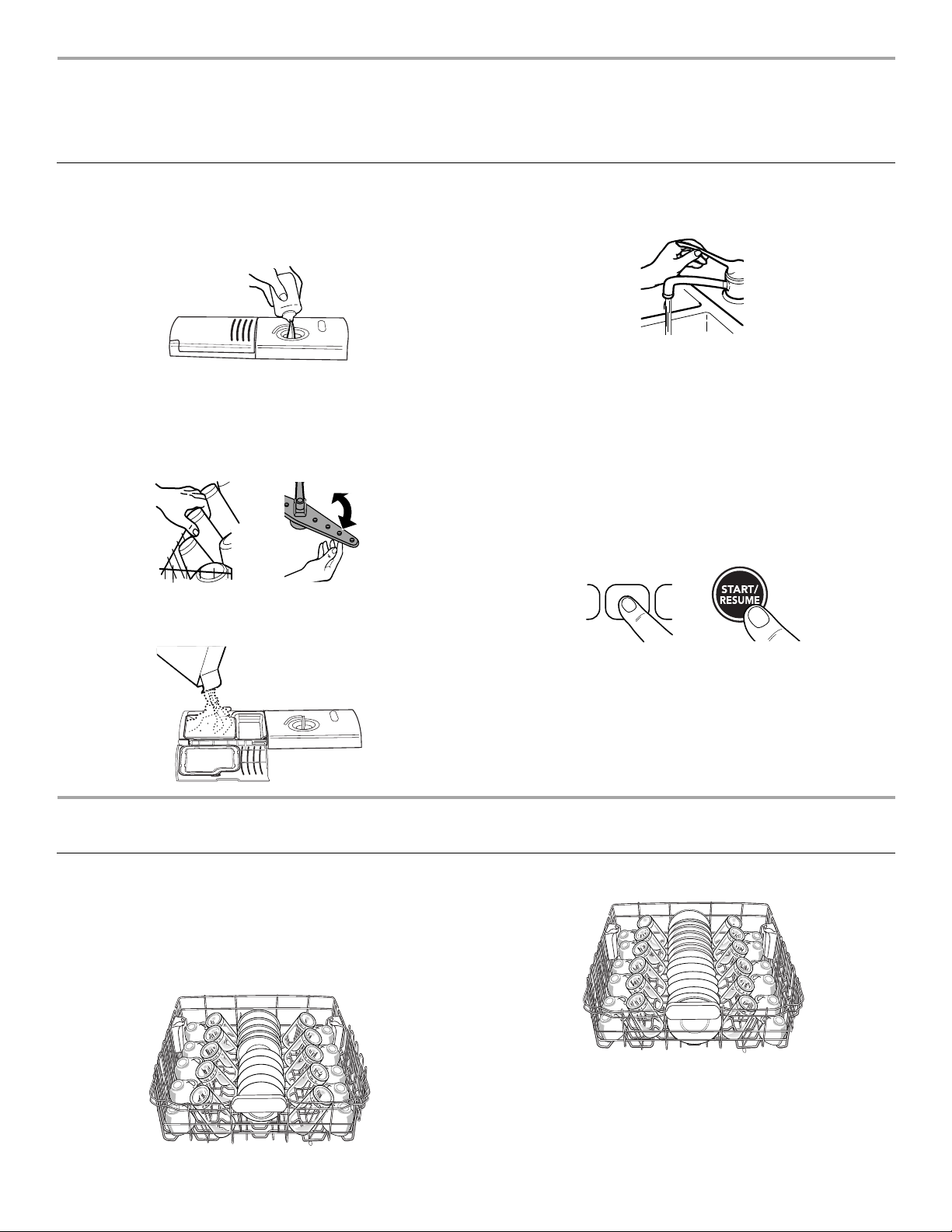

START-UP

Before using your dishwasher, remove all packaging materials. Read this entire Consumer Reference Guide, as well as the User Instructions. You will find important safety information and useful operating tips.

Using Your Dishwasher

1.Rinse aid is essential for good drying. Be sure to fill the dispenser before you use your new dishwasher. Each filling will last about 1 to 3 months depending on your usage.

2.Scrape large food soil and hard items (toothpicks or bones) from dishes. You do not need to prerinse your dishes.

3.Properly load the dishwasher. (See “Loading.”) Load dishes with space in between so water will reach the soiled surfaces. Make sure nothing keeps the spray arm(s) from spinning freely.

4.Add detergent. Always use a high-quality brand detergent. (See “Dishwasher Use” in the User Instructions.)

5.Run hot water at the sink nearest your dishwasher until the water is hot. Turn off water.

6.Press the desired cycle and option selections on the control panel. (See “Cycles and Options.”)

7.Press START/RESUME. Or press START/RESUME to repeat the same cycle and options as in the previous cycle. The selected cycle and option lights will glow.

8.Push door firmly closed within 3 seconds of pressing Start/ Resume.

NOTE: If the dishwasher is not started within 30 seconds after selecting the cycle and options, it will revert to the last cycle and options completed.

	PRE-
MAIN WASH	WASH

LOADING

Top Rack

The top rack is designed for cups, glasses, and smaller items. Many items, up to 9" (22 cm), fit in the top rack. (See recommended loading patterns shown.)

NOTE: The features on your dishwasher rack may vary from those in the drawings shown.

		12 place setting
	■	Place items so open ends face down for cleaning and
		draining.
10 place setting	■	Load glasses and cups in top rack only. The bottom rack is
		not designed for glasses and cups. Damage can occur.

4

■Place cups and glasses in the rows between tines. Placing them over the tines can lead to breakage and water spots.

Cup and glass load

■China, crystal, and other delicate items must not touch each other during dishwasher operation. Damage may occur.

■Load plastic items in the top rack only. Only plastic items marked “dishwasher safe” are recommended.

■Load plastic items so the force of the spray does not move them during the cycle.

■To avoid chipping, do not let stemware touch other items.

■Small bowls, pans, and other utensils can be placed in the top rack. Load bowls in the center section for best stability.

FLEXI-FOLD DOWN™ flexible tines

The row of tines on the left-hand side of the top rack can be adjusted to make room for a variety of dishes.

To adjust the flexible tines

1.Grasp the tip of the tine that is in the tine holder.

2.Gently push the tine out of the holder.

3.Lay the tines down, toward the center of the rack.

SURE-HOLD® cup and stemware holder

Fold down the extra shelf on the left-hand or right-hand side of the top rack to hold additional cups, stemware or long items such as utensils and spatulas.

SURE-HOLD® light item clips

The light item clips hold lightweight plastic items such as cups, lids, or bowls in place during washing.

To use a clip

1.Pull clip away from tine.

2.Insert item between tine and clip and release clip.

To move a clip

1.Pull the clip up and off the tine.

2.Reposition the clip on another tine.

Adjustable 2-position top rack

You can raise or lower the top rack to fit tall items in either the top or bottom rack. Raise the top rack to accommodate items up to 9" (22 cm) in the top rack and 13" (33 cm) in the bottom rack, or lower the top rack to accommodate items up to 11" (28 cm) in both the top and bottom racks. Adjusters are located on each side of the top rack.

To raise the rack

Press both rack adjusters and lift the rack until it is in the up position and level.

NOTE: The top rack adjusters must be level.

To lower the rack

Press both rack adjusters and slide the rack back to its original position.

5

Bottom Rack

The bottom rack is designed for plates, pans, casseroles, and utensils. Many items, up to 13" (33 cm) tall, fit in the bottom rack. (See recommended loading patterns shown.)

NOTE: The features on your dishwasher rack may vary from those in the drawings shown.

		Mixed load
	■	Secure heavily soiled cookware face down in the rack.
	■	Make sure pot handles and other items do not stop rotation of
10 place setting		the spray arm(s). The spray arm(s) must move freely.

■ Do not load items between the bottom rack and the side of the dishwasher tub because they might block the water inlet opening.

PROSCRUB® wash area

The PROSCRUB® wash area is located at the back of the bottom rack.

NOTE: You must select the PROSCRUB® wash option to utilize this wash feature. Do not face items toward the rear of the dishwasher if you are not using this wash option.

12 place setting

■Do not load glasses, cups, or plastic items in the bottom rack. Load small items in the bottom rack only if they are secured in place.

■Load plates, soup bowls, etc., between tines.

■Overlap the edges of plates for large loads.

■Load soup, cereal, and serving bowls in the rack in a variety of ways depending upon their size and shape. Load bowls securely between the rows of tines. Do not nest bowls because the spray will not reach all surfaces.

PROSCRUB® wash area view in bottom rack (shown with rack pulled partially out of dishwasher)

■Load pans, casserole dishes, etc. in the back of the bottom rack with the soiled surfaces facing the PROSCRUB®

spray jets. Make sure items do not interfere with the water feed tube or mid spray arm.

IMPORTANT: Only one row of items may face the PROSCRUB® spray jets. Stacking, overlapping, or nesting items will keep the PROSCRUB® spray jets from reaching all of the surfaces.

Utensil load

■ Load cookie sheets, cake pans, and other large items at the sides and back. Loading such items in front can keep the water spray from reaching the detergent dispenser.

PROSCRUB® wash area side view

(For best results, place items in the next to last row and tip items toward the rear of the dishwasher.)
