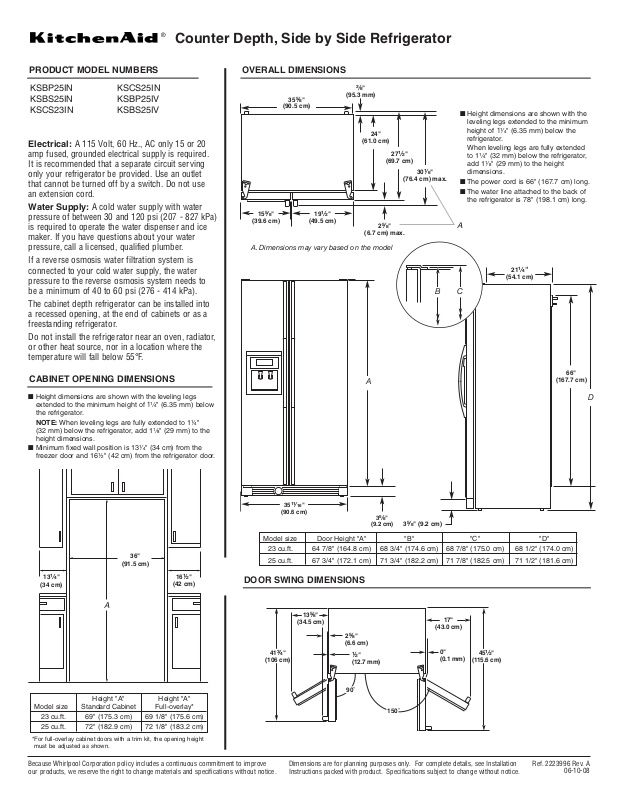

KitchenAid KSCS23IN, KSBP25IN, KSCS25IN, KSBP25IV, KSBS25IV User Manual

...

Counter Depth, Side by Side Refrigerator

PRODUCT MODEL NUMBERS OVERALL DIMENSIONS

CABINET OPENING DIMENSIONS

DOOR SWING DIMENSIONS

Electrical: A 115 Volt, 60 Hz., AC only 15 or 20

amp fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.

Water Supply: A cold water supply with water pressure of between 30 and 120 psi (207 - 827 kPa) is required to operate the water dispenser and ice maker. If you have questions about your water pressure, call a licensed, qualified plumber.

If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 - 414 kPa).

The cabinet depth refrigerator can be installed into a recessed opening, at the end of cabinets or as a freestanding refrigerator.

Do not install the refrigerator near an oven, radiator, or other heat source, nor in a location where the temperature will fall below 55°F.

Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with product. Specifications subject to change without notice.

Ref. 2223996 Rev. A

06-10-08

KSBP25IN KSBS25IN KSCS23IN

KSCS25IN KSBP25IV KSBS25IV

36"

(91.5 cm)

¹⁄₄"

(34 cm)

¹⁄₂"

(42 cm)

13⁵⁄₈"

(34.5 cm)

³⁄₄"

(106 cm)

⁵⁄₈"

(6.6 cm)

¹⁄₂ "

(12.7 mm)

17"

(43.0 cm)

0" (0.1 mm)

45¹⁄₂ "

(115.6 cm

)

90˚

150˚

A. Dimensions may vary based on the model

24"

(61.0 cm)

27¹⁄₂"

(69.7 cm)

30¹⁄₈"

(76.4 cm) max.

35⁵⁄₈"

(90.5 cm)

15⁵⁄₈"

(39.6 cm)

19¹⁄₂"

(49.5 cm)

⁵⁄₈"

(6.7 cm) max.

³⁄₈"

(95.3 mm)

21¹⁄₄"

(54.1 cm)

66"

(167.7 cm)

3⁵⁄₈" (9.2 cm)

¹¹⁄₁₆

(90.6 cm)

⁵⁄₈

(9.2 cm)

Model size Door Height "A" "B" "C" "D"

23 cu.ft. 64 7/8" (164.8 cm) 68 3/4" (174.6 cm) 68 7/8" (175.0 cm) 68 1/2" (174.0 cm)

25 cu.ft. 67 3/4" (172.1 cm) 71 3/4" (182.2 cm) 71 7/8" (182.5 cm) 71 1/2" (181.6 cm)

Height "A" Height "A"

Model size Standard Cabinet Full-overlay*

23 cu.ft. 69" (175.3 cm) 69 1/8" (175.6 cm) 25 cu.ft. 72" (182.9 cm) 72 1/8" (183.2 cm)

■ Height dimensions are shown with the leveling legs extended to the minimum height of 1¹⁄₄" (6.35 mm) below the refrigerator.

When leveling legs are fully extended to 1¹⁄₄" (32 mm) below the refrigerator, add 1¹⁄₈" (29 mm) to the height dimensions.

■ The power cord is 66" (167.7 cm) long.

■ The water line attached to the back of

the refrigerator is 78" (198.1 cm) long.

■ Height dimensions are shown with the leveling legs

extended to the minimum height of 1¹⁄₄" (6.35 mm) below the refrigerator.

NOTE: When leveling legs are fully extended to 1¹⁄₄" (32 mm) below the refrigerator, add 1¹⁄₈" (29 mm) to the height dimensions.

■ Minimum fixed wall position is 13¹⁄₄" (34 cm) from the freezer door and 16¹⁄₂" (42 cm) from the refrigerator door.

*For full-overlay cabinet doors with a trim kit, the opening height

must be adjusted as shown.
