VENTILATION PARTS
For Models: KIRD801XSS1 And KIRD861XSS1
RETRACTABLE DOWN DRAFT
30" AND 36"
VENT SYSTEM
(INTERNAL VENTING)
9−93 Litho In U.S.A.
1
Part No. 4174307 Rev.B
VENTILATION PARTS
For Models: KIRD801XSS1 And KIRD861XSS1
Illus. Part
No. No. DESCRIPTION
1 Cover, Capacitor
4360060 L.H.
4360056 R.H.
2 4360175 Capacitor
3 4360176 Terminal
4 4360177 Guide, Exhaust
5 4360178 Damper
6 Cover, Blower
4360179 R.H.
4360188 L.H.
7 4360180 Nut
8 Blower Wheel
4360181 R.H.
4360187 L.H.
9 4360182 Box, Blower
10 4360183 Support, Blower
11 4360184 Housing, Blower
12 4360185 Plate, Motor
13 4360212 Motor
14 4360114 Screw
15 4360154 Motor, Gear
16 4360035 Micro Switch (3)
17 4360155 Bracket,
Motor Gear
18 4360059 Bracket, Capacitor
19 4360189 Cover, Blower Box
20 4360190 Cover, Exhaust
Outlet
2
4174307

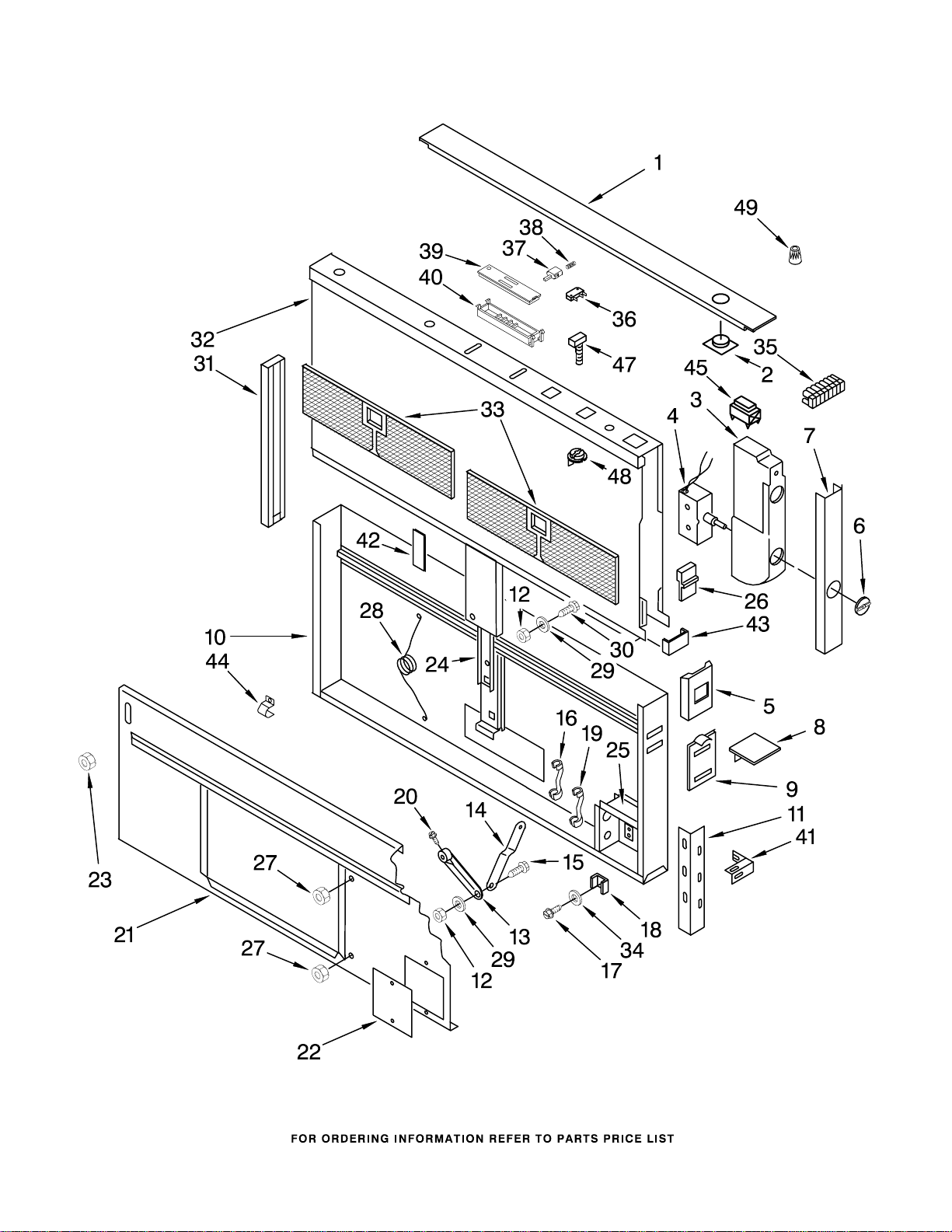

HOUSING AND CONTROL PARTS
For Models: KIRD801XSS1 And KIRD861XSS1
4174307
3
HOUSING AND CONTROL PARTS
For Models: KIRD801XSS1 And KIRD861XSS1
Illus. Part
No. No. DESCRIPTION
1 Cover,
Controls (Top)
4360130 KIRD801XXS1
4360131 KIRD861XSS1
2 4360209 Button, Push
3 4360134 Housing, Switch
4 4360135 Switch, Fan
5 4360136 Shield, Support
Bracket (2)
6 4360137 Knob
7 4360138 Panel, Control
8 4360139 End Cap (2)
9 4360140 Plate, Support
(Upper) (2)
10 Housing,
Non−Serviceable
11 Bracket, Support
4360141 Lower R.H.
4360170 Lower L.H.
12 4360142 Nut
13 4360143 Arm, Gear Motor
14 4360144 Arm, Cavity
15 4360145 Bolt
16 4360062 Strain Relief
17 4360006 Screw
18 4360146 Nut
19 4360147 Strain Relief
20 4360148 Screw
21 Cover, Housing
Non−Serviceable
22 4360149 Cover, Wiring Box
23 4360150 Nut
Illus. Part
No. No. DESCRIPTION
24 Guide, Housing
Non−Serviceable
25 4360152 Box, Wiring
26 4360153 Clamp
27 4360156 Nut
28 4360157 Spring
29 4360158 Washer
30 4360159 Bolt
31 4360160 Trim, R.H.
32 Cavity
Non−Serviceable
33 Filter, Grease
4360193 KIRD801XSS1
4360194 KIRD861XSS1
34 4360005 Washer
35 4360165 Terminal
36 4360196 Micro Switch (2)
37 4360166 Actuator,
Micro Switch (2)
38 4360167 Spring (2)
39 4360168 Cover, Switch
40 4360169 Housing, Switch
41 Support
4360171 L.H.
4360172 R.H.
42 4360173 Guide,
Housing (Back)
43 4360174 Spacer, Cavity (2)
44 4360044 Clamp, Cable
45 4360210 Switch
47 4360163 Bolt
48 4360164 Nut
49 4360211 Nut, Wire
Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
4360198 Installation Kit
LITERATURE PARTS
LIT4360199 Installation
Instructions/
Use And Care Guide
OPTIONAL PARTS NOT INCLUDED
4360205 Trim Kit−White
(KIRD801)
4360207 Trim Kit−Black
(KIRD801)
4360206 Trim Kit−White
(KIRD861)
4360208 Trim Kit−Black
(KIRD861)
FOLLOWING PARTS
NOT ILLUSTRATED
4360227 Cooktop Strip
4
4174307
