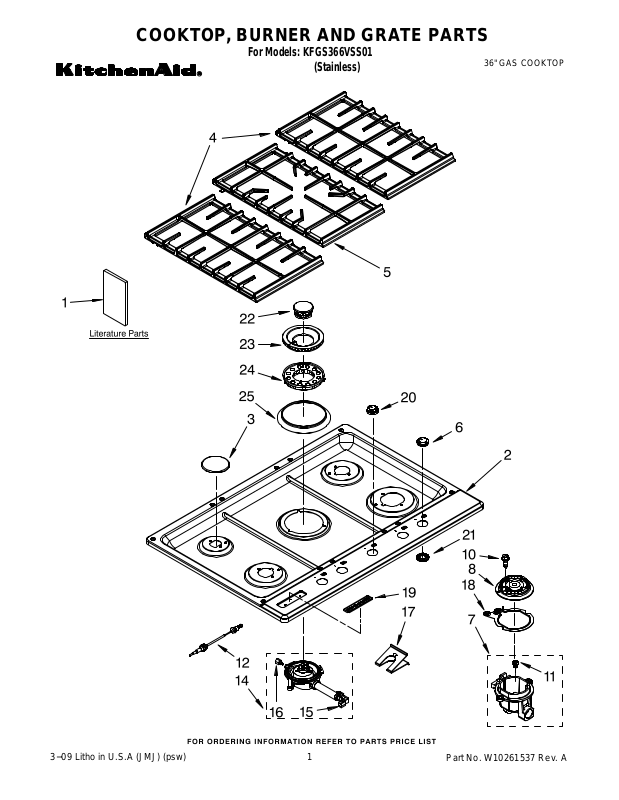

COOKTOP, BURNER AND GRATE PARTS
For Models: KFGS366VSS01
(Stainless)
36" GAS COOKTOP
3−09 Litho in U.S.A (JMJ) (psw)
1
Part No. W10261537 Rev. A
Page 2
COOKTOP, BURNER AND GRATE PARTS
For Models: KFGS366VSS01
(Stainless)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8286867 Installation
Instructions
8304571 Undercounter,
Installation
8286868 Use & Care Guide
Safe Cooking Tips
9762761 English
W10065852
W10136725
2
W10163406
3 Cap, Burner
8286816 LR
8286817 RR, LF
8286818 RF
French
LP Conversion
Instructions
Cooktop
Illus. Part
No. No. DESCRIPTION
4 Grate, Burner
8286662 Right
8287314 Left
5 8287049 Grate, Center
W10132192
6
7 Holder, Orifice
W10140570
8286820 LR
W10140569
8 Head, Burner
8286813 LR
8286814 RR, LF
8286815 RF
10 8287059 Screw
11 Orifice
W10151349
W10151348
W10151350
12 Electrode Wiring
8286722 LF
8286723 LR
8286724 RF
8286725 RR
Knob, Control (4)
RF, LF
RR
RF, LF
LR
RR
Illus. Part
No. No. DESCRIPTION
14 8286935 Assembly, Burner
Base
W10137305
15
W10137303
16
17 8286863 Clip, Electrode
18 Gasket, Orifice
8286930 LR
8286931 RR, LF
8286932 RF
8304603SS
19
W10132191
20
21
W10132183
W10163407
22
W10153033
23
24 8287072 Cross Ring, Burner
25 8287075 Beauty Ring,
Orifice, External
Orifice, Simmer
Badge
Knob, Special
Burner (1)
Knob, Grommet (5)
Spreader, Inner
Spreader, Outer
Burner
2
W10261537
Page 3

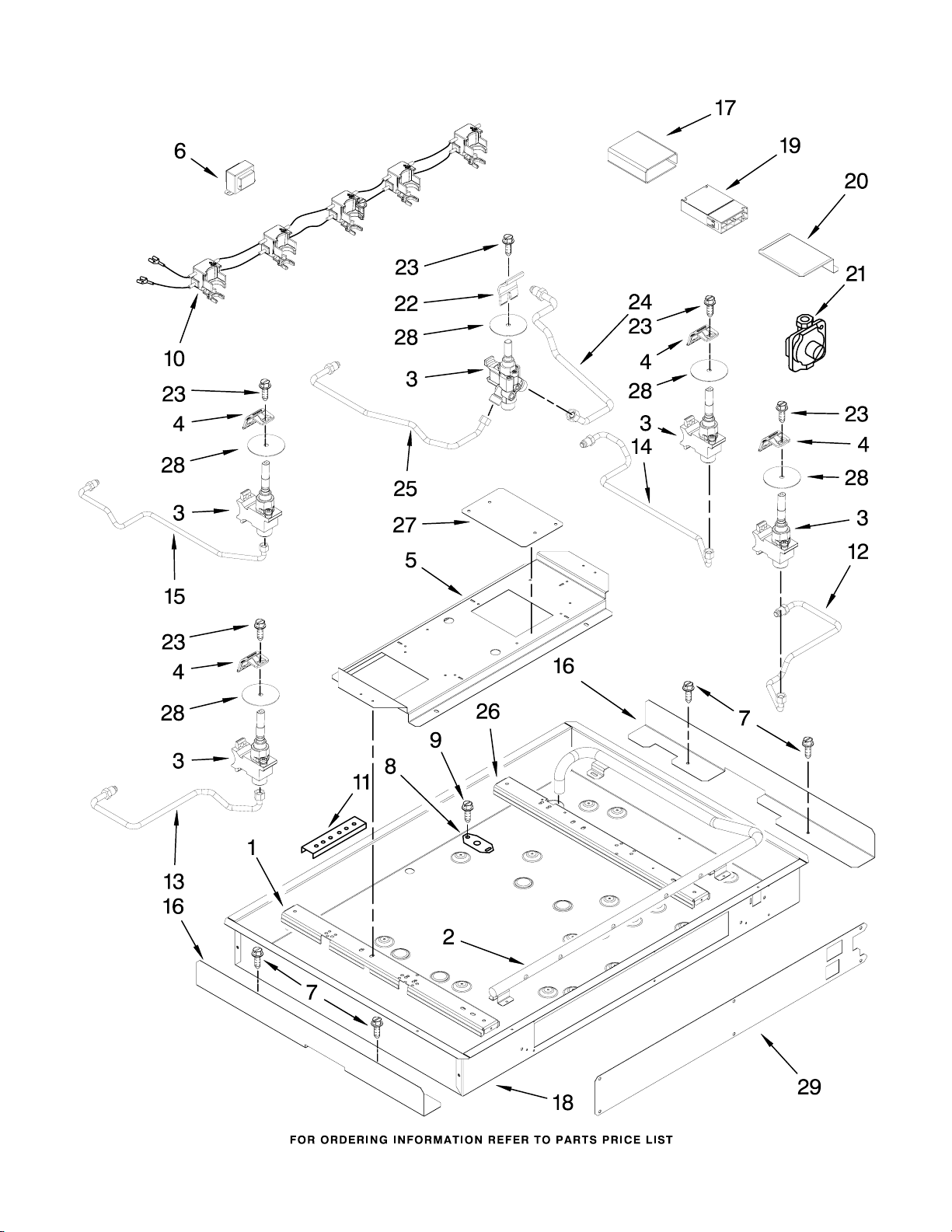

BURNER BOX, GAS VALVES, AND SWITCHES
For Models: KFGS366VSS01
(Stainless)
W10261537
33
Page 4
BURNER BOX, GAS VALVES, AND SWITCHES
For Models: KFGS366VSS01
(Stainless)
Illus. Part
No. No. DESCRIPTION
1 8286753 Rail, Left Burner
2 8287310 Pipe, Manifold
3 Valve, Gas Burner
8286916 LR
8286919 RR, LF
8286920 RF
8286917 Center
4 8287055 Bracket, Single
Valve (4)
5 8286754 Rail, Center
6 8286691 Transformer
7 8286921 Screw
8 8286858 Bracket, Mainfold
9 3196160 Screw
10 8286686 Switch Harness
11 4455917 Bracket, Mounting
12 8286737 Tubing, Gas
Burner (RF)
13 8286735 Tubing, Gas
Burner (LF)
14 8286738 Tubing, Gas
Burner (RR)
15 8286736 Tubing, Gas
Burner (LR)
16 8286771 Shield, Heat (2)
17 8287102 Insulation,
Reignition Module
18 8286751 Burner Box
7431P049−60
19
20
W10132198
W10132345
21
22 8287056 Bracket, Dual
23 8287057 Screw (5)
W10132184
24
W10132185
25
26 8286728 Rail, Burner Right
W10141511
27
W10140571
28
29 8286740 Cover Plate,
Reignition Module
Cover, Reignition
Module
Regulator,
Pressure
Valve
Tubing, External
Crown
Tubing, Inner
Crown
Plate, Center
Burner
Seal, Switch Shaft
Front Burner Box
4
W10261537
Page 5
OPTIONAL PARTS (NOT INCLUDED)
For Models: KFGS366VSS01
(Stainless)
Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
8286692 Cord, Power
3177991 Screw
8286862 Insulation
W10183573
W10132169
Miscellaneous
8287082 Spud Kit
W10183556
W10163327
WIRING HARNESS PARTS
Gasket, Rubber
1090mm
Gasket, Rubber
1765mm
Clip, Wire
Assembly, Mounting
Hardware
8286699 Harness, Main Wire
W10261537
