NOTE: The screws and nuts required to attach a part are listed immediately
following that part.
1 Trim, Side
4450856 RH Black
4450857 RH White
4450858 RH Almond
4450859 LH Black
4450860 LH White
4450861 LH Almond
Screw
4449747 Black Model
4449041 White & Almond
4 4448520 Bumper, Door
6 4451054 Divider, Vent
4449809 Screw
7 4451166 Partition
4449809 Screw
9 4449009 Tube, Vent
11 4448972 Oven Light Assy
4449748 Screw
13 4450812 Safety Switch (Oven Temp)
4449809 Screw
14 4450417 Frame, Front
4449040 Screw
15 4449372 Gasket, Door
19 4450542 Support, Insulation
21 Rail, Side
4450583 Right Side
4450584 Left Side
4448444 Grommet
4449154 Screw
25 4450528 Side, Module (R.H. & L.H.)
4449809 Screw
26 4451169 Back, Module
4449809 Screw
27 Liner, Oven (Not serviceable)
29 4450026 Sensor
4449154 Screw
30 4449845 Bracket, Support
4449809 Screw
31 4450819 Switch, Door
32 4449369 Vent Box Assy.
4449809 Screw
33 4450280 Deflector, Vent
34 4449074 Vent, Center
4450038 Screw
4159465 Screw
35 4449906 EXT-Filler
37 4450334 Thermostat (TOD) (Temp.) SPST
4449809 Screw
38 4450522 Plate, Adapter
43 4450527 Base, Chassis
4449809 Screw
46 4450919 Blower
4449809 Screw
47 4450406 Vent, Bottom
48 4449883 Vent, Top
4449809 Screw
49 4448933 Retainer, Gasket
4449154 Screw
50 4450543 Cover, Back
4449809 Screw
51 Trim, Bottom
4448461 Black Model
4448462 White Model
4448463 Almond Model
4159465 Screw
52 4450403 Chassis, Back
FOLLOWING PARTS NOT ILLUSTRATED
INSULATION
4449316 Insulation, Wrap
4450365 Insulation, Back
4450128 Insulation, Bottom
NOTE: The screws and nuts required to attach a part are listed immediately
following that part.
3 4448869 Microcomputer
4449745 Screw
10 Control Panel Assy W/Membrane Switch
4451063 Black Model
4451064 White Model
4451065 Almond Model
LITERATURE PARTS
LIT4450412 Installation Instructions
LIT4448979 Use & Care Guide (Oven)
LIT4449870 Use & Care Guide (Microwave)
LIT4450786 Cooking Guide (Label)
LIT4449066 Cookbook (T/C Oven)
LIT4451057 Tech Sheet (Oven)
LIT4449264 Easy Set Guide (Oven)
LIT4451052 Easy Use Guide (Microwave)
NOTE: The screws and nuts required to attach a part are listed immediately
following that part.
1 4450429 Door Liner
2 4451174 Hinge, Door
4449743 Screw
3 4449259 Glass, Inner
4 4448680 Insulation, Top and Bottom Door
5 4450423 Retainer, Glass
4449809 Screw
7 4449263 Glass, Inner
9 4450470 Retainer, Glass
4449809 Screw
10 4449263 Glass, Inner
12 Door Glass
4450699 Black Model
4450700 White Model
4450701 Almond Model
13 Door Handle
4448414 Black Model
4448415 White Model
4448416 Almond Model
14 4450813 Bracket, Handle
4451040 Screw
18 4448707 Insulation, Sides
19 4450362 Shield, Heat
4449809 Screw
20 4449031 Retainer, Glass
4449809 Screw
21 4450837 Seal, Door Top
22 4450838 Seal, Side
23 Retainer, Clip
4450863 Black Model
4450864 White Model
4450865 Almond Model

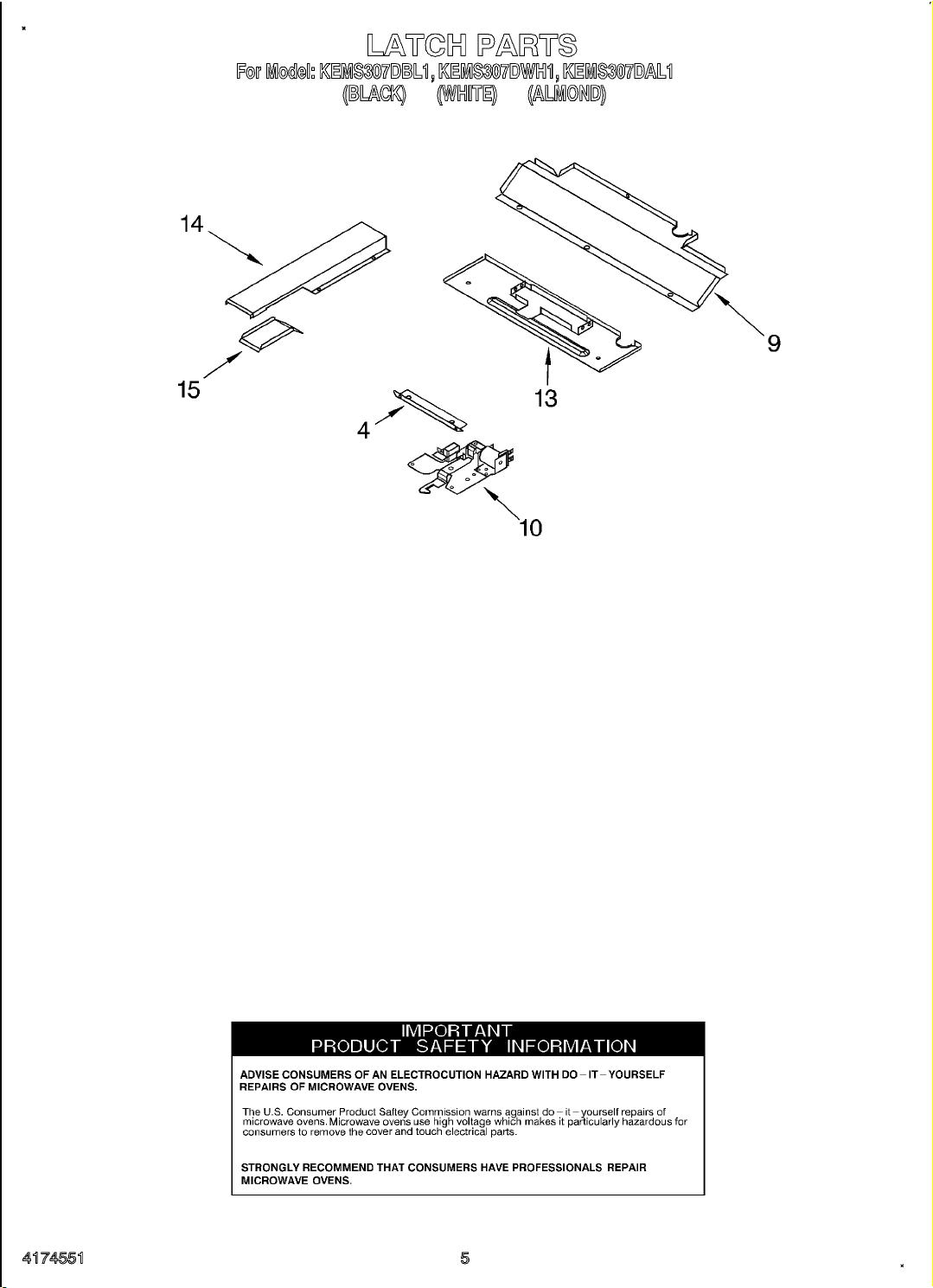

NOTE: The screws and nuts required to attach a part are listed immediately
following that part.
4 4450051 Deflector, Latch
9 4450408 Baffle, Rear
4449154 Screw
10 4450332 Latch Assy.
13 4450522 Plate, Adapter
14 4449124 Vent, Top
15 4449959 Vent, Bottom
4449809 Screw
2 4448701 Element, Broil
4449154 Screw
3 3147563 Grill, Broiler
4 3147845 Pan, Broiler
5 3181534 Rack, Roasting
6 4448717 Rack, Oven
7 4448695 Element, Bake
8 4448881 Nut, Hex
11 4448882 Washer, Lock
12 313382 Clip
13 4451355 Jack, Meat Probe
14 4448948 Probe, Meat
15 4448723 Tray, Bake
17 4450039 Cover, Bake Tray
4449809 Screw
20 4448841 Element, Convection
4449154 Screw
21 4448418 Cover, Fan
4449154 Screw
22 4448952 Convection, Motor
23 4449154 Screw
1 4375299 Bracket, Capacitor
2 4375313 Screw
3 4375037 Rubber Ring
4 4375038 Screw
5 4375314 Air Duct, Magnetron
6 4375253 Support, Tube
7 4375254 Plug, Ceramic
8 4375255 Bushing
9 4375256 Reflector
10 4375257 Chamber, Reflector
11 4375315 Damper
12 4375260 Duct, Inlet
13 4375316 Insulation, Switch
14 4375322 Fan Wheel
15 4375317 Duct, Air
16 4375264 Block, Slide
17 4375248 Cover Plate, Upper
18 4375035 Screw
19 4375318 Lens, Lamp
20 4375319 Spring
21 4375320 Reflector
22 4378400 Pan Handle
23 4375276 Rack
24 4375191 Crisp Plate
25 4375020 Capacitor
26 4375072 Magnetron
27 4375321 Fuse
28 4375231 Block, Fuse
29 4375278 Motor, Blower
30 4375279 Thermostat
31 4375079 Thermostat
32 4375281 Thermostat
33 4375282 Q Tube Assembly
34 4375286 Transformer
35 4375344 Ring, Turntable
36 4375345 Shaft, Turntable
37 Hinge, Door
4375324 Right
4375323 Left
38 4451009 Torsion Spring
39 Bracket, Hinge
4375327 Left
4375328 Right
40 4375329 Inlet
41 4375330 Door Strap
42 4375331 Plate, Grill
43 4375332 Bracket
44 4375333 Fan Cap
45 4375334 Fan Cap Bottom
46 Switch Holder
4375335 Left
4375336 Right
CABINET PARTS
47 4375337 Isolation Plate
48 4375338 Cover Plate
49 4375339 Door Plate
50 4375340 Inner Frame
51 Side Plate
4375341 Left
4375342 Right
52 4375343 Turntable
53 4375346 Switch
54 4375347 Motor, Turntable
55 4375348 Lamp
56 4375349 Rectifier
57 4375350 Cable
58 4375351 Holder, Lamp
5 Support Rails
4450404 Right Side
4450405 Left Side
4449809 Screw
11 4449703 Rear Channel
4449809 Screw
4449154 Screw
NOTE: The screws and nuts required to attach a part are listed immediately
following that part.
1 4450378 Cover, Top
4450118 Nut
4449809 Screw
2 4448935 Baffle, Blower
3 4450920 Blower
4449809 Screw
4 4450066 Bracket, Transformer
5 4450328 Transformer, (Lights)
4449809 Screw
6 4450367 Exhaust Duct
7 4450027 Bracket, Duct
4449809 Screw
8 4449964 Grommet
4449809 Screw
112432 Nut
9 4450311 Holder, Fuse
4449154 Screw
10 309796 Fuse
11 4449868 Block, Terminal
3196181 Screw
12 4450401 Side, Combo
4449809 Screw
13 4449767 Vent, (Control Panel)
4450038 Screw
14 Side, Control Top
4448371 Right
4448372 Left
4449809 Screw
15 4450658 Back, Control
4449809 Screw
16 4450551 Cover, Top Rear
4449809 Screw
17 4448664 Clamp
4449809 Screw
18 4450554 Cover, Top Front
4449809 Screw
NOTE: The screws and nuts required to attach a part are listed immediately
following that part.
9 4448937 Glass, Middle
10 4450946 Frame, Door
4450038 Screw
13 4450265 Tape, Foam
14 Bracket, Mounting
4449141 Right Side
4449142 Left Side
4449809 Screw
15 Filler, Side
4449083 Right Side
4449086 Left Side
4449809 Screw
16 Handle, Door
4448414 Black Model
4448415 White Model
4448416 Almond Model
17 Glass, Outer
4449136 Black Model
4449137 White Model
4449138 Almond Model
23 4451055 Spacer
24 4450961 Bracket, Handle
4449746 Screw
25 Clip, Glass
4450031 Black Model
4450032 White Model
4450033 Almond Model
OPTIONAL PARTS
PAINT, TOUCH-UP (1/2oz.)
72017 White
261869 Cord Brown
72032 Black
PAINT, SPRAY
350930 White
261900 Citrine White
830864 Black
ADHESIVE
591014 Adhesive Loctite (1/3 oz.)
482338 Sealer, Silastic (3 oz.)
SPLICING WIRES--25FT. LENGTH
242828 Wire (12 Ga. 150 c Black)
242820 Wire (14 Ga. 150 c Black)
242821 Wire (14 Ga. 150 c Blue)
242822 Wire (14 Ga. 150 c Brown)
242830 Wire (14 Ga. 200 c Brown)
242823 Wire (14 Ga. 150 c Green)
242824 Wire (14 Ga. 150 c Orange)
242829 Wire (12 Ga. 150 c Red)
242825 Wire (14 Ga. 150 c Red)
242831 Wire (14 Ga. 200 c Red)
242826 Wire (14 Ga. 150 c White)
242827 Wire (14 Ga. 150 c Yellow)
242832 Wire (14 Ga. 200 c Yellow)
FOLLOWING PARTS NOT ILLUSTRATED
4378944 Filler Kit (BL)
4378945 Filler Kit (WH)
4378946 Filler Kit (AL)
814381 Hinge Pin Kit
4448950 Screw, Installation
WIRING HARNESS PARTS
4450951 Harness, Switch
488366 Clamp
4449809 Screw
4450753 Harness, Latch
4450291 Harness, Transformer
4449809 Screw
4450990 Harness, Main
4450831 Ground (M/W)
4450800 Screw
4449809 Screw
4450950 Conduit, Combo
