DOOR PARTS
MICROWAVE OVEN
1.5 CUBIC FOOT
For Models: KCMS1555RWH1, KCMS1555RBL1, KCMS1555RSS1
(White) (Black) (Stainless Steel)
11−05 Litho In U.S.A. (dmm)
Illus. Part
No. No. DESCRIPTION
1 Literature
8205541 Use & Care Guide
8205550 Cook Guide Label
8205542 Tech Sheet
8205554 Instructions,
Installation
(For Trim Kit)
6 8184263 Latch
7 8171918 Spring, Latch
8 8184265 Cap
10 Door Assembly
8205804 White
8205797 Black
8205815 Stainless
1
Part No. 8206278
CONTROL PANEL PARTS
For Models: KCMS1555RWH1, KCMS1555RBL1, KCMS1555RSS1
(White) (Black) (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 4358381 Screw
2 Release Button
8205806 White
8205799 Black
8205817 Stainless
3 8184272 Spring, Button
5 4359851 Control Panel
6 8205800 P.C.B Sub Assembly
7 Lever, Release
8205805 White
8205798 Black
8205816 Stainless
8 8204891 Lens
10 4358883 Screw
2
8206278
OVEN CAVITY PARTS
For Models: KCMS1555RWH1, KCMS1555RBL1, KCMS1555RSS1
(White) (Black) (Stainless Steel)
8206278
Illus. Part
No. No. DESCRIPTION
1 8184278 Canopy
4 Outer Case
8205453 White
8205801 Black
8205818 Stainless
6 4359780 Tray, Glass
8 8205148 Turntable Support
11 8184375 Motor, Synchronous
14 4358188 Screw
15 Screw
4358362 White & SS Models
4358829 Black Model
16 8171862 Screw
17 8183514 Sensor, Humidity
18 8205457 Guide, Sensor
19 4358376 Screw
21 4358192 Screw
3
LATCH BOARD PARTS
For Models: KCMS1555RWH1, KCMS1555RBL1, KCMS1555RSS1
(White) (Black) (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 Latch Board Assembly
(Non−Serviceable)
2 8185271 Latch Board
3 8183561 Switch Micro
Primary/Secondary
4 8183562 Switch, Micro
Monitor
7 4358271 Screw
4
8206278
OVEN INTERIOR PARTS
For Models: KCMS1555RWH1, KCMS1555RBL1, KCMS1555RSS1
(White) (Black) (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 8205458 Blade, Fan
2 8205456 Guide, Suction
3 8205462 Motor, Fan
4 8185272 H.V. Capacitor
5 8184288 H.V.C Bracket
6 8206283 Leadwire Assembly
7 4359794 Holder, Wire
8 8205489 H.V. Diode Cable
8206278
Illus. Part
No. No. DESCRIPTION
9 8206281 Power Cord
10 4359164 Thermostat
11 8171810 Lamp, Baseless
12 8205483 Cap, Fuse
13 8205460 Magnetron
14 8205509 Bracket
5
Illus. Part
No. No. DESCRIPTION
15 8204900 Duct, Air
16 8184290 Bracket, Support
17 8183507 Fuse
18 8206270 Filter, Noise
21 4358381 Screw
22 4358489 Screw
24 4358190 Screw

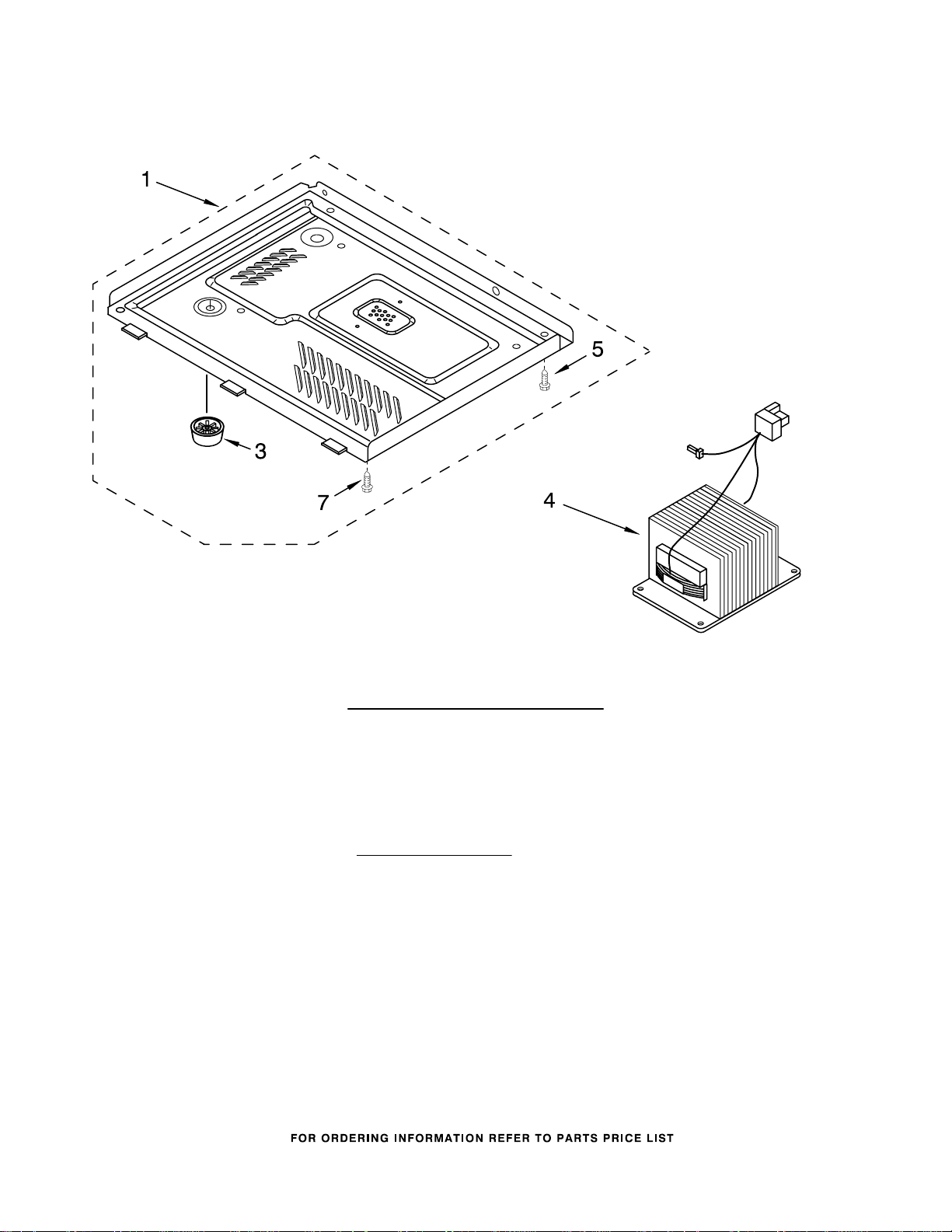

BASE PLATE PARTS
For Models: KCMS1555RWH1, KCMS1555RBL1, KCMS1555RSS1
(White) (Black) (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 8205464 Base Plate
3 8184385 Leg
4 8205459 Transformer
5 4358192 Screw
7 4358489 Screw
ACCESSORY PARTS
Trim Kits
MK1154XPQ
MK1154XPB
MK1154XPS
MK1157XPQ
MK1157XPB
MK1157XPS
MK1150XPQ
MK1150XPB
MK1150XPS
8172131 Hardware Pack
24" White
24" Black
24" Stainless
27" White
27" Black
27" Stainless
30" White
30" Black
30" Stainless
(Incl in Trim Kit)
6
8206278
