KitchenAid JAVASTUDIO 4KCM511, JAVASTUDIO 4KCM514, JAVASTUDIO 4KCM515 Instructions Manual
JAVASTUDIO
™
COLLECTION
PROGRAMMABLE
COFFEE MAKER
INSTRUCTIONS
4KCM511, 4KCM514, 4KCM515
COLLECTION
JAVASTUDIO
™
CAFETIÈRE
PROGRAMMABLE
DIRECTIVES
4KCM511, 4KCM514, 4KCM515
1-800-461-5681
Call our Consumer Interaction Centre
with questions or comments
Website: KitchenAid.ca
Des questions ? Des commentaires ?
Appelez notre Centre d’interaction
aux consommateurs.
Site Web : KitchenAid.ca
FOR THE WAY IT’S MADE.
®
BIEN PENSÉ. BIEN FABRIQUÉ.
®
®
Proof of Purchase & Product Registration
Always keep a copy of the sales
receipt showing the date of
purchase of your Coffee Maker.
Proof of purchase will assure you of
in-warranty service.
Before you use your Coffee Maker,
please fill out and mail your product
registration card packed with the
unit. This card will enable us to
contact you in the unlikely event of
a product safety notification. This
card does not verify your warranty.
Please complete the following for
your personal records:
Model Number _______________________________________________________
Serial Number ________________________________________________________
Date Purchased _______________________________________________________
Store Name __________________________________________________________
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hur t you
and others.
All safety messages will follow the safety alert symbol and either
the word “DANGER” or “WARNING.” These words mean:
You can be killed or seriously injured
if you don’t immediatel
y follow
instructions.
You can be killed or seriously injured
if you don’t follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to
reduce the chance of injury, and tell you what can happen if the instructions are
not followed.
DANGER
WARNING
Coffee Maker Safety
1
Table of Contents
INTRODUCTION
Product Registration Card ........................................................Inside Front Cover
Coffee Maker Safety.................................................................Inside Front Cover
Electrical Requirements......................................................................................2
Important Safeguards........................................................................................3
FEATURES AND OPERATION
Coffee Maker General Features..........................................................................4
Display and Control Pad Features.......................................................................6
Pre-Use Cleaning ...............................................................................................8
Installing the Ion-Exchange Water Filter.............................................................8
To Set the Time-of-Day Clock.............................................................................8
Brewing Coffee ..................................................................................................9
Using the Thermal Carafe................................................................................11
Using the Automatic Brew Timer.....................................................................12
The Cleaning Needed Indicator........................................................................13
Coffee Brewing Suggestions: Advice for Great Taste ........................................14
CARE AND CLEANING
Cleaning the Coffee Maker..............................................................................15
Descaling the Coffee Maker.............................................................................15
Troubleshooting and Error Codes.....................................................................16
WARRANTY AND SERVICE INFORMATION
Warranty.........................................................................................................17
How To Arrange For Warranty Service..............................................................17
How To Arrange For Out-Of-Warranty Service..................................................18
2

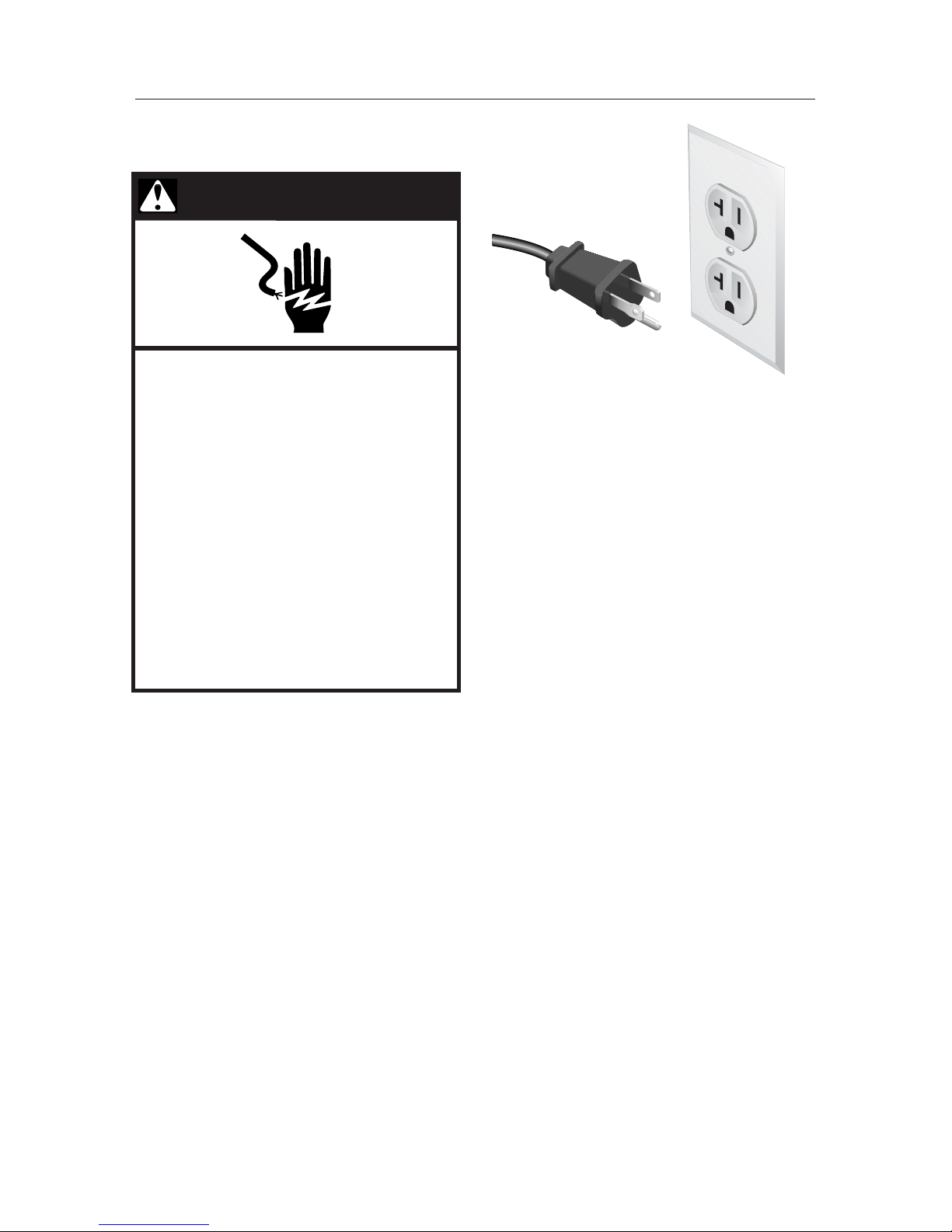

Electrical Requirements
Volts: 120 V.A.C. only. Hertz: 60 Hz
NOTE: Your Coffee Maker has a 3
prong grounded plug. To reduce the
risk of electrical shock, this plug will
fit in an outlet only one way. If the
plug does not fit in the outlet, contact
a qualified electrician. Do not modify
the plug in any way.
Do not use an extension cord. If the
power supply cord is too short, have a
qualified electrician or serviceman
install an outlet near the appliance.
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong
outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these
instructions can result in
death, fire or electrical shock.
3
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be
followed, including the following:
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock, do not immerse cord, plugs, or Coffee
Maker in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near
children.
5. Unplug Coffee Maker from outlet before cleaning. Allow to cool before
putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug, or after the
appliance malfunctions or has been damaged in any manner. Return
appliance to the nearest Authorized Service Facility for examination, repair,
or adjustment.
7. The use of accessories not recommended by the appliance manufacturer
may result in fire, shock, or injury to persons.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Do not use appliance for other than its intended use.
12. Do not use appliance without lid properly placed on container.
13. The container is designed for use with this appliance. It must never be used
on a range top.
14. Do not set a hot container on a wet or cold surface.
15. Do not use a cracked container or a container having a loose or weakened
handle.
16. Do not clean container with cleaners, steel wool pads, or other abrasive
material.
17. This product has been cUL Listed for household use.
SAVE THESE INSTRUCTIONS
4

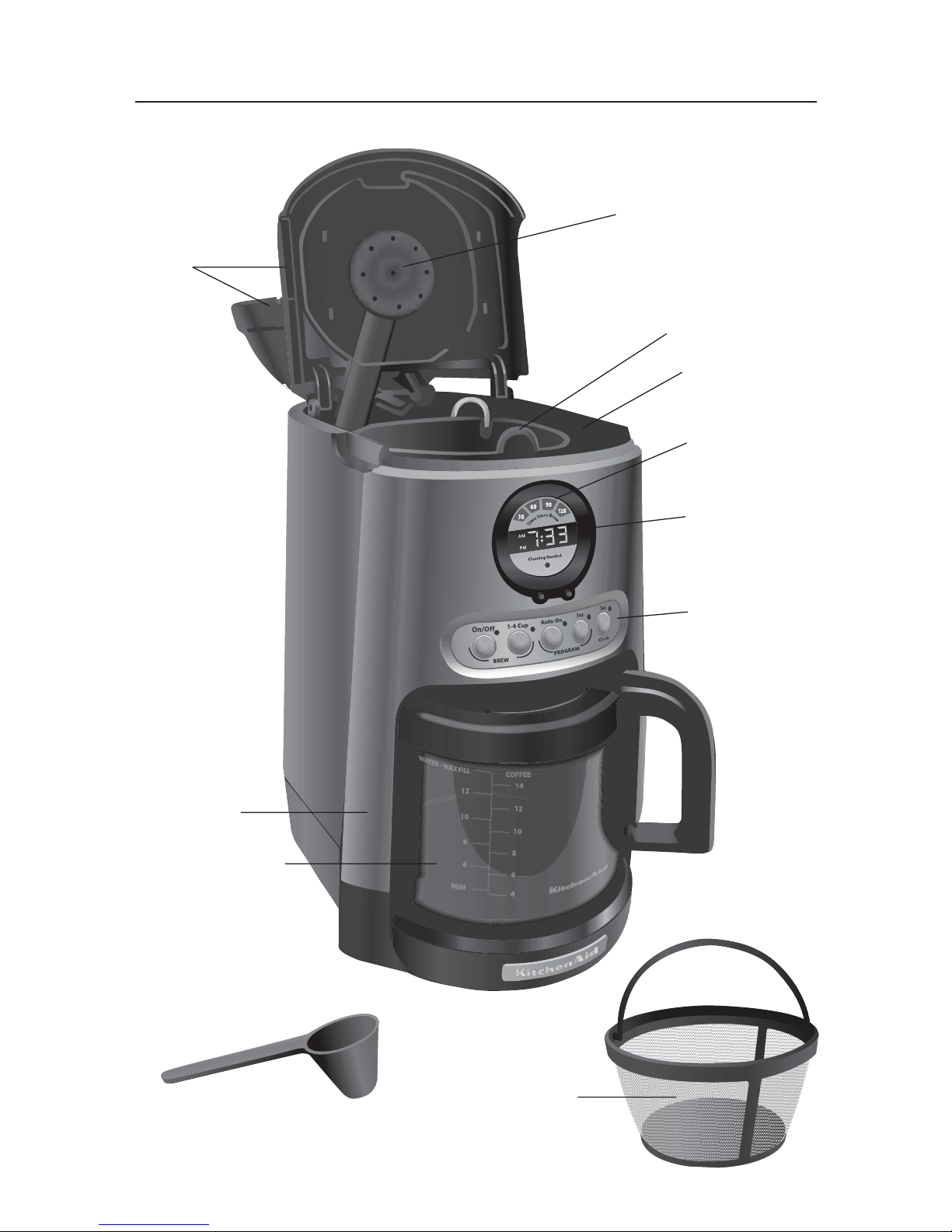

General Features
JavaSpa™ Showerhead
Wrap-Around
Housing
Split-Lid
Brew Basket
Reservoir
Fill-Channel
“
Time Since
Brew” Display

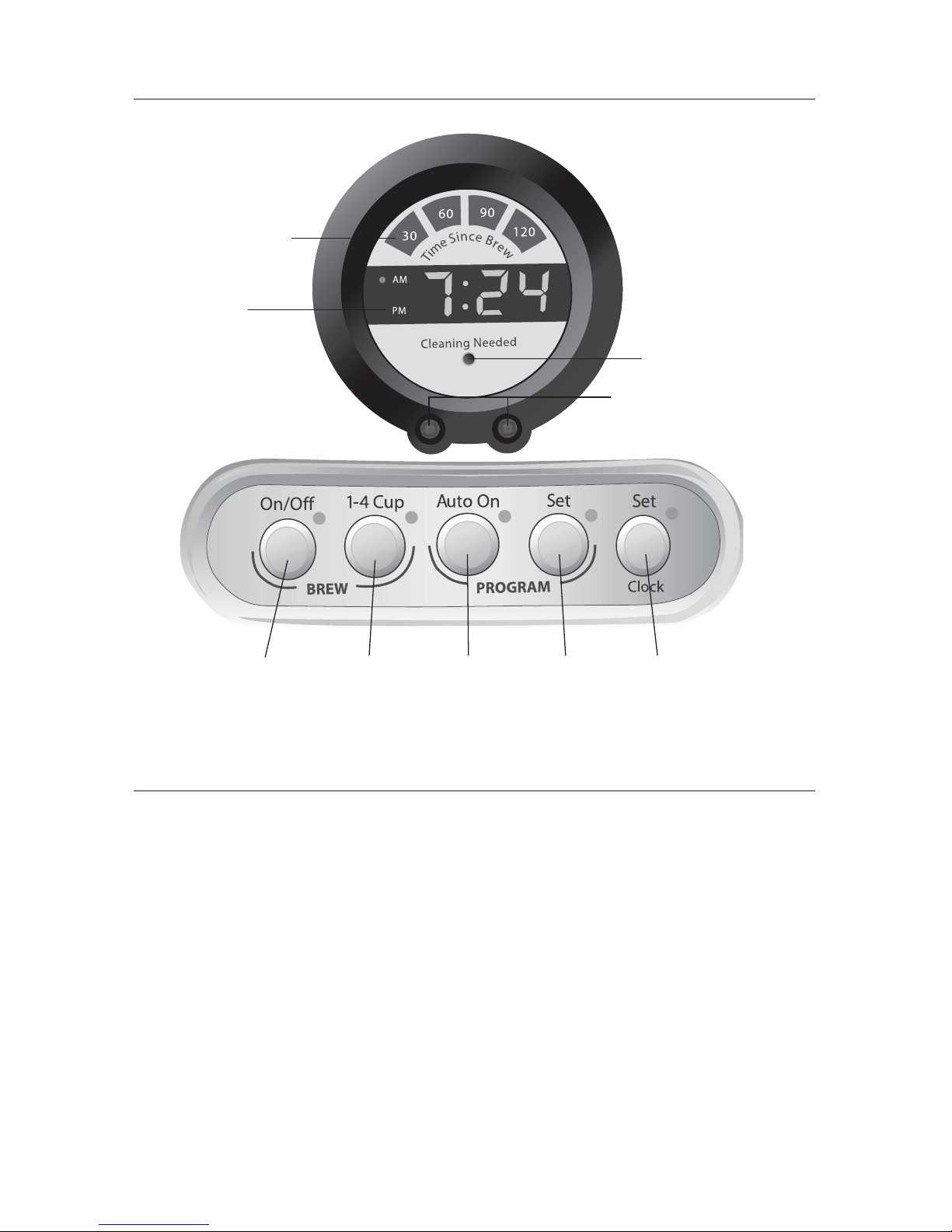

Brew Timer
Display
Clean Touch™
Control Pad
Glass Carafe
Coffee Scoop
Gold Tone
Permanent
Filter
5
General Features
JavaSpa™ Showerhead
Extra-wide showerhead sprays the
brew basket evenly with hot water,
ensuring even coffee extraction and
outstanding flavour.
1100-Watt Heat Pump
(not shown)
Powerful heat pump brews rich,
flavourful coffee.
Electronic Temperature Control
Fully electronic control directly
monitors the temperature of the heat
pump to brew - and keep - coffee at
optimal temperatures.
Pause & Pour Feature
Pause and pour lets you remove the
carafe and pour a cup of coffee
before brewing is finished. A special
valve seals the brew basket tightly,
eliminating drips.
End-Of-Brewing Tone
A tone sounds when coffee is
finished brewing.
Automatic Shutoff
Coffee Maker automatically shuts off
two hours after brewing.
Split-Lid
Access the brew basket and water
reservoir by lifting the split-lid. The
front lid covers the brew basket and
reservoir fill-channel. The rear lid
covers the water reservoir and water
filter.
Brew Basket
Lift the front lid to access the
removable, dishwasher-safe brew
basket. The basket holds a 10-12 cup
flat-bottom paper coffee filter or the
gold tone permanent filter.
Reservoir Fill-Channel
The Coffee Maker features a
convenient front-fill water reservoir.
Just lift the front lid and use the
convenient fill-channel to add water.
You can also lift the rear lid and add
water directly to the reservoir.
Brew Timer Display
Shows the AM or PM time-of-day. An
easy-to-set 24 hour brew timer will
brew coffee at the selected time, day
or night.
“Time Since Brew” Display
30, 60, 90, and 120-minute
segments light up to indicate the
time elapsed since the last carafe was
brewed.
Clean Touch™ Control Pad
The control pad makes operating the
Coffee Maker simple. The pad is
sealed against spills, will not trap
grime, and is a snap to wipe clean.
Glass Carafe
(models 4KCM511, 4KCM514)
Dishwasher-safe glass carafe features
a no-drip pouring spout and
comfortable handle.
Stainless Steel Thermal Carafe
(model 4KCM515 – not shown)
Thermal carafe preserves flavour by
keeping coffee warm without
continuous heating. Stainless steel
construction with vacuum insulation
will keep coffee piping hot for hours.
Gold Tone Permanent Filter
The high-performance gold tone filter
eliminates the need for paper coffee
filters. Coffee Maker can also use
paper filters, if desired.
continued
…
6
Display and Control Pad Features
General Features

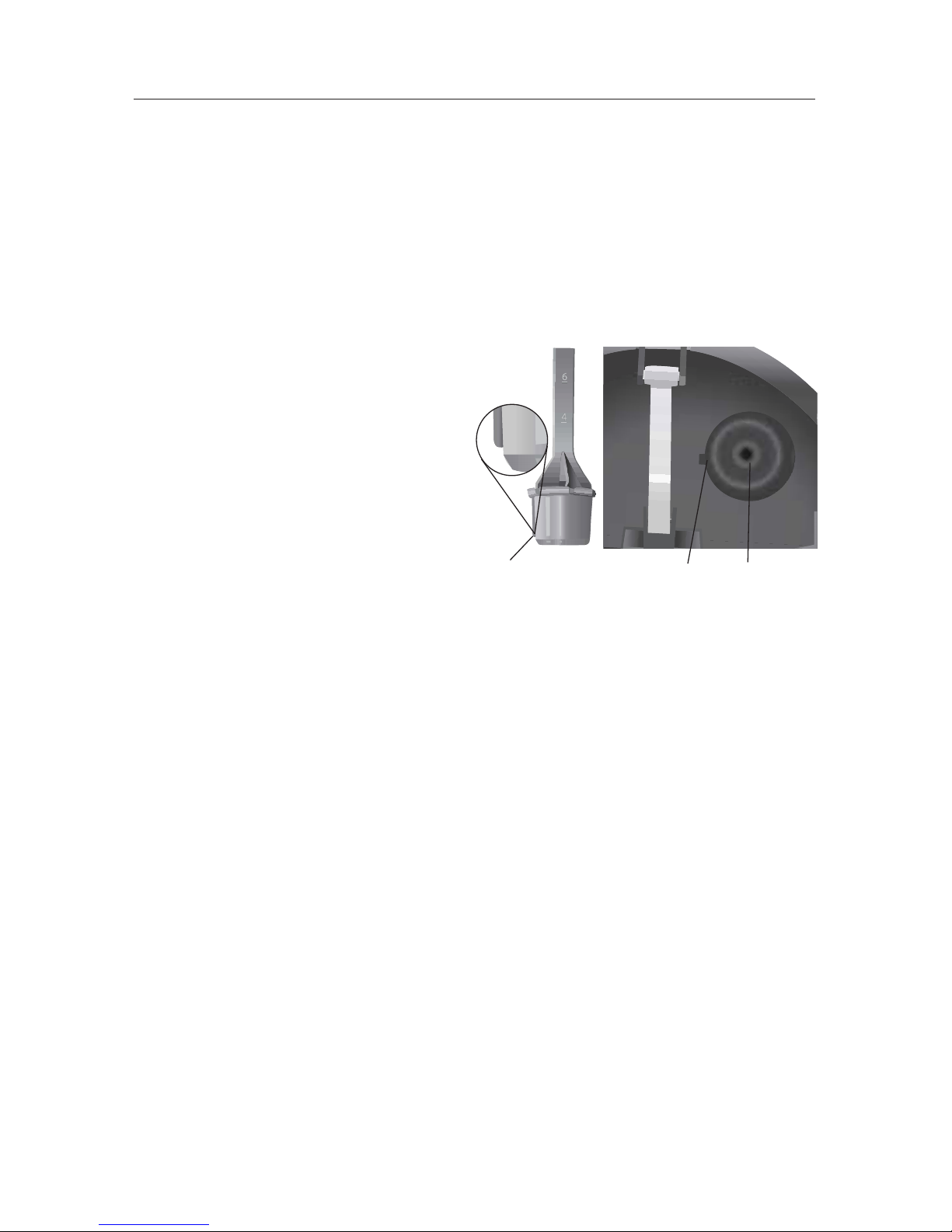

Ion-Exchange Water Filter / Water
Level Indicator (not shown)
Advanced filter reduces chlorine and
other contaminants which impair
coffee flavour. Filter also softens the
water, which increases the time
between descalings. The filter handle
serves as a convenient water level
indicator.
Coffee Scoop
Use one rounded scoop of ground
coffee for each cup desired.
Full-Length Cord Storage
(not shown)
Compartment in back of unit keeps
excess cord out of the way.
Wrap-Around Housing
Stylish design minimizes heat loss
from the carafe while protecting it
from accidental spills and breakage.
Brew Timer
Display
“Time Since Brew”
Display
Cleaning Needed
Indicator
“H” and “M” Buttons
On/Off 1-4 Cup Auto On Set
(Program)
Set
(Clock)
7

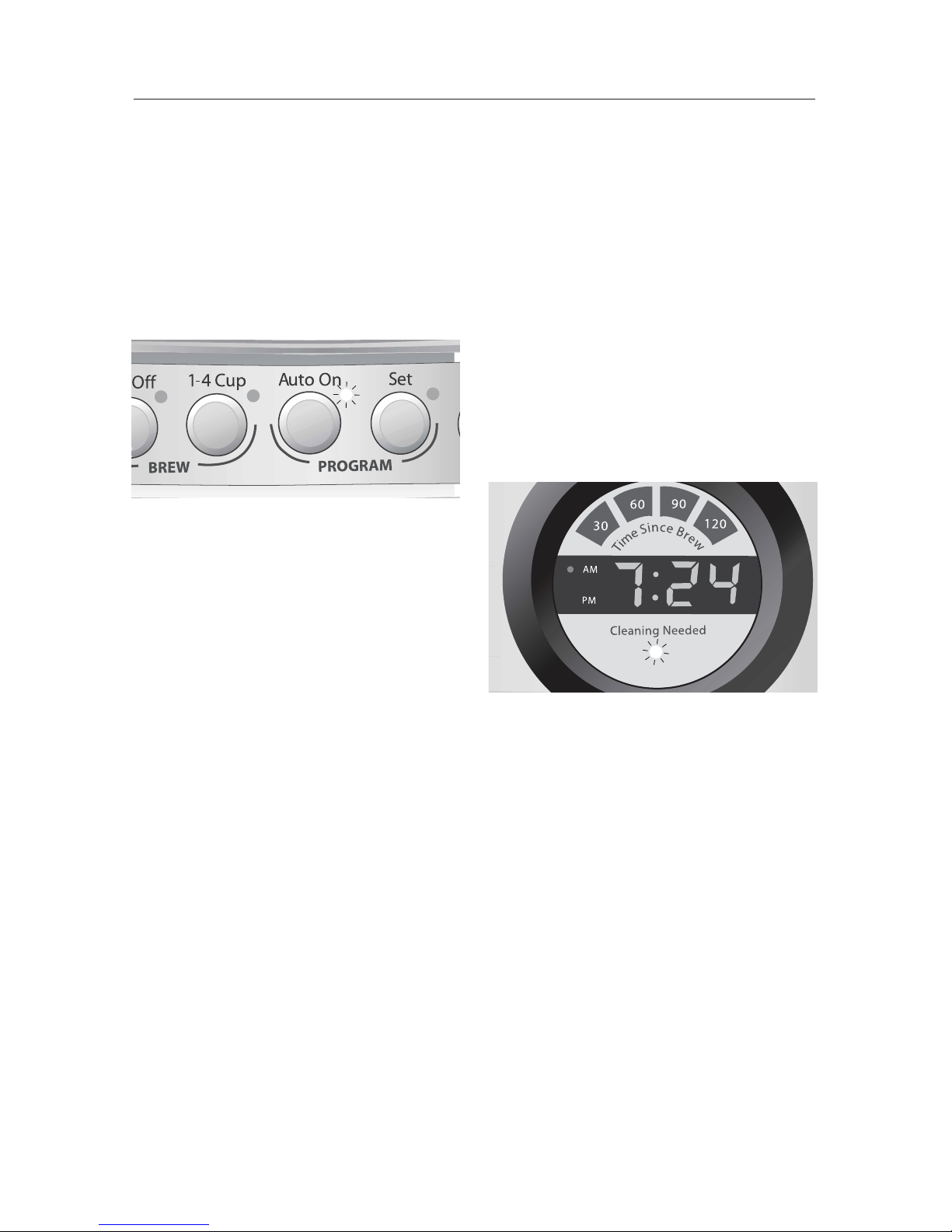

Display and Control Pad Features
DISPLAY FEATURES:
Brew Timer Display
Shows the time-of-day. Small lights
indicate whether the time is AM or
PM. An easy-to-set 24-hour brew
timer will brew coffee at the selected
time, day or night.
“Time Since Brew” Display
Display shows the time elapsed since
the completion of the brewing cycle.
The “30” segment will light
immediately after brewing, indicating
the coffee is less than 30 minutes
old. Every 30 minutes, a new
segment will light.

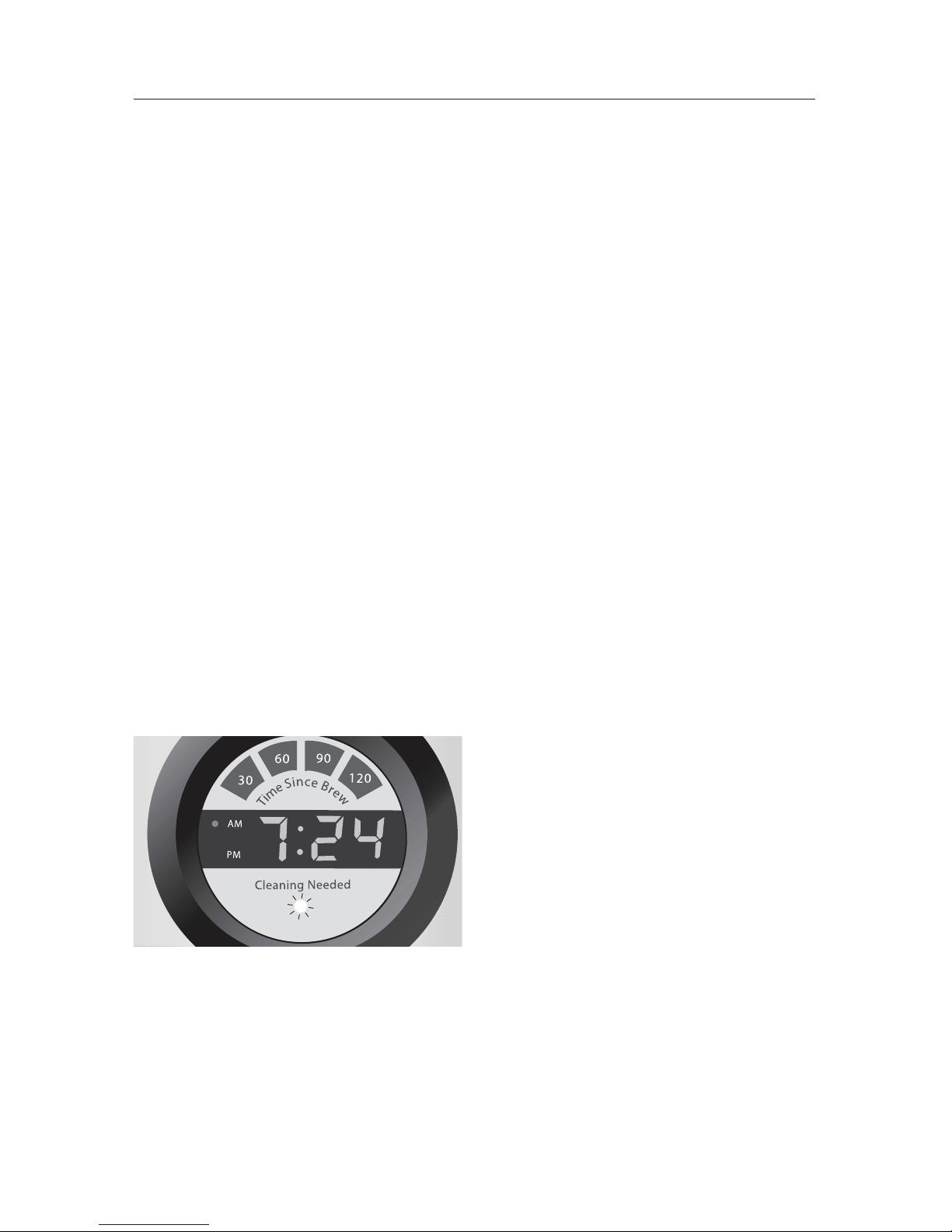

Cleaning Needed Indicator
The indicator will light after brewing
if the Coffee Maker requires
descaling.
“H” and “M” Buttons
Use the “H” (hour) and “M” (minute)
buttons to program the brew timer
or set the time-of-day clock.
CONTROL PAD FEATURES:
On/Off
Press to turn the Coffee Maker on or
off. An indicator light shows when
the Coffee Maker is on.
1-4 Cup
After turning on the Coffee Maker or
activating the automatic brew timer,
press the 1-4 Cup Button to turn the
1 to 4 cup brew cycle on or off. This
special cycle heats small quantities of
water thoroughly, ensuring optimum
flavour when brewing small pots of
coffee. An indicator light shows when
the 1 to 4 cup brew cycle is activated.
Auto On
Press to turn the automatic brew
timer on or off. When the brew timer
is turned on, the …
•Programmed brew time will briefly
appear on the brew timer display
•Auto On indicator will light
•Coffee Maker will begin brewing at
the programmed time
If a programmed brew time has not
been set when the Auto On Button is
pressed, the Coffee Maker will
automatically enter the Set (Program)
mode.
Set (Program)
Press to program an automatic brew
time. When the Set (Program) Button
is pressed, the …
•Brew timer display will flash
•Set (Program) indicator will flash
•“H” (hour) and “M” (minute)
Buttons can be used to set a brew
time
Set (Clock)
Press to set the time-of-day clock.
When the Set (Clock) Button is
pressed, the …
•Brew timer display will flash
•Set (Clock) indicator will flash
•“H” (hour) and “M” (minute)
Buttons can be used to set the
clock
8
Preparing Your Coffee Maker for Use
Pre-Use Cleaning
Wash the brew basket, gold tone
permanent filter, and carafe in hot,
soapy water, then rinse with clean
water and dry. Do not use abrasive
cleansers or scouring pads.
Installing the Ion-Exchange
Water Filter
Use of the ion-exchange water filter
is strongly recommended. The filter
softens the water while reducing
chlorine and other contaminants
which impair coffee flavour. The
handle of the filter also serves as a
water level indicator. Use of the water
filter is optional: the Coffee Maker
will operate normally without it.
The water filter is for use only with
municipally treated tap water or well
water that is regularly tested for
contaminants.
1. Remove the filter from its
packaging. The filter consists of a
long handle with a filter cartridge
at the end.
2. Place the filter cartridge in a
separate container filled with
fresh, cool water. The cartridge
should remain submerged in the
water for 10 minutes.
3. Lift the rear portion of the split-lid
using the tabs on either side of
the lid.
4. Place the filter cartridge in the
circular well at the bottom of the
water reservoir, aligning the tab on
the cartridge with the notch in the
well. The water level markings on
the filter handle will face forward.
Push the cartridge slightly to make
sure it fits snugly.
5. Every time you install a new filter,
run the Coffee Maker through a
complete brewing cycle without
coffee. Use a full carafe of clean,
cool water.
6. Replace the filter every three
months under normal use. Replace
it more often under heavy use or
hard-water conditions.
Tab Notch & Filter Well
9
Preparing Your Coffee Maker for Use

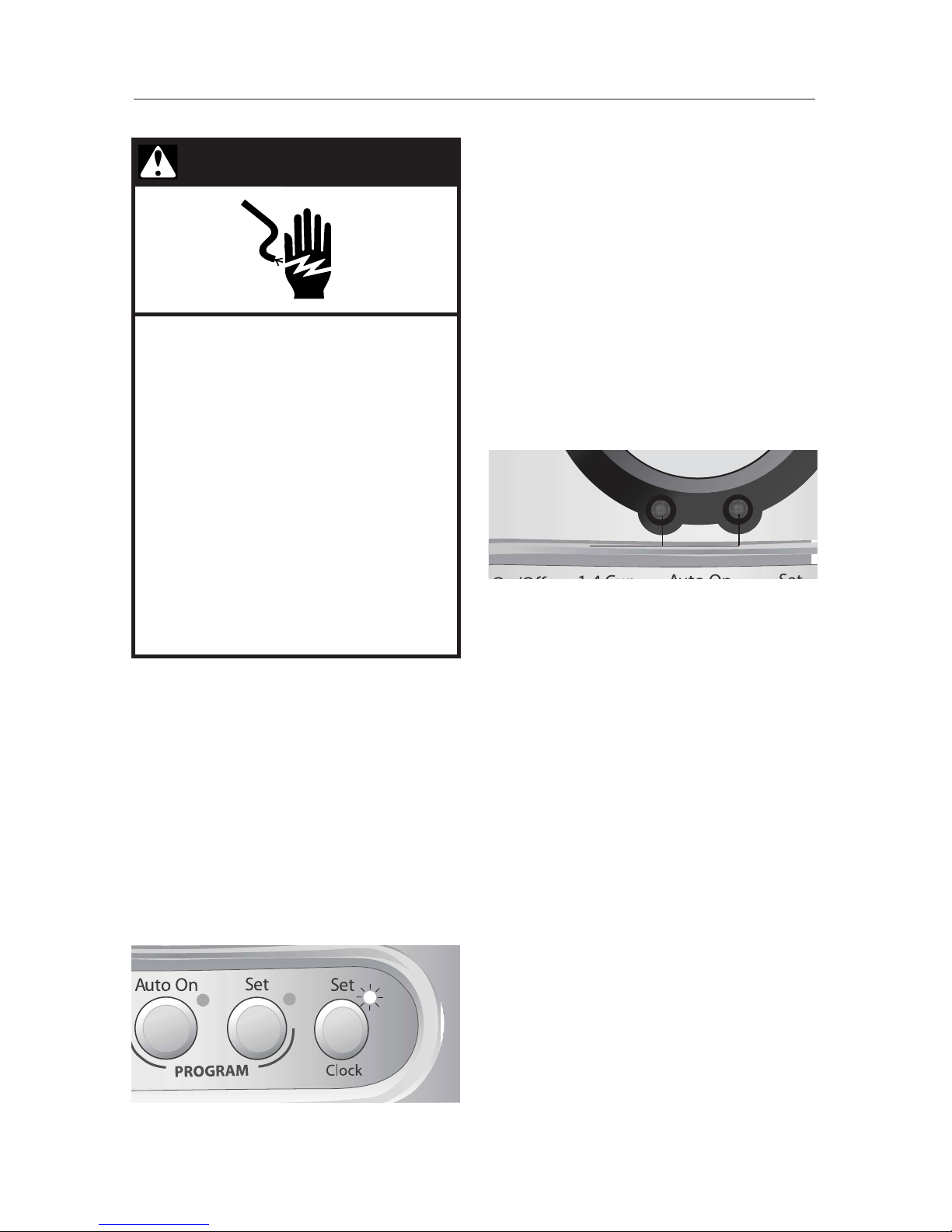

To Set the Time-of-Day Clock
1. Plug into a grounded 3 prong
outlet.
2. When the Coffee Maker is first
plugged in or when power is
restored after an interruption, the
brew timer display will initially
show 12:00 am.
3. Press the Set (Clock) Button. The
brew timer display and Set (Clock)
indicator will begin to flash.
4. Press the “H” (hour) and “M”
(minute) Buttons below the brew
timer display to set the hour and
minutes. If a “H” or “M” Button is
pressed and held, the digits will
scroll rapidly. The AM and PM
indicator lights on the brew timer
display will change when the hour
digits roll past “12”. Make sure
the hour set is correct with respect
to AM or PM.
5. Press the Set (Clock) Button to exit
the clock-setting mode. The digits
on the brew timer display will stop
flashing and the Set (Clock)
indicator will go out. The Coffee
Maker will automatically record
the displayed time and exit clocksetting mode if no buttons are
pressed for 10 seconds.
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong
outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these
instructions can result in
death, fire or electrical shock.
“H” and “M”
Buttons
10
Operating Your Coffee Maker
Brewing Coffee

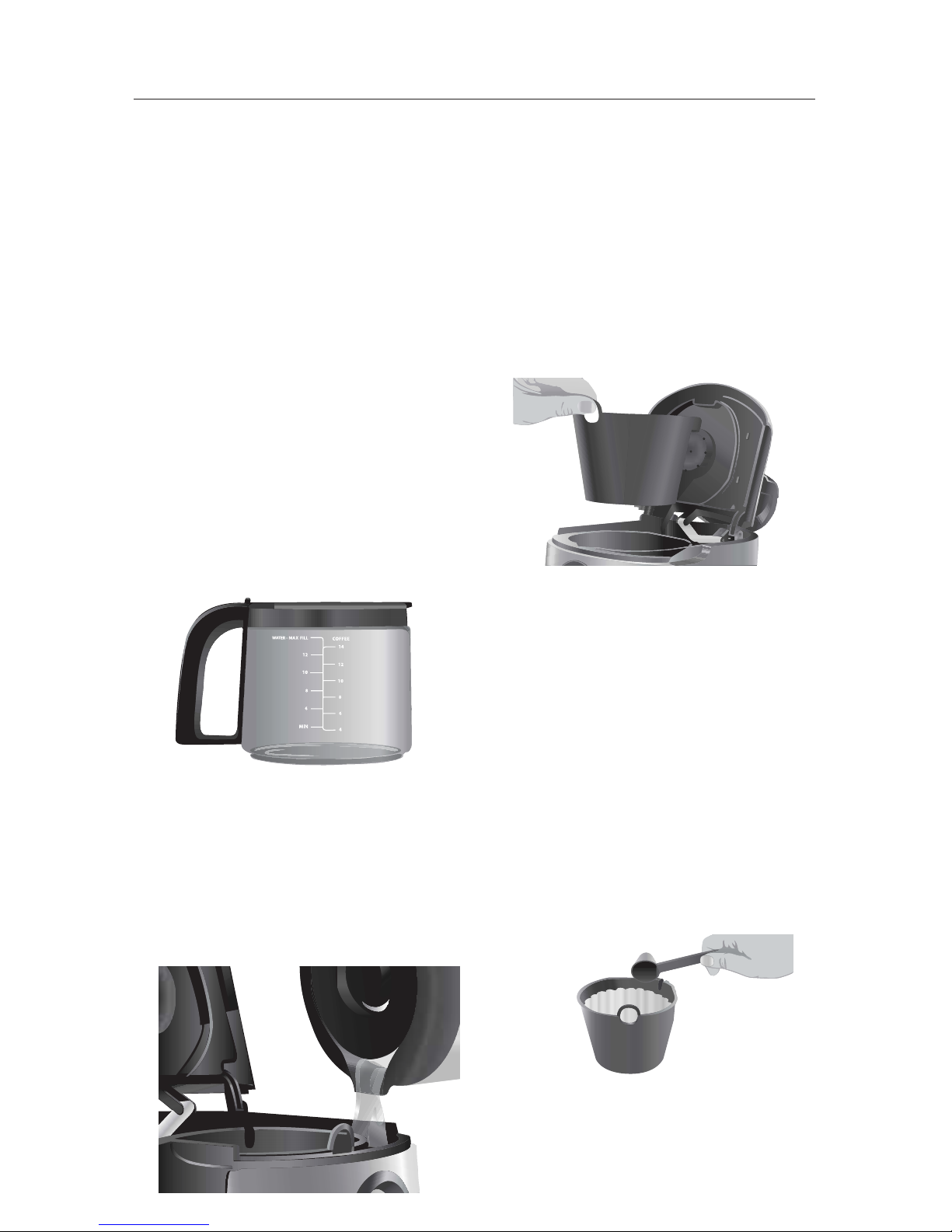

1. Fill a carafe with enough fresh, cool
water to make the desired amount
of coffee. A graduated scale on the
side of the glass carafe helps
measure the amount of water
required. The right side of the scale
(“coffee”) is a measurement of
carafe volume in 41⁄4 ounce (125 ml)
cups. The left side of the scale
(“water”) indicates the amount of
water needed to produce a given
number of cups. For thermal carafe
model 4KCM515, the scale on the
water filter handle can be used to
gauge the amount of water to add.
2. Lift the front lid and fill the water
reservoir with fresh cool water
using the reservoir fill-channel to
the right of the brew basket.
Water can also be poured directly
into the reservoir at the back of
the Coffee Maker.
3. After filling the reservoir, place the
carafe on the Coffee Maker
warming plate. Make sure the
bottom of the carafe is fully seated
on the plate – if the carafe isn’t
seated, the pause and pour
feature may engage and coffee
may overflow the brew basket.
4. Remove the brew basket from the
top of the Coffee Maker by
grasping the finger loop on the
front of the basket.
5. Insert a 10-12 cup flat-bottom
paper filter or the gold tone
permanent filter into the brew
basket. Never use both types of
filter at the same time – using
both may cause water to overflow
the brew basket.
6. Using the included scoop, fill the
filter with one rounded scoop of
ground coffee for each cup desired.
Use a medium grind appropriate for
automatic drip coffee makers: too
fine a grind will produce bitterness
and may clog the coffee filter.
NOTE: Always place the filter and
coffee into the removable brew
basket. Do not operate the Coffee
Maker without the brew basket in
place.
11
Operating Your Coffee Maker
7. Shake the brew basket slightly to
even out the bed of coffee. This
will help ensure uniform coffee
extraction and excellent flavour.
Place the basket into the Coffee
Maker, push it down to seat it
securely, and close the lid.

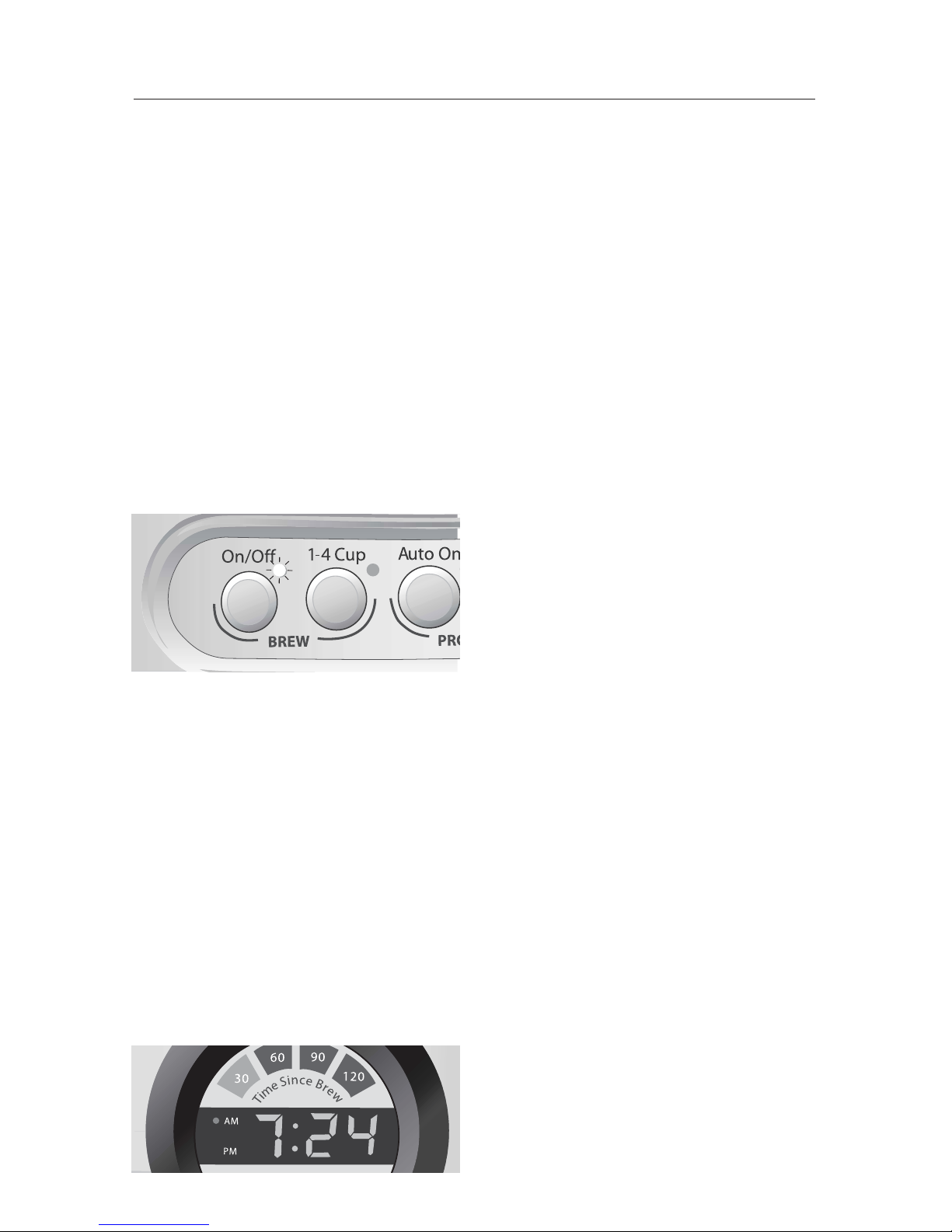

8. Press the On/Off Button to begin
brewing coffee. If you are only
brewing 1 to 4 cups of coffee,
press the 1-4 Cup Button
immediately after pressing the
On/Off Button. The 1 to 4 cup
brew cycle heats small quantities
of water thoroughly, ensuring
optimum flavour with small pots
of coffee.
NOTE: Lifting the front lid while
coffee is brewing will interrupt the
brew process and impair flavour.
9. The Coffee Maker will sound the
end-of-brewing tone when
brewing is complete.
10. The “Time Since Brew” display
indicates the time elapsed since
the completion of the brewing
cycle. The “30” segment will light
immediately after brewing,
indicating the coffee is less than
30 minutes old. Every 30 minutes,
a new segment will light.
11. At the end of 2 hours, the Coffee
Maker and warming plate will
automatically shut off. To turn off
the Coffee Maker manually, press
the On/Off button. Although the
thermal carafe model 4KCM515
does not have a warming plate,
the outside of the carafe may be
warm to the touch after brewing.
12. Repeat steps 1-8 to brew
additional carafes of coffee. Always
turn off the Coffee Maker and
allow it to cool for five minutes
before starting the next brew cycle.
Using the Thermal Carafe
(model 4KCM515 only)
The stainless steel thermal carafe
features a double walled, vacuum
insulated design that will keep coffee
hot – and flavourful – for hours. The
special lid and spout design doesn’t
require you to turn a stopper or press
a button to dispense coffee – just tilt
the carafe and pour! When you set
the carafe upright, the lid will seal
automatically.
•To remove the carafe lid for
cleaning, turn it counter-clockwise
and lift. The thermal carafe should
be hand-washed only – it is not
dishwasher safe.
•To maximize coffee temperature,
preheat the carafe before brewing
by removing the lid and rinsing the
interior with hot tap water.
12
Operating Your Coffee Maker
The Pause and Pour Feature
The pause and pour feature enables
you to remove the carafe from the
Coffee Maker and pour a cup of
coffee before brewing is finished.
When the carafe is removed, a special
valve stops the flow of coffee from
the brew basket. Brewing, however,
does not stop. If the carafe is not
placed back on the hot plate within
25 seconds, water will overflow the
brew basket and spill onto the
warming plate.
Pause and pour is a great
convenience for those in a hurry.
However, the flavours extracted from
ground coffee differ at each stage of
the brewing cycle, and a finished
carafe represents a delicate blend of
these flavours. Using pause and pour
will alter – and usually impair – the
flavour of the remaining coffee.

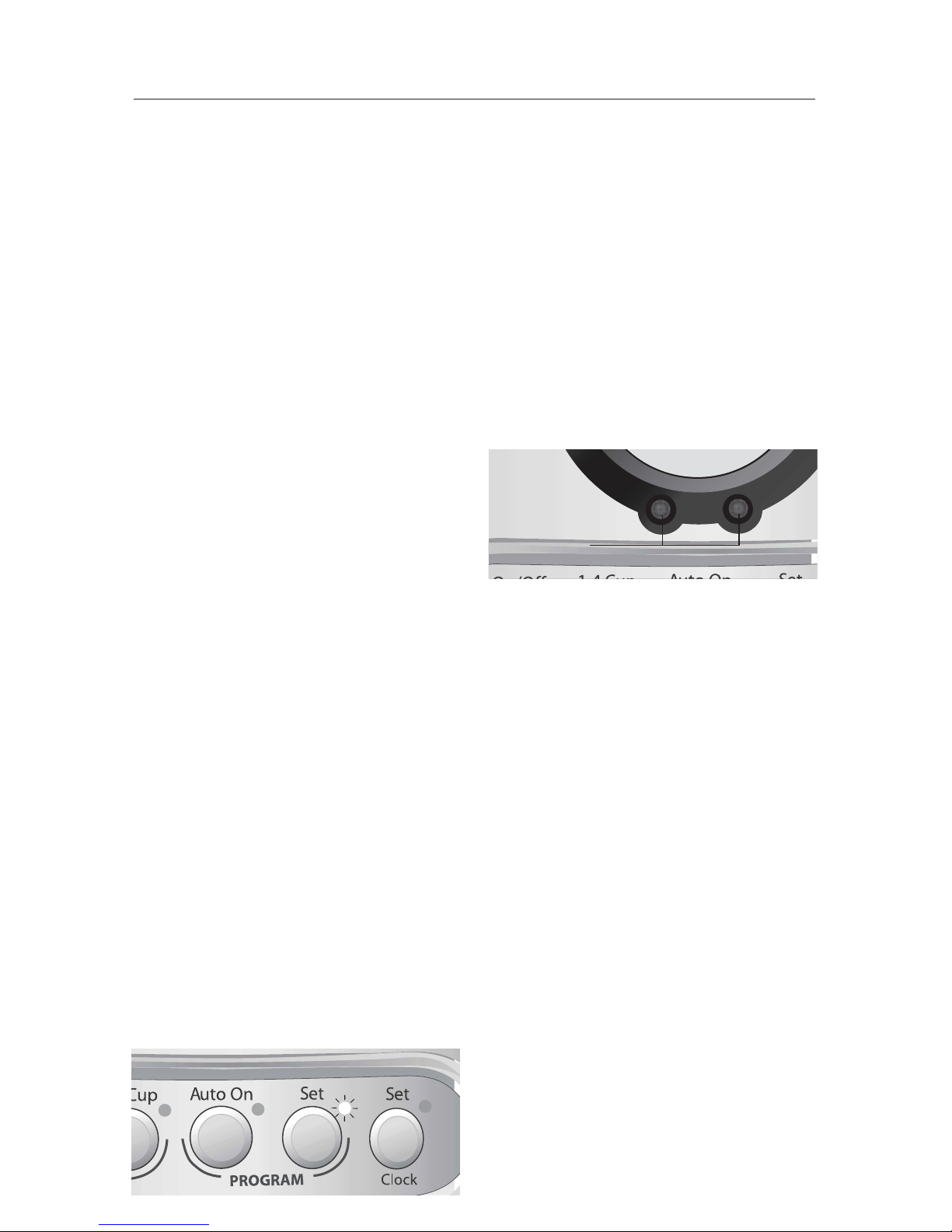

Using the Automatic Brew Timer
The Coffee Maker can be
programmed to brew coffee at a
preset time, making it easy to wake
up to fresh coffee every morning.
To program and activate the
automatic brew timer:
1. Press the Set (Program) Button.
The brew timer display and Set
(Program) indicator will begin to
flash. The brew timer display will
show the last brew time set.
2. Press the “H” (hour) and “M”
(minute) Buttons below the brew
timer display to set the hour and
minutes. If a “H” or “M” Button is
pressed and held, the digits will
scroll rapidly. The AM and PM
indicator lights on the brew timer
display will change when the hour
digits roll past “12”. Make sure
the desired brew time is correct
with respect to AM or PM.
3. After setting the brew time, press
the Set (Program) Button to exit
the program-setting mode. The
digits on the brew timer display
will stop flashing and the Set
(Program) indicator will go out.
The Coffee Maker will
automatically record the displayed
brew time and exit the programsetting mode if no buttons are
pressed for 10 seconds.
4. Fill the Coffee Maker with coffee
and fresh water, then activate the
automatic brew timer by pressing
the Auto On Button. The
programmed brew time will
appear briefly on the brew timer
display before it returns to the
time-of-day, and the Auto On
indicator will illuminate.
“H” and “M”
Buttons
Loading...
