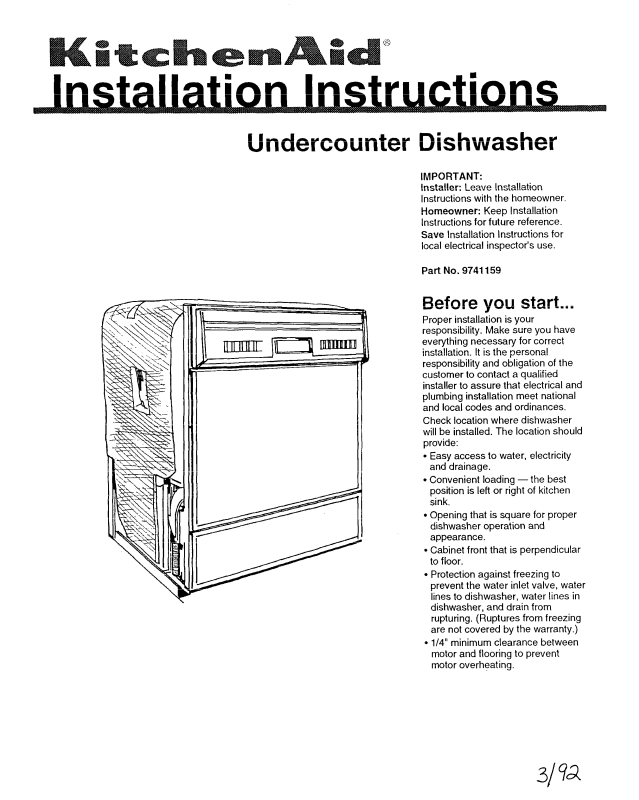

KitchenAid 9741159 User Manual
Undercounter Dishwasher
IMPORTANT:
Installer: Leave Installation
Instructions with the homeowner.
Homeowner: Keep Installation
Instructions for future reference.
Save Installation Instructions for
local electrical inspectots use.
Part No. 9741159
Before you start...
Proper installation is your
responsibility. Make sure you have
everything necessary for correct
installation. It is the personal
responsibility and obligation of the
customer to contact a qualified
installer to assure that electrical and
plumbing installation meet national
and local codes and ordinances.
Check location where dishwasher
will be installed. The location should
provide:
l
Easy access to water, electricity
and drainage.
l
Convenient loading -the best
position is left or right of kitchen
srnk.
* Opening that is square for proper
dishwasher operation and
appearance.
0 Cabinet front that is perpendicular
to floor.
l
Protection against freezing to
prevent the water inlet valve, water
lines to dishwasher, water lines in
dishwasher, and drain from
rupturing. (Ruptures from freezing
are not covered by the warranty.)
8 l/4” minimum clearance between
motor and flooring to prevent
motor overheating.
3pa
Electrical ground is required. See
Electrical requirements.
DO NOT install dishwasher over
carpeted flooring.
Proper electrical, drain and water
supply lines must be available or
must be installed as specified within
shaded-area to prevent interference
with dishwasher frame or other
components. See Electrical, Wate;
and Drain requirements. Plumbing
and wiring should not cross in front
of motor or dishwasher frame.
T!l
33-7116” min.
to 35” max.
underside
counter
height.
If 33-7/l 6”
height is
needed, the
leveling legs
will have to
be removed.
Corner location - 2” min.
door to cabinets or wall
Cut 1” holes for
water, drain and
electrical lines
within shaded area.
The unshaded
area must be free
of pipes, drain
hose or wires.
Grommet
required for
electrical
cable hole
cut in metal
cabinets
23-112”
min.%
cabinet
depth
countertop
F
36”
height
Product Damage
Protect dishwasher and water
lines leading to dishwasher
against freezing.
Failure to do so could cause
inlet valve, water lines leading
to dishwasher, water lines in
dishwasher and drain to
rupture.
Such ruptures are not covered
by warranty.
For installations where the
dishwasher will be left unused and
subjected to freezing temperatures,
it must be prepared as outlined in
your Use and Care Guide.
IMPORTANT: Observe all
governing codes and ordinances.
Electrical Shock Hazard
1 Electrical wiring and
components must not contact
any plumbing material or
drain hose.
1 Electrical wiring, water supply
line and drain line must not
contact any expose terminals
of dishwasher wiring.
1 Cabinet opening must
completely enclose sides, top
and back of dishwasher. A
side panel and wood top are
available from your
KitchenAid dealer to install
your dishwasher at the end of
a cabinet.
Failure to follow these
instructions may result in
qersonal injury from exposed
Miring.
Page 2
de- 24” opening width A
*26” depth4
‘Whisper Quiet
insulation
compressed.
+ 20-314”
I_bp(
Personal Injury/Product
Damage Hazard
Avoid opening dishwasher
door before dishwasher is
installed.
Dishwasher, before it is
installed, may tip over when
door is opened, resulting in
personal injury or product
damage.
Parts supplied for
installation:
2 counterlop anchor screws
Remove screws taped to upper right
hand mounting bracket.
Check that all parts were included.
Figure I
Figure 2
Tools and
materials needed
for installation:
l
electric drill
l
Phillips
screwdriver
l
2 adjustable elbow (2 for
wrenches for
copper fittings
OR 2 pipe
wrenches for
galvanized or
iron fittings
l
pliers
l
measuring tape
l
flat-blade
screwdriver
.
3,411
socket wrench
l
wire cutters
l
level
. ,,, drill bit or hole
saw
l
l/8” drill bit
l
square
l
112” O.D. copper
tubing OR 318”
We
nut driver or l
LIE
23-718”
l
shutoff valve
l
supply line fittings
l
1,3/8” NPT street
galvanized line) OR
90” compression
elbow with 3/S” NPT
at one end for copper
line
l
9/l 6”, I.D. heat- and
detergent-resistant
hose and clamps OR
5/8”, 0-D. copper
tubing and fittings
lo”, 5/8” 0.D.
copper tubing if high
loop drain is needed.
(See Page 3.)
II .
l
314
strain relief
l
tubing cutter
l
pipe-joint compound
l
twist-on wire
connectors
l
electrical tape
Soft
Electrical requirements
A conduit connector must be
installed at junction box. Wire sizes
(COPPER WIRE ONLY) must
conform with the rating of the
dishwasher.
Drain
requirements
Electrical Shock Hazard
l
Electrical ground is required
on this appliance.
l
If cold water pipe is
interrupted by plastic, nonmetallic gaskets or other
insulating materials, Do Not
use for grounding.
l
Do Not ground to a gas pipe.
l
Do Not modify the power
supply cord plug. If it does
not fit the outlet, have a
proper outlet installed by a
qualified electrician.
l
Do Not have a fuse in the
neutral or grounding circuit.
A fuse in the neutral or
grounding circuit could result
in an electrical shock.
l
Do Not use an extension cord
with this appliance.
l
Check with a qualified
electrician if you are in doubt
as to whether the appliance is
properly grounded.
Failure to follow these
instructions could result in
serious injury or death.
l
If codes permit and a separate
grounding wire is used, it is
recommended that a qualified
electrician determine that the
grounding path is adequate.
A single phase, 115volt, 60-Hz,
AC-only, 15- or 20-ampere, fused
electrical supply is required. Timedelay fuse or circuit breaker is
recommended. It is recommended
that a separate circuit serving only
this appliance be provided.
It is the personal responsibility and
obligation of the customer to contact
a qualified electrician to assure that
the electrical installation is adequate
and is in conformance with the
National Electrical Code,
ANSVNFPA 70-latest edition and
local codes and ordinances.
The dishwasher can be connected
with flexible armored or non-metallic
sheathed copper cable (with
grounding wire).
Flexible cord connection
Local codes may permit the use of a
U.L.-listed, flexible, three-conductor
cord terminated with a three-prong,
grounding-type plug. It is
recommended that cord kit, Part No.
675456, available from your
KitchenAid dealer or parts supplier,
be used. If the cord kit is not
available locally, the flexible cord
used must be a three-conductor, 16gauge cord that meets the National
Electrical Code, ANSVNFPA 70-
latest edition and local codes and
ordinances. The length of the cord
must not exceed six feet. It must be
routed so it does not touch the
dishwasher motor or the lower
portion of the dishwasher tub. A
grommet (Part No. 302797) must
cover the hole cut in a metal cabinet
for the flexible cord. The flexible cord
must be plugged into a mating threeprong, grounding-type wall
receptacle, grounded in accordance
with the National Electrical Code,
ANSVNFPA 70-latest edition and
local ordinances. Follow instructions
packaged with the flexible cord.
Water
requirements
The hot water line to the dishwasher
must provide between 20-l 20 psi
water pressure. The hot water heater
should be.set to deliver 120°F
(minimum) water temperature to the
dishwasher (except as noted in your
Use and Care Guide) for best results.
Use l/2” O.D. copper tubing or 3/8”
galvanized pipe inlet line.
Dishwasher inlet valve has 3/8”
internal pipe thread.
Product Damage
l
The drain line connection to
the house plumbing must be
a minimum of 20” above the
floor. A lower drain
connection may result in
siphoning.
l
If the drain is routed to a
connection point less than
20” above the floor, the drain
line must form a loop 20”
above the floor. See Figure 3,
Page 4.
l
Do Not kink hose and copper
tubing.
Failure to provide either a 20”
minimum connection height or
a 20” high loop will result in
improper drainage and may
cause product damage.
The drain hose should be 9/l 6”
minimum I.D. flexible hose or 5/8”
O.D. copper tubing. A minimum of
22” flexible drain hose or a 12”
length of copper drain line with 12”
length of flexible hose added is
needed. Flexible hose, resistant to
heat and detergent, can be found at
plumbing, hardware or automotive
supply stores. Do Not use a drain
line or fittings less than l/2” I.D.
If drain line is copper, clamp a 12”
length of 9/16” I.D. flexible, heatand detergent-resistant hose to the
end of the copper drain line to
connect to the dishwasher valve.
Page 3
