Kitchenaid 5kfpm770bwh0, 5kfpm770bac0, 5kfpm770ber0, 5kfpm770bnk0, 5kfpm770bob0 Installation Template
Page 1

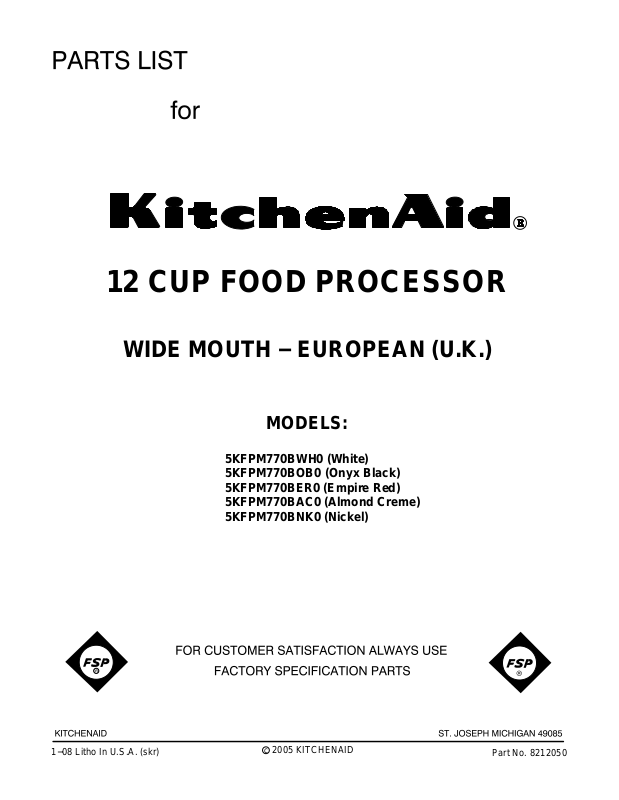

12 CUP FOOD PROCESSOR
WIDE MOUTH − EUROPEAN (U.K.)
MODELS:
5KFPM770BWH0 (White)
5KFPM770BOB0 (Onyx Black)
5KFPM770BER0 (Empire Red)
5KFPM770BAC0 (Almond Creme)
5KFPM770BNK0 (Nickel)
1−08 Litho In U.S.A. (skr)
c
2005 KITCHENAID
Part No. 8212050
Page 2
MOTOR AND HOUSING PARTS
For Models: 5KFPM770B_ _0
8212050
2
Page 3
MOTOR AND HOUSING PARTS
For Models: 5KFPM770B_ _0
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8212058 Use & Care Guide
8212050 Repair Parts List
2 8211849 Sleeve, Motor
Shaft
3 8211828 Seal, Oil
4 Housing, Motor
8212068 White
8212069 Empire Red
8212070 Almond Creme
8211823 Nickel
5 8212079 Motor
6 8212091 Grommet, Motor
7 Base, Housing
8212081 White
8212080 Onyx Black
8212082 Empire Red
8212083 Almond Creme
8 Cover, Screw
8212084 White
8211827 Onyx Black
8212085 Empire Red
8212086 Almond Creme
9 8211586 Screw, Motor
Locking
10 Overlay, Switch
8212087 Black
8212088 Silver
11 Cover, Panel
Switch
8212093 Transparent
8212094 Silver
12 8211842 Nameplate
13 8212089 Capacitor
14 8211607 Clip, Capacitor
15 8212090 Relay & Switch
Assembly
16 Foot
8211845 Black
8211844 White
17 Cord, Power
8212074 White
8212073 Black
18 8212095 Bezel, Switch
Panel
3
8212050
Page 4
ATTACHMENT PARTS
For Models: 5KFPM770B_ _0
8212050
4
Page 5
ATTACHMENT PARTS
For Models: 5KFPM770B_ _0
Illus. Part
No. No. DESCRIPTION
1 8211760 Spatula
2 Disc,Slicing
8211929 2 mm
8211930 4 mm
3 8212012 Mini Blade
4 8211858 Adapter, Shaft &
Disc
5 8212014 Blade,
Multipurpose
6 8212020 Pusher, Food
7 Cover, Work Bowl
8212062 White
8212024 Onyx Black
8212063 Empire Red
8212064 Almond Creme
8 Bowl, Work
8212065 White
8212019 Onyx Black
8212066 Empire Red
8212067 Almond Creme
9 Disc, Shredding
8211933 4 mm
10 8211926 Bowl, Mini
11 8212016 Blade, Dough
12 8211928 Bowl, Chef’s
13 8212025 Extractor, Citrus
14 8212033 Whip, Egg
Optional Parts (Not Illustrated)
8212034 Accessory Box
8211927 Lid, Mini Bowl
Disc, Slicing
8211931 6 mm
Disc, Shredding
8211932 2 mm
8211934 6 mm
8211935 Disc, Julienne
8211936 Disc, Grating
Parmesan/Ice
8211937 Disc, Cutting
French Fry
8211938 Rack, Disc
8212059 Mini Bowl and
Lids (2)
5
8212050
