Kingtex MT4000 User Manual

Download

21~

~16

,,,,&--------16

-1-

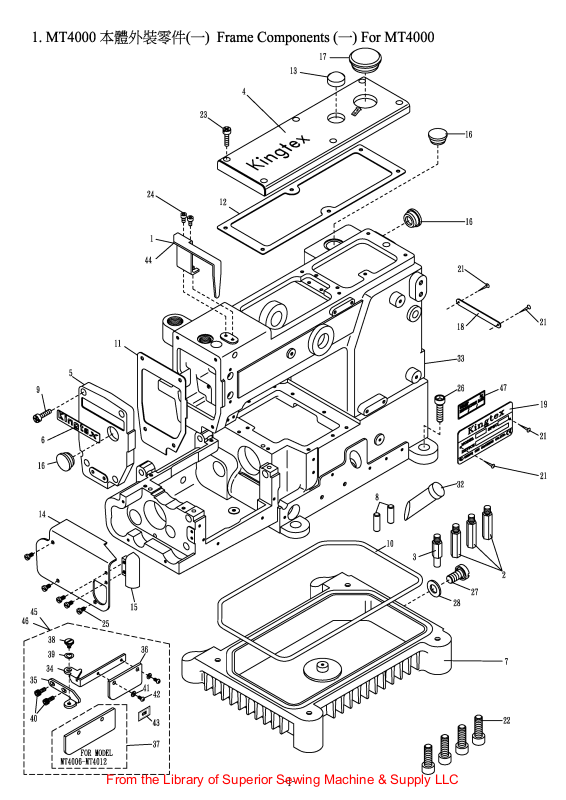

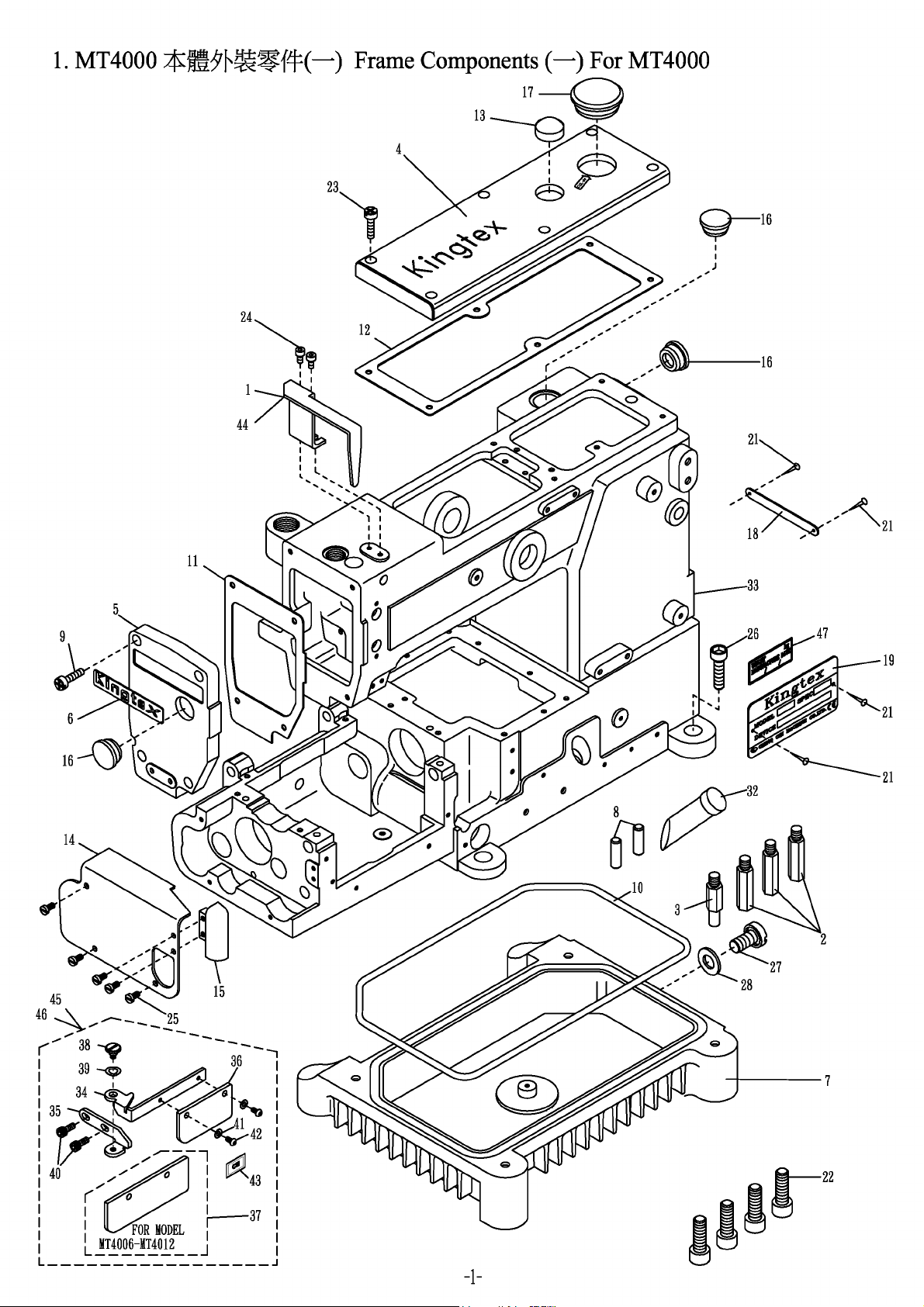

1. MT4000 本體外裝零件 (一) Frame Components (一) For MT4000

針棒護蓋

Needle Cover ------------------------------------------------------------------------------

下座腳樁

Supporting Bar ------------------------------------------------------------------------------------------------

下座腳樁

Supporting Bar -------------------------------------------------------------------------

上軸蓋

Top Cover -------------------------------------------------------------------------------------------------

針棒蓋

Needle Cover ----------------------------------------------------------------------------------------------

銘板

Plate -----------------------------------------------------------------------------------------------------------

油盤

Oil Reservoir --------------------------------------------------------------------------------------------------

銷

Pin ----------------------------------------------------------------------------------------------------------------

螺絲

Screw (C850212 M5-0.8*12)----------------------------------------------------------------------------------------------------

油封

Gasket ----------------------------------------------------------------------------------------------------------

油封

Gasket ----------------------------------------------------------------------------------------------------------

油封

Gasket ----------------------------------------------------------------------------------------------------------

油鏡

Oil Window ---------------------------------------------------------------------------------------------------

下座外蓋

Cloth Plate -----------------------------------------------------------------------------------------------

定位塊

Bracket ------------------------------------------------------------------------------------------------------

孔塞

Plug -----------------------------------------------------------------------------------------------------------------------------------

孔塞

Plug (CT01051)----------------------------------------------------------------------------------------------

機器號碼牌

Machine No. Plate ---------------------------------------------------------------------------------------------------------

車型銘板

Plate -----------------------------------------------------------------------------------------------------------

------------------------------------------------------------------------------------------------------------------------

鉚釘

Rivet -----------------------------------------------------------------------------------------------------------

螺絲

Screw (M8-1.25*25) (MT0122)-----------------------------------------------------------------------------

螺絲

Screw (CT0102 M4-0.7*12)-------------------------------------------------------------------------------------

螺絲

Screw (M4-0.7*8) (MT0124) -------------------------------------------------------------------------------

螺絲

Screw (CT0215 M4-0.7*8) ------------------------------------------------------------------------------------

螺絲

Screw (CT0106 M8-1.25*20) -------------------------------------------------------------------------------

螺絲

Screw (SH0243 3/8"-28*10) --------------------------------------------------------------------------------

墊圈

Washer (SH0244)-------------------------------------------------------------------------------------------

------------------------------------------------------------------------------------------------------------------------

油面鏡

Oil Sign Gauge (R6031507) --------------------------------------------------------------------------------------------

車頭

Frame Unit -----------------------------------------------------------------------------------------------------

護目鏡支架

Bracket ------------------------------------------------------------------------------------------------

固定座

Bracket ------------------------------------------------------------------------------------------------------

護目鏡

Safety Plate (MT4001-MT4004) --------------------------------------------------------------------------------------------------------

護目鏡

Safety Plate (MT4006-4023) ---------------------------------------------------------------

螺椿

(Stud)------------------------------------------------------------------------------------------------------------

波形墊圈

Washer ---------------------------------------------------------------------------------------------------

螺絲

Screw (FT0203 M4-0.7*10) ----------------------------------------------------------------------------------

墊圈

Washer (CT030211) -----------------------------------------------------------------------------------------------

螺絲

Screw (MT0142 M3-0.5*6) ----------------------------------------------------------------------------------

貼紙

Paster -----------------------------------------------------------------------------------------------------------

針棒護蓋

Needle Cover --------------------------------------------------------------------------------------------

護目鏡支架組

Bracket Asm (MT4001-MT4004) --------------------------------------------------------

護目鏡支架組

Bracket Asm (MT4006-4023)-------------------------------------------------------

重量貼紙

Weight Paster --------------------------------------------------------------------------------------------------------------

序號物料編號名稱單位用量

Ref.No. Parts No. Description Amt. Req.

*1 2310000101

2 2310000102 3 2310000103 4 2310000104 5 23100001051 6 2310000106 7 2310000107 8 2310000108

9 8MC05321209D 10 2310000110 11 23100001111 12 2310000112 13 2310000113 14 2310000114 15 2310000115 16 23100001161 17 22000001051 18 66477-1 19 66485-2 20 --------------21 66620 22 8MM08502513A 23 8MC04281207D 24 8MM04280807A 25 8MB04280807K 26 8MM08502013A 27 8SM95281017A 28 2100000244 29 --------------30 --------------31 --------------32 2110001507 33 2310000133 34 2310000134 35 2310000135 36 2310000136

*37 2310000137

38 2310000138 39 2310000139 40 8MM04281007A 41 90PW030 42 8MP03200606A 43 66451 44 2310000144 45 231A0000145

*46 231A0000146

47 66477-4

1 3 1 1 1 1 1 2 4 1 1 1 1 1 1 3 1 1 1

4 4 6 2 5 4 1 1

1 1 1 1 1 1 1 1 2 2 2 1 1 1 1 1

* For MT4006-MT4012 Use.

-2-

MT4000

::zfs:fflJ~~~ft(=)

Frame

Components(=)

For

MT4000

I I

: I

FOR

MODEL

':---44

$--53

......

MT4004

.--34

~25

-3-

I '

......

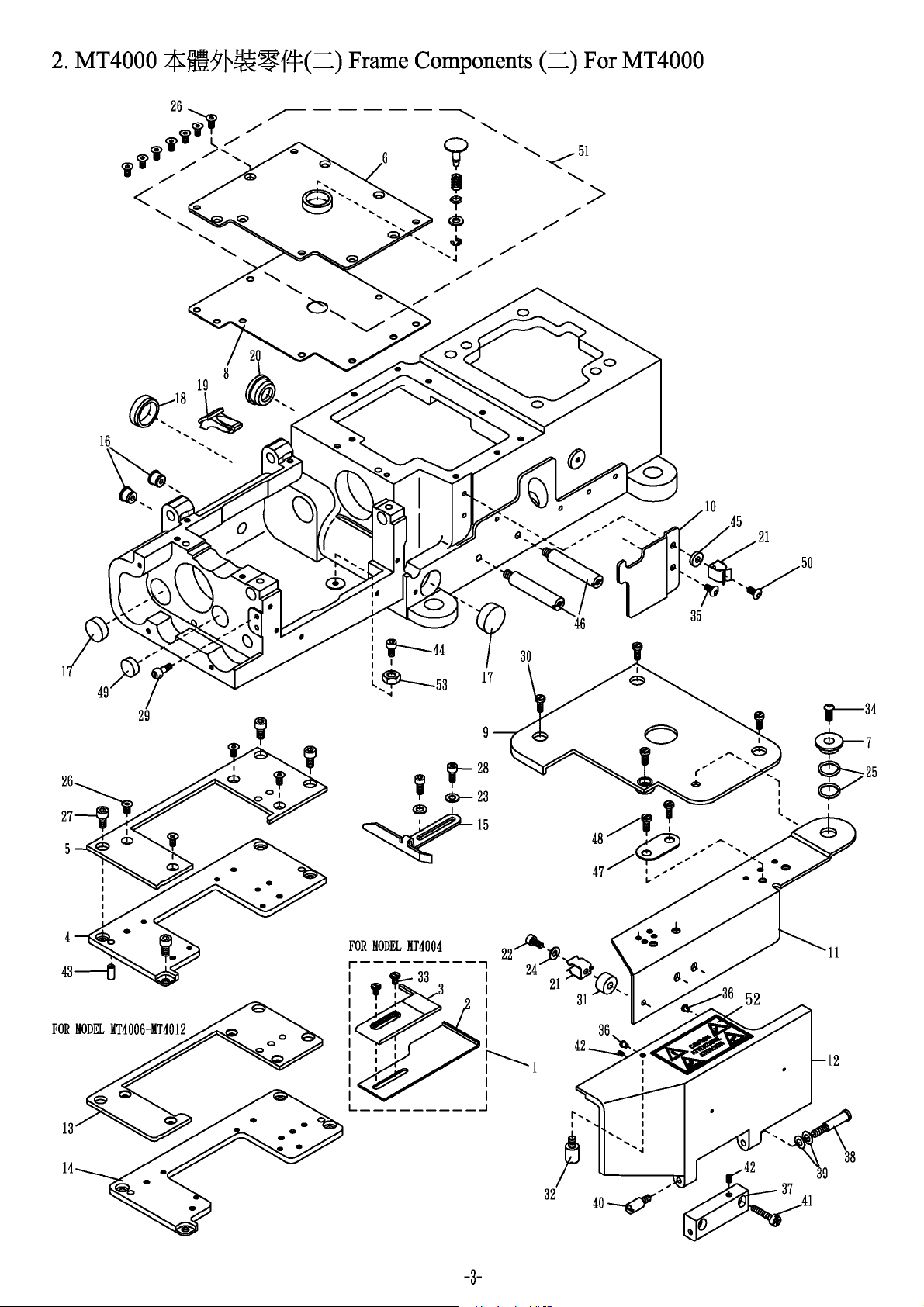

2. MT4000 本體外裝零件 (二) Frame Components (二) For MT4000

導模組

Edge Guide Asm. (MT4504)--------------------------------------------------------------------------

導模

Edge Guide -------------------------------------------------------------------------------------------

導模

Edge Guide --------------------------------------------------------------------------------------------------------------

針板座

Needle Plae Seat --------------------------------------------------------------------------------

封蓋

Cover -------------------------------------------------------------------------------------------------------------------

下軸內蓋

Lower Shaft Cover --------------------------------------------------------------------------

隔環

Spacer ------------------------------------------------------------------------------------------------------------------

防漏墊片

Gasket ---------------------------------------------------------------------------------------

下座外蓋

Cloth Plate -----------------------------------------------------------------------------------

檔片

Defender -------------------------------------------------------------------------------------------

下座前蓋

Cloth Plate -----------------------------------------------------------------------------------

前蓋

Front Cover ----------------------------------------------------------------------------------------------------------

封蓋

Cover -----------------------------------------------------------------------------------------------

針板座

Needle Plate Seat -----------------------------------------------------------------------------

導模

Edge Guide ----------------------------------------------------------------------------------------

孔塞

Plug (CT0109)--------------------------------------------------------------------------------------------------------------

孔塞

Plug ------------------------------------------------------------------------------------------------

孔塞

Plug (CT0245)--------------------------------------------------------------------------------------------------

孔塞

Plug -------------------------------------------------------------------------------------------------

孔塞

Plug --------------------------------------------------------------------------------------------------------------------

夾簧

Latch Spring (CT0121)------------------------------------------------------------------------------

螺絲

Screw (M4-0.7*12) (CT0202)------------------------------------------------------------------

墊圈

Washer (CT0232)--------------------------------------------------------------------------------------------

彈簧墊圈

Spring Washer (UTB0317) ---------------------------------------------------------------

波形墊圈

Corrugated Washer -----------------------------------------------------------------------

螺絲

Screw (UTB0109 M4-0.7*8) -------------------------------------------------------------------

螺絲

Screw (CT0626 M5-0.8*10) ------------------------------------------------------------------

螺絲

Screw (FT0203 M4-0.7*10) -------------------------------------------------------------------

螺絲

Screw (M4-0.7*5) (MT0229) ---------------------------------------------------------------

螺絲

Screw (CT1237 M4-0.7*10) ------------------------------------------------------------------

隔環

Spacer ----------------------------------------------------------------------------------------------------------------

銷

Pin -------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (M4-0.7*6) (MT0233) -----------------------------------------------------------------

螺絲

Screw (M6-1*10) (MT0234)-----------------------------------------------------------------------------

螺絲

Screw (M4-0.7*8) (MT0235) -----------------------------------------------------------------

減震橡膠

Rubber Cushion (FT01191)------------------------------------------------------------------------

絞鏈

Hinge (CT0224)---------------------------------------------------------------------------------------------

螺椿

Stud (M4-0.7*38)(CT0227)-------------------------------------------------------------------------------

盂形墊圈

Washer (CT0228)--------------------------------------------------------------------------

螺絲

Screw (CT0230 M4-0.7*6) ---------------------------------------------------------------------------------------------

螺絲

Screw (M4-0.7*14) (CT0225) -----------------------------------------------------------------

螺絲

Screw (M4-0.7*4) (CT0229) ----------------------------------------------------------------------------------------

定位銷

Pin (FT0238)------------------------------------------------------------------------------------------

螺絲

Screw (M4-0.7*8) (MT0124) ---------------------------------------------------------------------------------------

隔環

Spacer ------------------------------------------------------------------------------------------------------------------

支撐桿

Support ing Rod ---------------------------------------------------------------------------------------------------

墊片

Washer -----------------------------------------------------------------------------------------------------------------

螺絲

Screw (M6-1*8) (MT0248) ----------------------------------------------------------------------------------------

孔塞

Plug --------------------------------------------------------------------------------------------------------------------

螺絲

Screw (M4-0.7*10) (MT0250) --------------------------------------------------------------------------------------

下軸內蓋組

Lower Shaft Cover Asm --------------------------------------------------------------------------

貼紙

Paster -----------------------------------------------------------------------------------------------------------

螺帽

Nut (CT0238 M4-0.7*3) ------------------------------------------------------------------

序號物料編號名稱單位用量

Ref.No. Parts No. Description Amt. Req.

1 231A0000201 2 2310000202 3 2310000203 4 2310000204 5 2310000205 6 23100002061 7 2310000207 8 2310000208

9 2310000209 10 23100002101 11 2310000211 12 2310000212

*13 2310000213 *14 2310000214

15 2310000215 16 22000001091 17 23100002171 18 22000002451 19 2310000219 20 23100001161 21 2200000121 22 8MM04281207A 23 2100000223 24 90SW040 25 2310000225 26 8MQ04280808A 27 8MM05321009A 28 8MM04281007A 29 8MD04281008C 30 8MB04281007K 31 2310000231 32 2310000232 33 8MB04280607K 34 8MP06401011A 35 8MP04280808A 36 22100001191 37 2200000224 38 8MB04283809E 39 2200000228 40 8MB04280605M 41 8MC04281407D 42 8MN04280400A 43 2210090209 44 8MM04280807A 45 2310000245 46 2310000246 47 2310000247 48 8MC06400810A 49 23100002491 50 8MP04281008A 51 231A0000251 52 66455 53 8MA04280307A

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 1 1 1 2 1 2 1 2

4 2 1 4 1 1 2 1 1 2 1 1 2 1 2 3 2 1 1 2 1 2 1 1 1 1 1

* MT4006-MT4012 用 For MT4006-MT4012 Use

-4-

MT4001-MT4004

~jJ§}lif~~{tf:

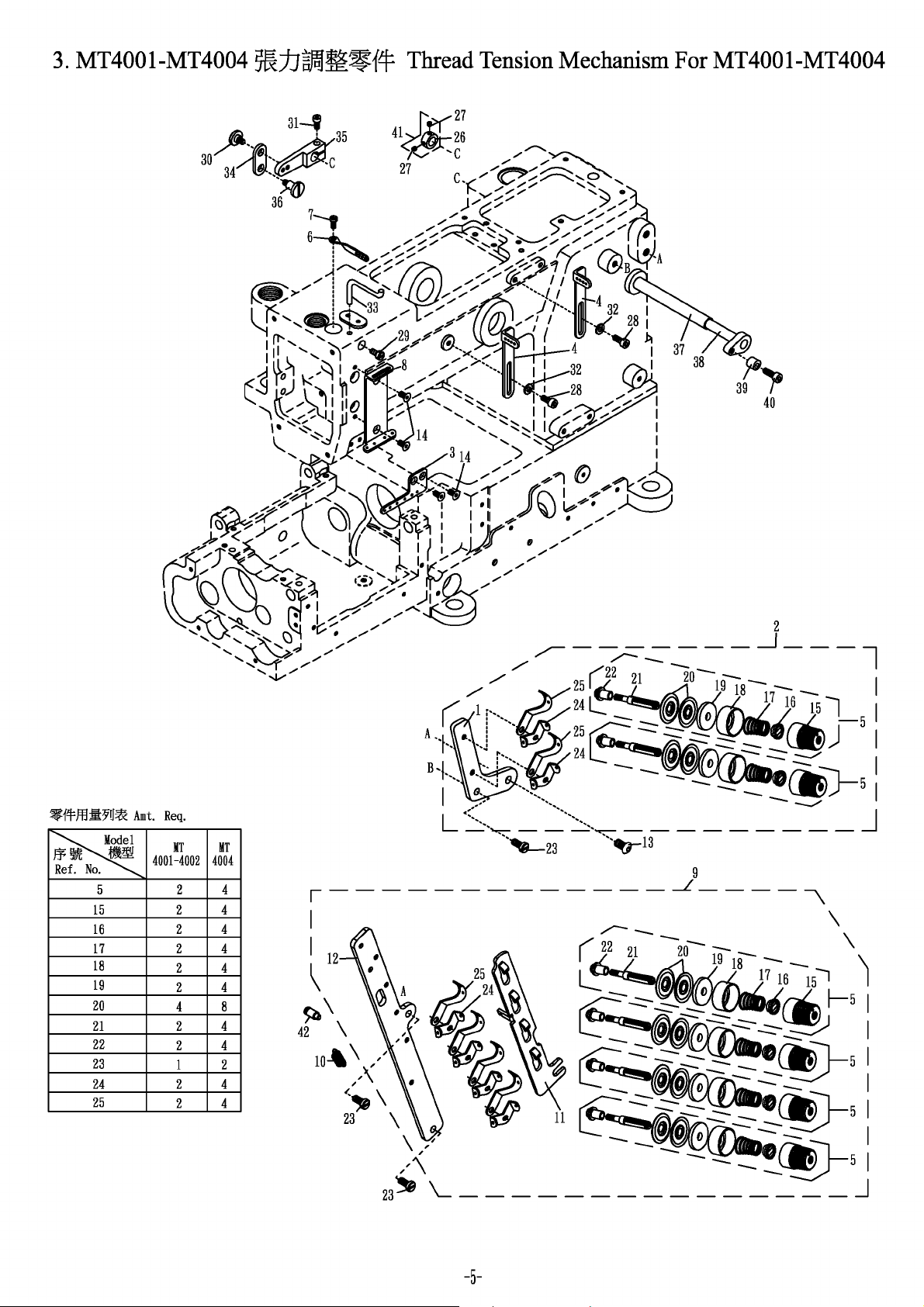

Thread

Tension

Mechanism

For

MT4001-MT4004

~ftf:JlUiJU~

5 2 4 15 16 17

18 19 20 21 22 23 24 25

Amt.

4001-4002

Req.

2 4 2 4 2 4 2 4 2 4 4 8 2 4 2 4 1 2 2 4 2 4

4004

-5-

導線座

Tension Post Support ------------------------------------------------------------------------

鬆線組

Thread Tension Mechanism--------------------------------------------------------------------------------------------------------

導線

Thread Guide ----------------------------------------------------------------------------------------------

導線

Thread Guide ----------------------------------------------------------------------------------------------

張力調整組

Tension Asm. (Blue) ----------------------------------------------------------------

導線

Thread Guide ------------------------------------------------------------------------------------

螺絲

Screw (CT0215 M4-0.7*8) ---------------------------------------------------------------------------------------------------

導線

Thread Guide ------------------------------------------------------------------------------------

鬆線組

Thread Tension Mechanism--------------------------------------------------------------------------------------------------------

彈簧

Spring ---------------------------------------------------------------------------------------------

鬆線板

Release Wedge -------------------------------------------------------------------------------

導線座

Tension Post Support -----------------------------------------------------------------------------------

螺絲

Screw (UTB0302 M6-1*12) ------------------------------------------------------------------------

螺絲

Screw (UTB0109 M4-0.7*8) -----------------------------------------------------------------------------

張力調整螺帽

Tension Nut (Blue) (SH1121)----------------------------------------------------------------

套管

Bushing (CT0303)---------------------------------------------------------------------------------------

彈簧

Spring (Blue) (SH1132)-------------------------------------------------------------------------------

彈簧座

Spring Set (CT0305)---------------------------------------------------------------------------------

羊毛氈

Felt (SH1127)----------------------------------------------------------------------------------------

張力控制盤

Tension Disc (SH1126)--------------------------------------------------------------------

螺樁

Stud (CT03081)--------------------------------------------------------------------------------------

隔環

Spacer (CT03091)--------------------------------------------------------------------------------------

螺絲

Screw (M5-0.8*12) (MT0332) ---------------------------------------------------------------------

導線

Thread Guide (CT0311)----------------------------------------------------------------------------------

導線

Thread Guide (CT0312)-----------------------------------------------------------------------------------

* 26

2210000534

定位環

Collar ------------------------------------------------------------------------------------------------------------------------

* 27

8MN03200300A

螺絲

Screw (M3-0.5*3) (CT0115) -----------------------------------------------------------------------

螺絲

Screw (FT0203 M4-0.7*10) ---------------------------------------------------------------------------------

螺絲

Screw (M4-0.7*8) (CT0215) ------------------------------------------------------------------------------------

螺椿

Stud -----------------------------------------------------------------------------------------------------

螺絲

Screw (M4.5-0.75*14) (CT0837) -----------------------------------------------------------------------

墊圈

Washer (CT0232)-------------------------------------------------------------------------------------

導線

Thread Guide -----------------------------------------------------------------------------------------

連桿

Link -----------------------------------------------------------------------------------------------------

曲柄

Lever ----------------------------------------------------------------------------------------------------

螺椿

Stud -----------------------------------------------------------------------------------------------------

導管

Pipe -----------------------------------------------------------------------------------------------------

軸

Shaft ----------------------------------------------------------------------------------------------------------------------------------------

隔環

Spacer (See left Page) (CT03091)------------------------------------------------------------------------

螺絲

Screw (M4-0.7*12) (CT0202) -----------------------------------------------------------------------

221A0000563

定位環組

Collar Asm.(F0534A)-----------------------------------------------------------------------------

螺椿

Stud -----------------------------------------------------------------------------------------------------

3. MT4001-MT4004張力調整零件 Thread Tension Mechanism For MT4001-MT4004

序號物料編號名稱單位用量

Ref.No. Parts No. Description Amt. Req.

* 1 2320000301 * 2 232A0000302

3 2310000303 4 2310000304 5 231A0001923 6 23100003061 7 8MB04280807K 8 2310000308

** 9 232A0000309

10 2310000310 ** 11 2320000311 ** 12 2320000312

*13 8MP06401211A

14 8MQ04280808A

15 2100001121B

16 2200000303

17 2100001132

18 2200000305

19 2100001127

20 2100001126

21 22000003081

22 22000003091

23 8MC05321208A

24 2200000311

25 2200000312

28 8MM04281007A

29 8MB04280807K ** 30 2310000344 ** 31 8MK95301407A

32 2100000223

33 2310000333 ** 34 2310000341 ** 35 2310000342 ** 36 2310000343

37 2310000337

38 2310000338 ** 39 2310000339 ** 40 8MM04281207A

42 2310001937

1 1 1 2

1 1 1 1 1 1 1

1 2 2 1 1 1 2 1 1 1 1 1 1

1 1

* MT4001-MT4002 用 For MT4001-MT4002. Use ** MT4004 用 For MT4004 Use

-6-

4. MT4006-MT4012

5&:1J~~~1tf:

1-f

Thread Tension Mechanism For MT4006-MT4012

-7-

導線

Thread Guide ----------------------------------------------------------------------------------------

導線

Thread Guide ----------------------------------------------------------------------------------------

導線

Thread Guide ----------------------------------------------------------------------------------------

導線

Thread Guide ----------------------------------------------------------------------------------------

導線

Thread Guide ----------------------------------------------------------------------------------------

導線

Thread Guide ----------------------------------------------------------------------------------------

螺絲

Screw (CT0215 M4-0.7*8) ---------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------

導線

Thread Guide -------------------------------------------------------------------------------------

螺絲

Screw (CT0215 M4-0.7*8) -------------------------------------------------------------------

螺絲

Screw (UTB0109 M4-0.7*8) --------------------------------------------------------------------

墊圈

Washer (CT0232)-----------------------------------------------------------------------------------

螺絲

Screw (FT0203 M4-0.7*8) ------------------------------------------------------------------------------

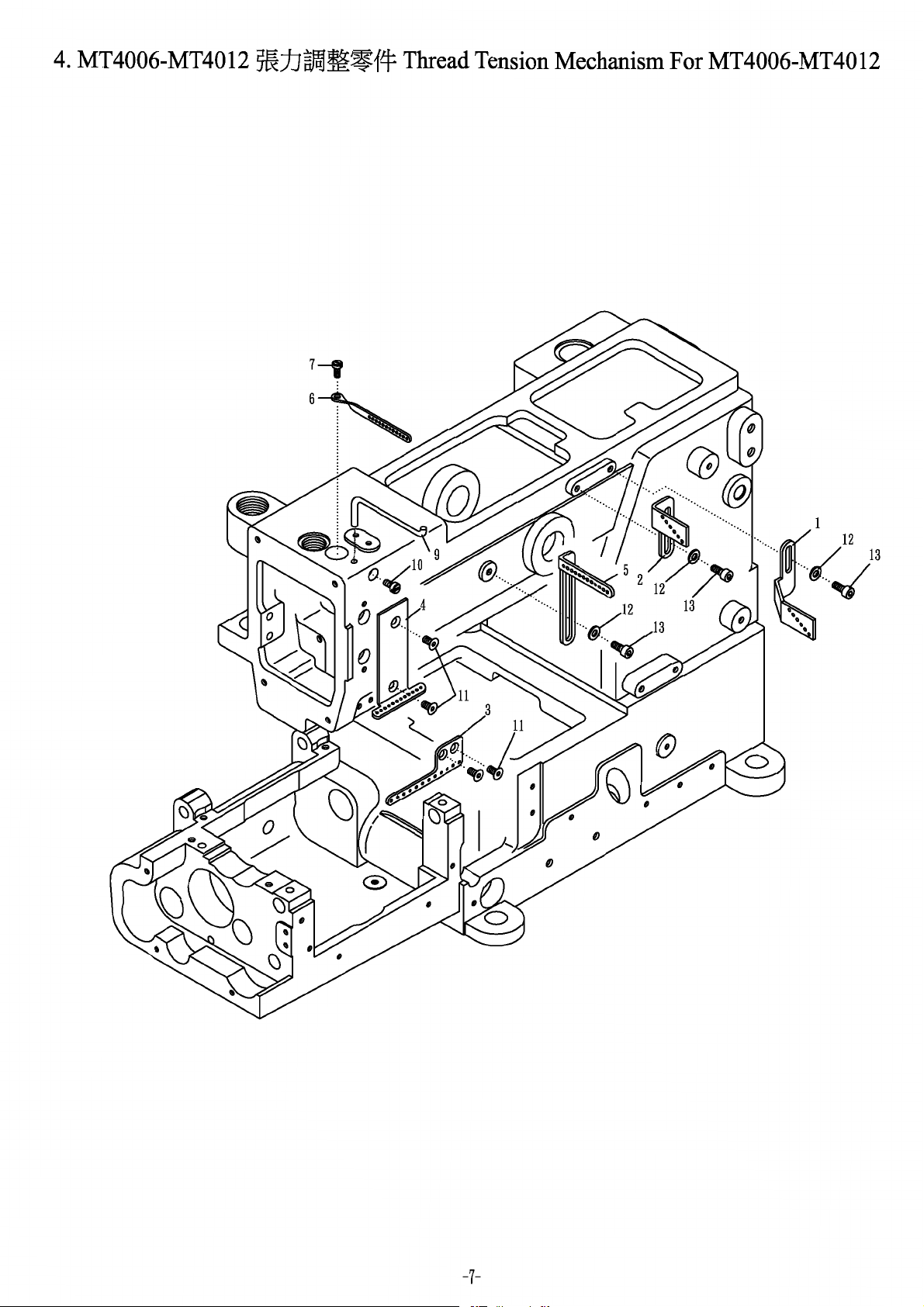

4. MT4006-MT4012 張力調整零件 Thread Tension Mechanism For MT4006-MT4012

序號物料編號名稱單位用量

Ref.No. Parts No. Description Amt. Req.

1 2320000401 2 2320000402 3 2310000403 4 2310000404 5 2310000405 6 2310330406 7 8MB04280807K 8 ---------------

9 2310000417 10 8MB04280807K 11 8MQ04280808A 12 2100000223 13 8MM04281007A

1 1 1 1 1 1 1

1 1 4 3 3

-8-

MT4000

$ralH.5i)EB!t

BUSHING

And

Oil

Seal

For

MT4000

-9-

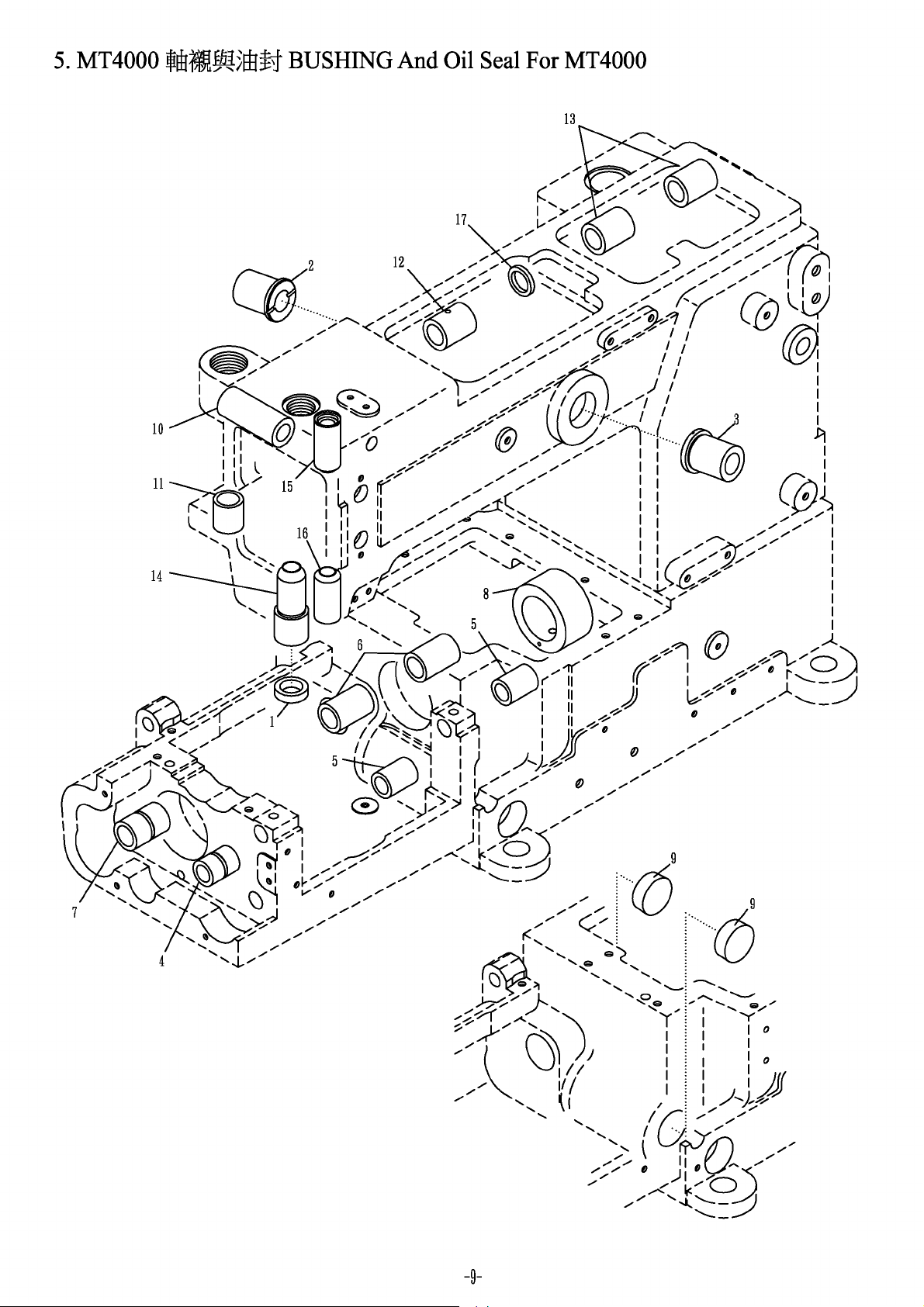

5. MT4000 軸襯與油封 Bushing And Oil Seal For MT4000

油封

Oil Seal (CT0404)-----------------------------------------------------------------------------

軸襯

Bushing ------------------------------------------------------------------------------------------

軸襯

Bushing ------------------------------------------------------------------------------------------

軸襯

Bushing ------------------------------------------------------------------------------------------

軸襯

Bushing ------------------------------------------------------------------------------------------

軸襯

Bushing ------------------------------------------------------------------------------------------

軸襯

Bushing ------------------------------------------------------------------------------------------

軸襯

Bushing -------------------------------------------------------------------------------------------

孔塞

Plug ------------------------------------------------------------------------------------------------

軸襯

Bushing ------------------------------------------------------------------------------------------

軸襯

Bushing -------------------------------------------------------------------------------------------

軸襯

Bushing ------------------------------------------------------------------------------------------

軸襯

Bushing ------------------------------------------------------------------------------------------

軸襯

Bushing ------------------------------------------------------------------------------------------

軸襯

Bushing -----------------------------------------------------------------------------------------

軸襯

Bushing ------------------------------------------------------------------------------------------

油封

Oil Seal ---------------------------------------------------------------------------------------------

序號物料編號名稱單位用量

Ref.No. Parts No. Description Amt. Req.

1 2200000404 2 2310000518 3 23100005191 4 2310000504 5 2310000505 6 2310000506 7 2310000507 8 2310000508

9 23100002171 10 2310000510 11 2310000511 12 2310000512 13 2310000513 14 2310000514 15 2310000515 16 2310000516 17 2310000517

1 1 1 1 2 2 1 1 2 1 1 1 2 1 1 1 1

-10-

MT4000 I MT4500

jf;f$!!4f§!ffl~{tf:

Needle

Bar

Mechanism

For

MT4000 / MT4500

;

... ···

....

········································/

. :

~21

-11-

滑道

Guide Block ----------------------------------------------------------------------------------------------------------------

滑塊

Slide Block --------------------------------------------------------------------------------------------------------------------------

針棒

Needle Bar ---------------------------------------------------------------------------------------------------------------------------

連桿

Connecting Rod ----------------------------------------------------------------------------------------------------------------------

連桿

Connecting Rod -----------------------------------------------------------------------------------------------------------------------

連桿

Connecting Rod ----------------------------------------------------------------------------------------------------------------------

連接銷

Pin -----------------------------------------------------------------------------------------------------------------------------------

軸

Shaft --------------------------------------------------------------------------------------------------------------------

定位環

Collar -------------------------------------------------------------------------------------------------------------

止推墊圈

Thrust Bearing ----------------------------------------------------------------------------------------------

油封

Oil Seal -----------------------------------------------------------------------------------------------------------------

孔塞

Plug ---------------------------------------------------------------------------------------------------------

止推軸承

Thrust Bearing (CT1044)---------------------------------------------------------------------------------------

螺絲

Screw -------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (FT0203 M4-0.7*10) -------------------------------------------------------------------------------------

螺絲

Screw (M4-0.7*5) (FT1222) -------------------------------------------------------------------------------

螺絲

Screw (M6-1*10) (MT0419) ----------------------------------------------------------------------------

導線固定座

Holder ---------------------------------------------------------------------------------------------

導線

Thread Guide --------------------------------------------------------------------------------------------

導線

Thread Guide ---------------------------------------------------------------------------------------------

螺絲

Screw (UTB0130 M4-0.7*6) ---------------------------------------------------------------------------

螺絲

Screw (CT0625 M6-1*16) ------------------------------------------------------------------------------

油線

Oil Wick-----------------------------------------------------------------------------------------------------

護蓋

Cover --------------------------------------------------------------------------------------------------------

護蓋固定座

Holder ----------------------------------------------------------------------------------------------

護蓋固定座

Holder ----------------------------------------------------------------------------------------------

螺絲

Screw (CT0206 M4-0.7*7) --------------------------------------------------------------------------------

螺絲

Screw (CT1223 M4-0.7*6) -----------------------------------------------------------------------------------------------------

孔塞

Plug (CT1029)------------------------------------------------------------------------------------------------------

連桿組

Connecting Rod Asm.---------------------------------------------------------------------------

螺絲

Screw (CT0215 M4-0.7*8) ---------------------------------------------------------------------------

墊圈

Washer ------------------------------------------------------------------------------------------

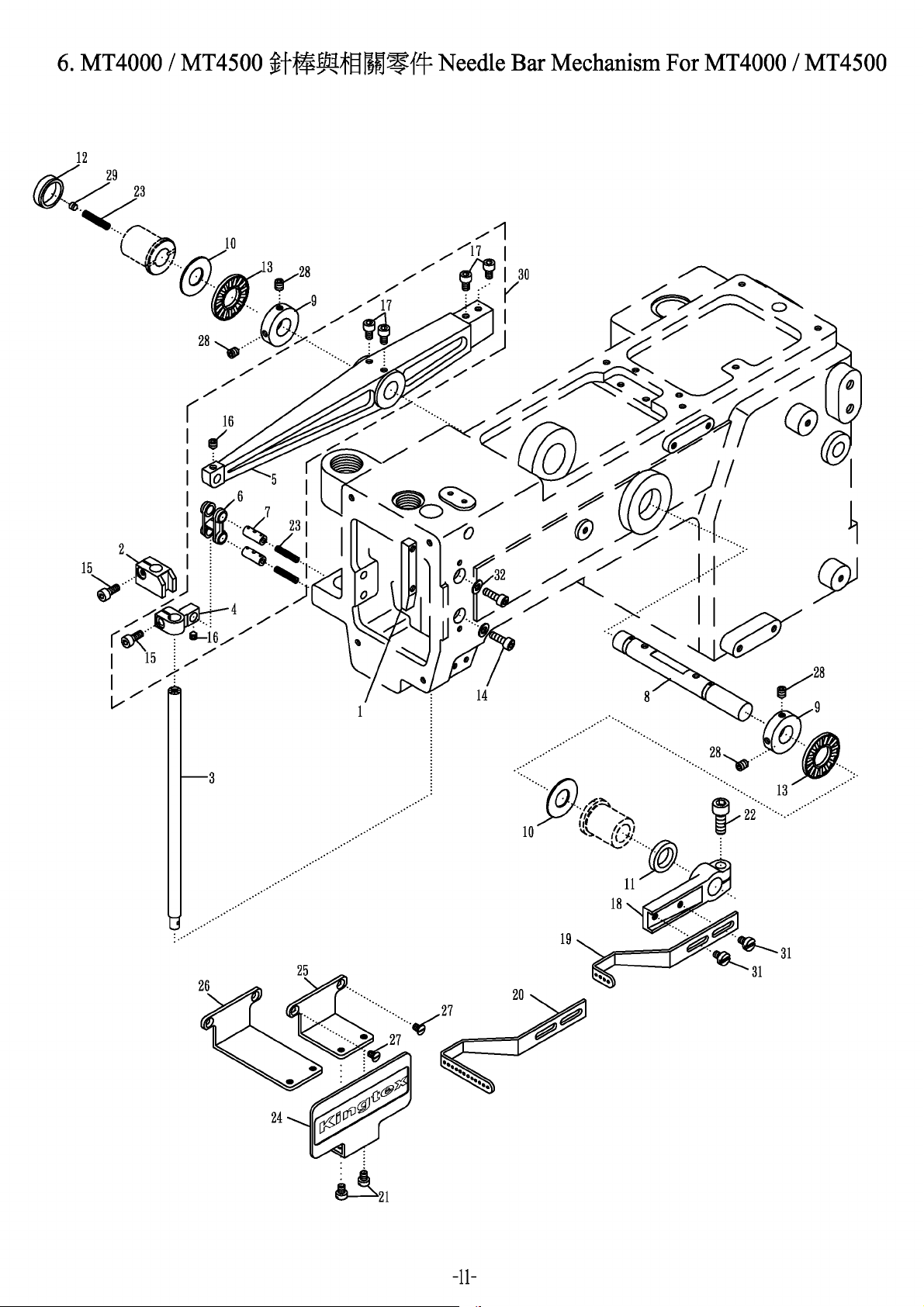

6. MT4000 / MT4500 針棒與相關零件 Needle Bar Mechanism For MT4000 / MT4500

序號物料編號名稱單位用量

Ref.No. Parts No. Description Amt. Req.

1 2310000601

2 23100006021

3 2310330603

4 2310000604

5 2310000605

6 2310000606

7 2310000607

8 2310000608

9 2310000609 10 2310000610 11 2310000611 12 22000002451 13 2200001044 14 8MM04281207A 15 8MM04281007A 16 8MN04280500C 17 8MM06401010A 18 2310000618 19 2310000619

*20 2310000620

21 8MB04280608A 22 8MM06401610A 23 66800 24 2310000624 25 2310000625

*26 2310000626

27 8ME04280708A 28 8MN04280600A 29 2200001029 30 231A0000630 31 8MB04280807K 32 90PW040

1 1 1 1 1 1 2 1 2 2 1 1 2 2 2 2 4 1 1 1 2 1 3 1 1 1 2 4 1 1 2 2

* For MT4006-MT4012 / MT4506-MT4525 Use

-12-

MT4000

Tfm~f§~ffl~fcf:

Crankshaft

Mechanism

For

MT4000

---

~34

/i:----J

(/~97_

:~----------:1:

1~111

ll25

'-11

- -

--~/

( 2 31..._

1//

___

-0

///(

~35

I I

....

, :

J/?J//

;

~30

~--'

-13-

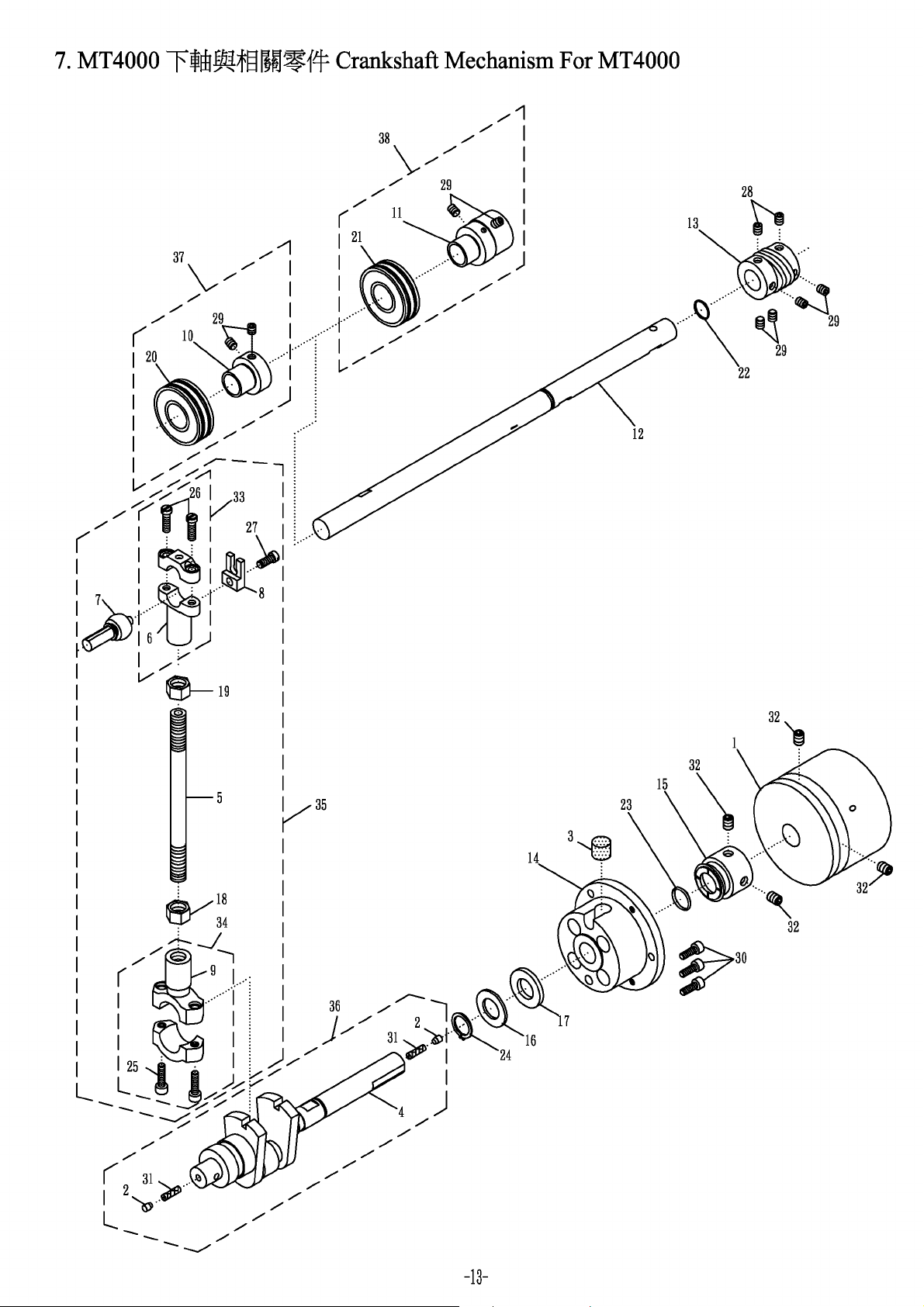

7. MT4000 下軸與相關零件 Crankshaft Mechanism For MT4000

針定位皮帶輪

Belt Cover --------------------------------------------------------------------------

2200001029

孔塞

Plug (CT1029)--------------------------------------------------------------------------------

2100001501

海綿

Seal (SH1501)-----------------------------------------------------------------------------------

曲軸

Crank Shaft -----------------------------------------------------------------------------------------

螺樁

Stud -------------------------------------------------------------------------------------------------

連桿

Connecting Rod ---------------------------------------------------------------------------------

球狀接頭

Ball Stud --------------------------------------------------------------------------------------

定向導軌

Guide ----------------------------------------------------------------------------------------

連桿

Connecting Rod ---------------------------------------------------------------------------------

套筒

Clutch Sleeve -------------------------------------------------------------------------------------

偏心輪

Eccentric ---------------------------------------------------------------------------------------

軸

Shaft ---------------------------------------------------------------------------------------------------

蝸桿

Worm ---------------------------------------------------------------------------------------------

鋁蓋

Cover ----------------------------------------------------------------------------------------------

定位環

Collar --------------------------------------------------------------------------------------------

墊圈

Washer -------------------------------------------------------------------------------------------

墊圈(銅)

Washer -----------------------------------------------------------------------------------

螺帽

Nut ------------------------------------------------------------------------------------------------

螺帽

Nut ------------------------------------------------------------------------------------------------

滾珠軸承

Ball Bearing (MT0720) ------------------------------------------------------------------------------

滾珠軸承

Ball Bearing (MT0721)-----------------------------------------------------------------

形油環

O Ring

(線徑

φ1.2) ------------------------------------------------------------------

形油環

O Ring

(線徑

φ2.4) -------------------------------------------------------------------

形扣環

C Ring ----------------------------------------------------------------------------------------

螺絲

Screw (MT0725 M4.5-0.75*18) ----------------------------------------------------------

螺絲

Screw (MT0726 M4.5-0.75*15) ---------------------------------------------------------

螺絲

Screw (MT0727 M4.5-0.75*11) ---------------------------------------------------------

螺絲

Screw (CT350248 M5-0.8*6) -----------------------------------------------------------

螺絲

Screw (MT0729 M5-0.8*6) --------------------------------------------------------------

螺絲

Screw (FT0203 M4-0.7*10) --------------------------------------------------------------

油線

Oil Wick ----------------------------------------------------------------------------------------

螺絲

Screw (CT0549 M4-0.7*8) --------------------------------------------------------------

連桿組

Connecting Rod Asm. -----------------------------------------------------------------

231A0000734

連桿組

Connecting Rod Asm. -----------------------------------------------------------------

231A0000735

連桿組

Connecting Rod Asm. -----------------------------------------------------------------

231A0000736

曲軸組

Crank Shaft Asm. -----------------------------------------------------------------------

231A0000737

連桿組

Connecting Rod Asm. -----------------------------------------------------------------

232A0000738

連桿組

Connecting Rod Asm. -----------------------------------------------------------------

序號物料編號名稱單位用量

Ref.No. Parts No. Description Amt. Req.

1 23100007011

4 23100007041

5 2310000705

6 2310000706

7 2310000707

8 2310000708

9 2310000709 10 2310000710 11 2310000711 12 2310000712 13 2310000713 14 2310000714 15 2310000715 16 2310000716 17 2310000717 18 2310000718 19 2310000719 20 90BB1740126 21 90BB1740122 22 2310000722 23 90OR140 24 90SCR140 25 8MB95301807K 26 8MB95301507K 27 8MB95301106K 28 8MN05320600C 29 8MN05320600A 30 8MM04281007A 31 66800 32 8MN06400800A 33 231A0000733 34 35 36 37

1 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 1 2 8 3 2 4 1 1 1 1 1 1

-14-

MT4000 / MT4500

) \

}i~~~;flfffi

·····

Feed

Mechanism

For

MT4000 / MT4500

...

············

··~

.....

21https://manualmachine.com/

25'h

··.

...

·······

-15-

止動銷

Stopper Pin --------------------------------------------------------------------------------------------------------

彈簧

Spring ------------------------------------------------------------------------------------------------------------------

軸

Shaft -------------------------------------------------------------------------------------------------------------------------

偏心輪

Eccentric -------------------------------------------------------------------------------------------------------------

連結銷

Link Pin ------------------------------------------------------------------------------------------------------------

曲柄

Lever ---------------------------------------------------------------------------------------------------------------------

狗齒台

Feed Dog Holder ------------------------------------------------------------------------------------------------

離合齒輪

Regulating Gear ----------------------------------------------------------------------------------------------

離合齒片

Regulating Plate ----------------------------------------------------------------------------------------------

連桿

Link -------------------------------------------------------------------------------------------------------------------

連結銷

Link Pin ------------------------------------------------------------------------------------------------------------

軸

Shaft --------------------------------------------------------------------------------------------------------------------

銷

Pin ------------------------------------------------------------------------------------------------------------------------

彈簧

Spring ----------------------------------------------------------------------------------------------------------------

墊圈

Washer -----------------------------------------------------------------------------------------------------------------

變距偏心輪

Eccentric ----------------------------------------------------------------------------------------------------

變距銷

Pin -----------------------------------------------------------------------------------------------------------------

變距銷座

Eccentric Collar -----------------------------------------------------------------------------------------------

進給偏心輪

Eccentric ----------------------------------------------------------------------------------------------------

連桿

Link -------------------------------------------------------------------------------------------------------------------

彈簧

Spring ----------------------------------------------------------------------------------------------------------------

曲柄

Lever ---------------------------------------------------------------------------------------------------------------------

連桿

Link -------------------------------------------------------------------------------------------------------------------

連結銷

Link Pin ------------------------------------------------------------------------------------------------------------

墊圈

Washer ----------------------------------------------------------------------------------------------------------------

定位環

Collar --------------------------------------------------------------------------------------------------------------

形扣環

E Ring (RP10108) ---------------------------------------------------------------------------------------------

形扣環

E Ring (FT0225) ----------------------------------------------------------------------------------------------

形油環

O Ring ----------------------------------------------------------------------------------------------------

墊圈

Washer (CT1025)----------------------------------------------------------------------------------------------------

滾針軸承

Needle Bearing ------------------------------------------------------------------------------------------------

滾針軸承

Needle Bearing ------------------------------------------------------------------------------------------------

形同心扣環

C Ring ------------------------------------------------------------------------------------------------------

油線

Oil Wick -------------------------------------------------------------------------------------------------------------

孔塞

Plug -----------------------------------------------------------------------------------------------------------

螺絲

Screw (CT0202 M4-0.7*12) --------------------------------------------------------------------------------------

螺絲

Screw (CT350248 M5-0.8*6) ---------------------------------------------------------------------------------------

螺絲

Screw (CT0216 M4-0.7*10) -------------------------------------------------------------------------------------------

螺絲

Screw (CT0229 M4-0.7*4) ----------------------------------------------------------------------------------------

螺絲

Screw (CT0918 M6-1*6) ------------------------------------------------------------------------------------------

螺絲

Screw (FT1222 M4-0.7*5) ---------------------------------------------------------------------------------------

螺絲

Screw (MT0729 M5-0.8*6) ---------------------------------------------------------------------------------------

螺絲

Screw (MT0843 M5-0.8*10) --------------------------------------------------------------------------------------

螺絲

Screw (MT0844 M3-0.5*4) ---------------------------------------------------------------------------------------

螺絲

Screw (MT0845 M6-1*15) ---------------------------------------------------------------------------------------

螺絲

Screw (CT0903 M5-0.8*5) ----------------------------------------------------------------------------------------

螺絲

Screw (CT0115 M3-0.5*3) ----------------------------------------------------------------------------------------

連桿組

Link Asm. ---------------------------------------------------------------------------------------------------------

變距偏心輪組

Eccentric Asm. ------------------------------------------------------------------------------------------

離合齒輪組

Regulating Gear Asm. -------------------------------------------------------------------------------------

螺絲

Screw (FT1218 M3-0.5*3) ---------------------------------------------------------------------------------------

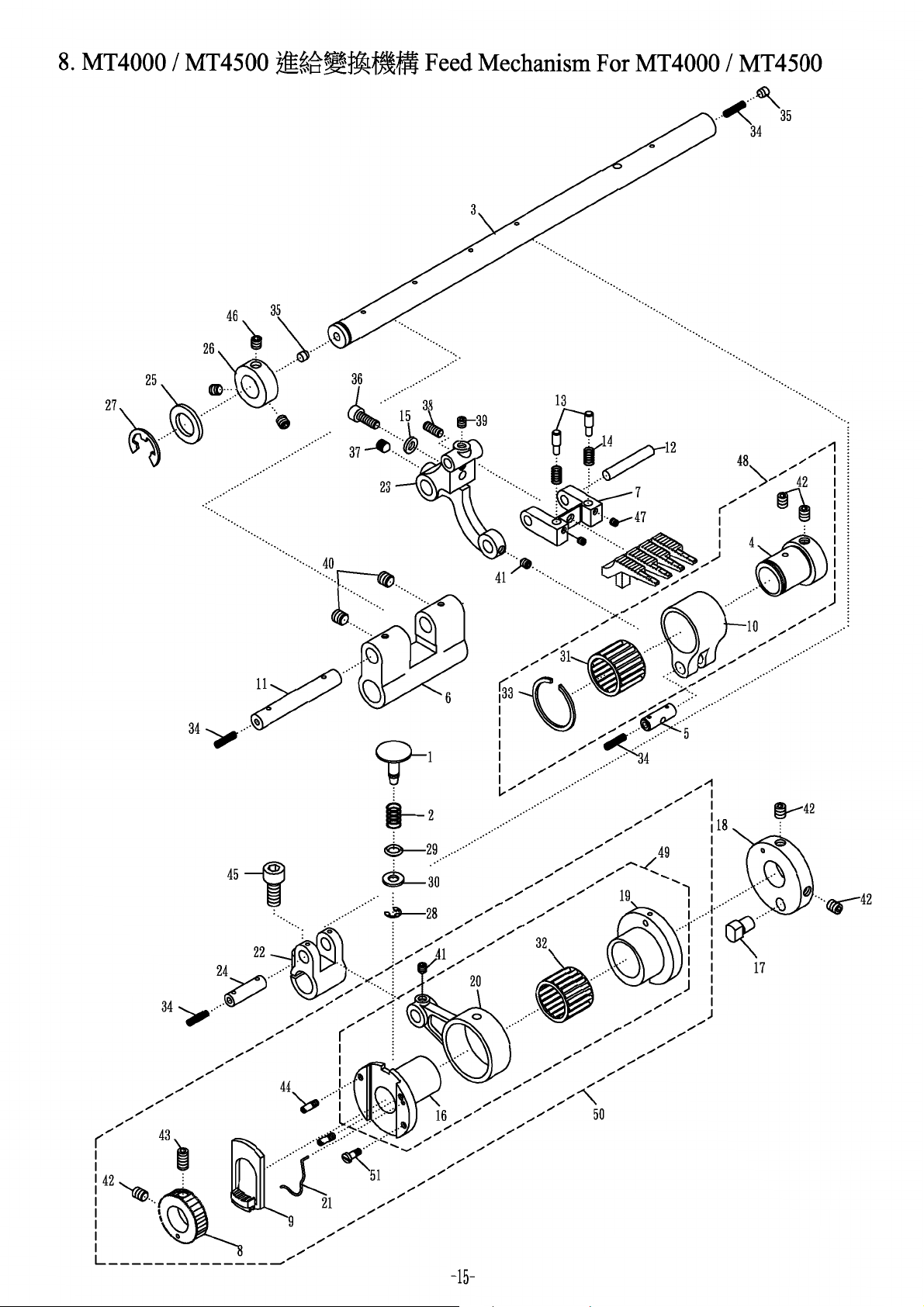

8. MT4000 / MT4500 進給變換機構 Feed Mechanism For MT4000 / MT4500

序號物料編號名稱單位用量

Ref.No. Parts No. Description Amt. Req.

1 23100008011

2 2310000802

3 23100008031

4 2310000804

5 2310000805

6 2310000806

7 2310000807

8 2310000808

9 2310000809 10 2310000810 11 2310000811 12 2310000812 13 2310000813 14 2310000814 15 2310000815 16 2310000816 17 2310000817 18 2310000818 19 2310000819 20 2310000820 21 23100008211 22 2310000822 23 2310000823 24 2310000824 25 2310000825 26 2310000826 27 90ER100 28 90ER040 29 90OR050 30 2200001025 31 90NB182217 32 90NB252913 33 2310000833 34 66800 35 2310000835 36 8MM04281207A 37 8MN05320600C 38 8MN04281000A 39 8MN04280400A 40 8MN06400600A 41 8MN04280500C 42 8MN05320600A 43 8MN05321000E 44 8MB03200403C 45 8MM06401510A 46 8MN05320500E 47 8MN03200300A 48 231A0000848 49 231A0000849 50 231A0000850 51 8MB03200605B

1 1 1 1 1 1 1 1 1 1 1 1 2 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 4 2 1 1 1 1 2 1 5 1 2 1 3 2 1 1 1 1

-16-

9. MT4000

~5~j~,~11Jfflm

Looper Mechanism For MT4000

-~--

),,······

-17-

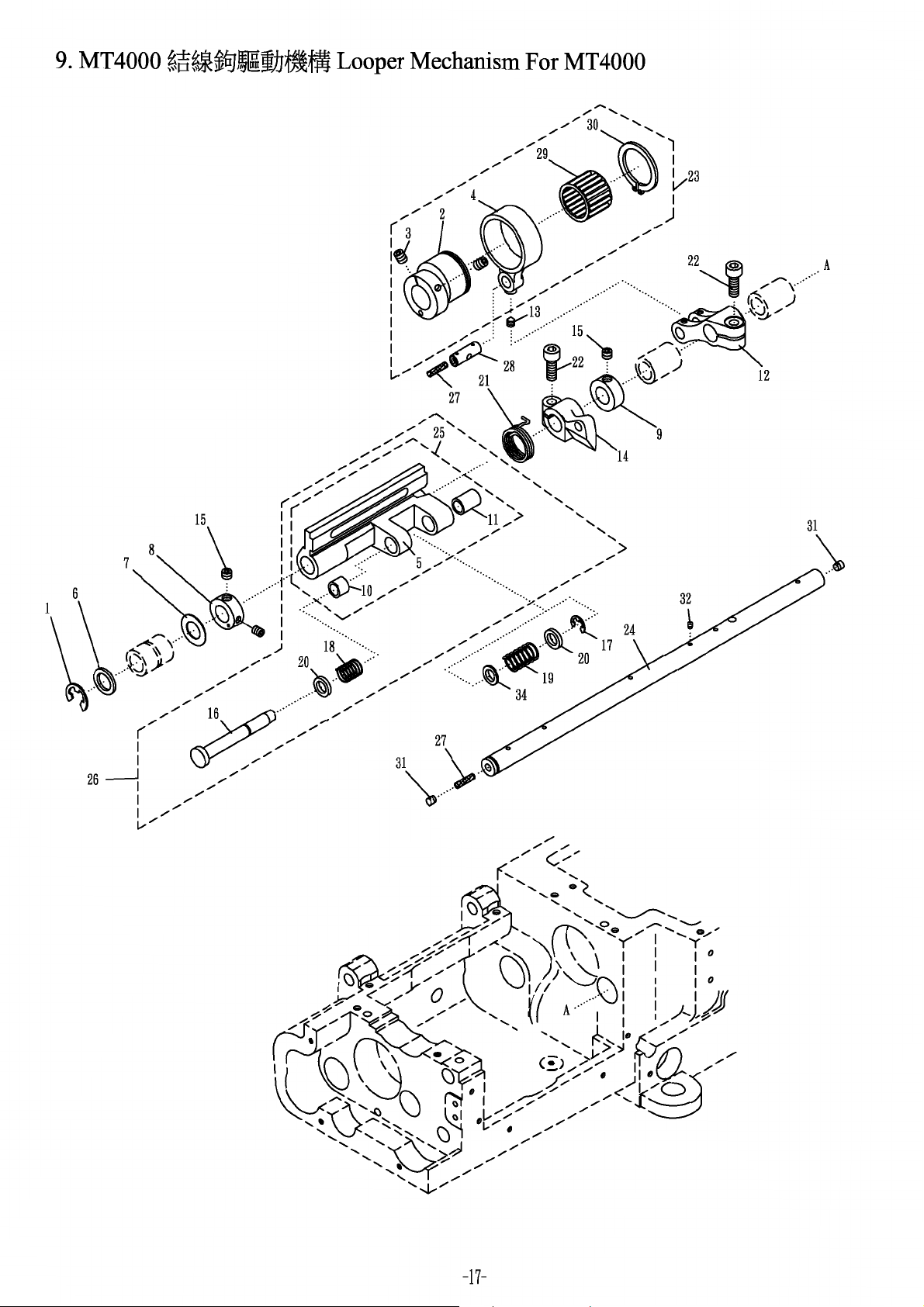

9. MT4000 結線鉤驅動機構 Looper Mechanism For MT4000

形扣環

E Ring (F090404) ----------------------------------------------------------------------------------------

偏心輪

Eccentric ------------------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT0729 M5-0.8*6) -----------------------------------------------------------------------

連桿

Link --------------------------------------------------------------------------------------------------------------------------------------------------

承座

Bracket -------------------------------------------------------------------------------------------------------------------

墊圈

Washer ----------------------------------------------------------------------------------------------------------------------------------------------------

墊圈

Washer ----------------------------------------------------------------------------------------------------------------------

定位環

Collar -------------------------------------------------------------------------------------------------------------------------------------------------

定位環

Collar -------------------------------------------------------------------------------------------------------------------

襯套

Clutch Tension Sleeve -------------------------------------------------------------------------------------------------------------

襯套

Clutch Tension Sleeve -------------------------------------------------------------------------------

曲柄

Lever --------------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (FT1222 M4-0.7*5) ----------------------------------------------------------------------

驅動柄

Looper Rocker Stopper -------------------------------------------------------------------------------------------------------

螺絲

Screw (MT0944 M5-0.8*4) ---------------------------------------------------------------------------------

軸

Shaft ---------------------------------------------------------------------------------------------------------------------------------------------------------

形扣環

E Ring (SH0620) -----------------------------------------------------------------------------

彈簧

Spring ----------------------------------------------------------------------------------------------------------------------------------------------------

彈簧

Spring --------------------------------------------------------------------------------------------------

墊圈

Washer ------------------------------------------------------------------------------------------------------------------------------

彈簧

Spring -------------------------------------------------------------------------------------------------

螺絲

Screw (CT0632 M5-0.8*14) ----------------------------------------------------------------------

偏心輪組

Eccentric Asm. ------------------------------------------------------------------------------

軸

Shaft -------------------------------------------------------------------------------------------------------

承座組

Bracket Asm. ---------------------------------------------------------------------------------

承座組

Bracket Asm. ---------------------------------------------------------------------------------

油線

Oil Wick

φ3 --------------------------------------------------------------------------------------

連結銷

Link Pin ----------------------------------------------------------------------------------------------

滾針軸承

Needle Bearing ------------------------------------------------------------------------------

形扣環

C Ring -----------------------------------------------------------------------------------------

孔塞

Plug ---------------------------------------------------------------------------------------------------

孔塞

Plug (SH4-3)--------------------------------------------------------------------------------------

---------------------------------------------------------------------------------------------------------

墊圈

Washer ---------------------------------------------------------------------------------------------------------------------------------

序號物料編號名稱單位用量

Ref.No. Parts No. Description Amt. Req.

1 90ER080

2 2310000902

3 8MN05320600A

4 2310000904

◎ 5 2310000905

6 23100009061

7 2310000907

8 2310000908

9 2310000909

◎ 10 2310000910 ◎ 11 2310000911

12 2310000912 13 8MN04280500C 14 23100009141 15 8MN05320400A 16 23100009161 17 90ER050 18 2310000918 19 2310000919 20 2310000920 21 2310000921 22 8MM05321409A 23 231A0000947 24 23100009241 25 231A0000951 26 231A0000953 27 66800 28 2310000805 29 90NB252913 30 90SCR250 31 2310000835 32 2100000403 33 -----------------34 240012039

1 1 2 1 1 1 1 1 1 1 1 1 1 1 4 1 1 1 1 2 1 2 1 1 1 1 2 1 1 1 2 1

◎需整組購買 Must be sold in complete set

-18-

10.

MT4000 / MT4500

miJ~f§;ffl~{tf:

t(21

Presser

fJ.

Foot

Mechanism

For

MT4000 / MT4500

30~··

11~··

...

1--3

··.·

-19-

螺樁

Stud -------------------------------------------------------------------------------------------------------------------------------------------

螺帽

Nut -------------------------------------------------------------------------------------------------------------------------------------------

彈簧

Spring --------------------------------------------------------------------------------------------------------------------------------------

連接塊

Connecting Block ----------------------------------------------------------------------------------------------------------------------

彈簧

Spring -------------------------------------------------------------------------------------------------------------------------------------

軸

Shaft ---------------------------------------------------------------------------------------------------------------------------------------

滑道

Lower Movable Knife Guide ----------------------------------------------------------------------------------------------------------------

揚昇臂

Lifter Arm ------------------------------------------------------------------------------------------------------------------------------

曲柄

Lever --------------------------------------------------------------------------------------------------------------------------------------

曲柄

Lever --------------------------------------------------------------------------------------------------------------------------------------

吊桿

Lifter Connecting Plate ------------------------------------------------------------------------------------------------------------------

墊圈

Washer ----------------------------------------------------------------------------------------------------------------------------------

螺樁

Stud ---------------------------------------------------------------------------------------------------------------------------------------

拉桿

Lifter Connecting Plate ------------------------------------------------------------------------------------------------------------------

吊臂

Left Upper Feed Roller Arm -------------------------------------------------------------------------------------------------------

吊臂

Left Upper Feed Roller Arm -------------------------------------------------------------------------------------------------------

銷

Pin ------------------------------------------------------------------------------------------------------------------------------------------

軸

Shaft ---------------------------------------------------------------------------------------------------------------------------------------------

彈簧

Spring ------------------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT1020 7/32"-32*21) ----------------------------------------------------------------------------------------------------

連結銷

Connecting Pin ---------------------------------------------------------------------------------------------------------------------------

定位環

Collar ---------------------------------------------------------------------------------------------------------------------------------

阻油片

Oil Separator (CT0811)--------------------------------------------------------------------------------------------------------------

墊圈

Washer (SH0323)---------------------------------------------------------------------------------------------------------------------

形扣環

E Ring (CT0209) ------------------------------------------------------------------------------------------------------------------

螺帽

Nut (F090512 7/32"-32*21) ----------------------------------------------------------------------------------------------------------

螺絲

Screw (C08-08 M4.5-0.75*16) -------------------------------------------------------------------------------------

螺絲

Screw (MT0729 M5-0.8*6) --------------------------------------------------------------------------------

螺絲

Screw (FT0524 M5-0.8*12) --------------------------------------------------------------------------------------------------------

螺絲

Screw (MT1030 11/64"-40*5) ---------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT0419 M6-1*10) ---------------------------------------------------------------------------------------------------------

螺絲

Screw (FT0203 M4-0.7*10) ----------------------------------------------------------------------------------------------------------------

波形墊圈

Corrugated Ring ------------------------------------------------------------------------------------------------------------------

護指擋片

Safety Plate Holder (MT4501-MT4504)------------------------------------------------------------------------------------------

護指擋片

Safety Plate Holder (MT4506-MT4523)----------------------------------------------------------------------------------------------

螺絲

Screw (CT1002 M3.5-0.6*6)---------------------------------------------------------------------

二件組壓腳底用

For bisector presser foot

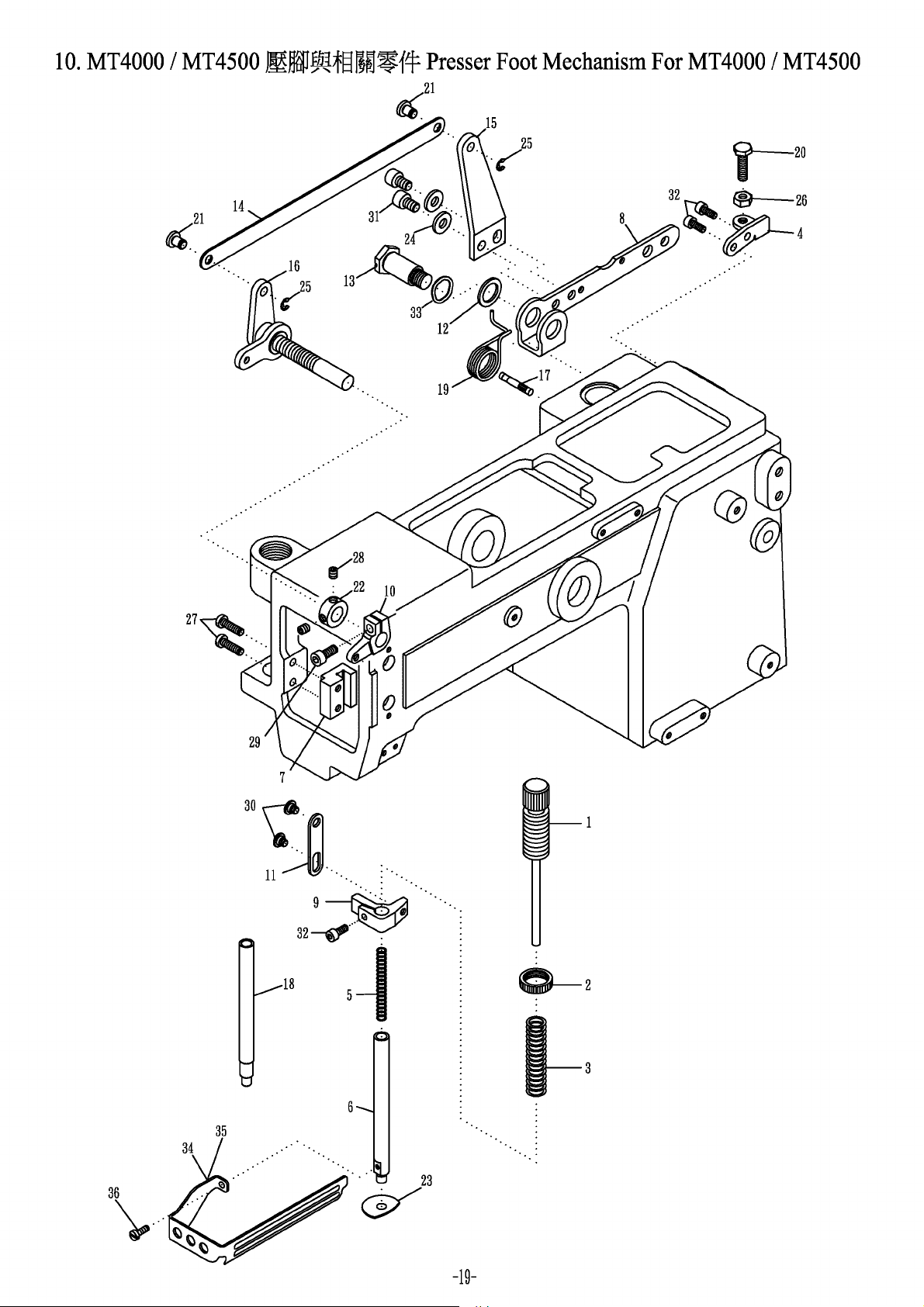

10. MT4000 / MT4500 壓腳與相關零件 Presser Foot Mechanism For MT4000 / MT4500

序號物料編號名稱單位用量

Ref.No. Parts No. Description Amt. Req.

1 2310001001

2 2310001002

3 2310001003

4 2310001004

5 2310001005

6 2310001006

7 2310001007

8 2310001008

9 2310001009 10 23100010101 11 2310001011 12 2310001012 13 2310001013 14 2310001014 15 2310001015 16 23100010161 17 2310001017

*18 2310001018

19 2310001019 20 8SK56322110A 21 2310001021 22 2310000908 23 2200000811 24 2100000323 25 90ER040 26 8SA56320410A 27 8MC95301608E 28 8MN05320600A 29 8MM05321209A 30 8SC44400810G 31 8MM06401010A 32 8MM04281007A 33 2310001207 34 2310001034 35 2310001035 36 8MB85240605A

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 1 1 2 2 1 2 2 1 2 2 3 1 1 1 1

-20-

11.

MT4000 / MT4500 )~)i~~fE Lubrication Mechanism For MT4000 / MT4500

~34

,:i,r

19~

24-0

22~ 24-0

23-!,

~-~

_~22

2l~~B

,dL/

0-24

0--24

~43

I I

, C

2---e

,f\,{'23

~~2~4

19:\f~O

19\_.~

\t"

24-0&\f 22"--t!?

24-0

23--!

-21-

--14

31~

蓋板

Lower Feed Roller Cover ---------------------------------------------------------------------------------------------------

◎2

23100011021

齒輪

Gear ------------------------------------------------------------------------------------------------------------------------

◎3

23100011031

齒輪

Gear ------------------------------------------------------------------------------------------------------------------------

◎4

23100011041

軸

Shaft -------------------------------------------------------------------------------------------------------------------

◎5

2310001105

泵座

Pump Seat --------------------------------------------------------------------------------------------------------

◎6

2310001106

泵

Pump ----------------------------------------------------------------------------------------------------------------------------

◎7

2310001107

蝸母

Worm Gear ---------------------------------------------------------------------------------------------------------------------

夾簧

Latch Spring --------------------------------------------------------------------------------------------------------------------

◎9

2310001109

導油歧路

Lubricant Guiding Block ------------------------------------------------------------------------------------------------

油嘴

Nozzle ------------------------------------------------------------------------------------------------------------------------

承油盤

Oil Receiver -----------------------------------------------------------------------------------------------------------------

油管

Oil Tube -------------------------------------------------------------------------------------------------------------------------

油管

Oil Tube -------------------------------------------------------------------------------------------------------------------------

油網

Oil Mesh -----------------------------------------------------------------------------------------------------------------

封蓋

Oil Filter Cover -------------------------------------------------------------------------------------------------

形油環

O Ring (CT1313)-------------------------------------------------------------------------------------------------------

過濾器

Oil Filter (SH1521)-------------------------------------------------------------------------------------------------------

過濾器接頭

Oil Filter Joint (CT1315)-------------------------------------------------------------------------------------------

夾簧

Latch Spring (SH1536)-----------------------------------------------------------------------------------------------------------

油管

Oil Tube (CT1324)--------------------------------------------------------------------------------------------------------

油管接頭

Oil Tube Joint (CT1327) ---------------------------------------------------------------------------------------

油管接頭

Oil Tube Joint (SH1535)---------------------------------------------------------------------------------------

螺樁

Stud (SH1533) ---------------------------------------------------------------------------------------------------------

墊圈

Washer (SH1534) -----------------------------------------------------------------------------------------------------

油管

Oil Tube (CT1328) ----------------------------------------------------------------------------------------------------

油管

Oil Tube (CT1332) ----------------------------------------------------------------------------------------------------

扣簧

Filter Screen Clamp (CT1316)----------------------------------------------------------------------------------------

網板

Filter Screen (CT1317)-------------------------------------------------------------------------------------------------

油管

Oil Tube (∮3*∮5) --------------------------------------------------------------------------------------------------------

螺絲

Screw (MT11-30 M3-0.5*16) -----------------------------------------------------------------------------------------

螺帽

Nut (FTB0111 M3-0.5*3) -----------------------------------------------------------------------------------------------------------

◎32

8MM04281207A

螺絲

Screw (CT0202 M4-0.7*12) -------------------------------------------------------------------------------------------------

螺絲

Screw (MT7-29 M5-0.8*6) ------------------------------------------------------------------------------------------------

螺絲

Screw (MT1134 M4-0.7*6) ------------------------------------------------------------------------------------------------

螺絲

Screw (FT1103 M6-1*12) -------------------------------------------------------------------------------------------------

◎36

8MM03200606A

螺絲

Screw (CT130406 M3-0.5*6) ----------------------------------------------------------------------------------------------

◎37

2100001505

油嘴

Oil Tube Joint (SH1505)-------------------------------------------------------------------------------------------------

◎38

90SP0310

彈簧銷

Spring Pin (SH0508)--------------------------------------------------------------------------------------------------

◎39

231A0001139

齒輪組

Gear Asm. -----------------------------------------------------------------------------------------------------------------

承油盤

Oil Receiver --------------------------------------------------------------------------------------------------------------

油管支持臂

Oil Tube Holder ----------------------------------------------------------------------------------------------------

孔塞

Plug (CT0550) ---------------------------------------------------------------------------------------------------------------

螺樁

Stud (CT1338) ---------------------------------------------------------------------------------------------------------------

油管

Oil Tube (∮4.1*∮5.7) ----------------------------------------------------------------------------------------------------

螺絲

Screw (MT0944 M5-0.8*4) -----------------------------------------------------------------------------------------------

泵組

Pump Asm. -------------------------------------------------------------------------------------------------------------------

油管支持臂

Oil Tube Holder ----------------------------------------------------------------------------------------------------

羊毛氈

Felt -----------------------------------------------------------------------------------------------------------------

導油歧路組

Lubricant Guiding Block Asm. --------------------------------------------------------------------------------------

承油盤組

Oil Receiver Asm ------------------------------------------------------------------------------------------------

彈簧

Spring ------------------------------------------------------------------------------------------------------------------------------

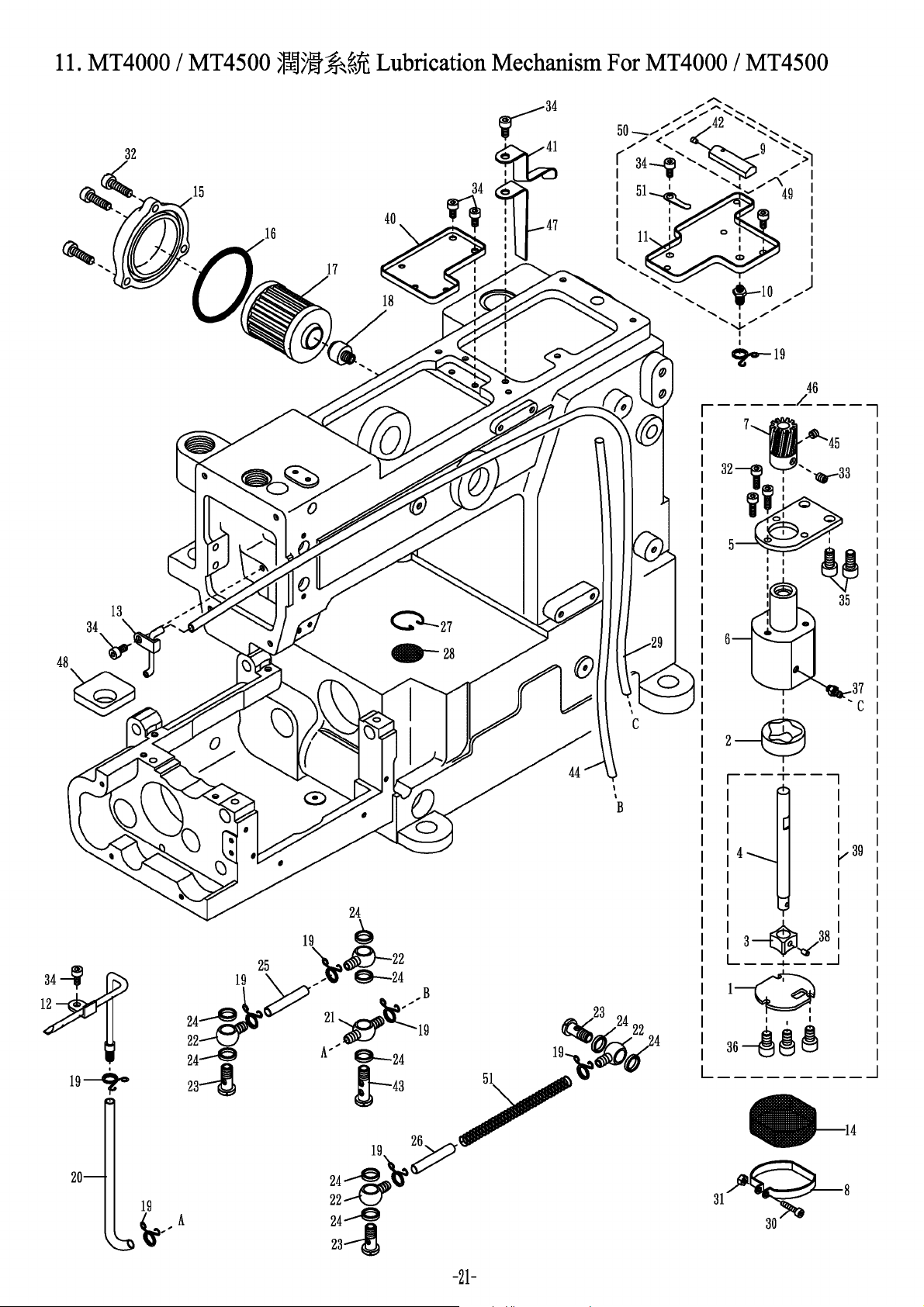

11. MT4000 / MT4500 潤滑系統 Lubrication Mechanism For MT4000 / MT4500

序號物料編號名稱單位用量

Ref.No. Parts No. Description Amt. Req.

◎1 2310001101

8 2310001108

10 2310001110 11 2310001111 12 2310001112 13 2310001113 14 2310001114 15 2200001311 16 2200001313 17 2100001521 18 2200001315 19 2100001536 20 2200001334 21 2200001327 22 2100001535 23 2100001533 24 2100001534 25 2200001328 26 2200001332 27 2200001316 28 2200001317 29 66790 30 8MM03201606A 31 8MA03200306A

◎33 8MN05320600A

34 8MM04280607A

◎35 8MM06401210A

40 2310001140 41 2310001141

◎42 2200000550

43 2200001338 44 66792

◎45 8MN05320400A

46 231A0001146 47 2310001147 48 2310001148 49 231A0001149 50 231A0001150 51 2270001377

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 8 1 1 4 3 9 1 1 1 1 1 1 1 6 1 7 2 3 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

◎ 需整組購買 Must be sold in complete set

-22-

12. MT4000 / MT4500

{j§

[~1iE'1fnflm

Rear Puller Mechasism For MT4000 / MT4500

~,,

~,,'~

20~

I I

,$J

~23

-23-

軸

Shaft ---------------------------------------------------------------------------------------------------------------------------

定位環

Collar --------------------------------------------------------------------------------------------------------------------

彈簧

Sping -------------------------------------------------------------------------------------------------------------------------

彈簧座

Spring Set ----------------------------------------------------------------------------------------------------------------

吊桿

Lifter Connecting Plate ----------------------------------------------------------------------------------------------------------

拉臂

Upper Feed Roller Arm -------------------------------------------------------------------------------------------------------

波形墊圈

Corrugated Washer ------------------------------------------------------------------------------------------------------

軸

Shaft ---------------------------------------------------------------------------------------------------------------------------

揚昇手臂

Lifter Arm ---------------------------------------------------------------------------------------------------------------

接頭

Joint ----------------------------------------------------------------------------------------------------------------

螺帽

Nut --------------------------------------------------------------------------------------------------------------------------

螺帽

Nut --------------------------------------------------------------------------------------------------------------------------

螺樁

Stud ---------------------------------------------------------------------------------------------------------------------------

偏心輪

Eccentric ----------------------------------------------------------------------------------------------------------------

◎15

2310001215

球狀接頭

Ball Stud -----------------------------------------------------------------------------------------------------------------

◎16

2310001216

連桿

Link ---------------------------------------------------------------------------------------------------------------------------

連桿

Link ---------------------------------------------------------------------------------------------------------------------------

墊圈

Washer ---------------------------------------------------------------------------------------------------------------------

軸

Shaft ---------------------------------------------------------------------------------------------------------------------------

孔塞

Plug (CT0245)-------------------------------------------------------------------------------------------------------------------------

調壓螺樁

Spring Regulator ----------------------------------------------------------------------------------------------------

螺帽

Nut ---------------------------------------------------------------------------------------------------------------------------

形扣環

Ring (RP10108) -------------------------------------------------------------------------------------------------------------------------

形扣環

C Ring --------------------------------------------------------------------------------------------------------------------

形扣環

E Ring (SH0658) ----------------------------------------------------------------------------------------------------

螺帽

Nut (CT0533 M6-1*5) -------------------------------------------------------------------------------------------------

墊圈

Washer (CT0910)---------------------------------------------------------------------------------------------------------------------

螺樁

Stud (MT1228 M8-1.25*7) -------------------------------------------------------------------------------------------

螺絲

Screw (MT1030 11/64"-40*5) ---------------------------------------------------------------------------------------

螺絲

Screw (MT1230 11/64"-40*30) --------------------------------------------------------------------------------------

螺絲

Screw (MT1231 11/64"-40*7) ---------------------------------------------------------------------------------------

螺絲

Screw (MT0845 M6-1*15) ---------------------------------------------------------------------------------------------

螺絲

Screw ( FTC1-01-23 M6-1*8 )--------------------------------------------------------------------------------------------------

螺絲

Screw (MT0726 M4.5-0.75*15) --------------------------------------------------------------------------------------

◎35

8MN06400600A

螺絲

Screw (CT0918 M6-1*6) ----------------------------------------------------------------------------------------------

螺絲

Screw (CT0625 M6-1*16) ---------------------------------------------------------------------------------------------

螺帽

Nut (SH0111 11/64"-40*4) -------------------------------------------------------------------------------------------

偏心輪組

Eccentric Asm. -----------------------------------------------------------------------------------------------------

連桿組

Link Asm. -------------------------------------------------------------------------------------------------------------

連桿組

Link Asm. -------------------------------------------------------------------------------------------------------------

螺絲

Screw (FT0203 M4-0.7*10) -------------------------------------------------------------------------------------------

減震橡膠

Rubber Cushion --------------------------------------------------------------------------------------------------

連桿組

Link Asm. -------------------------------------------------------------------------------------------------------------

調壓螺樁組

Spring Regulator Asm.----------------------------------------------------------------------------------------------------

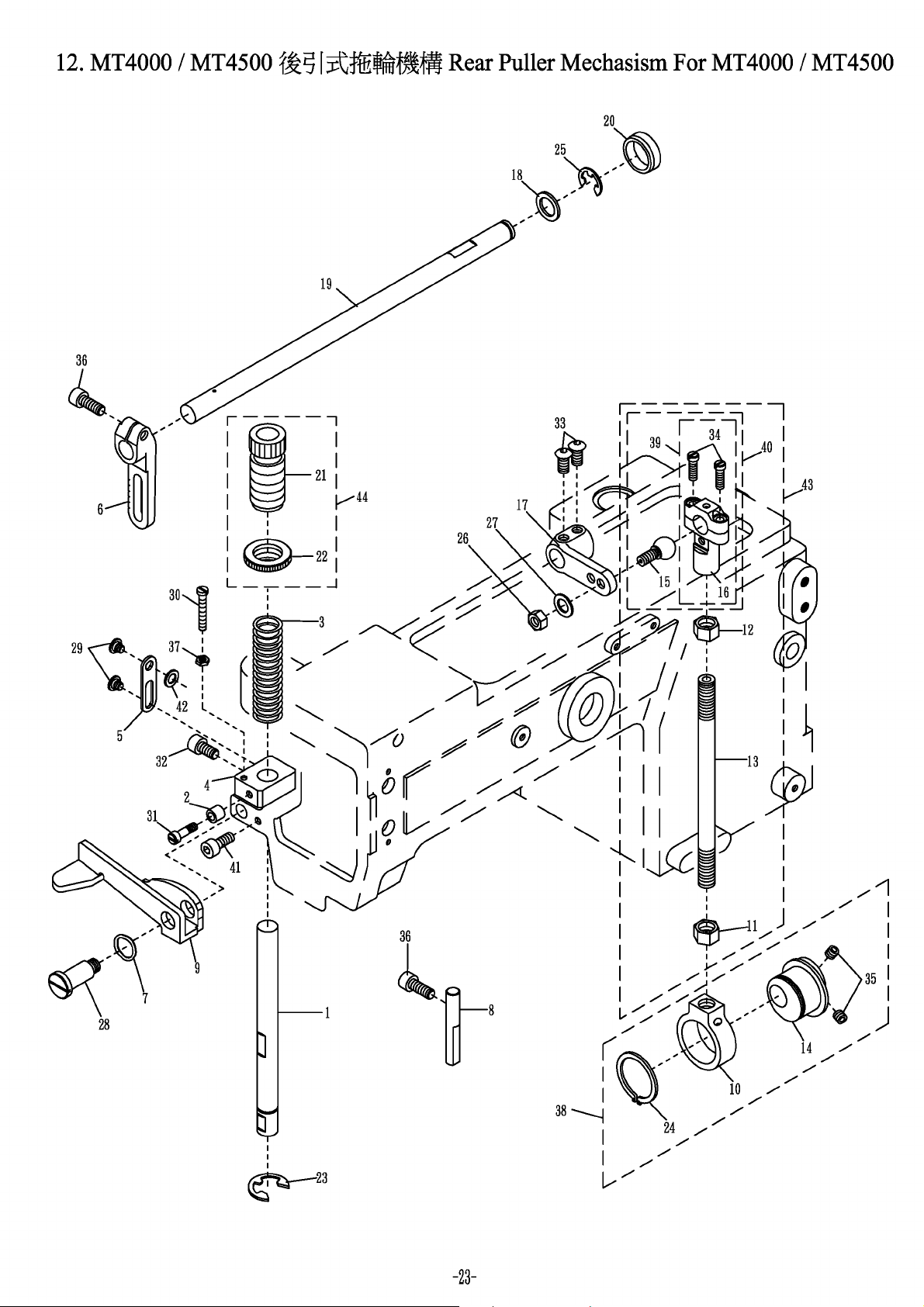

12. MT4000 / MT4500 後引式拖輪機構 Rear Puller Mechanism For MT4000 / MT4500

序號物料編號名稱單位用量

Ref.No. Parts No. Description Amt. Req.

1 2310001201

2 2310001202

3 2310001203

4 2310001204

5 2310001205

6 23100012061

7 2310001207

8 2310001208

9 2310001209

◎10 2310001210

11 2310000718 12 2310000719 13 2310001213

◎14 2310001214

17 23100012171 18 2310001218 19 2310001219 20 22000002451 21 2310001221 22 2310001222 23 90ER100

◎24 90SCR280

25 90ER090 26 8MA06400510A 27 2200000910 28 8MB08502816G 29 8SC44400810G 30 8SB44403006K 31 8SB44401507G 32 8MM06401510A 33 8MP06400811A

◎34 8MB95301507K

36 8MM06401610A 37 8SA44400407A 38 231A0001238

◎39 231A0001239

40 231A0001240 41 8MM04281007A 42 2310001242 43 231A0001243 44 231A0001244

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 1 1 1 2 2 2 2 1 1 1 1 1 1 1 1

◎ 需整組購買 Must be sold in complete set

-24-

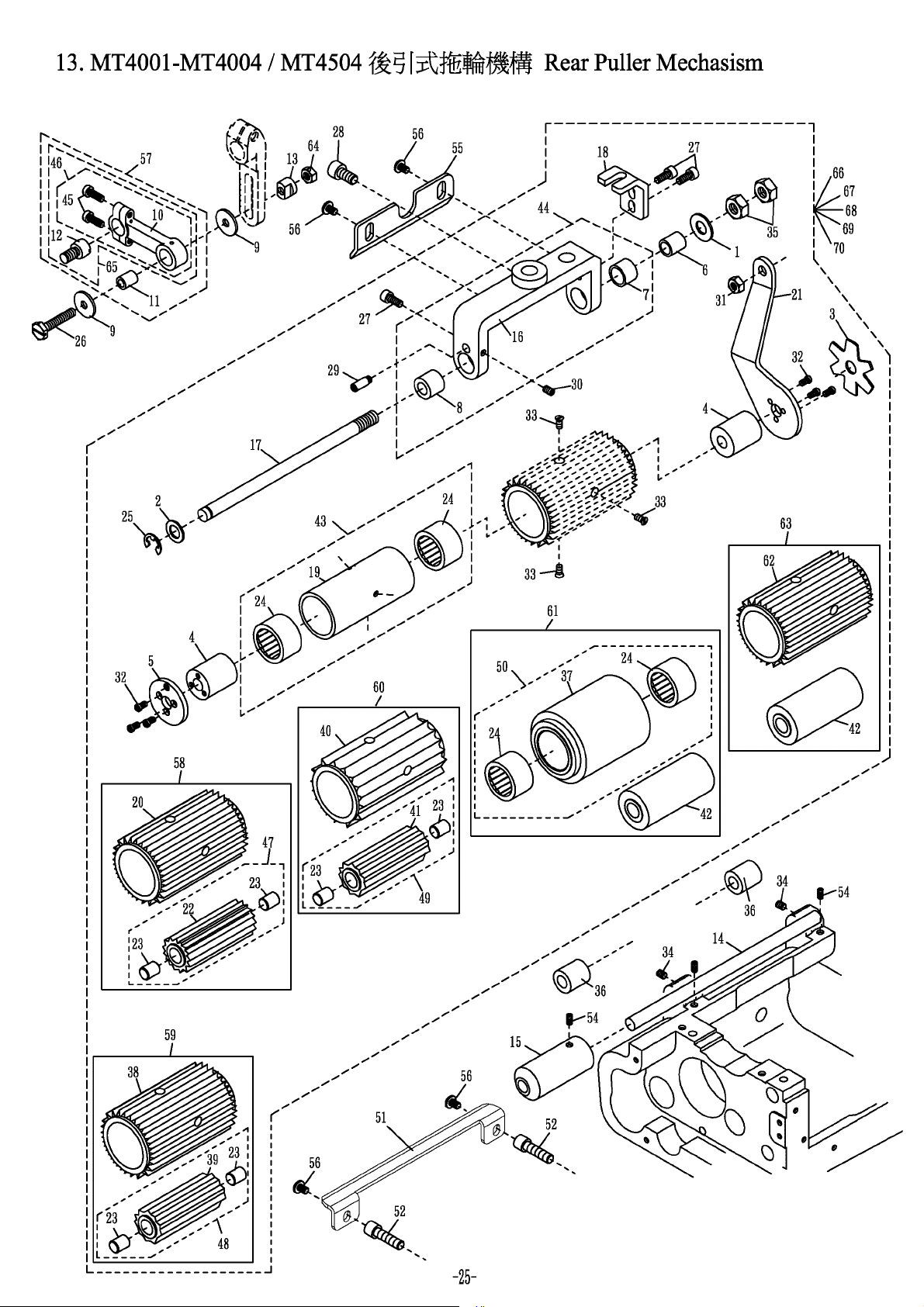

13. MT4001-MT4004 / MT45041iti§

[:cC*'1¥ffflm

Rear Puller Mechasism

-25-

墊圈

Washer -----------------------------------------------------------------------------------------------------------------------------------------------------

墊圈

Washer ----------------------------------------------------------------------------------------------------------------------------------------------------

星形壓環

Clutch Tension Spring -------------------------------------------------------------------------------------------------------------------------

離合器

Clutch --------------------------------------------------------------------------------------------------------------------------------------------------

封蓋

Cover -------------------------------------------------------------------------------------------------------------------------------------------------------

襯套

Clutch Tension Sleeve --------------------------------------------------------------------------------------------------------------------------------

軸襯

Bushing ----------------------------------------------------------------------------------------------------------------------------------------------------

軸襯

Bushing ---------------------------------------------------------------------------------------------------------------------------------------------------

墊圈

Washer ------------------------------------------------------------------------------------------------------------------------------------------------------

連桿

Link --------------------------------------------------------------------------------------------------------------------------------------------------------

襯套

Clutch Tension Sleeve --------------------------------------------------------------------------------------------------------------------------------

球狀接頭

Ball Joint -------------------------------------------------------------------------------------------------------------------------------------------

隔環

Spacer -----------------------------------------------------------------------------------------------------------------------------------------------------

軸

Shaft -----------------------------------------------------------------------------------------------------------------------------------------------------------

套筒

Clutch Sleeve --------------------------------------------------------------------------------------------------------------------------------------------

主動輪軸

Bracket ---------------------------------------------------------------------------------------------------------------------------------------------------

軸

Shaft -----------------------------------------------------------------------------------------------------------------------------------------------------------

導軌

Yoke Guide ----------------------------------------------------------------------------------------------------------------------------------------------

套筒

Clutch Sleeve --------------------------------------------------------------------------------------------------------------------------------------------

主動輪

Upper Feed Rollar (28

齒) ------------------------------------------------------------------------------------------------------------------------

拉柄

Clutch Driving Lever ---------------------------------------------------------------------------------------------------------------------------------

從動輪

Lower Feed Roller

(15齒) ------------------------------------------------------------------------------------------------------------------------

軸襯

Bushing ---------------------------------------------------------------------------------------------------------------------------------------------------

單向滾針軸承

Needle Bearing ---------------------------------------------------------------------------------------------------

形扣環

E Ring -----------------------------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT1326 M5-0.8*27) ------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (FT0203 M4-0.7*10) --------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (FT1103 M6-1*12) ---------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT1329 11/64"-40*3) ----------------------------------------------------------------------------------------------------------------------

螺絲

Screw (CT1223 M4-0.7*6) --------------------------------------------------------------------------------------------------------------------------

螺帽

Nut (RP0319 1/4"-40*4) ----------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT1332 1/8"-44*6) -------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (RP10217 9/64"-40*8) ----------------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT1334 M4-0.7*5) -----------------------------------------------------------------------------------------------------------------

螺帽

Nut (RP10208 M8-1.25*6) -------------------------------------------------------------------------------------------------------------------------

隔環

Spacer ------------------------------------------------------------------------------------------------------------------------------------------------

主動輪

Upper Feed Roller (0

齒) -----------------------------------------------------------------------------------------------------------------------

主動輪

Upper Feed Rollar (22

齒) --------------------------------------------------------------------------------------------------------------------

從動輪

Lower Feed Roller (12

齒) --------------------------------------------------------------------------------------------------------------------------

主動輪

Upper Feed Rollar (18

齒) --------------------------------------------------------------------------------------------------------------------

從動輪

Lower Feed Roller (10

齒) --------------------------------------------------------------------------------------------------------------------------

從動輪

Lower Feed Roller (0

齒) ---------------------------------------------------------------------------------------------------------------------------

套筒組

Clutch Sleeve Asm. ---------------------------------------------------------------------------------------------------------------------------------

主動輪軸組

Upper Feed Roller Shaft Asm. ----------------------------------------------------------------------------------------------------------------

螺絲

Screw (CT0621 M3.5-0.6*10) -------------------------------------------------------------------------------------------------------------------

連桿組

Link Asm. --------------------------------------------------------------------------------------------------------------------------------------------

從動輪組

Lower Feed Roller Asm. (15

齒) ----------------------------------------------------------------------------------------------------

從動輪組

Lower Feed Roller Asm. (12

齒) -------------------------------------------------------------------------------------------------------

從動輪組

Lower Feed Roller Asm. (10

齒) ----------------------------------------------------------------------------------------------------

從動輪組

Lower Feed Roller Asm.

(0齒) -----------------------------------------------------------------------------------------------------------

護蓋

Cover -------------------------------------------------------------------------------------------------------------------------------------------------

螺椿

Stud -----------------------------------------------------------------------------------------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT7-29 M5-0.8*6) ------------------------------------------------------------------------------------------------

護蓋

Cover -----------------------------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (UTB0130 M4-0.7*6) -------------------------------------------------------------------------------------------------------------

連桿組

Link Asm. --------------------------------------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm. ( P ) -----------------------------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm. ( P2 ) -----------------------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm. ( P1 ) -----------------------------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm. ( P0 ) -------------------------------------------------------------------------------------------------------------------------------------------

主動輪

Upper Feed Rollar (59

齒) ------------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm. ( P3 )--------------------------------------------------------------------------------------------------------------------------------------------

螺帽

Nut (CT1028 M5-0.8*4) -------------------------------------------------------------------------------------------------------------------

連桿組

Link Asm. --------------------------------------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm.(28

齒) ------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm.(22

齒) ------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm.(18

齒) ------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm.(0

齒) ------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm.(59

齒) ------------------------------------------------------------------------------------------------------------

13. MT4001-MT4004 / MT4504 後引式拖輪機構 Rear Puller Mechanism

序號物料編號名稱單位用量

Ref.No. Parts No. Description Amt. Req.

1 2310001301 2 2310001302 3 2310001303 4 23100013042 5 2310001305

6 2310001306 ◎7 2310001307 ◎8 2310001308

9 2310001309

◎10 2310001310

11 2310001311

◎12 2310001312

13 2310001313 14 2310001314 15 23100013151

◎16 2310001316

17 2310001317

18 23100013181 ◎19 23100013191 ◎20 2310001320

21 2310001321 ◎22 2310001322 ◎23 2310001323 ◎24 90NB2026161

25 90ER070

26 8MK05322710A

27 8MM04281007A

28 8MM06401210A

29 8SB44400305N

30 8MN04280600A

31 8SA64400409B

32 8SB32440604A

33 8SF36400606A

34 8MN04280500A

35 8MA08500613A

36 2310001336 ◎37 2310001337

38 2310001338 ◎39 2310001339

40 2310001340 ◎41 2310001341

42 2310001342

43 231A0001343

44 231A0001344 ◎45 8MB85241006K ◎46 231A0001346

47 231A0001347

48 231A0001348

49 231A0001349

50 231A0001350

51 23100013511

52 2310001352

53 ---------------------

54 8MN05320600A

55 2310001355

56 8MB04280608A

57 231A0001357

58 231A0001358

●59 231A0001359

●60 231A0001360

●61 231A0001361

62 2310001362

●63 231A0001363

64 8MA05320408A

65 231A0001365

66 231A0001366

67 231A0001367

68 231A0001368

69 231A0001369

70 231A0001370

1 1 1 2 1 1 1 1 2 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 1 1 3 1 1 1 1 6 3 2 2 2 1 1 1 1 1 1 1 1 2 1 1 1 1 1 1 2

3 1 4 1 1 1 1 1 1 1 1 1 1 1 1 1 1

◎ 需整組購買 Must be sold in complete set

● 特註品 Custom-made Item

-26-

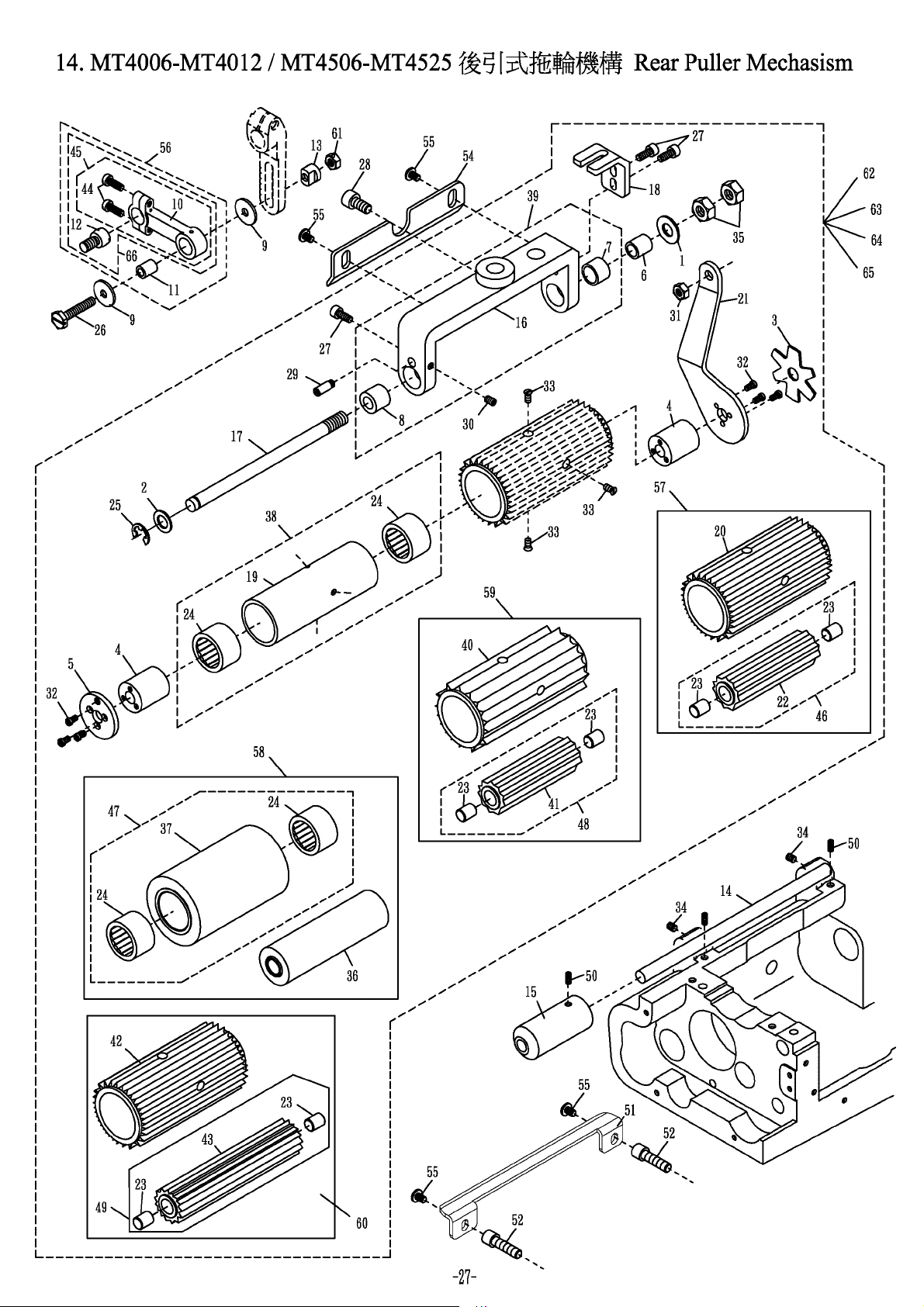

14. MT4006-MT4012 / MT4506-MT4525 ti§

[Atttifnafflffij

Rear Puller Mechasism

''l

C)_/

__________________________________

-27-

........

墊圈

Washer --------------------------------------------------------------------------------------------------------------------------------------------

墊圈

Washer --------------------------------------------------------------------------------------------------------------------------------------------

星形壓環

Clutch Tension Spring ----------------------------------------------------------------------------------------------------------------

離合器

Clutch -----------------------------------------------------------------------------------------------------------------------------------------

封蓋

Cover ----------------------------------------------------------------------------------------------------------------------------------------------

襯套

Clutch Tension Sleeve -----------------------------------------------------------------------------------------------------------------------

軸襯

Bushing ------------------------------------------------------------------------------------------------------------------------------------------

◎8

2310001308

軸襯

Bushing ------------------------------------------------------------------------------------------------------------------------------------------

墊圈

Washer -------------------------------------------------------------------------------------------------------------------------------------------

連桿

Link -----------------------------------------------------------------------------------------------------------------------------------------------

襯套

Clutch Tension Sleeve ----------------------------------------------------------------------------------------------------------------------

球狀接頭

Ball Joint --------------------------------------------------------------------------------------------------------------------------------

隔環

Spacer --------------------------------------------------------------------------------------------------------------------------------------------

軸

Shaft -------------------------------------------------------------------------------------------------------------------------------------------------

套筒

Clutch Sleeve ----------------------------------------------------------------------------------------------------------------------------------

主動輪軸

Bracket ----------------------------------------------------------------------------------------------------------------------------------

軸

Shaft --------------------------------------------------------------------------------------------------------------------------------------------------

導軌

Yoke Guide -------------------------------------------------------------------------------------------------------------------------------------

套筒

Clutch Sleeve ----------------------------------------------------------------------------------------------------------------------------------

◎20

2310001420

主動輪

Upper Feed Rollar

(22齒) ----------------------------------------------------------------------------------------------------------------

拉柄

Clutch Driving Lever ------------------------------------------------------------------------------------------------------------------------

從動輪

Lower Feed Roller

(12齒) ---------------------------------------------------------------------------------------------------------------

◎23

2310001323

軸襯

Bushing ------------------------------------------------------------------------------------------------------------------------------------------

◎24

90NB2026161

單向滾針軸承

Needle Bearing -------------------------------------------------------------------------------------------

形扣環

E Ring --------------------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT1326 M5-0.7*27) --------------------------------------------------------------------------------------------------------------

螺絲

Screw (FT0203 M4-0.7*10) ---------------------------------------------------------------------------------------------------------------

螺絲

Screw (FT1103 M6-1*12) ------------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT1329 11/64"-40*3) -----------------------------------------------------------------------------------------------------------

螺絲

Screw (CT1223 M4-0.7*6) -----------------------------------------------------------------------------------------------------------------

螺帽

Nut (RP0319 1/4"-40*4) -------------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT1332 1/8"-44*6) ----------------------------------------------------------------------------------------------------------------

螺絲

Screw (RP10217 9/64"-40*8) -------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT1334 M4-0.7*5) ---------------------------------------------------------------------------------------------------------------

螺帽

Nut (RP10208 M8-1.25*6) -----------------------------------------------------------------------------------------------------------------

從動輪

Lower Feed Roller (0

齒) -------------------------------------------------------------------------------------------------------------------------

◎37

2310001437

主動輪

Lower Feed Roller (0

齒) -------------------------------------------------------------------------------------------------------------------------

套筒組

Clutch Sleeve Asm. ------------------------------------------------------------------------------------------------------------------------

主動輪軸組

Upper Feed Roller Shaft Asm. ----------------------------------------------------------------------------------------------------

主動輪

Upper Feed Roller

(18齒) -----------------------------------------------------------------------------------------------------------------

從動輪

Lower Feed Roller (10

齒)---------------------------------------------------------------------------------------------------------------

主動輪

Upper Feed Roller

(28齒) ----------------------------------------------------------------------------------------------------------------

◎43

2310001443

從動輪

Lower Feed Roller

(15齒)---------------------------------------------------------------------------------------------------------------

◎44

8MB85241006K

螺絲

Screw (CT0621 M3.5-0.6*10) -------------------------------------------------------------------------------------------------------------

◎45

231A0001346

連桿組

Link Asm. ------------------------------------------------------------------------------------------------------------------------------------

從動輪組

Lower Feed Roller Asm. (12

齒) ---------------------------------------------------------------------------------------------------

從動輪組

Lower Feed Roller Asm. (0

齒) ------------------------------------------------------------------------------------------------------

從動輪組

Lower Feed Roller Asm. (10

齒) ---------------------------------------------------------------------------------------------------

從動輪組

Lower Feed Roller Asm. (15

齒) ----------------------------------------------------------------------------------------------------

螺絲

Screw (MT7-29 M5-0.8*6) ------------------------------------------------------------------------------------------------

護蓋

Cover ----------------------------------------------------------------------------------------------------------------------------------------------

螺椿

Stud ------------------------------------------------------------------------------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------------------------------------------------------

護蓋

Cover ------------------------------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (UTB0130 M4-0.7*6) ----------------------------------------------------------------------------------------------------------------

連桿組

Link Asm. ------------------------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm. ( P2 ) ---------------------------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm. ( P0 ) ------------------------------------------------------------------------------------------------------------------------------------------

●59

231A0001459

拖輪組

Puller Asm. ( P1 ) ------------------------------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm. ( P ) ------------------------------------------------------------------------------------------------------------------------------------------

螺帽

Nut (CT1028 M5-0.8*4) ------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm.

(28齒)----------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm.

(18齒)----------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm.

(22齒)----------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm. (0

齒) ------------------------------------------------------------------------------------------------------------------------------

連桿組

Link Asm. --------------------------------------------------------------------------------------------------------------------------------------------------

14. MT4006-MT4012 / MT4506-MT4525 後引式拖輪機構 Rear Puller Mechanism

序號物料編號名稱單位用量

Ref.No. Parts No. Description Amt. Req.

1 2310001301 2 2310001302 3 2310001303 4 23100013042 5 2310001305 6 2310001306

◎7 2310001307

9 2310001309

◎10 2310001310

11 2310001311 ◎12 2310001312

13 2310001313

14 2310001314

15 23100013151 ◎16 2310001416

17 2310001417

18 23100014181 ◎19 23100014191

21 2310001421

◎22 2310001422

25 90ER070

26 8MK05322710A

27 8MM04281007A

28 8MM06401210A

29 8SB44400305N

30 8MN04280600A

31 8SA64400409B

32 8SB32440604A

33 8SF36400606A

34 8MN04280500A

35 8MA08500613A

36 2310001436

38 231A0001438

39 231A0001439

40 2310001440 ◎41 2310001441

42 2310001442

46 231A0001446

47 231A0001447

48 231A0001448

49 231A0001449

50 8MN05320600A

51 23100013511

52 2310001352

53 ---------------------

54 2310001454

55 8MB04280608A

56 231A0001357

●57 231A0001457

●58 231A0001458

60 231A0001460

61 8MA05320408A

62 231A0001462

63 231A0001463

64 231A0001464

65 231A0001465

66 231A0001365

1 1 1 2 1 1 1 1 2 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 1 1 3 1 1 1 1 6 3 2 2 1 1 1 1 1 1 1 1 2 1 1 1 1 1 3 1 2

1 4 1 1 1 1 1 1 1 1 1 1 1

◎需整組購買 Must be sold in complete set

● 特註品 Custom-made Item

-28-

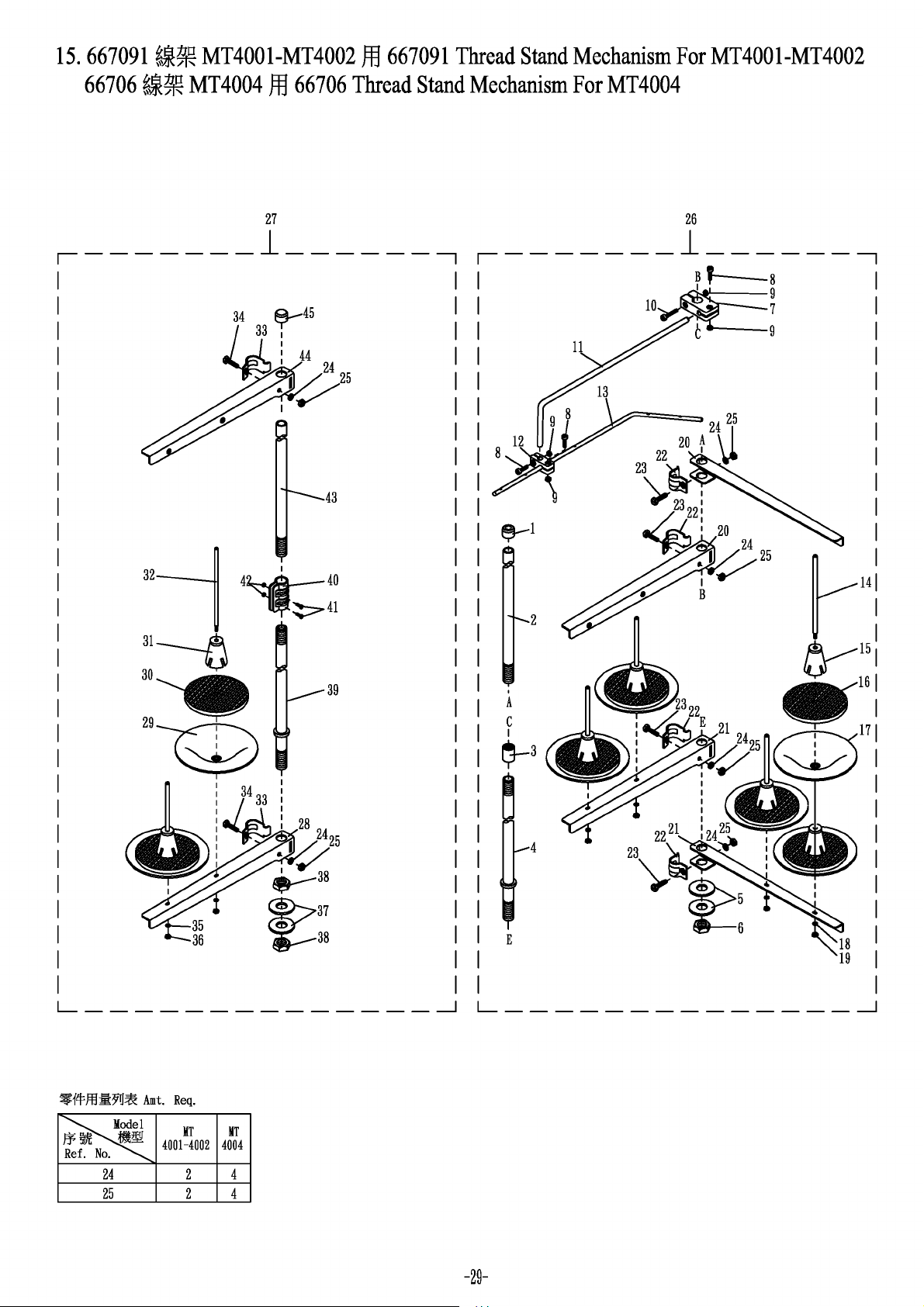

15.

667091

~JR~

MT4001-MT4002

ffl

667091

Thread

Stand

Mechanism

For

MT4001-MT4002

66706

~JR~

,-------

MT4004

ffl

66706

Thread

------,

Stand

Mechanism

For

,-------

e-1

MT4004

------,

BJ-

I 9

c 9

______________

4~40

~~41

______________

l!T

4001-4002

4004

2 4 2 4

-29-

◎1

667051

柱帽

Rod Cup ------------------------------------------------------------------------------------------------------

1◎2667052

上柱

Upper Thread Stand Rod ----------------------------------------------------------------------------------

1◎3667053

接頭

Joint --------------------------------------------------------------------------------------------------------------

◎4

667054

下柱

Lower Thread Stand Rod --------------------------------------------------------------------------------

1◎5667055

墊圈

Washer ------------------------------------------------------------------------------------------------------

2◎6667056

螺帽

Nut -----------------------------------------------------------------------------------------------

◎7

667057

接頭

Bracket ---------------------------------------------------------------------------------------

667058

螺絲

Screw --------------------------------------------------------------------------------------------

667059

螺帽

Nut -----------------------------------------------------------------------------------------------

6670510

螺絲

Screw --------------------------------------------------------------------------------------------

6670511

旋臂

Arm --------------------------------------------------------------------------------------------------

◎12

6670512

接頭

Bracket ---------------------------------------------------------------------------------------

6670513

導線桿

Thread Guide -------------------------------------------------------------------------------

6670515

線盤軸

Spool Pin ------------------------------------------------------------------------------------------------------

◎15

6670516

定心錐

Spool Retaining Fig ---------------------------------------------------------------------------------------------

◎16

6670517

緩衝墊

Seat ----------------------------------------------------------------------------------------------------------------

6670518

線盤

Spool Set ----------------------------------------------------------------------------------------------------------------------------

6670519

彈簧墊圈

Spring Washer ------------------------------------------------------------------------------------------------------

6670520

螺帽

Nut -----------------------------------------------------------------------------------------------------------------------

6670531

導線臂

Thread Arm -------------------------------------------------------------------------------

線盤座

Spool Set Bracket --------------------------------------------------------------------------

◎22

6670523

夾板

Clamp ----------------------------------------------------------------------------------------------------------------------

6670524

螺絲

Screw -------------------------------------------------------------------------------------------------------------

6670525

彈簧墊圈

Spring Washer ------------------------------------------------------------------------------------------------------------------

6670526

螺帽

Nut -----------------------------------------------------------------------------------------------------------------------

線架組

Thread Stand Asm (MT4004)--------------------------------------------------------------------------

線架組

Thread Stand Asm (MT4001-MT4002)-------------------------------------------------------------------------

線盤座

Spool Set Bracket --------------------------------------------------------------------------

線盤

Spool Set ---------------------------------------------------------------------------------------------------------------

緩衝墊

Seat ----------------------------------------------------------------------------------------------------------

線盤軸

Spool Pin -------------------------------------------------------------------------------------------------------

◎32

667096

定心錐

Spool Retaining Fig ---------------------------------------------------------------------------------------------

◎33

667097

夾板

Clamp -------------------------------------------------------------------------------------------------------------------

螺絲

Screw --------------------------------------------------------------------------------------------

彈簧墊圈

Spring Washer -------------------------------------------------------------------------------------------

螺帽

Nut --------------------------------------------------------------------------------------------------------------------------------

◎37

6670911

墊圈

Washer ------------------------------------------------------------------------------------------------------

螺帽

Nut -----------------------------------------------------------------------------------------------

◎39

6670913

下柱

Lower Thread Stand Rod --------------------------------------------------------------------------------

◎40

6670914

夾板

Clamp ---------------------------------------------------------------------------------------------------------------

螺絲

Screw --------------------------------------------------------------------------------------------

螺帽

Nut -----------------------------------------------------------------------------------------------

◎43

6670917

上柱

Upper Thread Stand Rod ----------------------------------------------------------------------------------

導線臂

Thread Arm -------------------------------------------------------------------------------

◎45

6670919

孔塞

Cap ------------------------------------------------------------------------------------------------------

15. 667091 線架 MT4001-MT4002 用 667091 Thread Stand Mechanism For MT4001-MT4002

66706 線架 MT4004 用 66706 Thread Stand Mechanism For MT4004

序號物料編號名稱單位用量

Ref.No. Parts No. Description Amt. Req.

◎8

◎9

◎10 ◎11

◎13 ◎14

◎17 ◎18 ◎19 ◎20 ◎21 667061

◎23 ◎24 ◎25 ◎26 66706 ◎27 667091 ◎28 667092 ◎29 667093 ◎30 667094 ◎31 667095

3 4 1 1

1 4

4 4 4 4 2 2

1 1 1 2 2 2

◎34 667098 ◎35 667099 ◎36 6670910

◎38 6670912

◎41 6670915 ◎42 6670916

◎44 6670918

◎需整組購買 Must be sold in complete set

2 2 2

2 2

-30-

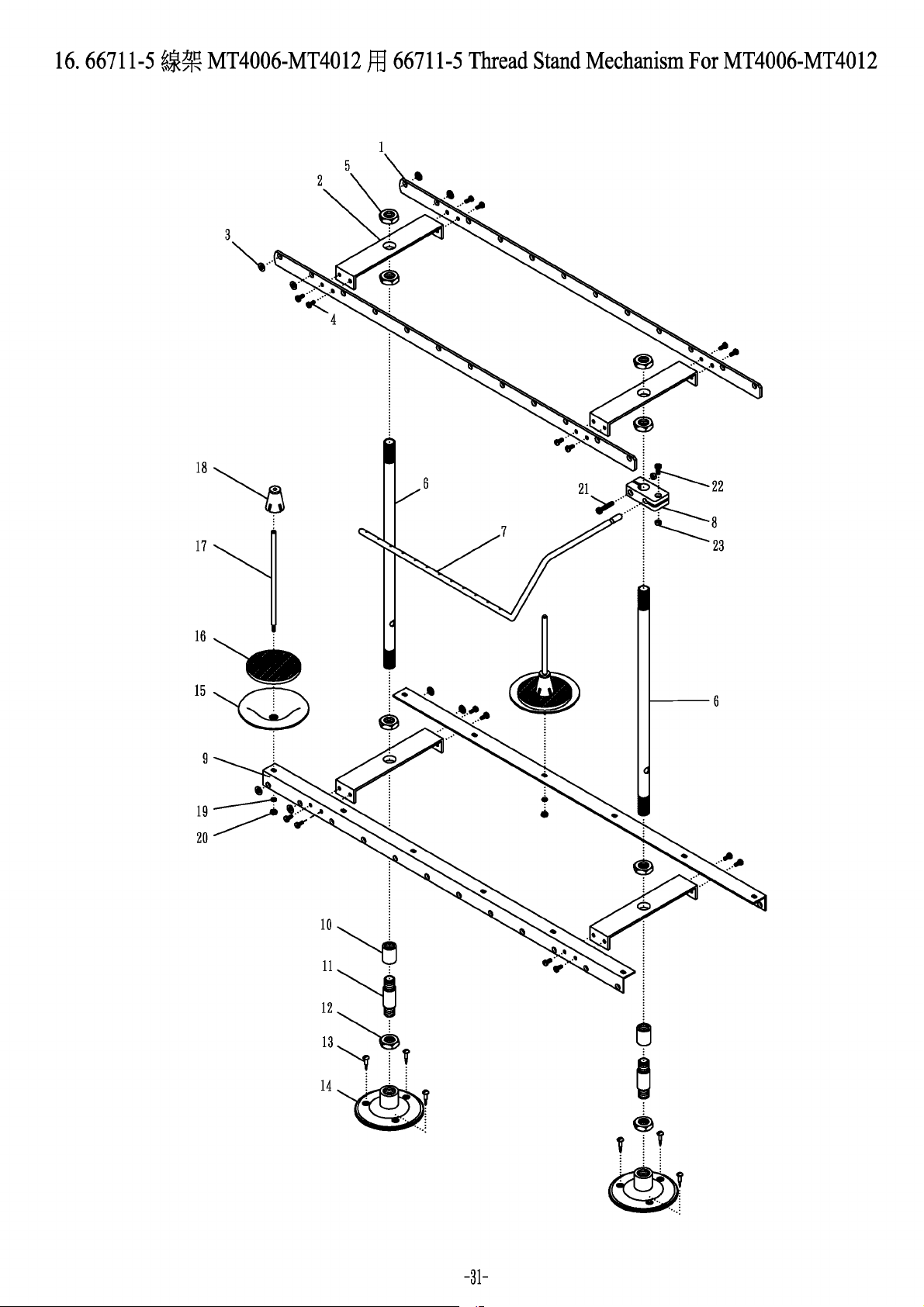

16.

66711-5

it~

18~

MT4006-MT4012

~--·

ffl

66711-5

Thread

Stand

Mechanism

For

MT4006-MT4012

1-----6

-31-

導線桿

Thread Guide -------------------------------------------------------------------------------

◎2

66711502

支架

Holder -------------------------------------------------------------------------------------------

◎3

66711503

導線

Thread Guide -----------------------------------------------------------------------------------

◎4

66711504

螺絲

Screw --------------------------------------------------------------------------------------------

◎5

66711505

螺帽

Nut -----------------------------------------------------------------------------------------------

◎6

66711506

柱

Thread Stand Rod -------------------------------------------------------------------------------

◎7

66711507

旋臂

Arm --------------------------------------------------------------------------------------------------

◎8

66711508

接頭

Joint -------------------------------------------------------------------------------------------------------------

◎9

66711509

線盤座

Spool Set Bracket --------------------------------------------------------------------------

◎10

66711510

軸襯

Bushing ----------------------------------------------------------------------------------------------------------

◎11

66711511

螺椿

Stud ----------------------------------------------------------------------------------------------------------------

◎12

66711512

螺帽

Nut -----------------------------------------------------------------------------------------------

◎13

66711513

螺絲

Screw --------------------------------------------------------------------------------------------

◎14

66711514

基座

Base ----------------------------------------------------------------------------------------------

◎15

66711515

線盤

Spool Set ------------------------------------------------------------------------------------------------------------

◎16

66711516

緩衝墊

Seat ---------------------------------------------------------------------------------------------------------

◎17

66711517

線盤軸

Spool Pin ----------------------------------------------------------------------------------------------------

◎18

66711518

線盤軸

Spool Pin -------------------------------------------------------------------------------------------------

◎19

66711519

彈簧墊圈

Spring Washer ---------------------------------------------------------------------------

◎20

66711520

螺帽

Nut -----------------------------------------------------------------------------------------------

◎21

66711521

螺絲

Screw --------------------------------------------------------------------------------------------

◎22

66711522

螺絲

Screw --------------------------------------------------------------------------------------------

◎23

66711523

螺帽

Nut -----------------------------------------------------------------------------------------------

16. 66711-5 線架 MT4006-MT4012 用 66711-5 Thread Stand Mechanism For MT4006-4012

序號物料編號名稱單位用量

Ref.No. Parts No. Description Amt. Req.

◎1 66711501

2 4

48 16

6 2 1 1 2 2 2 2 6 2

12 12 12 12 12 12

1 1 2

◎需整組購買 Must be sold in complete set

-32-

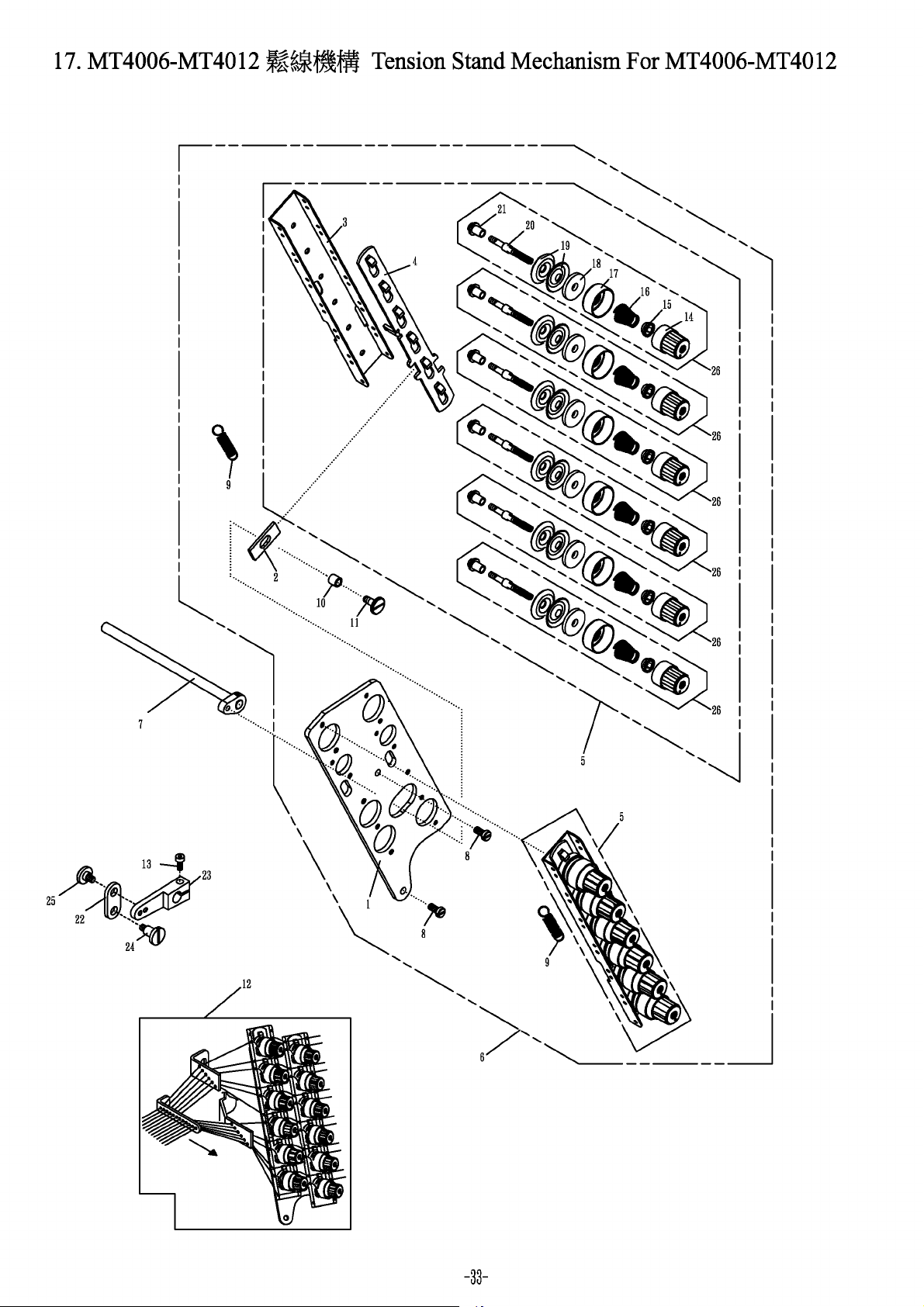

17.

MT4006-MT4012

~iJRfflif.pj

Tension Stand Mechanism For MT4006-MT4012

-33-

17. MT4006-MT4012 鬆線機構 Tension Stand Mechanism For MT4006-4012

鬆線座

Tension Post Support --------------------------------------------------------------------------------------

活動片

Plate --------------------------------------------------------------------------------------------------

導線座

Tension Post Support ----------------------------------------------------------------------------------

鬆線板

Release Wedge -----------------------------------------------------------------------------------------------------

鬆線組

Thread Tension Mechanism -----------------------------------------------------------------------------------------

鬆線組

Thread Tension Mechanism ---------------------------------------------------------------------------------------

軸

Shaft -----------------------------------------------------------------------------------------------------

螺絲

Screw (M5-0.8*12) (MT0332) ---------------------------------------------------------------------

彈簧

Spring ---------------------------------------------------------------------------------------------------

隔環

Spacer (See left Page) (CT03091) --------------------------------------------------------------------

螺樁

Stud (See left Page) (CT03081) -----------------------------------------------------------------------

貼紙

Paste -------------------------------------------------------------------------------------------------------------

螺絲

Srew -------------------------------------------------------------------------------------------------

張力調整螺帽

Tension Nut (Blue) (SH1121) -----------------------------------------------------------------------

套管

Bushing (See left Page) (SH1122) -------------------------------------------------------------------

彈簧

Spring (Blue) (SH1132) -------------------------------------------------------------------------------

彈簧座

Spring Seat (See left Page)(CT0305) -----------------------------------------------------------

羊毛氈

Felt (See left Page)(SH1127) ---------------------------------------------------------------------

張力控制盤

Tension Disc (See left Page)(SH1126) ---------------------------------------------------

螺樁

Stud (See left Page) -----------------------------------------------------------------------

隔環

Spacer (See left Page) --------------------------------------------------------------------

連桿

Link -----------------------------------------------------------------------------------------------------

曲枘

Lever ----------------------------------------------------------------------------------------------------------------

螺椿

Stud ---------------------------------------------------------------------------------------------------------

螺椿

Stud ------------------------------------------------------------------------------------------------------------------

張力調整組

Tension Asm (Blue) -----------------------------------------------------------------------

序號物料編號名稱單位用量

Ref.No. Parts No. Description Amt. Req.

1 2320001701 2 2320001702 3 2320001703 4 2320001704 5 232A0001705 6 232A0001706 7 2310001905 8 8MC05321208A

9 2310000310 10 2310001910 11 2310001911 12 66441-2 13 8MK95301407A 14 2100001121B 15 2200000303 16 2100001132 17 2200000305 18 2100001127 19 2100001126 20 22000003081 21 22000003091 22 2310000341 23 2310000342 24 2310000343 25 2310000344 26 231A0001923

1 1 2 2 2 1 1 2 2 1 1 1

1 12 12 12 12 12 24 12 12

-34-

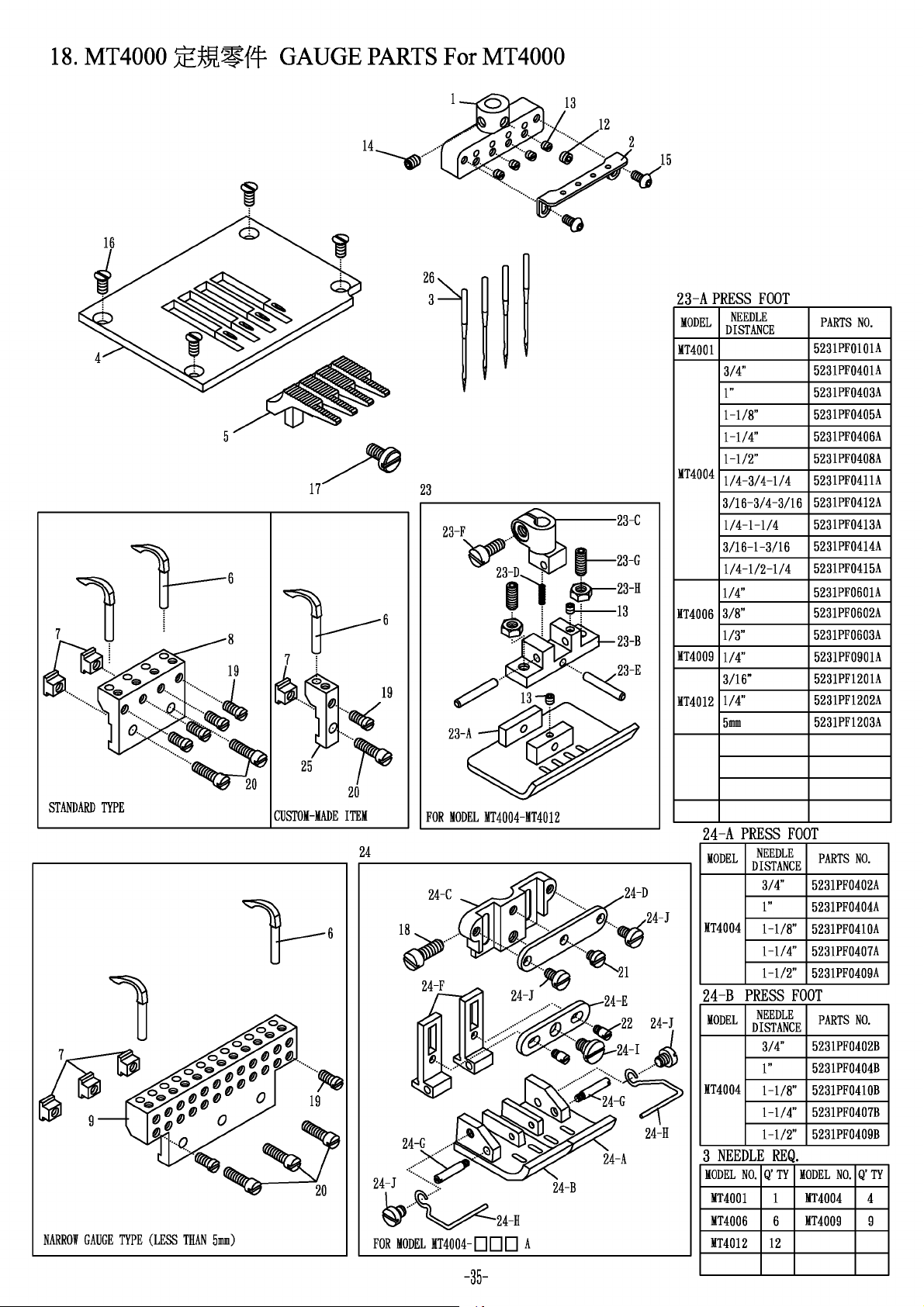

18.

MT4000

51:m.~{tf:

GAUGE

17~

PARTS

14~----------

For

MT4000

23-A

PRESS

MODEL

MT4001

MT4004

MT4006

MT4009

MT4012

FOOT

NEEDLE

DISTANCE

3/4" 1" 1-1/8" 1-1/4" 1-1/2" 1/4-3/4-1/4

3/16-3/4-3/16

1/4-1-1/4

3/16-1-3/16

1/4-1/2-1/4

1/4" 3/8" 1/3" 1/4" 3/16" 1/4" 5mm

PARTS

NO.

5231PF0101A 5231PF0401A 5231PF0403A 5231PF0405A 5231PF0406A 5231PF0408A 5231PF0411A 5231PF0412A 5231PF0413A 5231PF0414A 5231PF0415A

5231PF0601A 5231PF0602A 5231PF0603A 5231PF0901A 5231PF1201A 5231PF1202A 5231PF1203A

STANDARD

NARROW

TYPE

GAUGE

TYPE

(LESS

THAN

5mm)

CUSTOM-MADE

ITEM

1-6

FOR

MODEL

MT4004-MT4012

24-A

PRESS

MODEL

MT4004

24-B

MODEL

MT4004

NEEDLE

MODEL

NO. MT4001 MT4006

MT4012

FOOT

NEEDLE

DISTANCE

3/4" 1" 1-1/8" 1-1/4" 1-1/2"

PRESS

FOOT

NEEDLE

DISTANCE

3/4" 1" 1-1/8" 1-1/4" 1-1/2"

REQ.

Q'TY

1 6

PARTS

NO.

5231PF0402A 5231PF0404A 5231PF0410A 5231PF0407A 5231PF0409A

PARTS

NO.

5231PF0402B 5231PF0404B 5231PF0410B 5231PF0407B 5231PF0409B

NO.

Q'TY

MODEL

MT4004 MT4009

-35-

18. MT4000 定規零件 Gauge Parts For MT4000

針留

Needle Clamp ------------------------------------------------------------------------------------------------------------

導線

Thread Guide ---------------------------------------------------------------------------------------------------------

針

UO113 #14 Needle ---------------------------------------------------------------------------------------

針板

Needle Plate --------------------------------------------------------------------------------------------------------

狗齒

Feed Dog ----------------------------------------------------------------------------------------

結線鉤

Retainer Lopper ------------------------------------------------------------------------------------

承座

Bracker ------------------------------------------------------------------------------------------------

結線鉤座

Looper Holder ----------------------------------------------------------------------------------

結線鉤座

Looper Holder ------------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (FT1222 M4-0.7*5) ----------------------------------------------------------------------

螺絲

Screw (S04-65 1/8"-44*2.5) -------------------------------------------------------------------------

螺絲

Screw (CT0229 M4-0.7*4) -------------------------------------------------------------------------

螺絲

Screw (MT0142 M3-0.5*6) --------------------------------------------------------------------

螺絲

Screw (SH0530 9/64"-40*8) ---------------------------------------------------------------------

螺絲

Screw (MT1817 11/64"-40*6) -------------------------------------------------------------------

螺絲

Screw (CT0706 M4.5-0.75*12) ------------------------------------------------------------------

螺絲

Screw (MT1819 9/64"-40*7) --------------------------------------------------------------------

螺絲

Screw (MT1820 9/64"-40*12) ------------------------------------------------------------------

螺絲

Screw (PMD010166 M3.5-0.6*4) --------------------------------------------------------------------

螺絲

Screw (MT1827 M3-0.5*3) -----------------------------------------------------------------------

壓腳

Presser Foot ----------------------------------------------------------------------------------------

壓腳底

Presser Foot Guide (See Left Page )------------------------------------------------------------

壓腳連桿

Presser Foot Link ----------------------------------------------------------------------------

壓腳柄

Presser Foot Arm -------------------------------------------------------------------------------

壓縮彈簧

Spring -----------------------------------------------------------------------------------------

固定銷

Pin ---------------------------------------------------------------------------------------------------

螺絲

Screw (CT1237 M4-0.7*10) ---------------------------------------------------------------------

螺絲

Screw (CT0216 M4-0.7*10) ------------------------------------------------------------------------

螺帽

Nut (CT0238 M4-0.7*3) ---------------------------------------------------------------------------

壓腳

Presser Foot -------------------------------------------------------------------------------------------

壓腳底(右)

Presser Foot Guide (Right) (See Left Page )-------------------------------------------------

壓腳底(左)

Presser Foot Guide (Left) (See Left Page )----------------------------------------------------

壓腳座

Presser Foot Bracket ----------------------------------------------------------------------------

檔片

Plate --------------------------------------------------------------------------------------------------

連桿

Link -------------------------------------------------------------------------------------------------

滑塊

Bracket ----------------------------------------------------------------------------------------------

銷

Pin ------------------------------------------------------------------------------------------------------

護指環

Safety Plate Holder ------------------------------------------------------------------------------

螺絲

Screw (M4.5-0.75*4) ------------------------------------------------------------------------------

螺絲

Screw (CT0637 M3.5-0.6*6) ---------------------------------------------------------------------

結線鉤座

Looper Holder --------------------------------------------------------------------------------

針

UO113 #18 Needle ----------------------------------------------------------------------------------------

序號物料編號名稱單位用量

Ref.No. Parts No. Description Amt. Req.

1 -------------2 -------------3 66729-14 4 -------------5 -------------6 5232LL0001 7 2310001807 8 --------------

9 -------------10 -------------11 -------------12 8MN04280500C 13 8S32440300A 14 8MN04280400A 15 8MP03200606A 16 8SE36400806A 17 8SC44400909S 18 8MB95301107A 19 8SC36400705K 20 8SB36401205K 21 8MB85240406K 22 8MB03200304M 23 --------------

23-A -------------23-B 5231PF0401B 23-C 5231PF0401C 23-D 5231PF0401D 23-E 5231PF0401E 23-F 8MB04281007K 23-G 8MN04281000A 23-H 8MA04280307A

24 --------------

24-A -------------24-B -------------24-C 5231PF0404C 24-D 5231PF0404D 24-E 5231PF0404E 24-F 5231PF0404F 24-G 5231PF0404G 24-H 5231PF0404H 24-I 5231PF0404I 24-J 8MB85240607K

25 2310001828

*26 66729-18

1 1 1 1 1

1 1

1 2 4 1 1

1 2 1

1 1 1

2 2 1

1 1 1 2 2 2 1 4 1 1

* For MT4512 Bigger Eyelet Hole

-36-

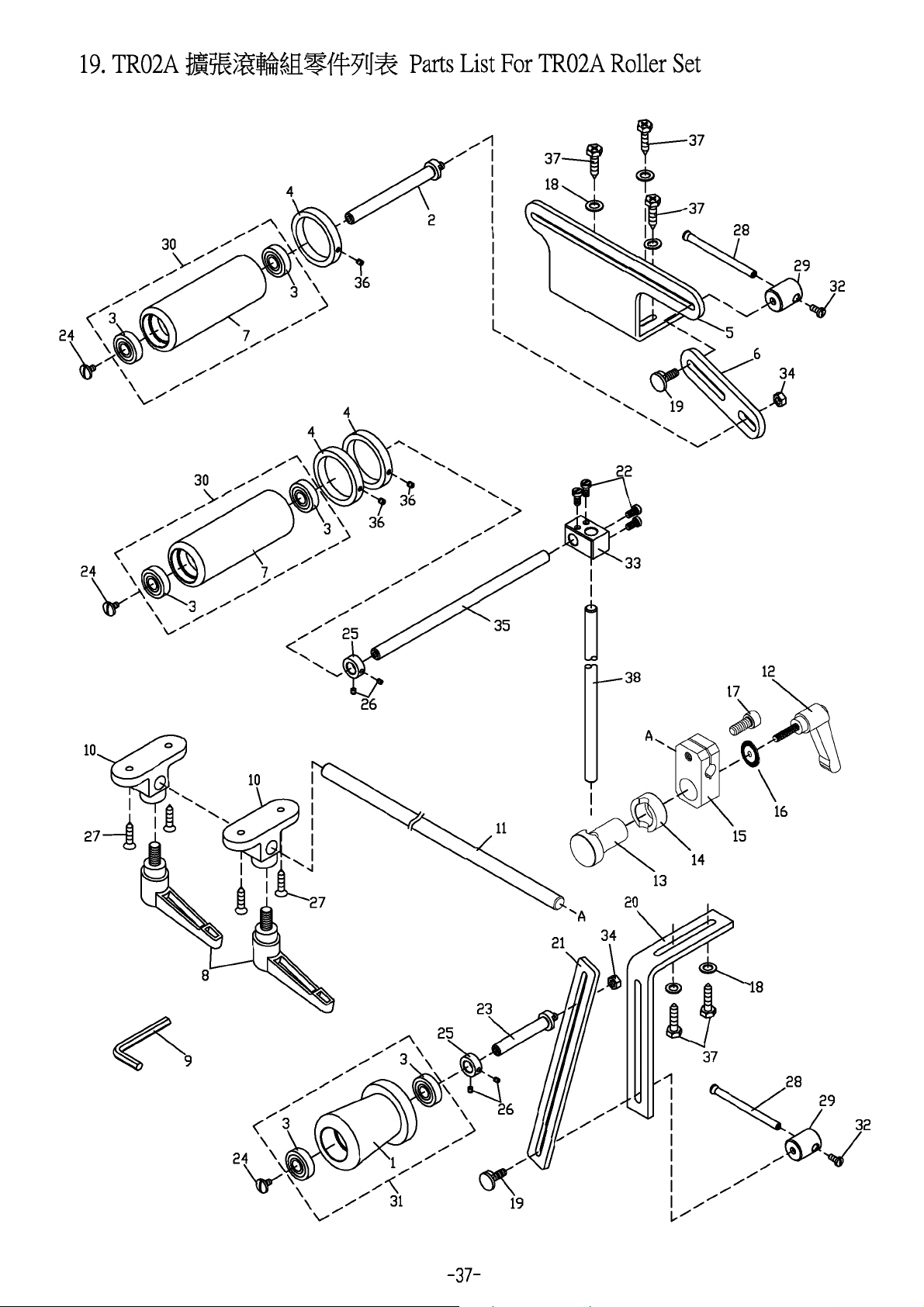

19.

TR02A

tl5R5f~ffi

~{~JU*

Parts

List

For

TR02A

Roller

Set

I I

u~8

-37-

I I

L,/

,,,.

19. TR02A 擴張滾輪組零件列表 Part List For TR02A Roller Set

物料編號

名稱

單位用量

滾輪

Roller -----------------------------------------------------------------------------------------------------------

軸

Shafe --------------------------------------------------------------------------------------------------------------

滾珠軸承

Ball Bearing ------------------------------------------------------------------------------------

鬆緊帶導模

Elastic Tape Guide ------------------------------------------------------------------------------------------

滾輪座

Roller Seat ---------------------------------------------------------------------------------------------

4TR0020106

滾輪臂

Roller Holder Arm ---------------------------------------------------------------------------------------

滾輪

Roller -----------------------------------------------------------------------------------------------------------

固定鈑手

Lock Lever ---------------------------------------------------------------------------------

六角扳手

Spanner 6MM -----------------------------------------------------------------------------------------

支架座

Holder Bracket Seat -------------------------------------------------------------------------------------

4TR03A0111

支架

Holder Bracket --------------------------------------------------------------------------------------------

固定板手

Lock Lever ---------------------------------------------------------------------------------

連接塊

Connecting Block --------------------------------------------------------------------------------------------------

連接塊

Connecting Block --------------------------------------------------------------------------------------------------

連接塊

Connecting Block ----------------------------------------------------------------------------------------

墊圈

Washing ---------------------------------------------------------------------------------------------------

螺絲

Screw (CT0106 M8-1.25*20) --------------------------------------------------------------------------

墊圈

Washing ---------------------------------------------------------------------------------------------------

4TR0020119

螺樁

Stud ------------------------------------------------------------------------------------------------------------

4TR0020120

滾輪臂

Roller Holder Arm --------------------------------------------------------------------------------------

4TR0020121

滾輪臂

Roller Holder Arm --------------------------------------------------------------------------------------

螺絲

Screw (CT0233 M5-0.8*10) ----------------------------------------------------------------------------------------------

軸

Shafe --------------------------------------------------------------------------------------------------------------

螺絲

Screw (CL450424 11/64"-40*8) -----------------------------------------------------------------------

定位環

Collar ---------------------------------------------------------------------------------------------------------

螺絲

Screw (CT0923 M3.5-0.6*5) --------------------------------------------------------------------------

木螺絲

Wood Screw (CL450427) ----------------------------------------------------------------------------

柄

Handle ----------------------------------------------------------------------------------------------------------

4TR0020129

止動塊

Tension Roller Slider Stop ----------------------------------------------------------------------------------------------------

滾輪組

Roller Asm.-----------------------------------------------------------------------------------------------------------

滾輪

Roller Asm.-----------------------------------------------------------------------------------------------------------

螺絲

Screw (SH1225 11/64"-40*10) ------------------------------------------------------------------------

連接塊

Connecting Block --------------------------------------------------------------------------------------------------

螺帽

Nut (CT0533) ----------------------------------------------------------------------------------------------

支架

Holder Bracket -----------------------------------------------------------------------------------------------------------

螺絲

Screw (CT1134 M4-0.7*4) -------------------------------------------------------------------------

木螺絲

Wood Screw (CL450408) ----------------------------------------------------------------------------

支架

Holder Bracker ---------------------------------------------------------------------------------------------------------

序號

Ref.No Parts No. Description Ａmt.Req.

1 4TR00201011 2 4TR00201021 3 90BB1026082 4 4TR0020104 5 4TR0020105 6 7 4TR00201071 8 4TR0020108

9 66641 10 4TR0020110 11 12 4TR03A0112 13 4TR03A0113 14 4TR03A0114 15 4TR03A0115 16 4TR03A0116 17 8MM08502013A 18 2200000910 19 20 21 22 8MB05321008K 23 4TR0020123 24 8SC44400812A 25 4TR0020125 26 8MH85240500A 27 8WE37002400A 28 4TR0020128 29 30 4TR002A0130 31 4TR002A0131 32 8SC44401008A 33 2200850421 34 8MA06400510A 35 2270850423 36 8MH04280400A 37 8WK45002900C 38 4TR03A0105

1 1 6 3 1 1 2 2 1 2 1 1 1 1 1 1 1 5 2 1 1 4 1 3 2 4 4 2 2 2 1 2 1 2 1 3 5 1

-38-

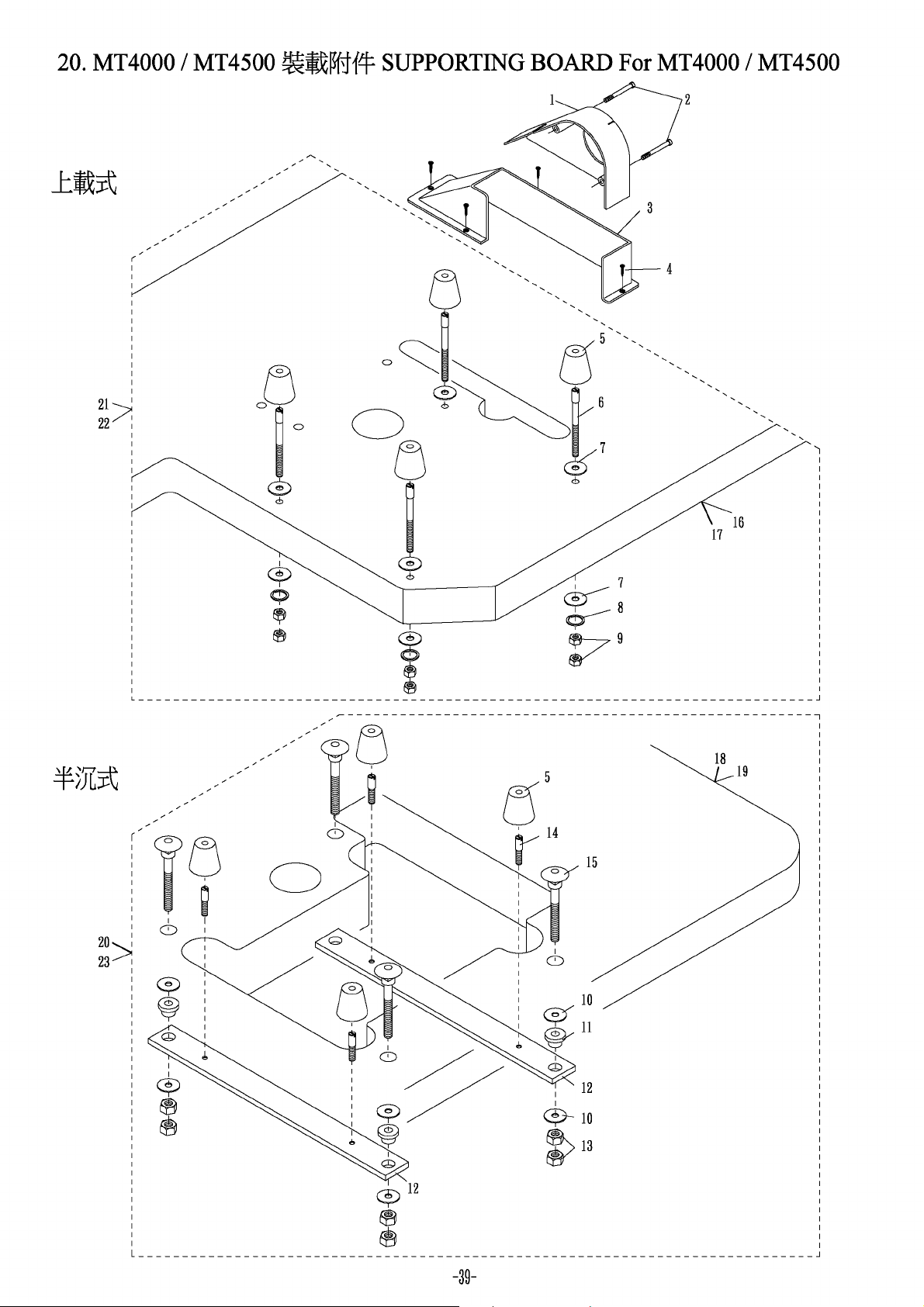

20.

MT4000 I MT4500

21~ 22

~~j){j{tf:

o~o

<!:,

SUPPORTING

<!:,

BOARD

For

MT4000 / MT4500

20~

<!:,

$-10

~13

-39-

20. MT4000 / MT4500 裝載附件 Supporting Board For MT4000 / MT4500

皮帶蓋

Belt Cover --------------------------------------------------------------------------------------------------

螺絲

Screw (M6-1*56) (MT2002) --------------------------------------------------------------------------------

皮帶蓋

Belt Cover --------------------------------------------------------------------------------------------------

木螺絲

Screw (CT1516) ---------------------------------------------------------------------------------------------

減震橡膠

Rubber Cushion ------------------------------------------------------------------------------------------

螺樁

Bolt (CT1507 M6-1*65) --------------------------------------------------------------------------------------

墊圈

Washer (CT1504) ----------------------------------------------------------------------------------------------------------

彈簧墊圈

Spring Washer (CT1505) -------------------------------------------------------------------------------------------

螺帽

Nut (SH0242 M6-1*6) ----------------------------------------------------------------------------------------

墊圈

Washer ------------------------------------------------------------------------------------------------------------------------

橡膠環

Rubber Washer -----------------------------------------------------------------------------------------------------------

車頭承板

Supporting Board ------------------------------------------------------------------------------------------------------

螺帽

Nut (CT1514 5/16"-18*6) ---------------------------------------------------------------------------------------------------------------

螺樁

Stud (CT1503 M6-1*16) --------------------------------------------------------------------------------------------------------------

懸吊螺樁

Bolt -----------------------------------------------------------------------------------------------------------------------

上載式長車板

Long Table Top Type

(12-25針)------------------------------------------------------------------------------------------------

上載式短車板

Short Table Top Type

(1-25針)------------------------------------------------------------------------------------------------

半沉式車板

Semi-Submerged Type

(1-25針)------------------------------------------------------------------------------------------------

半沉式車板

Semi-Submerged Type With "PS001"Devic

(含

PS001) ------------------------------------------------------------------------------------------------

半沉式車板組

Semi-Submerged Type Asm.(1-25

針)------------------------------------------------------------------------------------------------

上載式短車板組

Short Table Top Type Asm.

(1-25針)------------------------------------------------------------------------------------------------

上載式長車板組

Long Table Top Type Asm.

(12-25針)------------------------------------------------------------------------------------------------

半沉式車板

Semi-Submerged Type With "PS001"Devic Asm.

(含

PS001) ------------------------------------------------------------------------------------------------

序號物料編號名稱單位用量

Ref.No. Parts No. Description Amt. Req.

1 2310002001

2 8MB06405609S

3 2310002003

4 8WF03131706A

5 66944

6 8MB06406507B

7 2200001504

8 90SW070

9 8MA06400612A 10 2200001510 11 2200001511 12 2310002012 13 8SA79180613A 14 8MB06401607M 15 8SC79187827B

●16 66816-2 17 66816-3

●18 66816-4

●19 66816-5

●20 FS004 21 FS005

●22 FS006

●23 FS007

1 2 1 4 4 4 8 4 8 8 4 2 8 4 4

● 特註品 Custom-made Item

-40-

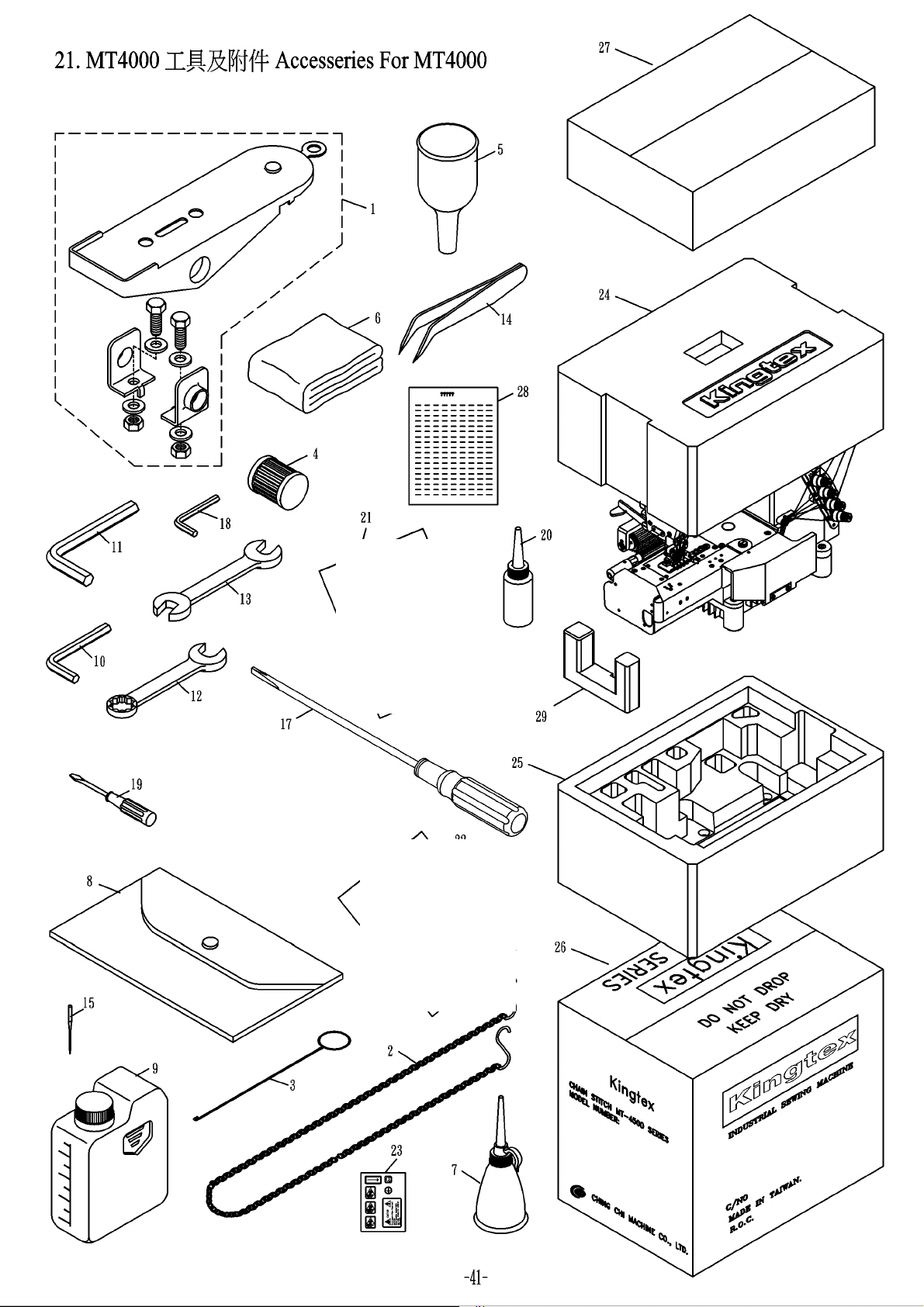

21.

MT4000

IJl.&~1{tf:

Accesseries

For

MT4000

"'"

~18

-41-

21. MT4000 工具及附件 Accesseries For MT4000

踏板組

Pedel Complete ----------------------------------------------------------------------------------

鍊條組

Chain Set -----------------------------------------------------------------------------------------

穿線鋼絲

Threading Bar --------------------------------------------------------------------------------

過濾器

Oil Filter (SH1521)-------------------------------------------------------------------------------------------

漏斗

Oil Funnel -------------------------------------------------------------------------------------------

防塵罩

Mechine Cover ----------------------------------------------------------------------------------

油壺

Oiler ---------------------------------------------------------------------------------------------------

工具袋

Bag (AM-6751)-------------------------------------------------------------------------------------

油罐

Oil Container ----------------------------------------------------------------------------------------

六角扳手

Spanner 3MM --------------------------------------------------------------------------------

六角扳手

Spanner 4MM --------------------------------------------------------------------------------

梅花扳手

Wrench 10MM -------------------------------------------------------------------------------

開口扳手

Wrench 7/8MM ------------------------------------------------------------------------------

鑷子

Tweezer -----------------------------------------------------------------------------------------------

備用針

UO113 #14 Retainer Needle ---------------------------------------------------------------------------------

------------------------------------------------------------------------------------------------------------------

木柄一字起子

Wooden Handle Flat Screw Driver -------------------------------------------------------------------------------

六角扳手

Spanner 1.5MM (UTB0439) ---------------------------------------------------------------

小起子

Screw Driver (Small) ---------------------------------------------------------------------------

矽油

Silicon Oil --------------------------------------------------------------------------------------------

6MT6306-C-05-10

零件冊

Parts List ------------------------------------------------------------------------------------------

6MT62E6-1-03-05

使用說明書

Instruction Manual ------------------------------------------------------------------------

貼紙

Paster --------------------------------------------------------------------------------------------------

保利龍

Styroform -----------------------------------------------------------------------------------------

66746-2

保利龍

Styroform -----------------------------------------------------------------------------------------

紙箱

Carton ------------------------------------------------------------------------------------------------

附件盒紙箱

Carton ---------------------------------------------------------------------------------------

保質保證書

Guarautee ----------------------------------------------------------------------------------

保利龍

Styroform --------------------------------------------------------------------------------------------

序號物料編號名稱單位用量

Ref.No. Parts No. Description Amt. Req.

1 66700 2 66695 3 66840 4 2100001521 5 66720 6 66846 7 66721 8 66831

9 66715 10 66636 11 66637 12 66612 13 66613 14 66690 15 66729-14-5 16 -------------------17 66671 18 66639 19 66667 20 66722 21 22 23 66452 24 66746-1 25 26 66411 27 66411-1 28 66200 29 66746-3

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1 1 1 1

-42-

Kingtex MT4000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
