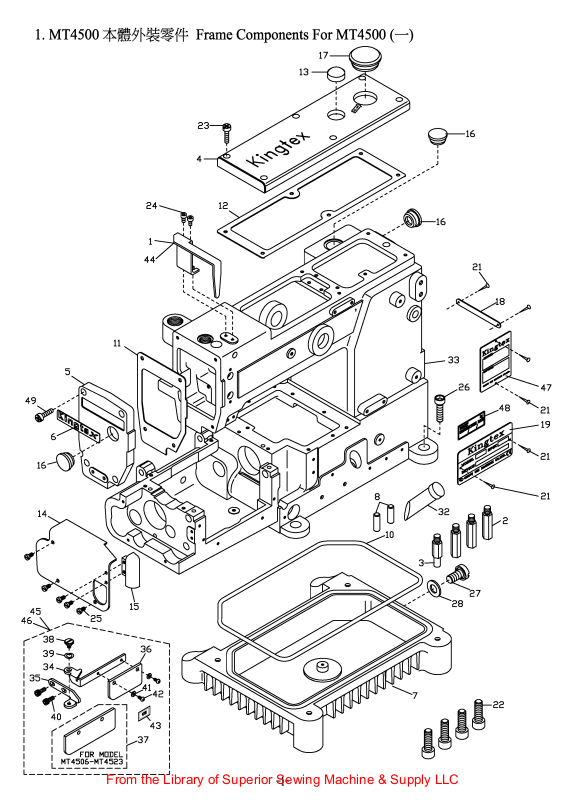

1. MT4500 本體外裝零件 Frame Components For MT4500 (一)

針棒護蓋

Needle Cover ------------------------------------------------------------------------------------------------------

下座腳樁

Supporting Bar -----------------------------------------------------------------------------------------------------------

下座腳樁

Supporting Bar ------------------------------------------------------------------------------------------------------

上軸蓋

Top Cover --------------------------------------------------------------------------------------------------------------

針棒蓋

Needle Cover -----------------------------------------------------------------------------------------------------------

銘板

Plate ------------------------------------------------------------------------------------------------------------------------

油盤

Oil Reservoir ---------------------------------------------------------------------------------------------------------------

銷

Pin ------------------------------------------------------------------------------------------------------------------------------------

------------------------------------------------------------------------------------------------------------------------

油封

Gasket -------------------------------------------------------------------------------------------------------------------------

油封

Gasket -------------------------------------------------------------------------------------------------------------------------

油封

Gasket -------------------------------------------------------------------------------------------------------------------------

油鏡

Oil Window ------------------------------------------------------------------------------------------------------------------

下座外蓋

Cloth Plate --------------------------------------------------------------------------------------------------------------

定位塊

Bracket ---------------------------------------------------------------------------------------------------------------------

孔塞

Plug -----------------------------------------------------------------------------------------------------------------------------------------

孔塞

Plug (CT01051)-------------------------------------------------------------------------------------------------------------

機器號碼牌

Machine No. Plate ---------------------------------------------------------------------------------------------------------------

車型銘板

Plate --------------------------------------------------------------------------------------------------------------------------

------------------------------------------------------------------------------------------------------------------------

鉚釘

Rivet --------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (M8-1.25*25) (MT0122)--------------------------------------------------------------------------------------------

螺絲

Screw (CT0102 M4-0.7*12)----------------------------------------------------------------------------------------------------

螺絲

Screw (M4-0.7*8) (MT0124) ----------------------------------------------------------------------------------------------

螺絲

Screw (CT0215 M4-0.7*8) ---------------------------------------------------------------------------------------------------

螺絲

Screw (CT0106 M8-1.25*20) ----------------------------------------------------------------------------------------------

螺絲

Screw (SH0243 3/8"-28*10) -----------------------------------------------------------------------------------------------

墊圈

Washer (SH0244)----------------------------------------------------------------------------------------------------------

------------------------------------------------------------------------------------------------------------------------

------------------------------------------------------------------------------------------------------------------------

------------------------------------------------------------------------------------------------------------------------

油面鏡

Oil Sign Gauge (R6031507) --------------------------------------------------------------------------------------------------

車頭

Frame Unit --------------------------------------------------------------------------------------------------------------------

護目鏡支架

Bracket ---------------------------------------------------------------------------------------------------------------

固定座

Bracket ---------------------------------------------------------------------------------------------------------------------

護目鏡

Safety Plate (MT4504) --------------------------------------------------------------------------------------------------------------

護目鏡

Safety Plate (MT4506-4523) ---------------------------------------------------------------

螺椿

(Stud)---------------------------------------------------------------------------------------------------------------------------

波形墊圈

Washer ------------------------------------------------------------------------------------------------------------------

螺絲

Screw (FT0203 M4-0.7*10) -------------------------------------------------------------------------------------------------

墊圈

Washer (CT030211) --------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT0142 M3-0.5*6) -------------------------------------------------------------------------------------------------

貼紙

Paster --------------------------------------------------------------------------------------------------------------------------

針棒護蓋

Needle Cover -----------------------------------------------------------------------------------------------------------------------

護目鏡支架組

Bracket Asm (MT4504) --------------------------------------------------------------------------------------------

護目鏡支架組

Bracket Asm (MT4506-4523)------------------------------------------------------------------------------------

銘板

Plate -------------------------------------------------------------------------------------------------------------------------------

重量貼紙

Weight Paster --------------------------------------------------------------------------------------------------------------

螺絲

Screw (C850212 M5-0.8*12)----------------------------------------------------------------------------------------------------

序 號 物 料 編 號 名 稱 單位用量

Ref.No. Parts No. Description Amt. Req.

*1 2310000101

2 2310000102
3 2310000103
4 2310000104
5 23100001051
6 2310000106
7 2310000107
8 2310000108

9 --------------­10 2310000110
11 23100001111
12 2310000112
13 2310000113
14 2310000114
15 2310000115
16 23100001161
17 22000001051
18 66477-1
19 66485-2
20 --------------­21 66620
22 8MM08502513A
23 8MC04281207D
24 8MM04280807A
25 8MB04280807K
26 8MM08502013A
27 8SM95281017A
28 2100000244
29 --------------­30 --------------­31 --------------­32 2110001507
33 2310000133
34 2310000134
35 2310000135
36 2310000136

*37 2310000137

38 2310000138
39 2310000139
40 8MM04281007A
41 90PW030
42 8MP03200606A
43 66451
44 2310000144
45 231A0000145

*46 231A0000146
*47 66477-3

48 66477-4
49 8MC05321209D

1
3
1
1
1
1
1
2

­1
1
1
1
1
1
3
1
1
1

-

­4
6
2
5
4
1
1

-

-

­1
1
1
1
1
1
1
1
2
2
2
1
1
1
1
1
1
4

* For MT4506-MT4525 Use.

-2-

FOR MODEL MT4504

FOR MODEL MT4506-MT4523

2. MT4500 本體外裝零件 Frame Components For MT4500 (二)

導模組

Edge Guide Asm. (MT4504) ------------------------------------------------------------------------------------------

導模

Edge Guide -------------------------------------------------------------------------------------------

導模

Edge Guide ----------------------------------------------------------------------------------------------------------------------

針板座

Needle Plae Seat --------------------------------------------------------------------------------

封蓋

Cover ---------------------------------------------------------------------------------------------------------------------------

下軸內蓋

Lower Shaft Cover --------------------------------------------------------------------------

隔環

Spacer --------------------------------------------------------------------------------------------------------------------------

防漏墊片

Gasket ---------------------------------------------------------------------------------------------------------------------

下座外蓋

Cloth Plate -------------------------------------------------------------------------------------------------------------------

檔片

Defender ---------------------------------------------------------------------------------------------------------------------------

下座前蓋

Cloth Plate -------------------------------------------------------------------------------------------------------------------

前蓋

Front Cover --------------------------------------------------------------------------------------------------------------------

封蓋

Cover -------------------------------------------------------------------------------------------------------------------------------

針板座

Needle Plate Seat -------------------------------------------------------------------------------------------------------------

導模

Edge Guide ------------------------------------------------------------------------------------------------------------------------

孔塞

Plug (CT0109)------------------------------------------------------------------------------------------------------------------------------

孔塞

Plug --------------------------------------------------------------------------------------------------------------------------------

孔塞

Plug (CT0245)------------------------------------------------------------------------------------------------------------------

孔塞

Plug ---------------------------------------------------------------------------------------------------------------------------------

孔塞

Plug -----------------------------------------------------------------------------------------------------------------------

夾簧

Latch Spring (CT0121)----------------------------------------------------------------------------------------------

螺絲

Screw (M4-0.7*12) (CT0202)--------------------------------------------------------------------------------------------------

墊圈

Washer (CT0232)-----------------------------------------------------------------------------------------------------------------

彈簧墊圈

Spring Washer (UTB0317) -----------------------------------------------------------------------------------------------

波形墊圈

Corrugated Washer -------------------------------------------------------------------------------------------------------

螺絲

Screw (UTB0109 M4-0.7*8) ---------------------------------------------------------------------------------------------------

螺絲

Screw (CT0626 M5-0.8*10) --------------------------------------------------------------------------------------------------

螺絲

Screw (FT0203 M4-0.7*10) ---------------------------------------------------------------------------------------------------

螺絲

Screw (M4-0.7*5) (MT0229) -----------------------------------------------------------------------------------------------

螺絲

Screw (CT1237 M4-0.7*10) --------------------------------------------------------------------------------------------------

隔環

Spacer ---------------------------------------------------------------------------------------------------------------------------

銷

Pin -----------------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (M4-0.7*6) (MT0233) -------------------------------------------------------------------------------------------------

螺絲

Screw (M6-1*10) (MT0234)--------------------------------------------------------------------------------------------------

螺絲

Screw (M4-0.7*8) (MT0235) -------------------------------------------------------------------------------------------------

減震橡膠

Rubber Cushion (FT01191)--------------------------------------------------------------------------------------------------------

絞鏈

Hinge (CT0224)----------------------------------------------------------------------------------

螺椿

Stud (M4-0.7*38)(CT0227)----------------------------------------------------------------------------------------------------

盂形墊圈

Washer (CT0228)------------------------------------------------------------------------------------------------

螺絲

Screw (CT0230 M4-0.7*6) ---------------------------------------------------------------------------------------------

螺絲

Screw (M4-0.7*14) (CT0225) -------------------------------------------------------------------------------------------------

螺絲

Screw (M4-0.7*4) (CT0229) --------------------------------------------------------------------------------------------------

定位銷

Pin (FT0238)----------------------------------------------------------------------------------------------------------------

螺絲

Screw (M4-0.7*8) (MT0124) -------------------------------------------------------------------------------------------------

隔環

Spacer ----------------------------------------------------------------------------------------------------------------------------

支撐桿

Support ing Rod -------------------------------------------------------------------------------------------------------------

墊片

Washer ---------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (M6-1*8) (MT0248) --------------------------------------------------------------------------------------------------

孔塞

Plug ------------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (M4-0.7*10) (MT0250) ------------------------------------------------------------------------------------------------

下軸內蓋組

Lower Shaft Cover Asm --------------------------------------------------------------------------

針板座

Needle Plate Seat ----------------------------------------------------------------------------------------------------------------

封蓋

Cover -------------------------------------------------------------------------------------------------------------------------------

針板座

Needle Plate Seat -------------------------------------------------------------------------------------------------------------

貼紙

Paster -----------------------------------------------------------------------------------------------------------

螺帽

Nut (CT0238 M4-0.7*3) ------------------------------------------------------------------

序 號 物 料 編 號 名 稱 單位用量

Ref.No. Parts No. Description Amt. Req.

1 231A0000201
2 2310000202
3 2310000203
4 2310000204
5 2310000205
6 23100002061
7 2310000207
8 2310000208

9 2310000209
10 23100002101
11 2310000211
12 2310000212

*13 2310000213
*14 2310000214

15 2310000215
16 22000001091
17 23100002171
18 22000002451
19 23100002191
20 23100001161
21 2200000121
22 8MM04281207A
23 2100000223
24 90SW040
25 2310000225
26 8MQ04280808A
27 8MM05321009A
28 8MM04281007A
29 8MD04281008C
30 8MB04281007K
31 2310000231
32 2310000232
33 8MB04280607K
34 8MP06401011A
35 8MP04280808A
36 22100001191
37 2200000224
38 8MB04283809E
39 2200000228
40 8MB04280605M
41 8MC04281407D
42 8MN04280400A
43 2210090209
44 8MM04280807A
45 2310000245
46 2310000246
47 2310000247
48 8MC06400810A
49 23100002491
50 8MP04281008A
51 231A0000251

**52 2310000252
***53 2310000253
***54 2310000254

55 66455
56 8MA04280307A

1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
1
1
1
2
1
2
1
2

11

4
2
1
4
1
1
2
1
1
2
1
1
2
1
2
3
2
1
1
2
1
2
1
1
1
1
1
1
1
1

* : MT4506-MT4523 用 For MT4506-MT4523 Use
** : MT4513P□-064 用 For MT4513P□-064 Use
*** : MT4525 用 For MT4525 Use

-4-

3. MT4501 / MT4504 張力調整零件 Thread Tension Mechanism For MT4504

導線

Thread Guide -----------------------------------------------------------------------------------------------------------------

導線

Thread Guide -------------------------------------------------------------------------------------------------------

導線

Thread Guide -------------------------------------------------------------------------------------------------------

導線

Thread Guide -------------------------------------------------------------------------------------------------------

定位環

Collar --------------------------------------------------------------------------------------------------------------

導線

Thread Guide --------------------------------------------------------------------------------------------------------

墊圈

Washer (SH0640) --------------------------------------------------------------------------------------------------

導線

Thread Guide --------------------------------------------------------------------------------------------------------

導線

Thread Guide -------------------------------------------------------------------------------------------------------

彈簧

Spring -----------------------------------------------------------------------------------------------------------------

鬆線鈑

Pelease Wedge --------------------------------------------------------------------------------------------------------

導線座

Tension Post Support ------------------------------------------------------------------------

導線

Thread Guide -------------------------------------------------------------------------------------------------------

導線

Thread Guide --------------------------------------------------------------------------------------------------------

張力調整螺帽

Tension Nut (Red) (SH1121) -------------------------------------------------------------------------

套管

Bushing (CT0303) ------------------------------------------------------------------------------------------------------

彈簧

Spring (Red) (SH1123) ---------------------------------------------------------------------------------------------------

彈簧座

Spring Set (CT0305)------------------------------------------------------------------------------------------------------

羊毛氈

Felt (SH1127) ----------------------------------------------------------------------------------------------------------

張力控制盤

Tension Disc (SH1126)-----------------------------------------------------------------------------------------

螺樁

Stud -----------------------------------------------------------------------------------------------------------

隔環

Spacer -----------------------------------------------------------------------------------------------------------

彈簧

Spring (Bule)(See left Page)(SH1132) ----------------------------------------------------------------------------------

導線

Thread Guide (CT0311)-------------------------------------------------------------------------------------------

導線

Thread Guide (CT0312)--------------------------------------------------------------------------------------------

墊圈

Washer (CT0232)----------------------------------------------------------------------------------------------------------

螺絲

Screw (M4-0.7*8) (MT0235) -------------------------------------------------------------------------------------------

螺絲

Screw (FT0203 M4-0.7*10) ------------------------------------------------------------------------------------------

螺絲

Screw (CT0215 M4-0.7*8) ---------------------------------------------------------------------------------------------------

螺絲

Screw (UTB0302 M6-1*12) ---------------------------------------------------------------------------------------------

螺絲

Screw (UTB0109 M4-0.7*8) --------------------------------------------------------------------------------------

螺絲

Screw (M5-0.8*12) (MT0332) ------------------------------------------------------------------------------------------

導線

Thread Guide --------------------------------------------------------------------------------------------------------------

螺絲

Screw (M4-0.7*8) (CT0215) -------------------------------------------------------------------------------------------

張力調整螺帽

Tension Nut (Bule) (See left Page)(SH1121) ------------------------------------------------------

螺樁

Stud -----------------------------------------------------------------------------------------------------------

導管

Pipe --------------------------------------------------------------------------------------------------------------------------

軸

Shaft -----------------------------------------------------------------------------------------------------------------------------

調整隔環

Spacer -----------------------------------------------------------------------------------------------------------------

螺絲

Screw (M4-0.7*12) (CT0202) ------------------------------------------------------------------------------------------

連桿

Link --------------------------------------------------------------------------------------------------------------------------

曲柄

Lever -------------------------------------------------------------------------------------------------------------------------

螺椿

Stud --------------------------------------------------------------------------------------------------------------------------

螺椿

Stud --------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (M4.5-0.75*14) (CT0837) -------------------------------------------------------------------------------------

鬆線組

Thread Tension Mechanism---------------------------------------------------------------------------------------------

張力調整組

Tension Asm. (Red) --------------------------------------------------------------------

張力控制組

Tension Set. (Bule)----------------------------------------------------------------------

導線座

Tension Post Support ------------------------------------------------------------------------

鬆線組

Thread Tension Mechanism--------------------------------------------------------------------------------------------------------

定位環

Collar ------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (M3-0.5*3) (CT0115) -----------------------------------------------------------------------

定位環組

Collar Asm.(F0534A)-----------------------------------------------------------------------------

序 號 物 料 編 號 名 稱 單位用量

Ref.No. Parts No. Description Amt. Req.

1 2310000301
2 2310000302
3 2310000303
4 2310000304
5 2310000305
6 23100003061
7 2100000640
8 2310000308

9 2310000309
10 2310000310
11 2310000311
12 23100003121
13 2310000313
14 2310000314
15 2100001121
16 2200000303
17 2100001123
18 2200000305
19 2100001127
20 2100001126
21 22000003081
22 22000003091
23 2100001132
24 2200000311
25 2200000312
26 2100000223
27 8MP04280808A
28 8MM04281007A
29 8MB04280807K
30 8MP06401211A
31 8MQ04280808A
32 8MC05321208A
33 2310000333
34 8MB04280807K
35 2100001121B
36 2310001937
37 2310000337
38 2310000338
39 2310000339
40 8MM04281207A
41 2310000341
42 2310000342
43 2310000343
44 2310000344
45 8MK95301407A
46 231A0000346
47 231A0001922
48 231A0001923

* 49 2320000301
* 50 232A0000302
* 51 2210000534
* 52 8MN03200300A
* 53 221A0000563

1
1
1
2
2
1
2
1
2
1
1
1

-

-

-

-

-

-

-

-

-

-

-

-

­3
2
5
1

­4
2
1
1

­1
1
1
1
1
1
1
1
1
1
1

-

­1
1
1
2
1

* MT4501 用 For MT4501 Use

-6-

導線

Thread Guide ------------------------------------------------------------------------------------------------------------------------

導線

Thread Guide ------------------------------------------------------------------------------------------------------------------------------

導線

Thread Guide --------------------------------------------------------------------------------------------------------------------------

導線

Thread Guide ---------------------------------------------------------------------------------------------------------------------------------

導線

Thread Guide -----------------------------------------------------------------------------------------------------------------------

導線

Thread Guide -----------------------------------------------------------------------------------------------------------------------------

導線

Thread Guide ----------------------------------------------------------------------------------------------------------------------

---------------------------------------------------------------------------------------------------------------------------------------------------

---------------------------------------------------------------------------------------------------------------------------------------------

墊圈

Washer (SH0640)------------------------------------------------------------------------------------------------------

墊圈

Washer (CT0232)------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (M4-0.7*8) (MT0235) -------------------------------------------------------------------------------------------------------

螺絲

Screw (FT0203 M4-0.7*8) ----------------------------------------------------------------------------------------------

螺絲

Screw (UTB0109 M4-0.7*8) -------------------------------------------------------------------------------------------------------

螺絲

Screw (CT0215 M4-0.7*8) ---------------------------------------------------------------------------------------------------

螺絲

Screw (CT0215 M4-0.7*8) -------------------------------------------------------------------------------------------------------

導線

Thread Guide ---------------------------------------------------------------------------------------------------------------------

4. MT4506-MT4525 張力調整零件 Thread Tension Mechanism For MT4506-MT4525

序 號 物 料 編 號 名 稱 單位用量

Ref.No. Parts No. Description Amt. Req.

1 2310000302
2 2310000402
3 2310000403
4 2310000404
5 2310000405
6 2310330406
7 2310000407
8 ---------------

9 --------------­10 2100000640
11 2100000223
12 8MP04280808A
13 8MM04281007A
14 8MQ04280808A
15 8MB04280807K
16 8MB04280807K
17 2310000417

1
1
1
1
1
1
2

-

­2
2
2
4
4
1
1
1

-8-

5. MT4500 軸襯與油封 Bushing And Seal For MT4500

油封

Oil Seal (CT0404)---------------------------------------------------------------------------------------

軸襯

Bushing -----------------------------------------------------------------------------------------------------

軸襯

Bushing -------------------------------------------------------------------------------------------------------

軸襯

Bushing -------------------------------------------------------------------------------------------------------

軸襯

Bushing -------------------------------------------------------------------------------------------------------

軸襯

Bushing -------------------------------------------------------------------------------------------------------

軸襯

Bushing -------------------------------------------------------------------------------------------------------

軸襯

Bushing --------------------------------------------------------------------------------------------------------

軸襯

Bushing -------------------------------------------------------------------------------------------------------

軸襯

Bushing -------------------------------------------------------------------------------------------------------

軸襯

Bushing --------------------------------------------------------------------------------------------------------

軸襯

Bushing -------------------------------------------------------------------------------------------------------

軸襯

Bushing -------------------------------------------------------------------------------------------------------

軸襯

Bushing -------------------------------------------------------------------------------------------------------

軸襯

Bushing ------------------------------------------------------------------------------------------------------

軸襯

Bushing -------------------------------------------------------------------------------------------------------

油封

Oil Seal ----------------------------------------------------------------------------------------------------------

軸襯

Bushing -------------------------------------------------------------------------------------------------------

軸襯

Bushing -------------------------------------------------------------------------------------------------------

序 號 物 料 編 號 名 稱 單位用量

Ref.No. Parts No. Description Amt. Req.

1 2200000404
2 2310000502
3 2310000503
4 2310000504
5 2310000505
6 2310000506
7 2310000507
8 2310000508

9 2310000509
10 2310000510
11 2310000511
12 2310000512
13 2310000513
14 2310000514
15 2310000515
16 2310000516
17 2310000517
18 2310000518
19 23100005191

1
2
1
1
2
2
1
1
2
1
1
1
2
1
1
1
1
1
1

-10-

滑道

Guide Block ----------------------------------------------------------------------------------------------------------------

滑塊

Slide Block --------------------------------------------------------------------------------------------------------------------------

針棒

Needle Bar ---------------------------------------------------------------------------------------------------------------------------

連桿

Connecting Rod ----------------------------------------------------------------------------------------------------------------------

連桿

Connecting Rod -----------------------------------------------------------------------------------------------------------------------

連桿

Connecting Rod ----------------------------------------------------------------------------------------------------------------------

連接銷

Pin -----------------------------------------------------------------------------------------------------------------------------------

軸

Shaft --------------------------------------------------------------------------------------------------------------------

定位環

Collar -------------------------------------------------------------------------------------------------------------

止推墊圈

Thrust Bearing ----------------------------------------------------------------------------------------------

油封

Oil Seal -----------------------------------------------------------------------------------------------------------------

孔塞

Plug ---------------------------------------------------------------------------------------------------------

止推軸承

Thrust Bearing (CT1044)---------------------------------------------------------------------------------------

螺絲

Screw -------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (FT0203 M4-0.7*10) -------------------------------------------------------------------------------------

螺絲

Screw (M4-0.7*5) (FT1222) -------------------------------------------------------------------------------

螺絲

Screw (M6-1*10) (MT0419) ----------------------------------------------------------------------------

導線固定座

Holder ---------------------------------------------------------------------------------------------

導線

Thread Guide --------------------------------------------------------------------------------------------

導線

Thread Guide ---------------------------------------------------------------------------------------------

螺絲

Screw (UTB0130 M4-0.7*6) ---------------------------------------------------------------------------

螺絲

Screw (CT0625 M6-1*16) ------------------------------------------------------------------------------

油線

Oil Wick-----------------------------------------------------------------------------------------------------

護蓋

Cover --------------------------------------------------------------------------------------------------------

護蓋固定座

Holder ----------------------------------------------------------------------------------------------

護蓋固定座

Holder ----------------------------------------------------------------------------------------------

螺絲

Screw (CT0206 M4-0.7*7) --------------------------------------------------------------------------------

螺絲

Screw (CT1223 M4-0.7*6) -----------------------------------------------------------------------------------------------------

孔塞

Plug (CT1029)------------------------------------------------------------------------------------------------------

連桿組

Connecting Rod Asm.---------------------------------------------------------------------------

螺絲

Screw (CT0215 M4-0.7*8) ---------------------------------------------------------------------------

墊圈

Washer ------------------------------------------------------------------------------------------

6. MT4000 / MT4500 針棒與相關零件 Needle Bar Mechanism For MT4000 / MT4500

序 號 物 料 編 號 名 稱 單位用量

Ref.No. Parts No. Description Amt. Req.

1 2310000601

2 23100006021

3 2310330603

4 2310000604

5 2310000605

6 2310000606

7 2310000607

8 2310000608

9 2310000609
10 2310000610
11 2310000611
12 22000002451
13 2200001044
14 8MM04281207A
15 8MM04281007A
16 8MN04280500C
17 8MM06401010A
18 2310000618
19 2310000619

*20 2310000620

21 8MB04280608A
22 8MM06401610A
23 66800
24 2310000624
25 2310000625

*26 2310000626

27 8ME04280708A
28 8MN04280600A
29 2200001029
30 231A0000630
31 8MB04280807K
32 90PW040

1
1
1
1
1
1
2
1
2
2
1
1
2
2
2
2
4
1
1
1
2
1
3
1
1
1
2
4
1
1
2
2

* For MT4006-MT4012 / MT4506-MT4525 Use

-12-

7. MT4500 下軸與相關零件 Crankshaft Mechanism For MT4500

針定位皮帶輪

Belt Cover --------------------------------------------------------------------------------------

曲柄

Lever --------------------------------------------------------------------------------------------------------

連桿

Connecting Rod ---------------------------------------------------------------------------------------------

曲軸

Crank Shaft -----------------------------------------------------------------------------------------------------

螺樁

Stud ---------------------------------------------------------------------------------------------------------------------

連桿

Connecting Rod -----------------------------------------------------------------------------------------------------

球狀接頭

Ball Stud ----------------------------------------------------------------------------------------------------------

定向導軌

Guide ------------------------------------------------------------------------------------------------------------

連桿

Connecting Rod -----------------------------------------------------------------------------------------------------

套筒

Clutch Sleeve ---------------------------------------------------------------------------------------------------------

偏心輪

Eccentric -----------------------------------------------------------------------------------------------------------

軸

Shaft -----------------------------------------------------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------------------------------------------------------

鋁蓋

Cover ------------------------------------------------------------------------------------------------------------------

定位環

Collar ----------------------------------------------------------------------------------------------------------------

墊圈

Washer ---------------------------------------------------------------------------------------------------------------

墊圈(銅)

Washer -------------------------------------------------------------------------------------------------------

螺帽

Nut --------------------------------------------------------------------------------------------------------------------

螺帽

Nut --------------------------------------------------------------------------------------------------------------------

滾珠軸承

Ball Bearing (MT0720) ------------------------------------------------------------------------------------------------

滾珠軸承

Ball Bearing (MT0721)----------------------------------------------------------------------------

O

形油環

O Ring

(線徑

∮1.2) -----------------------------------------------------------------------------------

O

形油環

O Ring

(線徑

∮2.4) ----------------------------------------------------------------------------------------------------------

C

形扣環

C Ring ----------------------------------------------------------------------------------------------------------

螺絲

Screw (MT0725 M4.5-0.75*18) ----------------------------------------------------------------------------

螺絲

Screw (MT0726 M4.5-0.75*15) ---------------------------------------------------------------------------

螺絲

Screw (MT0727 M4.5-0.75*11) ---------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT0729 M5-0.8*6) --------------------------------------------------------------------------------

螺絲

Screw (FT0203 M4-0.7*10) --------------------------------------------------------------------------------

螺絲

Screw (FT1003 M4-0.7*14) ------------------------------------------------------------------------------------------------------

螺絲

Screw (CT0549 M4-0.7*8) --------------------------------------------------------------------------------

連桿組

Connecting Rod Asm. -----------------------------------------------------------------------------------

231A0000734

連桿組

Connecting Rod Asm. -----------------------------------------------------------------------------------

231A0000735

連桿組

Connecting Rod Asm. -----------------------------------------------------------------------------------

231A0000736

曲軸組

Crank Shaft Asm. -----------------------------------------------------------------------------------------

231A0000737

連桿組

Connecting Rod Asm. -----------------------------------------------------------------------------------

231A0000738

連桿組

Connecting Rod Asm. -----------------------------------------------------------------------------------

231A0000739

連桿組

Connecting Rod Asm. -----------------------------------------------------------------------------------

231A0000740

偏心輪組

Eccentric Asm. ----------------------------------------------------------------------------------------

油線

Oil Wick ----------------------------------------------------------------------------------------------------------

孔塞

Plug (CT1029)--------------------------------------------------------------------------------------------------

海綿

Seal (SH1501)-----------------------------------------------------------------------------------------------------

序 號 物 料 編 號 名 稱 單位用量

Ref.No. Parts No. Description Amt. Req.

1 23100007011
2 2310000702
3 2310000703
4 23100007041
5 2310000705
6 2310000706
7 2310000707
8 2310000708
9 2310000709

10 2310000710
11 2310000711
12 2310000712
13 --------------------­14 2310000714
15 2310000715
16 2310000716
17 2310000717
18 2310000718
19 2310000719
20 90BB1740126
21 90BB1740122
22 2310000722
23 90OR140
24 90SCR140
25 8MB95301807K
26 8MB95301507K
27 8MB95301106K
28 --------------------­29 8MN05320600A
30 8MM04281007A
31 8MM04281407A
32 8MN06400800A
33 231A0000733
34
35
36
37
38
39
40
41 66800
42 2200001029
43 2100001501

1
1
1
1
1
1
1
1
1
1
1
1

­1
1
1
1
1
1
1
1
1
1
1
2
2
1

­4
3
2
6
1
1
1
1
1
1
1
1
2
2
1

-14-

止動銷

Stopper Pin --------------------------------------------------------------------------------------------------------

彈簧

Spring ------------------------------------------------------------------------------------------------------------------

軸

Shaft -------------------------------------------------------------------------------------------------------------------------

偏心輪

Eccentric -------------------------------------------------------------------------------------------------------------

連結銷

Link Pin ------------------------------------------------------------------------------------------------------------

曲柄

Lever ---------------------------------------------------------------------------------------------------------------------

狗齒台

Feed Dog Holder ------------------------------------------------------------------------------------------------

離合齒輪

Regulating Gear ----------------------------------------------------------------------------------------------

離合齒片

Regulating Plate ----------------------------------------------------------------------------------------------

連桿

Link -------------------------------------------------------------------------------------------------------------------

連結銷

Link Pin ------------------------------------------------------------------------------------------------------------

軸

Shaft --------------------------------------------------------------------------------------------------------------------

銷

Pin ------------------------------------------------------------------------------------------------------------------------

彈簧

Spring ----------------------------------------------------------------------------------------------------------------

墊圈

Washer -----------------------------------------------------------------------------------------------------------------

變距偏心輪

Eccentric ----------------------------------------------------------------------------------------------------

變距銷

Pin -----------------------------------------------------------------------------------------------------------------

變距銷座

Eccentric Collar -----------------------------------------------------------------------------------------------

進給偏心輪

Eccentric ----------------------------------------------------------------------------------------------------

連桿

Link -------------------------------------------------------------------------------------------------------------------

彈簧

Spring ----------------------------------------------------------------------------------------------------------------

曲柄

Lever ---------------------------------------------------------------------------------------------------------------------

連桿

Link -------------------------------------------------------------------------------------------------------------------

連結銷

Link Pin ------------------------------------------------------------------------------------------------------------

墊圈

Washer ----------------------------------------------------------------------------------------------------------------

定位環

Collar --------------------------------------------------------------------------------------------------------------

E

形扣環

E Ring (RP10108) ---------------------------------------------------------------------------------------------

E

形扣環

E Ring (FT0225) ----------------------------------------------------------------------------------------------

O

形油環

O Ring ----------------------------------------------------------------------------------------------------

墊圈

Washer (CT1025)----------------------------------------------------------------------------------------------------

滾針軸承

Needle Bearing ------------------------------------------------------------------------------------------------

滾針軸承

Needle Bearing ------------------------------------------------------------------------------------------------

C

形同心扣環

C Ring ------------------------------------------------------------------------------------------------------

油線

Oil Wick -------------------------------------------------------------------------------------------------------------

孔塞

Plug -----------------------------------------------------------------------------------------------------------

螺絲

Screw (CT0202 M4-0.7*12) --------------------------------------------------------------------------------------

螺絲

Screw (CT350248 M5-0.8*6) ---------------------------------------------------------------------------------------

螺絲

Screw (CT0216 M4-0.7*10) -------------------------------------------------------------------------------------------

螺絲

Screw (CT0229 M4-0.7*4) ----------------------------------------------------------------------------------------

螺絲

Screw (CT0918 M6-1*6) ------------------------------------------------------------------------------------------

螺絲

Screw (FT1222 M4-0.7*5) ---------------------------------------------------------------------------------------

螺絲

Screw (MT0729 M5-0.8*6) ---------------------------------------------------------------------------------------

螺絲

Screw (MT0843 M5-0.8*10) --------------------------------------------------------------------------------------

螺絲

Screw (MT0844 M3-0.5*4) ---------------------------------------------------------------------------------------

螺絲

Screw (MT0845 M6-1*15) ---------------------------------------------------------------------------------------

螺絲

Screw (CT0903 M5-0.8*5) ----------------------------------------------------------------------------------------

螺絲

Screw (CT0115 M3-0.5*3) ----------------------------------------------------------------------------------------

連桿組

Link Asm. ---------------------------------------------------------------------------------------------------------

變距偏心輪組

Eccentric Asm. ------------------------------------------------------------------------------------------

離合齒輪組

Regulating Gear Asm. -------------------------------------------------------------------------------------

螺絲

Screw (FT1218 M3-0.5*3) ---------------------------------------------------------------------------------------

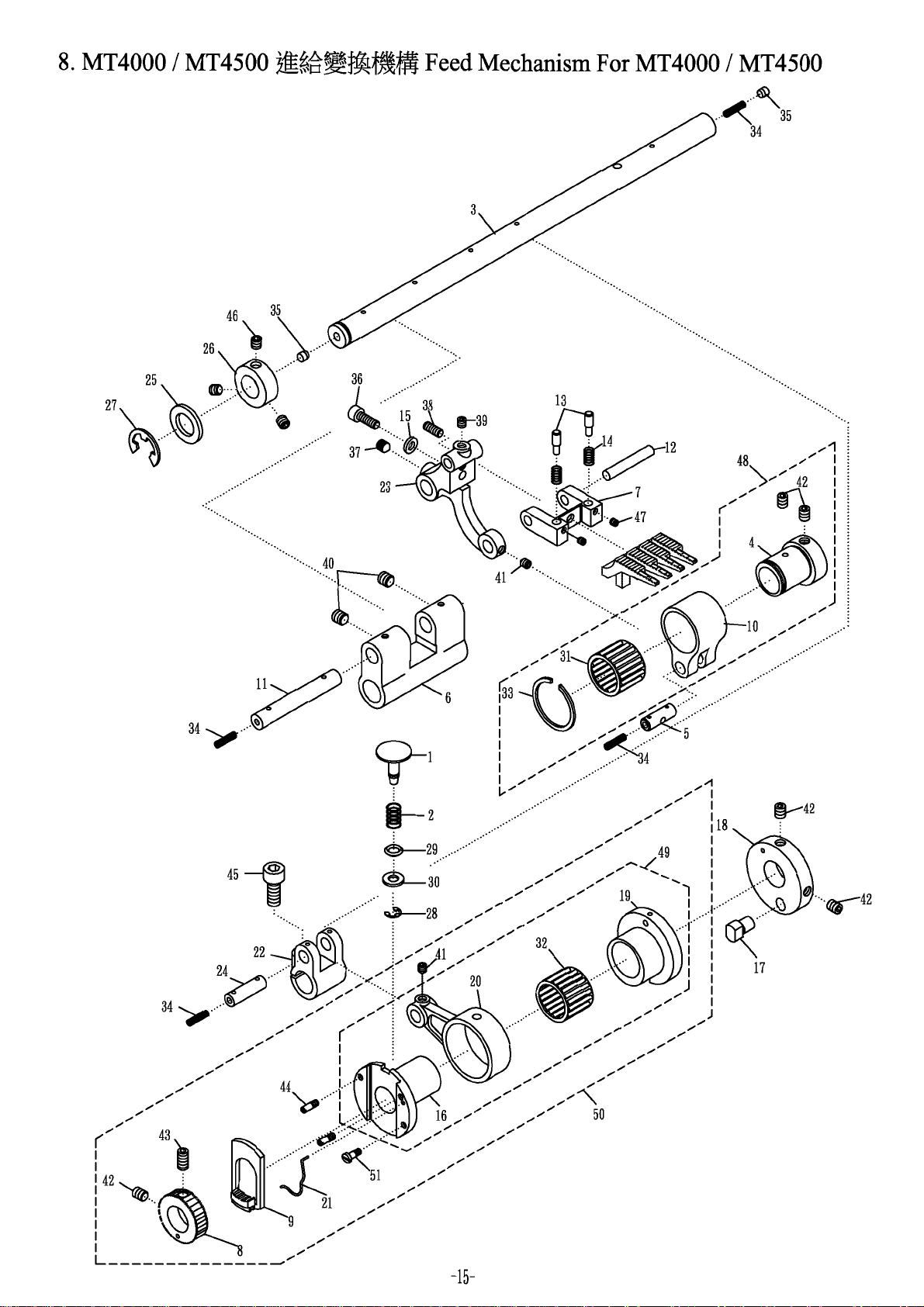

8. MT4000 / MT4500 進給變換機構 Feed Mechanism For MT4000 / MT4500

序 號 物 料 編 號 名 稱 單位用量

Ref.No. Parts No. Description Amt. Req.

1 23100008011
2 2310000802
3 23100008031
4 2310000804
5 2310000805
6 2310000806
7 2310000807
8 2310000808

9 2310000809
10 2310000810
11 2310000811
12 2310000812
13 2310000813
14 2310000814
15 2310000815
16 2310000816
17 2310000817
18 2310000818
19 2310000819
20 2310000820
21 23100008211
22 2310000822
23 2310000823
24 2310000824
25 2310000825
26 2310000826
27 90ER100
28 90ER040
29 90OR050
30 2200001025
31 90NB182217
32 90NB252913
33 2310000833
34 66800
35 2310000835
36 8MM04281207A
37 8MN05320600C
38 8MN04281000A
39 8MN04280400A
40 8MN06400600A
41 8MN04280500C
42 8MN05320600A
43 8MN05321000E
44 8MB03200403C
45 8MM06401510A
46 8MN05320500E
47 8MN03200300A
48 231A0000848
49 231A0000849
50 231A0000850
51 8MB03200605B

1
1
1
1
1
1
1
1
1
1
1
1
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
2
1
1
1
1
2
1
5
1
2
1
3
2
1
1
1
1

-16-

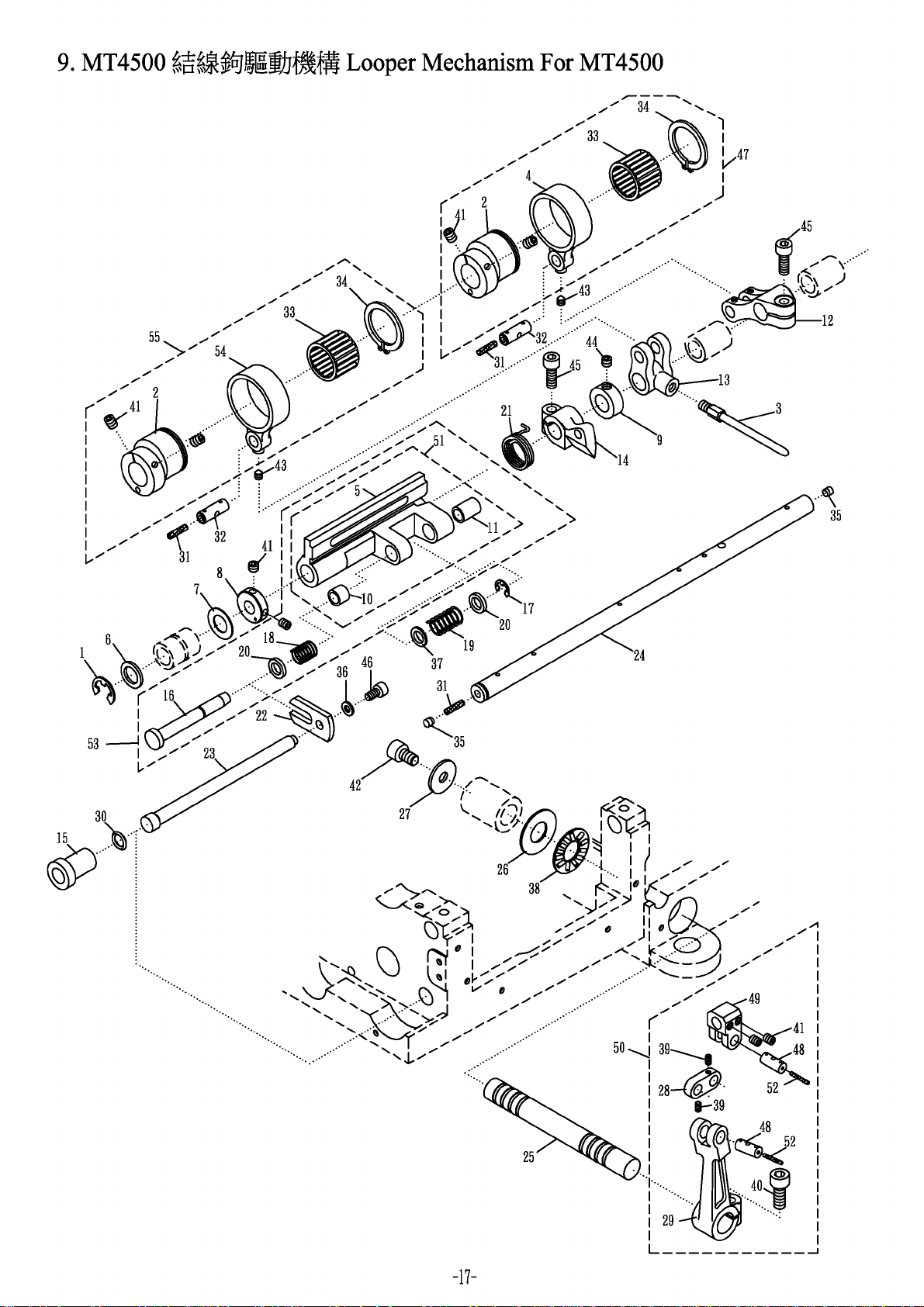

9. MT4500 結線鉤驅動機構 Looper Mechanism For MT4500

E

形扣環

E Ring (F090404) --------------------------------------------------------------------------------------------------------------

偏心輪

Eccentric ------------------------------------------------------------------------------------------------------------------------

撥線桿

Take-up Rod --------------------------------------------------------------------------------------------------------------------------

連桿

Link --------------------------------------------------------------------------------------------------------------------------------------

承座

Bracket -------------------------------------------------------------------------------------------------------------------------------------

墊圈

Washer ----------------------------------------------------------------------------------------------------------------------------------------

墊圈

Washer ----------------------------------------------------------------------------------------------------------------------------------------

定位環

Collar -------------------------------------------------------------------------------------------------------------------------------------

定位環

Collar -------------------------------------------------------------------------------------------------------------------------------------

襯套

Clutch Tension Sleeve -------------------------------------------------------------------------------------------------------------------

◎11

2310000911

襯套

Clutch Tension Sleeve -----------------------------------------------------------------------------------------------------------------------

曲柄

Lever --------------------------------------------------------------------------------------------------------------------------------------

曲柄

Lever -------------------------------------------------------------------------------------------------------------------------------------

驅動柄

Looper Rocker Stopper ----------------------------------------------------------------------------------------------------------

栓

Stud -----------------------------------------------------------------------------------------------------------------------------------------

軸

Shaft ----------------------------------------------------------------------------------------------------------------------------------------------

E

形扣環

E Ring (SH0620) ------------------------------------------------------------------------------------------------------------------

彈簧

Spring -----------------------------------------------------------------------------------------------------------------------------------------

彈簧

Spring ------------------------------------------------------------------------------------------------------------------------------------

墊圈

Washer ----------------------------------------------------------------------------------------------------------------------------------

彈簧

Spring ---------------------------------------------------------------------------------------------------------------------------------------

隔板

Plate --------------------------------------------------------------------------------------------------------------------------------------------

軸

Shaft --------------------------------------------------------------------------------------------------------------------------------------------

軸

Shaft -----------------------------------------------------------------------------------------------------------------------------------------

軸

Shaft --------------------------------------------------------------------------------------------------------------------------------------------

止推墊圈

Thrust Washer -------------------------------------------------------------------------------------------------------------------

墊圈

Washer ---------------------------------------------------------------------------------------------------------------------------------

連桿

Link -----------------------------------------------------------------------------------------------------------------------------------------

擺動臂

Spreader Arm ---------------------------------------------------------------------------------------------------------------------

O

形油環

O Ring ----------------------------------------------------------------------------------------------------------------------------

油線

Oil Wick ∮3 --------------------------------------------------------------------------------------------------------------------------

連結銷

Link Pin -----------------------------------------------------------------------------------------------------------------------------

滾針軸承

Needle Bearing ----------------------------------------------------------------------------------------------------------------

C

形扣環

C Ring ---------------------------------------------------------------------------------------------------------------------------

孔塞

Plug --------------------------------------------------------------------------------------------------------------------------------

彈簧墊圈

Spring Washer (UTB0317) --------------------------------------------------------------------------------------------------

墊圈

Washer ---------------------------------------------------------------------------------------------------------------------------------

滾針止推軸承

Needle Bearing (CT1044) -----------------------------------------------------------------------------------------

螺絲

Screw (CT1242 M3-0.5*4) -----------------------------------------------------------------------------------------------------

螺絲

Screw (MT0845 M6-1*15) ------------------------------------------------------------------------------------------------------

螺絲

Screw (MT0729 M5-0.8*6) -------------------------------------------------------------------------------------------------------

螺絲

Screw (MT0419 M6-1*10) -------------------------------------------------------------------------------------------------------

螺絲

Screw (FT1222 M4-0.7*5) ------------------------------------------------------------------------------------------------------

螺絲

Screw (MT0944 M5-0.8*4) ----------------------------------------------------------------------------------------------------

螺絲

Screw (CT0632 M5-0.8*14) -----------------------------------------------------------------------------------------------------

螺絲

Screw (MT1134 M4-0.7*6) ------------------------------------------------------------------------------------------------

偏心輪組

Eccentric Asm. ----------------------------------------------------------------------------------------------------------------

連結銷

Link Pin ----------------------------------------------------------------------------------------------------------------------------

撥線軸座

Retainer Bar Holder ---------------------------------------------------------------------------------------------------------

撥線軸座組

Retainer Bar Holder Asm. -----------------------------------------------------------------------------------------------

承座組

Bracket Asm. -----------------------------------------------------------------------------------------------------------------------

油線

Oil Wick ∮2 --------------------------------------------------------------------------------------------------------------------------

承座組

Bracket Asm. ----------------------------------------------------------------------------------------------------------------------

連桿

Link -----------------------------------------------------------------------------------------------------------------------------------

偏心輪組

Eccentric Asm. -----------------------------------------------------------------------------------------------------------------

序 號 物 料 編 號 名 稱 單位用量

Ref.No. Parts No. Description Amt. Req.

1 90ER080

2 2310000902

3 2310000903

4 2310000904

◎5 2310000905

6 23100009061

7 2310000907

8 2310000908

9 2310000909

◎10 2310000910

12 2310000912
13 2310000913
14 23100009141
15 2310000915
16 23100009161
17 90ER050
18 2310000918
19 2310000919
20 2310000920
21 2310000921
22 2310000922
23 2310000923
24 23100009241
25 2310000925
26 2310000926
27 2310000927
28 2310000928
29 2310000929
30 2310000930
31 66800
32 2310000805
33 90NB252913
34 90SCR250
35 2310000835
36 90SW040
37 240012039
38 2200001044
39 8MN03200400C
40 8MM06401510A
41 8MN05320600A
42 8MM06401010A
43 8MN04280500C
44 8MN05320400A
45 8MM05321409A
46 8MM04280607A
47 231A0000947
48 2310000948
49 2310000949
50 231A0000950
51 231A0000951
52 66802
53 231A0000953
54 2310000954
55 231A0000955

1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
3
2
2
2
2
1
1
1
2
1
8
1
2
2
2
1
1
2
1
1
1
2
1
1
1

◎需整組購買 Must be sold in complete set

-18-

螺樁

Stud -------------------------------------------------------------------------------------------------------------------------------------------

螺帽

Nut -------------------------------------------------------------------------------------------------------------------------------------------

彈簧

Spring --------------------------------------------------------------------------------------------------------------------------------------

連接塊

Connecting Block ----------------------------------------------------------------------------------------------------------------------

彈簧

Spring -------------------------------------------------------------------------------------------------------------------------------------

軸

Shaft ---------------------------------------------------------------------------------------------------------------------------------------

滑道

Lower Movable Knife Guide ----------------------------------------------------------------------------------------------------------------

揚昇臂

Lifter Arm ------------------------------------------------------------------------------------------------------------------------------

曲柄

Lever --------------------------------------------------------------------------------------------------------------------------------------

曲柄

Lever --------------------------------------------------------------------------------------------------------------------------------------

吊桿

Lifter Connecting Plate ------------------------------------------------------------------------------------------------------------------

墊圈

Washer ----------------------------------------------------------------------------------------------------------------------------------

螺樁

Stud ---------------------------------------------------------------------------------------------------------------------------------------

拉桿

Lifter Connecting Plate ------------------------------------------------------------------------------------------------------------------

吊臂

Left Upper Feed Roller Arm -------------------------------------------------------------------------------------------------------

吊臂

Left Upper Feed Roller Arm -------------------------------------------------------------------------------------------------------

銷

Pin ------------------------------------------------------------------------------------------------------------------------------------------

軸

Shaft ---------------------------------------------------------------------------------------------------------------------------------------------

彈簧

Spring ------------------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT1020 7/32"-32*21) ----------------------------------------------------------------------------------------------------

連結銷

Connecting Pin ---------------------------------------------------------------------------------------------------------------------------

定位環

Collar ---------------------------------------------------------------------------------------------------------------------------------

阻油片

Oil Separator (CT0811)--------------------------------------------------------------------------------------------------------------

墊圈

Washer (SH0323)---------------------------------------------------------------------------------------------------------------------

E

形扣環

E Ring (CT0209) ------------------------------------------------------------------------------------------------------------------

螺帽

Nut (F090512 7/32"-32*21) ----------------------------------------------------------------------------------------------------------

螺絲

Screw (C08-08 M4.5-0.75*16) -------------------------------------------------------------------------------------

螺絲

Screw (MT0729 M5-0.8*6) --------------------------------------------------------------------------------

螺絲

Screw (FT0524 M5-0.8*12) --------------------------------------------------------------------------------------------------------

螺絲

Screw (MT1030 11/64"-40*5) ---------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT0419 M6-1*10) ---------------------------------------------------------------------------------------------------------

螺絲

Screw (FT0203 M4-0.7*10) ----------------------------------------------------------------------------------------------------------------

波形墊圈

Corrugated Ring ------------------------------------------------------------------------------------------------------------------

護指擋片

Safety Plate Holder (MT4501-MT4504)------------------------------------------------------------------------------------------

護指擋片

Safety Plate Holder (MT4506-MT4523)----------------------------------------------------------------------------------------------

螺絲

Screw (CT1002 M3.5-0.6*6)---------------------------------------------------------------------

*

二件組壓腳底用

For bisector presser foot

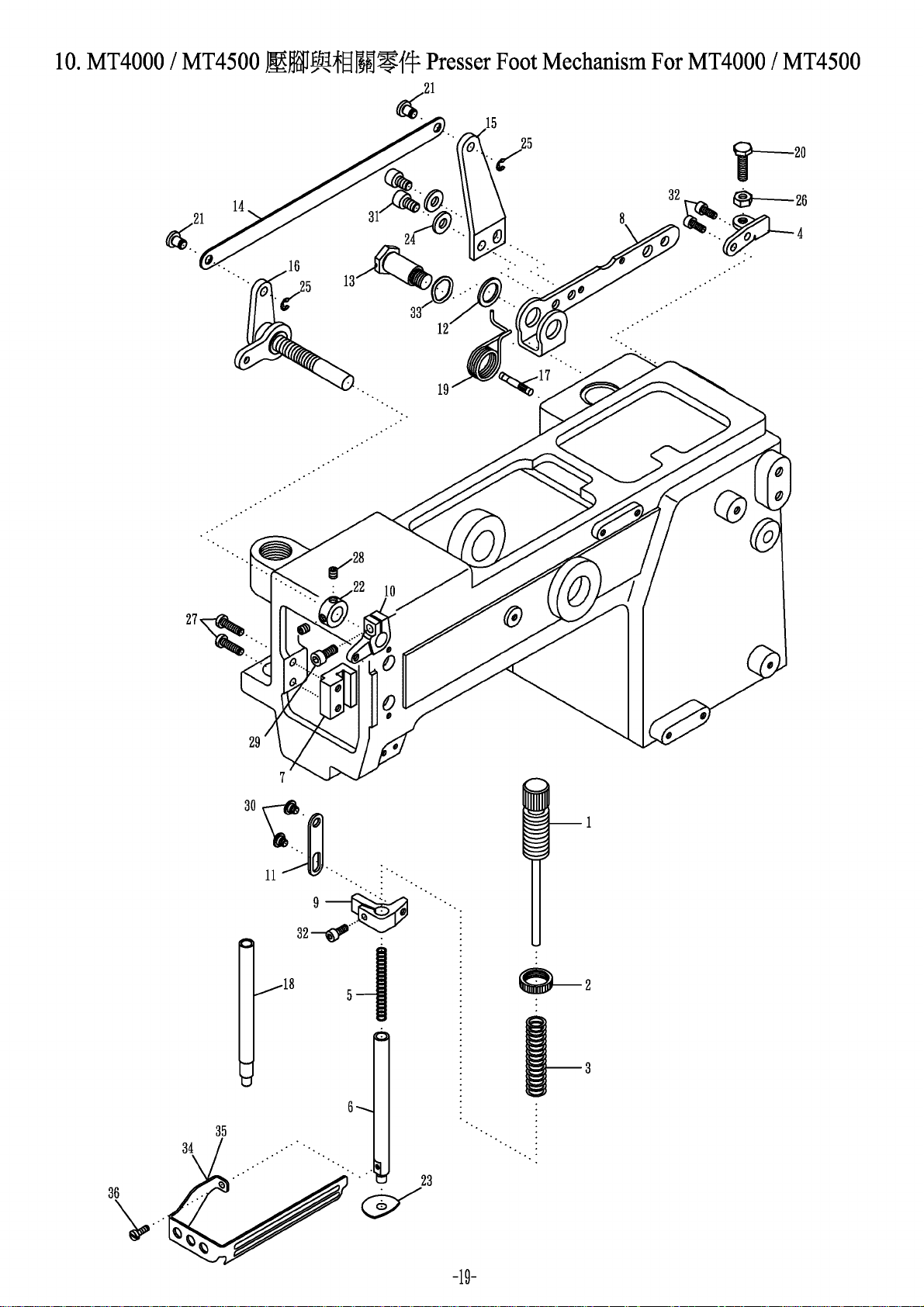

10. MT4000 / MT4500 壓腳與相關零件 Presser Foot Mechanism For MT4000 / MT4500

序 號 物 料 編 號 名 稱 單位用量

Ref.No. Parts No. Description Amt. Req.

1 2310001001

2 2310001002

3 2310001003

4 2310001004

5 2310001005

6 2310001006

7 2310001007

8 2310001008

9 2310001009
10 23100010101
11 2310001011
12 2310001012
13 2310001013
14 2310001014
15 2310001015
16 23100010161
17 2310001017

*18 2310001018

19 2310001019
20 8SK56322110A
21 2310001021
22 2310000908
23 2200000811
24 2100000323
25 90ER040
26 8SA56320410A
27 8MC95301608E
28 8MN05320600A
29 8MM05321209A
30 8SC44400810G
31 8MM06401010A
32 8MM04281007A
33 2310001207
34 2310001034
35 2310001035
36 8MB85240605A

1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
2
2
1
2
2
1
2
2
3
1
1
1
1

-20-

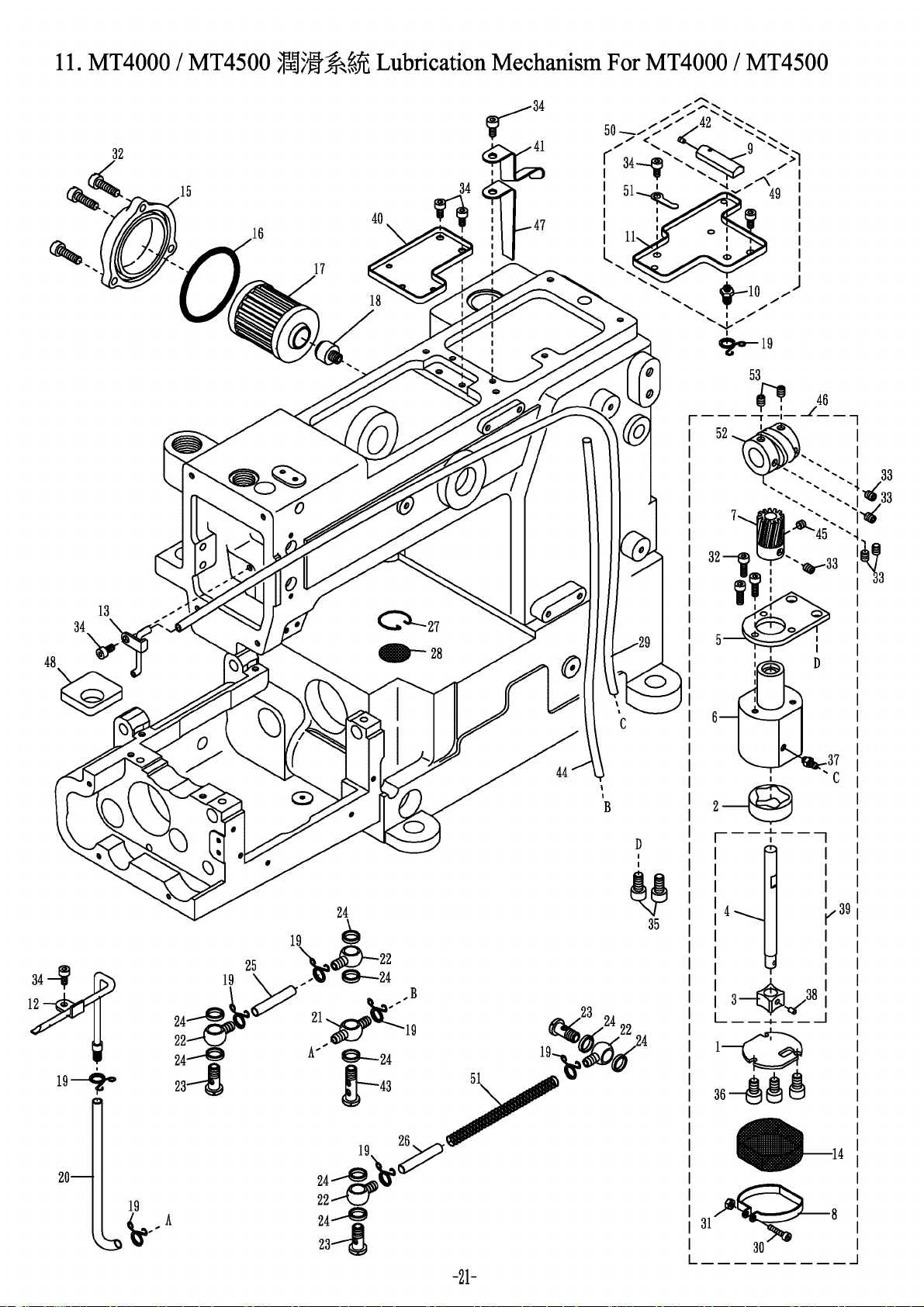

蓋板

Lower Feed Roller Cover ---------------------------------------------------------------------------------------------------

◎2

23100011021

齒輪

Gear ------------------------------------------------------------------------------------------------------------------------

◎3

23100011031

齒輪

Gear ------------------------------------------------------------------------------------------------------------------------

◎4

23100011041

軸

Shaft -------------------------------------------------------------------------------------------------------------------

◎5

2310001105

泵座

Pump Seat --------------------------------------------------------------------------------------------------------

◎6

2310001106

泵

Pump ----------------------------------------------------------------------------------------------------------------------------

◎7

2310001107

蝸母

Worm Gear ---------------------------------------------------------------------------------------------------------------------

夾簧

Latch Spring --------------------------------------------------------------------------------------------------------------------

◎9

2310001109

導油歧路

Lubricant Guiding Block ------------------------------------------------------------------------------------------------

油嘴

Nozzle ------------------------------------------------------------------------------------------------------------------------

承油盤

Oil Receiver -----------------------------------------------------------------------------------------------------------------

油管

Oil Tube -------------------------------------------------------------------------------------------------------------------------

油管

Oil Tube -------------------------------------------------------------------------------------------------------------------------

油網

Oil Mesh -----------------------------------------------------------------------------------------------------------------

封蓋

Oil Filter Cover -------------------------------------------------------------------------------------------------

O

形油環

O Ring (CT1313)-------------------------------------------------------------------------------------------------------

過濾器

Oil Filter (SH1521)-------------------------------------------------------------------------------------------------------

過濾器接頭

Oil Filter Joint (CT1315)-------------------------------------------------------------------------------------------

夾簧

Latch Spring (SH1536)-----------------------------------------------------------------------------------------------------------

油管

Oil Tube (CT1324)--------------------------------------------------------------------------------------------------------

油管接頭

Oil Tube Joint (CT1327) ---------------------------------------------------------------------------------------

油管接頭

Oil Tube Joint (SH1535)---------------------------------------------------------------------------------------

螺樁

Stud (SH1533) ---------------------------------------------------------------------------------------------------------

墊圈

Washer (SH1534) -----------------------------------------------------------------------------------------------------

油管

Oil Tube (CT1328) ----------------------------------------------------------------------------------------------------

油管

Oil Tube (CT1332) ----------------------------------------------------------------------------------------------------

扣簧

Filter Screen Clamp (CT1316)----------------------------------------------------------------------------------------

網板

Filter Screen (CT1317)-------------------------------------------------------------------------------------------------

油管

Oil Tube (∮3*∮5) --------------------------------------------------------------------------------------------------------

螺絲

Screw (MT11-30 M3-0.5*16) -----------------------------------------------------------------------------------------

螺帽

Nut (FTB0111 M3-0.5*3) -----------------------------------------------------------------------------------------------------------

◎32

8MM04281207A

螺絲

Screw (CT0202 M4-0.7*12) -------------------------------------------------------------------------------------------------

螺絲

Screw (MT7-29 M5-0.8*6) ------------------------------------------------------------------------------------------------

螺絲

Screw (MT1134 M4-0.7*6) ------------------------------------------------------------------------------------------------

螺絲

Screw (FT1103 M6-1*12) -------------------------------------------------------------------------------------------------

◎36

8MM03200606A

螺絲

Screw (CT130406 M3-0.5*6) ----------------------------------------------------------------------------------------------

◎37

2100001505

油嘴

Oil Tube Joint (SH1505)-------------------------------------------------------------------------------------------------

◎38

90SP0310

彈簧銷

Spring Pin (SH0508)--------------------------------------------------------------------------------------------------

◎39

231A0001139

齒輪組

Gear Asm. -----------------------------------------------------------------------------------------------------------------

承油盤

Oil Receiver --------------------------------------------------------------------------------------------------------------

油管支持臂

Oil Tube Holder ----------------------------------------------------------------------------------------------------

孔塞

Plug (CT0550) ---------------------------------------------------------------------------------------------------------------

螺樁

Stud (CT1338) ---------------------------------------------------------------------------------------------------------------

油管

Oil Tube (∮4.1*∮5.7) ----------------------------------------------------------------------------------------------------

螺絲

Screw (MT0944 M5-0.8*4) -----------------------------------------------------------------------------------------------

泵組

Pump Asm. -------------------------------------------------------------------------------------------------------------------

油管支持臂

Oil Tube Holder ----------------------------------------------------------------------------------------------------

羊毛氈

Felt -----------------------------------------------------------------------------------------------------------------

導油歧路組

Lubricant Guiding Block Asm. --------------------------------------------------------------------------------------

承油盤組

Oil Receiver Asm ------------------------------------------------------------------------------------------------

彈簧

Spring ------------------------------------------------------------------------------------------------------------------------------

蝸桿

Worm -----------------------------------------------------------------------------------------------------------------

螺絲

Screw (CT350248 M5-0.8*6) -----------------------------------------------------------------------------

11. MT4000 / MT4500 潤滑系統 Lubrication Mechanism For MT4000 / MT4500

序 號 物 料 編 號 名 稱 單位用量

Ref.No. Parts No. Description Amt. Req.

◎1 2310001101

8 2310001108

10 2310001110
11 2310001111
12 2310001112
13 2310001113
14 2310001114
15 2200001311
16 2200001313
17 2100001521
18 2200001315
19 2100001536
20 2200001334
21 2200001327
22 2100001535
23 2100001533
24 2100001534
25 2200001328
26 2200001332
27 2200001316
28 2200001317
29 66790
30 8MM03201606A
31 8MA03200306A

◎33 8MN05320600A

34 8MM04280607A

◎35 8MM06401210A

40 2310001140
41 2310001141

◎42 2200000550

43 2200001338
44 66792

◎45 8MN05320400A

46 231A0001146
47 2310001147
48 2310001148
49 231A0001149
50 231A0001150
51 2270001377

◎52 2310000713

53 8MN05320600C

1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
8
1
1
4
3
9
1
1
1
1
1
1
1
6
5
7
2
3
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2

◎ 需整組購買 Must be sold in complete set

-22-

軸

Shaft ---------------------------------------------------------------------------------------------------------------------------

定位環

Collar --------------------------------------------------------------------------------------------------------------------

彈簧

Sping -------------------------------------------------------------------------------------------------------------------------

彈簧座

Spring Set ----------------------------------------------------------------------------------------------------------------

吊桿

Lifter Connecting Plate ----------------------------------------------------------------------------------------------------------

拉臂

Upper Feed Roller Arm -------------------------------------------------------------------------------------------------------

波形墊圈

Corrugated Washer ------------------------------------------------------------------------------------------------------

軸

Shaft ---------------------------------------------------------------------------------------------------------------------------

揚昇手臂

Lifter Arm ---------------------------------------------------------------------------------------------------------------

接頭

Joint ----------------------------------------------------------------------------------------------------------------

螺帽

Nut --------------------------------------------------------------------------------------------------------------------------

螺帽

Nut --------------------------------------------------------------------------------------------------------------------------

螺樁

Stud ---------------------------------------------------------------------------------------------------------------------------

偏心輪

Eccentric ----------------------------------------------------------------------------------------------------------------

◎15

2310001215

球狀接頭

Ball Stud -----------------------------------------------------------------------------------------------------------------

◎16

2310001216

連桿

Link ---------------------------------------------------------------------------------------------------------------------------

連桿

Link ---------------------------------------------------------------------------------------------------------------------------

墊圈

Washer ---------------------------------------------------------------------------------------------------------------------

軸

Shaft ---------------------------------------------------------------------------------------------------------------------------

孔塞

Plug (CT0245)-------------------------------------------------------------------------------------------------------------------------

調壓螺樁

Spring Regulator ----------------------------------------------------------------------------------------------------

螺帽

Nut ---------------------------------------------------------------------------------------------------------------------------

E

形扣環

Ring (RP10108) -------------------------------------------------------------------------------------------------------------------------

C

形扣環

C Ring --------------------------------------------------------------------------------------------------------------------

E

形扣環

E Ring (SH0658) ----------------------------------------------------------------------------------------------------

螺帽

Nut (CT0533 M6-1*5) -------------------------------------------------------------------------------------------------

墊圈

Washer (CT0910)---------------------------------------------------------------------------------------------------------------------

螺樁

Stud (MT1228 M8-1.25*7) -------------------------------------------------------------------------------------------

螺絲

Screw (MT1030 11/64"-40*5) ---------------------------------------------------------------------------------------

螺絲

Screw (MT1230 11/64"-40*30) --------------------------------------------------------------------------------------

螺絲

Screw (MT1231 11/64"-40*7) ---------------------------------------------------------------------------------------

螺絲

Screw (MT0845 M6-1*15) ---------------------------------------------------------------------------------------------

螺絲

Screw ( FTC1-01-23 M6-1*8 )--------------------------------------------------------------------------------------------------

螺絲

Screw (MT0726 M4.5-0.75*15) --------------------------------------------------------------------------------------

◎35

8MN06400600A

螺絲

Screw (CT0918 M6-1*6) ----------------------------------------------------------------------------------------------

螺絲

Screw (CT0625 M6-1*16) ---------------------------------------------------------------------------------------------

螺帽

Nut (SH0111 11/64"-40*4) -------------------------------------------------------------------------------------------

偏心輪組

Eccentric Asm. -----------------------------------------------------------------------------------------------------

連桿組

Link Asm. -------------------------------------------------------------------------------------------------------------

連桿組

Link Asm. -------------------------------------------------------------------------------------------------------------

螺絲

Screw (FT0203 M4-0.7*10) -------------------------------------------------------------------------------------------

減震橡膠

Rubber Cushion --------------------------------------------------------------------------------------------------

連桿組

Link Asm. -------------------------------------------------------------------------------------------------------------

調壓螺樁組

Spring Regulator Asm.----------------------------------------------------------------------------------------------------

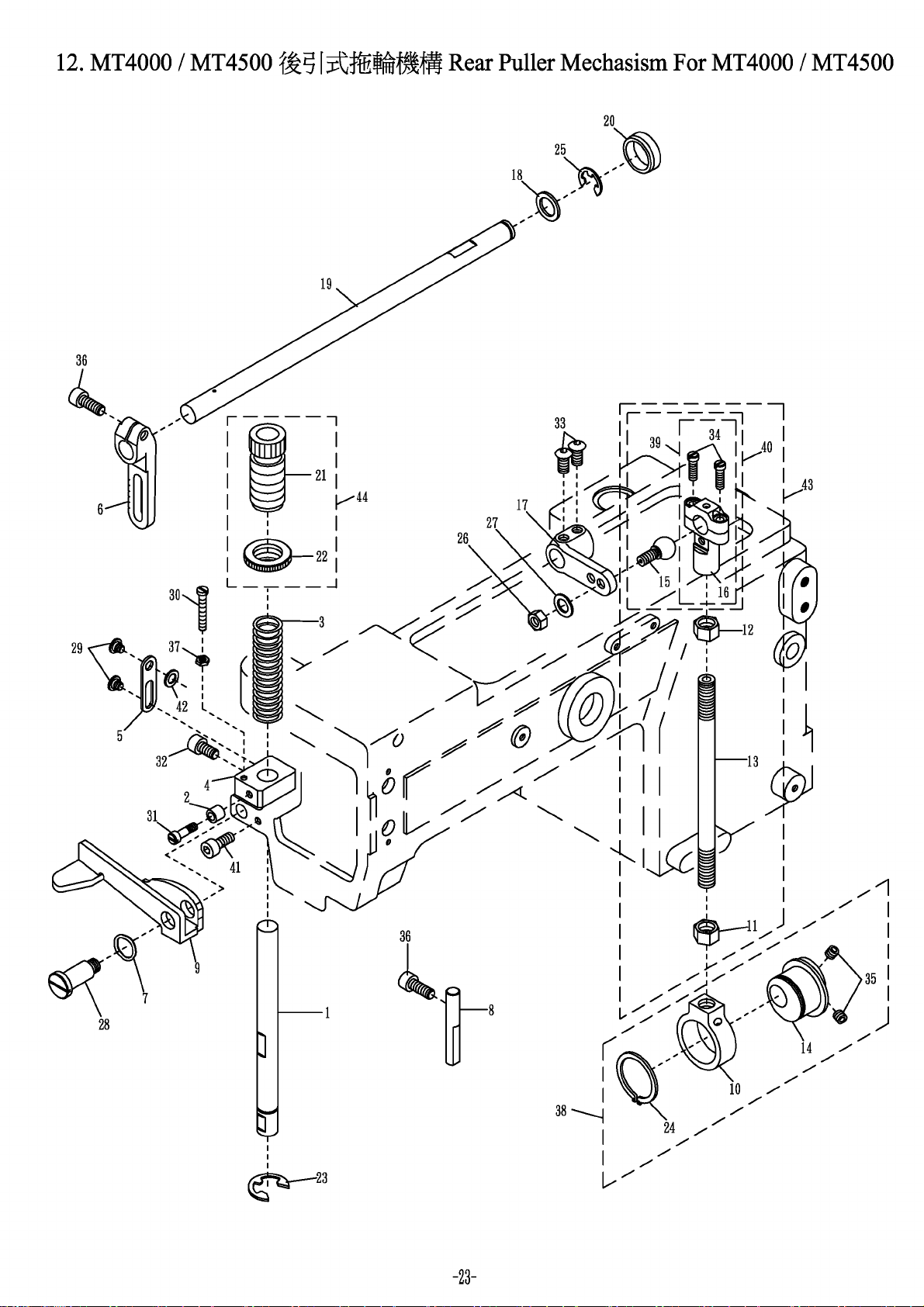

12. MT4000 / MT4500 後引式拖輪機構 Rear Puller Mechanism For MT4000 / MT4500

序 號 物 料 編 號 名 稱 單位用量

Ref.No. Parts No. Description Amt. Req.

1 2310001201

2 2310001202

3 2310001203

4 2310001204

5 2310001205

6 23100012061

7 2310001207

8 2310001208

9 2310001209

◎10 2310001210

11 2310000718
12 2310000719
13 2310001213

◎14 2310001214

17 23100012171
18 2310001218
19 2310001219
20 22000002451
21 2310001221
22 2310001222
23 90ER100

◎24 90SCR280

25 90ER090
26 8MA06400510A
27 2200000910
28 8MB08502816G
29 8SC44400810G
30 8SB44403006K
31 8SB44401507G
32 8MM06401510A
33 8MP06400811A

◎34 8MB95301507K

36 8MM06401610A
37 8SA44400407A
38 231A0001238

◎39 231A0001239

40 231A0001240
41 8MM04281007A
42 2310001242
43 231A0001243
44 231A0001244

1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
2
2
2
2
1
1
1
1
1
1
1
1

◎ 需整組購買 Must be sold in complete set

-24-

墊圈

Washer -----------------------------------------------------------------------------------------------------------------------------------------------------

墊圈

Washer ----------------------------------------------------------------------------------------------------------------------------------------------------

星形壓環

Clutch Tension Spring -------------------------------------------------------------------------------------------------------------------------

離合器

Clutch --------------------------------------------------------------------------------------------------------------------------------------------------

封蓋

Cover -------------------------------------------------------------------------------------------------------------------------------------------------------

襯套

Clutch Tension Sleeve --------------------------------------------------------------------------------------------------------------------------------

軸襯

Bushing ----------------------------------------------------------------------------------------------------------------------------------------------------

軸襯

Bushing ---------------------------------------------------------------------------------------------------------------------------------------------------

墊圈

Washer ------------------------------------------------------------------------------------------------------------------------------------------------------

連桿

Link --------------------------------------------------------------------------------------------------------------------------------------------------------

襯套

Clutch Tension Sleeve --------------------------------------------------------------------------------------------------------------------------------

球狀接頭

Ball Joint -------------------------------------------------------------------------------------------------------------------------------------------

隔環

Spacer -----------------------------------------------------------------------------------------------------------------------------------------------------

軸

Shaft -----------------------------------------------------------------------------------------------------------------------------------------------------------

套筒

Clutch Sleeve --------------------------------------------------------------------------------------------------------------------------------------------

主動輪軸

Bracket ---------------------------------------------------------------------------------------------------------------------------------------------------

軸

Shaft -----------------------------------------------------------------------------------------------------------------------------------------------------------

導軌

Yoke Guide ----------------------------------------------------------------------------------------------------------------------------------------------

套筒

Clutch Sleeve --------------------------------------------------------------------------------------------------------------------------------------------

主動輪

Upper Feed Rollar (28

齒) ------------------------------------------------------------------------------------------------------------------------

拉柄

Clutch Driving Lever ---------------------------------------------------------------------------------------------------------------------------------

從動輪

Lower Feed Roller

(15齒) ------------------------------------------------------------------------------------------------------------------------

軸襯

Bushing ---------------------------------------------------------------------------------------------------------------------------------------------------

單向滾針軸承

Needle Bearing ---------------------------------------------------------------------------------------------------

E

形扣環

E Ring -----------------------------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT1326 M5-0.8*27) ------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (FT0203 M4-0.7*10) --------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (FT1103 M6-1*12) ---------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT1329 11/64"-40*3) ----------------------------------------------------------------------------------------------------------------------

螺絲

Screw (CT1223 M4-0.7*6) --------------------------------------------------------------------------------------------------------------------------

螺帽

Nut (RP0319 1/4"-40*4) ----------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT1332 1/8"-44*6) -------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (RP10217 9/64"-40*8) ----------------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT1334 M4-0.7*5) -----------------------------------------------------------------------------------------------------------------

螺帽

Nut (RP10208 M8-1.25*6) -------------------------------------------------------------------------------------------------------------------------

隔環

Spacer ------------------------------------------------------------------------------------------------------------------------------------------------

主動輪

Upper Feed Roller (0

齒) -----------------------------------------------------------------------------------------------------------------------

主動輪

Upper Feed Rollar (22

齒) --------------------------------------------------------------------------------------------------------------------

從動輪

Lower Feed Roller (12

齒) --------------------------------------------------------------------------------------------------------------------------

主動輪

Upper Feed Rollar (18

齒) --------------------------------------------------------------------------------------------------------------------

從動輪

Lower Feed Roller (10

齒) --------------------------------------------------------------------------------------------------------------------------

從動輪

Lower Feed Roller (0

齒) ---------------------------------------------------------------------------------------------------------------------------

套筒組

Clutch Sleeve Asm. ---------------------------------------------------------------------------------------------------------------------------------

主動輪軸組

Upper Feed Roller Shaft Asm. ----------------------------------------------------------------------------------------------------------------

螺絲

Screw (CT0621 M3.5-0.6*10) -------------------------------------------------------------------------------------------------------------------

連桿組

Link Asm. --------------------------------------------------------------------------------------------------------------------------------------------

從動輪組

Lower Feed Roller Asm. (15

齒) ----------------------------------------------------------------------------------------------------

從動輪組

Lower Feed Roller Asm. (12

齒) -------------------------------------------------------------------------------------------------------

從動輪組

Lower Feed Roller Asm. (10

齒) ----------------------------------------------------------------------------------------------------

從動輪組

Lower Feed Roller Asm.

(0齒) -----------------------------------------------------------------------------------------------------------

護蓋

Cover -------------------------------------------------------------------------------------------------------------------------------------------------

螺椿

Stud -----------------------------------------------------------------------------------------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT7-29 M5-0.8*6) ------------------------------------------------------------------------------------------------

護蓋

Cover -----------------------------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (UTB0130 M4-0.7*6) -------------------------------------------------------------------------------------------------------------

連桿組

Link Asm. --------------------------------------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm. ( P ) -----------------------------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm. ( P2 ) -----------------------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm. ( P1 ) -----------------------------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm. ( P0 ) -------------------------------------------------------------------------------------------------------------------------------------------

主動輪

Upper Feed Rollar (59

齒) ------------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm. ( P3 )--------------------------------------------------------------------------------------------------------------------------------------------

螺帽

Nut (CT1028 M5-0.8*4) -------------------------------------------------------------------------------------------------------------------

連桿組

Link Asm. --------------------------------------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm.(28

齒) ------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm.(22

齒) ------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm.(18

齒) ------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm.(0

齒) ------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm.(59

齒) ------------------------------------------------------------------------------------------------------------

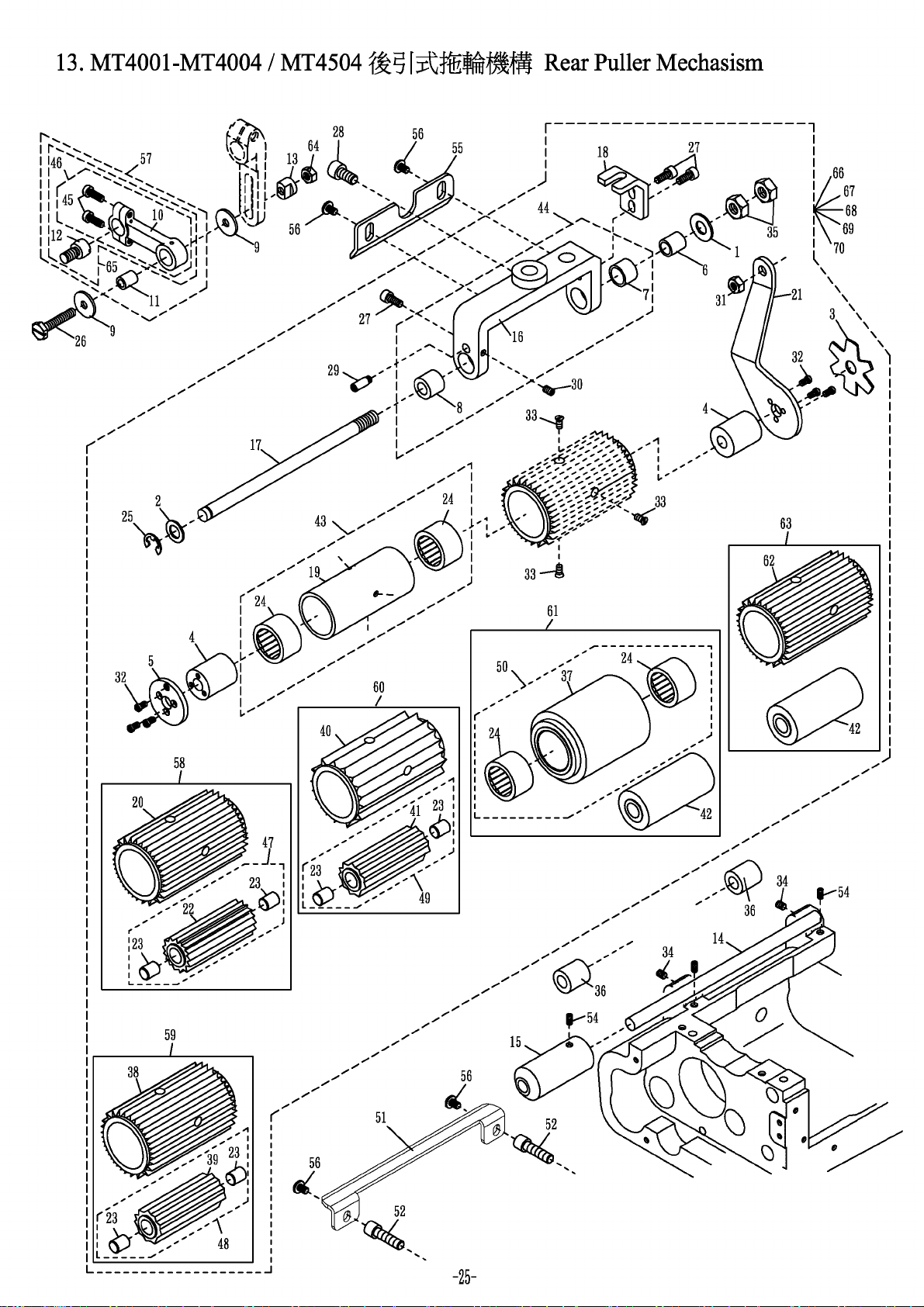

13. MT4001-MT4004 / MT4504 後引式拖輪機構 Rear Puller Mechanism

序 號 物 料 編 號 名 稱 單位用量

Ref.No. Parts No. Description Amt. Req.

1 2310001301
2 2310001302
3 2310001303
4 23100013042
5 2310001305
6 2310001306

◎7 2310001307
◎8 2310001308

9 2310001309

◎10 2310001310

11 2310001311

◎12 2310001312

13 2310001313
14 2310001314
15 23100013151

◎16 2310001316

17 2310001317

18 23100013181
◎19 23100013191
◎20 2310001320

21 2310001321
◎22 2310001322
◎23 2310001323
◎24 90NB2026161

25 90ER070

26 8MK05322710A

27 8MM04281007A

28 8MM06401210A

29 8SB44400305N

30 8MN04280600A

31 8SA64400409B

32 8SB32440604A

33 8SF36400606A

34 8MN04280500A

35 8MA08500613A

36 2310001336
◎37 2310001337

38 2310001338
◎39 2310001339

40 2310001340
◎41 2310001341

42 2310001342

43 231A0001343

44 231A0001344
◎45 8MB85241006K
◎46 231A0001346

47 231A0001347

48 231A0001348

49 231A0001349

50 231A0001350

51 23100013511

52 2310001352

53 ---------------------

54 8MN05320600A

55 2310001355

56 8MB04280608A

57 231A0001357

58 231A0001358

●59 231A0001359

●60 231A0001360

●61 231A0001361

62 2310001362

●63 231A0001363

64 8MA05320408A

65 231A0001365

66 231A0001366

67 231A0001367

68 231A0001368

69 231A0001369

70 231A0001370

1
1
1
2
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
1
1
3
1
1
1
1
6
3
2
2
2
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
2

­3
1
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1

◎ 需整組購買 Must be sold in complete set

● 特註品 Custom-made Item

-26-

墊圈

Washer --------------------------------------------------------------------------------------------------------------------------------------------

墊圈

Washer --------------------------------------------------------------------------------------------------------------------------------------------

星形壓環

Clutch Tension Spring ----------------------------------------------------------------------------------------------------------------

離合器

Clutch -----------------------------------------------------------------------------------------------------------------------------------------

封蓋

Cover ----------------------------------------------------------------------------------------------------------------------------------------------

襯套

Clutch Tension Sleeve -----------------------------------------------------------------------------------------------------------------------

軸襯

Bushing ------------------------------------------------------------------------------------------------------------------------------------------

◎8

2310001308

軸襯

Bushing ------------------------------------------------------------------------------------------------------------------------------------------

墊圈

Washer -------------------------------------------------------------------------------------------------------------------------------------------

連桿

Link -----------------------------------------------------------------------------------------------------------------------------------------------

襯套

Clutch Tension Sleeve ----------------------------------------------------------------------------------------------------------------------

球狀接頭

Ball Joint --------------------------------------------------------------------------------------------------------------------------------

隔環

Spacer --------------------------------------------------------------------------------------------------------------------------------------------

軸

Shaft -------------------------------------------------------------------------------------------------------------------------------------------------

套筒

Clutch Sleeve ----------------------------------------------------------------------------------------------------------------------------------

主動輪軸

Bracket ----------------------------------------------------------------------------------------------------------------------------------

軸

Shaft --------------------------------------------------------------------------------------------------------------------------------------------------

導軌

Yoke Guide -------------------------------------------------------------------------------------------------------------------------------------

套筒

Clutch Sleeve ----------------------------------------------------------------------------------------------------------------------------------

◎20

2310001420

主動輪

Upper Feed Rollar

(22齒) ----------------------------------------------------------------------------------------------------------------

拉柄

Clutch Driving Lever ------------------------------------------------------------------------------------------------------------------------

從動輪

Lower Feed Roller

(12齒) ---------------------------------------------------------------------------------------------------------------

◎23

2310001323

軸襯

Bushing ------------------------------------------------------------------------------------------------------------------------------------------

◎24

90NB2026161

單向滾針軸承

Needle Bearing -------------------------------------------------------------------------------------------

E

形扣環

E Ring --------------------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT1326 M5-0.7*27) --------------------------------------------------------------------------------------------------------------

螺絲

Screw (FT0203 M4-0.7*10) ---------------------------------------------------------------------------------------------------------------

螺絲

Screw (FT1103 M6-1*12) ------------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT1329 11/64"-40*3) -----------------------------------------------------------------------------------------------------------

螺絲

Screw (CT1223 M4-0.7*6) -----------------------------------------------------------------------------------------------------------------

螺帽

Nut (RP0319 1/4"-40*4) -------------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT1332 1/8"-44*6) ----------------------------------------------------------------------------------------------------------------

螺絲

Screw (RP10217 9/64"-40*8) -------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT1334 M4-0.7*5) ---------------------------------------------------------------------------------------------------------------

螺帽

Nut (RP10208 M8-1.25*6) -----------------------------------------------------------------------------------------------------------------

從動輪

Lower Feed Roller (0

齒) -------------------------------------------------------------------------------------------------------------------------

◎37

2310001437

主動輪

Lower Feed Roller (0

齒) -------------------------------------------------------------------------------------------------------------------------

套筒組

Clutch Sleeve Asm. ------------------------------------------------------------------------------------------------------------------------

主動輪軸組

Upper Feed Roller Shaft Asm. ----------------------------------------------------------------------------------------------------

主動輪

Upper Feed Roller

(18齒) -----------------------------------------------------------------------------------------------------------------

從動輪

Lower Feed Roller (10

齒)---------------------------------------------------------------------------------------------------------------

主動輪

Upper Feed Roller

(28齒) ----------------------------------------------------------------------------------------------------------------

◎43

2310001443

從動輪

Lower Feed Roller

(15齒)---------------------------------------------------------------------------------------------------------------

◎44

8MB85241006K

螺絲

Screw (CT0621 M3.5-0.6*10) -------------------------------------------------------------------------------------------------------------

◎45

231A0001346

連桿組

Link Asm. ------------------------------------------------------------------------------------------------------------------------------------

從動輪組

Lower Feed Roller Asm. (12

齒) ---------------------------------------------------------------------------------------------------

從動輪組

Lower Feed Roller Asm. (0

齒) ------------------------------------------------------------------------------------------------------

從動輪組

Lower Feed Roller Asm. (10

齒) ---------------------------------------------------------------------------------------------------

從動輪組

Lower Feed Roller Asm. (15

齒) ----------------------------------------------------------------------------------------------------

螺絲

Screw (MT7-29 M5-0.8*6) ------------------------------------------------------------------------------------------------

護蓋

Cover ----------------------------------------------------------------------------------------------------------------------------------------------

螺椿

Stud ------------------------------------------------------------------------------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------------------------------------------------------

護蓋

Cover ------------------------------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (UTB0130 M4-0.7*6) ----------------------------------------------------------------------------------------------------------------

連桿組

Link Asm. ------------------------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm. ( P2 ) ---------------------------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm. ( P0 ) ------------------------------------------------------------------------------------------------------------------------------------------

●59

231A0001459

拖輪組

Puller Asm. ( P1 ) ------------------------------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm. ( P ) ------------------------------------------------------------------------------------------------------------------------------------------

螺帽

Nut (CT1028 M5-0.8*4) ------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm.

(28齒)----------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm.

(18齒)----------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm.

(22齒)----------------------------------------------------------------------------------------------------------------------

拖輪組

Puller Asm. (0

齒) ------------------------------------------------------------------------------------------------------------------------------

連桿組

Link Asm. --------------------------------------------------------------------------------------------------------------------------------------------------

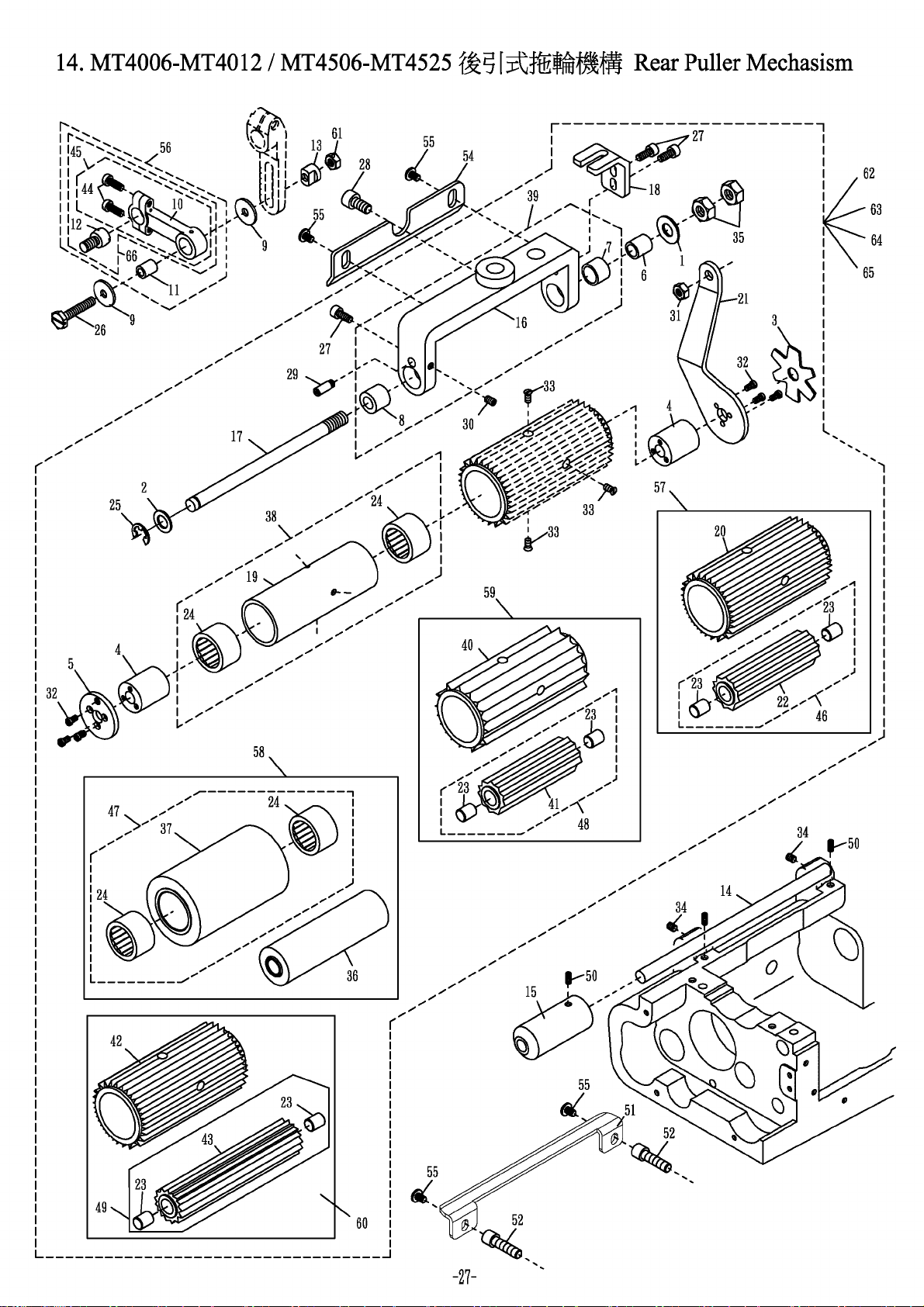

14. MT4006-MT4012 / MT4506-MT4525 後引式拖輪機構 Rear Puller Mechanism

序 號 物 料 編 號 名 稱 單位用量

Ref.No. Parts No. Description Amt. Req.

1 2310001301
2 2310001302
3 2310001303
4 23100013042
5 2310001305
6 2310001306

◎7 2310001307

9 2310001309

◎10 2310001310

11 2310001311

◎12 2310001312

13 2310001313
14 2310001314
15 23100013151

◎16 2310001416

17 2310001417
18 23100014181

◎19 23100014191

21 2310001421

◎22 2310001422

25 90ER070
26 8MK05322710A
27 8MM04281007A
28 8MM06401210A
29 8SB44400305N
30 8MN04280600A
31 8SA64400409B
32 8SB32440604A
33 8SF36400606A
34 8MN04280500A
35 8MA08500613A
36 2310001436

38 231A0001438
39 231A0001439
40 2310001440

◎41 2310001441

42 2310001442

46 231A0001446
47 231A0001447
48 231A0001448
49 231A0001449
50 8MN05320600A
51 23100013511
52 2310001352
53 --------------------­54 2310001454
55 8MB04280608A
56 231A0001357

●57 231A0001457

●58 231A0001458

60 231A0001460
61 8MA05320408A
62 231A0001462
63 231A0001463
64 231A0001464
65 231A0001465
66 231A0001365

1
1
1
2
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
1
1
3
1
1
1
1
6
3
2
2
1
1
1
1
1
1
1
1
2
1
1
1
1
1
3
1
2

­1
4
1
1
1
1
1
1
1
1
1
1
1

◎需整組購買 Must be sold in complete set

● 特註品 Custom-made Item

-28-

孔塞

Cap ------------------------------------------------------------------------------------------------------

螺帽

Nut -----------------------------------------------------------------------------------------------------------------------

彈簧墊圈

Spring Washer ------------------------------------------------------------------------------------------------------------------

導線臂

Thread Arm -------------------------------------------------------------------------------

夾板

Clamp -------------------------------------------------------------------------------------------------------------------

2

螺絲

Screw --------------------------------------------------------------------------------------------

上柱

Upper Thread Stand Rod ----------------------------------------------------------------------------------

夾板

Clamp ---------------------------------------------------------------------------------------------------------------

1

螺絲

Screw --------------------------------------------------------------------------------------------

螺帽

Nut -----------------------------------------------------------------------------------------------

下柱

Lower Thread Stand Rod --------------------------------------------------------------------------------

線盤座

Spool Set Bracket --------------------------------------------------------------------------

螺帽

Nut -----------------------------------------------------------------------------------------------

墊圈

Washer ------------------------------------------------------------------------------------------------------

彈簧墊圈

Spring Washer -------------------------------------------------------------------------------------------

螺帽

Nut --------------------------------------------------------------------------------------------------------------------------------

線盤

Spool Set ---------------------------------------------------------------------------------------------------------------

緩衝墊

Seat ----------------------------------------------------------------------------------------------------------

線盤軸

Spool Pin -------------------------------------------------------------------------------------------------------

定心錐

Spool Retaining Fig ---------------------------------------------------------------------------------------------

2

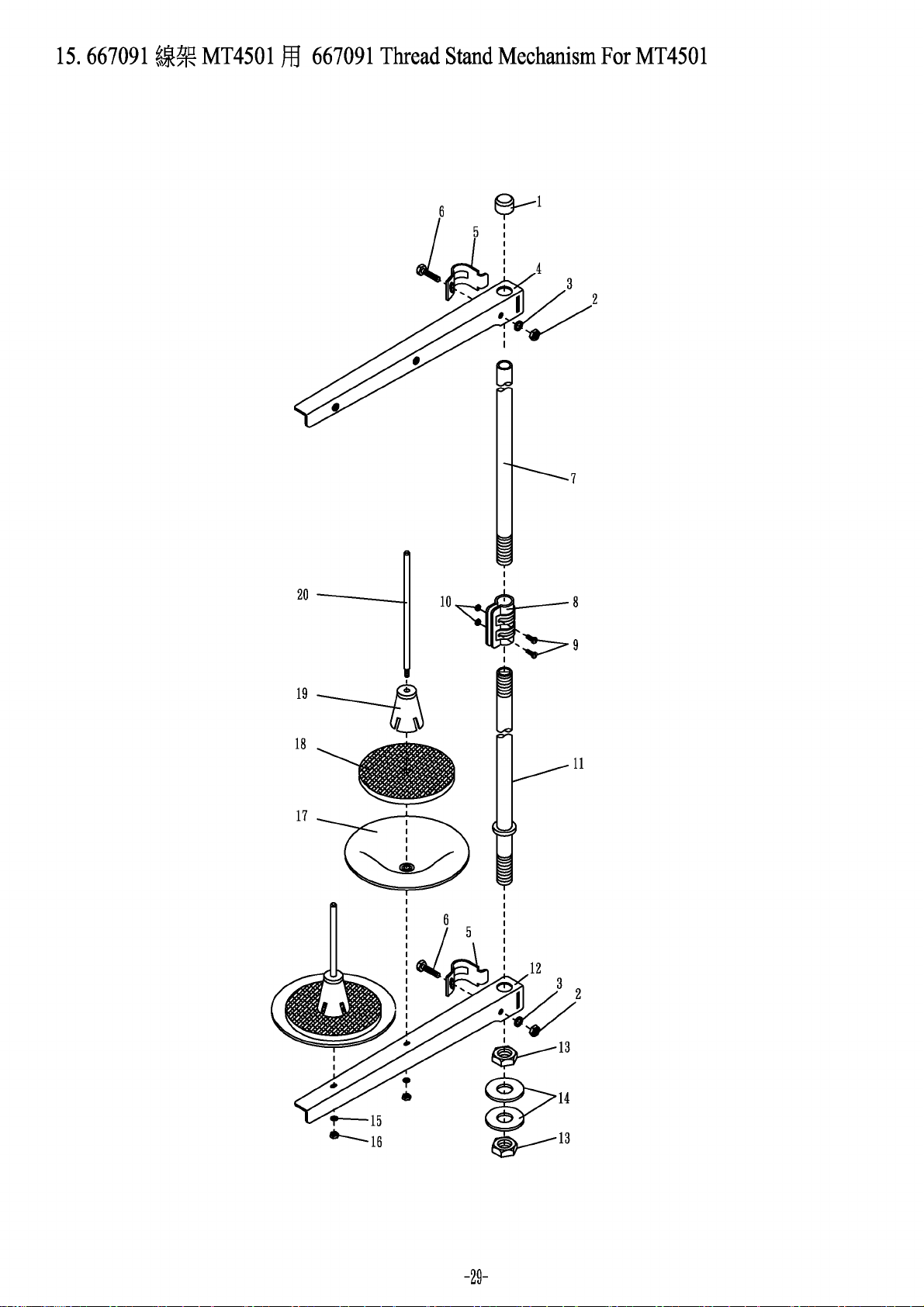

15. 667091 線架 MT4501 用 667091 Thread Stand Mechanism For MT4501

序 號 物 料 編 號

Ref.No. Parts No.

◎1 6670919
◎2 6670526
◎3 6670525
◎4 6670918
◎5 667097
◎6 667098
◎7 6670917
◎8 6670914

◎9 6670915
◎10 6670916
◎11 6670913
◎12 667092
◎13 6670912
◎14 6670911
◎15 667099
◎16 6670910
◎17 667093
◎18 667094
◎19 667095
◎20 667096

◎需整組購買 Must be sold in complete set

名 稱 單位用量

Description Amt. Req.

1
2
2
1

2
1

2
2
1
1
2
2
2
2
2
2
2

-30-

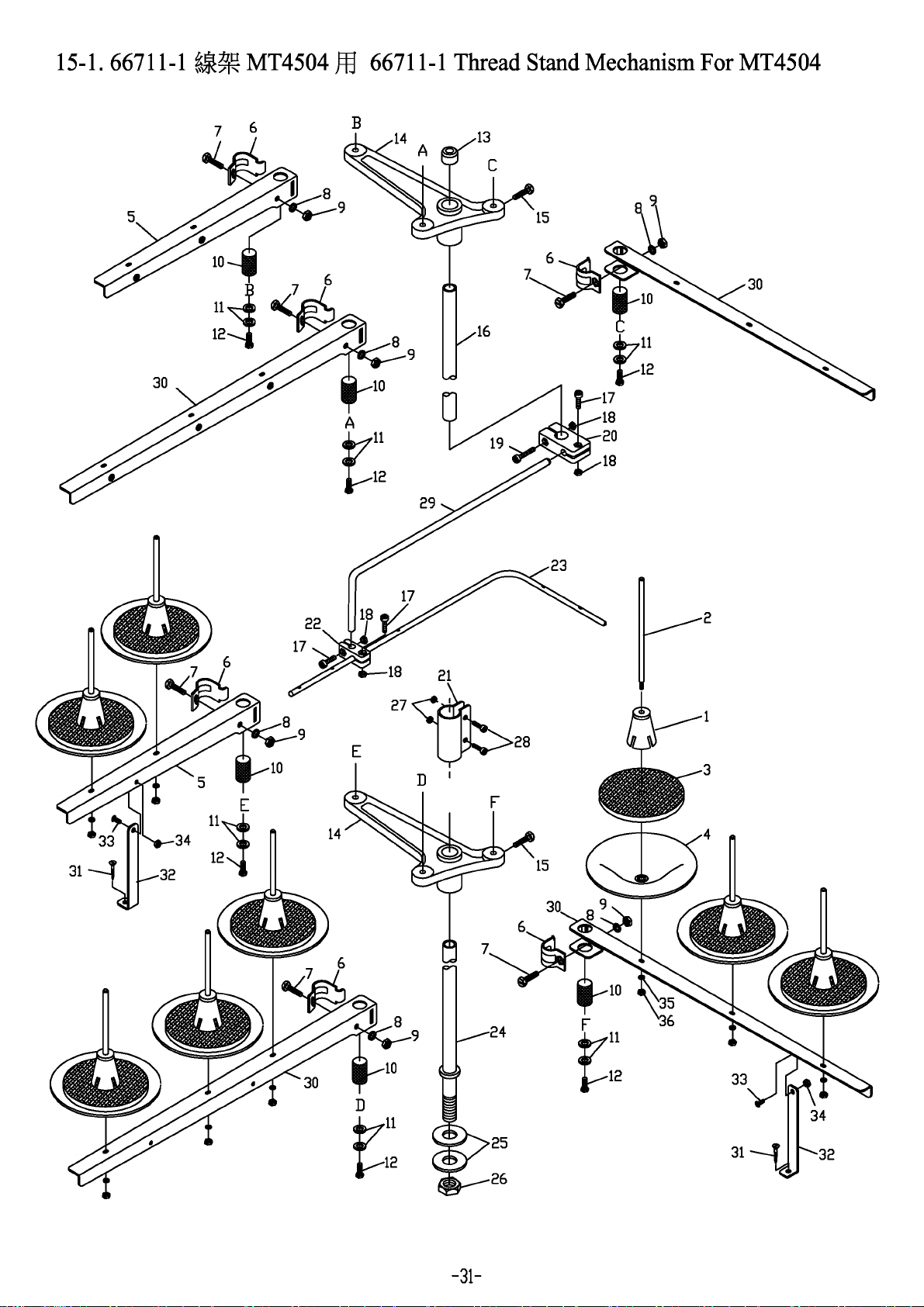

15-1. 66711-1 線架 MT4504 用 66711-1 Thread Stand Mechanism For MT4504

◎1

667101

定心錐

Spool Retaining Fig (67101)--------------------------------------------------------------------------------------------------------------------------------

◎2

667102

線盤軸

Spool Pin (67102)---------------------------------------------------------------------------------------

◎3

667103

緩衝墊

Seat (67103)--------------------------------------------------------------------------------------------

◎4

667104

線盤

Spool Set (67104)-------------------------------------------------------------------------------------------

◎5

667105

線盤座

Spool Set Bracket (67105)------------------------------------------------------------------------------

◎6

667106

夾板

Clamp (67106) ------------------------------------------------------------------------------------------------------

◎7

667107

螺絲

Screw (67107) -------------------------------------------------------------------------------------------------------

◎8

667108

彈簧墊圈

Spring Washer (67108) --------------------------------------------------------------------------------------

◎9

667109

螺帽

Nut (67109) ------------------------------------------------------------------------------------------------------------------------

◎10

6671010

支架

Knife Holder Bracket (67010)-----------------------------------------------------------------------------------------------------

◎11

6671011

墊圈

Washer (671011)-----------------------------------------------------------------------------------------------------

◎12

6671012

螺絲

Screw (671012)-------------------------------------------------------------------------------------------------------

◎13

6671013

柱帽

Rod Cup (671013)----------------------------------------------------------------------------------------------------

◎14

6671014

軸

Shaft (671014)-----------------------------------------------------------------------------------------------------------

◎15

6671015

螺絲

Screw (671015)-------------------------------------------------------------------------------------------------------

◎16

6671016

上柱

Upper Thread Stand Rod (671016) ---------------------------------------------------------------------------------------------------------------

◎17

6671017

螺絲

Screw (671017) -------------------------------------------------------------------------------------------------------------------------------------

◎18

6671018

螺帽

Nut (671018) ----------------------------------------------------------------------------------------------------------------------------------------

◎19

6671019

螺絲

Screw (671019) -------------------------------------------------------------------------------------------------------------------------------------

◎20

6671020

接頭

Bracket (671020)-----------------------------------------------------------------------------------------------------------------------------------

◎21

6671021

接頭

Bracket(671021) -----------------------------------------------------------------------------------------------------------------------------------

◎22

6671022

接頭

Joint (671022) ----------------------------------------------------------------------------------------------------------------

◎23

6671023

導線桿

Thread Guide (671023)-------------------------------------------------------------------------------------------------------

◎24

6671024

下柱

Lower Thread Stand Rod (671024)---------------------------------------------------------------------------------------------------------

◎25

6671025

墊圈

Washer (671025)---------------------------------------------------------------------------------------------------------------------

◎26

6671026

螺帽

Nut (671026)------------------------------------------------------------------------------------------------------------------------

◎27

6671027

螺帽

Nut (671027)------------------------------------------------------------------------------------------------------------------------

◎28

6671028

螺絲

Screw (671028)---------------------------------------------------------------------------------------------------------------------------

◎29

6671029

旋臂

Arm (671029)----------------------------------------------------------------------------------------------------------------------------------

◎30

6671030

線盤座

Spool Set Bracket (671030) -----------------------------------------------------------------------------------------------------

◎31

6671031

木螺絲

Wood Screw (671031) ---------------------------------------------------------------------------------------------------------------

◎32

6671032

撐桿

Support Rod (671032) --------------------------------------------------------------------------------------------------------------------------

◎33

6671033

螺絲

Screw (671033) --------------------------------------------------------------------------------------------------------------------

◎34

6671034

螺帽

Nut (671034) ---------------------------------------------------------------------------------------------------------------------------

◎35

6671035

彈簧墊圈

Spring Washer (671035)-------------------------------------------------------------------------------------------------------------

◎36

6671036

螺帽

Nut (671036) -------------------------------------------------------------------------------------------------------------------------------

序 號 物 料 編 號 名 稱 單位用量

Ref.No. Parts No. Description Amt .Req.

8
8
8
8
2
6
6
6
6
6

12

6
1
2
2
1
3
4
1
1
1
1
1
1
2
1
2
2
1
4
2
2
2
2
8
8

◎需整組購買 Must be sold in complete set

-32-

導線桿

Thread Guide --------------------------------------------------------------------------------------------------

◎2

66711502

支架

Holder --------------------------------------------------------------------------------------------------------------

-

◎3

66711503

導線

Thread Guide ------------------------------------------------------------------------------------------------------

-

◎4

66711504

螺絲

Screw ---------------------------------------------------------------------------------------------------------------

-

◎5

66711505

螺帽

Nut ------------------------------------------------------------------------------------------------------------------

-

◎6

66711506

柱

Thread Stand Rod --------------------------------------------------------------------------------------------------

-

◎7

66711507

旋臂

Arm ---------------------------------------------------------------------------------------------------------------------

-

◎8

66711508

接頭

Joint --------------------------------------------------------------------------------------------------------------------------------

-

◎9

66711509

線盤座

Spool Set Bracket ---------------------------------------------------------------------------------------------

-

◎10

66711510

軸襯

Bushing -----------------------------------------------------------------------------------------------------------------------------

-

◎11

66711511

螺椿

Stud -----------------------------------------------------------------------------------------------------------------------------------

◎12

66711512

螺帽

Nut ------------------------------------------------------------------------------------------------------------------

◎13

66711513

螺絲

Screw ---------------------------------------------------------------------------------------------------------------

◎14

66711514

基座

Base -----------------------------------------------------------------------------------------------------------------

◎15

66711515

線盤

Spool Set (See Left Page) --------------------------------------------------------------------------------------

◎16

66711516

緩衝墊

Seat (See Left Page) ------------------------------------------------------------------------------------------

◎17

66711517

線盤軸

Spool Pin (See Left Page) ----------------------------------------------------------------------------------

◎18

66711518

線盤軸

Spool Pin (See Left Page) ----------------------------------------------------------------------------------

◎19

66711519

彈簧墊圈

Spring Washer ----------------------------------------------------------------------------------------------

-

◎20

66711520

螺帽

Nut ------------------------------------------------------------------------------------------------------------------

◎21

66711521

螺絲

Screw ---------------------------------------------------------------------------------------------------------------

-

◎22

66711522

螺絲

Screw ---------------------------------------------------------------------------------------------------------------

-

◎23

66711523

螺帽

Nut ------------------------------------------------------------------------------------------------------------------

-

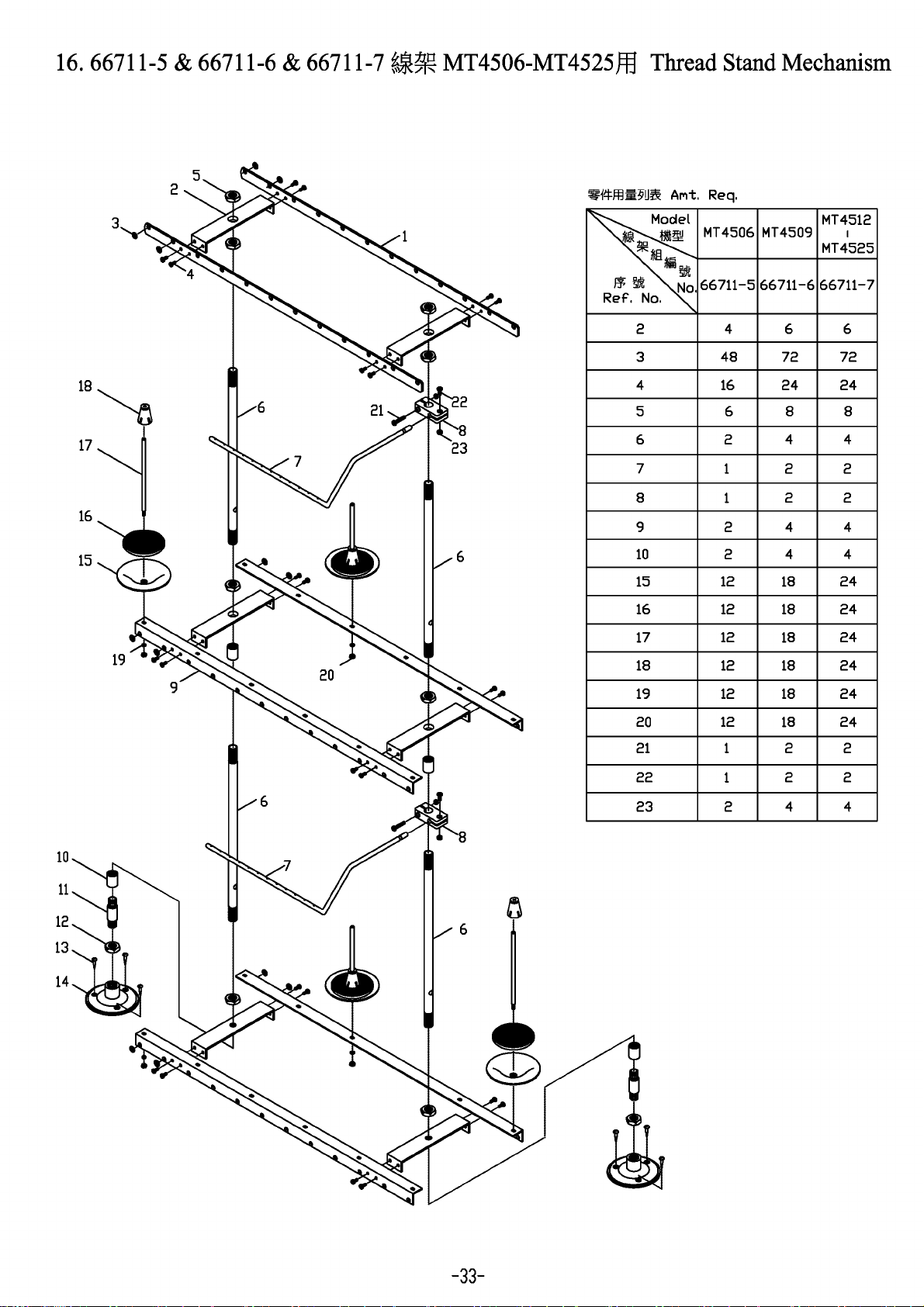

16. 66711-5 & 66711-6 & 66711-7 線架 MT4506-4525 用 Thread Stand Mechanism

序 號 物 料 編 號 名 稱 單位用量

Ref.No. Parts No. Description Amt. Req.

◎1 66711501

2

2
2
6
2

-

-

-

-

-

◎需整組購買 Must be sold in complete set

-34-

彈簧

Spring ------------------------------------------------------------------------------------------------------

螺樁

Stud

-----------------------------------------------------------------------------------------------------------------------

8

MP06401211A

螺絲

Screw (M6-1*12) (UTB0302)--------------------------------------------------------------------------------------------------

螺絲

Screw (M4-0.7*3.5) --------------------------------------------------------------------------------------------------

螺絲

Screw (M5-0.8*12) (FT0524)--------------------------------------------------------------------------------------------------

螺絲

Screw (M4-0.7*30) (CT1359)--------------------------------------------------------------------------------------------------

鬆線座

Tension Post Support----------------------------------------------------------------------------------

導線座

Thread Guide Holder

----------------------------------------------------------------------------------------

鬆線板

Release Wedge----------------------------------------------------------------------------------------

導線座

Thread Guide Holder

----------------------------------------------------------------------------------------

鬆線板

Release Wedge----------------------------------------------------------------------------------------

彈簧

Spring ------------------------------------------------------------------------------------------------------

活動片

Plate ----------------------------------------------------------------------------------------------------

張力調整螺帽

Tension Nut (Red) (See left Page)(SH1121) -----------------------------------------------------

套管

Bushing (See left Page) (SH1122)----------------------------------------------------------------------------------

彈簧

Spring (Red) (See left Page)(SH1123) ----------------------------------------------------------------------------

彈簧座

Spring Seat (See left Page)(CT0305) --------------------------------------------------------------------------

羊毛氈

Felt (See left Page)(SH1127) ------------------------------------------------------------------------------------

張力控制盤

Tension Disc (See left Page)(SH1126) -----------------------------------------------------------------

螺樁

Stud (See left Page) (CT0308)---------------------------------------------------------------------------------------

隔環

Spacer (See left Page) (CT0309)------------------------------------------------------------------------------------

張力控制組

Tension Set. (Red)-----------------------------------------------------------------------------

張力控制組

Tension Set. (Bule)----------------------------------------------------------------------

張力調整螺帽

Tension Nut (Bule) (See left Page)(SH1121) ------------------------------------------------------

彈簧

Spring (Bule)(See left Page)(SH1132) ----------------------------------------------------------------------------------

軸

Shaft ----------------------------------------------------------------------------------------------------------

螺絲

Screw (M5-0.8*10) --------------------------------------------------------------------------------------------------

螺帽

Nut ( M5-0.8*4) (CT1028) --------------------------------------------------------------------------

貼紙

Paster---------------------------------------------------------------------------------------------------------------------

連桿

Link-----------------------------------------------------------------------------------------------------------------------

曲枘

Lever---------------------------------------------------------------------------------------------------------------------------------------------

螺椿

Stud-------------------------------------------------------------------------------------------------------------------------

螺椿

Stud-----------------------------------------------------------------------------------------------------------------------------------------------

螺絲

Srew-------------------------------------------------------------------------------------------------

墊塊 --------------------------------------------------------------------------------------------------------------------------

鬆線組

Thread Tension Mechanism ------------------------------------------------------------------------------------------

鬆線組

Thread Tension Mechanism ------------------------------------------------------------------------------------------

鬆線組

Thread Tension Mechanism ------------------------------------------------------------------------------------------

墊圈

Washer -----------------------------------------------------------------------------------------------------------------

---------------------------------------------------------------------------------------------------------------------------

螺絲

Screw (MT1741 M3-0.5*9) --------------------------------------------------------------------------------------------------

彈簧

Spring ------------------------------------------------------------------------------------------------------

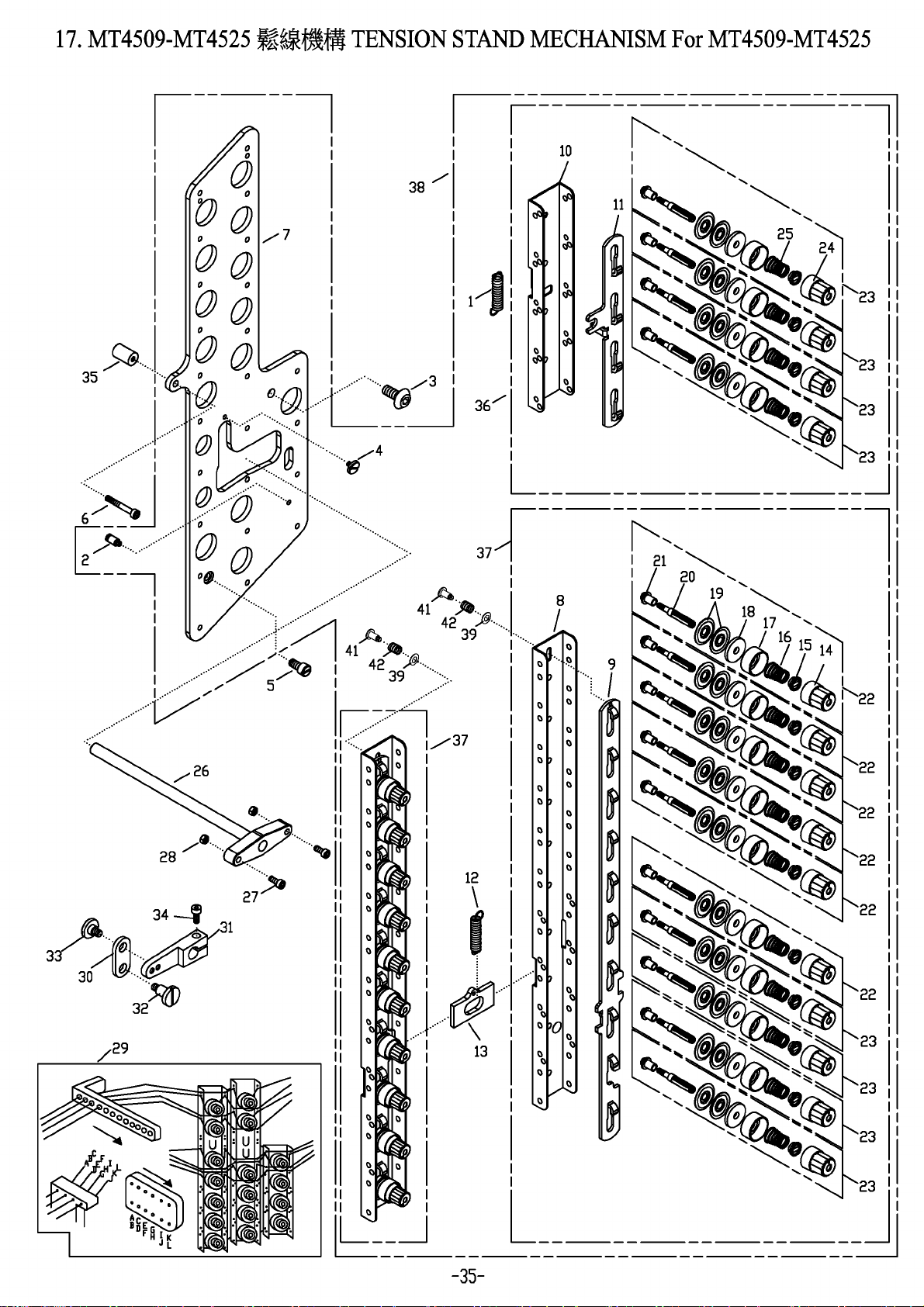

17. MT4509-MT4525 鬆線機構 Tension Stand Mechanism For MT4509-MT4525

序 號 物 料 編 號 名 稱 單位用量

Ref.No. Parts No. Description Amt. Req.

1 2310000310
2 2310001937
3
4 8MB04280612G
5 8MM05321209A
6 8MM04283007B
7 2310001707
8 2310001708

9 2310001709
10 2310001710
11 2310001711
12 2310001712
13 2310001713
14 2100001121
15 2200000303
16 2100001123
17 2200000305
18 2100001127
19 2100001126
20 22000003081
21 22000003091
22 231A0001922
23 231A0001923
24 2100001121B
25 2100001132
26 2310001726
27 8MB05321008A
28 8MA05320408A
29 66441-3
30 2310000341
31 2310000342
32 2310000343
33 2310000344
34 8MK95301407A
35 2310001735
36 231A0001736
37 231A0001737
38 231A0001738
39 90DW040
40 -------------------­41 8MB03200907G
42 2310001742

1
1
1
1
1
1
1
2
2
1
1
1

1
12
24
12
24
24
48
24
24
12
12
12
12

1

2

2

1

1

1

1

1

1

1

1

2

1

2

­2
2

-36-

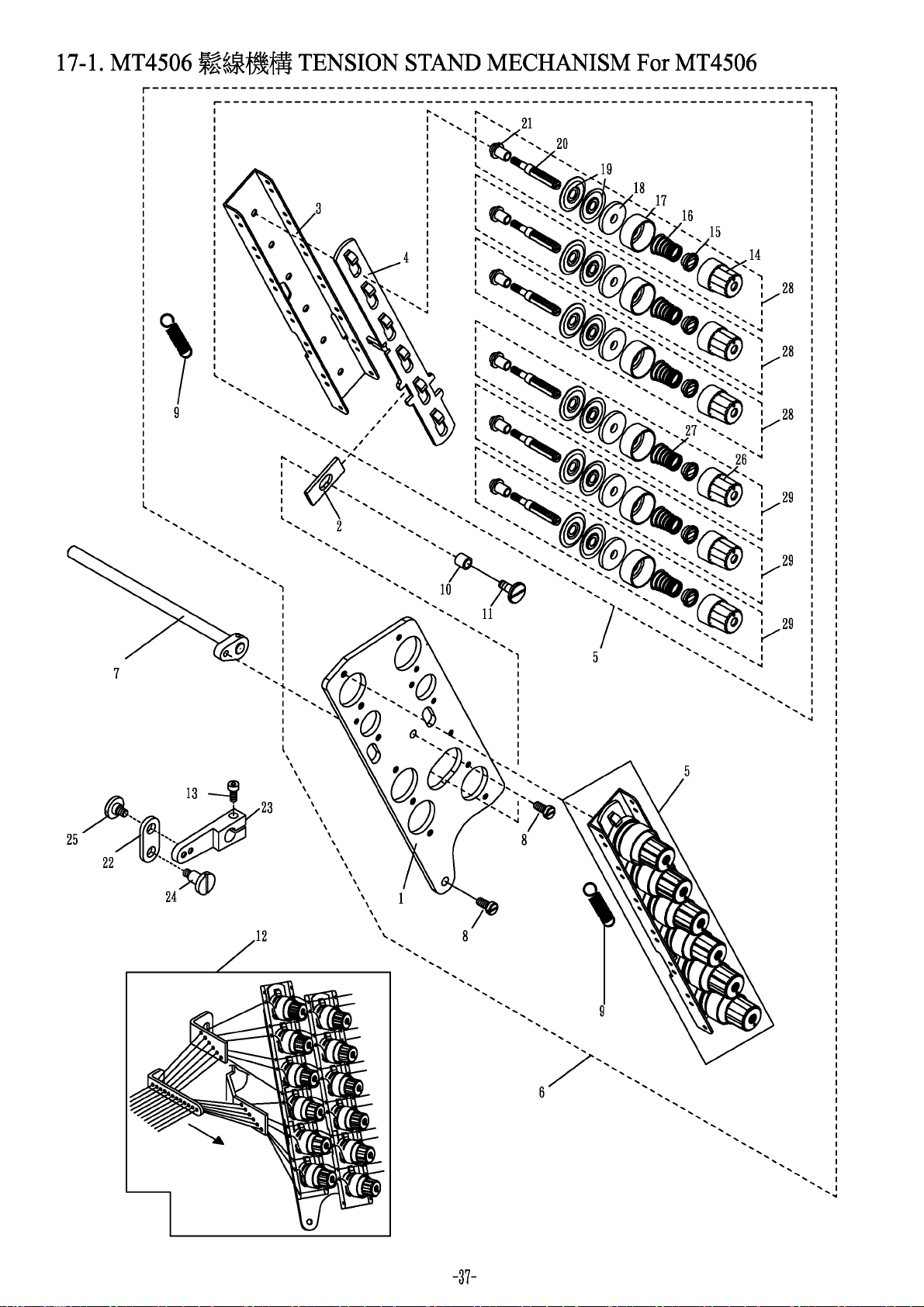

17-1. MT4506 鬆線機構 Tension Stand Mechanism For MT4506

鬆線座

Tension Post Support--------------------------------------------------------------------------------------

活動片

Plate --------------------------------------------------------------------------------------------------

導線座

Tension Post Support----------------------------------------------------------------------------------

鬆線板

Release Wedge-----------------------------------------------------------------------------------------------------

鬆線組

Thread Tension Mechanism -----------------------------------------------------------------------------------------

鬆線組

Thread Tension Mechanism ---------------------------------------------------------------------------------------

軸

Shaft -----------------------------------------------------------------------------------------------------

螺絲

Screw (M5-0.8*12) (MT0332) ---------------------------------------------------------------------

彈簧

Spring ---------------------------------------------------------------------------------------------------

隔環

Space -----------------------------------------------------------------------------------------------------

螺樁

Stud ------------------------------------------------------------------------------------------------------

貼紙

Paster-------------------------------------------------------------------------------------------------------------

螺絲

Srew-------------------------------------------------------------------------------------------------

張力調整螺帽

Tension Nut (Red) (See left Page)(SH1121) -----------------------------------------------------

套管

Bushing (See left Page) (SH1122)-------------------------------------------------------------------

彈簧

Spring (Red) (See left Page)(SH1123) ----------------------------------------------------------------------------

彈簧座

Spring Seat (See left Page)(CT0305) -----------------------------------------------------------

羊毛氈

Felt (See left Page)(SH1127) ---------------------------------------------------------------------

張力控制盤

Tension Disc (See left Page)(SH1126) ---------------------------------------------------

螺樁

Stud (See left Page) (CT03081)-----------------------------------------------------------------------

隔環

Spacer (See left Page) (CT03091)--------------------------------------------------------------------

連桿

Link-----------------------------------------------------------------------------------------------------

曲枘

Lever----------------------------------------------------------------------------------------------------------------

螺椿

Stud---------------------------------------------------------------------------------------------------------

螺椿

Stud------------------------------------------------------------------------------------------------------------------

張力調整螺帽

Tension Nut (Bule) (See left Page)(SH1121) ------------------------------------------------------

彈簧

Spring (Bule)(See left Page)(SH1132) ----------------------------------------------------------------------------------

張力控制組

Tension Set. (Red)-----------------------------------------------------------------------------

張力控制組

Tension Set. (Bule)----------------------------------------------------------------------

序 號 物 料 編 號 名 稱 單位用量

Ref.No. Parts No. Description Amt. Req.

1 2320001701
2 2320001702
3 2320001703
4 2320001704
5 231A0001705
6 231A0001706
7 2310001905
8 8MC05321208A

9 2310000310
10 2310001910
11 2310001911
12 66441-2
13 8MK95301407A
14 2100001121
15 2200000303
16 2100001123
17 2200000305
18 2100001127
19 2100001126
20 22000003081
21 22000003091
22 2310000341
23 2310000342
24 2310000343
25 2310000344
26 2100001121B
27 2100001132
28 231A0001922
29 231A0001923

1
1
2
2
2
1
1
2
2
1
1
1
1
6

12

6
12
12
24
12
12

1

1

1

1

6

6

6

6

-38-

NARROW GAUGE TYPE (LESS THAN 5mm)

23

23-A

MODEL

MT4501

MT4504

MT4506

MT4509

MT4512

MT4513

MT4517

MT4523

MT4525

PRESS FOOT

NEEDLE

DISTANCE

3/4"

1"

1-1/8"

1-1/4"

1-1/2"

1/4-3/4-1/4

3/16-3/4-3/16

1/4-1-1/4

3/16-1-3/16

1/4-1/2-1/4

1/4"

3/8"

1/3"

064-119

1/4"

3/16"

1/4"

5mm

1/4"

MULTI-NEEDLE
DISTANCE

1/8"

1/8"

1/4"

1/8"

PARTS NO.

5231PF0101A

5231PF0401A

5231PF0403A

5231PF0405A

5231PF0406A

5231PF0408A

5231PF0411A

5231PF0412A

5231PF0413A

5231PF0414A

5231PF0415A

5231PF0601A

5231PF0602A

5231PF0603A

5231PF0604A

5231PF0901A

5231PF1201A

5231PF1202A

5231PF1203A

5231PF1301A

5231PF1302A

5231PF1701A

5231PF2301A

5231PF2501A

CUSTOM-MADE ITEM

STANDARD TYPE

CUSTOM-MADE ITEM

FOR THICK THREAD USAGE

FOR MODEL MT4513-MT4523

FOR MODEL MT4504-MT4523

24

FOR MODEL MT4504- A

PRESS FOOT

24-A

MODEL

MT4504

24-B

MODEL

MT4504

3

MODEL NO.

NEEDLE

DISTANCE

PRESS FOOT

NEEDLE

DISTANCE

NEEDLE REQ.

MT4501

MT4506

MT4512

MT4517

MT4525 25

3/4"

1"

1-1/8"

1-1/4"

1-1/2"

3/4"

1"

1-1/8"

1-1/4"

1-1/2"

Q'TY

1

6

PARTS NO.

5231PF0402A

5231PF0404A

5231PF0410A

5231PF0407A

5231PF0409A

PARTS NO.

5231PF0402B

5231PF0404B

5231PF0410B

5231PF0407B

5231PF0409B

MODEL NO.

MT4504

MT4509

MT45231723

Q'TY

4

9

13MT451312

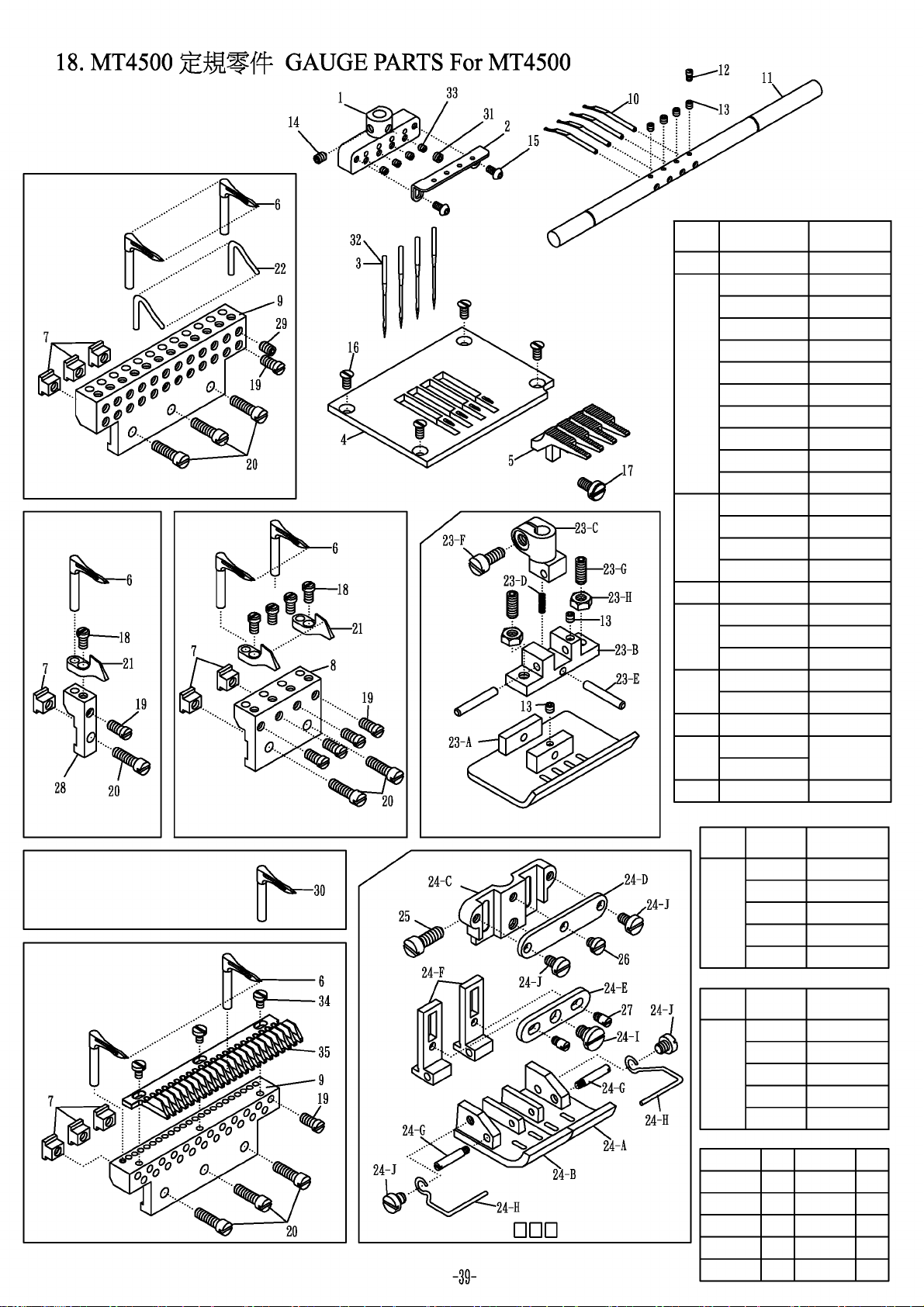

18. MT4500 定規零件 Gauge Parts For MT4500

針留

Needle Clamp -------------------------------------------------------------------------------------------------

導線

Thread Guide ----------------------------------------------------------------------------------------------------

針

UO113 #14 Needle ----------------------------------------------------------------------------------------

針板

Needle Plate -------------------------------------------------------------------------------------------

狗齒

Feed Dog ----------------------------------------------------------------------------------------------

結線鉤

Retainer Lopper -----------------------------------------------------------------------------------

承座

Bracker -------------------------------------------------------------------------------------------------

結線鉤座

Looper Holder -----------------------------------------------------------------------------------

結線鉤座

Looper Holder -------------------------------------------------------------------------------

結線鉤

Looper ---------------------------------------------------------------------------------------------

撥線桿

Retainer Holder -------------------------------------------------------------------------------------------------

螺絲

Screw (MT1812 M2.5-0.45*3.5) --------------------------------------------------------------------

螺絲

Screw (CT0115 M3-0.5*3) -------------------------------------------------------------------------------------

螺絲

Screw (CT0229 M4-0.7*4) -------------------------------------------------------------------------------------

螺絲

Screw (MT0142 M3-0.5*6) --------------------------------------------------------------------------------------

螺絲

Screw (SH0530 9/64"-40*8) ----------------------------------------------------------------------

螺絲

Screw (MT1817 11/64"-40*6) -------------------------------------------------------------------

螺絲

Screw (K07-08 1/8"-44*6) ------------------------------------------------------------------------

螺絲

Screw (MT1819 9/64"-40*7) ------------------------------------------------------------------------

螺絲

Screw (MT1820 9/64"-40*12) -------------------------------------------------------------------

導針器

Needle Guide ----------------------------------------------------------------------------------------------------

導針器

Needle Guide ---------------------------------------------------------------------------------------------------

壓腳

Presser Foot -----------------------------------------------------------------------------------------

壓腳底

Presser Foot Guide (See Left Page )-------------------------------------------------------------

壓腳連桿

Presser Foot Link -----------------------------------------------------------------------------

壓腳柄

Presser Foot Arm --------------------------------------------------------------------------------

壓縮彈簧

Spring ------------------------------------------------------------------------------------------

固定銷

Pin ----------------------------------------------------------------------------------------------------------------

螺絲

Screw (CT1237 M4-0.7*10) ---------------------------------------------------------------------

螺絲

Screw (CT0216 M4-0.7*10) ---------------------------------------------------------------------

螺帽

Nut (CT0238 M4-0.7*3) --------------------------------------------------------------------------

壓腳

Presser Foot ------------------------------------------------------------------------------------------

壓腳底(右)

Presser Foot Guide (Right) (See Left Page )-------------------------------------------------

壓腳底(左)

Presser Foot Guide (Left) (See Left Page )----------------------------------------------------

壓腳座

Presser Foot Bracket ---------------------------------------------------------------------------

檔片

Plate ------------------------------------------------------------------------------------------------------------------

連桿

Link -----------------------------------------------------------------------------------------------------------------

滑塊

Bracket --------------------------------------------------------------------------------------------------------------

銷

Pin ----------------------------------------------------------------------------------------------------------------------

護指環

Safety Plate Holder -----------------------------------------------------------------------------

螺絲

Screw (M4.5-0.75*4) -----------------------------------------------------------------------------

螺絲

Screw (CT0637 M3.5-0.6*6) --------------------------------------------------------------------

螺絲

Screw (CT0706 M4.5-0.75*12) -----------------------------------------------------------------

螺絲

Screw (PMD010166 M3.5-0.6*4) -------------------------------------------------------------------

螺絲

Screw (MT1827 M3-0.5*3) ----------------------------------------------------------------------

結線鉤座

Looper Holder -------------------------------------------------------------------------------

螺絲

Screw (SH0222 9/64"-40*4) ------------------------------------------------------------------------------------

結線鉤

Retainer Lopper ( For Thick Thread Usage )-----------------------------------------------------------------------------------

螺絲

Screw (FT1222 M4-0.7*5) ------------------------------------------------------------------------------

針

UO113 #18 Needle ----------------------------------------------------------------------------------------

螺絲

Screw (S04-65 1/8"-44*2.5) -------------------------------------------------------------------------

螺絲

Screw(FT0548 M3-0.5*4) --------------------------------------------------------------------------------------

導針器

Needle Guide -------------------------------------------------------------------------------------------------

序 號 物 料 編 號 名 稱 單位用量

Ref.No. Parts No. Description Amt. Req.

1 -------------­2 -------------­3 66729-14
4 -------------­5 -------------­6 -------------­7 2310001807
8 --------------

9 -------------­10 5231UL0001
11 --------------

*12 8MC75180403E

13 8MN03200300A
14 8MN04280400A
15 8MP03200606A
16 8SE36400806A
17 8SC44400909S
18 8SB32440605A
19 8SC36400705K
20 8SB36401205K
21 5231NG0001
22 5231NG0002
23 --------------

23-A -------------­23-B 5231PF0401B
23-C 5231PF0401C
23-D 5231PF0401D
23-E 5231PF0401E
23-F 8MB04281007K
23-G 8MN04281000A
23-H 8MA04280307A

24 --------------

24-A -------------­24-B -------------­24-C 5231PF0404C
24-D 5231PF0404D
24-E 5231PF0404E
24-F 5231PF0404F
24-G 5231PF0404G
24-H 5231PF0404H

24-I 5231PF0404I
24-J 8MB85240607K

25 8MB95301107A
26 8MB85240406K
27 8MB03200304M
28 2310001828
29 8SN36400400E
30 5231LL0004
31 8MN04280500C

**32 66729-18

33 8SH32440300A

*34 8MB03200405A
*35 ---------------------

1
1
1
1
1

-

­1
1

­1

-

­1
2
4
1

-

-

-

-

­1

­1
1
1

-

­2
2
1

-

­1
1
1
2
2
2
1
4
1
1
2
1

­1
1
1

­3
1

*For MT4513-MT4525 Use.

** For MT4512 Bigger Eyelet Hole

-40-

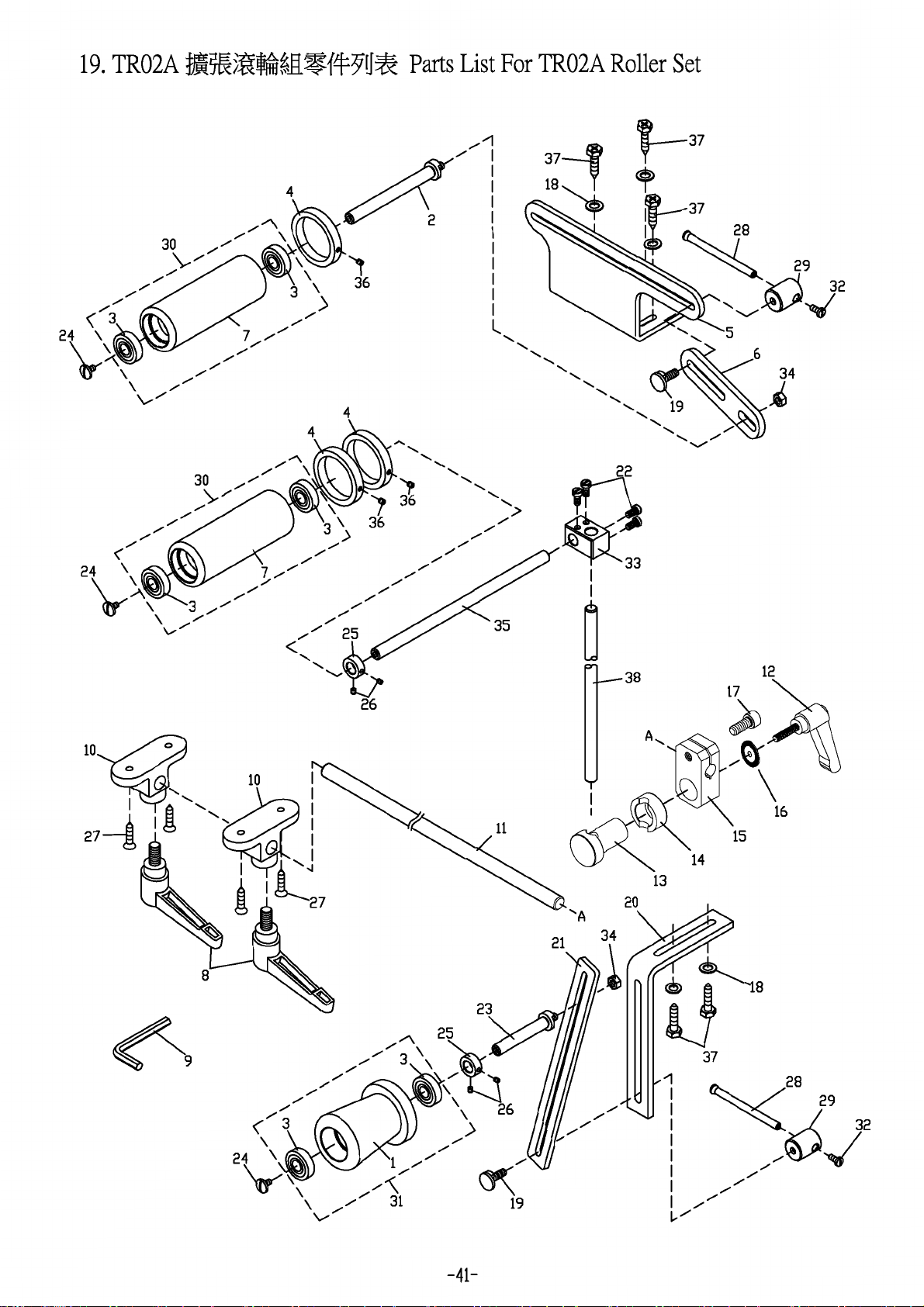

19. TR02A 擴張滾輪組零件列表 Part List For TR02A Roller Set

物 料 編 號

名 稱

單位用量

滾輪

Roller -----------------------------------------------------------------------------------------------------------

軸

Shafe --------------------------------------------------------------------------------------------------------------

滾珠軸承

Ball Bearing ------------------------------------------------------------------------------------

鬆緊帶導模

Elastic Tape Guide ------------------------------------------------------------------------------------------

滾輪座

Roller Seat ---------------------------------------------------------------------------------------------

4TR0020106

滾輪臂

Roller Holder Arm ---------------------------------------------------------------------------------------

滾輪

Roller -----------------------------------------------------------------------------------------------------------

固定鈑手

Lock Lever ---------------------------------------------------------------------------------

六角扳手

Spanner 6MM -----------------------------------------------------------------------------------------

支架座

Holder Bracket Seat -------------------------------------------------------------------------------------

4TR03A0111

支架

Holder Bracket --------------------------------------------------------------------------------------------

固定板手

Lock Lever ---------------------------------------------------------------------------------

連接塊

Connecting Block --------------------------------------------------------------------------------------------------

連接塊

Connecting Block --------------------------------------------------------------------------------------------------

連接塊

Connecting Block ----------------------------------------------------------------------------------------

墊圈

Washing ---------------------------------------------------------------------------------------------------

螺絲

Screw (CT0106 M8-1.25*20) --------------------------------------------------------------------------

墊圈

Washing ---------------------------------------------------------------------------------------------------

4TR0020119

螺樁

Stud ------------------------------------------------------------------------------------------------------------

4TR0020120

滾輪臂

Roller Holder Arm --------------------------------------------------------------------------------------

4TR0020121

滾輪臂

Roller Holder Arm --------------------------------------------------------------------------------------

螺絲

Screw (CT0233 M5-0.8*10) ----------------------------------------------------------------------------------------------

軸

Shafe --------------------------------------------------------------------------------------------------------------

螺絲

Screw (CL450424 11/64"-40*8) -----------------------------------------------------------------------

定位環

Collar ---------------------------------------------------------------------------------------------------------

螺絲

Screw (CT0923 M3.5-0.6*5) --------------------------------------------------------------------------

木螺絲

Wood Screw (CL450427) ----------------------------------------------------------------------------

柄

Handle ----------------------------------------------------------------------------------------------------------

4TR0020129

止動塊

Tension Roller Slider Stop ----------------------------------------------------------------------------------------------------

滾輪組

Roller Asm.-----------------------------------------------------------------------------------------------------------

滾輪

Roller Asm.-----------------------------------------------------------------------------------------------------------

螺絲

Screw (SH1225 11/64"-40*10) ------------------------------------------------------------------------

連接塊

Connecting Block --------------------------------------------------------------------------------------------------

螺帽

Nut (CT0533) ----------------------------------------------------------------------------------------------

支架

Holder Bracket -----------------------------------------------------------------------------------------------------------

螺絲

Screw (CT1134 M4-0.7*4) -------------------------------------------------------------------------

木螺絲

Wood Screw (CL450408) ----------------------------------------------------------------------------

支架

Holder Bracker ---------------------------------------------------------------------------------------------------------

序 號

Ref.No Parts No. Description Ａmt.Req.

1 4TR00201011
2 4TR00201021
3 90BB1026082
4 4TR0020104
5 4TR0020105
6
7 4TR00201071
8 4TR0020108

9 66641
10 4TR0020110
11
12 4TR03A0112
13 4TR03A0113
14 4TR03A0114
15 4TR03A0115
16 4TR03A0116
17 8MM08502013A
18 2200000910
19
20
21
22 8MB05321008K
23 4TR0020123
24 8SC44400812A
25 4TR0020125
26 8MH85240500A
27 8WE37002400A
28 4TR0020128
29
30 4TR002A0130
31 4TR002A0131
32 8SC44401008A
33 2200850421
34 8MA06400510A
35 2270850423
36 8MH04280400A
37 8WK45002900C
38 4TR03A0105

1
1
6
3
1
1
2
2
1
2
1
1
1
1
1
1
1
5
2
1
1
4
1
3
2
4
4
2
2
2
1
2
1
2
1
3
5
1

-42-

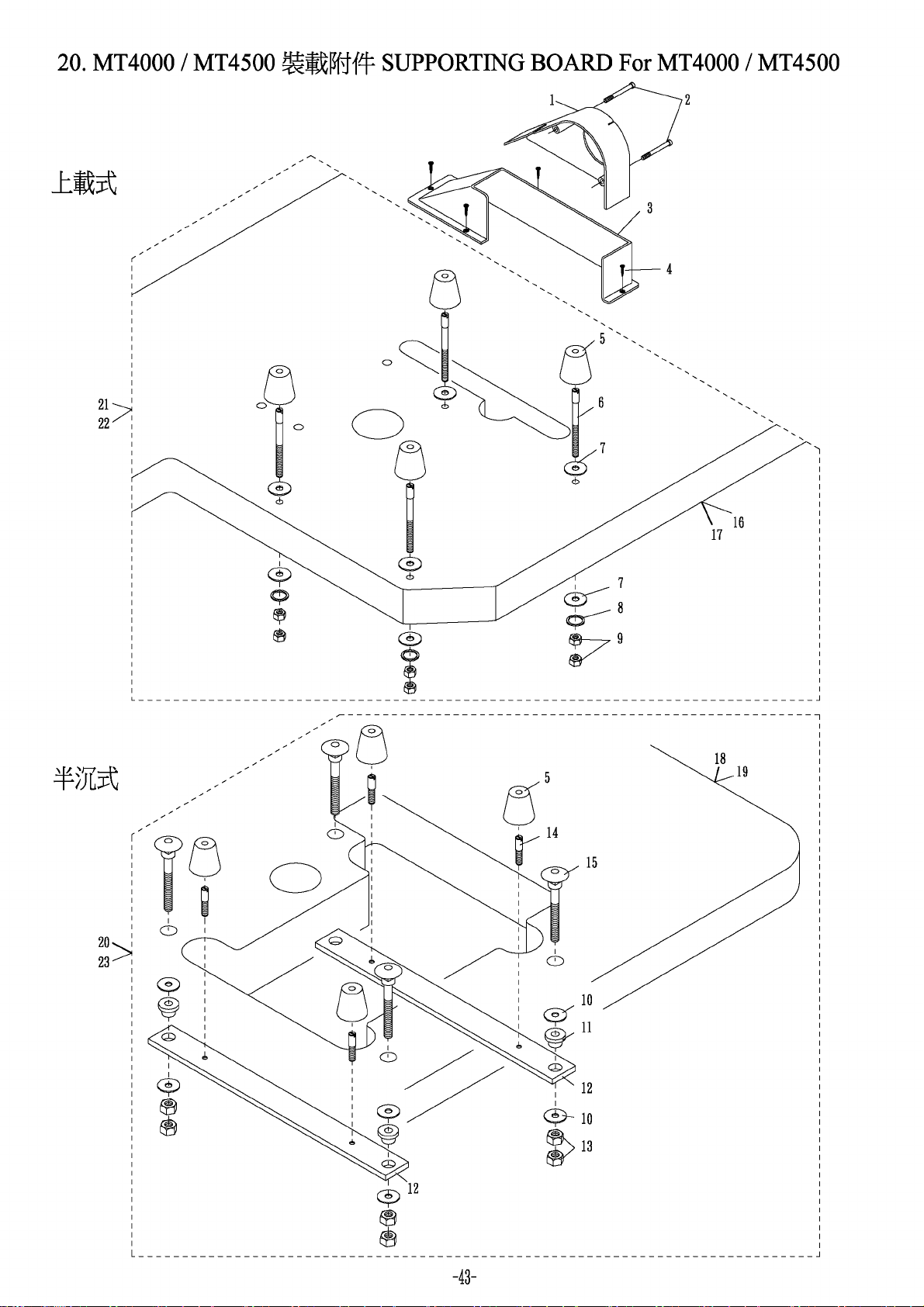

20. MT4000 / MT4500 裝載附件 Supporting Board For MT4000 / MT4500

皮帶蓋

Belt Cover --------------------------------------------------------------------------------------------------

螺絲

Screw (M6-1*56) (MT2002) --------------------------------------------------------------------------------

皮帶蓋

Belt Cover --------------------------------------------------------------------------------------------------

木螺絲

Screw (CT1516) ---------------------------------------------------------------------------------------------

減震橡膠

Rubber Cushion ------------------------------------------------------------------------------------------

螺樁

Bolt (CT1507 M6-1*65) --------------------------------------------------------------------------------------

墊圈

Washer (CT1504) ----------------------------------------------------------------------------------------------------------

彈簧墊圈

Spring Washer (CT1505) -------------------------------------------------------------------------------------------

螺帽

Nut (SH0242 M6-1*6) ----------------------------------------------------------------------------------------

墊圈

Washer ------------------------------------------------------------------------------------------------------------------------

橡膠環

Rubber Washer -----------------------------------------------------------------------------------------------------------

車頭承板

Supporting Board ------------------------------------------------------------------------------------------------------

螺帽

Nut (CT1514 5/16"-18*6) ---------------------------------------------------------------------------------------------------------------

螺樁

Stud (CT1503 M6-1*16) --------------------------------------------------------------------------------------------------------------

懸吊螺樁

Bolt -----------------------------------------------------------------------------------------------------------------------

上載式長車板

Long Table Top Type

(12-25針)------------------------------------------------------------------------------------------------

上載式短車板

Short Table Top Type

(1-25針)------------------------------------------------------------------------------------------------

半沉式車板

Semi-Submerged Type

(1-25針)------------------------------------------------------------------------------------------------

半沉式車板

Semi-Submerged Type With "PS001"Devic

(含

PS001) ------------------------------------------------------------------------------------------------

半沉式車板組

Semi-Submerged Type Asm.(1-25

針)------------------------------------------------------------------------------------------------

上載式短車板組

Short Table Top Type Asm.

(1-25針)------------------------------------------------------------------------------------------------

上載式長車板組

Long Table Top Type Asm.

(12-25針)------------------------------------------------------------------------------------------------

半沉式車板

Semi-Submerged Type With "PS001"Devic Asm.

(含

PS001) ------------------------------------------------------------------------------------------------

序 號 物 料 編 號 名 稱 單位用量

Ref.No. Parts No. Description Amt. Req.

1 2310002001

2 8MB06405609S

3 2310002003

4 8WF03131706A

5 66944

6 8MB06406507B

7 2200001504

8 90SW070

9 8MA06400612A
10 2200001510
11 2200001511
12 2310002012
13 8SA79180613A
14 8MB06401607M
15 8SC79187827B

●16 66816-2
17 66816-3

●18 66816-4

●19 66816-5

●20 FS004
21 FS005

●22 FS006

●23 FS007

1
2
1
4
4
4
8
4
8
8
4
2
8
4
4

-

-

-

-

-

-

-

-

● 特註品 Custom-made Item

-44-

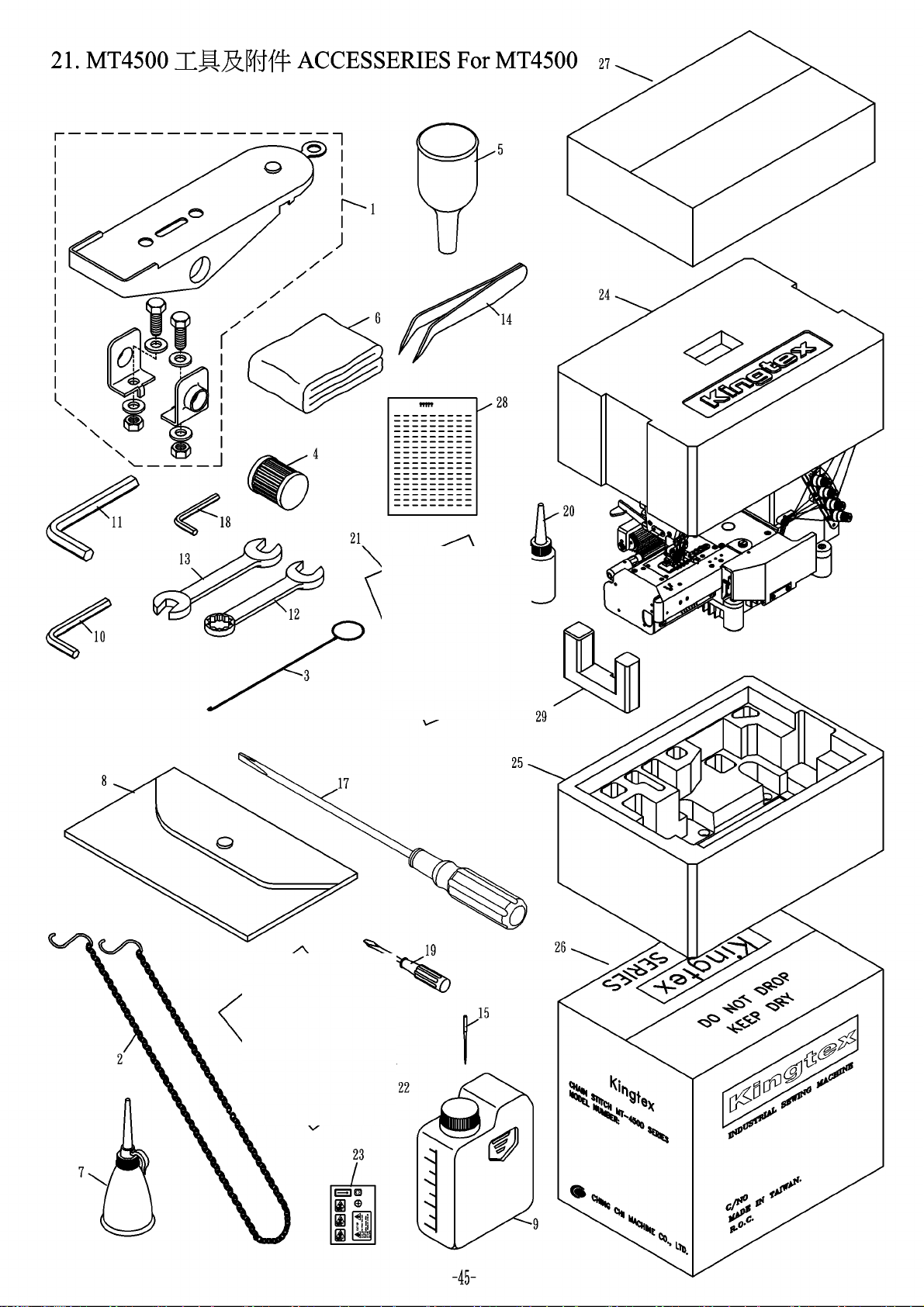

21. MT4500 工具及附件 Accesseries For MT4500

踏板組

Pedel Complete -------------------------------------------------------------------------------------------

鍊條組

Chain Set --------------------------------------------------------------------------------------------------

穿線鋼絲

Threading Bar -----------------------------------------------------------------------------------------

過濾器

Oil Filter (SH1521)----------------------------------------------------------------------------------------------------

漏斗

Oil Funnel ----------------------------------------------------------------------------------------------------

防塵罩

Mechine Cover -------------------------------------------------------------------------------------------

油壺

Oiler ------------------------------------------------------------------------------------------------------------

工具袋

Bag (AM-6751)----------------------------------------------------------------------------------------------------------

油罐

Oil Container -------------------------------------------------------------------------------------------------

六角扳手

Spanner 3MM -----------------------------------------------------------------------------------------

六角扳手

Spanner 4MM -----------------------------------------------------------------------------------------

梅花扳手

Wrench 10MM ----------------------------------------------------------------------------------------

開口扳手

Wrench 7/8MM ---------------------------------------------------------------------------------------

鑷子

Tweezer --------------------------------------------------------------------------------------------------------

備用針

UO113 #12 Retainer Needle ------------------------------------------------------------------------------------------

------------------------------------------------------------------------------------------------------------------

木柄一字起子

Wooden Handle Flat Screw Driver -------------------------------------------------------------------------------

六角扳手

Spanner 1.5MM (UTB0439) ------------------------------------------------------------------------

小起子

Screw Driver (Small) ------------------------------------------------------------------------------------

矽油

Silicon Oil -----------------------------------------------------------------------------------------------------

零件冊

Parts List ---------------------------------------------------------------------------------------------------

使用說明書

Instruction Manual ---------------------------------------------------------------------------------

貼紙

Paster -----------------------------------------------------------------------------------------------------------

保利龍

Styroform --------------------------------------------------------------------------------------------------

66746-2

保利龍

Styroform --------------------------------------------------------------------------------------------------

紙箱

Carton ---------------------------------------------------------------------------------------------------------

附件盒紙箱

Carton ------------------------------------------------------------------------------------------------

保質保證書

Guarautee -------------------------------------------------------------------------------------------

保利龍

Styroform --------------------------------------------------------------------------------------------------

序 號 物 料 編 號 名 稱 單位用量

Ref.No. Parts No. Description Amt. Req.

1 66700
2 66695
3 66840
4 2100001521
5 66720
6 66846
7 66721
8 66831

9 66715
10 66636
11 66637
12 66612
13 66613
14 66690
15 66729-14-5
16 -------------------­17 66671
18 66639
19 66667
20 66722
21 6MT6306-1-03-05
22 6MT62E6-1-03-05
23 66452
24 66746-1
25
26 66411
27 66411-1
28 66200
29 66746-3

1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

­1
1
1
1
1
1
1
1
1
1
1
1
1

-46-
