Kingston SV200S3 User Manual
SSD
S50 SERIES
STORE
SILENT
UPGRADE
SOLID-STATE DRIVE
FAST
V200
DURABLE
DESKTOP
NOTEBOOK
SOLID-STATE DRIVE
SECURE
FLASH
SSDNOW
UPGRADE
PERFORMANCE
NOTEBOOK
S S D N OW

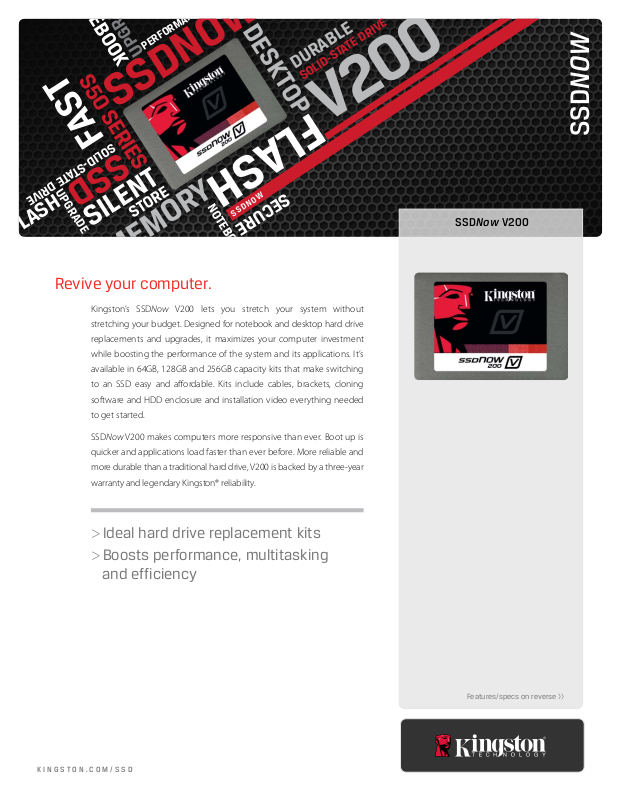

Revive your computer.
Kingston’s SSDNow V200 lets you stretch your system without
stretching your budget. Designed for notebook and desktop hard drive
replacements and upgrades, it maximizes your computer investment
while boosting the performance of the system and its applications. It’s
available in 64GB, 128GB and 256GB capacity kits that make switching
to an SSD easy and aordable. Kits include cables, brackets, cloning
software and HDD enclosure and installation video everything needed
to get started.
SSDNOW
SSDNow V200
SSDNow V200 makes computers more responsive than ever. Boot up is
quicker and applications load faster than ever before. More reliable and
more durable than a traditional hard drive, V200 is backed by a three-year
warranty and legendary Kingston® reliability.
> Ideal hard drive replacement kits
> Boosts performance, multitasking
and efficiency
Features/specs on reverse >>
KINGSTON.COM/SSD
SSDNOW
V SERIES
SSD
UPGRADE
SILENT
MEMORY
MEMORY
STORAGE
SOLID-STATE DRIVE
FLASH
SSDNow V200
FEATURES/BENEFITS
> Faster — boots system and applications faster
> Reliable — with no moving parts, solid-state drives are less
likely to fail than a standard hard drive
> Convenient — all-in-one kits with all the components
for easy installation
> Multiple capacities — to t your needs
> Form Factor — 2.5-inch drive available in both 7.0mm
(64GB & 128GB only) & 9.5mm (256GB) to t more systems
> Silent — runs silent and cool
SPECIFICATIONS
> Form factor 2.5"
> Interface SATA Rev. 3.0 (6Gb/s) – with backwards compatibility
to SATA Rev. 2.0
> Capacities
> Sequential Reads 64GB — 260MB/s
128GB — 300MB/s
256GB — 300MB/s
> Sequential Writes
128GB — 190MB/s
256GB — 230MB/s
> Sustained Random 4k Read/Write
64GB — up to 39K/ up to 3.3k IOPS
128GB — up to 38K/ up to 5.5K IOPS
256GB — up to 32K/ up to 4K IOPS
> Power Consumption 2.0 W (TYP) Idle / 4.8 W (TYP) Write
> Storage temperatures -40°C ~ 85°C
> Operating temperatures 0°C ~ 70°C
> Dimensions 64 and 128GB — 69.8mm x 100.1mm x 7mm
256GB — 69.8mm x 100.1mm x 9.5mm
> Weight 64GB & 128GB — 88g
256GB — 105.2g
> Vibration operating 2.17G Peak (7–800Hz)
> Vibration non-operating 20G Peak (10–2000Hz)
> Life expectancy 1 million hours MTBF
> Warranty/support three-year warranty with
free technical support
> Total Bytes Written (TBW)
64GB: 18TB
128GB:36TB
256GB:36TB
Test System: Intel DP67BG M otherboard, Intel 2 500K CPU, 4GB System Mem ory. SSD tested as prima ry drive with
results bas ed on “out-of-box” p erformance.
This SSD is design ed for use in des ktop and noteb ook computer w orkloads , and is not intende d for Serve r
environments.
1 Please note: Som e of the listed ca pacity on a Fl ash storage de vice is used for fo rmatting a nd other func tions
and thus is not ava ilable for data s torage. As su ch, the actu al available c apacity fo r data storag e is less than
what is listed o n the produc ts. For more in formation, g o to Kingston’s Flash m emory Gui de at kingston .com/
ash_memory_guide.
2 Based on “out- of-box per formance ” with ATTO Disk Ben chmark 2.41. Speed may var y due to host ha rdware,
software, and usage.
3 Based on “out-of-box per formance” with IOMeter.
4 Operatin g system soft ware support: W indows® 7, Windows Vista® (SP2), Wind ows XP (SP3)
5 Total Bytes Wri tten (TBW) refer s to how much total data can be wr itten to an SSD for a given work load before
the drive reac hes its endurance lim its.
THIS DOCUME NT SUBJECT TO CHANGE WI THOUT NOTICE.
©2012 Kingston Technology Co rporatio n. 17600 Newhope Stre et, Fountain Vall ey, CA 92708 USA. All rights
reserve d. All trademark s and registered trad emarks are the prop erty of their res pective owner s. MKD -206.3US
1
64GB, 128GB, 256GB
2
64GB —100MB/s
5
3
KINGSTON PART NUMBERS
SV200S37A/64G
SV200S37A/128G
SV200S3/256G
SV200S3D7/64G
SV200S3D7/128G
SV200S3D/256G
SV200S3N7A/64G
SV200S3N7A/128G
SV200S3N/256G
SV200S3B7A/64G
SV200S3B7A/128G
SV200S3B/256G
Stand-alone drive
Stand-alone drive
Stand-alone drive
Desktop upgrade kit
Desktop upgrade kit
Desktop upgrade kit
Notebook upgrade kit
Notebook upgrade kit
Notebook upgrade kit
Desktop/Notebook upgrade kit
Desktop/Notebook upgrade kit
Desktop/Notebook upgrade kit
PACKAGE CONTENTS
Desktop Kit
– 3.5" Bracket & Mounting Screws
– SATA Data & Power Cables
4
– Hard Drive Cloning Software
– Installation Guide
Notebook Kit
– 2.5" USB Enclosure
– Hard Drive Cloning Software
– Installation Guide
4
